Marin
Marin Gestalt Gravel Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

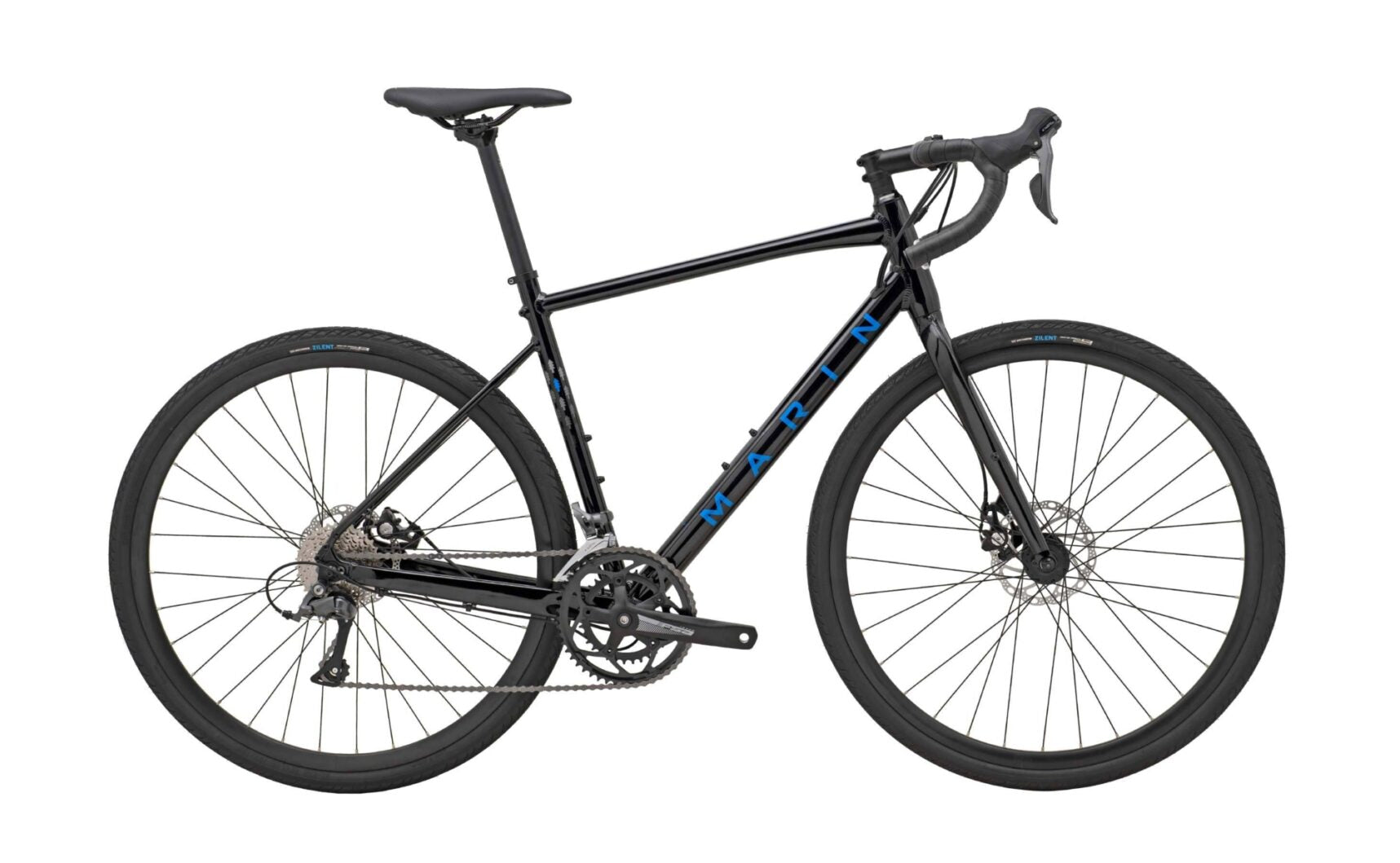

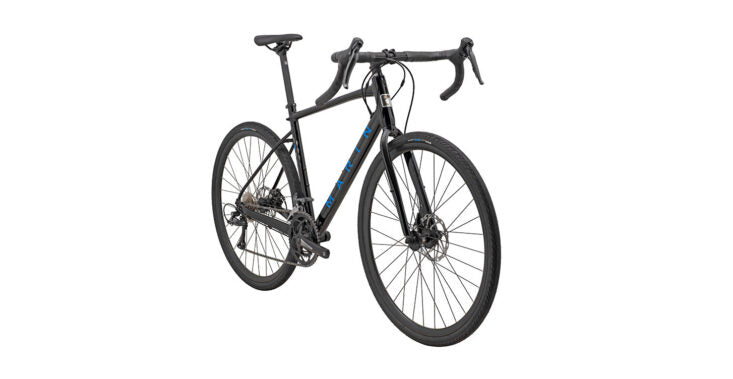

Marin Gestalt Gravel Bike
Black / 50cm
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609ADVENTURE ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT
The Gestalt is for the drop bar rider that doesn’t want to stick to pavement, and can’t help but get dirty no matter the route. Long distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour.
Updated for 2023, with a 0.5° slacker headtube angle and increased tire clearance (up to 700x45mm).
Specifications
| Frame | Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts |
|---|---|
| Fork | 6061 Aluminum, Straight-Blade, Post-Mount Disc |
| Headset | FSA No.8B |
| Rims | Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific |
| Rear Hub | Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Front Hub | Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tyres | Vee Tire Co., Zilent, 700x35 |
| Rear Derailleur | Shimano Claris 8-Speed |
| Front Derailleur | Shimano Claris |
| Shifters | Shimano Claris 2x8-Speed |
| Crankset | FSA Tempo Compact, 50/34T |
| Bottom Bracket | Sealed Bearing Square Taper |
| Chain | KMC Z8 |
| Cassette | SunRace 8-Speed, 11-32T |
| Front Brake | Tektro MD-C40 Road Mechanical Disc, 160mm Rotor |
| Rear Brake | Promax Render R Road Mechanical Disc |
| Handlebar | Marin Butted Alloy, Compact 12º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin Perforated Tape |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Pedals | Commute Platform |
Geometry
| 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| A. Stack | 552 | 568 | 582 | 601 | 620 | 641 |
| B. Reach | 367 | 372 | 377 | 387 | 402 | 404 |
| C. Headtube Angle | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 |
| D. Headtube Length | 120 | 135 | 150 | 170 | 190 | 210 |
| E. Seattube Angle | 74.5 | 74 | 73.5 | 73.5 | 73.5 | 73 |
| F. Seattube Length | 460 | 480 | 500 | 520 | 540 | 560 |
| G. Toptube Effective | 520 | 535 | 550 | 565 | 585 | 600 |
| H. BB Height | 276 | 276 | 276 | 276 | 276 | 276 |
| I. BB Drop | 78 | 78 | 78 | 78 | 78 | 78 |
| J. Chainstay | 432 | 432 | 432 | 432 | 432 | 432 |
| K. Wheelbase | 1008 | 1014 | 1024 | 1040 | 1060 | 1070 |
| L. Standover Height | 714 | 732 | 755 | 775 | 794 | 814 |
| M. Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | |||||
| Handlebar Width | 420 | 420 | 440 | 440 | 460 | 460 |
| Stem Length | 70 | 70 | 90 | 90 | 110 | 110 |
| Crank Length | 170 | 170 | 175 | 175 | 175 | 175 |
