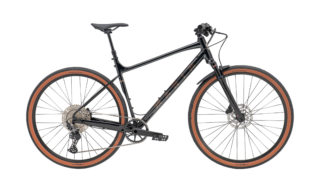

Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.
Specifications
| Frame | Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Handlebars | Marin Mini Riser |
| Grips | Marin MTB |
| Rims | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Hubs | Forged Aluminum, 100x12mm, Disc, 32H / Forged Aluminum, 142x12mm, Disc Specific, 32H |
| Tyres | Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible |
| Shifter | Shimano Deore, SLM6100, 12-Speed |
| Rear Derailleur | Shimano Deore, RD6100, 12-Speed |
| Crankset | Forged Aluminium, 42T Steel Narrow Wide Chainring |
| Cassette | SunRace, 12-Speed, 11-51T |
| Chain | KMC X12 |
| Bottom Bracket | Sealed Outboard Bearing |
| Brakes | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor |
| Seatpost | Marin Alloy |
| Saddle | Marin DSX |
| Pedals | Nylon Platform |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| Reach | 380 | 405 | 420 | 435 |
| Headtube Angle | 69.5 | 69.5 | 69.5 | 69.5 |
| Headtube Length | 120 | 150 | 180 | 210 |
| Seattube Angle | 74 | 74 | 74 | 74 |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube (Effective) | 536.1 | 569.2 | 592.2 | 615.3 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Wheelbase | 1024.42 | 1060 | 1085.4 | 1110.9 |
| BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
| BB Drop | 80 | 80 | 80 | 80 |
| Standover | 658.76 | 700.51 | 730.39 | 758.5 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Stem Length | 70 | 70 | 70 | 70 |
| Handlebar Width | 680 | 680 | 680 | 680 |
| Crank Length | 170 | 175 | 175 | 175 |
