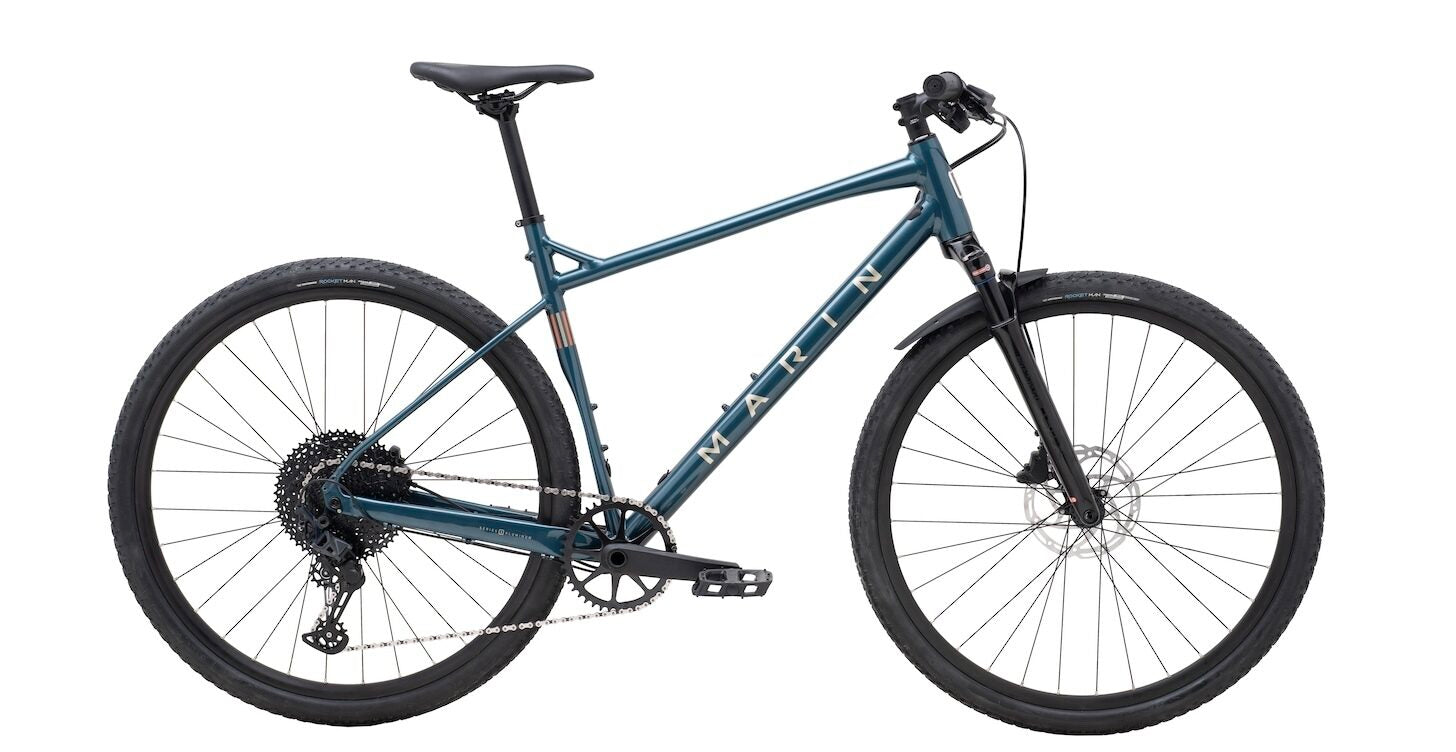

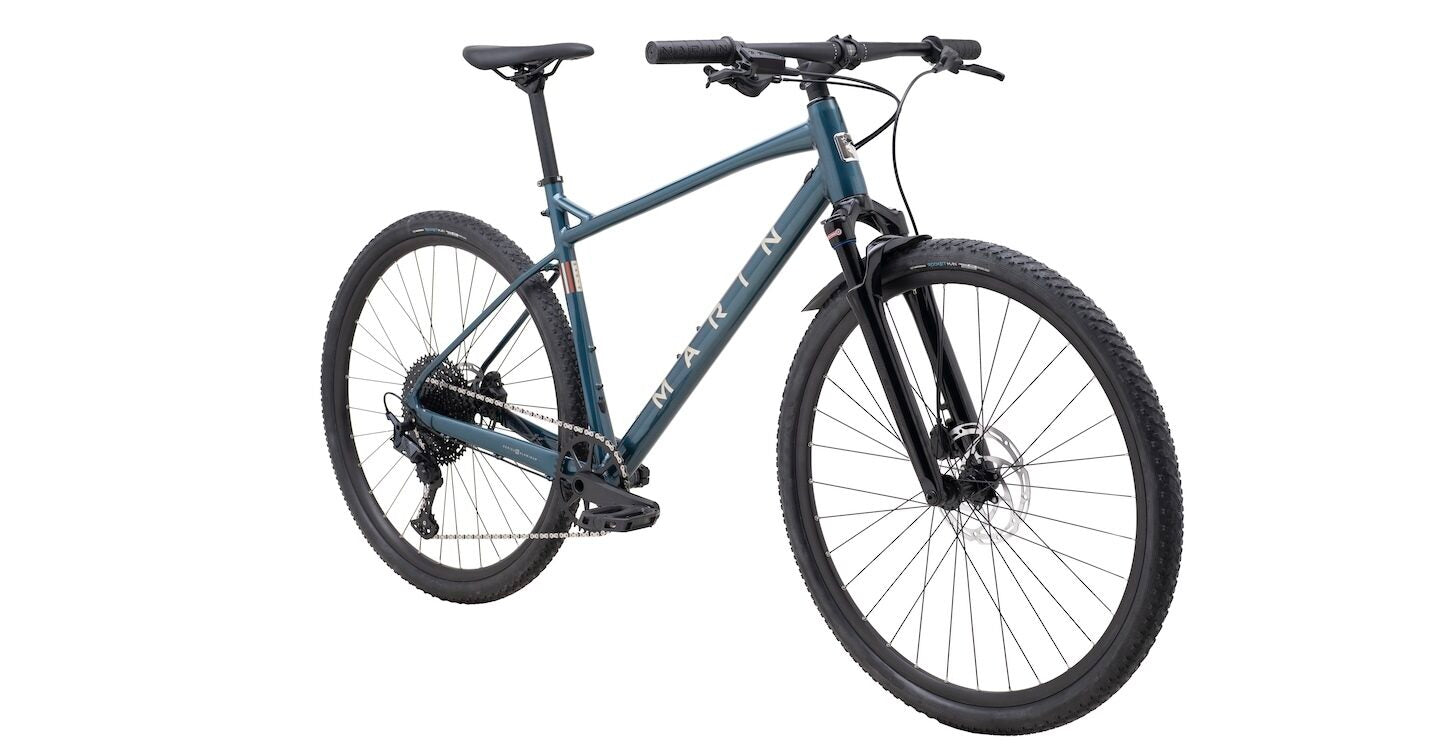

Marin DSX FS Gravel Bike
Color
Size
Click & Collect
Marin DSX FS Gravel Bike
Blue / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The Marin DSX is everything you want from a modern, flat-bar gravel bike.
Zippy aluminum frames, compliant forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Taking inspiration from the Gestalt X drop bar line, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.
Perfect for racking up road miles, daily grinds to work, multi-day epics and flowy singletrack, the DSX is the perfect modern gravel bike for riders that prefer their bars flat.
Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.
- SR/Suntour GVX LOR suspension fork with 60mm travel & air spring
- Shimano SLX 12-speed drivetrain
Specifications
| Frame | Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Handlebars | Marin Mini Riser |
| Grips | Marin MTB |
| Rims | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Aluminum, 100x12mm, Disc, 32H |
| Rear Hub | Forged Aluminum, 142x12mm, Disc Specific, 32H |
| Tyres | Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible |
| Shifter | Shimano Deore, SLM6100, 12-Speed |
| Rear Derailleur | Shimano SLX, RD7100, 12-Speed |
| Crankset | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| Cassette | SunRace, 12-Speed, 11-51T |
| Chain | KMC X12 |
| Bottom Bracket | Sealed Outboard Bearing |
| Front Brake | Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor |
| Rear Brake | Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor |
| Seatpost | Marin Alloy |
| Saddle | Marin DSX |
| Pedals | Nylon Platform |
| Extras | Bolt-On Thru-Axles F and R |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 583.2 | 601.8 | 629.7 | 657.6 |
| Reach | 400 | 425 | 440 | 455 |
| Headtube Angle | 68.5 | 68.5 | 68.5 | 68.5 |
| Headtube Length | 100 | 120 | 150 | 180 |
| Seattube Angle | 74 | 74 | 74 | 74 |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube (Effective) | 567.23 | 597.6 | 620.6 | 643.6 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Wheelbase | 1065 | 1097.3 | 1123.3 | 1149.3 |
| BB Height | 277.5 | 277.5 | 277.5 | 277.5 |
| BB Drop | 82 | 82 | 82 | 82 |
| Standover | 667 | 708 | 738 | 761 |
| Fork Offset | 47 | 47 | 47 | 47 |
Sizing
| Size | Rider Height (FT) | Rider Height (CM) |
|---|---|---|
| S | 5'3" - 5'6" | 160cm - 168cm |
| M | 5'6" - 5'10" | 168cm - 178cm |
| L | 5'10" - 6'2" | 178cm - 188cm |
| XL | 6'2" - 6'5" | 188cm - 195cm |
SERIES 3 FRAME
The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
The DSX (base) model utilizes a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.
TIRE CLEARANCE
The DSX comes stock with 700x45mm tires, with room for 29x2.1”
knobbies.
DISC BRAKES
The DSX features the latest flat mount disc brake standard
for smooth, controlled stopping in all conditions with minimal
maintenance.
DROPPER POST ROUTING
Dropper posts are quickly becoming standard fare for gravel racers
and riders that spend significant time on rough surfaces, and the
DSX features internal dropper post routing for easy upgrades.
