Marin DSX 1 Gravel Bike 2026
Color:
Color
Size:
Size
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Marin DSX 1 Gravel Bike 2026
Green / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Hopping up to a higher-spec Series 3 aluminum frame and a carbon fibre fork, the DSX 1 is lighter and slightly stiffer than the base model bike. There’s also an 11-speed 1X Tektro drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.
Specifications
| Frame | Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount |
|---|---|

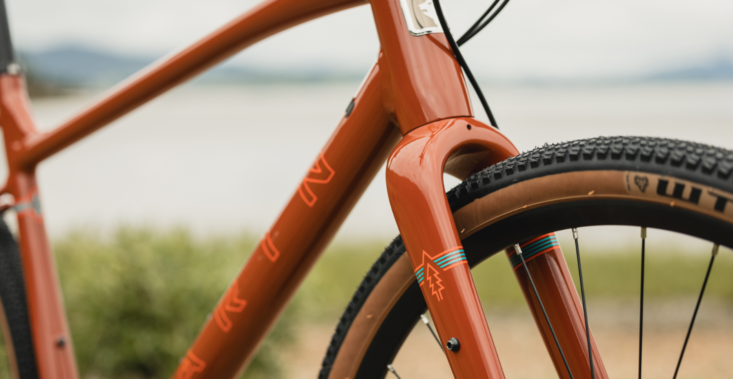

| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Handlebars | Marin Mini Riser |
| Grips | Marin MTB |
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Spokes | 14g Black Stainless Steel |
| Hubs | Forged Aluminum Alloy, Disc, 32H |
| Tyres | WTB Riddler, 700Cx45mm |
| Shifter | Tektro Gemini, SL-M5100, 11-speed |

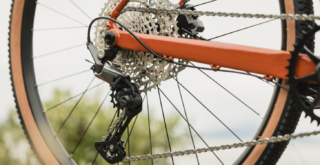

| Rear Derailleur | Tektro Gemini, SL-M5100, 11-speed |
| Crankset | Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring |
| Cassette | CS-M5100, 11-Speed, 11-50T |
| Chain | KMC X9 |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |

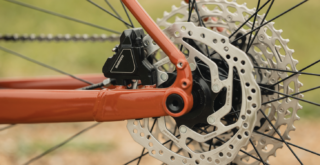

| Brakes | Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor |
| Seatpost | Marin Alloy |
| Saddle | Marin DSX |
| Pedals | Nylon Platform |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| Reach | 380 | 405 | 420 | 435 |
| Headtube Angle | 69.5 | 69.5 | 69.5 | 69.5 |
| Headtube Length | 120 | 150 | 180 | 210 |
| Seattube Angle | 74 | 74 | 74 | 74 |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube (Effective) | 536.1 | 569.2 | 592.2 | 615.3 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Wheelbase | 1024.42 | 1060 | 1085.4 | 1110.9 |
| BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
| BB Drop | 80 | 80 | 80 | 80 |
| Standover | 658.76 | 700.51 | 730.39 | 758.5 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Stem Length | 70 | 70 | 70 | 70 |
| Handlebar Width | 680 | 680 | 680 | 680 |
| Crank Length | 170 | 175 | 175 | 175 |
