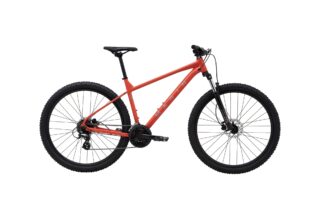

Marin Bolinas Ridge 2 Hardtail Mountain Bike
Red / M - 27.5"
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The perfect blend of performance, value and fun, the Marin Bolinas Ridge is ideal for riders that are new to mountain biking or simply want a low-hassle, low-cost bike to explore off-road.
With a lightweight aluminum frame, a trail-capable suspension fork, MTB tires and all-conditions disc brakes, the Bolinas Ridge has everything you need to break out onto the trails and push your own boundaries.
The Bolinas Ridge 2 is our upgraded Bolinas, stepping up the fun and the components. The Bolinas Ridge 2 gets an upgrade to Clark’s Hydraulic disc brakes and features a SR/Suntour suspension fork, reliable and grippy off-road tires and plenty of kick-ass Marin components. The Bolinas is ideal to break out onto the trails and push your own boundaries.
Depending on size, the Bolinas Ridge comes with either smaller 27.5” (sizes XS to M) wheels or larger (sizes M to XL) wheels to guarantee a perfect fit.
Key upgrades over the Bolinas Ridge 1:
- Shimano Altus 3x8 drivetrain
- Clark's hydraulic disc brakes
- SR/Suntour XCM DS fork
Specifications
| Frame | Series 1 6061 Aluminum, 27.5”/29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes |
|---|---|
| Fork | SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset |
| Headset | FSA No.10-P |
| Stem | Marin Alloy, 31.8mm, 45mm |
| Handlebars | Marin 31.8 Riser, 12mm Rise, 780mm Width |
| Grips | Marin MTB, Closed End |
| Rims | Marin, Double Wall Alloy |
| Spokes | Black Stainless Steel |
| Front Hub | Forged Alloy, Disc, 32H |
| Rear Hub | Forged Alloy, Disc, 32H |
| Tyres | MTB, 27.5/29x2.25" |
| Shifter | Shimano Altus 3x8-Speed |
| Rear Derailleur | Shimano Altus, 8-Speed |
| Front Derailleur | Shimano FD-TY700 |
| Crankset | Alloy Crank, Steel Chainrings, 42/34/24T |
| Cassette | SunRace 8-Speed, 11-34T |
| Chain | KMC Z8 |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Front Brake | Tektro HDM275 Hydraulic Disc, 160mm Rotor |
| Rear Brake | Tektro HDM275 Hydraulic Disc, 160mm Rotor |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin MTB |
| Pedals | Nylon Platform |
| Extras |
Geometry
| XS | S | M - 27.5" | M - 29" | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Stack | 586 | 592 | 596 | 622 | 626 | 631 | 640 |
| Reach | 420 | 435 | 445 | 445 | 465 | 485 | 505 |
| Headtube Angle | 67.5 | 67.5 | 67.5 | 67 | 67 | 67 | 67 |
| Headtube Length | 100 | 105 | 110 | 110 | 115 | 120 | 130 |
| Seattube Angle | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| Seattube Length | 330 | 381 | 431 | 431 | 481 | 520 | 559 |
| Toptube (Effective) | 583 | 599 | 610 | 617 | 639 | 660 | 683 |
| Chainstay Length | 438 | 438 | 438 | 455 | 455 | 455 | 455 |
| Wheelbase | 1124 | 1141 | 1153 | 1184 | 1206 | 1228 | 1252 |
| BB Height | 307 | 307 | 307 | 311.5 | 311.5 | 311.5 | 311.5 |
| BB Drop | 48 | 48 | 48 | 61 | 61 | 61 | 61 |
| Standover | 619 | 639 | 686 | 699 | 726 | 760 | 790 |
| Fork Offset | 42 | 42 | 42 | 46 | 46 | 46 | 46 |
SERIES 1 ALUMINUM FRAME
The Bolinas Ridge series has a disc specific Series 1 6061 aluminum
frame with a replaceable derailleur hanger and an integrated
headset.
29” OR 27.5” WHEELS
The Bolinas Ridge has a growing wheel size for the best fit and
performance with the choice of 27.5” or 29” platforms on the size M,
27.5” wheels on size S, and 29” wheels on sizes L, XL, and XXL.
DISC BRAKES
All Bolinas Ridge models feature disc brakes for minimal
maintenance and all-conditions stopping power.
TRAIL READY COMPONENTS
The Bolinas Ridge line features durable double wall rims, serviceable
cassette freehubs, proven Shimano drivetrains, and readily available
parts that are built to last.
