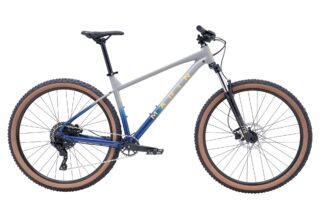

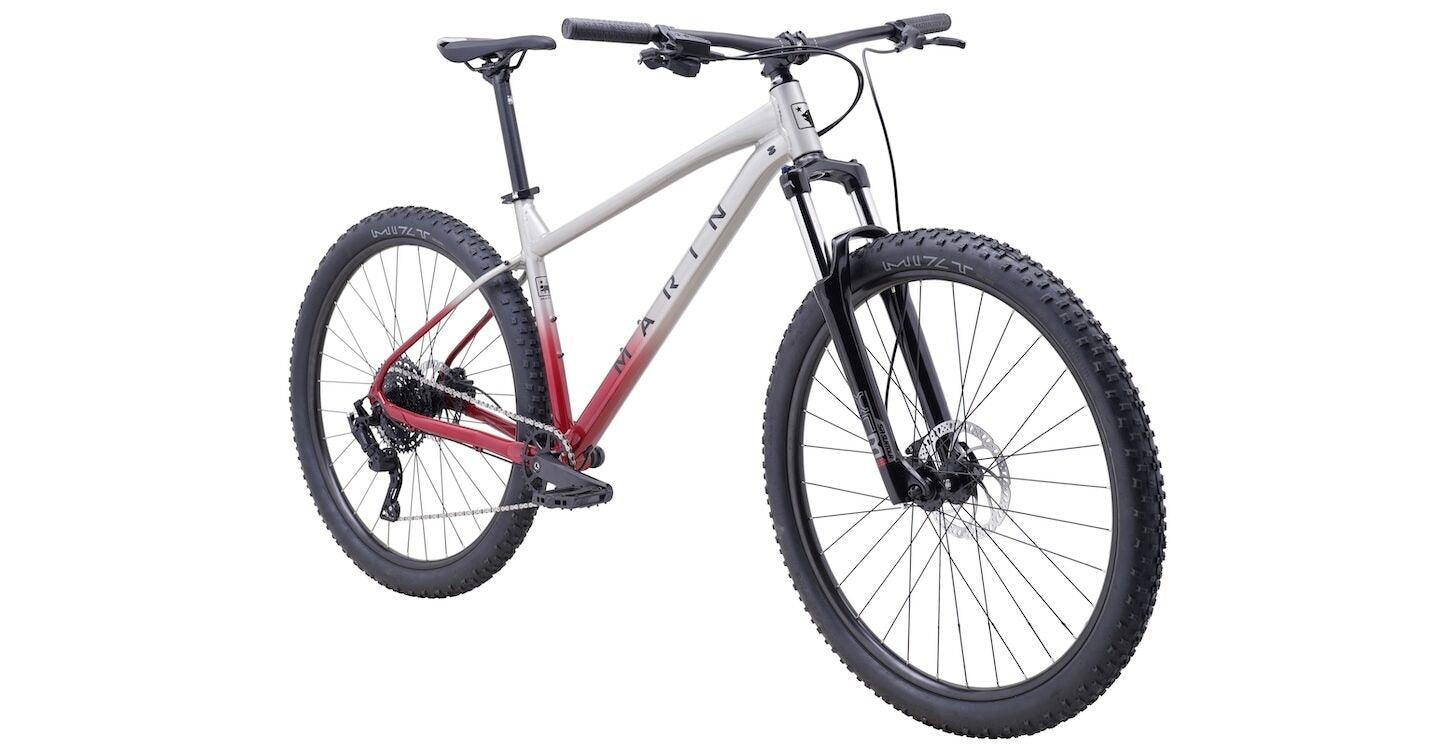

Marin Bobcat Trail 3 Hardtail Mountain Bike
Color
Size
Click & Collect
Marin Bobcat Trail 3 Hardtail Mountain Bike
Grey/Blue / M - 27.5"
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.
Super capable, super fun, super value. The Marin Bobcat Trail is your perfect gateway to mountain biking, combining quality components, a lightweight aluminum frame and trail-ready geometry. The Bobcat is available with 27.5” and 29” wheels, depending on frame size, and all models feature hydraulic disc brakes and wide-range, trail-friendly drivetrains.
Specifications
| Frame | Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing |
|---|---|
| Fork | SR/Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset |
| Headset | FSA No.10-P |
| Stem | Marin Alloy, 31.8mm Clamp, 45mm |
| Handlebars | Marin 31.8 Riser, 12mm Rise, 780mm Width |
| Grips | Marin MTB, Closed End |
| Rims | Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Alloy, Disc, 32H |
| Rear Hub | Forged Alloy, Disc, 32H |
| Tyres | MTB, 27.5/29x2.25" |
| Shifter | microSHIFT Advent 9 Trail |
| Rear Derailleur | microSHIFT Advent 9, Clutch |
| Crankset | Alloy Crank, Steel Narrow-Wide Chainring, 32T |
| Cassette | SunRace 9-Speed, 11-46T |
| Chain | KMC X9 |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |

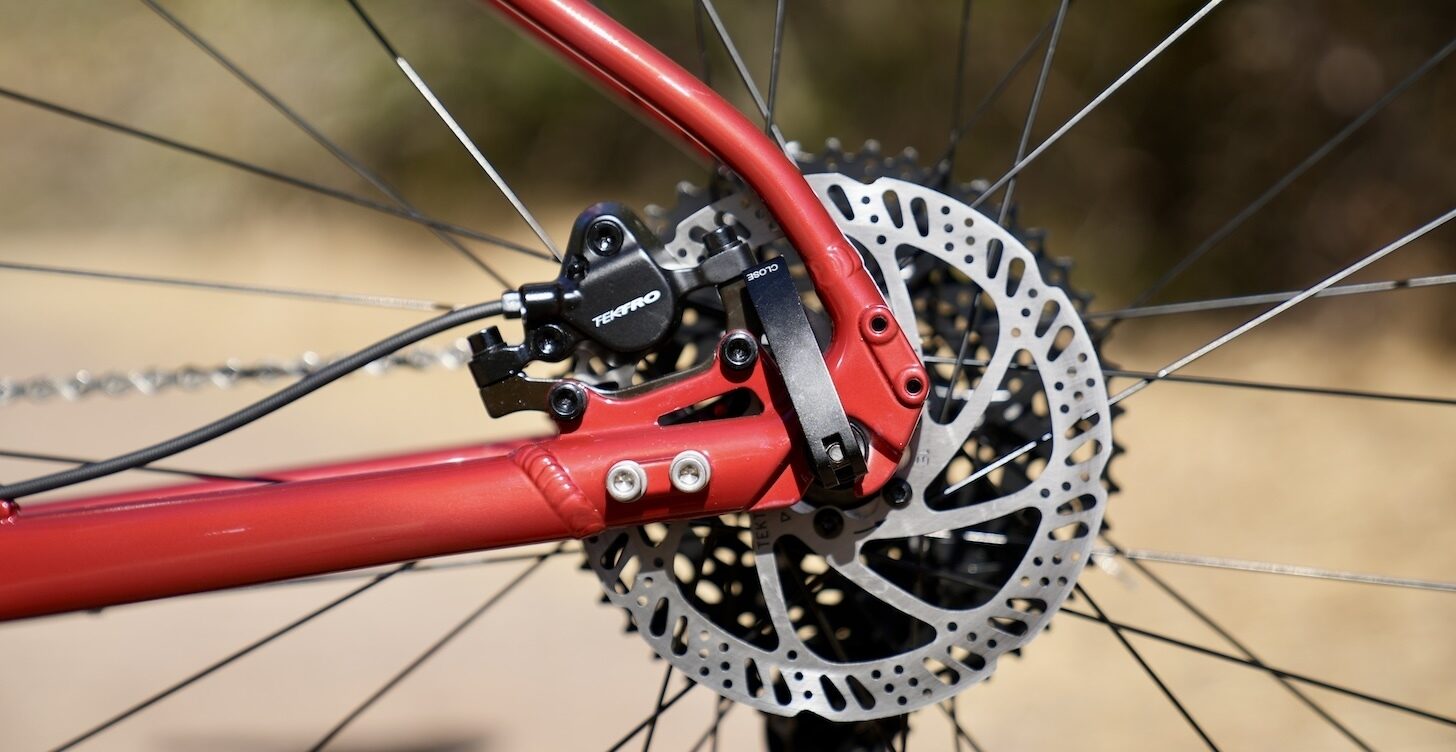

| Front Brake | Tektro M280 Hydraulic Disc, 180mm Rotor |
| Rear Brake | Tektro M280 Hydraulic Disc, 160mm Rotor |
| Seatpost | Marin Alloy, 30.9 |
| Saddle | Marin MTB |
| Pedals | Nylon Platform |
| Extras |
Geometry
| XS | S | M - 27.5" | M - 29" | L | XL | |
|---|---|---|---|---|---|---|
| Stack | 599 | 603 | 608 | 635 | 639 | 644 |
| Reach | 430 | 445 | 455 | 455 | 475 | 495 |
| Headtube Angle | 66.5 | 66.5 | 66.5 | 66 | 66 | 66 |
| Headtube Length | 100 | 105 | 110 | 110 | 115 | 120 |
| Seattube Angle | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| Seattube Length | 330 | 381 | 431 | 431 | 482 | 520 |
| Toptube (Effective) | 596 | 612 | 623 | 631 | 652 | 673 |
| Chainstay Length | 415 | 415 | 415 | 430 | 430 | 430 |
| Wheelbase | 1127 | 1144 | 1156 | 1186 | 1208 | 1230 |
| BB Height | 307 | 307 | 307 | 311.5 | 311.5 | 311.5 |
| BB Drop | 48 | 48 | 48 | 61 | 61 | 61 |
| Standover | 620 | 640 | 690 | 704 | 732 | 760 |
| Fork Offset | 42 | 42 | 42 | 46 | 46 | 46 |

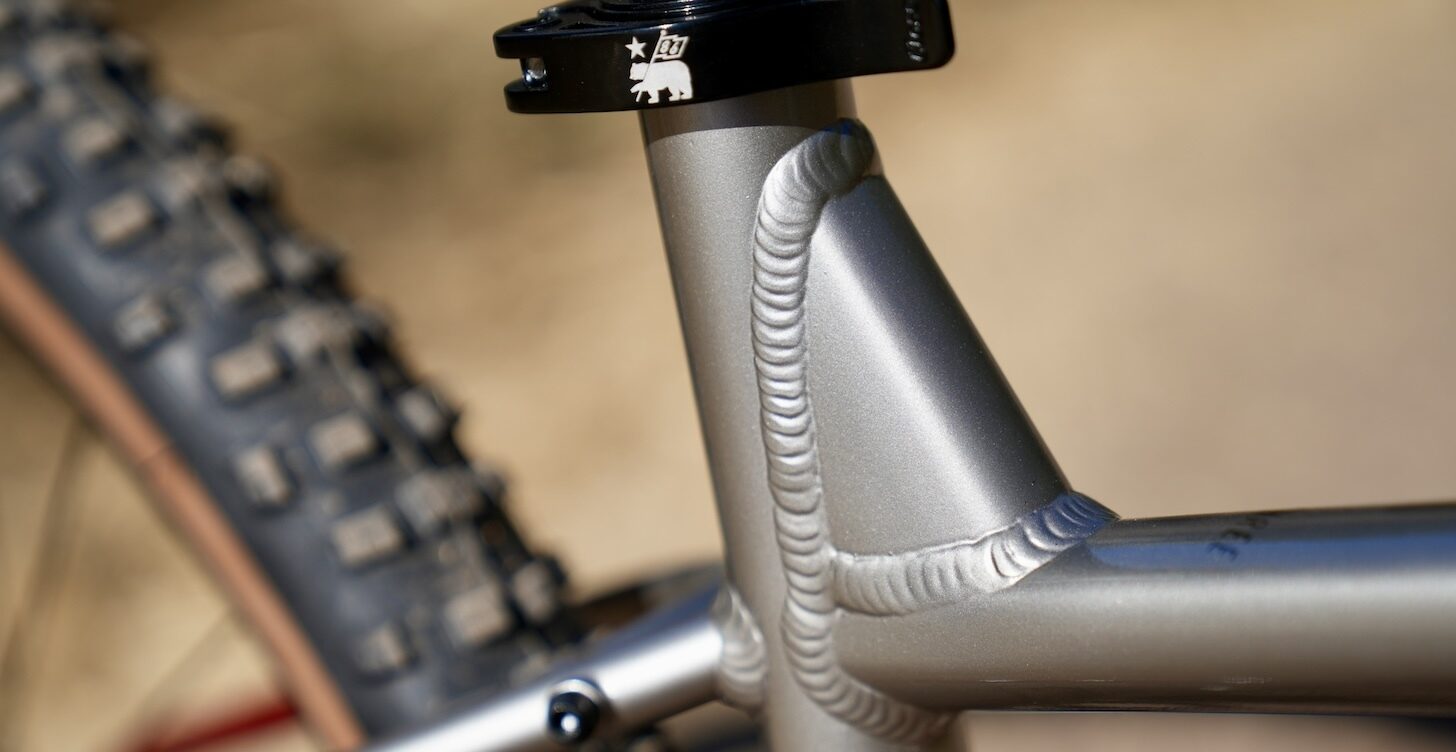

SERIES 2 ALUMINUM FRAME
The Bobcat Trail has a Series 2 6061 butted and hydroformed aluminum frame with a 120mm travel suspension fork and 27.5” or 29” wheels depending on size and preference.
29” OR 27.5” WHEELS
The Bobcat Trail has a growing wheel size strategy for the best fit and performance with the choice of 27.5” or 29” platforms on the size M, 27.5” wheels on sizes XS and S, and 29” wheels on sizes L, XL, and XXL.
TRAIL GEOMETRY
All Bobcat Trail models feature Marin Trail geometry, featuring a long-ish reach, low standover, slack head tube, and steep seat tube angles, giving riders confidence and predictable handling to have a blast on the trail.

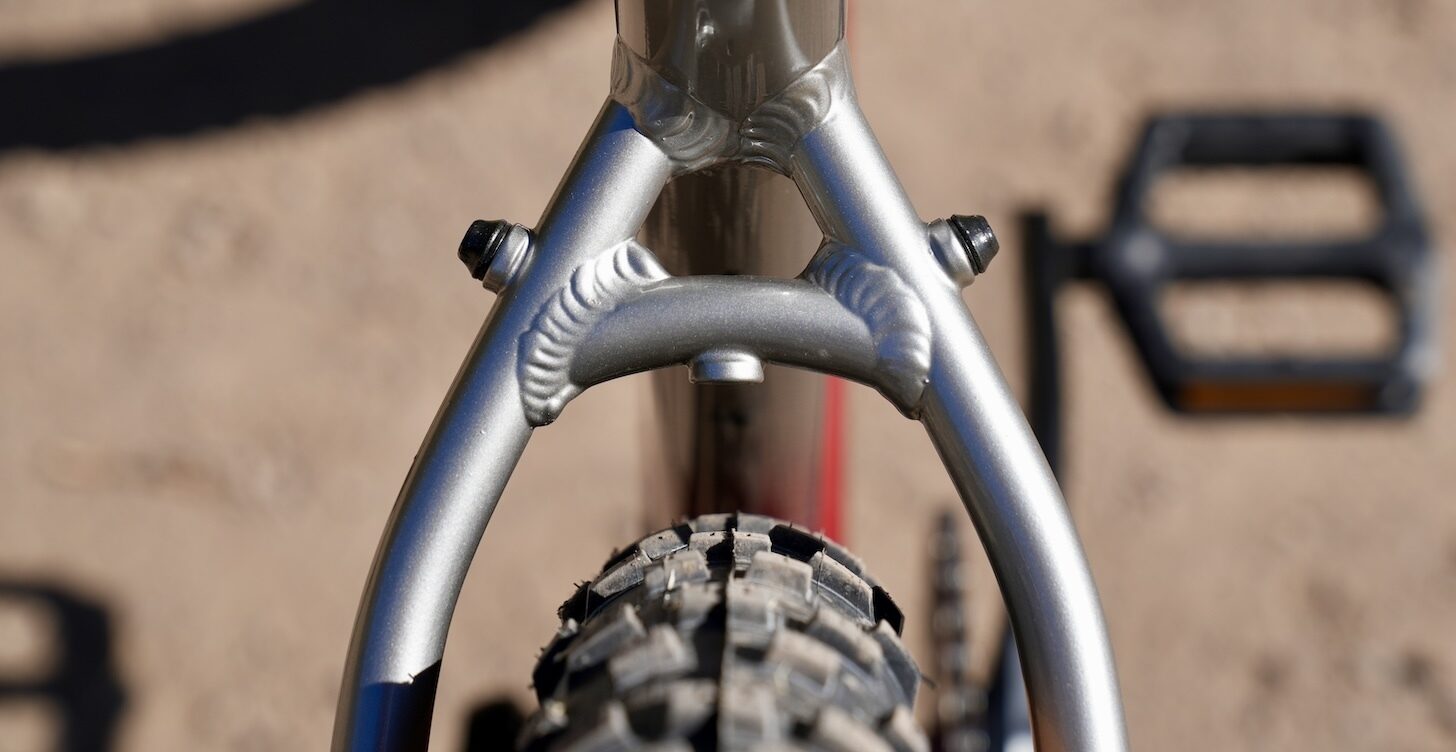

FASTBACK SEATSTAY DESIGN
Fastback seatstays add vertical compliance without sacrificing power transfer, and feature rack mounts for extended trail adventures.

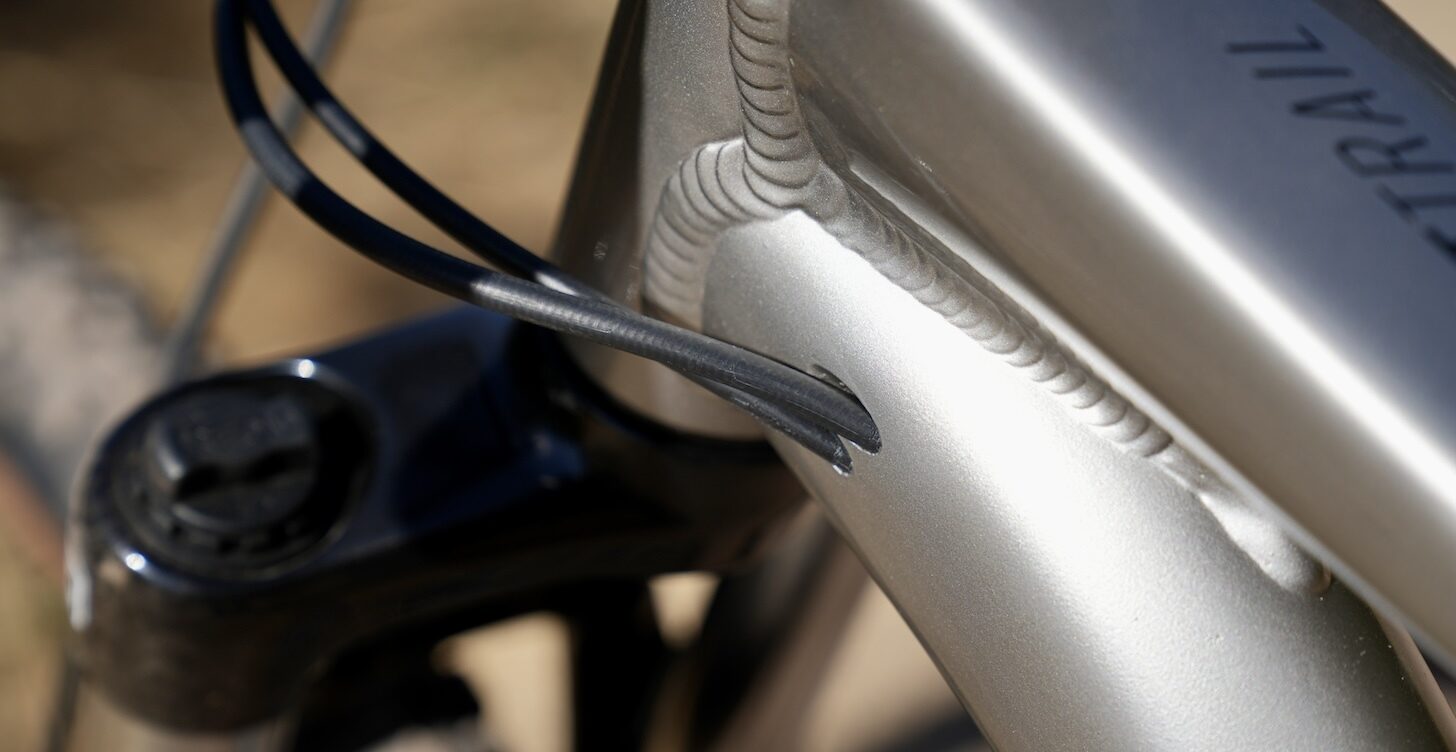

INTERNAL DROPPER COMPATIBLE
Bobcat Trail models have a 30.9mm seatpost and internal cable routing ports for future dropper post compatibility.
