Marin Bayview Trail 24'' Kids Bike
Color:
Color
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

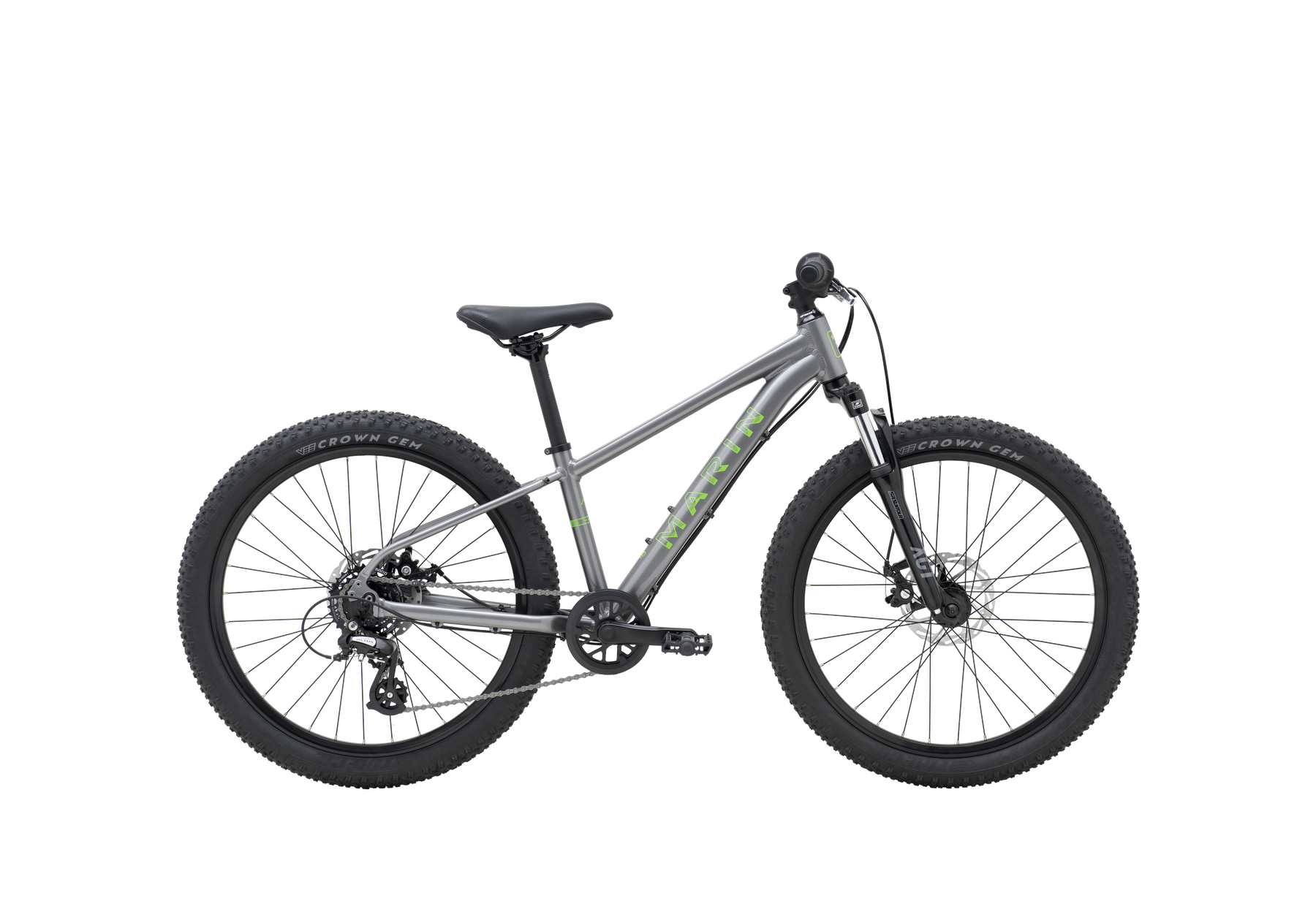

Marin Bayview Trail 24'' Kids Bike
Grey/Green
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Bayview Trail 24” and Hidden Canyon 20” bikes are built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.
Specifications
| Frame | Series 1 6061 Aluminium, 24" Wheels, IS Seatstay Disc Mount, 135mm Dropouts |
|---|---|
| Fork |
SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel |
| Rims | Marin, Double Wall Alloy |
| Rear Hub |
Formula, 32H |
| Front Hub | Formula, 32H |
| SpokesS | 14g Stainless Steel |
| Tyres | Vee Tire Crown Gem, 24", Wire Bead |
| Rear Derailleur |
Shimano Altus, 7-Speed |
| Shifter | Shimano Revo Twist 1x7-Speed |
| Crankset | Forged Alloy, 30T, 152mm, Ring Guard |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Chain | KMC Z8 |
| Cassette | Shimano HG-200 7-Speed, 11-32T |
| Brakes |
Tektro MDM280 Mechanical Disc, 160mm Rotor |
| Rear Brake | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Handlebars | Marin Riser, 30mm Rise, 590mm Width |
| Stem |
Marin Alloy, 60mm |
| Grips | Marin Dual Density |
| Headset | FSA, Threaded |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Kids MTB |
| Pedals | Kids Specific Nylon Pedal |
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| ONE SIZE | |
|---|---|
| STACK | 502.75 |
| REACH | 331.92 |
| HEADTUBE ANGLE | 70° |
| HEADTUBE LENGTH | 105 |
| SEATTUBE ANGLE | 73° |
| SEATTUBE LENGTH | 321 |
| TOPTUBE EFFECTIVE | 485 |
| BB HEIGHT | 283 |
| BB DROP | 25 |
| CHAINSTAY | 400 |
| WHEELBASE | 946.97 |
| STANDOVER HEIGHT | 581.19 |
| FORK OFFSET | 40 |
| SEATPOST DIAMETER | 27.2 |
| HANDLEBAR WIDTH | 590 |
| STEM LENGTH | 70 |
| CRANK LENGTH | 152 |
All lengths in millimeters
