Marin
Marin Bayview Trail 20'' Kids Bike
Color
Availability
Click & Collect

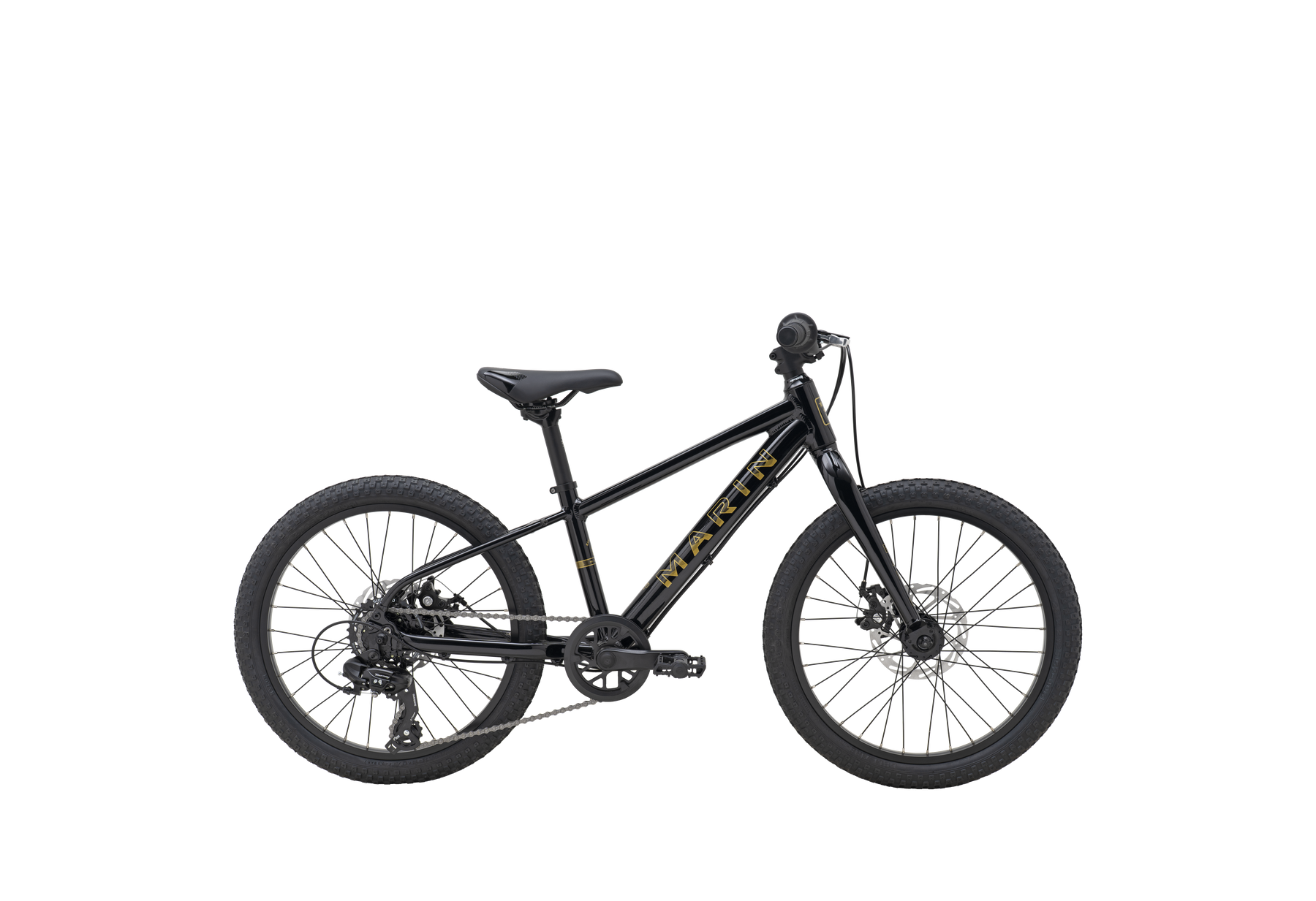

Marin Bayview Trail 20'' Kids Bike
Black/Gold
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609FUN!
The Bayview Trail 24" and 20" bikes are built to get kids hooked on riding with quality components and fun graphics that will last for years of neighbourhood and bike park service.
SPECIFICATIONS
| Frame | Series 1 6061 Aluminum, 20” Wheels, IS Seatstay Disc Mounts, 135mm Dropouts |
|---|---|
| Fork |
Steel Rigid Fork, 100mm Spacing, QR Lever |
| Rims | Marin, Double Wall Alloy |
| Rear Hub |
Formula, 32H |
| Front Hub | Formula, 32H |
| Spokes | 14g Stainless Steel |
| Tyres | Multi Surface, 20”x2.125” |
| Rear Derailleur |
Shimano Tourney, 7-Speed |
| Shifter | Shimano Revo Twist 1x7-Speed |
| Crankset | Forged Alloy, 36T, 140mm, Ring Guard |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Chain | KMC Z8 |
| Cassette | Shimano, CSHG200, 7-Speed, 11-32T |
| Brakes |
Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Brake Levers | Kids Specific Short Reach Alloy Lever |
| Handlebars | Marin Riser, 30mm Rise, 580mm Width |
| Stem |
Marin Alloy, 40mm |
| Grips | Marin Dual Density |
| Headset | FSA, Threaded |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Kids MTB |
| Pedals | Kids Specific Nylon Pedal |
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| ONE SIZE | |
|---|---|
| STACK | 439.39 |
| REACH | 297.66 |
| HEADTUBE ANGLE | 70 |
| HEADTUBE LENGTH | 105 |
| SEATTUBE ANGLE | 73 |
| SEATTUBE LENGTH | 308 |
| TOPTUBE EFFECTIVE | 432 |
| BB HEIGHT | 232 |
| BB DROP | 25 |
| CHAINSTAY | 380 |
| WHEELBASE | 862.79 |
| STANDOVER HEIGHT | 511.66 |
| FORK OFFSET | 33 |
| SEATPOST DIAMETER | 27.2 |
| HANDLEBAR WIDTH | 590 |
| STEM LENGTH | 45 |
| CRANK LENGTH | 140 |
All lengths in millimeters
TECHNOLOGY
ALUMINUM FRAME AND DISC BRAKES
Lightweight Series 1 6061 aluminum frames with replaceable derailleur hangers and disc brakes with size-appropriate brake levers for comfort and control.
SHIMANO DRIVETRAIN
The durable Shimano 7-speed drivetrain has the gear choices kid need to tackle trails in an easy to master package with a single front chainring and intuitive twist shifter.
