+3532840609The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.

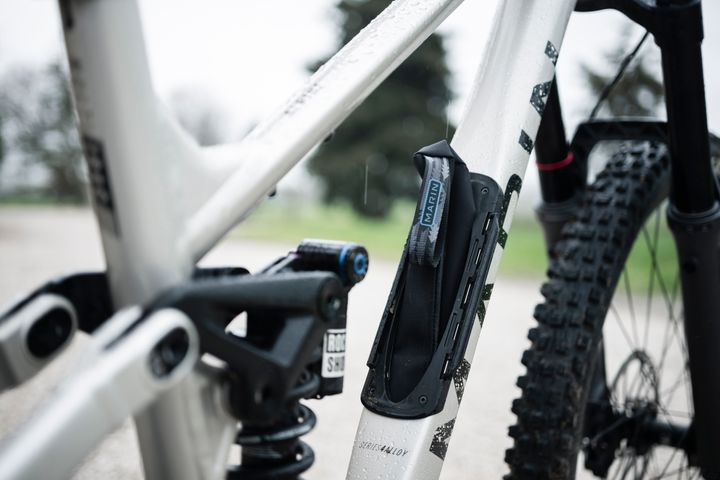

Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.
"XR" = "Xtra Rad" here at Marin, and like the XR models that have preceded the new Alpine Trail, we created a model for the more discriminating rider. We focused our efforts on building a bike with high performance RockShox Ultimate-level suspension, a SRAM GX Eagle Lunar 12-speed drivetrain and DB8 4-piston brakes - all equipment that helps the rider level up, but without blowing the budget. Don't forget the Maxxis rubber and our proprietary CNC machined 35mm stem and matching Trail Bar.
Specifications
| Frame | All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork | RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset |
| Rear Shock | RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, S/M = 350 lbs, L/XL = 450 lbs |
| Headset |
FSA Custom Headset, Adjustable HTA Design |

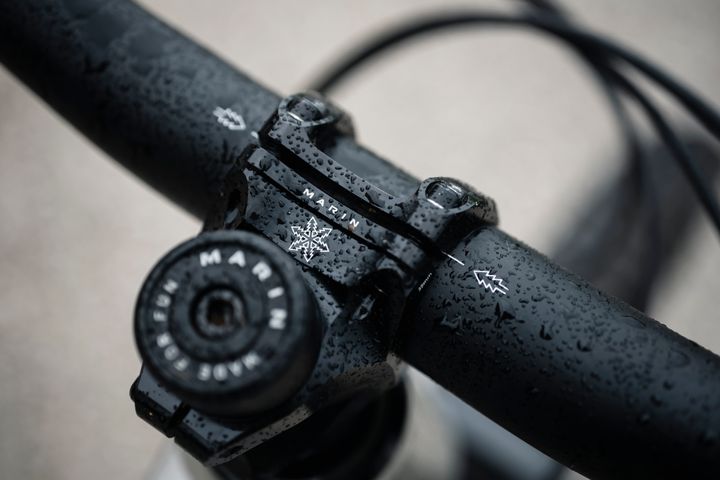

| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Handlebars | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Grips | Marin Grizzly Lock-On |
| Rims | Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Rear Hub | Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H |
| Front Hub | Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h |
| Spokes | 14g Black Stainless Steel |
| Tyres | Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible |
| Shifter | SRAM GX Eagle Lunar MMX Mount |
| Rear Derailleur | Sram GX Eagle Lunar 12spd |
| Crankset | SRAM GX Eagle, 32T, 55MM CL, 170MM Length |
| Cassette | SRAM XG 1275 Eagle Cassette 10-52T |
| Chain | SRAM NX Eagle |
| Bottom Bracket | SRAM DUB MTB 73 |
| Front Brake | SRAM DB8 4-Piston Hydraulic Disc , HSC 200mm Rotor |
| Rear Brake | SRAM DB8 4-Piston Hydraulic Disc , HSC 180mm Rotor |
| Brake Levers | SRAM DB8 Hydraulic Disc |
| Seatpost | TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm |
| Saddle | Marin Speed Concept |
| Extras | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 620 | 634 | 643 | 647 |
| Reach | 430 | 460 | 490 | 520 |
| Headtube Angle | 63.5 | 63.5 | 63.5 | 63.5 |
| Headtube Length | 100 | 115 | 125 | 130 |
| Seattube Angle | 79 | 79 | 79 | 79 |
| Seattube Length | 400 | 420 | 430 | 460 |
| Toptube (Effective) | 556 | 592 | 626 | 659 |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Wheelbase | 1211 | 1248 | 1283 | 1318 |
| BB Height | 352 | 352 | 352 | 352 |
| BB Drop | 24/7 | 24/7 | 24/7 | 24/7 |
| Standover | 683 | 690 | 695 | 698 |
| Fork Offset | 44 | 44 | 44 | 44 |
Size Guide:
| S | M | L | XL |
|---|---|---|---|
| 160-167cm | 168-179cm | 180-187cm | 188-193cm |
Adjustable Geometry
With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, Alpine Trail aluminum riders can select 12 unique configurations to run their bikes. These configurations allow the best fine-tuning of chassis to trail conditions available. Flip chips are easy to reconfigure trailside and easily done using a 6mm hex wrench, require no additional parts, and incorporate laser-etched graphics that indicate the position of the chips. The stock 27.5” rear wheel can be swapped out for a 29” rear wheel (not included) if desired, along with changing the position of the seatstay flip chips. Furthermore, the flip chips located at the seatstay pivots alter the bottom bracket height and chainstay length (low BB/long CS setting = 345/442mm, high BB/short CS setting = 352/435mm) so that riders can perfectly dial their bike in to match the terrain they are looking to conquer.
