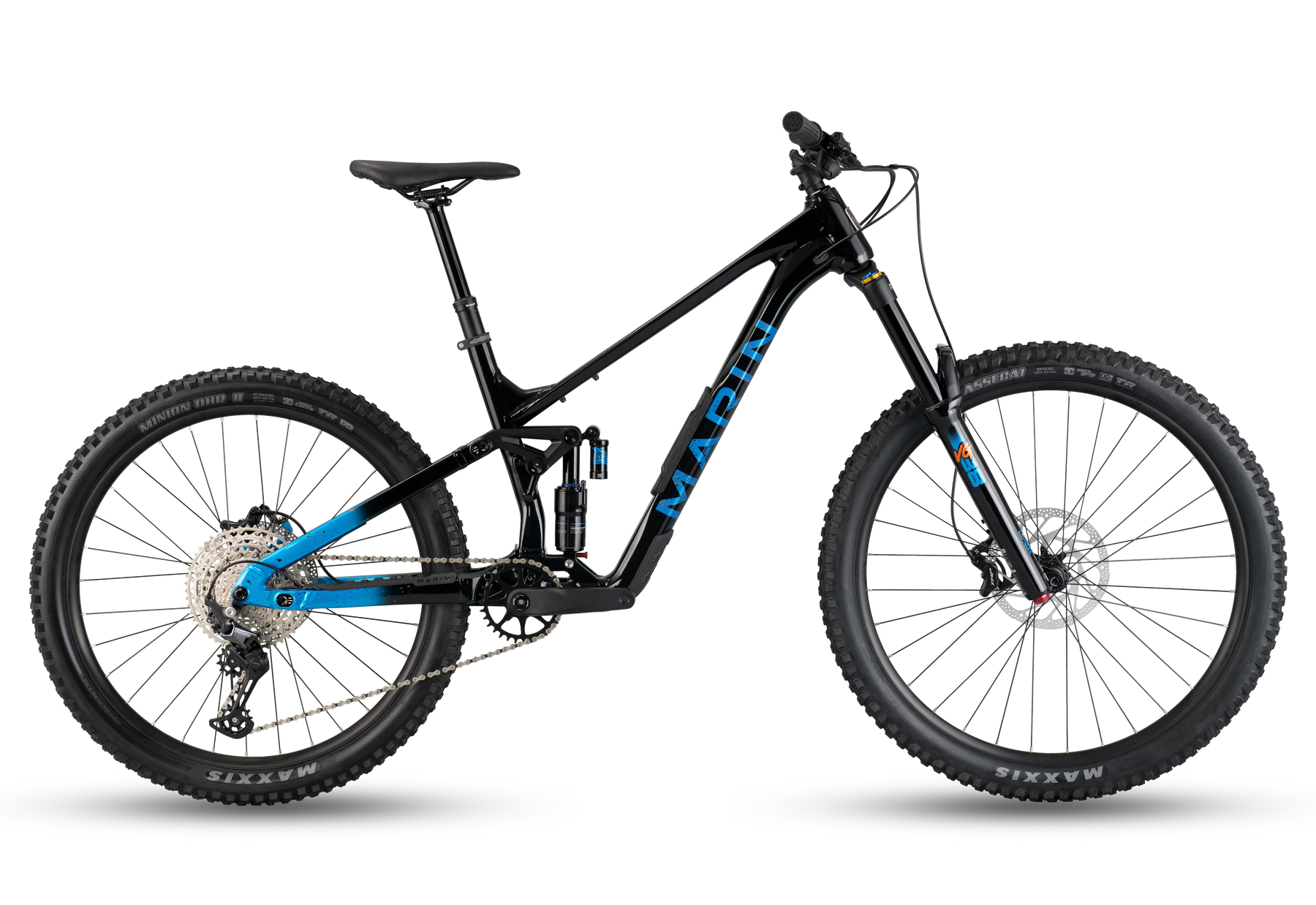

Marin Alpine Trail 1 Full Suspension Mountain Bike 2026
Color
Size
Click & Collect
Marin Alpine Trail 1 Full Suspension Mountain Bike 2026
Black/Blue / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Alpine Trail 1 is ready for it – slap turns, eat bumps and smash the rough. Shared with the range-topping XR, its Series 4 Aluminum frame has the same geometry adjustment, same 160mm MultiTrac LT suspension platform, same integrated downtube storage. It’s mixed wheel or full 29in compatible, has a UDH and ride-hushing chain slap protection. X-Fusion shocks, Shimano’s Deore drivetrain and TRP brakes are the rider’s choice.
Charge hard. Send big. Drift deep. Repeat.
The Alpine Trail 1 doesn't cut corners, it charges them. X-Fusion's Vengeance fork pumps out 170mm of travel up front, perfectly matched to the H3A rear shock's custom tune – together they're fettled for our 160mm travel MultiTrac LT suspension platform.
It's a pairing that hits way above its weight class.
The Horst-link design balances progression, support and suppleness. Whether you're railing berms, hunting for traction or just sending it to flat, the design's neutral predictability has your back.
Shimano's Deore 12-speed drivetrain shifts cleanly under pressure and handles the wildest rides. TRP's Slate Evo 4-piston brakes with 203mm rotors are the perfect power and modulation combo. The TranzX adjustable travel dropper lets you dial in your perfect fit.
It has the same Series 4 Aluminum frame as the range-topping XR – maximum enduro, zero compromises. It's built to go hard with optimized tube shapes, a redesigned rocker link and carefully engineered chainstays make it epically capable. Weather-sealed internal cable routing, SRAM's UDH, Boost axle spacing and ride-hushing chain slap protection are the premium touches your rides deserve. Integrated Bear Box downtube storage keeps trail essentials close without overloading your bag.
Mixed wheels – 29in up front, 27.5in out back – beautifully combine stability and agility, or run full 29in for the ultimate charger. Lock in your personal set-up with tunable geometry. Swap out the upper headset cup for ±0.75 degrees of adjustment – go slack for fast descents or steepen it up for tight tech. Chainstay flip chips adjust bottom bracket height and chainstay length. Your sweet spot is just a few adjustments away – The Alpine Trail 1 is ready to ride your way
Specifications
| Frame | Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork | X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle |
| Rear Shock | X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune |
| Headset | FSA Custom Headset, Adjustable HTA Design |
| Stem | Marin 3D Forged Alloy, 35mm |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Grips | Marin Grizzly Lock-On |
| Rims | New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Shimano HF-MT500B, 110x15mm, Centerlock |
| Rear Hub | Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body |
| Tyres | Front: Maxxis Assegai MAXX GRIP, 29x2.5" EXO+ Rear: Maxxis Minion DHR II, MAXXTERRA, 27.5x2.5" DoubleDown, Tubeless compatible |
| Shifter | Shimano Deore, 12-Speed, SL-6100-IR |
| Rear Derailleur | Shimano Deore, 12-Speed, SGS |
| Crankset | Samox RAC61C, Forged Alloy, 32T, 55mm CL, 165mm |
| Cassette | Shimano, Deore M6100 12-Speed, 10-51T |
| Chain | KMC X-12 Silver and Black |
| Bottom Bracket | Samox BSA Threaded |
| Front Brake | TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor |
| Rear Brake | TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor |
| Seatpost | TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm |
| Saddle | Marin Speed Concept |
| Pedals | - |
| Extras | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
Geometry

| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 620 | 634 | 643 | 647 |
| Reach | 430 | 460 | 490 | 520 |
| Headtube Angle | 63.5 | 63.5 | 63.5 | 63.5 |
| Headtube Length | 100 | 115 | 125 | 130 |
| Seattube Angle | 79 | 79 | 79 | 79 |
| Seattube Length | 400 | 420 | 430 | 450 |
| Toptube (Effective) | 556 | 592 | 626 | 659 |
| Chainstay Length | 435 | 442 | 442 | 442 |
| Wheelbase | 1211 | 1248 | 1283 | 1318 |
| BB Height | 352 | 352 | 352 | 352 |
| BB Drop | 24/7 | 24/7 | 24/7 | 24/7 |
| Standover | 683 | 690 | 695 | 698 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Seatpost Diameter | 34.9 | 34.9 | 34.9 | 34.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 160 | 160 | 160 | 160 |
Size Guide:
| S | M | L |
|---|
