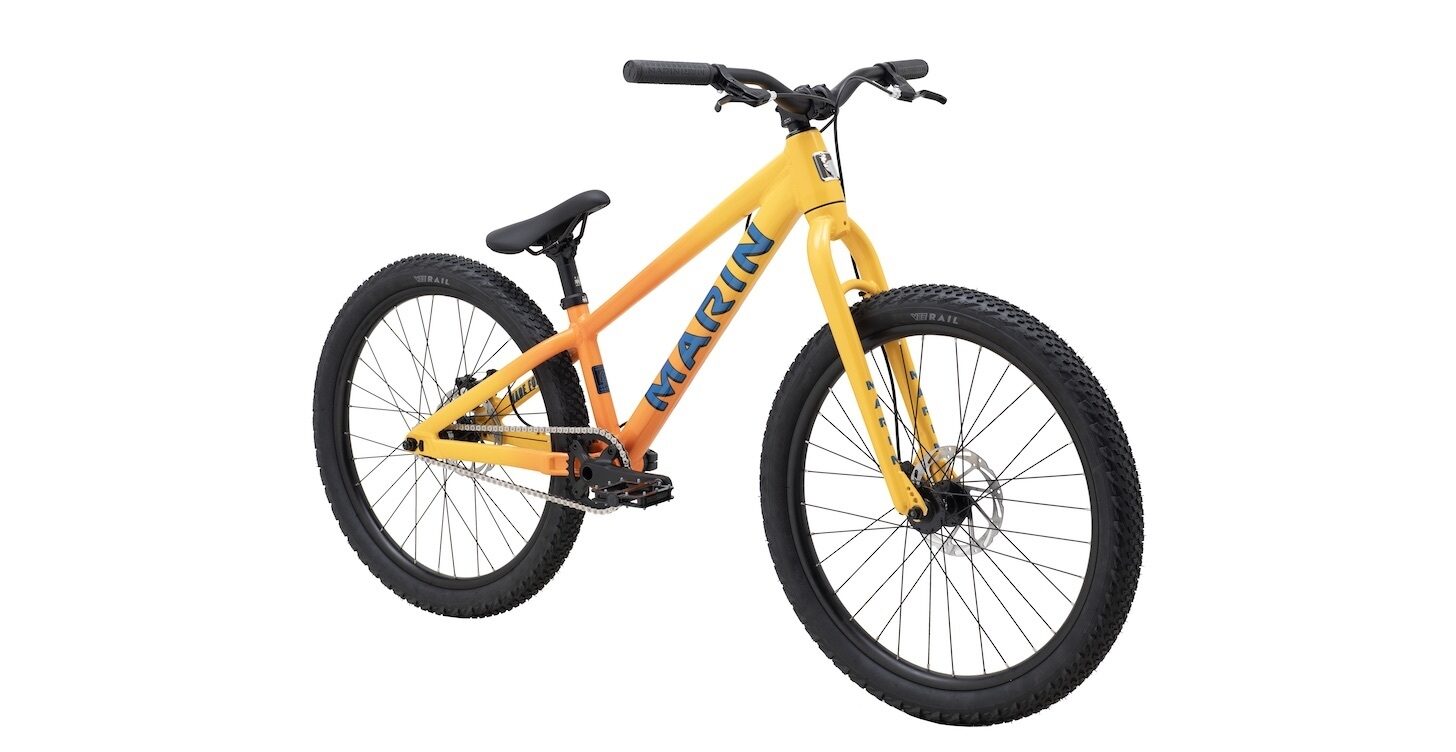

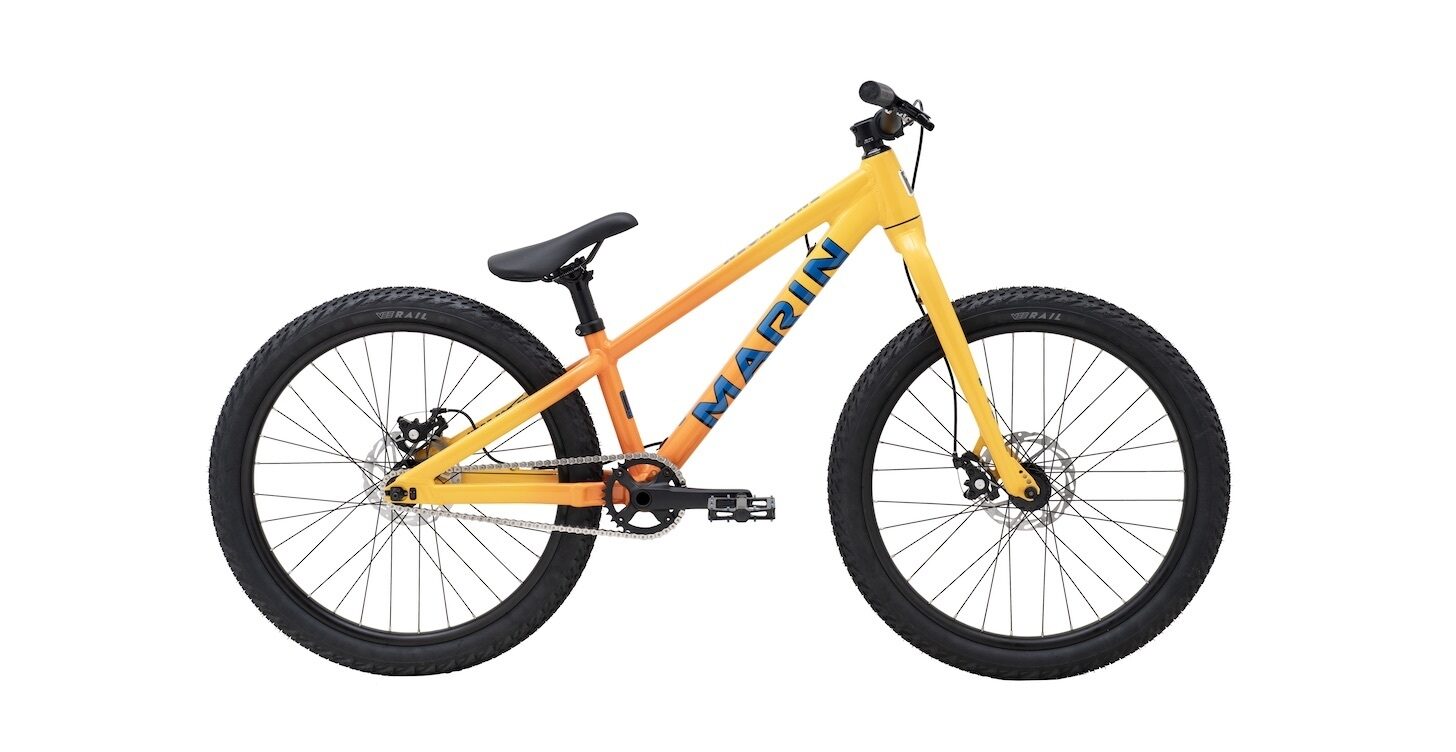

Marin Alcatraz JR Dirt Jump Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Marin Alcatraz JR Dirt Jump Bike
Yellow/Orange / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609We've taken the Alcatraz 1 and scaled it down for smaller riders. Built upon the same tubing as the larger models, it features a 360mm reach, 69° headtube angle, and 72° seattube angle, with 369mm chainstays. A suspension-corrected rigid CrMo fork is designed to handle rough-and-rowdy riding, and a simple and stout single-speed drivetrain and Tektro mechanical disc brakes ensure a fun and safe ride.
Specifications
| Frame |
Series 3 6061 Aluminum, 24” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
|---|---|
| Fork |
Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem |
Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension |
| Handlebars |
Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 700mm Width, 4º Up, 9º Back |
| Grips |
Marin MTN, Closed End |
| Rims | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
| Spokes | 14g Black Stainless Steel |
| Front Hub |
Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing |
| Rear Hub | Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H |
| Tyres |
Vee Tire, Rail 24x2.25”, LSG Compound, Wire Bead |
| Crankset |
Marin Forged Alloy, Alloy 32T DM Chainring, 155mm Length |
| Cassette | 14T Single Speed Cog |
| Chain | KMC HL-1 |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Front Brake |
Tektro MD-M280 Mechanical Disc 160mm Rotor |
| Rear Brake |
Tektro MD-M280 Mechanical Disc 160mm Rotor |
| Brake Levers |
Tektro CL-330TS Alloy |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin DJ Saddle |
| Pedals | Alloy Platform |
| Extras | Marin Chain Tension Device |
Geometry
| Short | |
|---|---|
| Stack | 525 |
| Reach | 260 |
| Headtube Angle | 69 |
| Headtube Length | 112 |
| Seattube Angle | 69 |
| Seattube Length | 320 |
| Toptube (Effective) | |
| Chainstay Length | 369 |
| Wheelbase | |
| BB Height | |
| BB Drop | 8 |
| Standover | |
| Fork Offset |
