Marin Alcatraz Frame Kit
Color
Size
Availability
Click & Collect

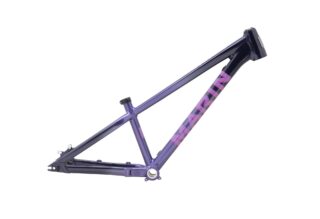

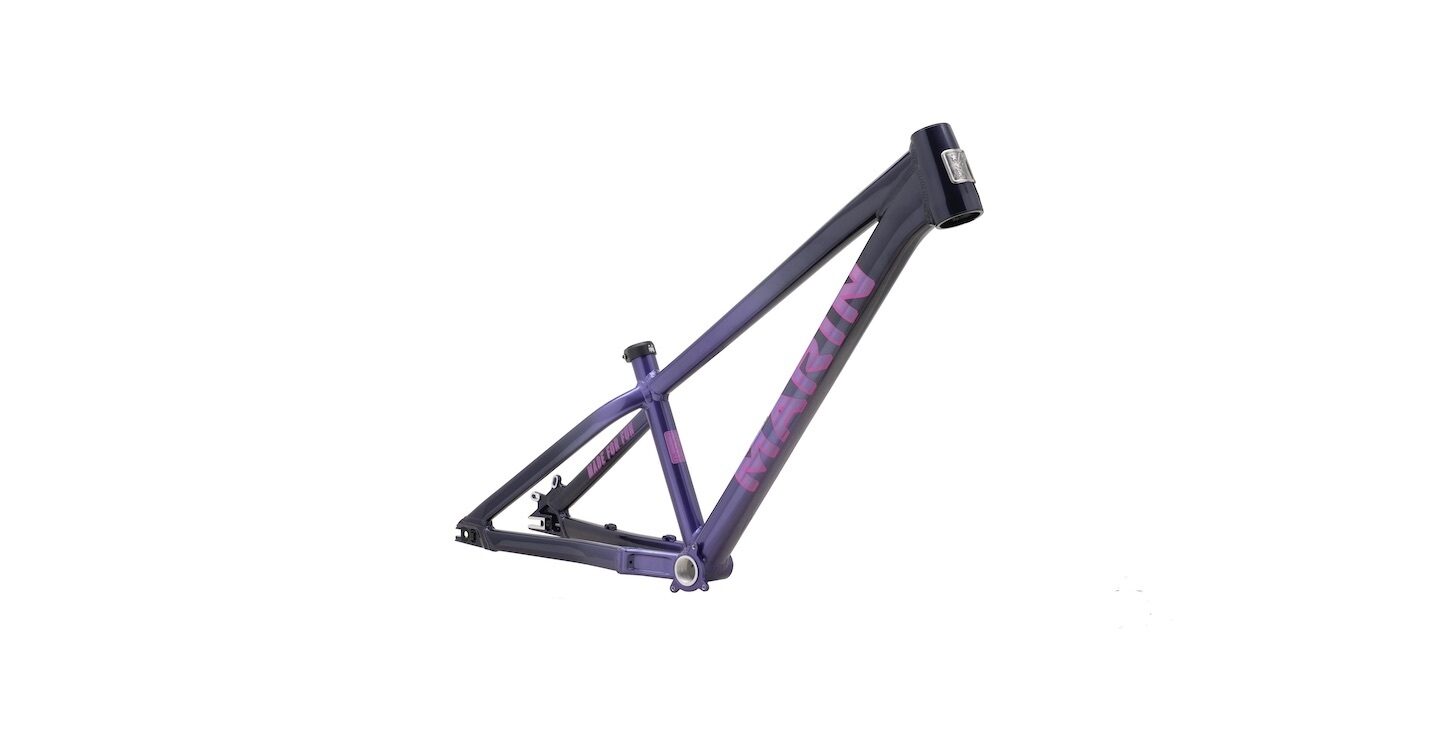

Marin Alcatraz Frame Kit
Purple Fade / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Designed in conjunction with Marin ambassador/MTB legend Matt Jones, the Alcatraz collection is ready for dirt jumps, pump tracks, skateparks, slopestyle, or virtually anything you throw at it.
The foundation for the Alcatraz build of your dreams. The Series 3 aluminum frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars.
The Main Alcatraz frame kit comes supplied with an FSA headset, Marin chain tension device and Marin seat clamp. Available in two frame sizes, regular and long.
The Series 3 aluminum frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars.
Specifications
| Frame | Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
|---|---|
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Extras | Marin Chain Tension Device |
Geometry
| Short | Long | |
|---|---|---|
| Stack | 575 | 580 |
| Reach | 385 | 430 |
| Headtube Angle | 69 | 69 |
| Headtube Length | 115 | 120 |
| Seattube Angle | 69 | 69 |
| Seattube Length | 320 | 320 |
| Toptube (Effective) | 600 | 646 |
| Chainstay Length | 395 | 395 |
| Wheelbase | 1037 | 1083 |
| BB Height | 317 | 317 |
| BB Drop | 22 | 22 |
| Standover | 370 | 400 |
| Fork Offset | 42 | 42 |
