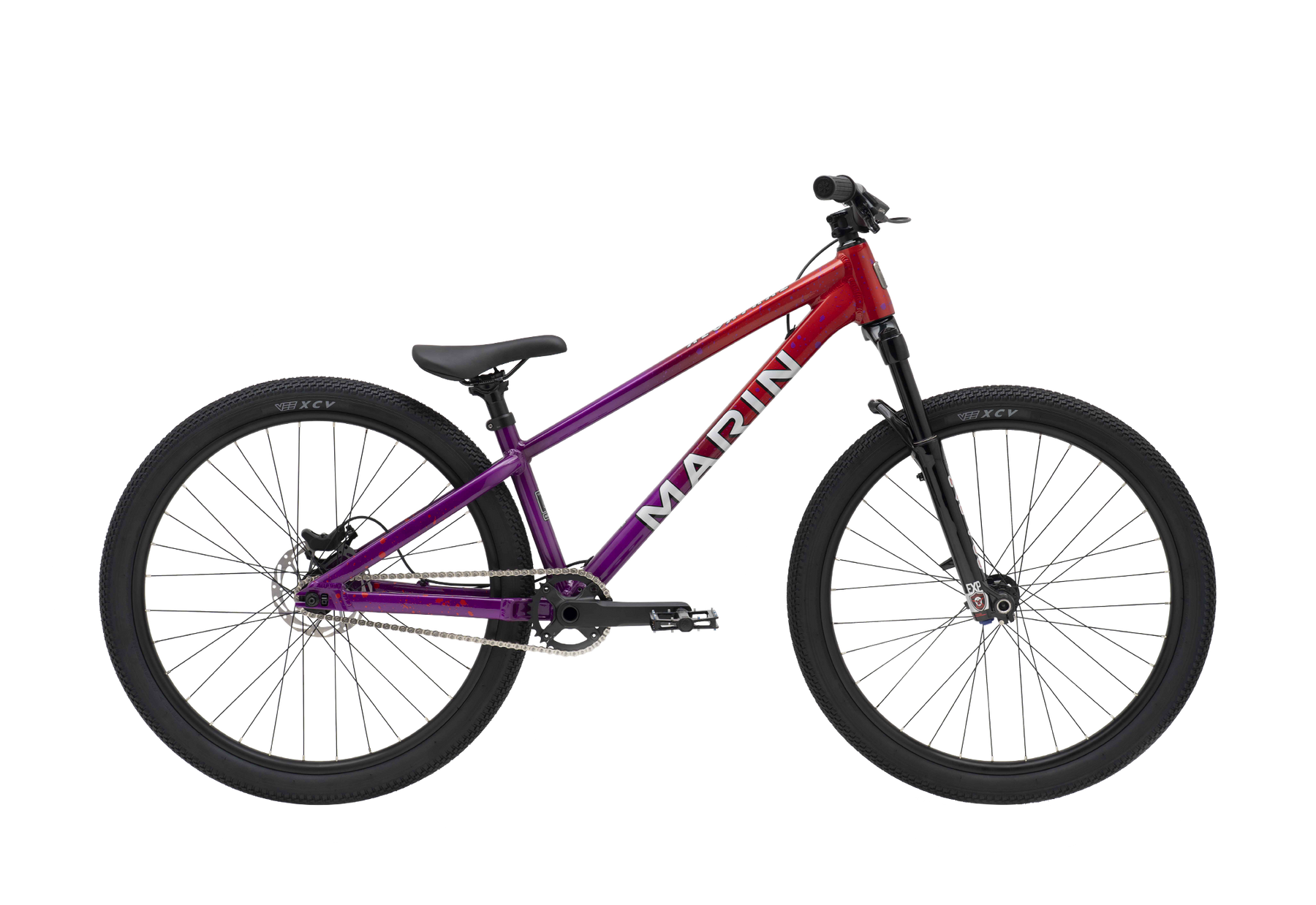

Marin Alcatraz 2 Dirt Jump Bike 2026
Color
Size
Availability
Click & Collect
Marin Alcatraz 2 Dirt Jump Bike 2026
Red/Purple / Long
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609With Alcatraz 2’s sorted spec, nothing holds you back. Boost higher, dump the front end deeper or push for that flip – Alcatraz gives you the freedom. Big move confidence is backed up by Manitou Circus Expert’s 100mm of travel. PNW’s 38mm rise Range handlebars take the sting out of harsh landings while looking the part. Keep your speed in check with Tektro’s four-piston hydraulic rear disc brake. Our spot-on build keeps maintenance to a minimum without stripping features and lets you push your limits.
Built from 6061 aluminum, the Alcatraz’s Series 3 frame has carefully crafted tubes designed to handle the rough and tumble of your airborne antics.
Lightweight and tough, the frame has got what matters and none of the clutter that doesn’t. Internal cable routing keeps it looking sleek and cuts the rattle. Spend less time wrenching and more time sending with a 73mm BSA bottom bracket and horizontal dropouts, built with our custom chain tensioning device. ISCG 05 chain guide tabs are retention device ready – perfect for the wildest tricks.
Dial up or tone down the party vibes with two frame sizes – long or short. The short frame keeps you connected to your BMX roots, while the long frame offers a calmer ride and fits riders 5ft 11in or taller.
Specifications
| Frame | Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
|---|---|
| Fork | Manitou Circus Expert, 26", 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem |
New Marin CNC Stem, 35mm Clamp |
| Handlebars |
PNW Range Handlebar, 38mm Rise, 35mm Clamp, 800mm Width |
| Grips | Marin Grizzly Lock-On |
| Rims | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Alloy, 110x20mm, Disc, 32H |
| Rear Hub | Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H |
| Tyres | Vee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead |
| Crankset | Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD |
| Cassette | 14T Single Speed Cog |
| Chain | KMC HL-1 |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Rear Brake |
Tektro HD-M535, 4 Piston Hydraulic Disc, 160mm Rotor |
| Brake Levers |
Tektro HD-M535 (Rear only) |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin DJ Saddle |
| Pedals | Alloy Platform |
| Extras | Marin Chain Tension Device |
Geometry

| Short | Long | |
|---|---|---|
| Stack | 575 | 580 |
| Reach | 385 | 430 |
| Headtube Angle | 69 | 69 |
| Headtube Length | 115 | 120 |
| Seattube Angle | 69 | 69 |
| Seattube Length | 320 | 320 |
| Toptube (Effective) | 600 | 646 |
| Chainstay Length | 395 | 395 |
| Wheelbase | 1037 | 1083 |
| BB Height | 317 | 317 |
| BB Drop | 22 | 22 |
| Standover | 370 | 400 |
| Fork Offset | 42 | 42 |
