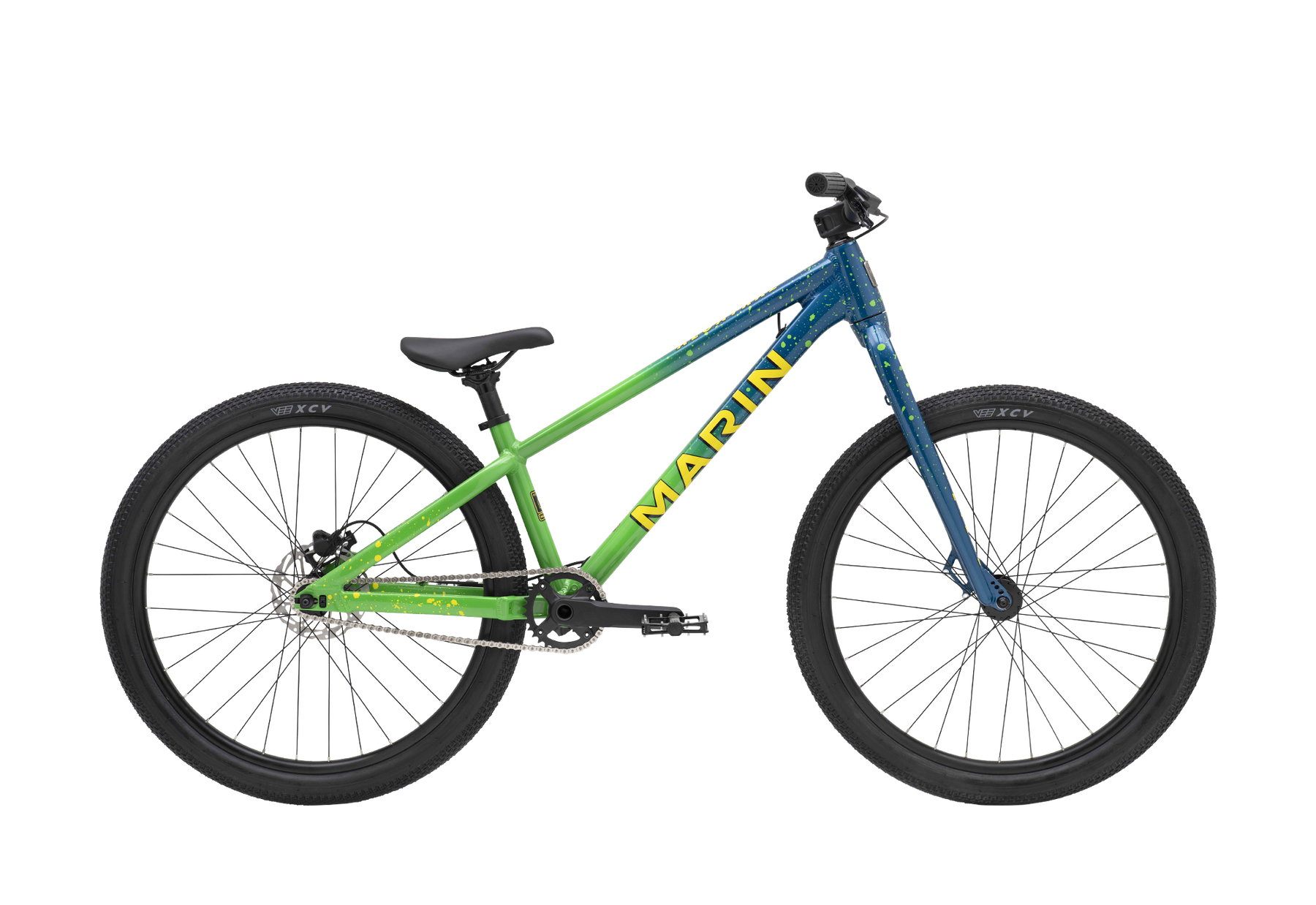

Marin Alcatraz 1 Dirt Jump Bike
Blue Fade / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Designed in conjunction with Marin ambassador/MTB legend Matt Jones, the Alcatraz collection is ready for dirt jumps, pump tracks, skateparks, slopestyle, or virtually anything you throw at it.
The Series 3 aluminum frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars. There’s a 100mm Manitou Expert coil fork, front and rear Shimano hydraulic disc brakes, Vee Tire rubber and plenty of bombproof Marin components. Best of all, it’s available in two frame sizes, regular and long.
Specifications
| Frame | Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
|---|---|
| Fork |
Marin Series 2 CroMo 26", Suspension Corrected, 100x9mm Dropouts |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 31.8mm clamp, 40mm extension |
| Handlebars | Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 750mm Width, 4º Up, 9º Back |
| Grips |
Marin MTN, Closed End |
| Rims | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
| Spokes | 14g Black Stainless Steel |
| Front Hub |
Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing |
| Rear Hub | Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H |
| Tyres | Vee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead |
| Crankset | Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD |
| Cassette | 14T Single Speed Cog |
| Chain | KMC HL-1 |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Front Brake |
Tektro MD-M280 Mechanical Disc 160mm Rotor |
| Rear Brake |
Tektro MD-M280 Mechanical Disc 160mm Rotor |
| Brake Levers |
Tektro CL-330TS Alloy |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin DJ Saddle |
| Pedals | Alloy Platform |
| Extras | Marin Chain Tension Device |
Geometry
| Short | Long | |
|---|---|---|
| Stack | 575 | 580 |
| Reach | 385 | 430 |
| Headtube Angle | 69 | 69 |
| Headtube Length | 115 | 120 |
| Seattube Angle | 69 | 69 |
| Seattube Length | 320 | 320 |
| Toptube (Effective) | 600 | 646 |
| Chainstay Length | 395 | 395 |
| Wheelbase | 1037 | 1083 |
| BB Height | 317 | 317 |
| BB Drop | 22 | 22 |
| Standover | 370 | 400 |
| Fork Offset | 42 | 42 |
