Lewis

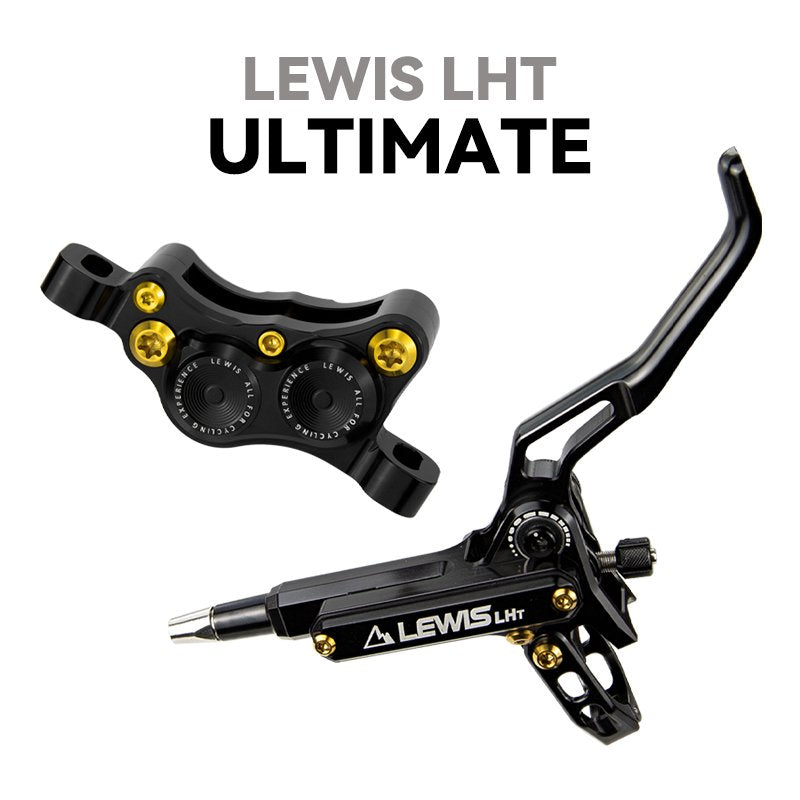

Lewis LHT Ultimate Disc Brake Set
Color
Availability
Click & Collect
Lewis LHT Ultimate Disc Brake Set
Black
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Lewis LHT Axial Cylinder 4x17mm Titanium Pistons Hydraulic Disc Brake
Enduro, Downhill, All-Mountain
8 Titanium pistons and 18 Titanium screws used in a brake set.
Patented 3 Adjustment Technologies for Leverage Ratio & Lever Reach & Bite Point.
Front+Rear Brakes weight = 639g(Oil Hose included), 422g without Oil Hose.
Approx. 68g for titanium parts, reduction weight of approx. 39g, compared to stainless steel components
4x17mm Titanium+Ceramic pistons with TP-40 sintered Brake pads.
Upgraded Split clamps, no fray bike handlebar.
Easy Bleeding Technology.

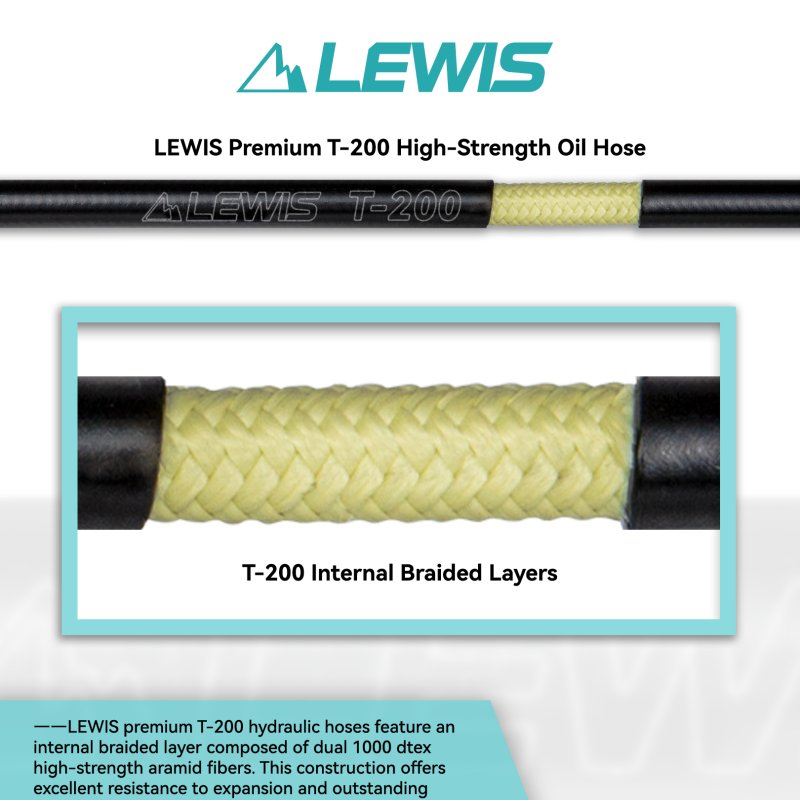

Mineral Oil and Kevlar K28 hose.
High-precision CNC machining technology.
Powerful but predictable braking force.
Ultra light lever action.
Bearing pivots provide superior modulation and feel
Technology
-
Bite Point & Lever Reach AdjustmentLewis' patented technology for dual adjustment of lever reach & bite point allows you to customize the feel to your preference for superior performance out on the trails.
Reach(tool free), bite point(with allen key).
-
Leverage Ratio AdjustmentThe patented Free Lever Adjustment technology allows the lever ratio to beadjusted by moving the center point of the brake lever.
-

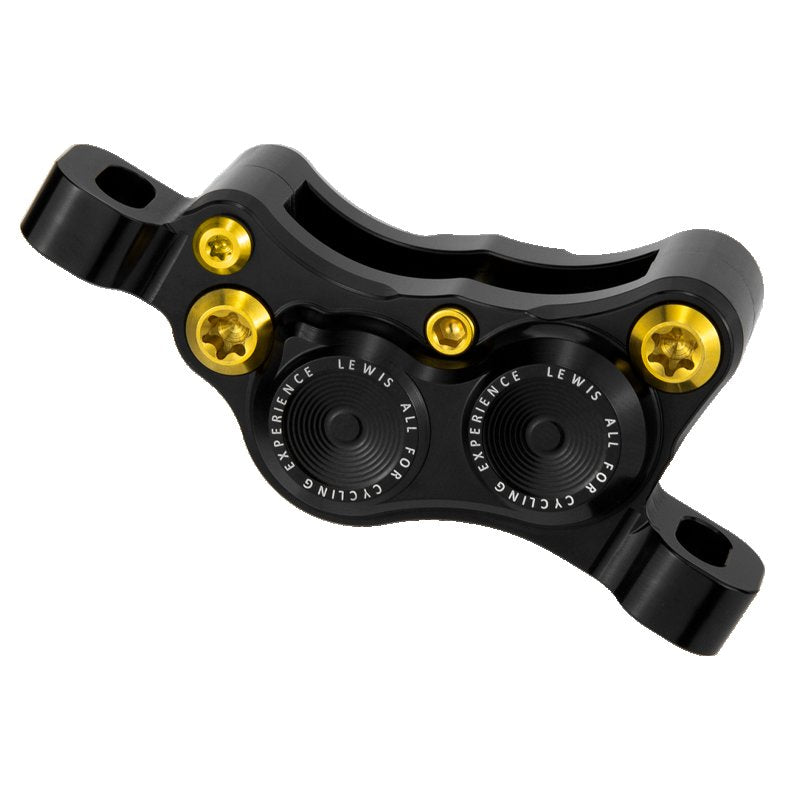

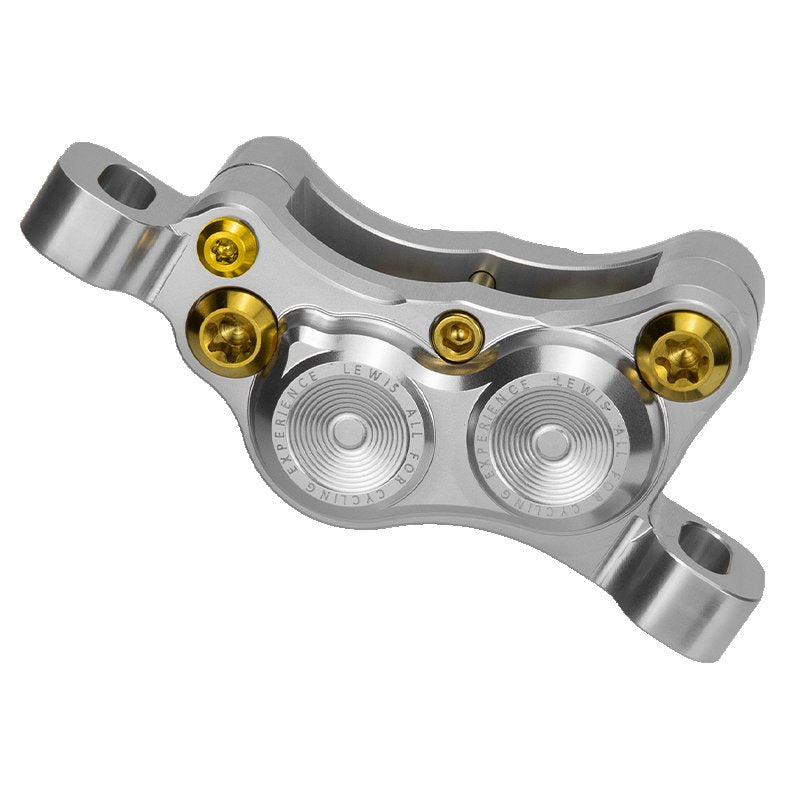

4x17mm PistonsUpgraded 4x17mm pistons, with titanium bolts, high strength and light weight.
-

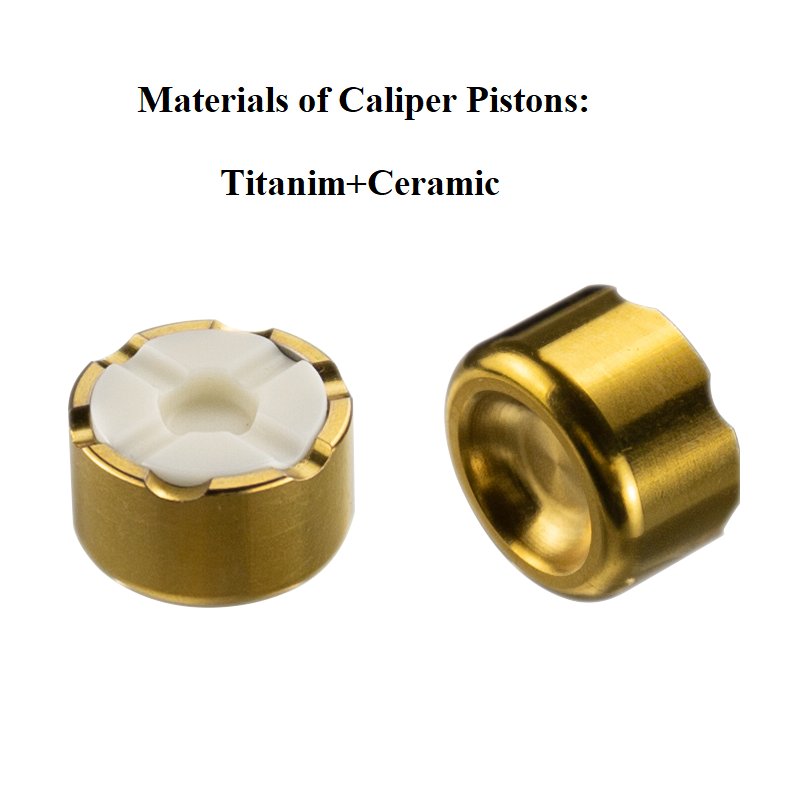

Titanium Pistons with Ceramic InsulationIn high-intensity use environments, the good high-temperature thermal conductivity of the titanium material complements the ceramic thermal insulation, allowing the pads to conduct and dissipate heat more evenly.
-

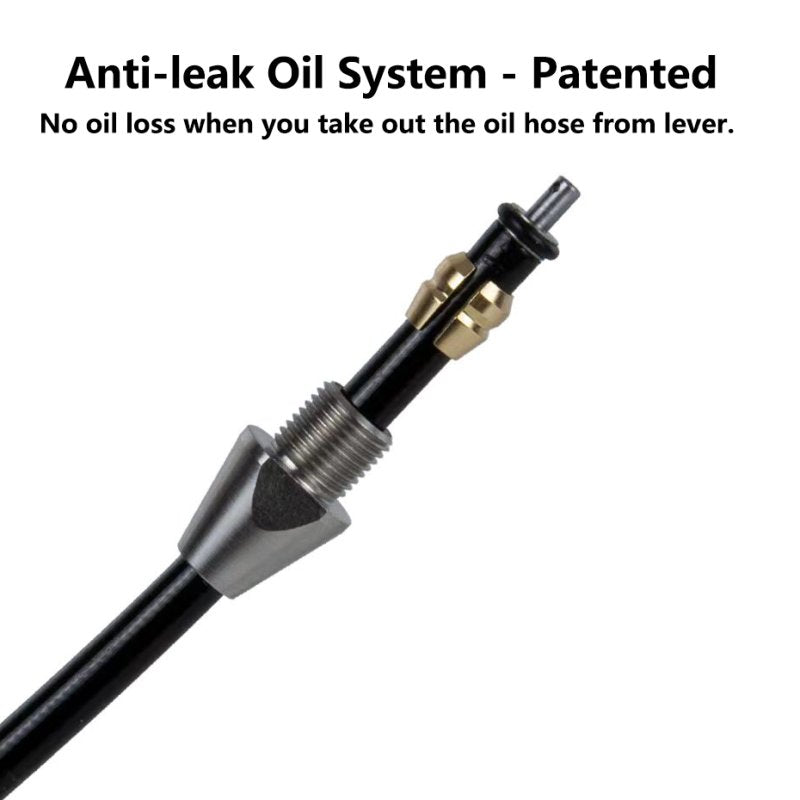

Anti-Leak Oil SystemDetachable Olive Head used in Anti-leak System makes it easier for the rider to disassemble the brake hose.
-

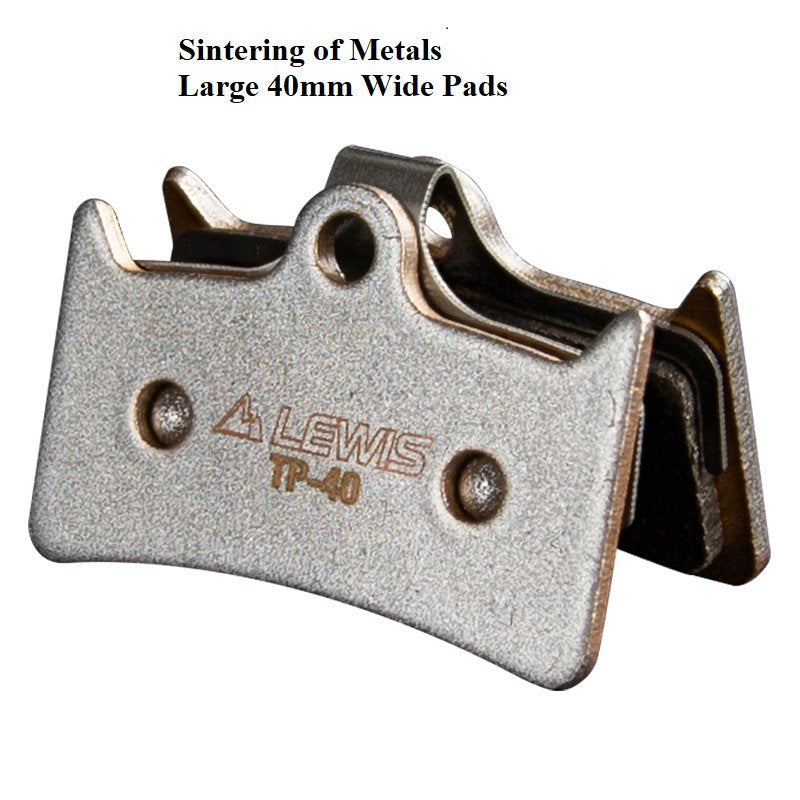

TP-40 Sintered Brake PadsLHT Ultimate uses a 40mm wide sintered metal TP-40, a larger area meant for better wear resistance and heat decay performance.
Pinkbike Review Link:
https://www.pinkbike.com/news/review-lewis-lht-ultimate-brakes.html
| Axial MASTER CYLINDER | |
| Material | CNC 7075T6 Aluminum |
| Color | Black, Silver, Black & Silver, customized colors |
| Clamp Type | Split |
| Screws | Titanium |
| ADJUSTABLE LEVER REACH | YES, Tool Free |
| ADJUSTABLE PAD BITE POINT | Yes, with 2mm Allen key |
