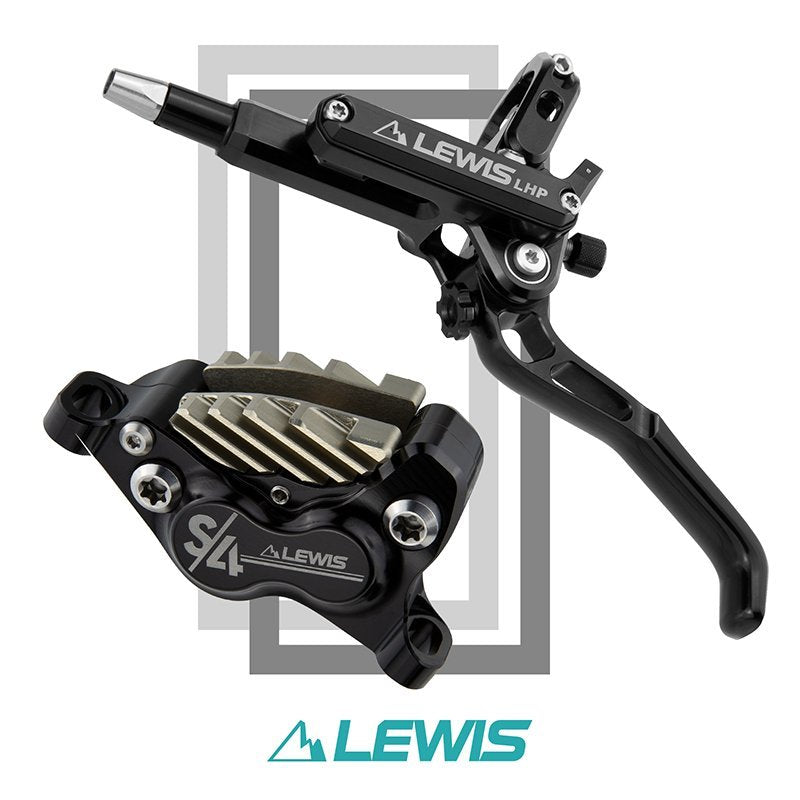

Lewis LHP-S4 Disc Brake Set With Cooling Fins
Color
Click & Collect
Lewis LHP-S4 Disc Brake Set With Cooling Fins
Black
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Downhill & Enduro
Material: 7075 T6 Aluminum
Piston: 4 pistons (2x14mm, 2x17mm)
Mineral Oil
Three Adjustment For LEVER REACH & BITE POINT & LEVERAGE RATIO
Independent cooling fins design for better high temperature performance
Removable Olives used in Anti-oil loss system connector
Upgraded leverage ratio adjustment knob
Single brake weight: 249g (without oil hose and brake pads)
Single brake lever: 98g
Single caliper: 151g( without brake pads)

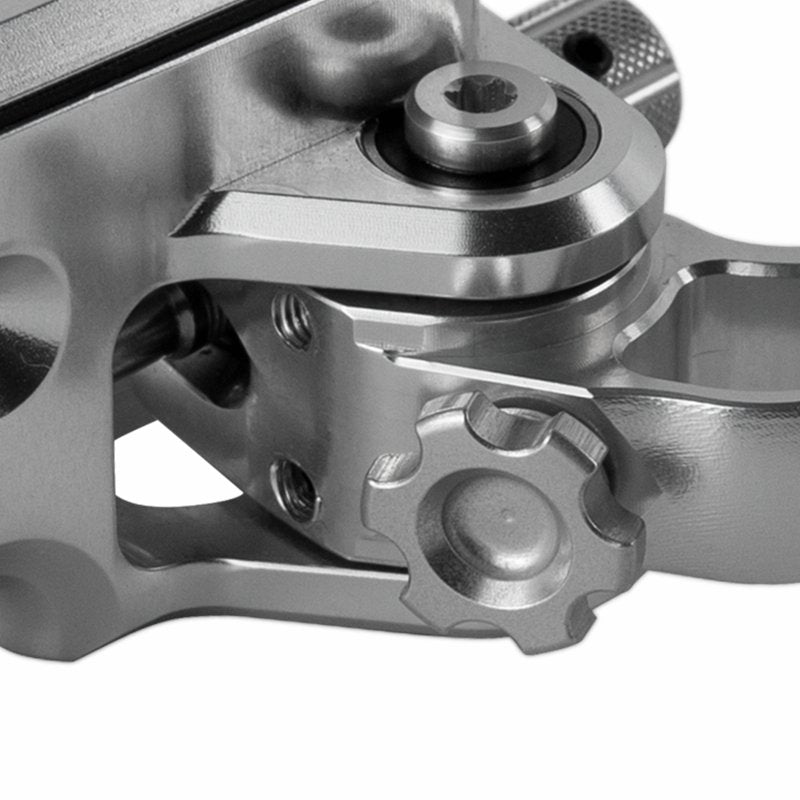

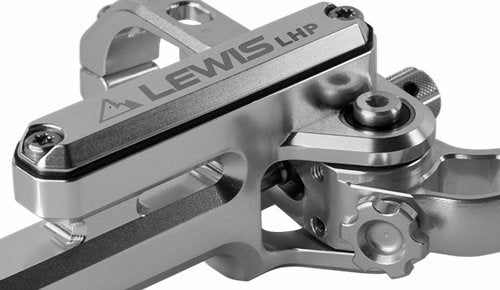

The LHP brake lever adopts a newly upgraded leverage ratio adjustment system, which has a better adjustment experience.
Loosen the lever ratio set screws and adjust the Lever ratio by turning the lever ratio adjustment knob.
Tighten the set screws after adjustments.

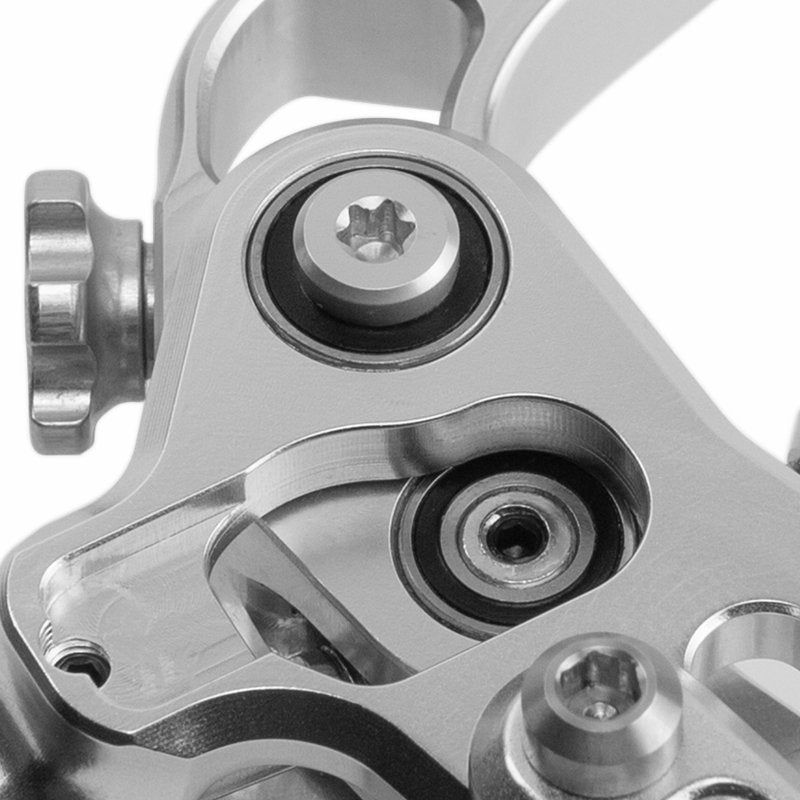

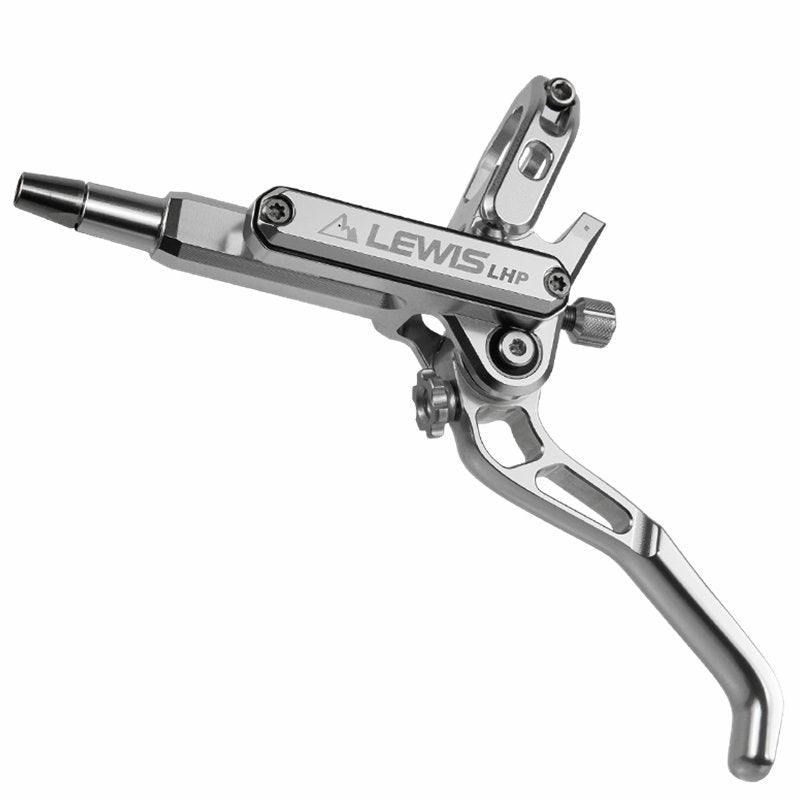

The LHP lever features a patented technology for dual adjustment of Lever reach & bite point, combined with a new lever ratio adjustment system, for an incredible range and freedom of adjustment.

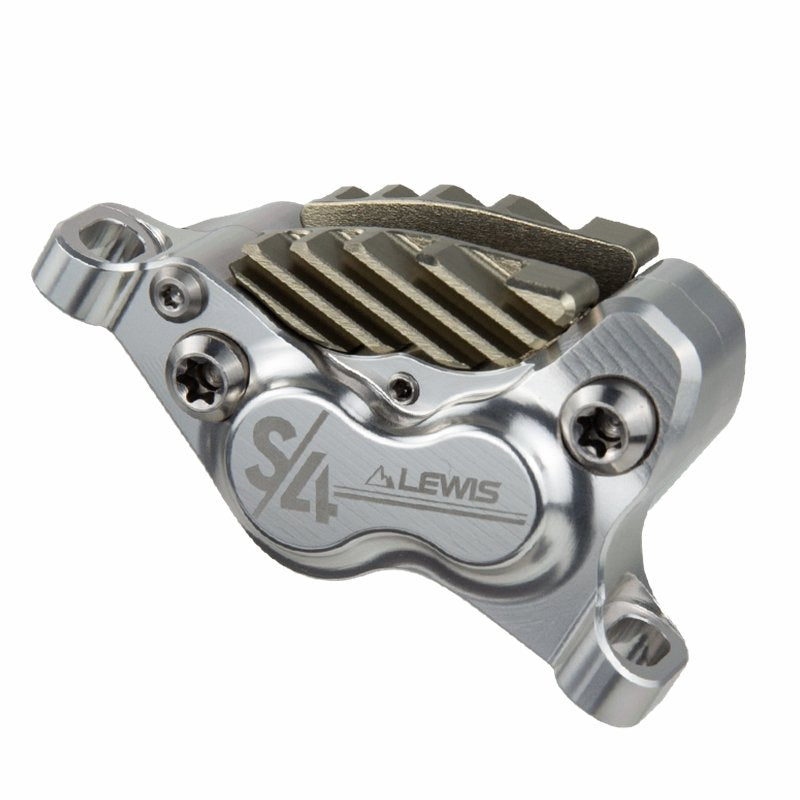

Cooling Fins for better heat dissipation performance

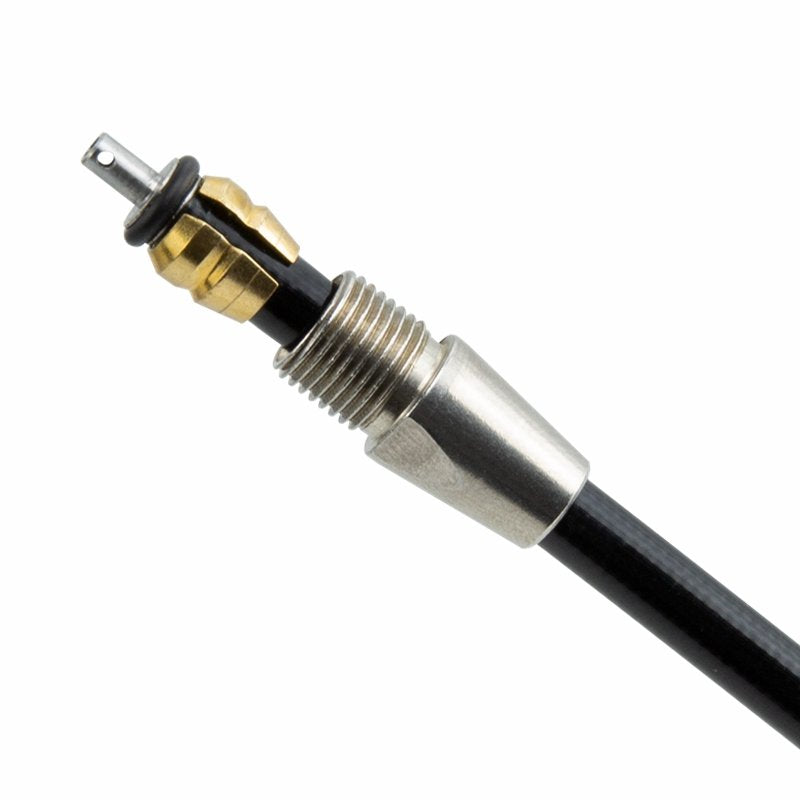

Use Anti-leak oil system, which makes disassembly and assembly and internal wiring easier.

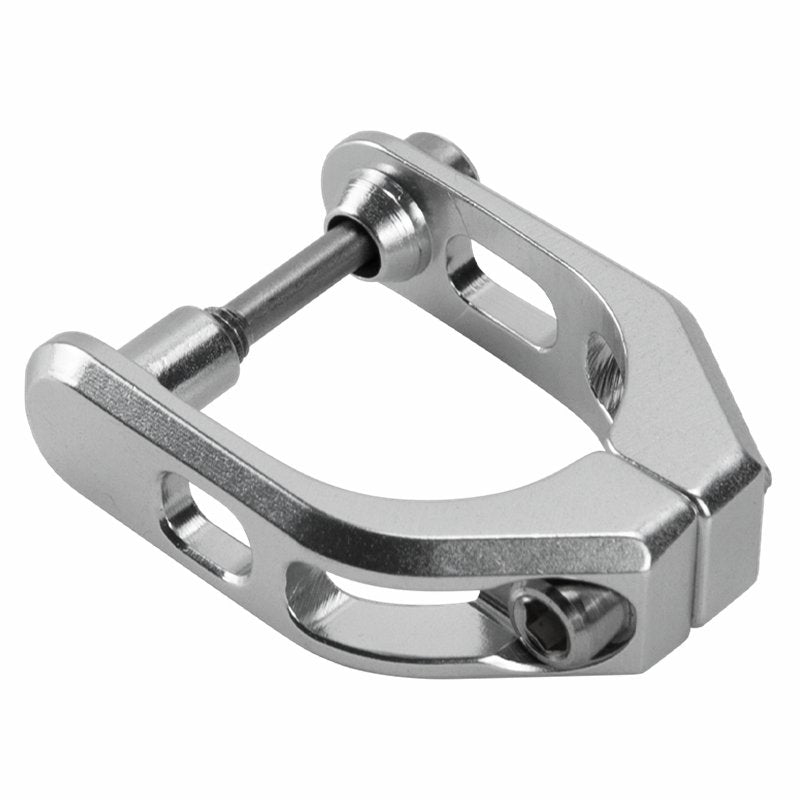

Standard Split clamp with upper and lower locking design improves the fault-tolerant of clamp installation and meets the requirements of handlebar designs with different tolerances.
Torque: 3Nm

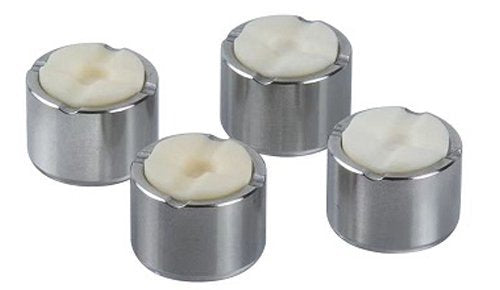

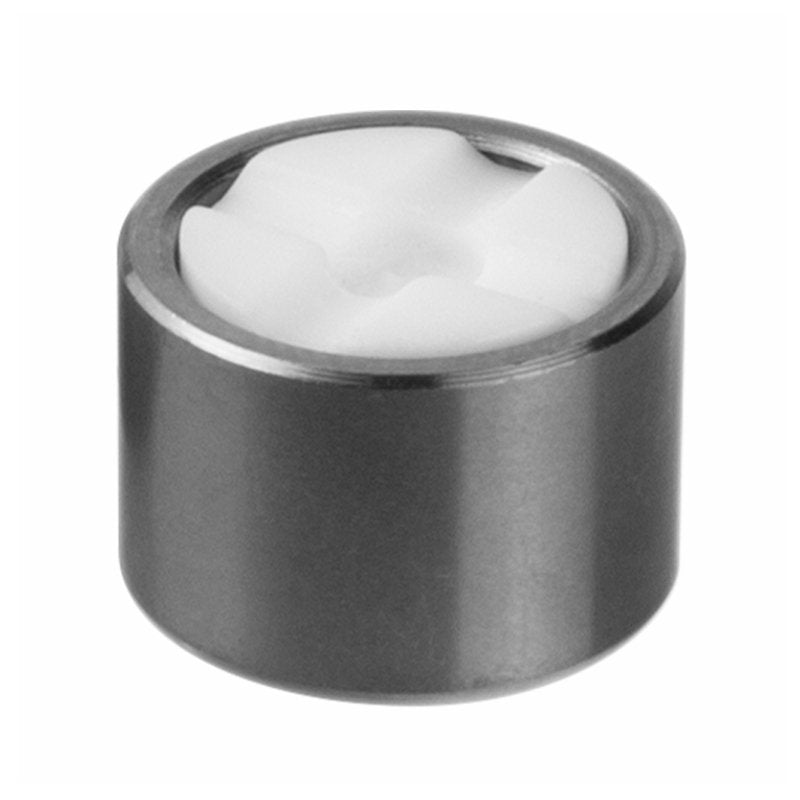

2x14mm, 2x17mm Stainless steel Piston with Insulation Layer
| MASTER CYLINDER | |
| Type | Axial |
| Material | CNC 7075T6 Aluminum |
| Body Finish | Black, Silver |
| Clamp Color | Black, Silver |
| Clamp Type | Split |
| Screws | Stainless Steel |
| Adjustable Lever Reach | YES, Tool Free |
| Adjustable Pad Bite Point | Yes, with 2mm Allen key |
| Adjustable Leverage Ratio | 1.5mm Allen Key to loosen the set screws first |
| LEVER BLADE | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver |
| Brake lever version | 1 Finger |
| CALIPER | |
| Material | CNC 7075T6 Aluminum |
| Color | Black, Silver |
| MOUNT TYPE | Post mount |
| Piston | 2x14mm, 2x17mm Stainless steel Pistons |
| Screws | Stainless Steel |
| Pads type | Sintered TP-37 and Semi-Metallic LP-37 |
| Hose | |
| Hose size | Outside Diameter 5mm，Bore 2.2mm |
| Hose length | 90cm front /160 cm rear |
| Hose finish | Black, Braided T200 Oil Hose |
| INTENDED USE | Enduro, Downhill, All-Mountain |
| Rotors |
Not included, optional (140 mm | 160 mm | 180 mm | 203 mm | 223 mm) Recommending Lewis 2.3mm rotors or other brands of 2.0mm -2.5mm thick rotors |
| Adapter | Not included |
| WEIGHT | Lever 98g, Caliper 151g (without brake pads) |
| Oil | Mineral oil |
| Bleed Kit Recommendation | Lewis Bleeding Kit |
