GT Grade Elite Claris Gravel Bike
Color:
Color
Size:
Size
Quantity:
Availability
Click & Collect
Pickup available at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Usually ready in 24 hours

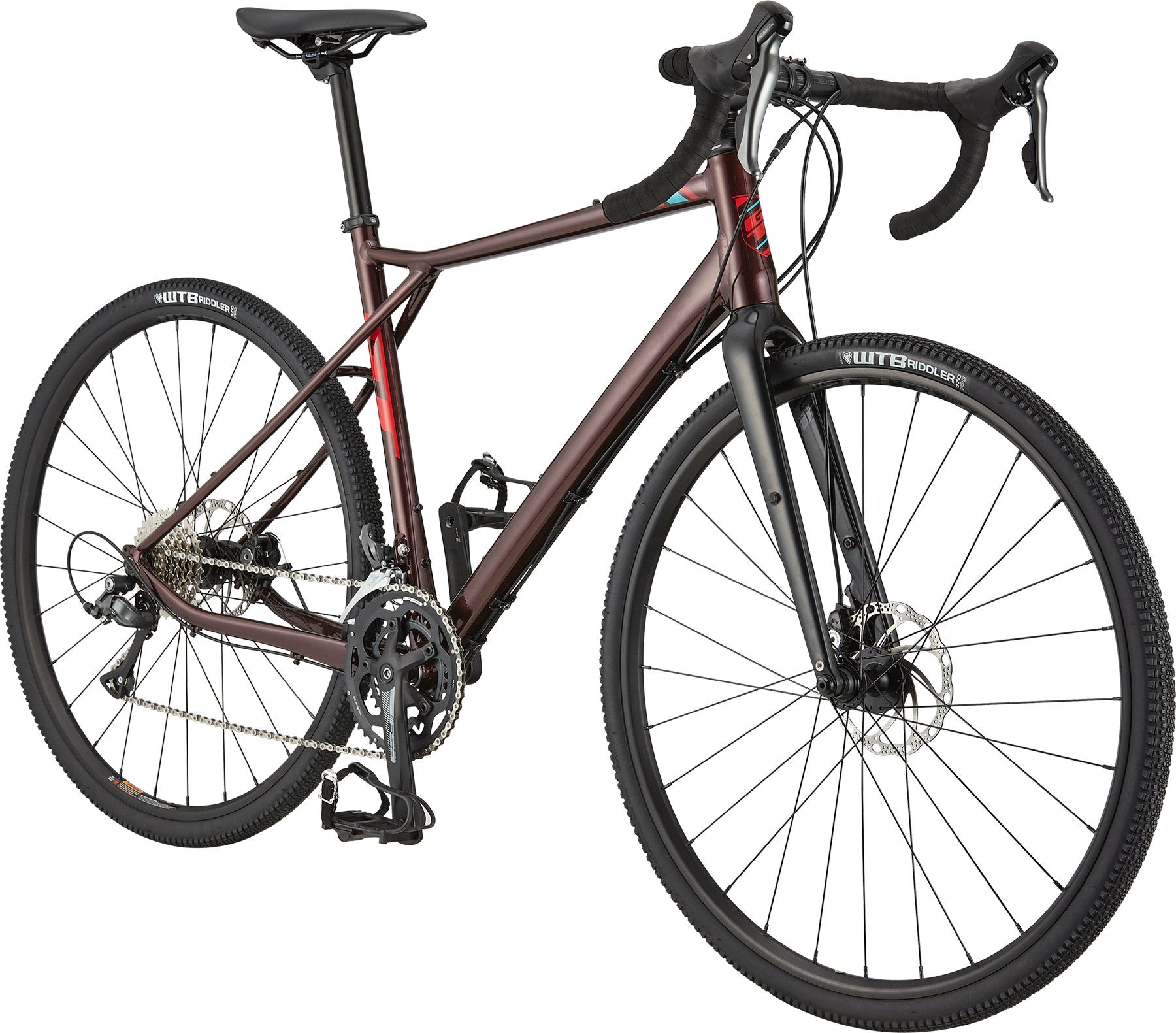

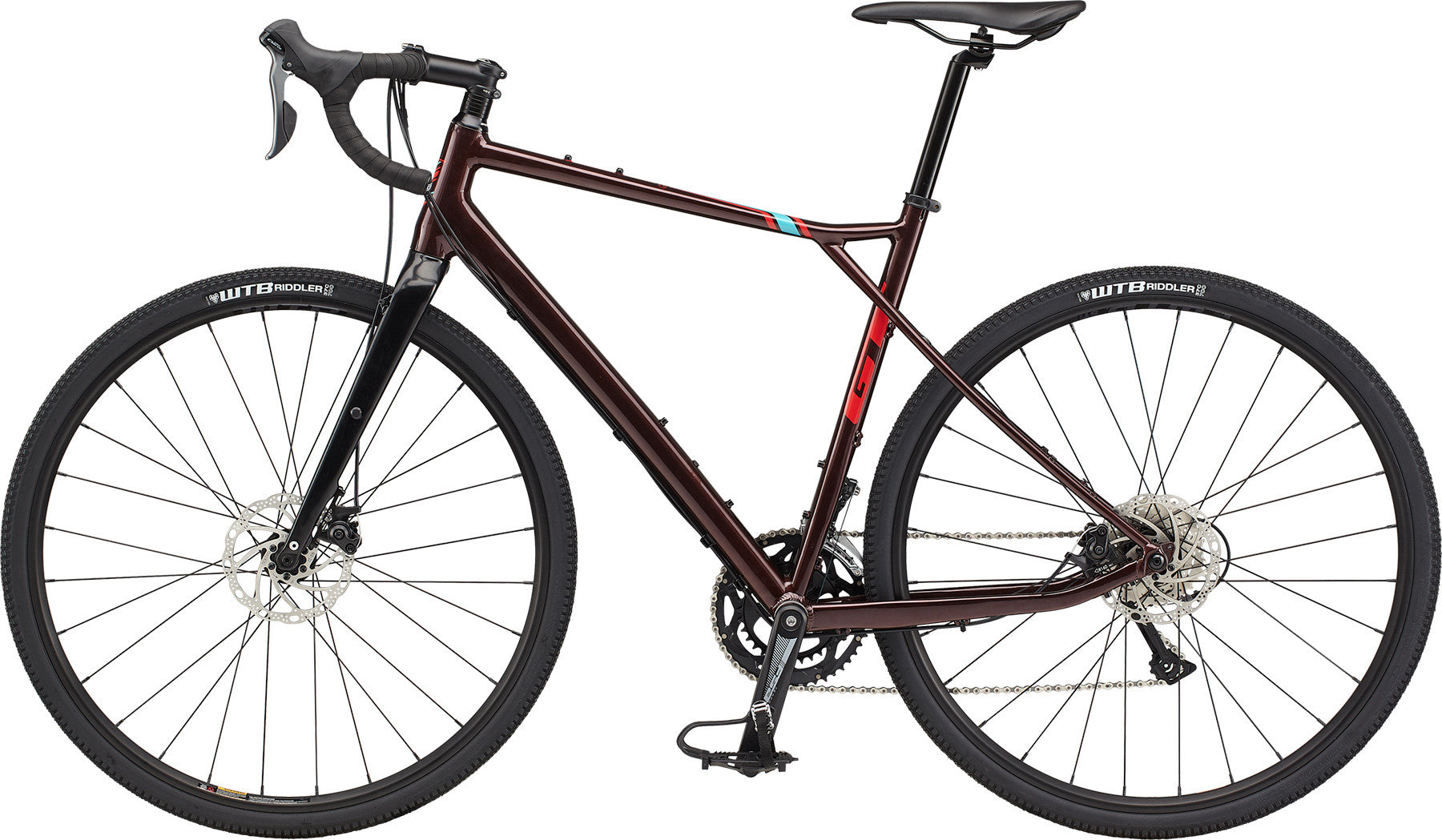

GT Grade Elite Claris Gravel Bike
Dark Red / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup available, usually ready in 24 hours
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609The gravel scene wouldn’t be where it is today without innovative bikes like the GT Grade pioneering the way. Our iconic Triple Triangle frame with floating stays ensures the best ride on any multi-terrain adventure. Thru-axle hubs, full-carbon forks, and a Shimano groupset come standard on a bike that’s fun, flickable, and surefooted. Strap it up with all the bags and head for the hills – this is built for it.
- Floating seat stays for more compliance
- Flip chip fork on Pro and Expert models
- Di2 and Stealth Dropper compatible
Specifications
| Frame | Grade Alloy Frame, Triple Triangle Design feat. Floating Seatstays, 12x142 Thru Axle, Flat Mount Disc, Tapered Headtube, External Dropper Compatible, BSA 68mm |
|---|---|
| Fork | Grade Carbon Fork, Tapered Carbon Steerer, 12x100 Thru Axle, Flat Mount Disc |
| Chain | KMC X8, 8-speed |
| Crankset | FSA Tempo Adventure, 48/32 |
| Bottom Bracket | Cartridge, Square Taper |
| Pedals | GT Plastic OPC Body |
| Front Derailleur | Shimano Claris, Braze-on |
| Rear Derailleur | Shimano Claris |
| Shifters | Shimano Claris, 2x8 |
| Cassette | Sunrace, 11-34, 8-speed |
| Rims | WTB ST i23 TCS 2.0, 28h, Tubeless Ready |
| Tyres | WTB Riddler, 700 x 37c, Wire Bead |
| Front Hub | Formula RX-512, 28h, 12x100 Disc |
| Rear Hub | Formula DC-142, 12x142 |
| Spokes | Stainless Steel, 14g |
| Brakes | Tektro Mech Disc, 160/160mm Rotors |
| Handlebar | GT DropTune RS, Alloy, 10° Flare |
| Stem | GT 3D Forged Alloy, 31.8 |
| Handlebar Tape | Velo Cork Tape |
| Headset | FSA No.44, Integrated, Sealed Bearing |
| Saddle | GT Pavement, Steel Rails |
| Seatpost | GT Two Bolt Alloy |
Geometry
| 44 | 48 | 51 | 55 | 58 | 61 | |
|---|---|---|---|---|---|---|
| A. Seat Tube Length | 420 | 457 | 494 | 531 | 568 | 605 |
| C. Top Tube Actual | 531 | 545 | 559 | 574 | 587 | 602 |
| D. Headtube Angle | 69.0 | 70.5 | 70.5 | 72.3 | 72.3 | 72.3 |
| E. Seattube Angle | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| F. Standover | 700 | 731 | 760 | 791 | 824 | 851 |
| G. Headtube Length | 102 | 119 | 145 | 160 | 187 | 210 |
| H. Wheelbase | 1040 | 1042 | 1057 | 1055 | 1070 | 1085 |
| I. Front Center | 606 | 608 | 623 | 621 | 634 | 650 |
| J. Chainstay Length | 445 | 445 | 445 | 445 | 445 | 445 |
| K. BB Drop | 75 | 75 |
73 | 73 | 70 | 70 |
| L. BB Height | 284 | 284 | 286 | 286 | 289 | 289 |
| M. Fork Rake | 55 | 55 | 55 | 55 | 55 | 55 |
| O. Stack | 524 | 546 | 568 | 590 | 612 | 634 |
| P. Reach | 370 | 378 | 385 | 394 | 400 | 408 |
