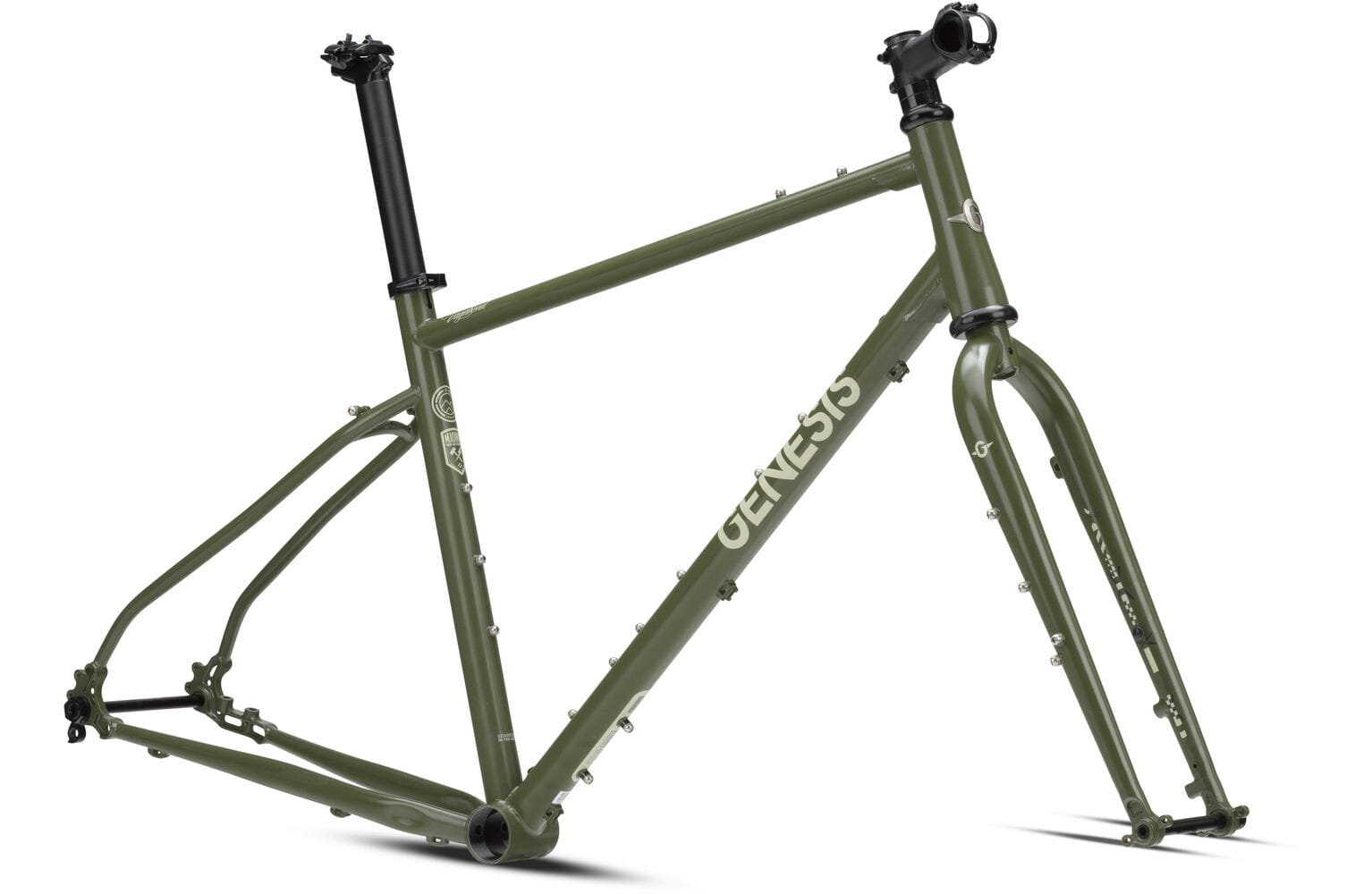

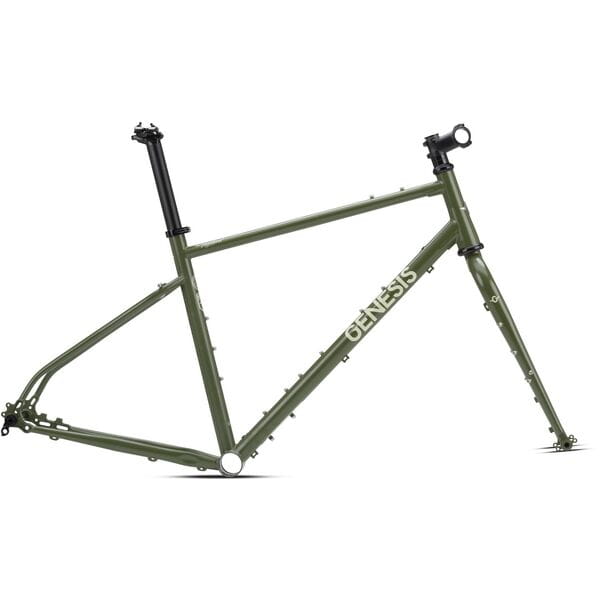

With all of it's off-road prowess and versatility, the Vagabond frameset makes an excellent base to build your ideal adventure bike.
Significantly updated geometry, massive tyre clearance and ultra-wide gear ratio compatibility create a modern take on monstercross garage builds of old.
Big Volume Galore
Clearance for 2.35" mountain bike tyres, the possibilities are endless. Volumous gravel tyres or chunkier options make the Vagabond the ideal base.
Thor's Hammer

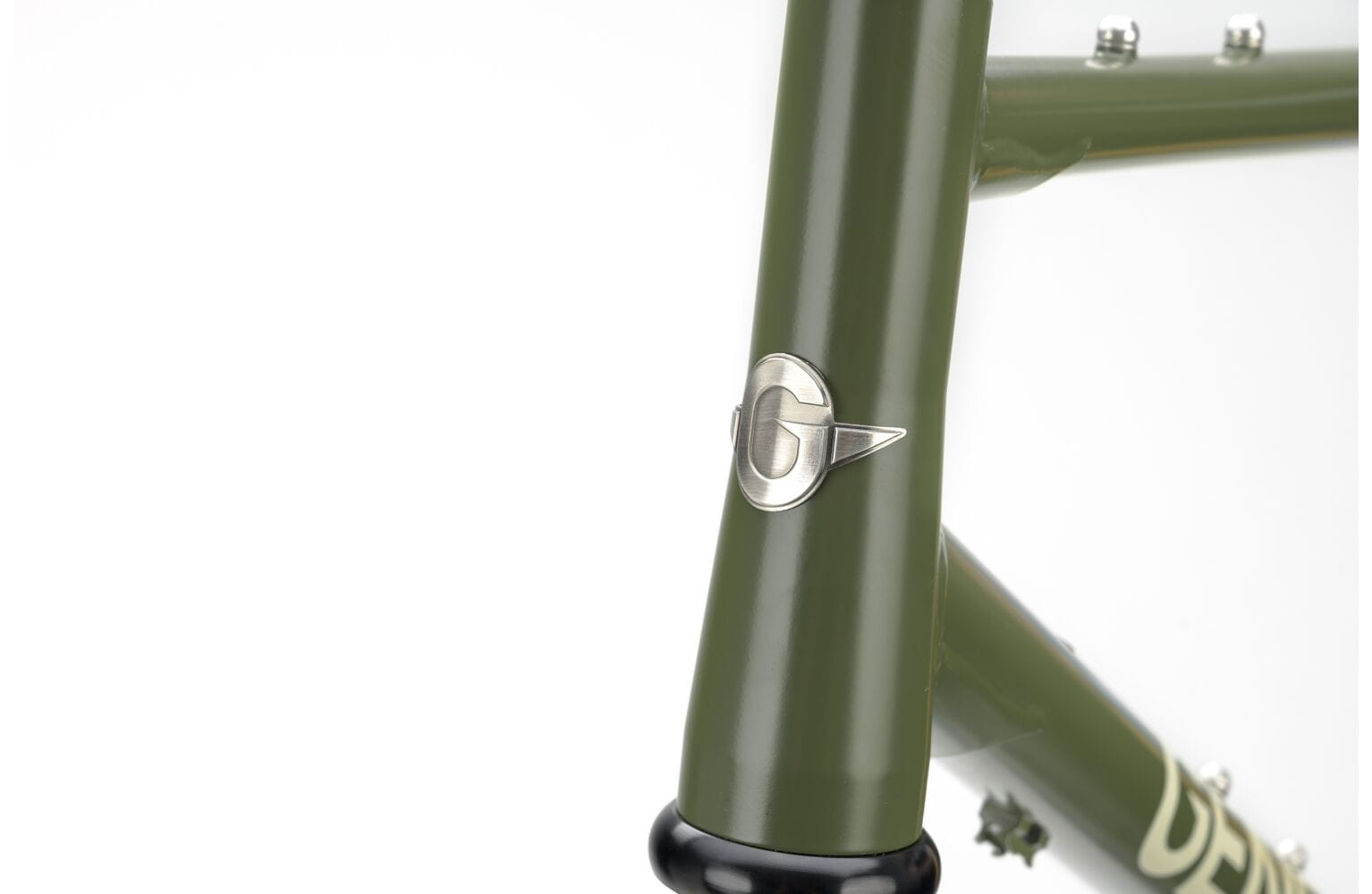

Our double-butted, cold-drawn, seamless, Mjolnir chromoly tubeset forms the bedrock of the Vagabond's incredibly durable and sublimely comfortable frame.
Accessorise
With dropper post compatibility, refined mounting points for cages, racks & bags and internal dynamo routing, the Vagabond can keep a clean aesthetic or be accessorised to the hilt.
Adventurous Axles

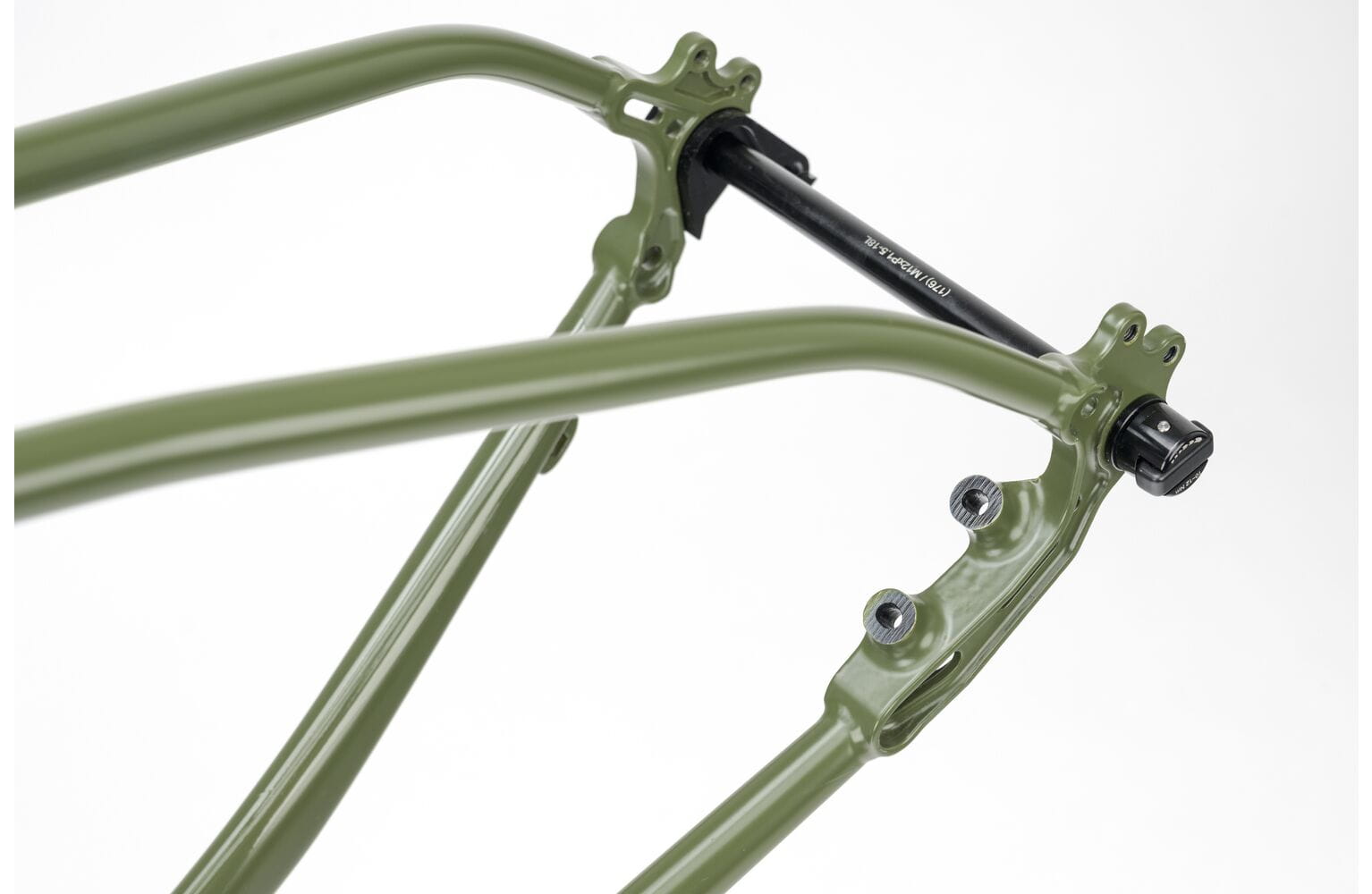

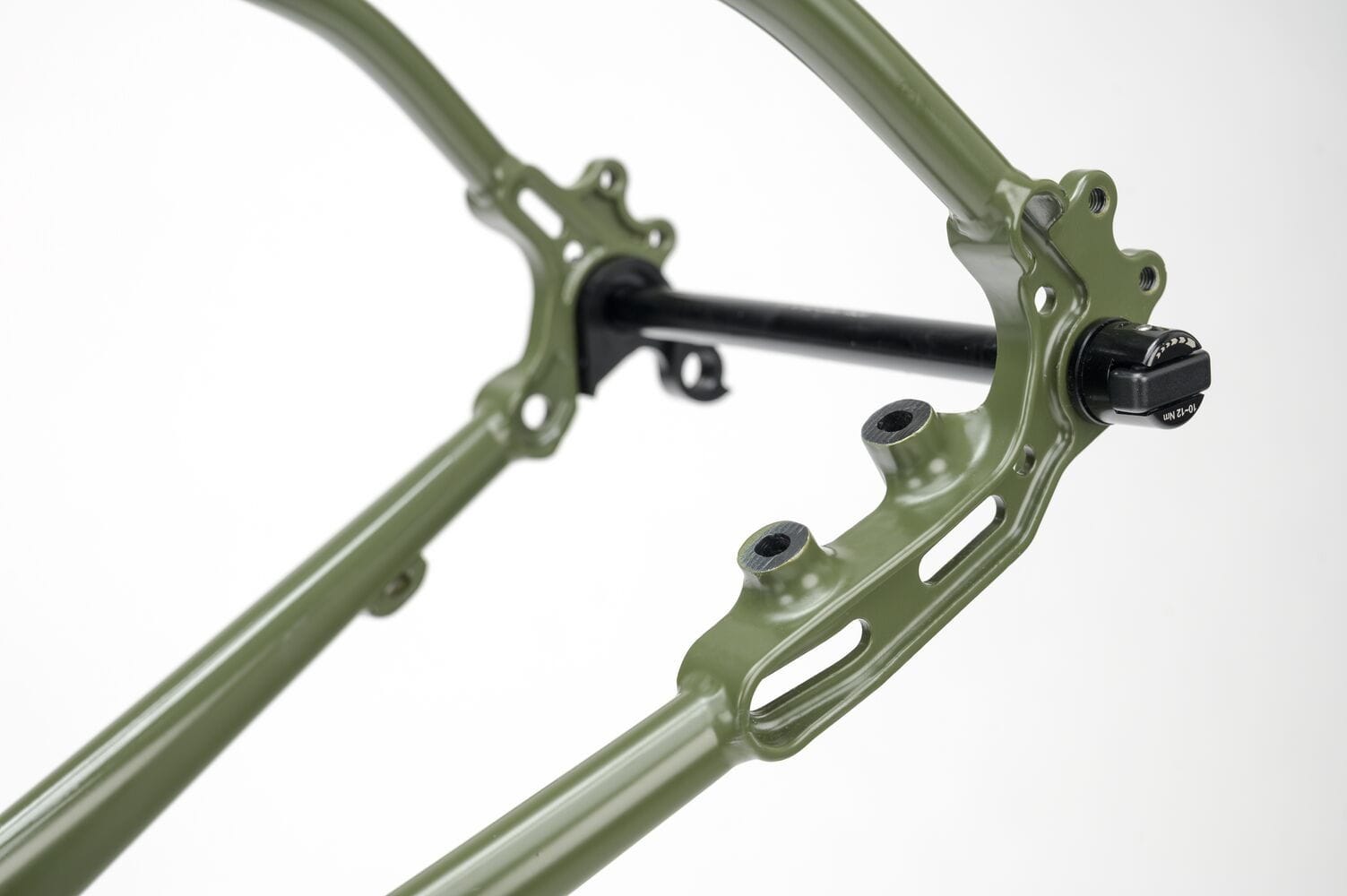

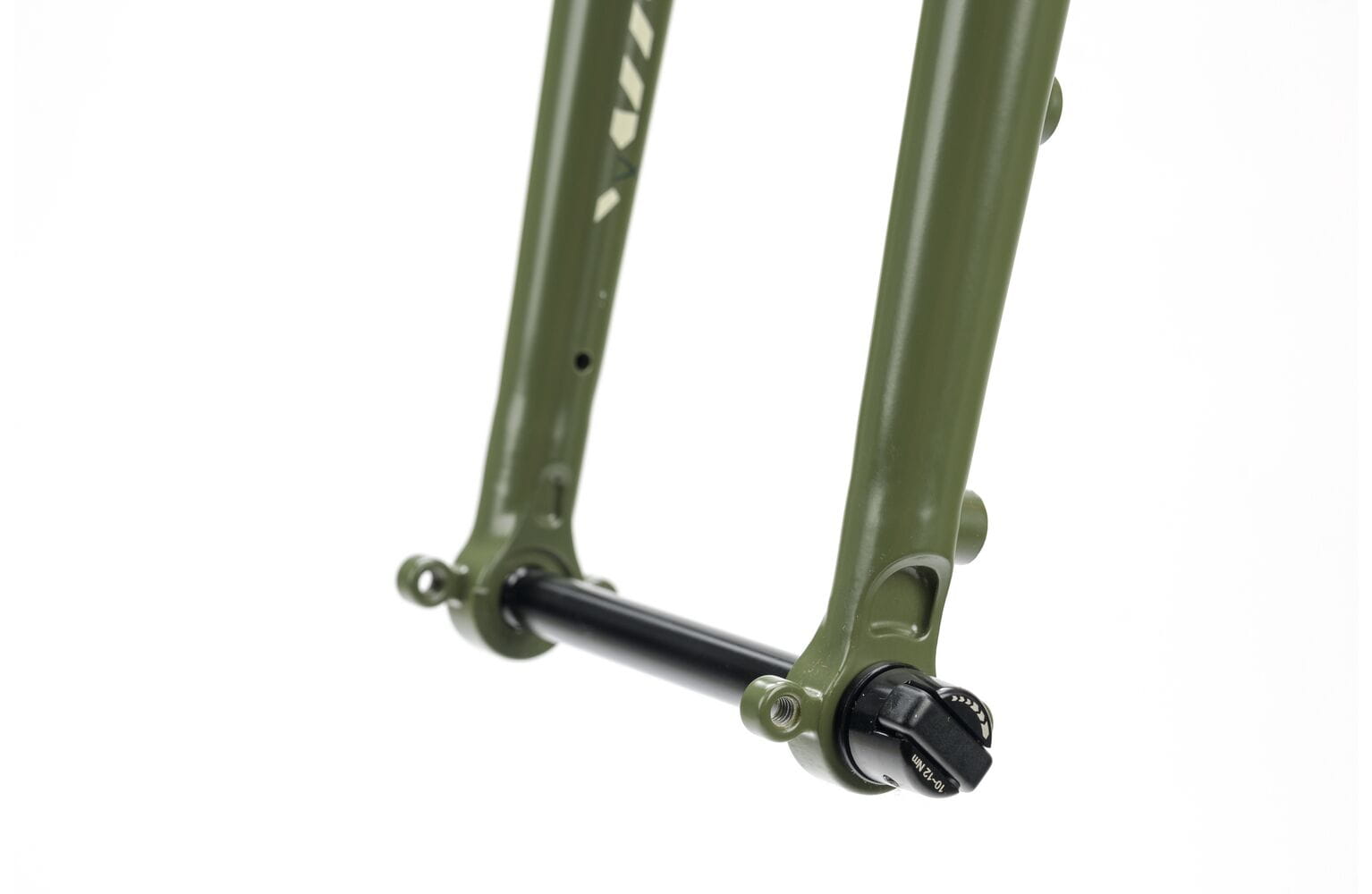

With 148 x 12mm rear axle, the vagabond opens up compatibility with wide ratio MTB drivetrains. The front axle stays 100 x 12mm as the vagabond is compatible with 40mm gravel suspension forks.
Your Way
- At Genesis, we all love a custom build. Quirky or otherwise. For many years we have offered framesets as part of our product line and the updated Vagabond is the perfect base to build something truly custom.
- The Vagabond is true to it's name and is the most versatile platform in our range for a custom gravel, aggro-gravel, go-anywhere or bike packing machine.

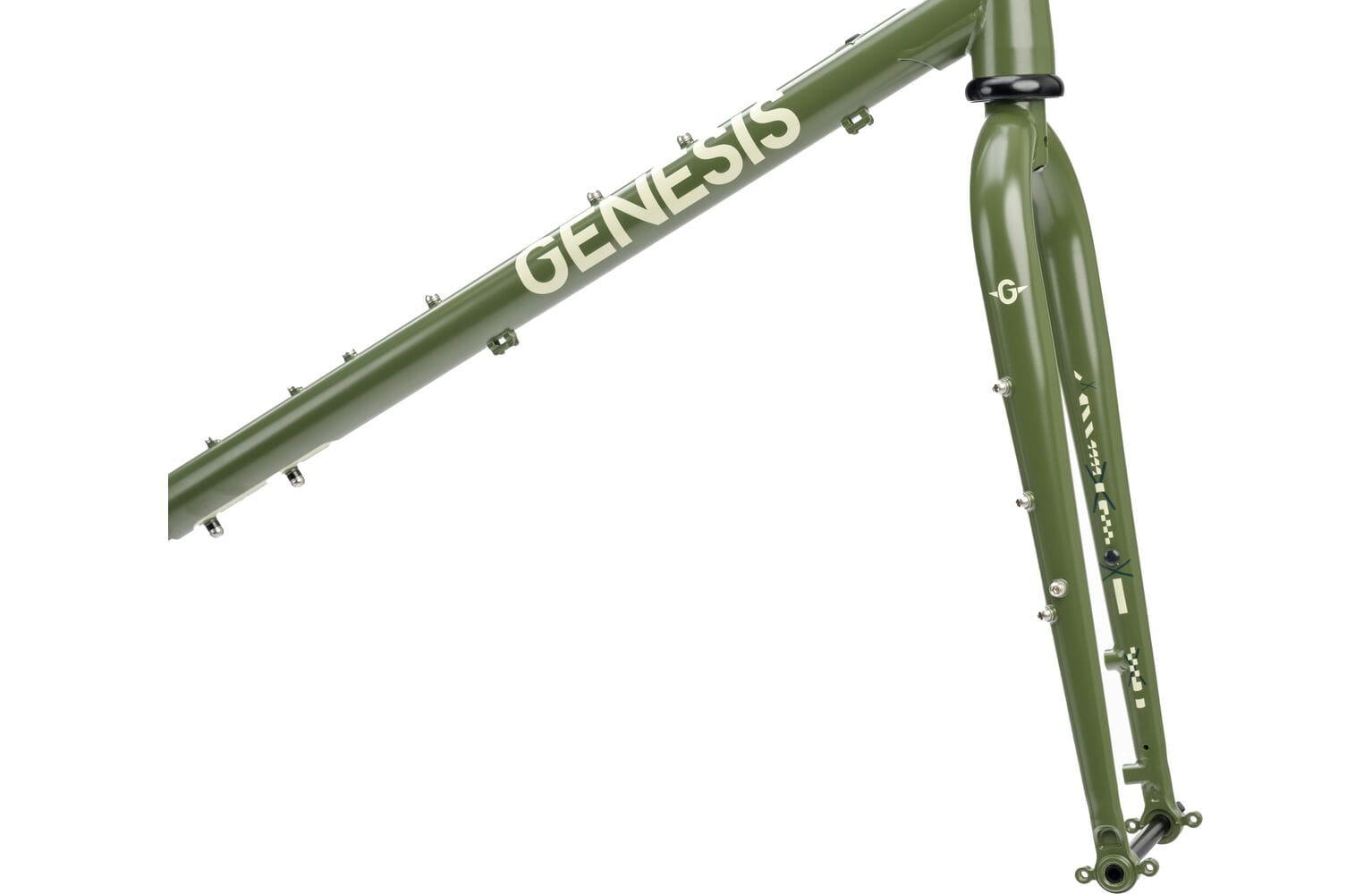

Frame & Fork
- Genesis Mjolnir Steel Tubeset

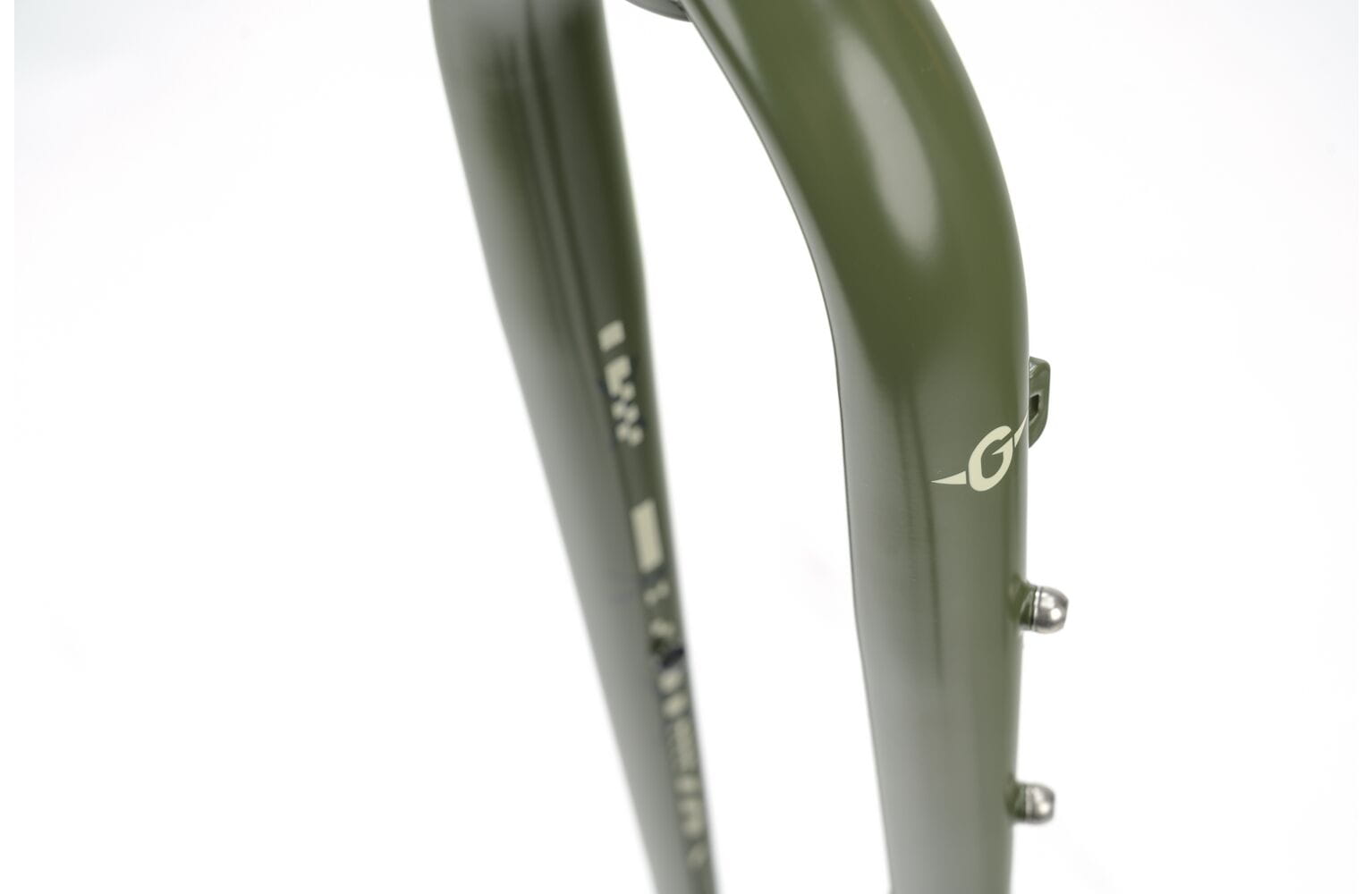

- Genesis Vagabond Steel Fork
- 40mm Suspension Fork Compatible
Extra

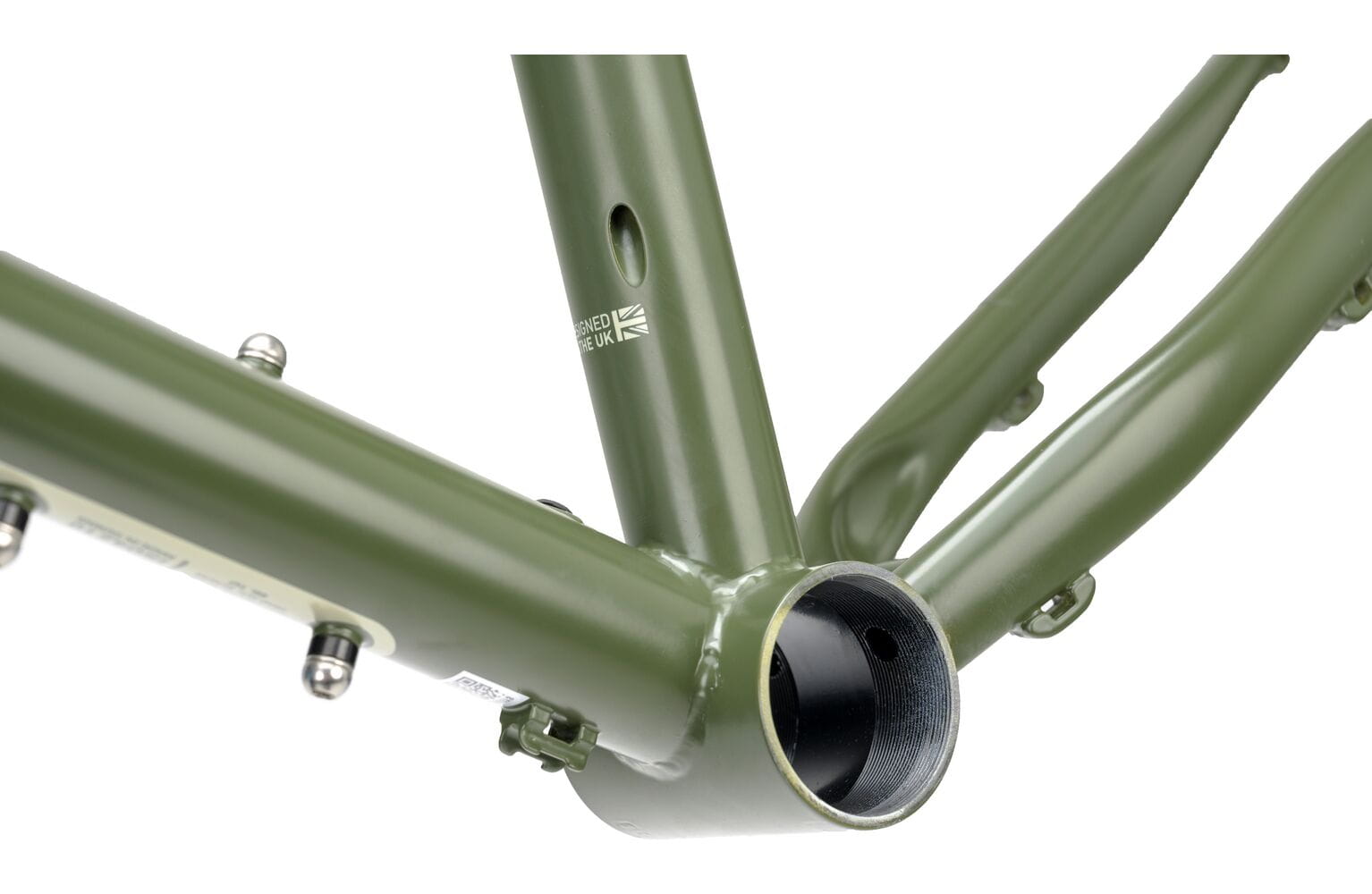

- T47 Threaded Bottom Bracket Shell
- 100 x 12mm & 148 x 12mm Axles

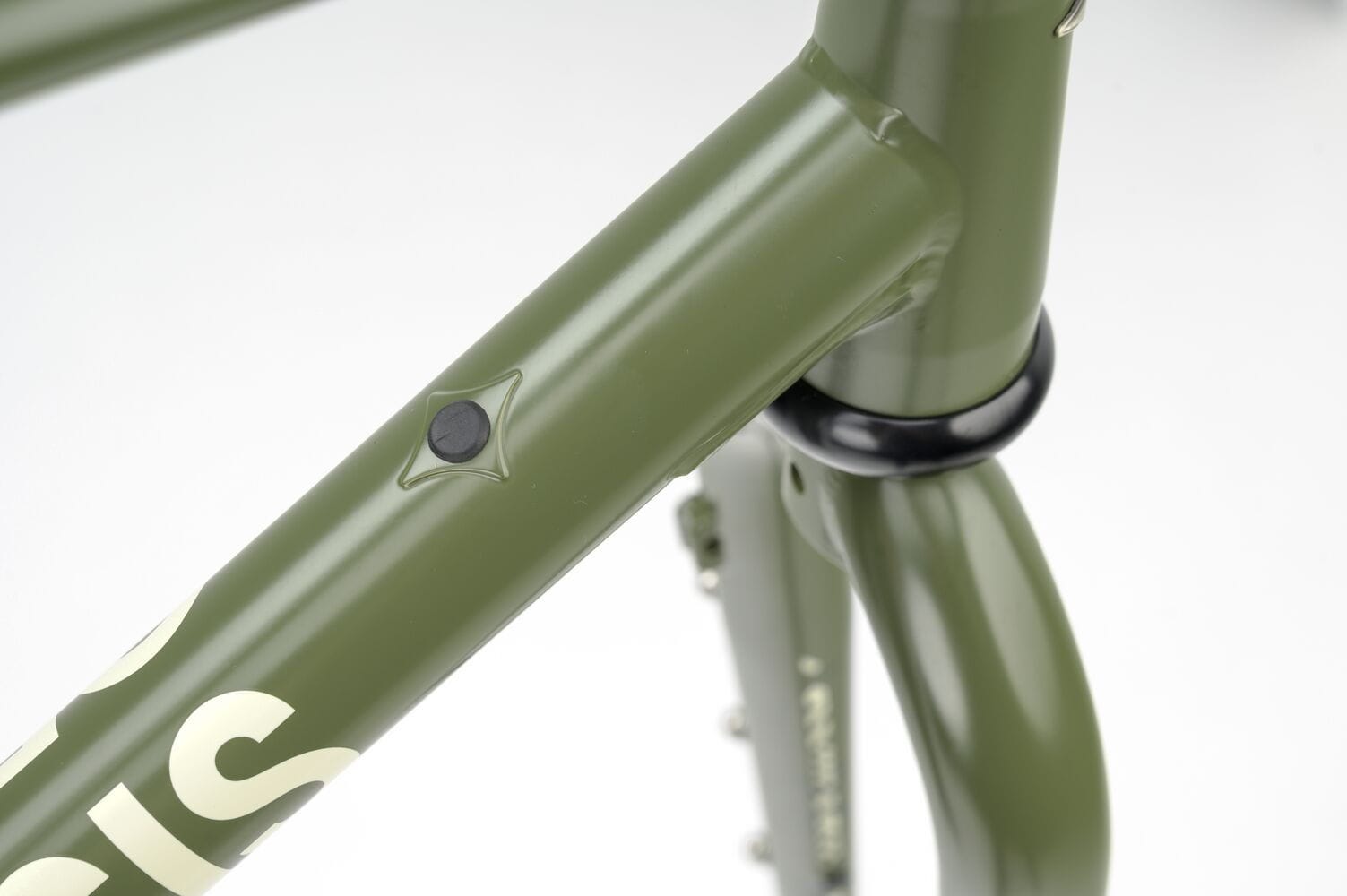

- EC34 Upper & EC44 Lower Headtube
- Variable Wheel Sizing - X-Small & Small 27.5". Medium, Large & X-Large 29"
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 569 | 592 | 617 | 640 | 659 |
| Reach | 370 | 385 | 415 | 430 | 445 |
| Headtube Angle | 69 | 69 | 69 | 69 | 69 |
| Headtube Length | 155 | 180 | 160 | 185 | 205 |
| Seattube Angle | 74 | 74 | 74 | 74 | 74 |
| Seattube Length | |||||
| Toptube (Effective) | 533 | 555 | 592 | 614 | 634 |
| Chainstay Length | 440 | 440 | 450 | 450 | 450 |
| Wheelbase | 1061 | 1085 | 1122 | 1146 | 1168 |
| BB Height | |||||
| BB Drop | 47 | 47 | 72 | 72 | 72 |
| Standover | 744 | 782 | 810 | 839 | 876 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
