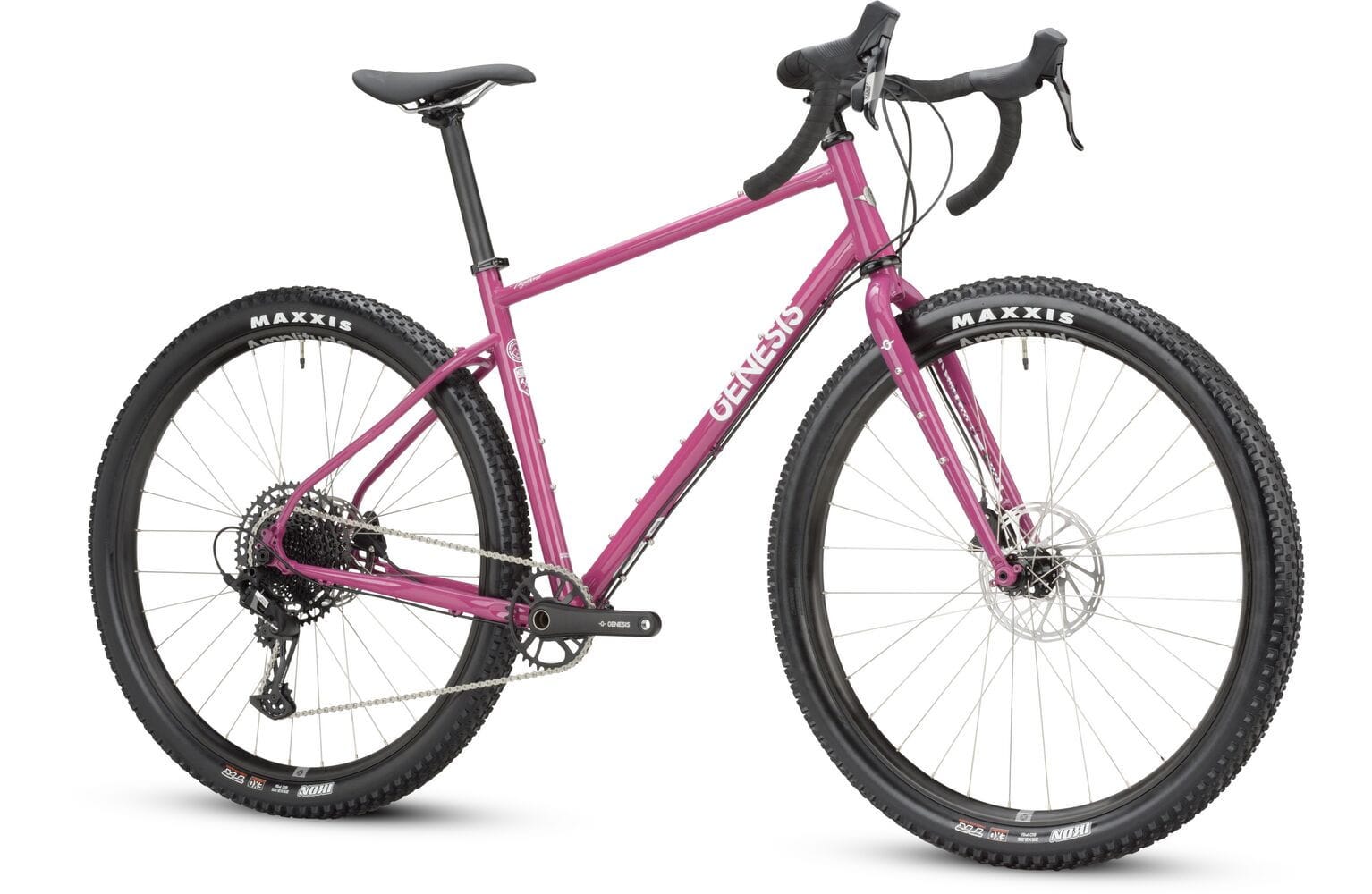

Genesis Vagabond 20 Gravel Bike
Color
Size
Click & Collect
Genesis Vagabond 20 Gravel Bike
Mauvist Mouse / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin

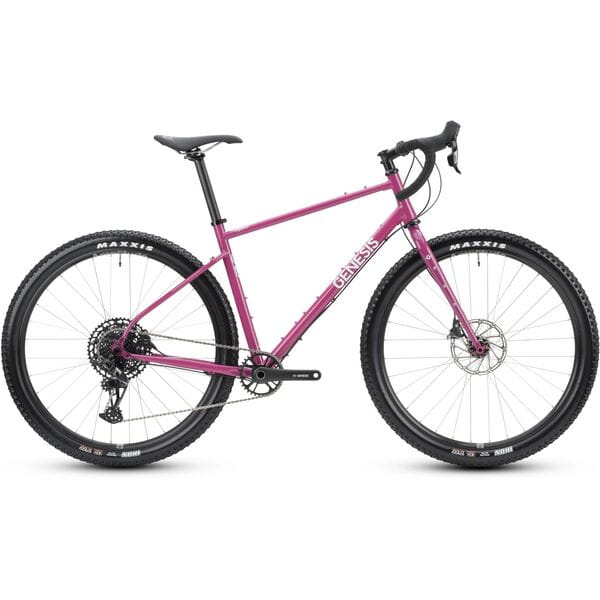

+3532840609Wanderer The Vagabond 20 truly lives up to its name; a masterful wanderer. Immensely fun on the gnarliest excursions. Irresistably loadable. Infinitely adaptable.
It's the bike that will tackle any terrain thrown at it on your quest for newly discovered trails or whilst filling in unknown corners of the map.
Aggro Gearing

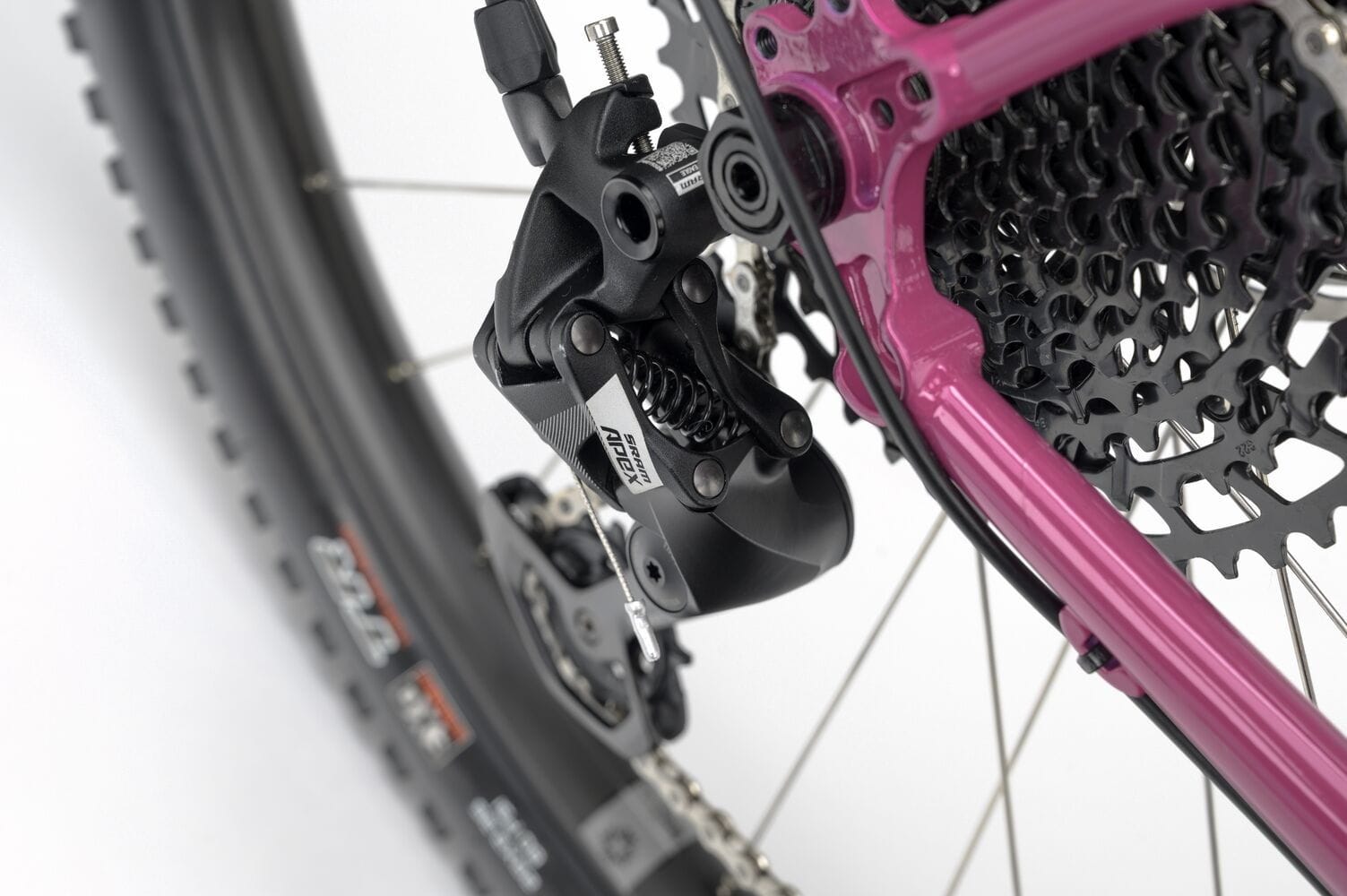

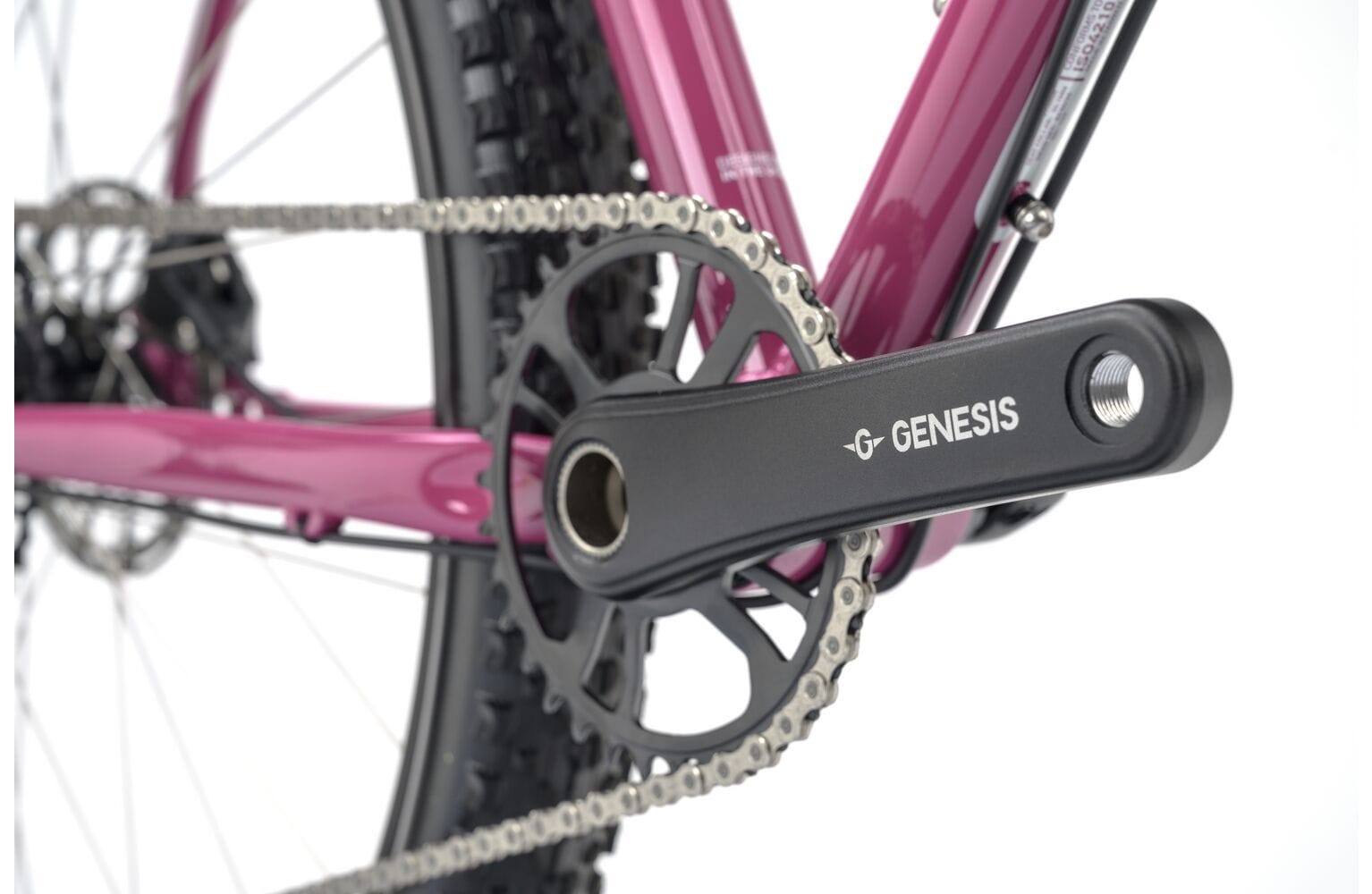

Fully Fledged MTB ratios courtesy of the SRAM Eagle 11-50T 12spd cassette paired with a 34T chainring make the Vagabond 20 a true o-anywhere machine.
Good Stoppers

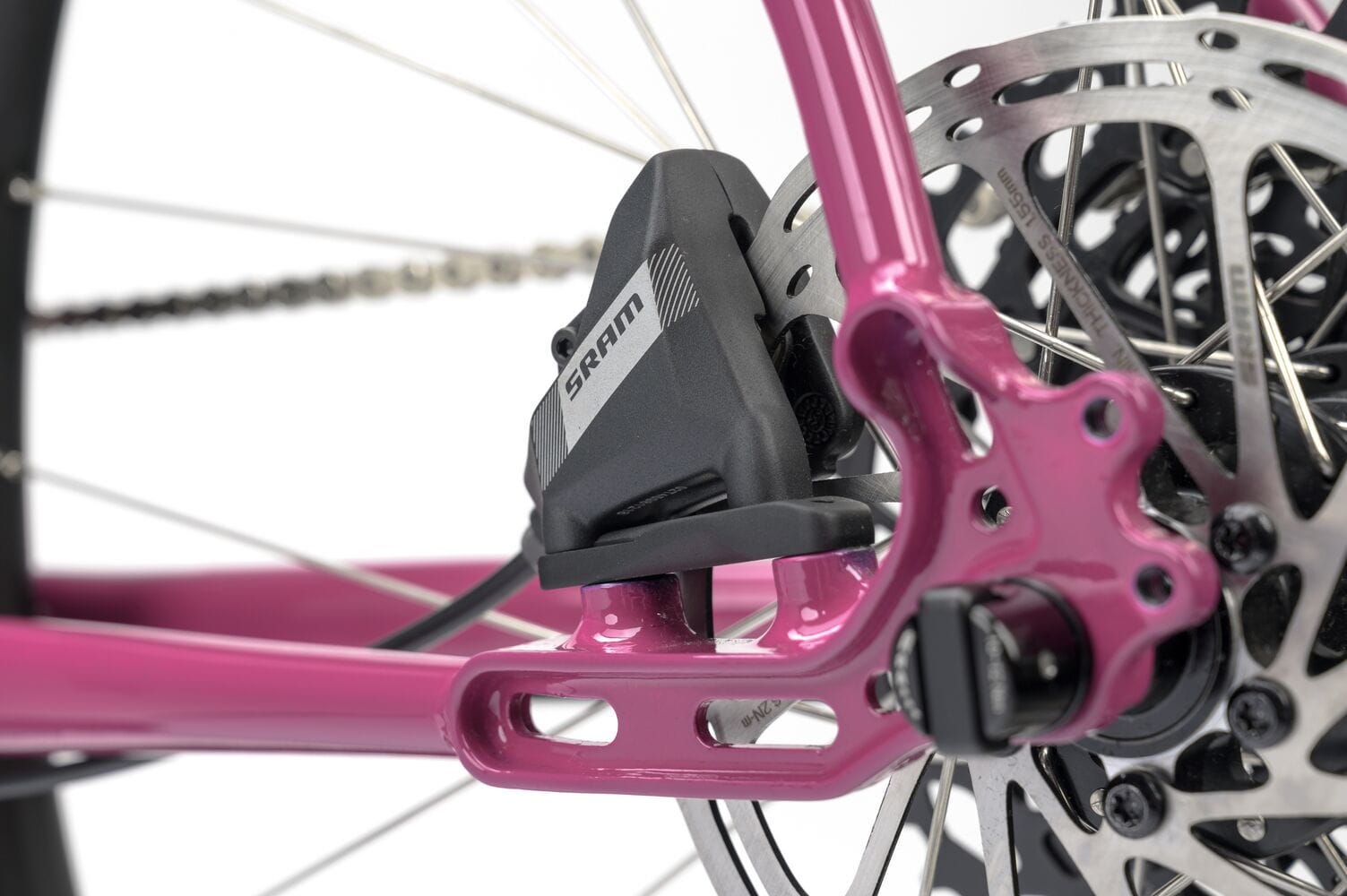

SRAM Apex XPLR hydraulic disc brakes paired with 180mm and 160mm rotors provide exceptional stopping power. No puny road stoppers here!
Volume Up

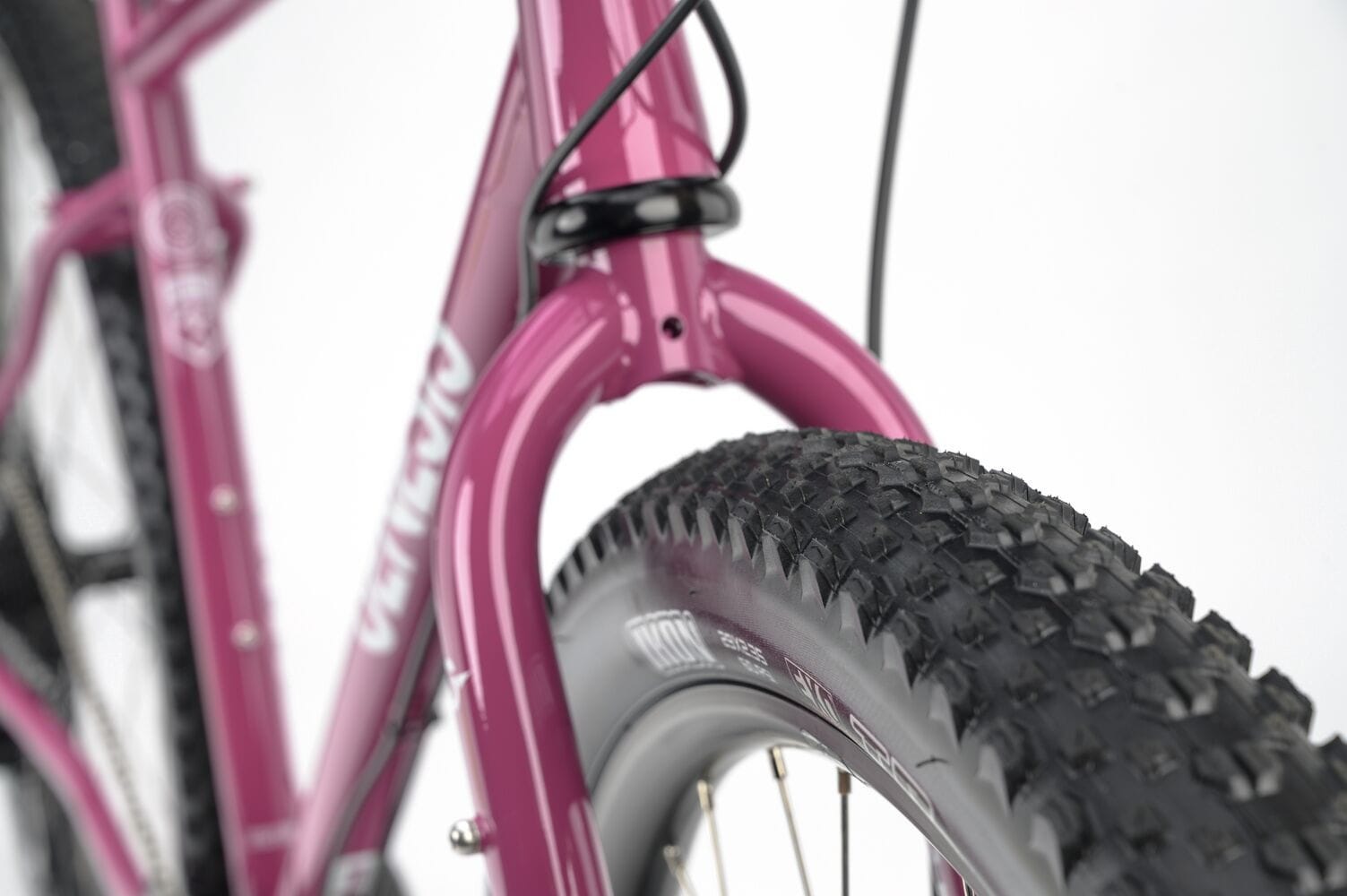

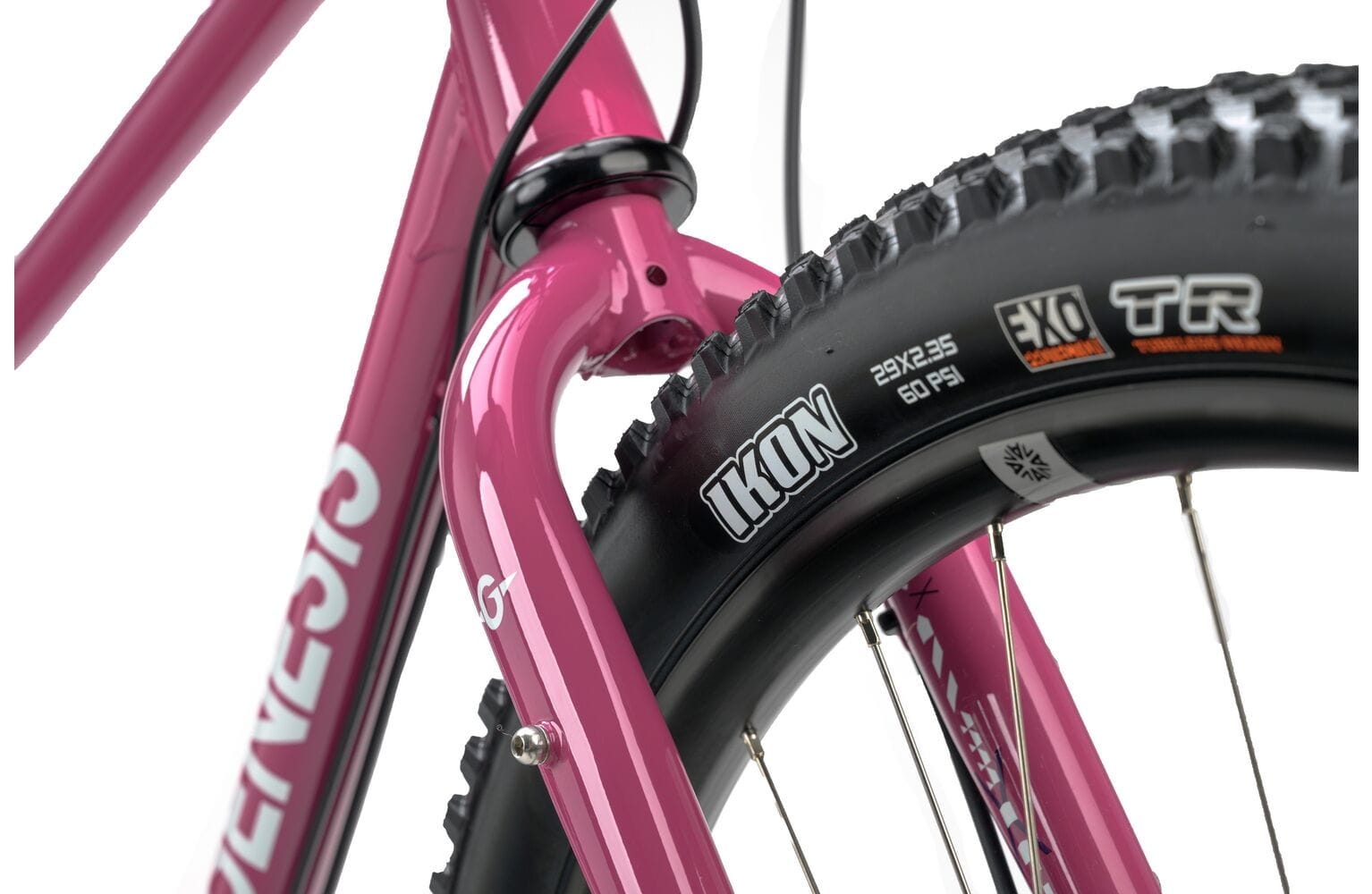

Voluptuous 2.35" Maxxis Ikon tubeless ready tyres mounted to 35mm Amplitude G120 wheels make for a comfortable and capable ride on any terrain.
Thor's Hammer

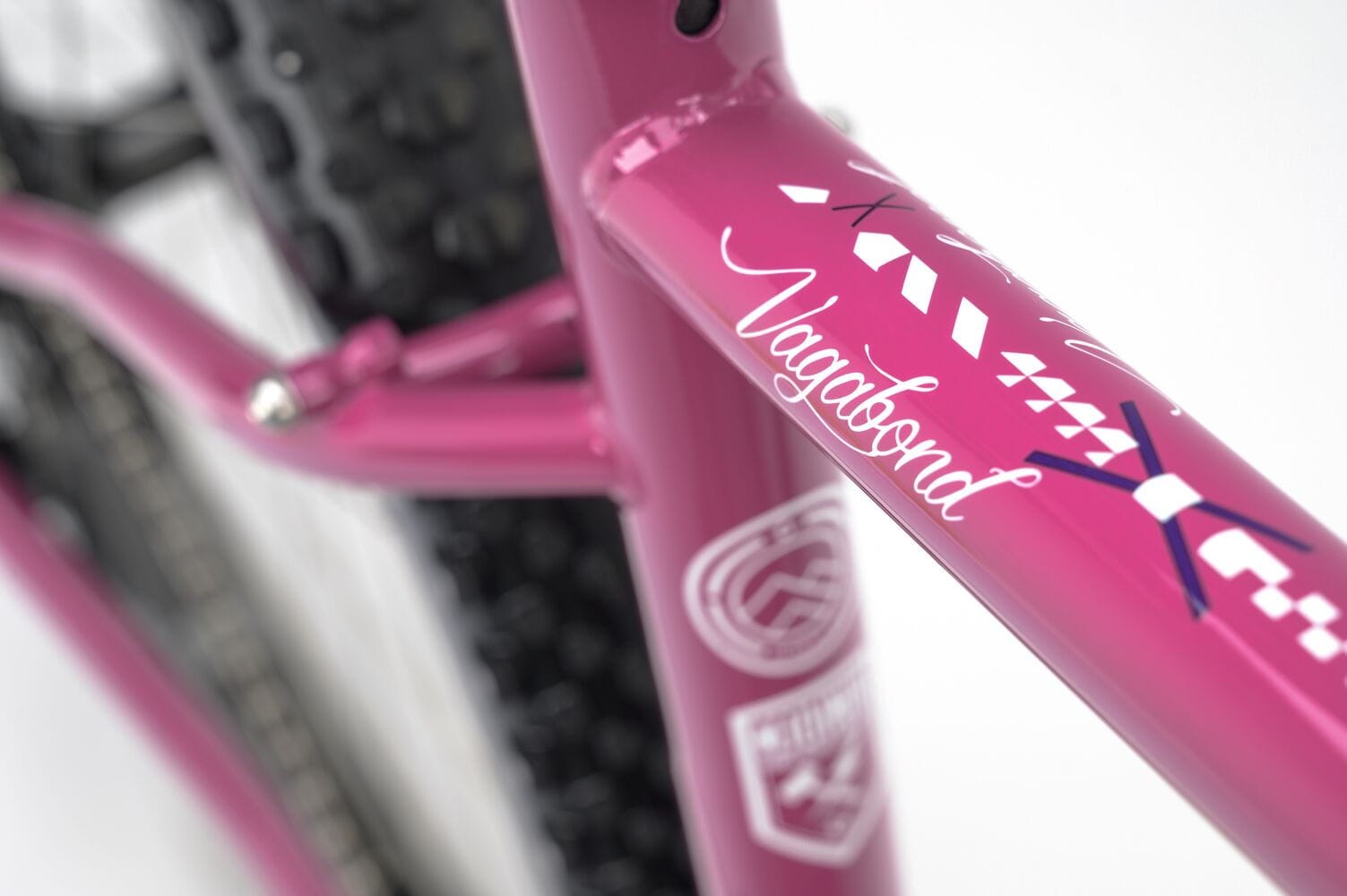

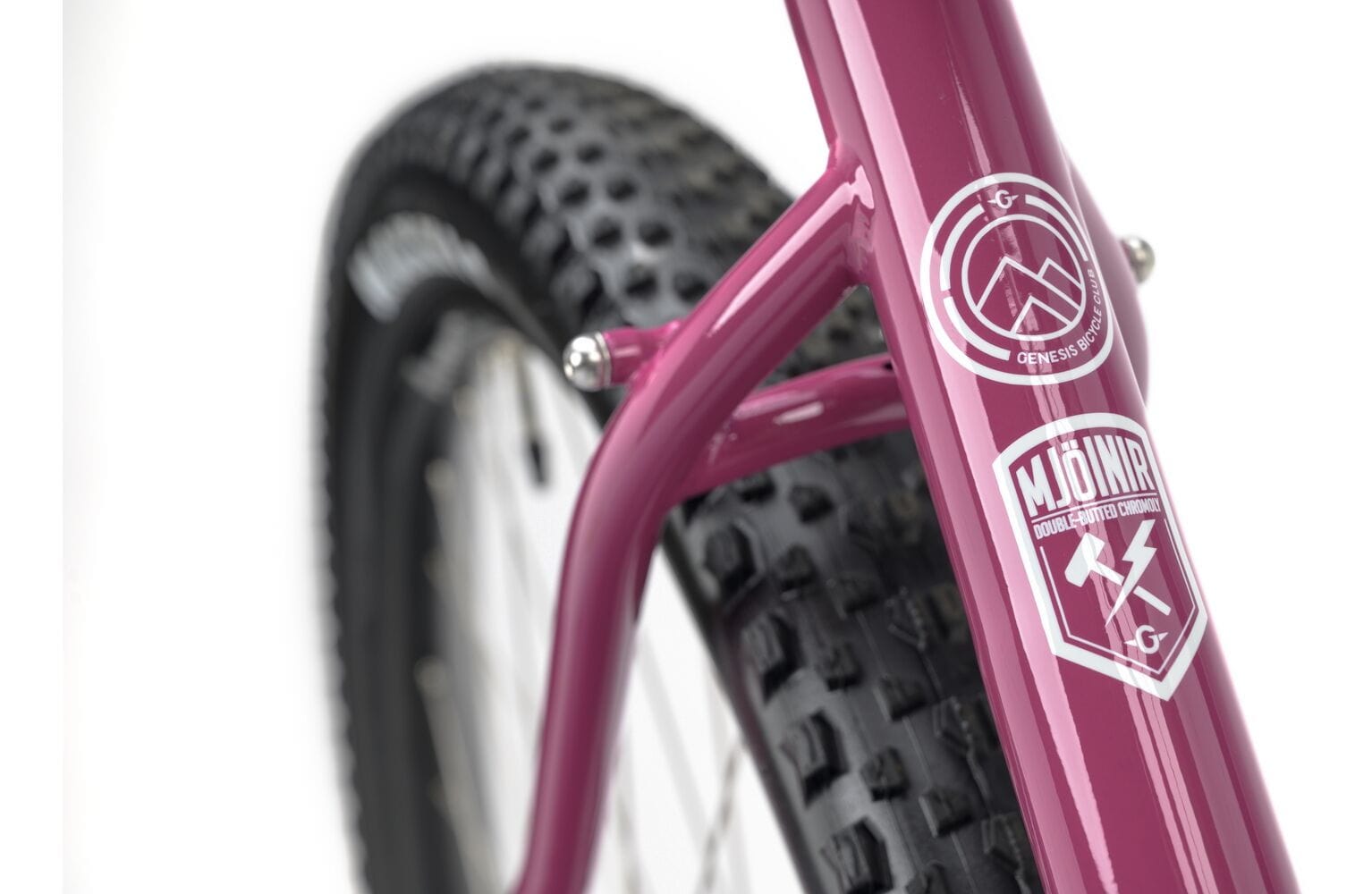

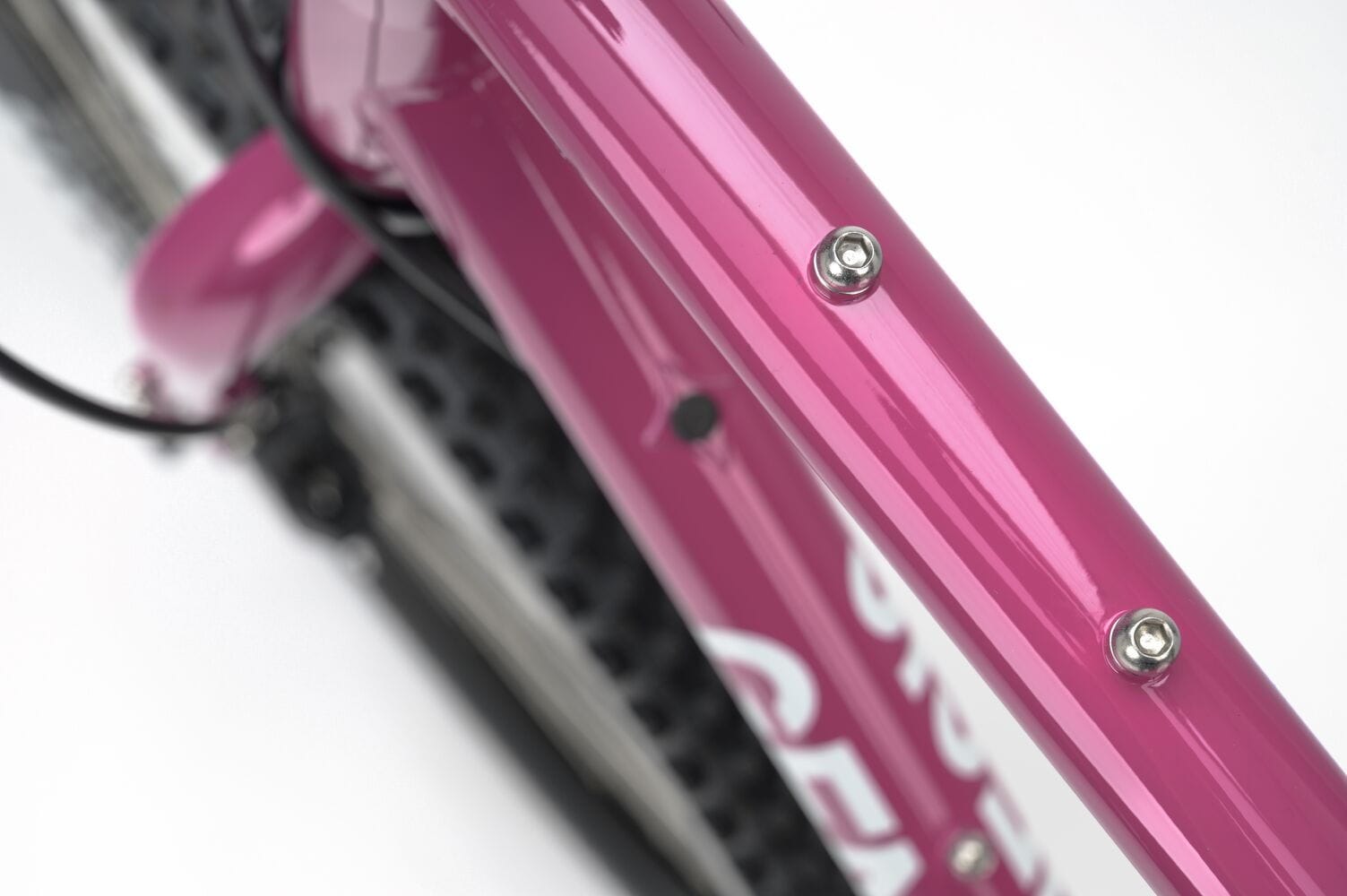

Our double-butted, cold-drawn, seamless, Mjolnir chromoly tubeset forms the bedrock of the Vagabond's incredibly durable and sublimely comfortable frame.
Specifications
Frame & Fork
- Genesis Mjolnir Steel Tubing
- Genesis Vagabond Chromoly Fork
Drivetrain
- SRAM Apex XPLR Eagle
- 1 x 12-speed
- 34T Chainring
- 11-50T Cassette
Components

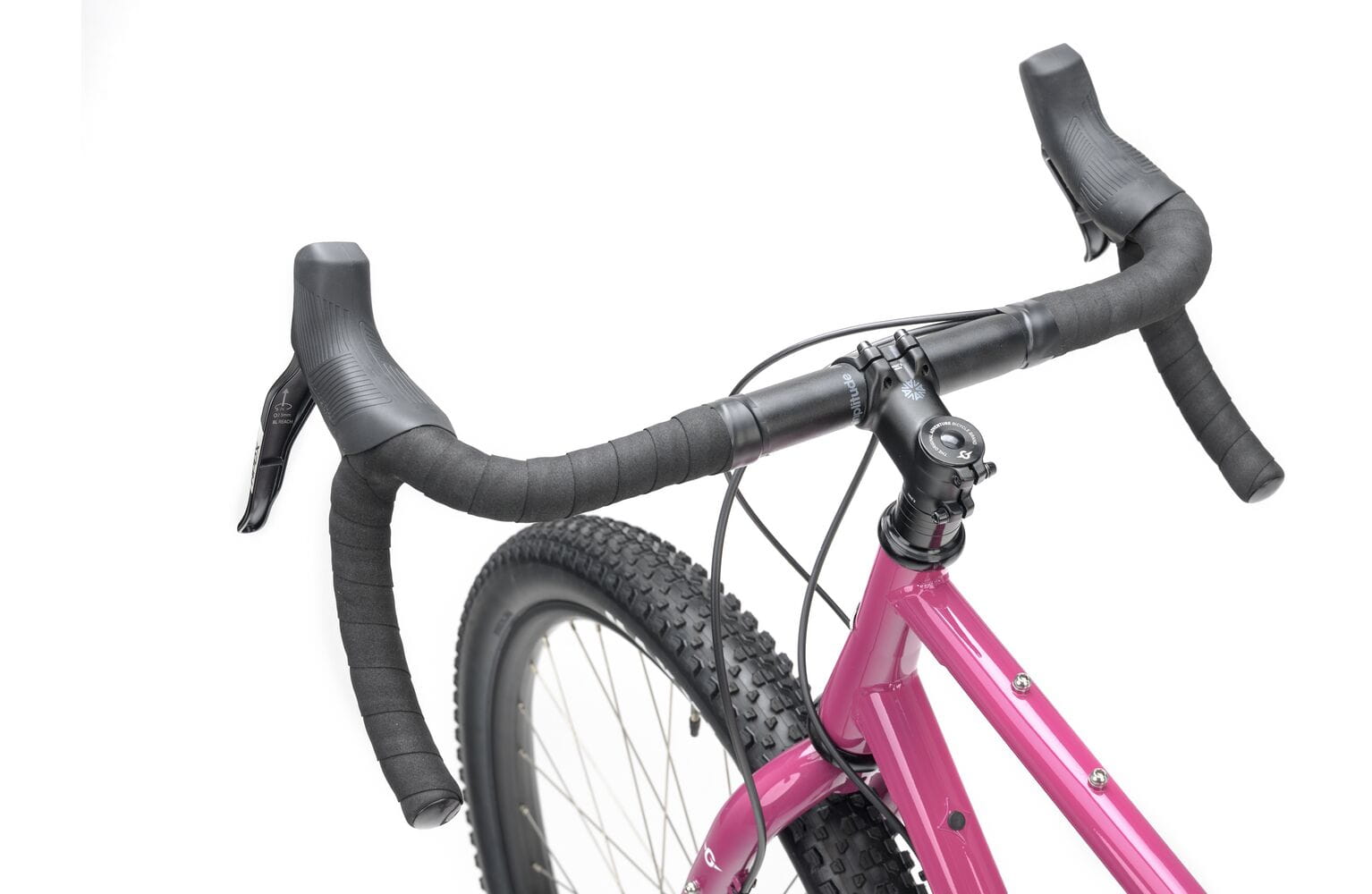

- Amplitude G120 Handlebar
- Amplitude G100 Seatpost & Stem
- Madison Flux Switch Saddle
Wheelset
- Amplitude G120
- Six-Bolt Rotor Mounts
- 100 x 12mm Front
- 148 x 12mm Rear
Brakes
- SRAM Apex XPLR Hydraulic Discs
- 180mm Front & 160mm Rear Rotors
Tyres
- Tubeless Ready Maxxis Ikon
- 27.5 x 2.35" X-Small & Small Sizes
- 29 x 2.35" Medium, Large & X-Large Sizes
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 569 | 592 | 617 | 640 | 659 |
| Reach | 370 | 385 | 415 | 430 | 445 |
| Headtube Angle | 69 | 69 | 69 | 69 | 69 |
| Headtube Length | 155 | 180 | 160 | 185 | 205 |
| Seattube Angle | 74 | 74 | 74 | 74 | 74 |
| Seattube Length | |||||
| Toptube (Effective) | 533 | 555 | 592 | 614 | 634 |
| Chainstay Length | 440 | 440 | 450 | 450 | 450 |
| Wheelbase | 1061 | 1085 | 1122 | 1146 | 1168 |
| BB Height | |||||
| BB Drop | 47 | 47 | 72 | 72 | 72 |
| Standover | 744 | 782 | 810 | 839 | 876 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
