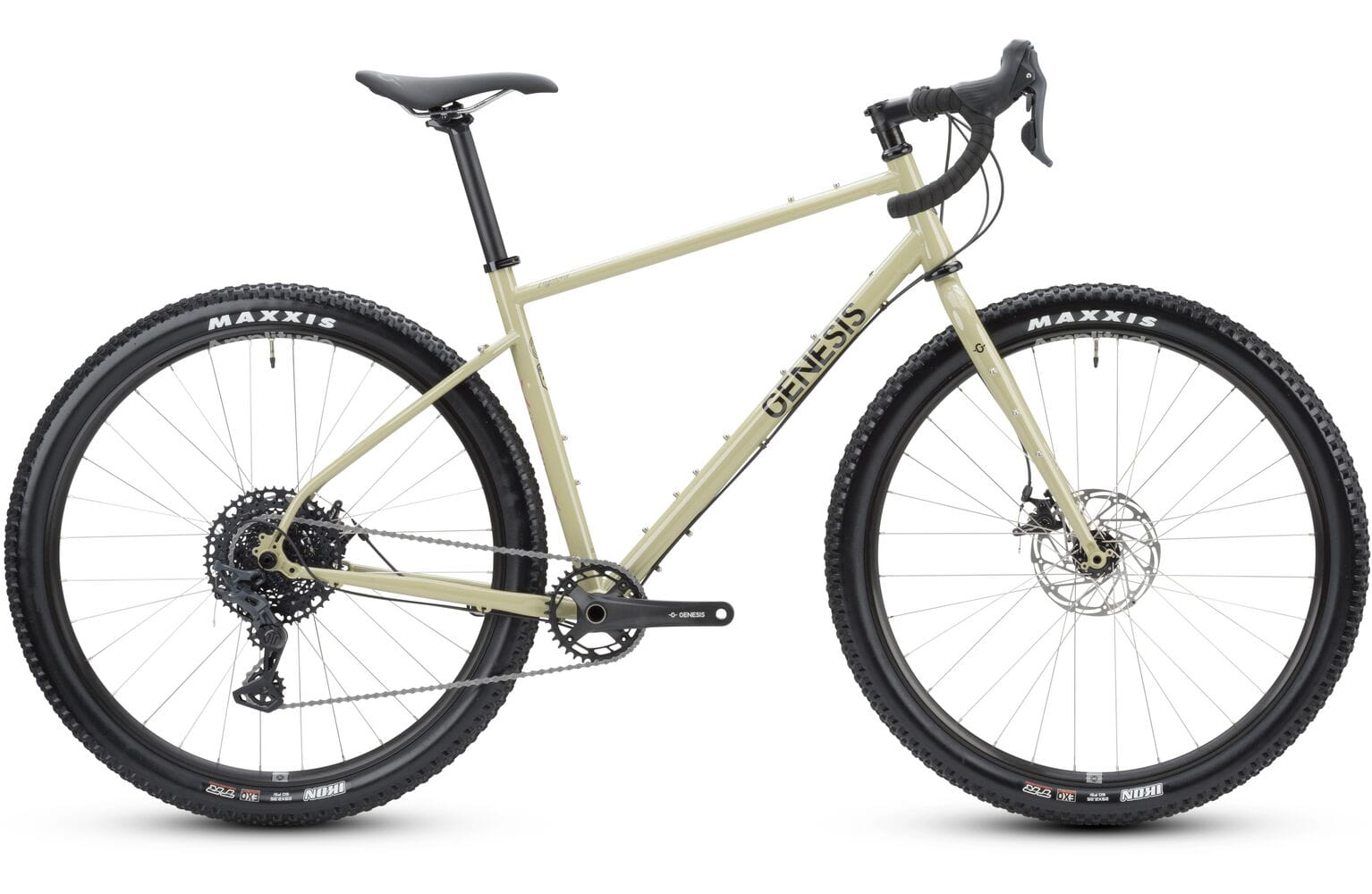

Genesis Vagabond 10 Gravel Bike
Color
Size
Click & Collect
Genesis Vagabond 10 Gravel Bike
Rolling Bones / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin

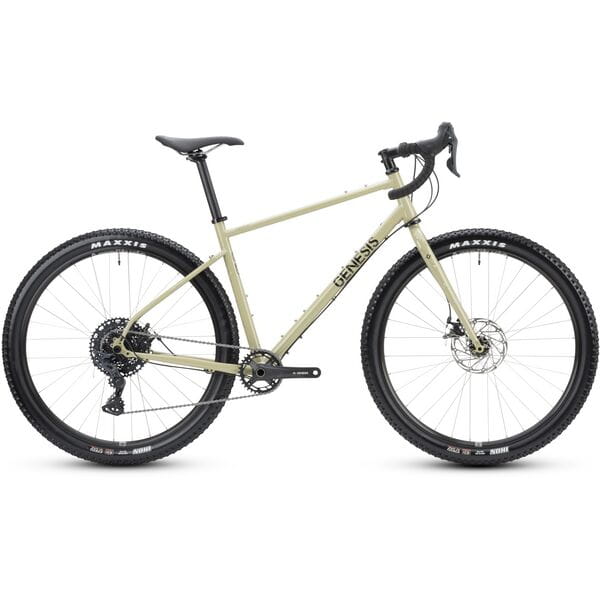

+3532840609Go ANYwhere The revised Vagabond platform combined with a great new specification utilising the latest in gravel and adventure tech make the Vagabond 10 a superb entry point into rugged adventure riding.
Mountainbike tyres, a short stem and big brake rotors add to a confidence inspiring package so you can head off the beaten track with ease.
Gravel Group

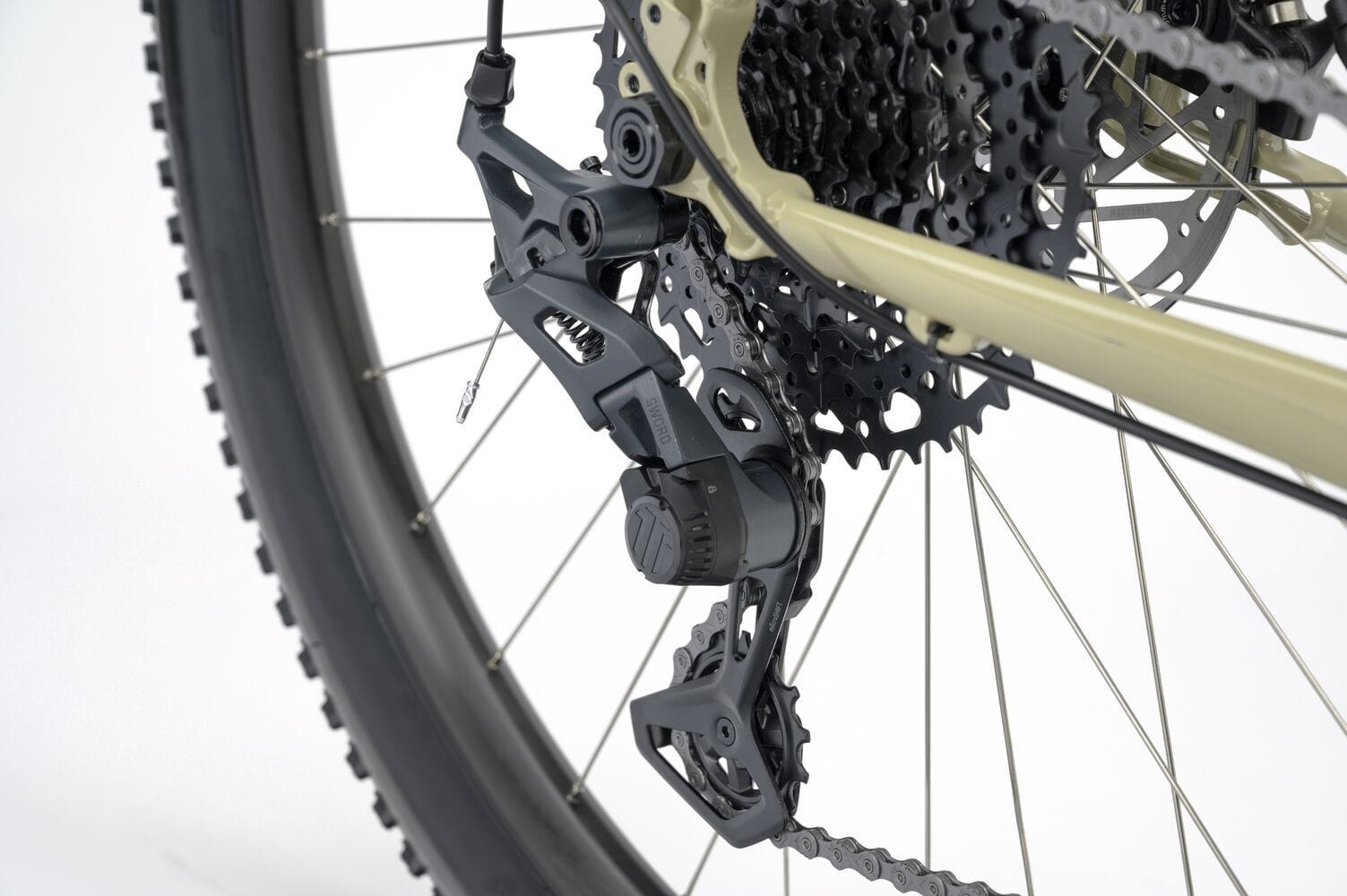

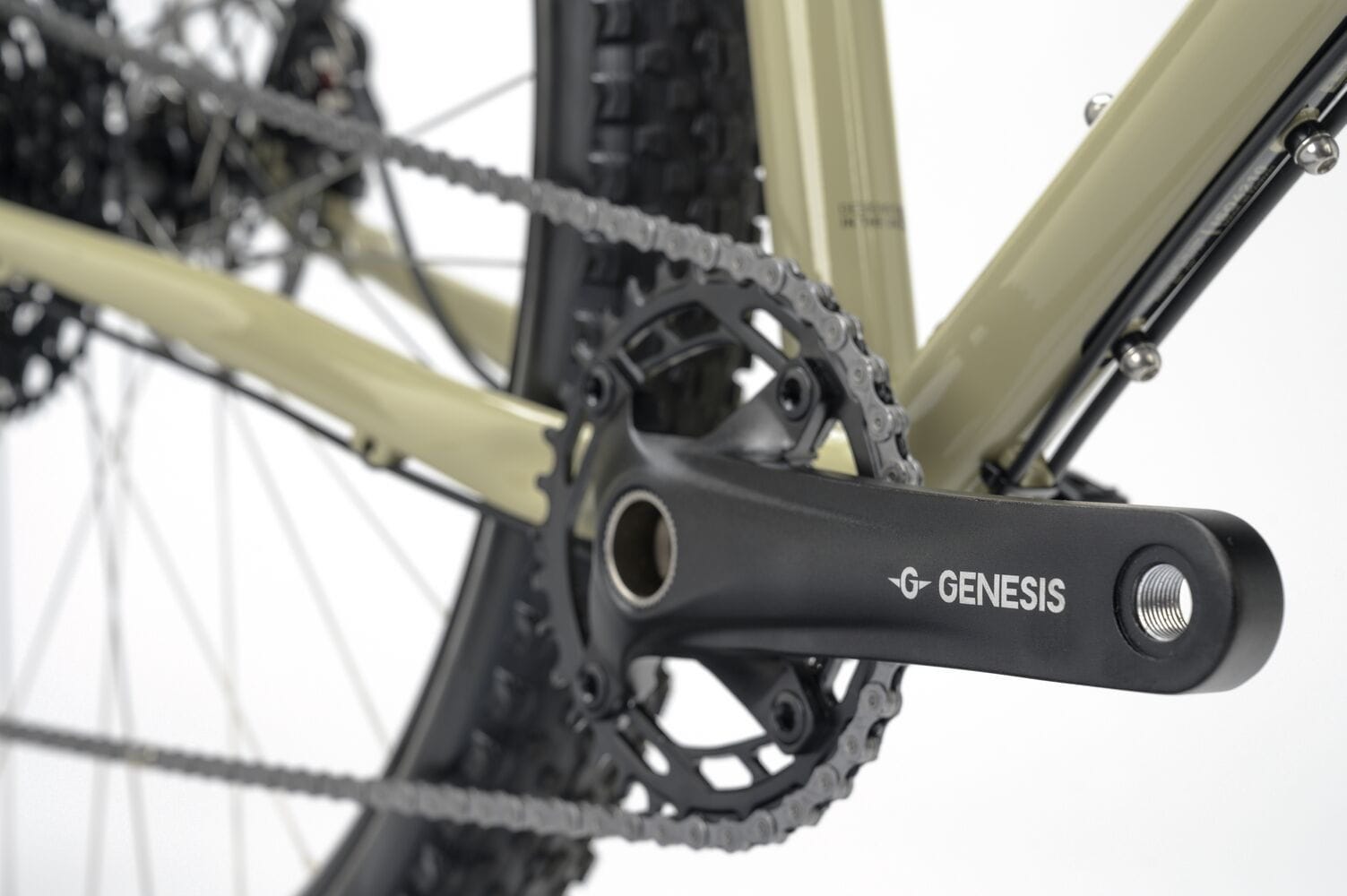

The Vagabond 10 delivers a massive gear range thanks to the microShift Sword drivetrain. Featuring MTB-Like ratios with an 11-48T cassette and a 34T chainring, the Vagabond 10 will conquer any climb.
Reknowned Stopping Power

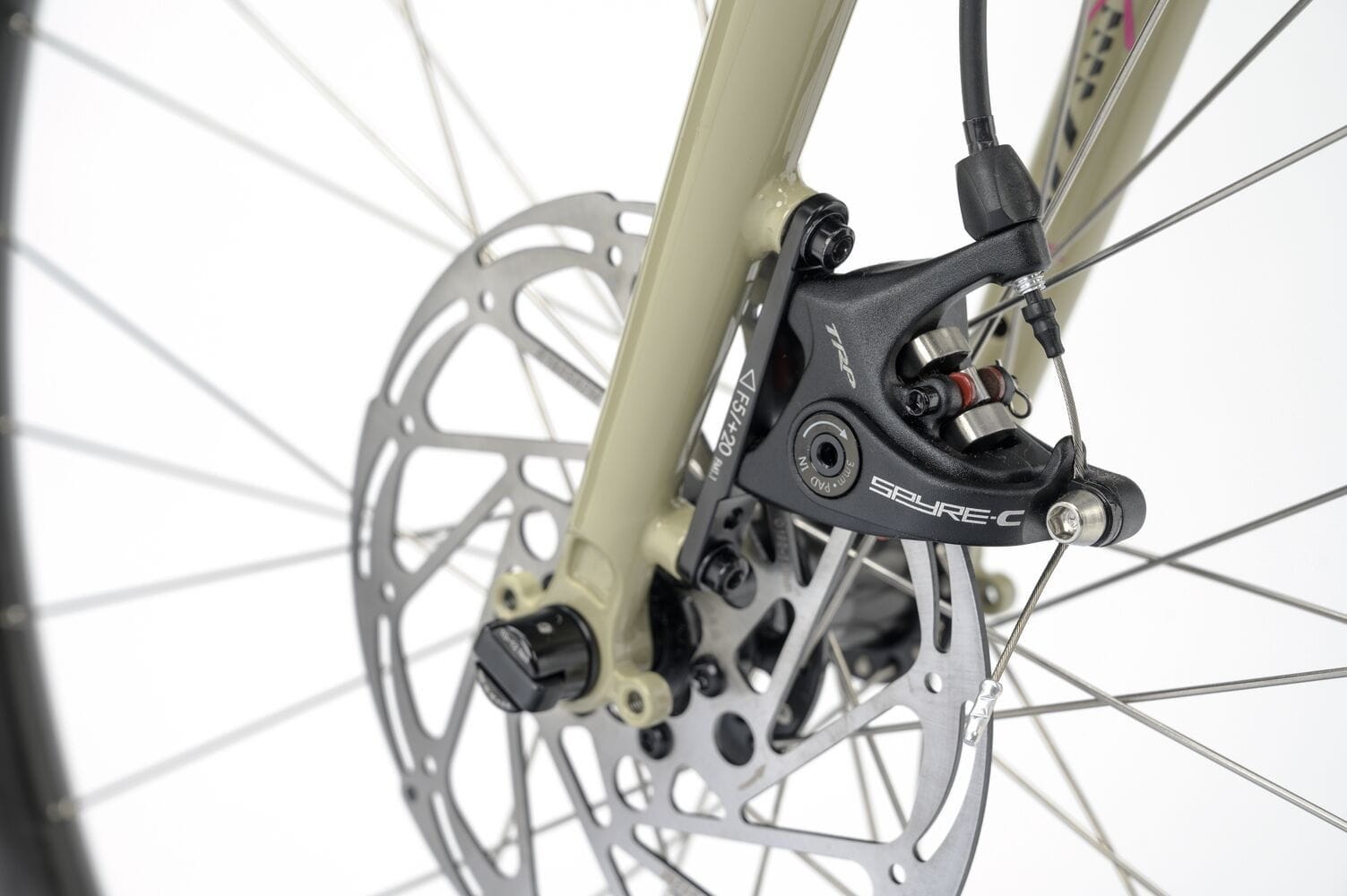

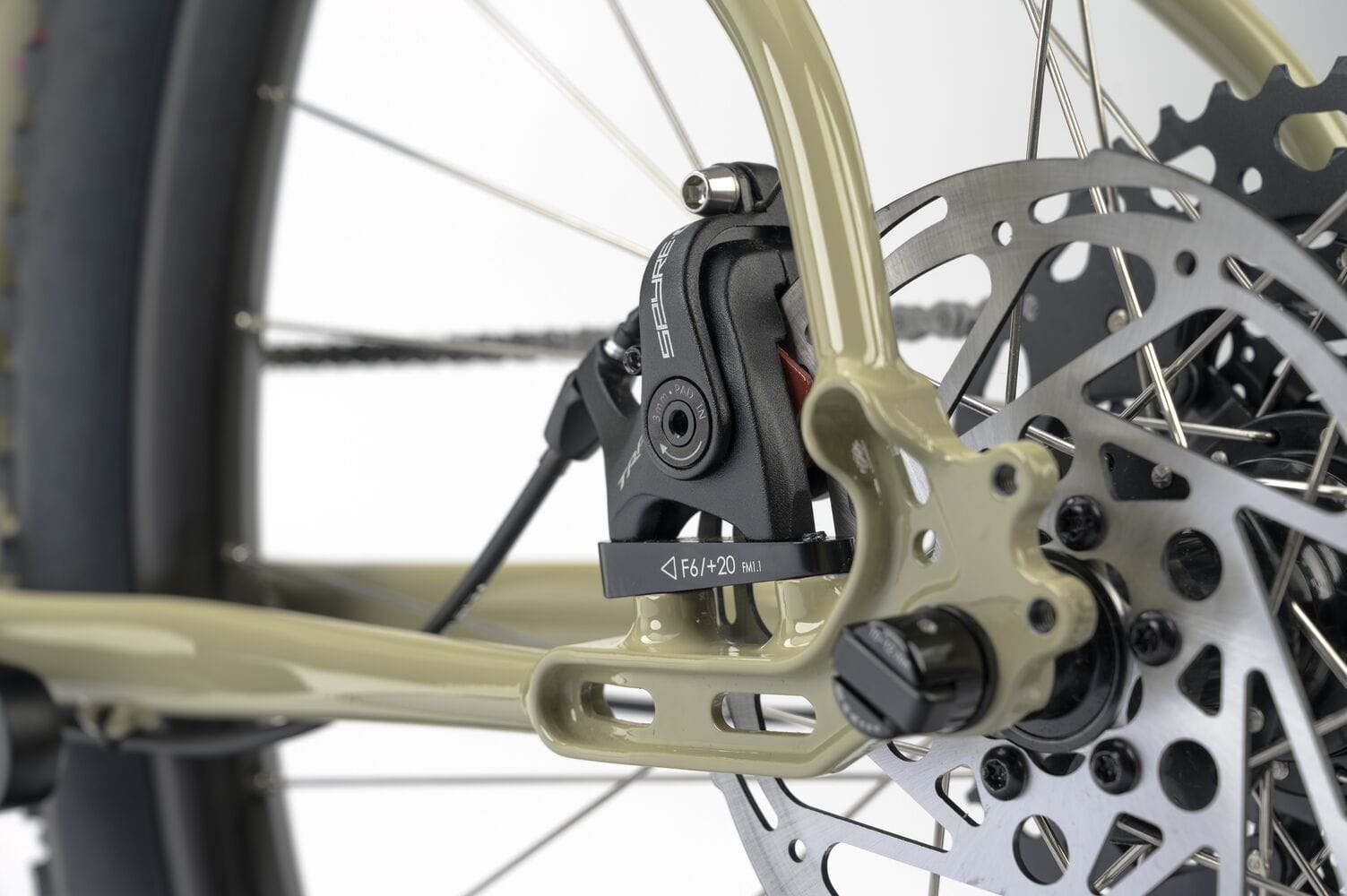

The TRP Spyre's dual piston actuated design combines the easy maintenance of a mechanical brake with the improved lever feel and stopping power from a hydraulic system.
Volume Up

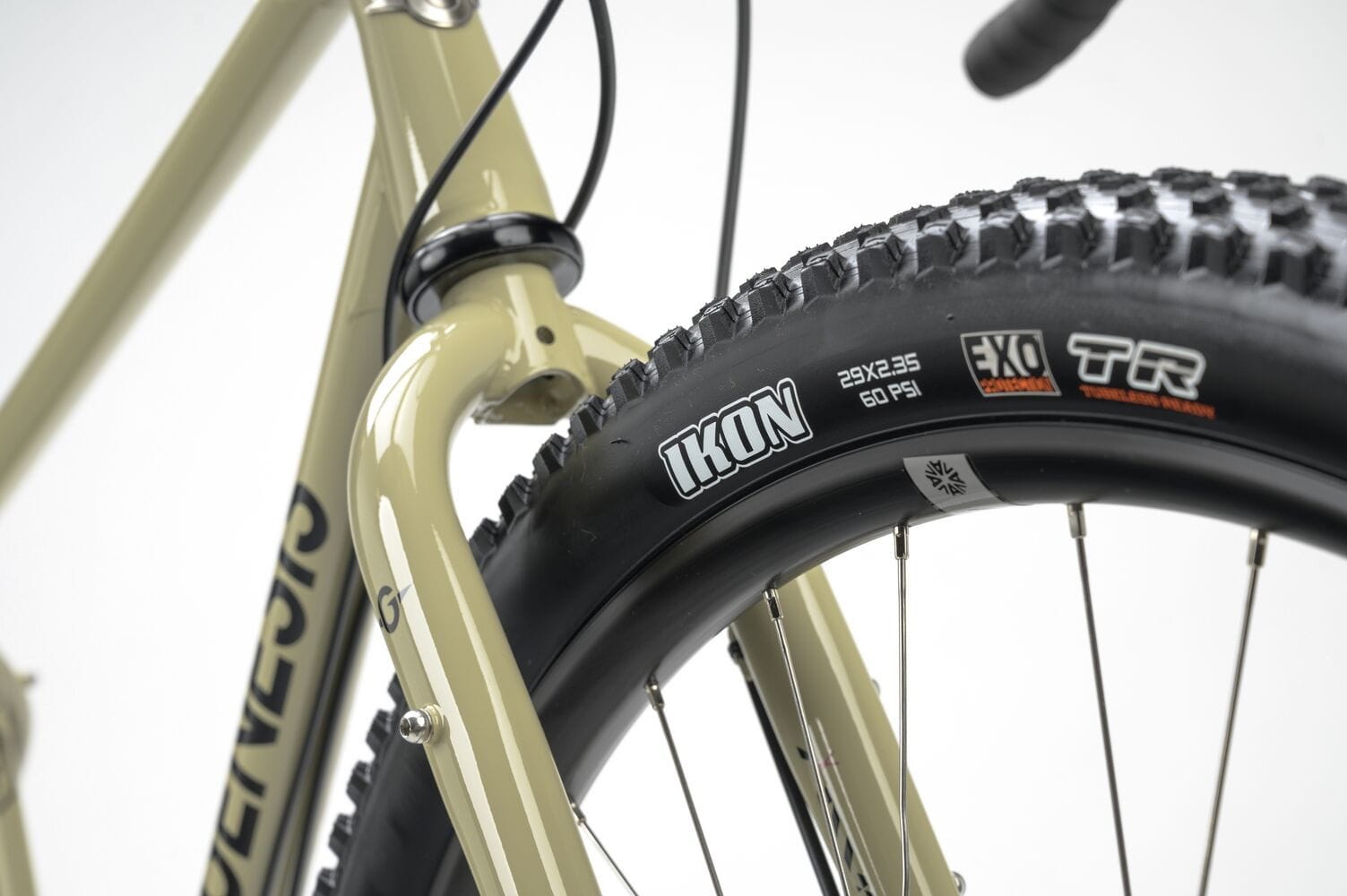

Voluptuous 2.35" MAxxis Ikon tubeless ready tyres mounted to 35mm AMplitude G120 wheels make for a comfortable and capable ride on any terrain.
Thor's Hammer

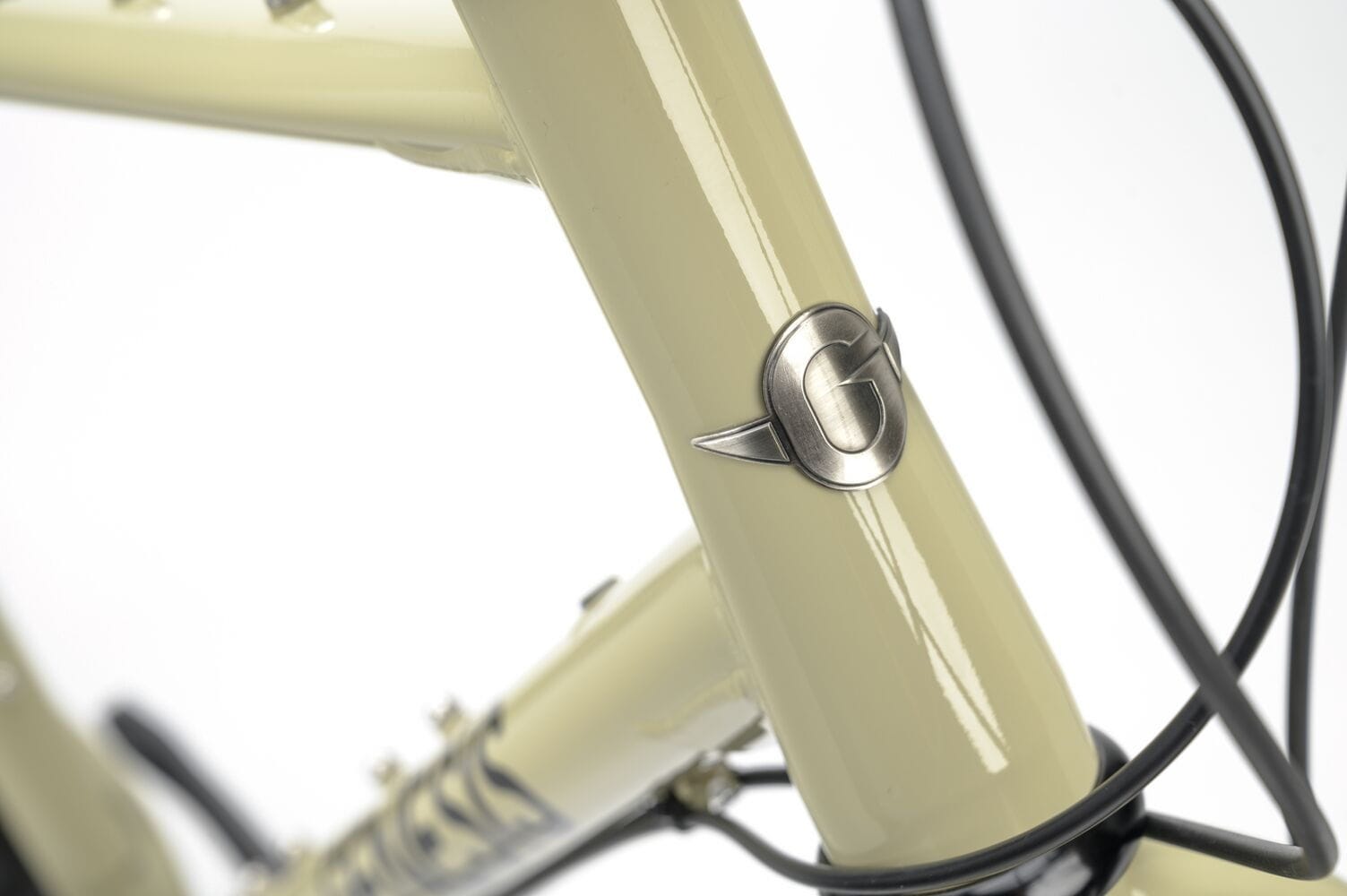

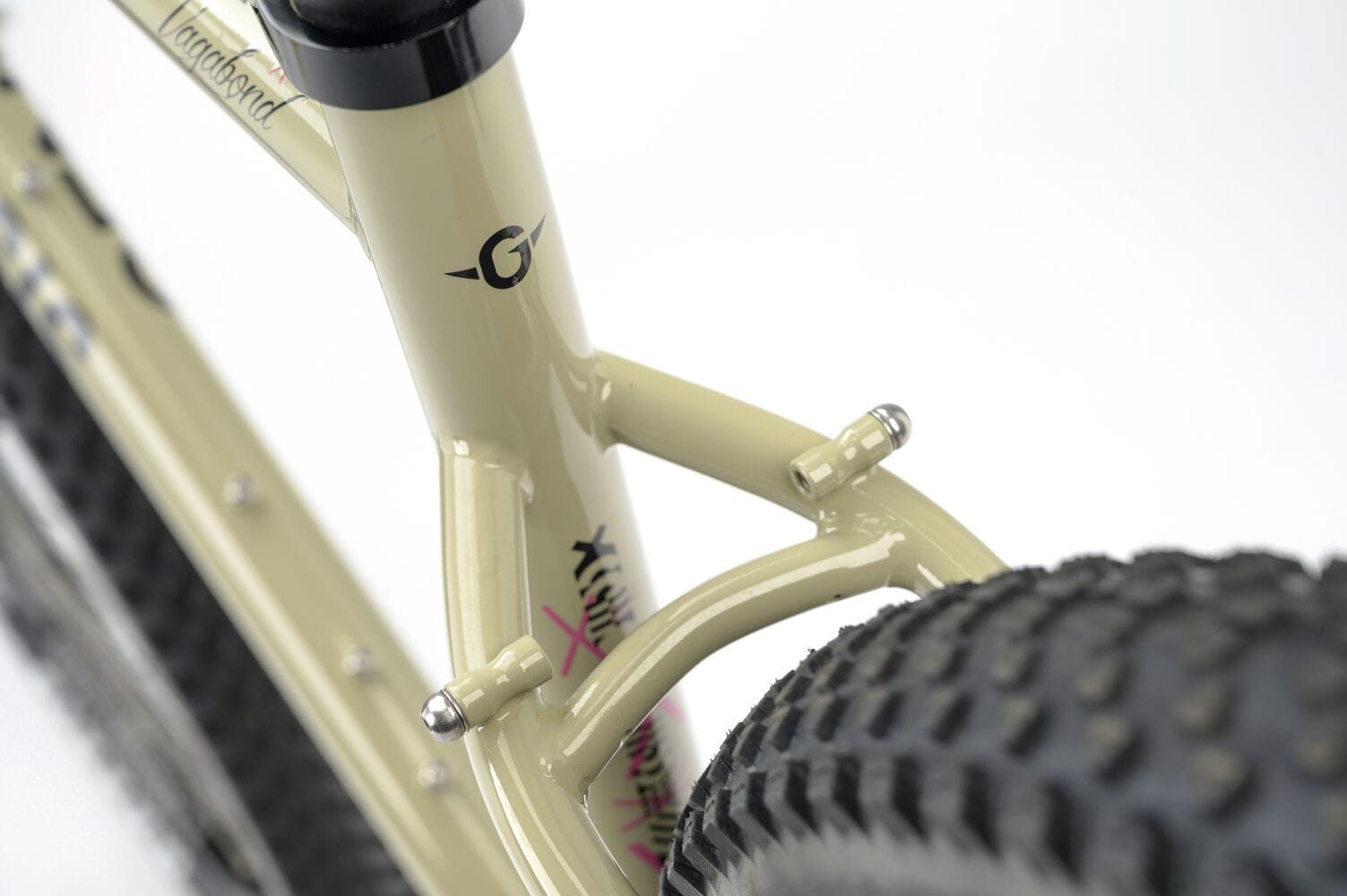

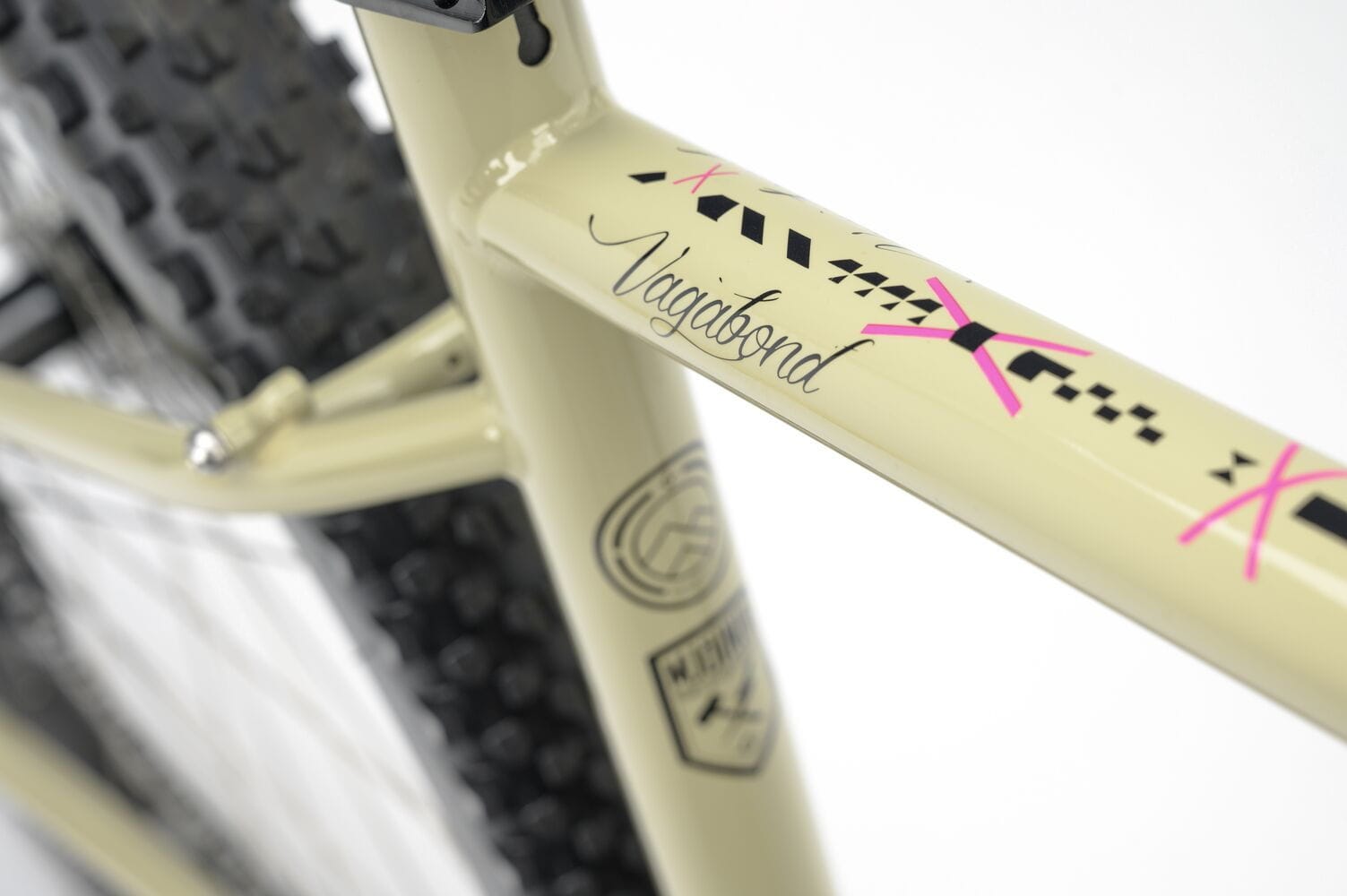

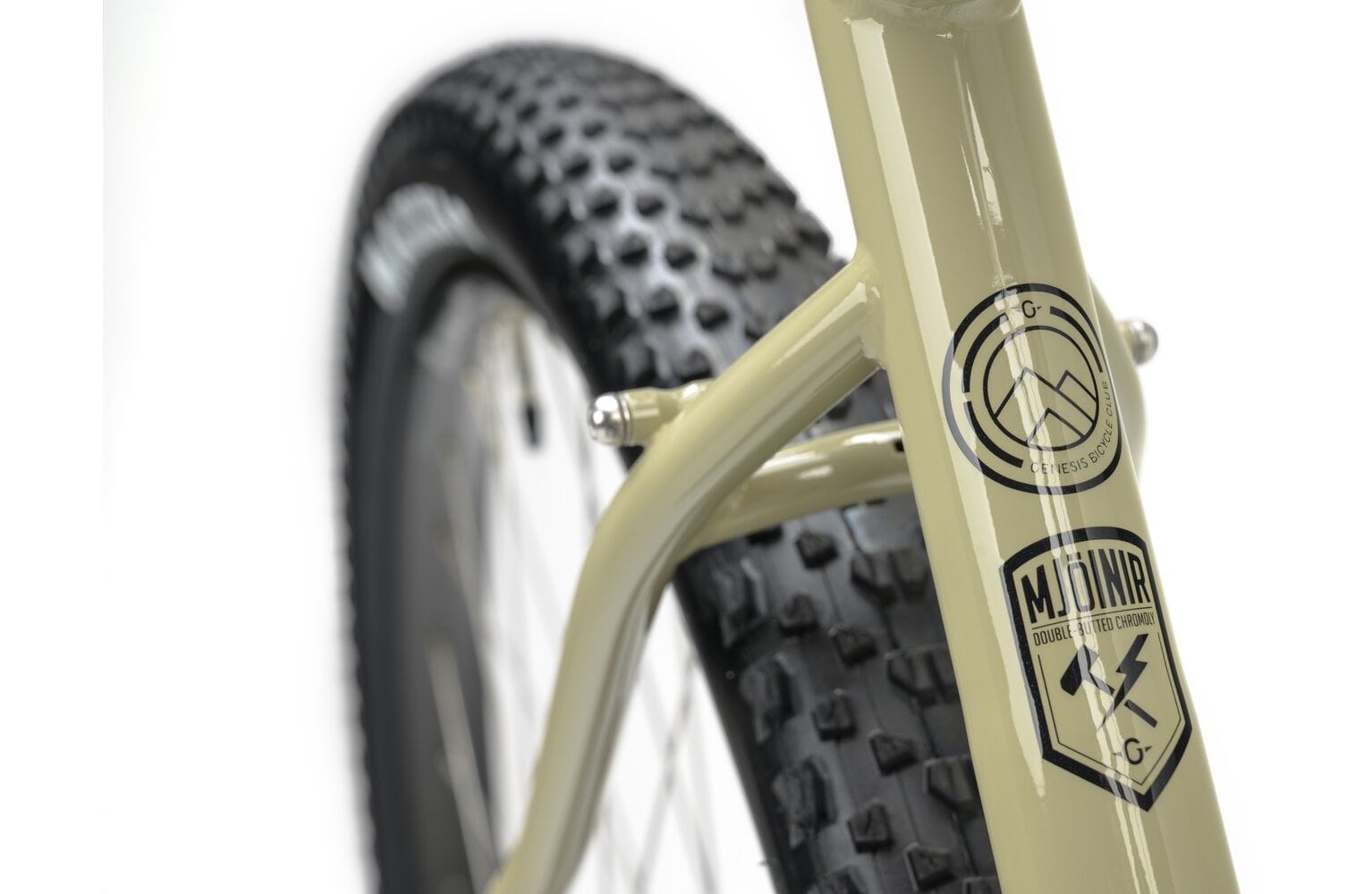

Our double-butted, cold-drawn, seamless, Mjolnir chromoly tubeset forms the bedrock of the Vagabond's incredibly durable and sublimely comfortable frame.
Specifications
Frame & Fork
- Genesis Mjolnir Steel Tubing

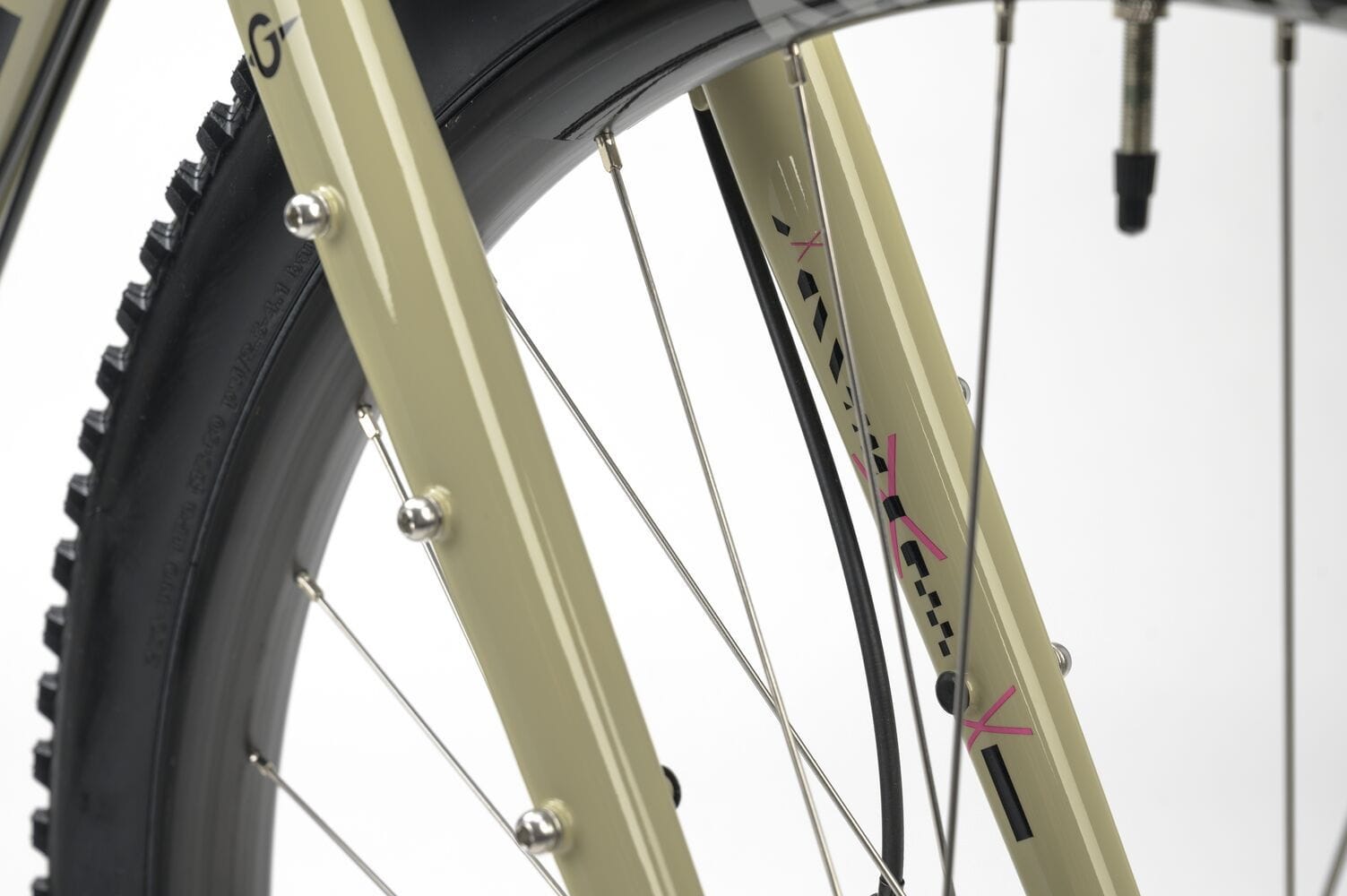

- Genesis Vagabond Chromoly Fork
Drivetrain
- microSHIFT Sword G7000
- 1 x 10-speed
- 34T Chainring
- 11-48T Cassette
Components
- Amplitude G120 Handlebar
- Amplitude G100 Seatpost & Stem
- Madison Flux Switch Saddle
Wheelset
- Amplitude G120
- Six-Bolt Rotor Mounts
- 100 x 12mm Front
- 148 x 12mm Rear
Brakes
- TRP Spyre Mechanical Discs
- 180mm Front & 160mm Rear Rotors
Tyres
- Tubeless Ready Maxxis Ikon
- 27.5 x 2.35" X-Small & Small Sizes
- 29 x 2.35" Medium, Large & X-Large Sizes
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 569 | 592 | 617 | 640 | 659 |
| Reach | 370 | 385 | 415 | 430 | 445 |
| Headtube Angle | 69 | 69 | 69 | 69 | 69 |
| Headtube Length | 155 | 180 | 160 | 185 | 205 |
| Seattube Angle | 74 | 74 | 74 | 74 | 74 |
| Seattube Length | |||||
| Toptube (Effective) | 533 | 555 | 592 | 614 | 634 |
| Chainstay Length | 440 | 440 | 450 | 450 | 450 |
| Wheelbase | 1061 | 1085 | 1122 | 1146 | 1168 |
| BB Height | |||||
| BB Drop | 47 | 47 | 72 | 72 | 72 |
| Standover | 744 | 782 | 810 | 839 | 876 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
