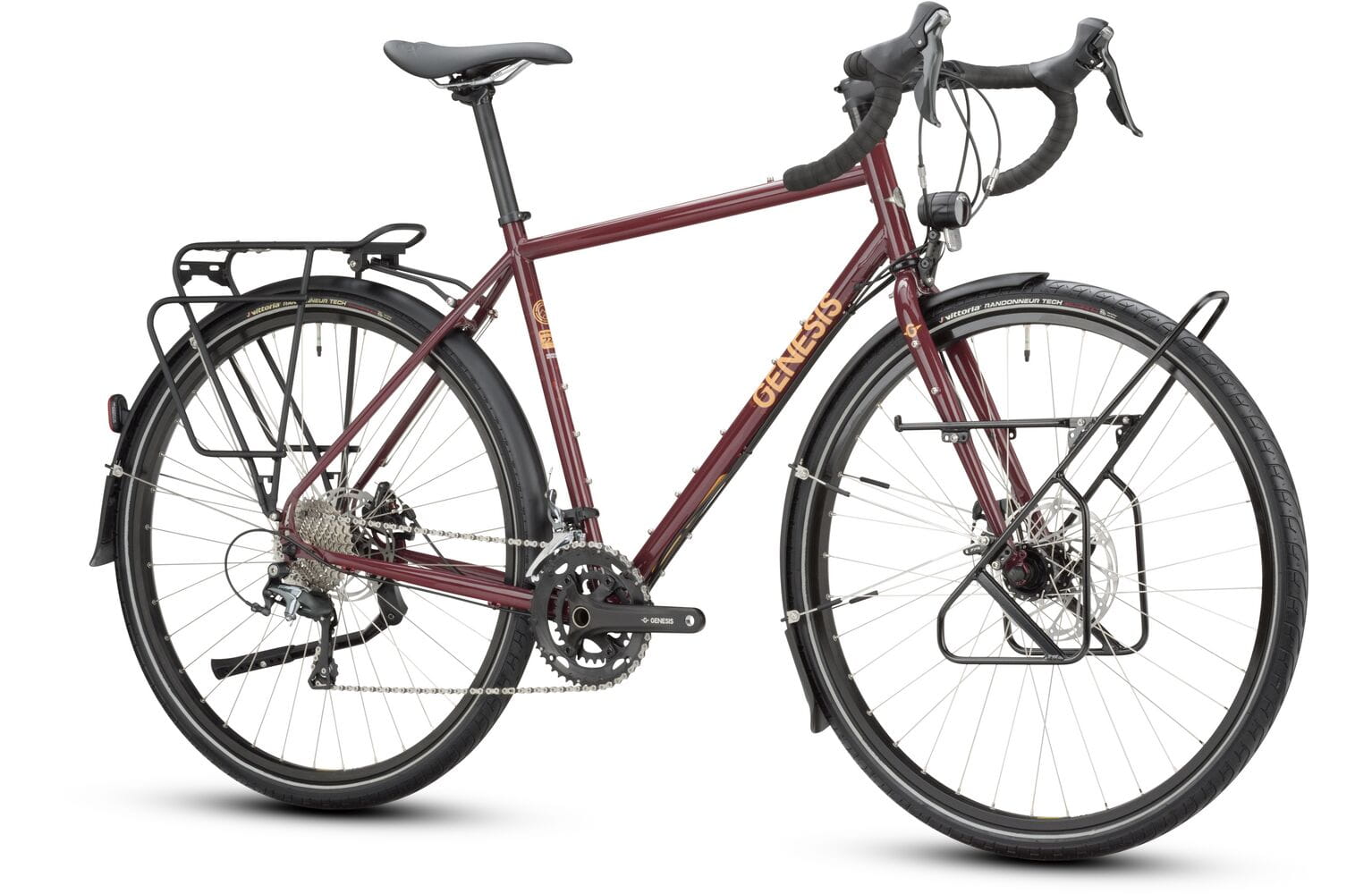

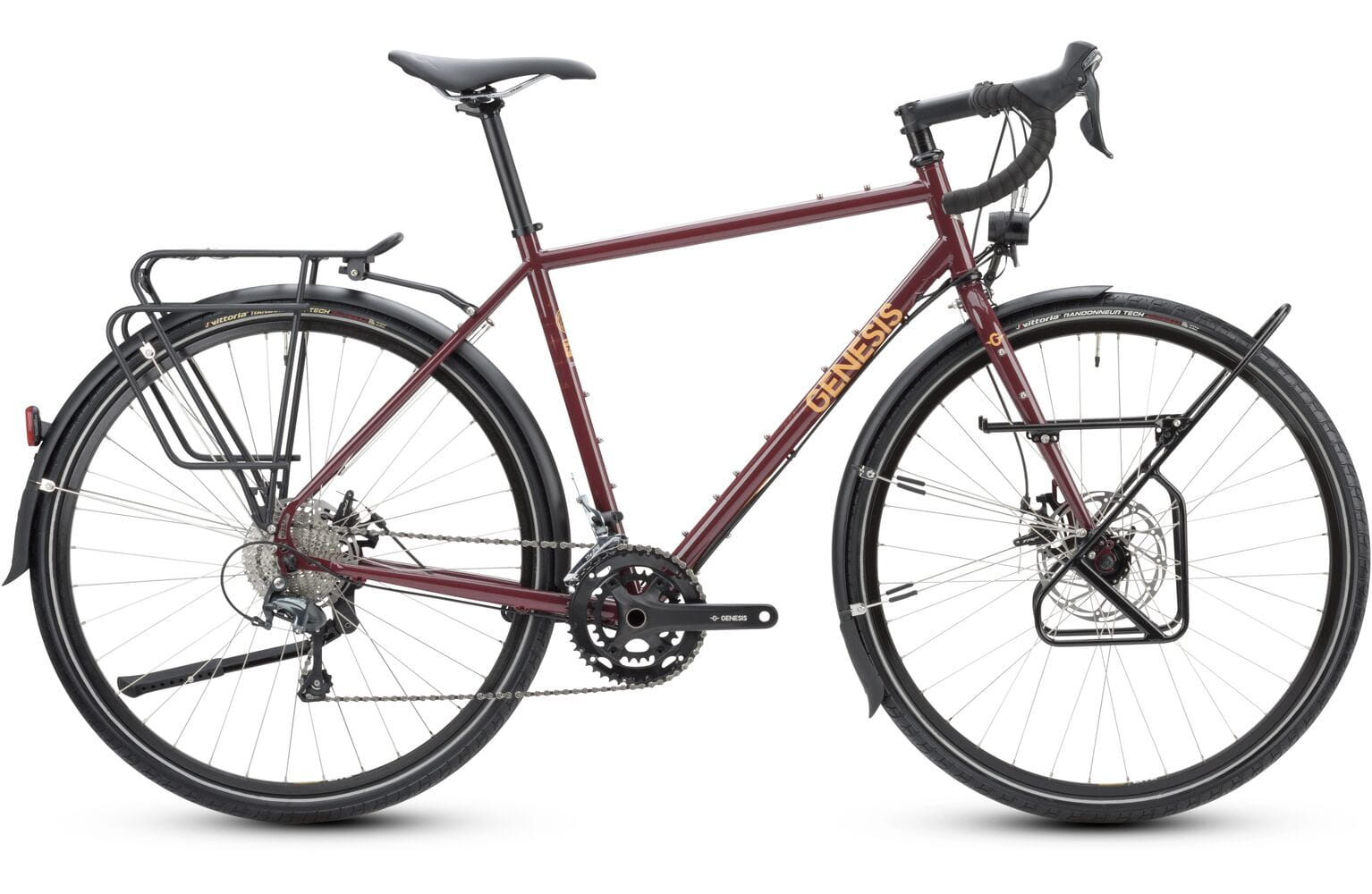

Genesis Tour De Fer 40 Touring Bike
Queen Crimson / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Escapism Perfection
Ready for any escape, the Tour De Fer 40 comes jam packed with details and add-ons right out of the box.
We've done the tinkering, the fettling, and the "what if?" head scratching so you don't have to. This model is ready for a round-the-world tour straight from new bike day.

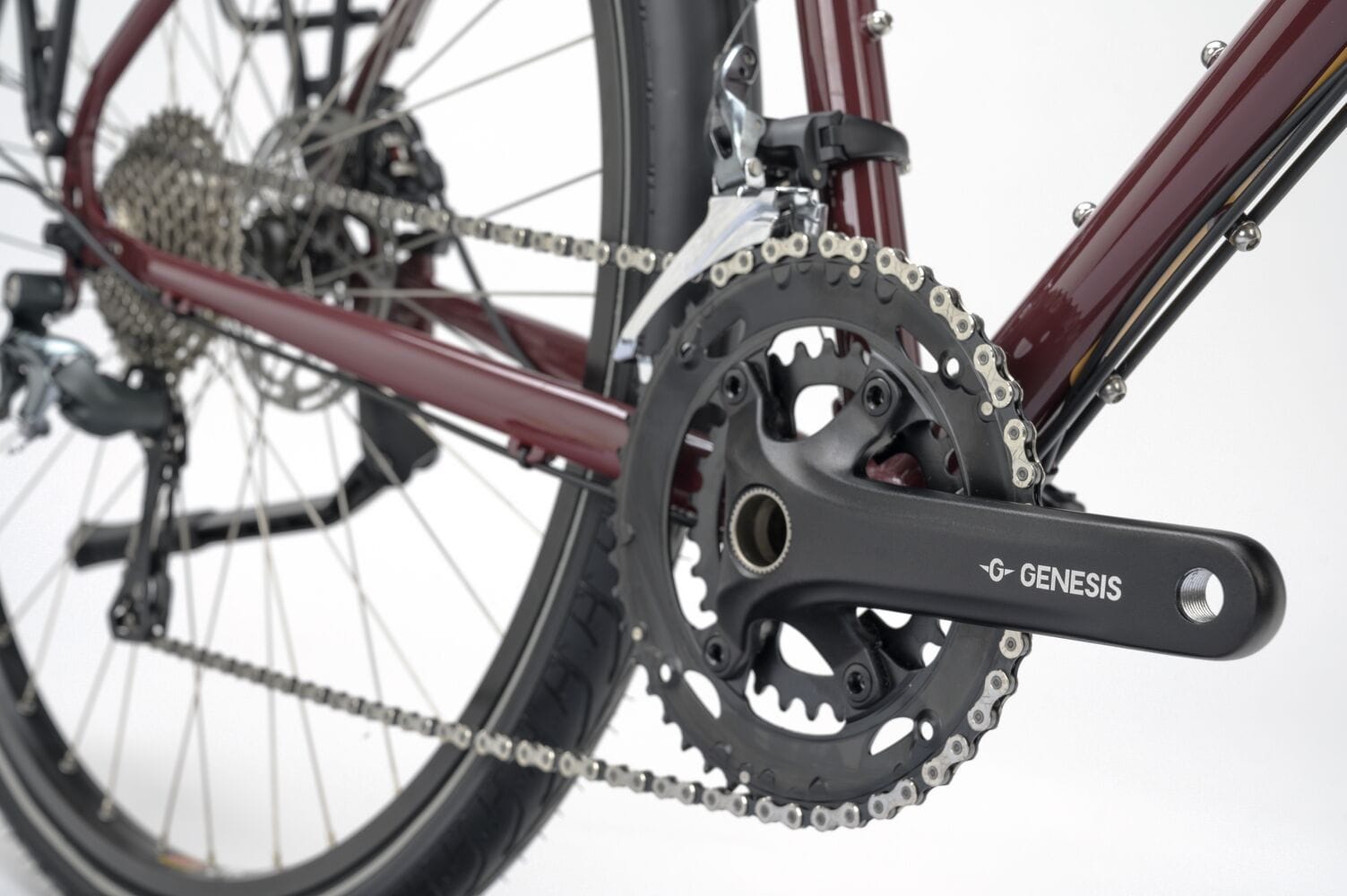

Refined Drivetrain
Gone are the triple chainsets of yesteryear, replaced with a wide ratio 11-34T cassette and our own 46/30T double chainset.

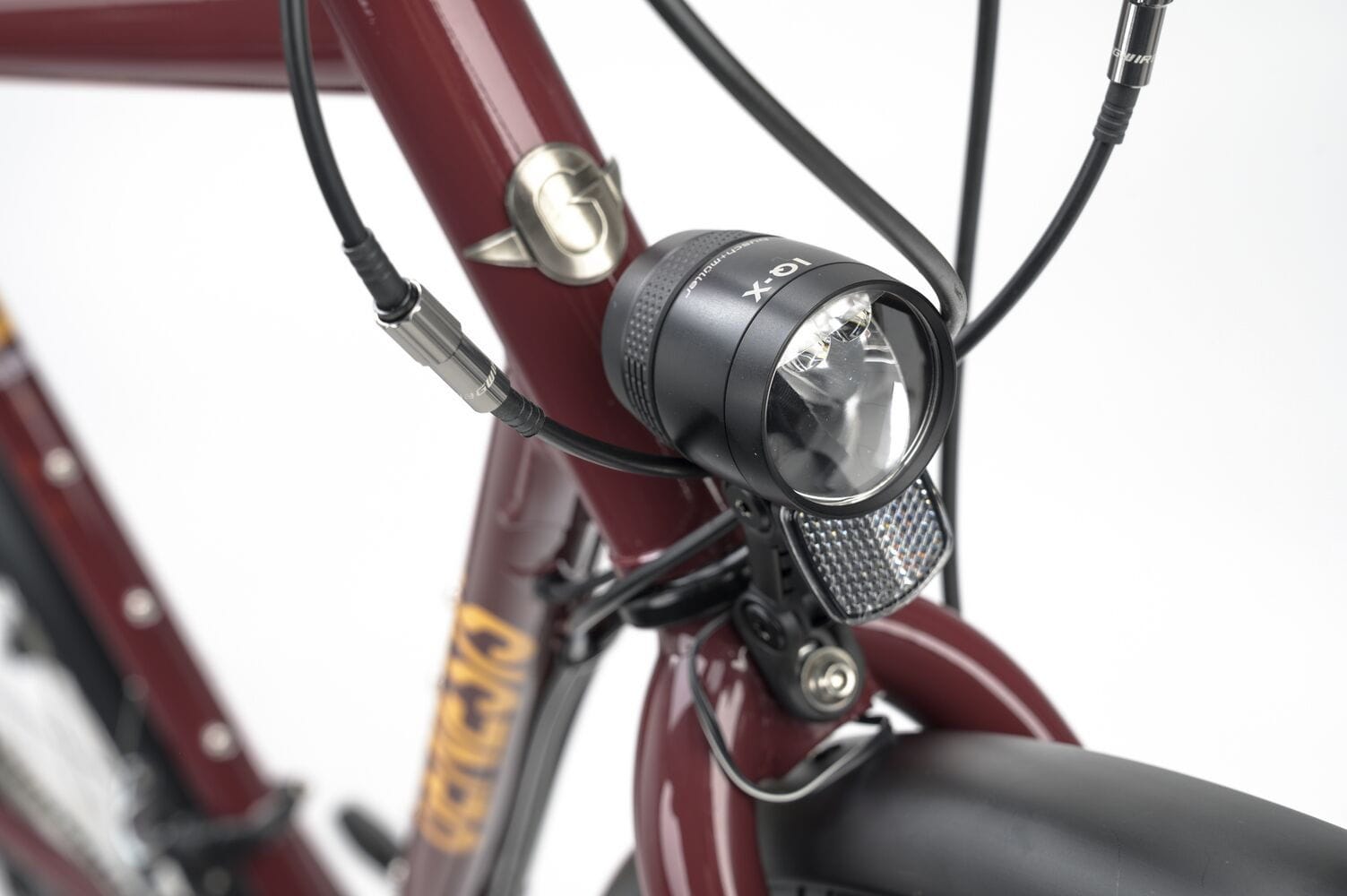

Busch & Muller Lighting

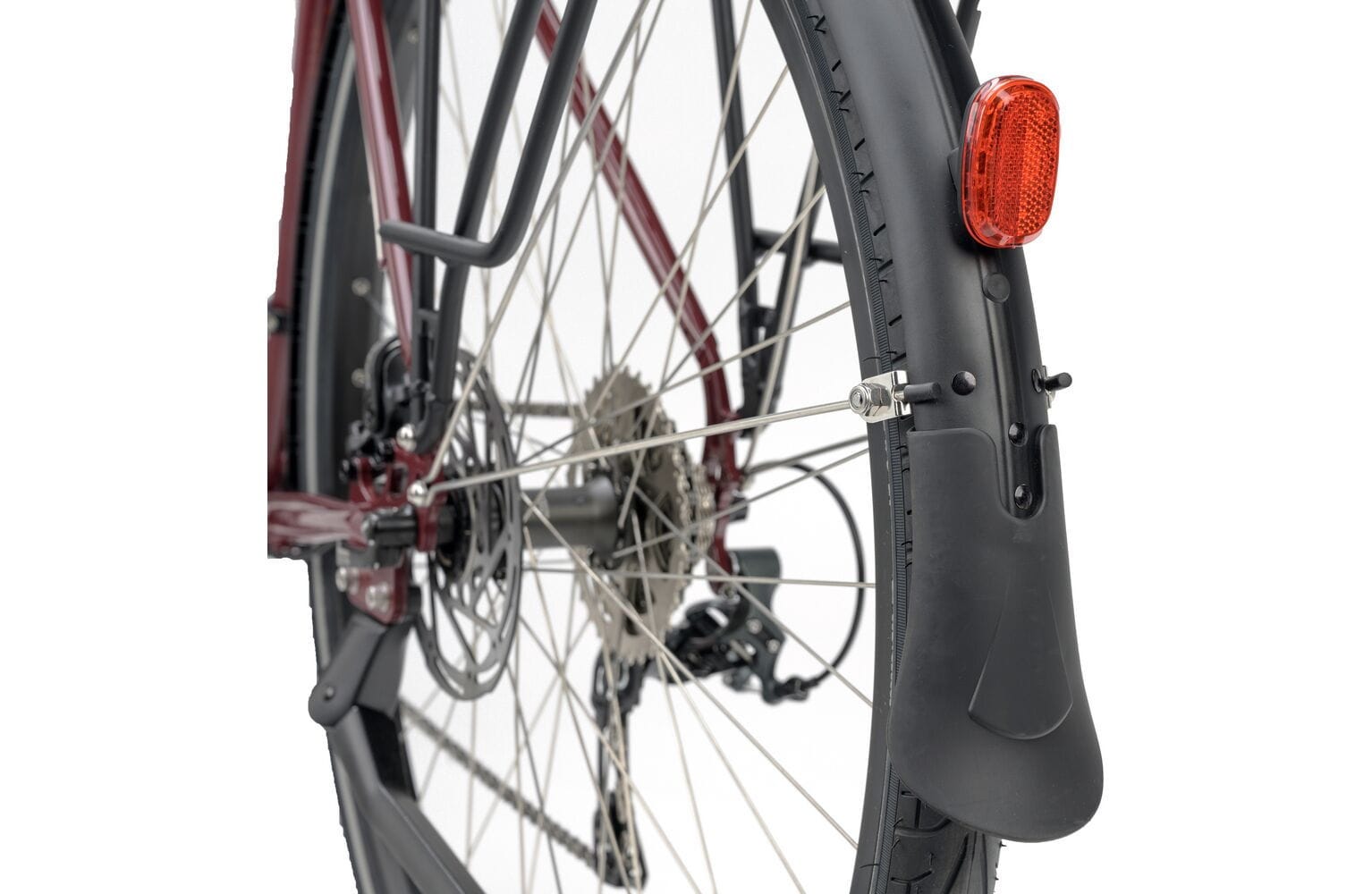

Lumotec IQ-X headlight and secula plus tail light not only keep you seen in urban environments, but are plenty powerful enough to navigate at night.

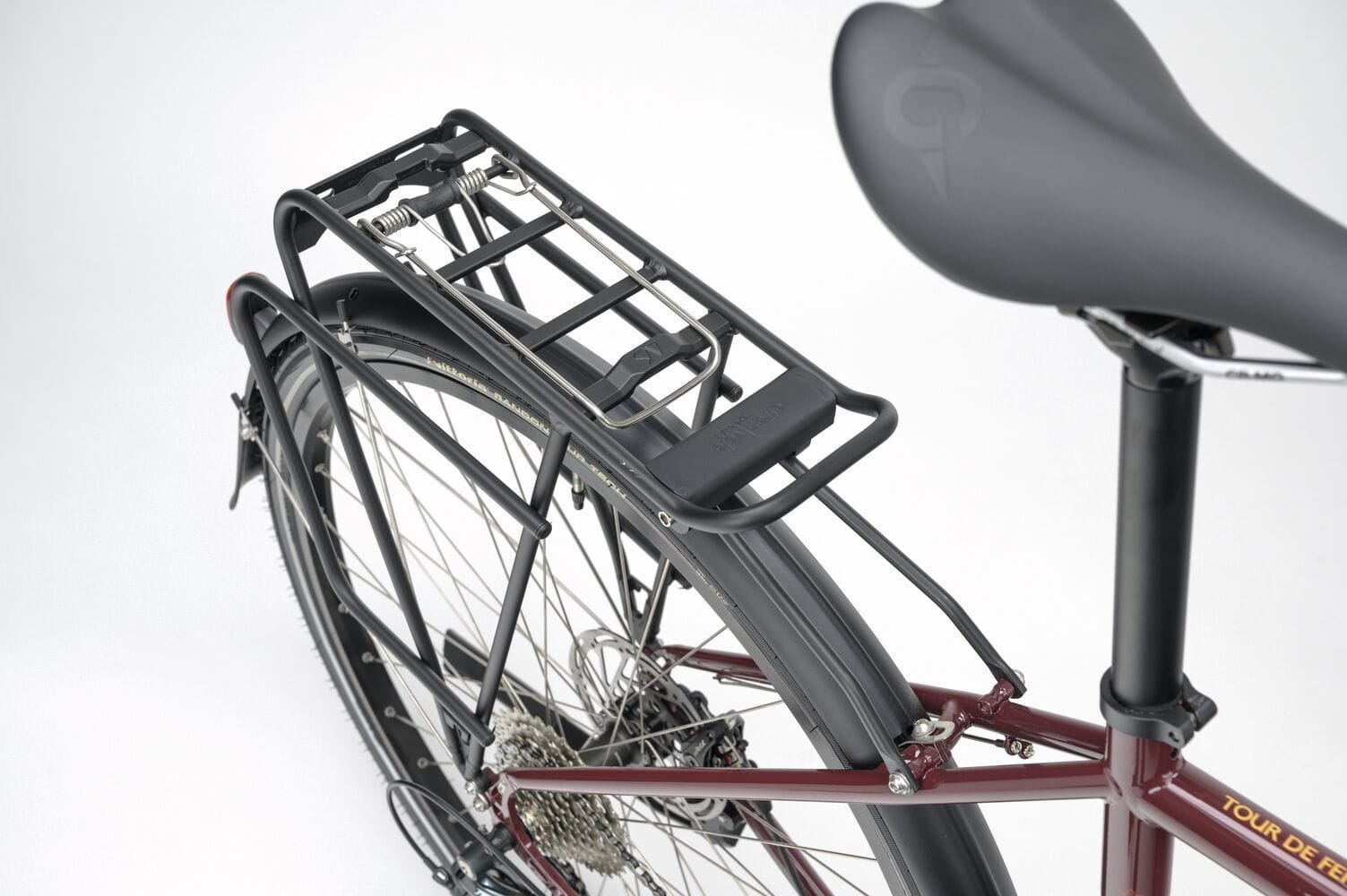

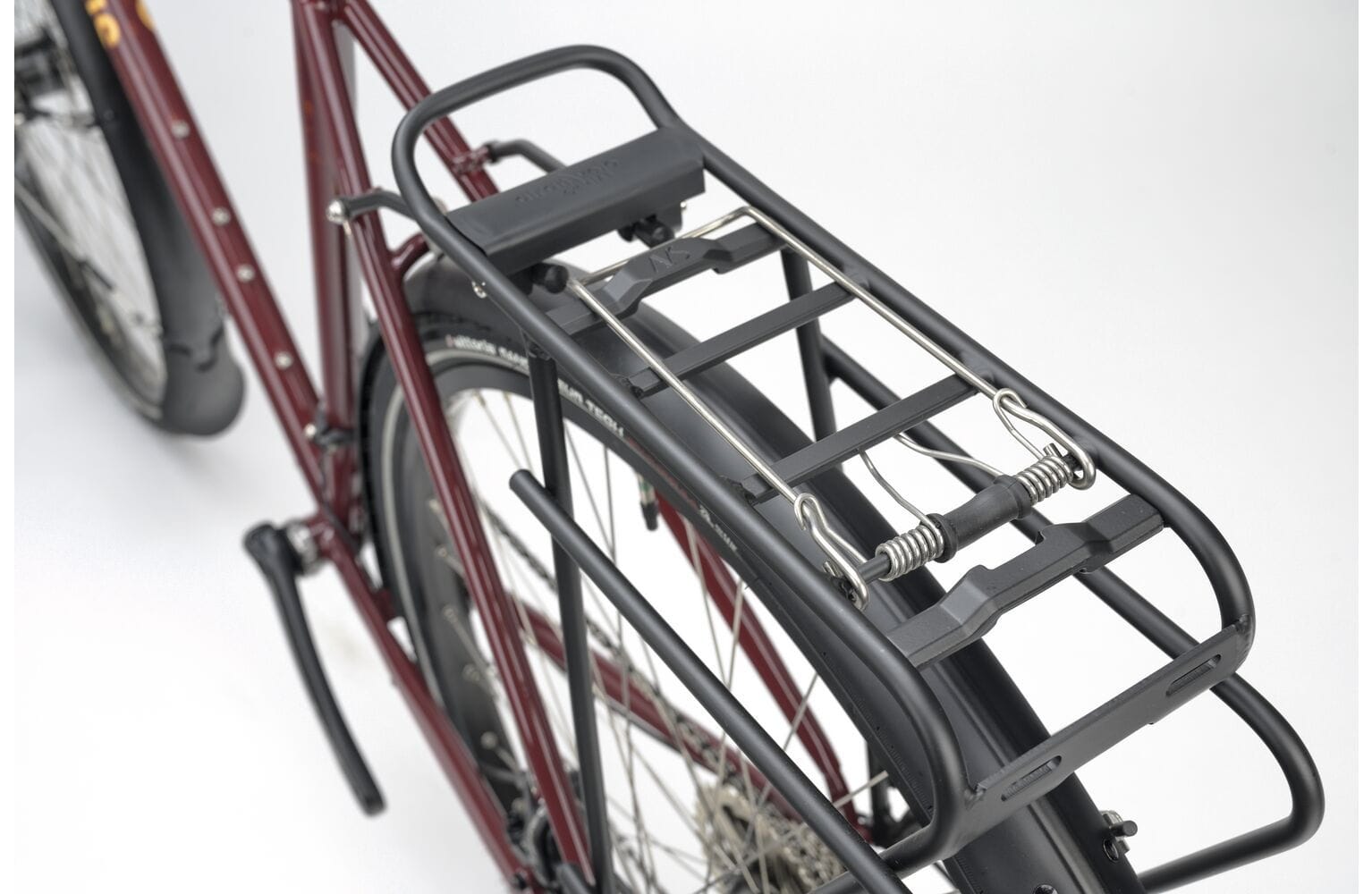

AVS Compatible
The AtranVelo Tour Lite rear rack is as sturdy companion with a 27kg load capacity. The AVS interface allows rapid installation and removal of compatible accessories without compromising traditional pannier fittings.

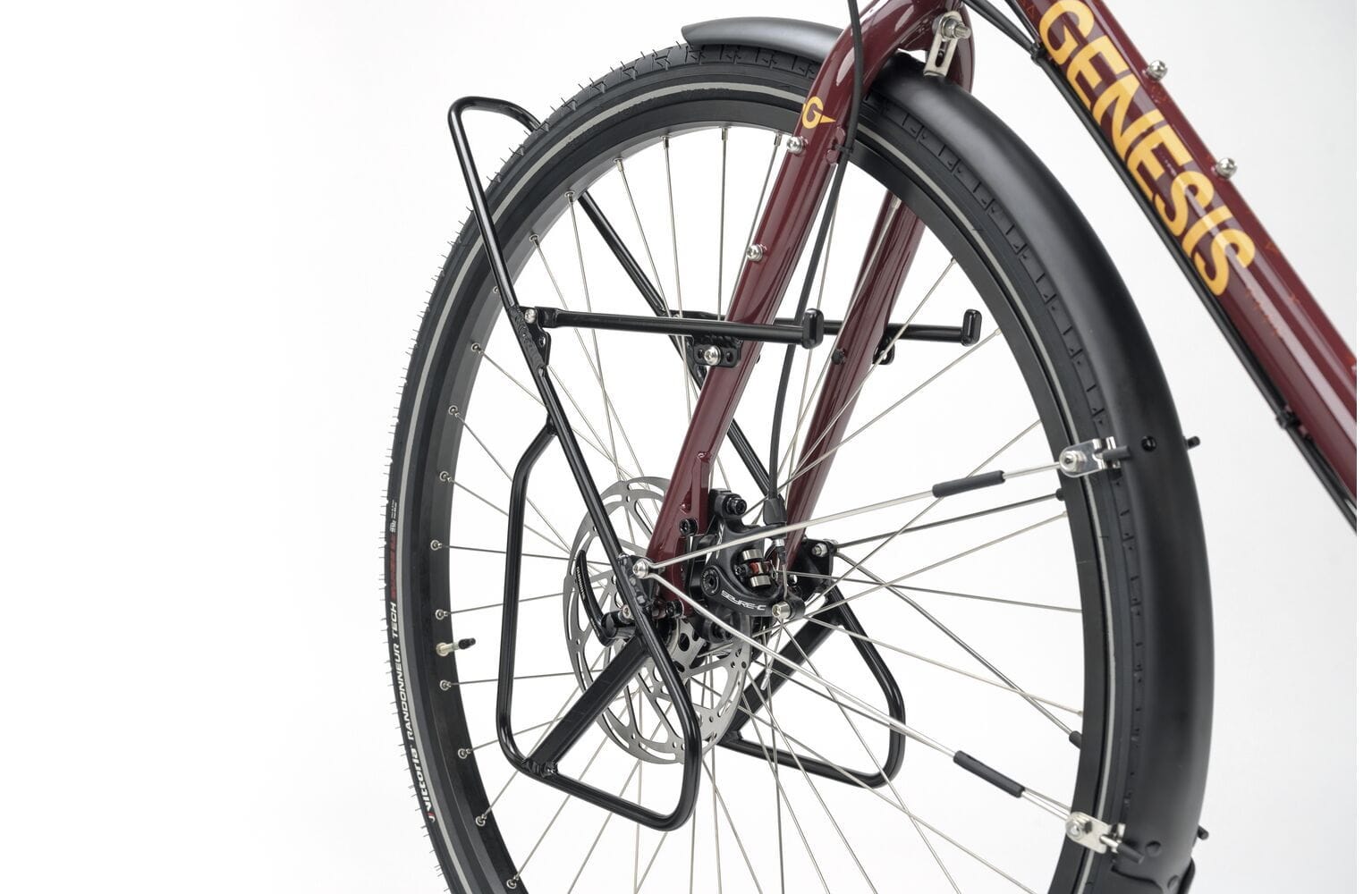

Lowrider
A traditional AtranVelo Explorer front pannier rack keeps lugage as low as possible to maintain the Tour De Fer's sublime handling when fully loaded.
Specifications
Frame & Fork
- Genesis Mjolnir Chromoly Tubing
- Genesis Chromoly Fork
Drivetrain

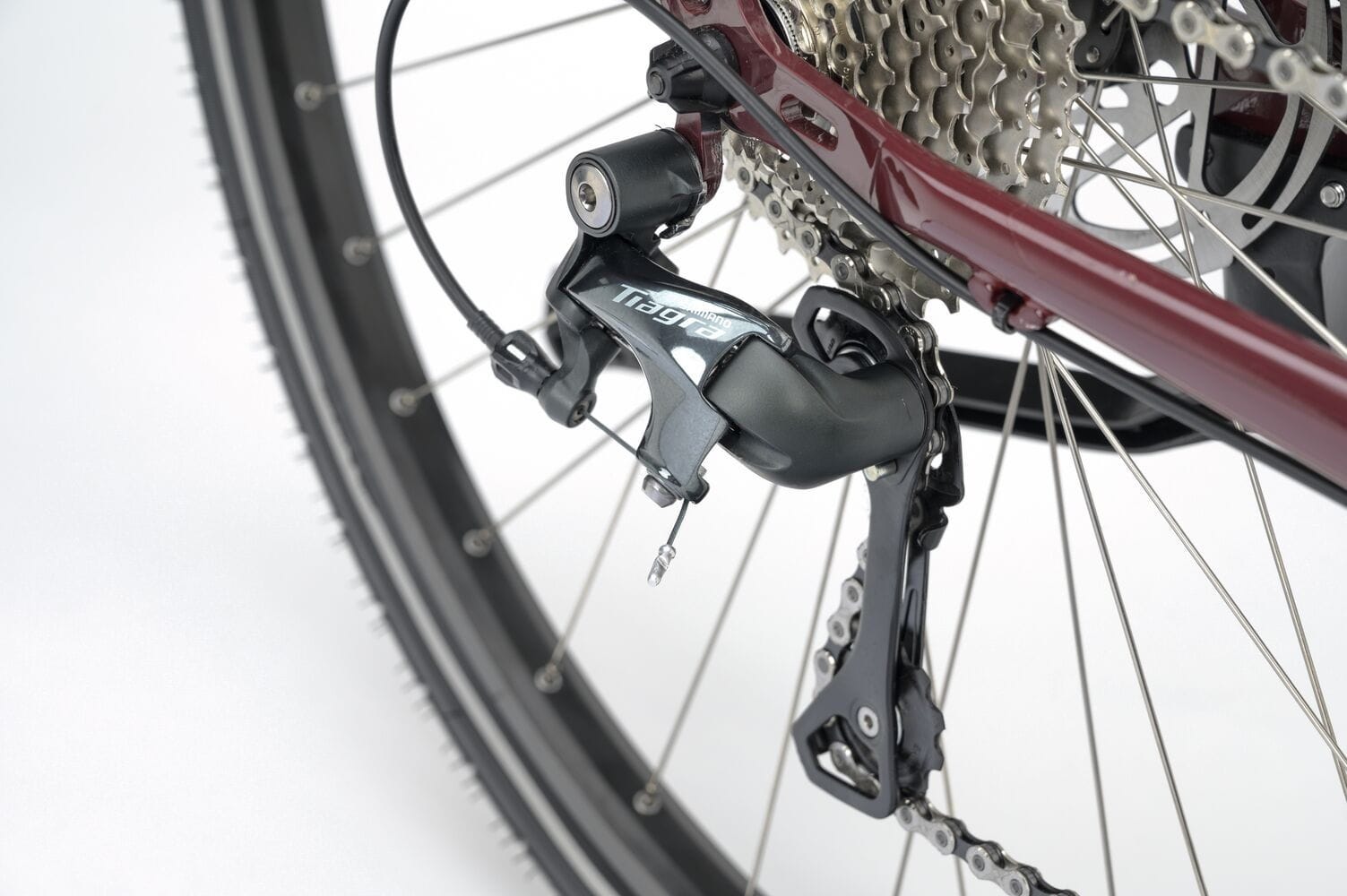

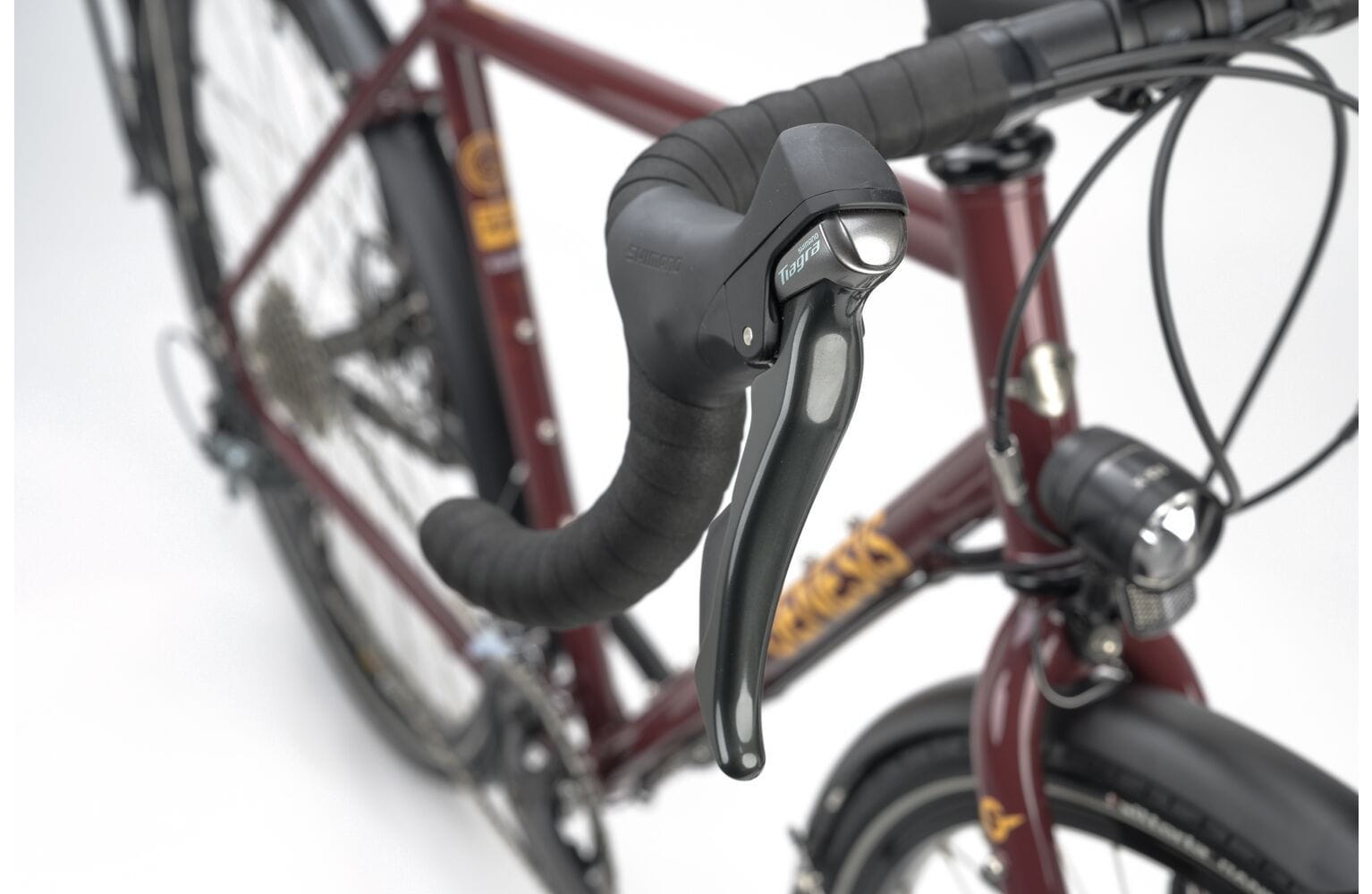

- Shimano Tiagra 4700
- 2 x 10-speed
- 46/30T Chainrings
- 11-34T Cassette
Components
- Amplitude G100 Finishing Kit
- Madison Flux Switch Saddle
Wheelset
- Sun Ringle Rhyno Lite Rims
- Shimano Dynamo Front Hub
- QR Front & Rear

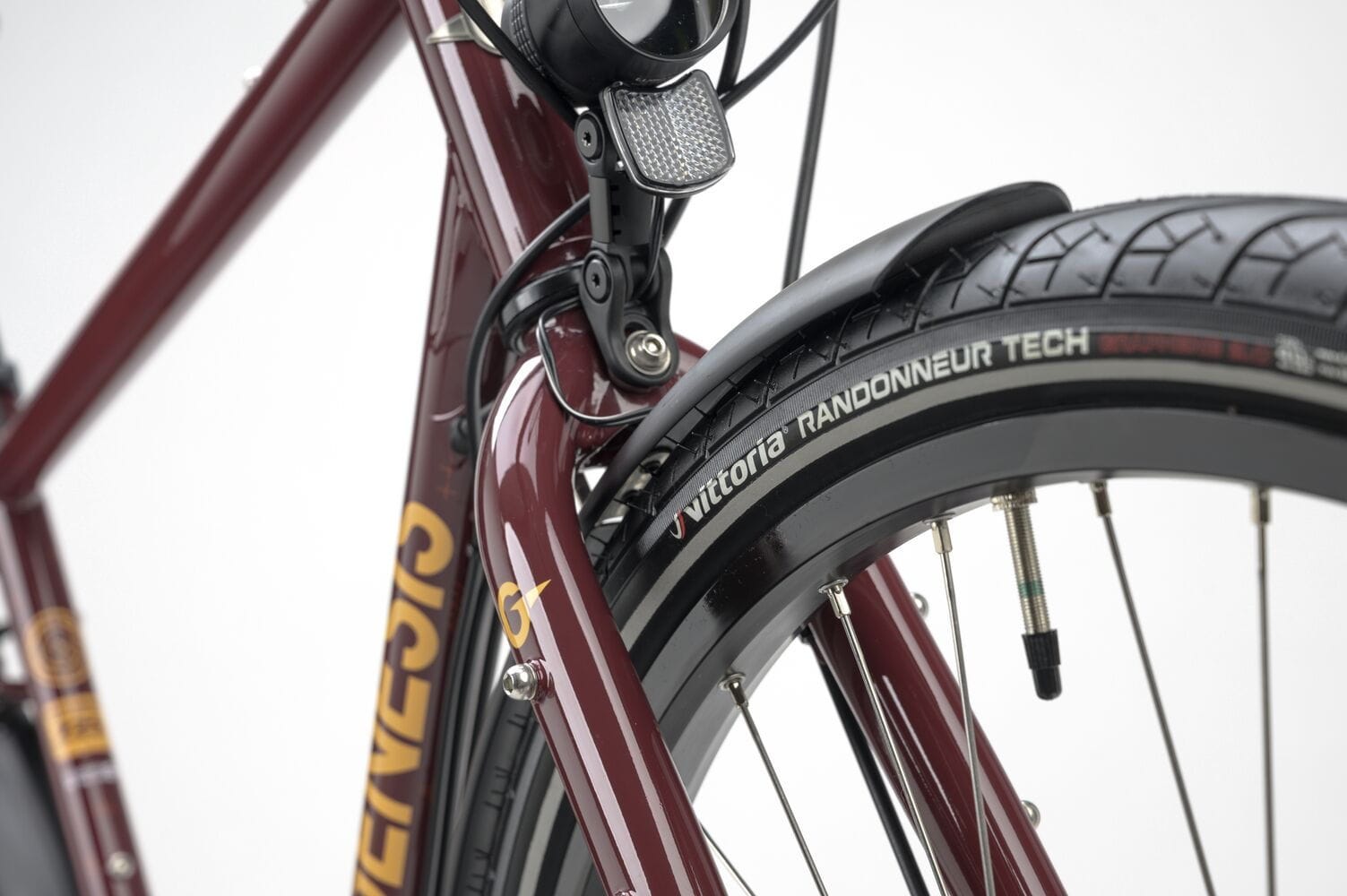

- Vittoria Randonneur Tech 700 x 40mm Tyres
Brakes
- Promax DSK-717 Mechanical Disc Brakes
- 180mm Front & 160mm Rear Rotors
Accessories
- AtranVelo AVS Rear & Lowrider Front Racks
- Busch & Muller Dynamo Light Set
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 566 | 580 | 603 | 622 | 641 |
| Reach | 380 | 380 | 390 | 400 | 410 |
| Headtube Angle | 70.5 | 70.5 | 71.5 | 71.5 | 71.5 |
| Headtube Length | 120 | 135 | 155 | 175 | 195 |
| Seattube Angle | 74 | 73 | 73.5 | 73.5 | 73.5 |
| Toptube (Effective) | 543 | 557 | 569 | 584 | 600 |
| Chainstay Length | 465 | 465 | 465 | 465 | 465 |
| Wheelbase | 1072 | 1077 | 1085 | 1101 | 1117 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 754 | 785 | 811 | 841 | 859 |
| Fork Offset | 55 | 55 | 55 | 55 | 55 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
