Genesis Tour De Fer 30 Touring Bike
Color
Size
Click & Collect
Genesis Tour De Fer 30 Touring Bike
Keith Flint / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Flat Simplicity

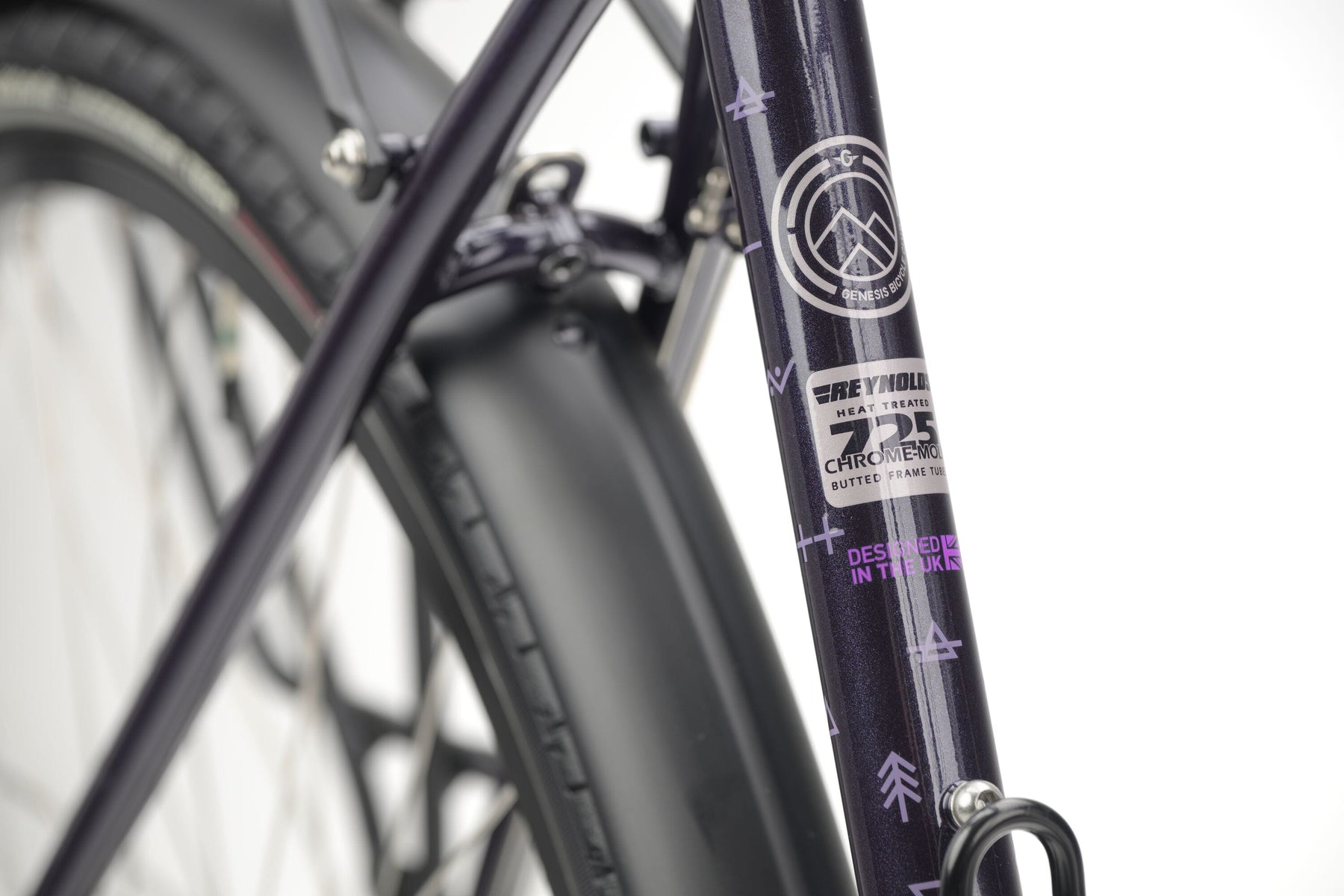

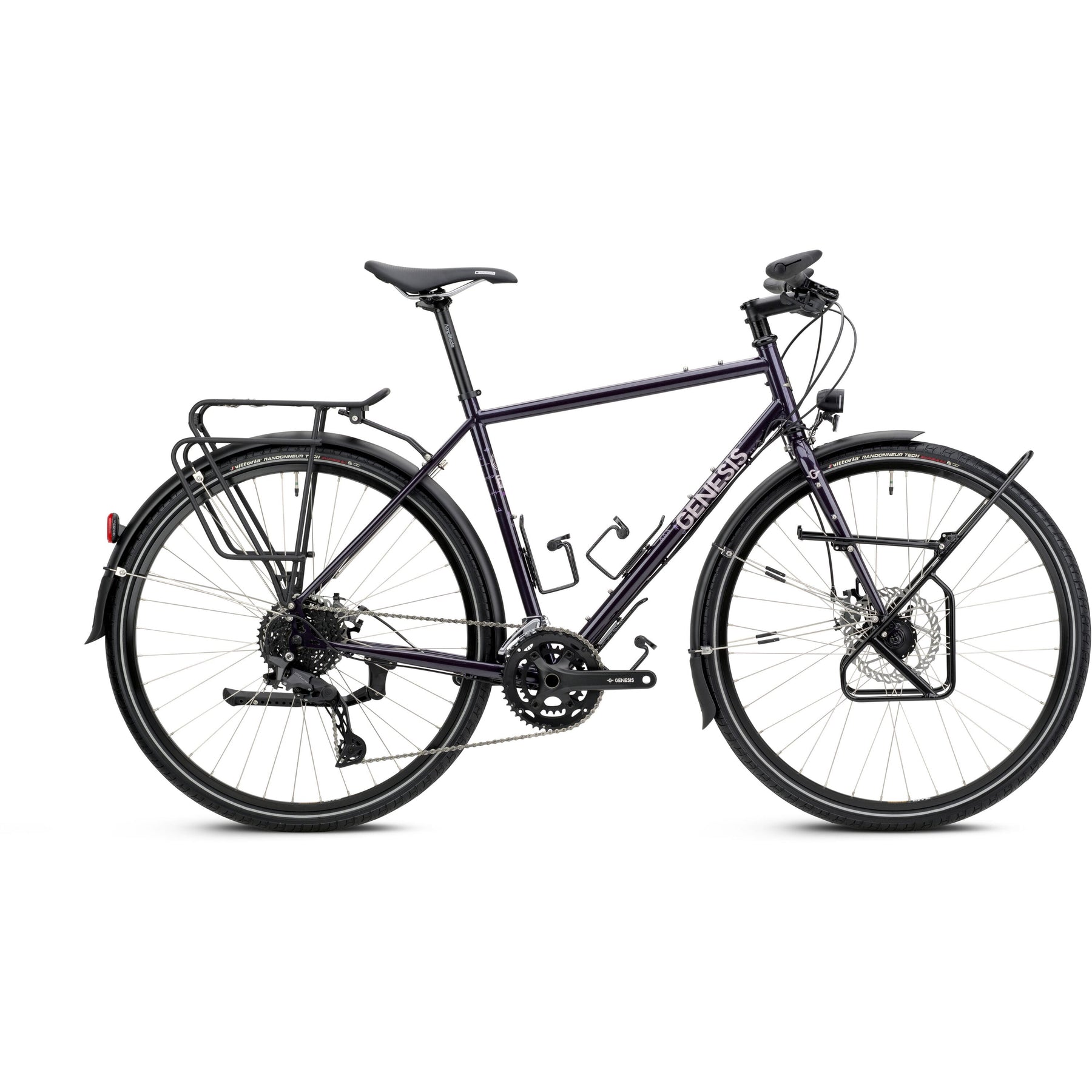

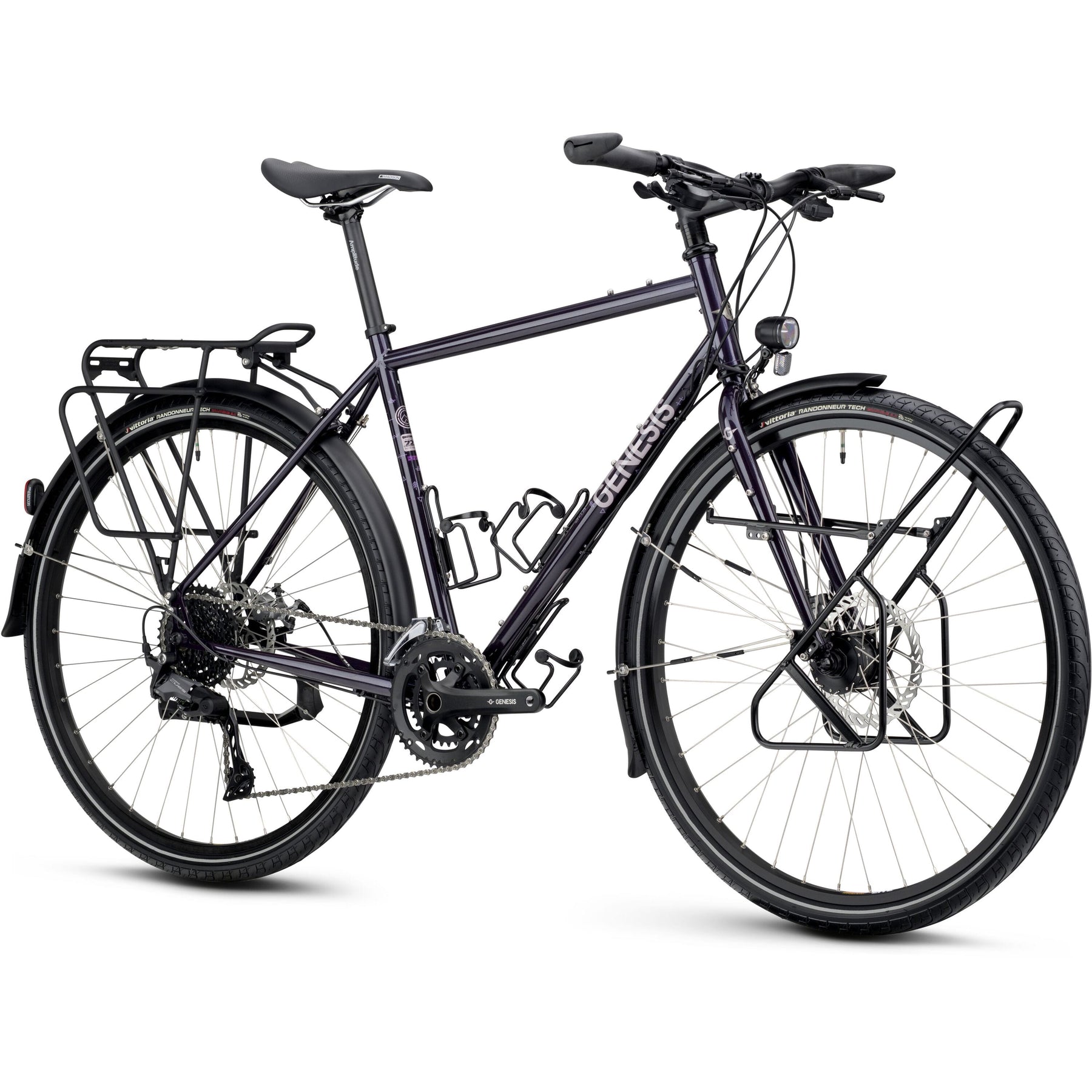

The Tour De Fer 30 remains a comfortable long-range stable mate with its flat handlebar, dynamo lights and Reynolds 725 tubeset.
Ready to ride around the globe straight from the box with subtle impovements including a new straight bladed fork, fully housed brake and gear cables as well as a new Shimano CUES LINKGLIDE drivetrain.
Features:

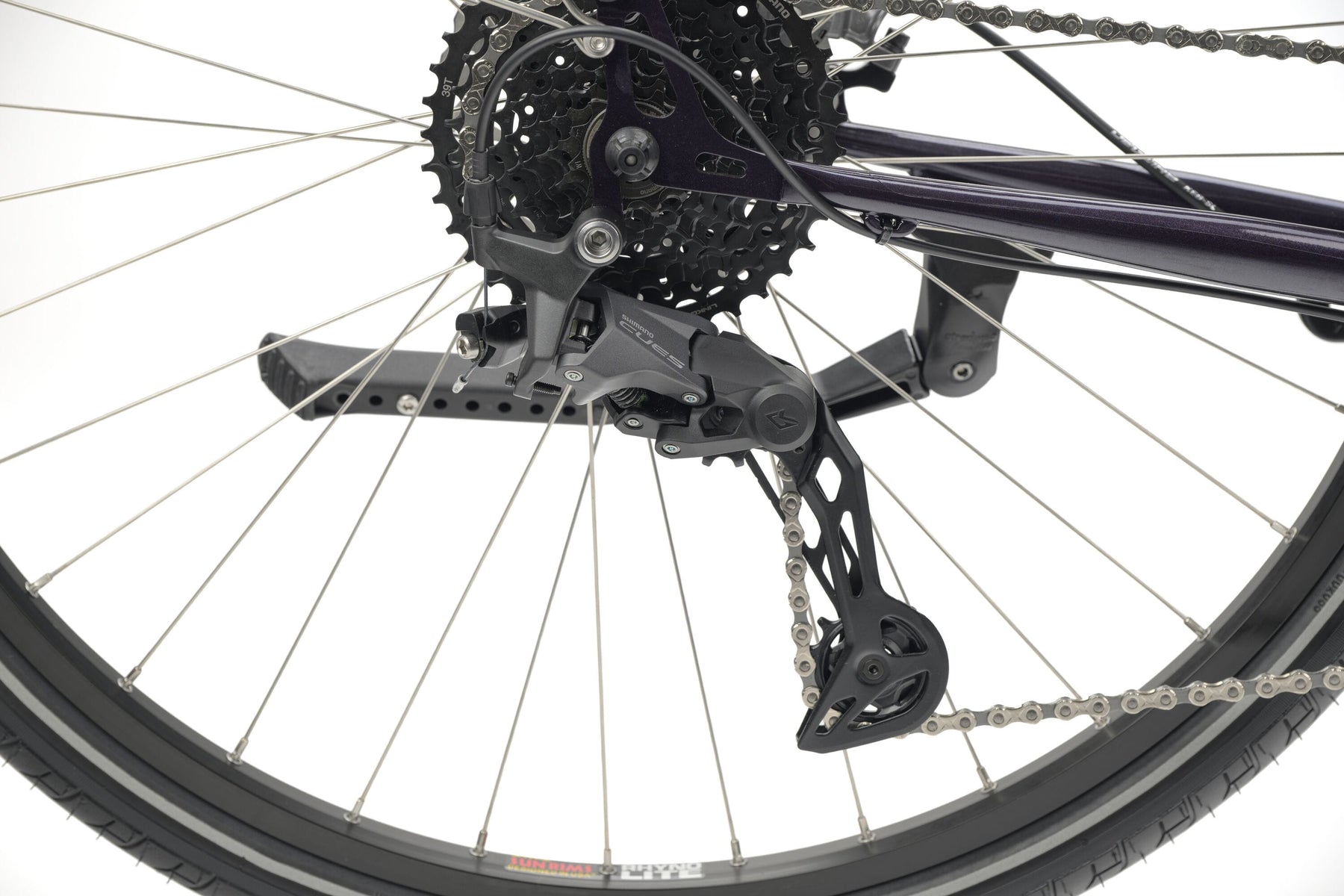

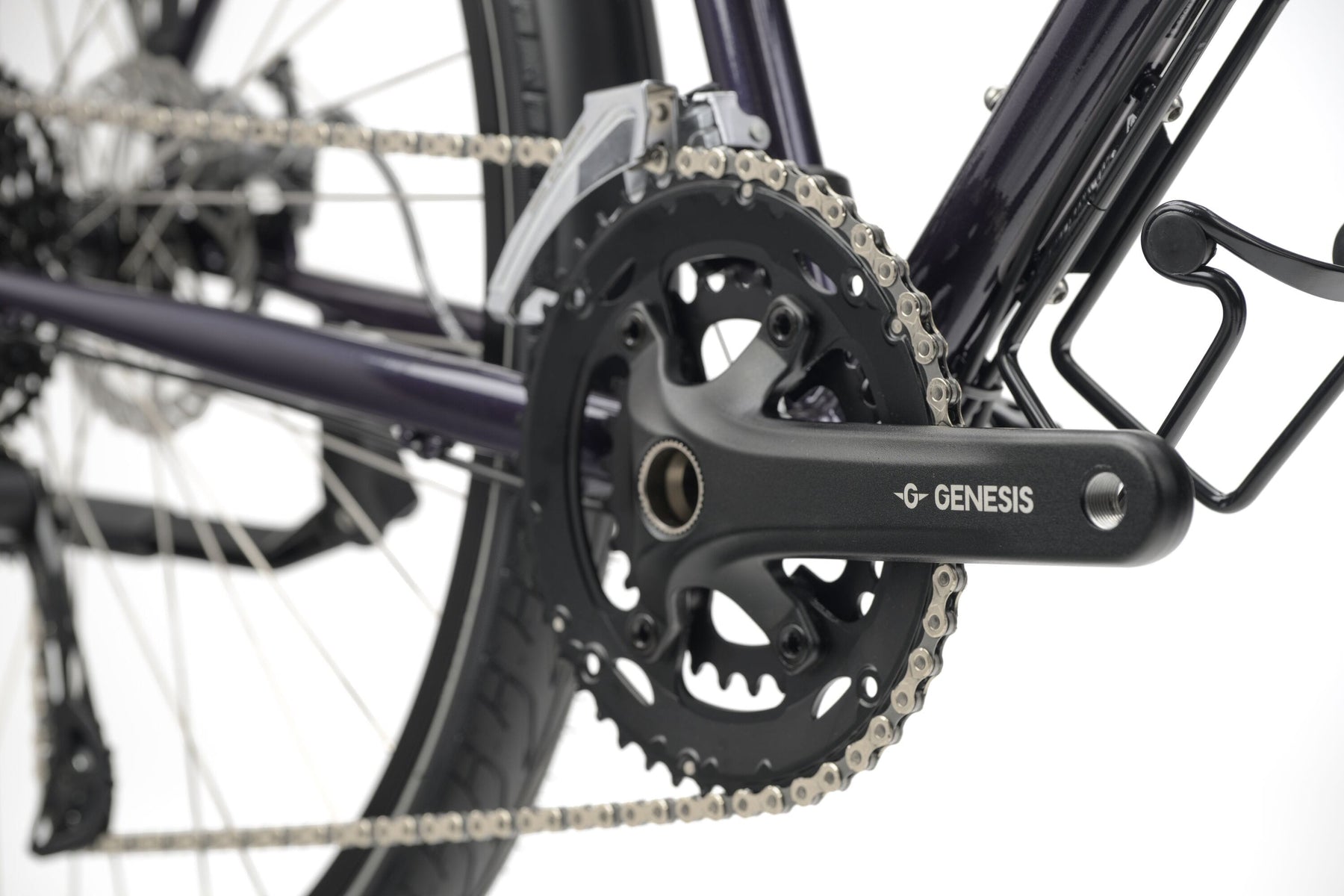

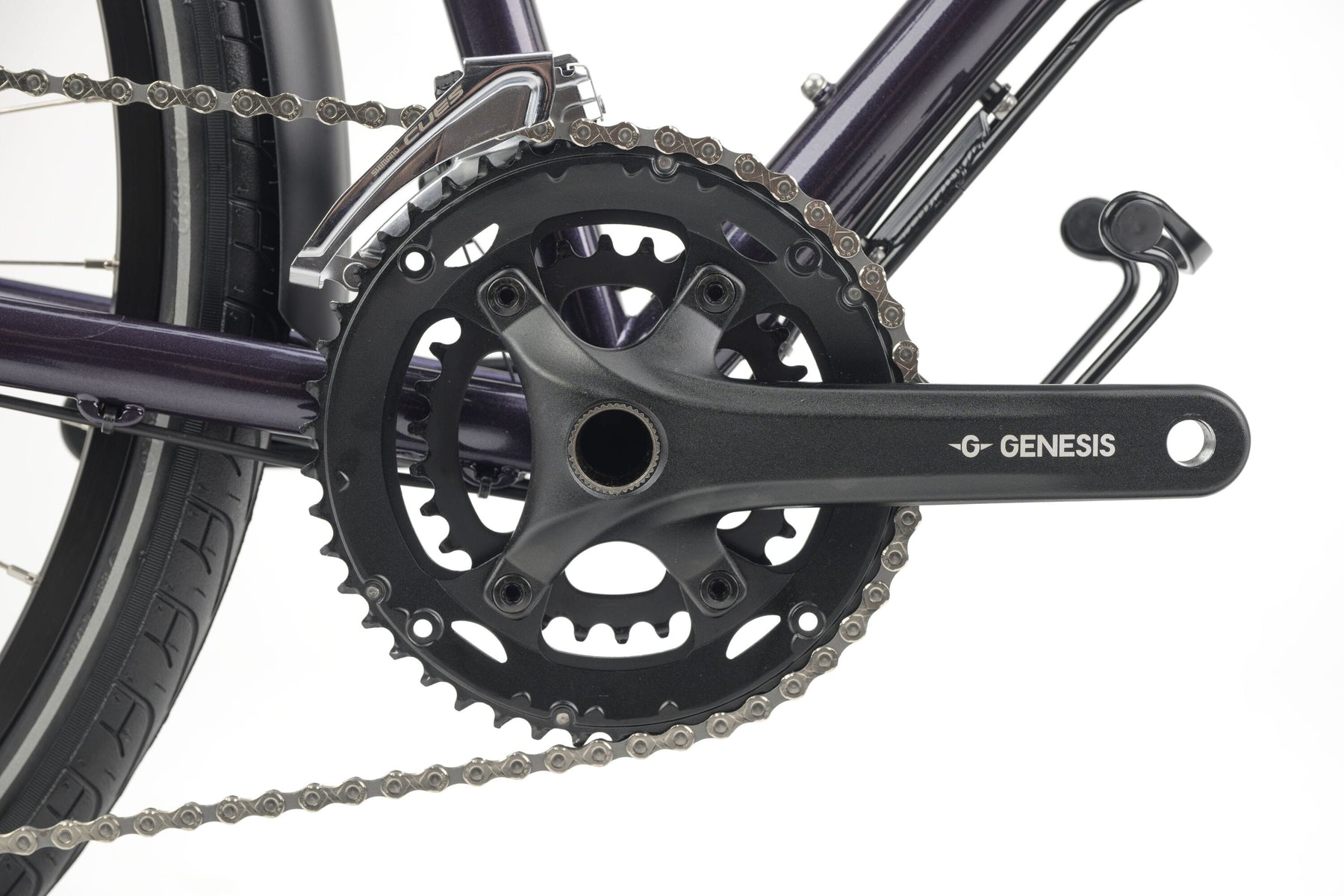

Huge Range - Gone are the triple chainsets and massive front derailleurs of yesteryear, the tour de fer 30 is equipped with an incredibly durable LINKGLIDE drivetrain. An 11-39T cassette is paired with a 46-30T chainrings to provide wide ratios in a compact package.

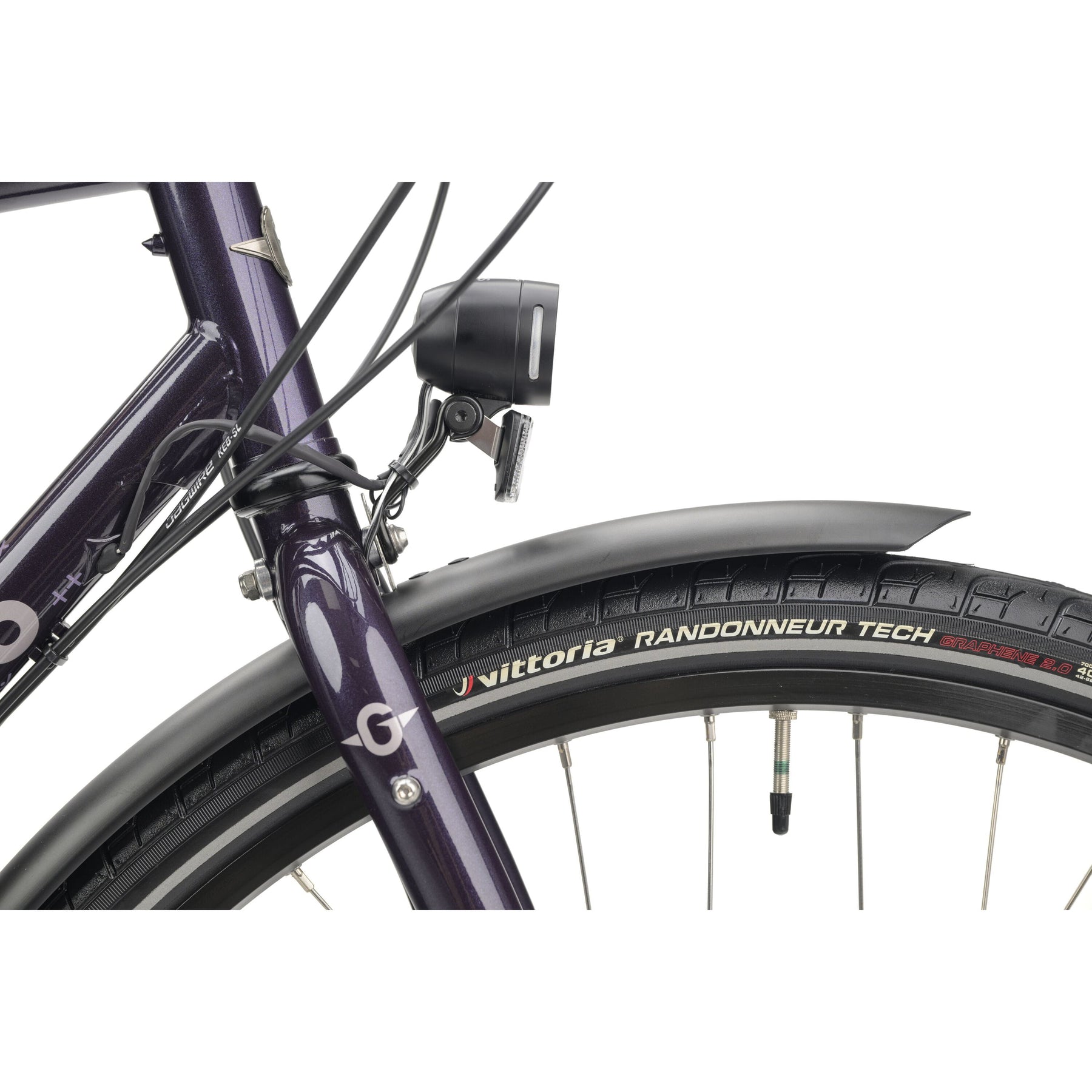

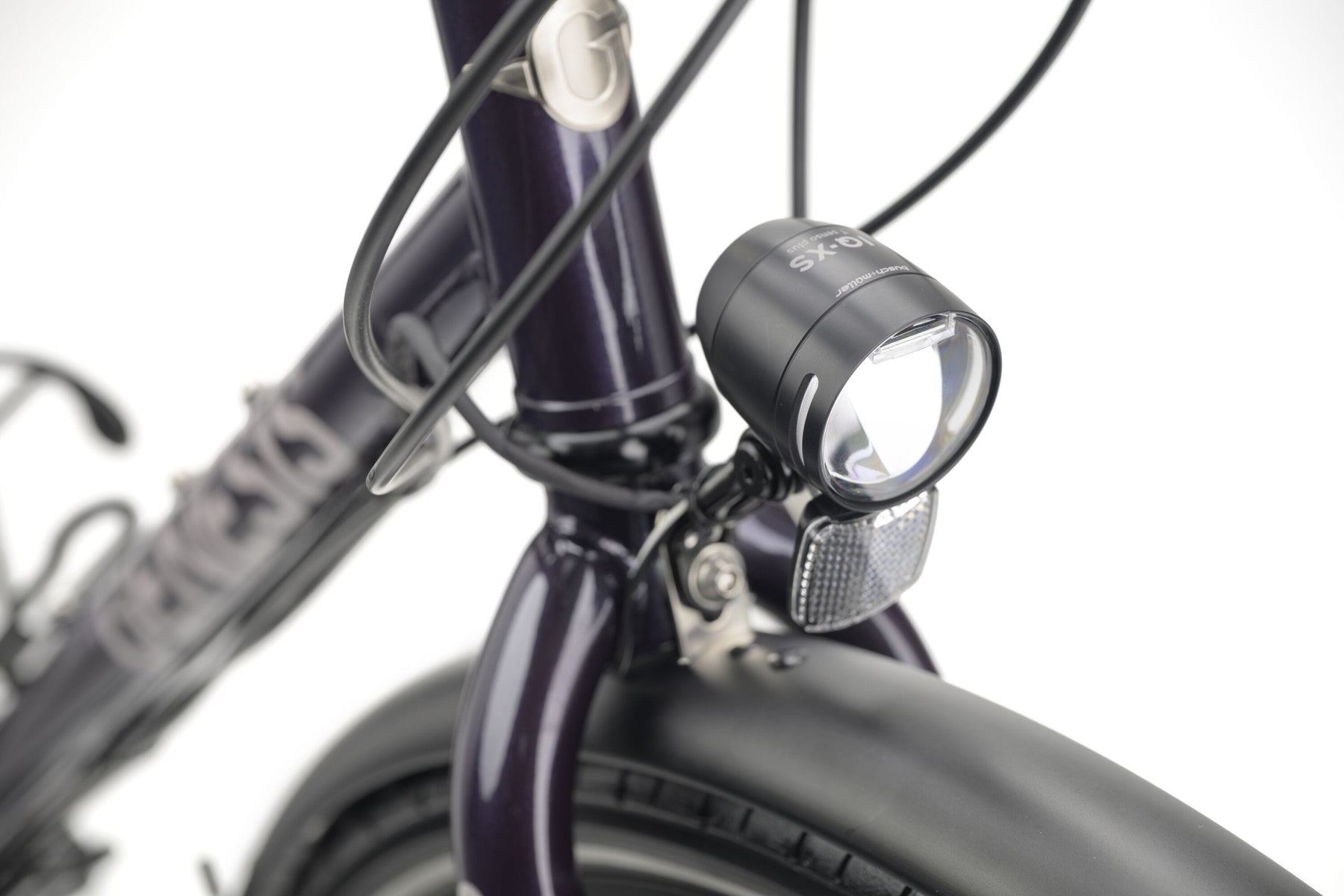

Busch & Muller Lighting - Busch & Muller dynamo lights front and rear are not just there to be seen. They pack enough punch to navigate off the beaten path too.
Lowrider - A traditional AtranVelo Explorer Front pannier rack keeps luggage as low as possible to maintain the Tour De Fer's sublime handling when fully loaded.

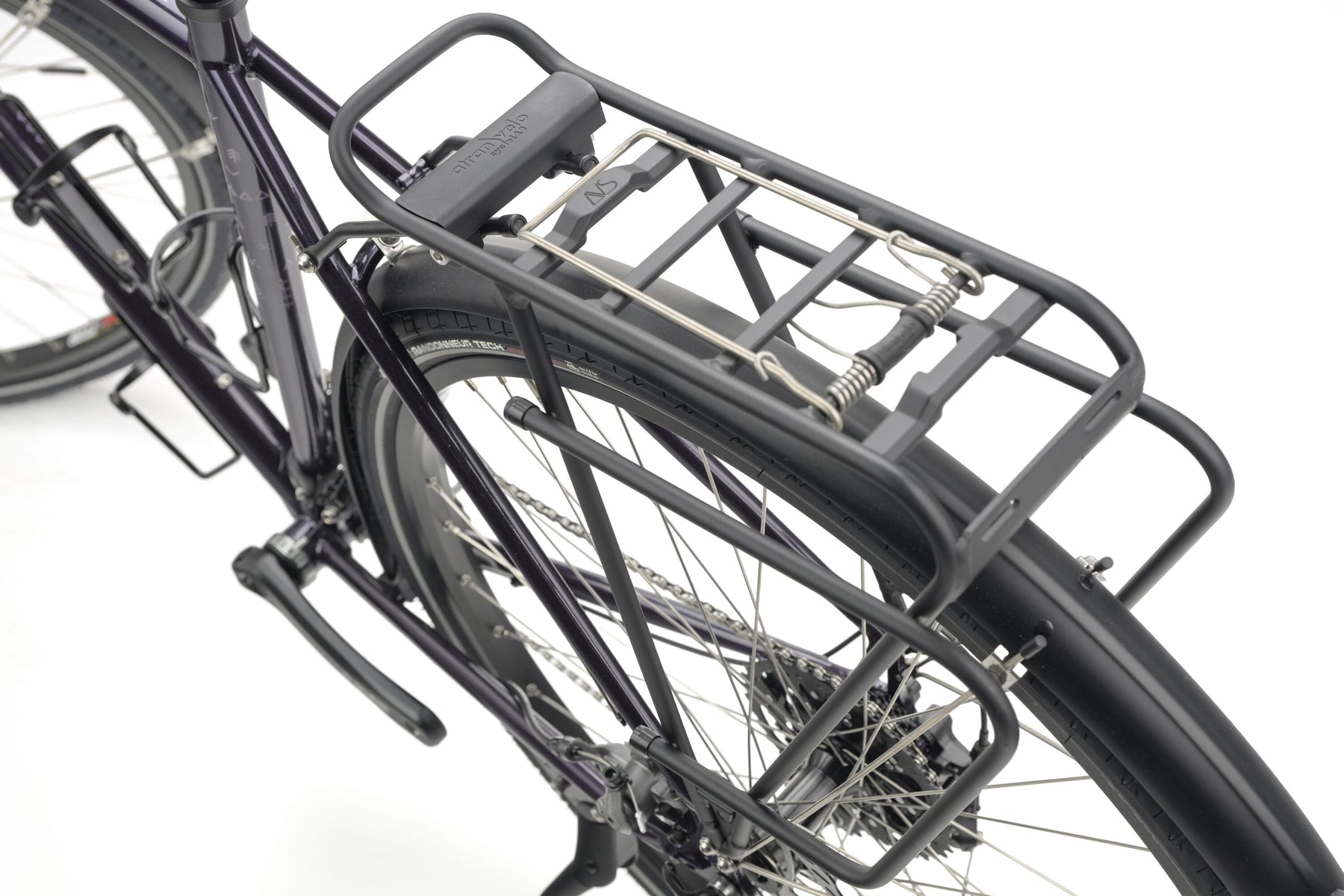

AVS Compatible - The AtranVelo Tour Lite Rear Rack is a sturdy companion with a 27kg load capacity. The AVS interface allows rapid installation and removal of compatible accessories without compromising traditional pannier fittings.
Specifications
Frame & Fork

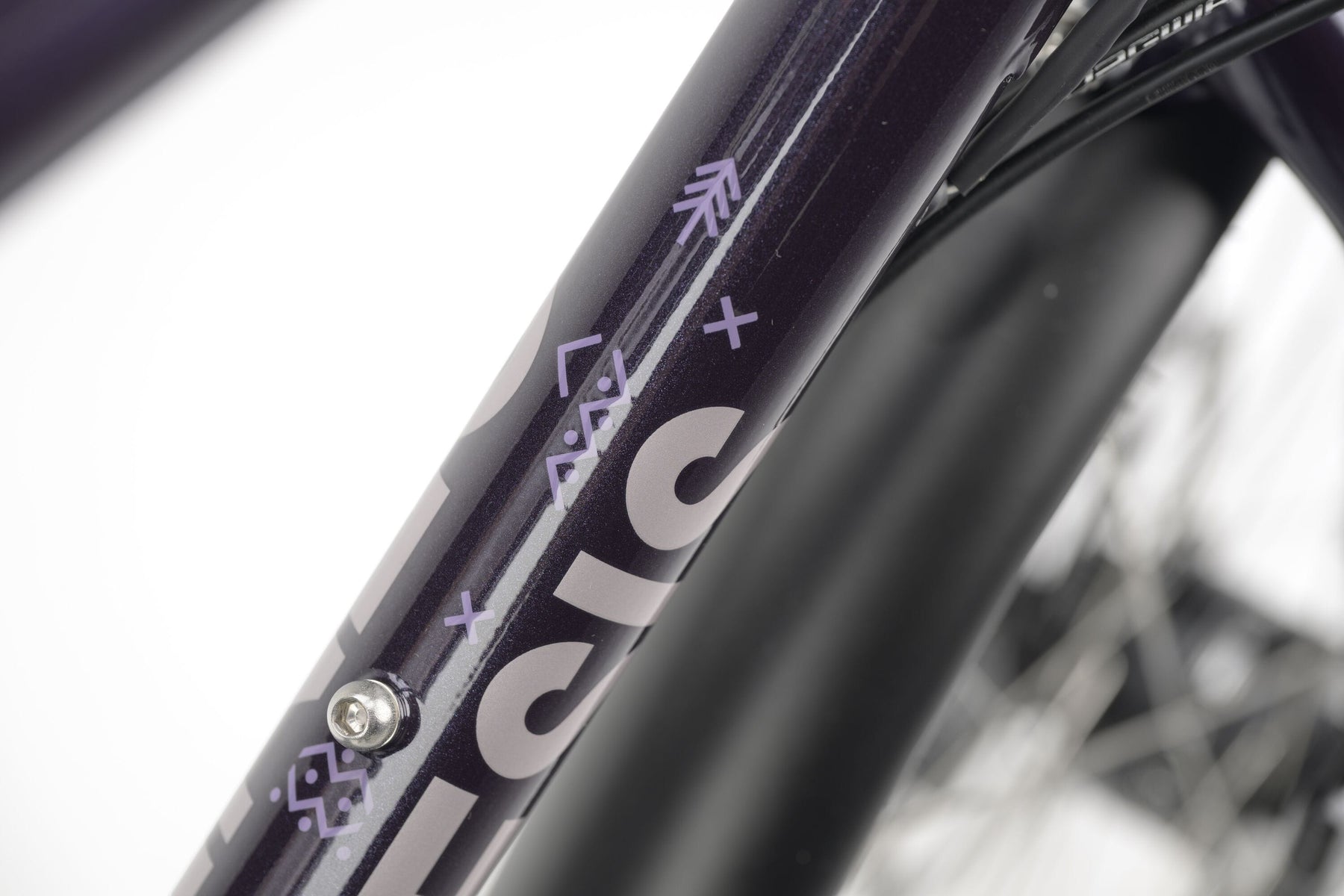

- Genesis Mjolnir Chromoly Tubing
- Genesis Chromoly Fork
Wheelset

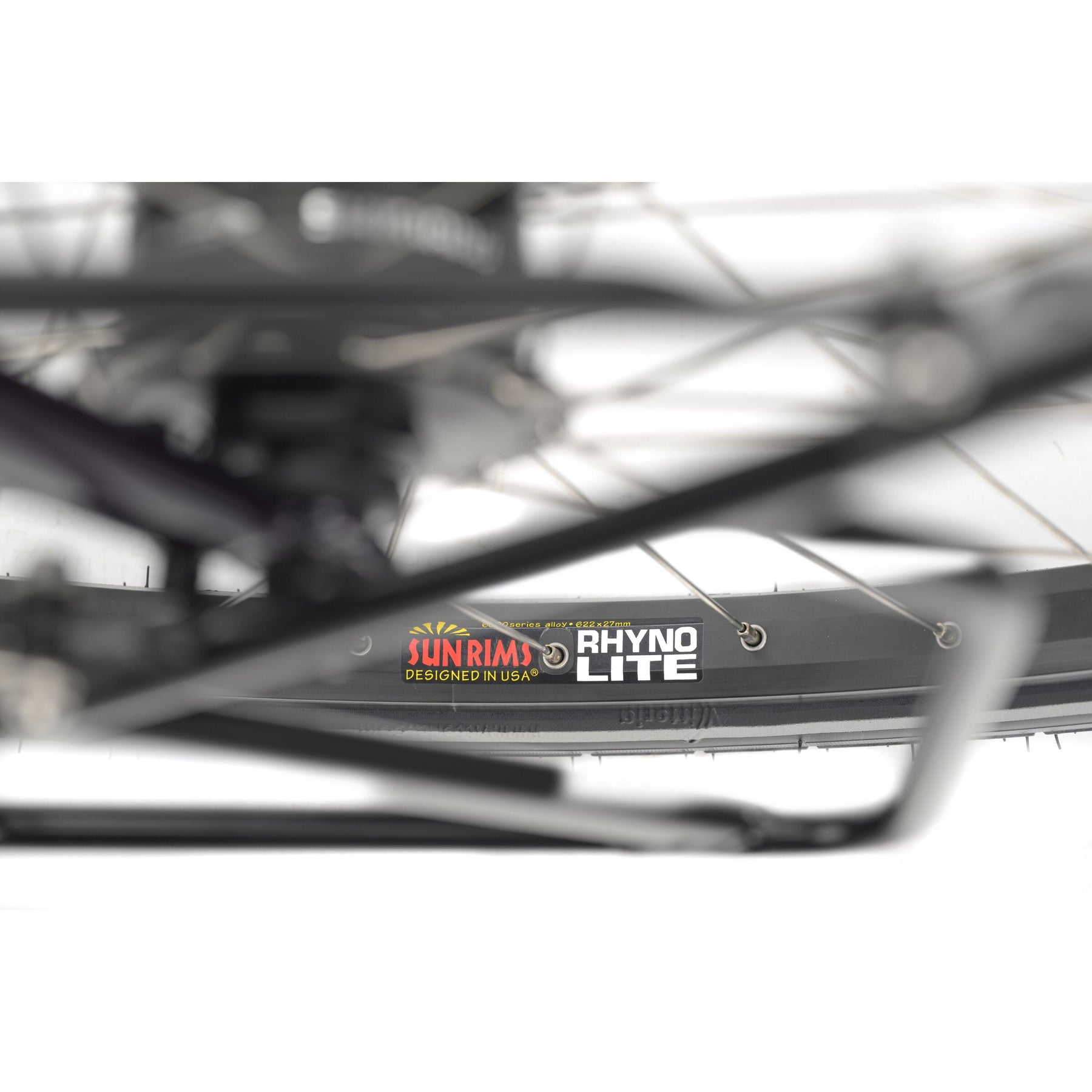

- Sun Ringle Rhyno Lite Rims

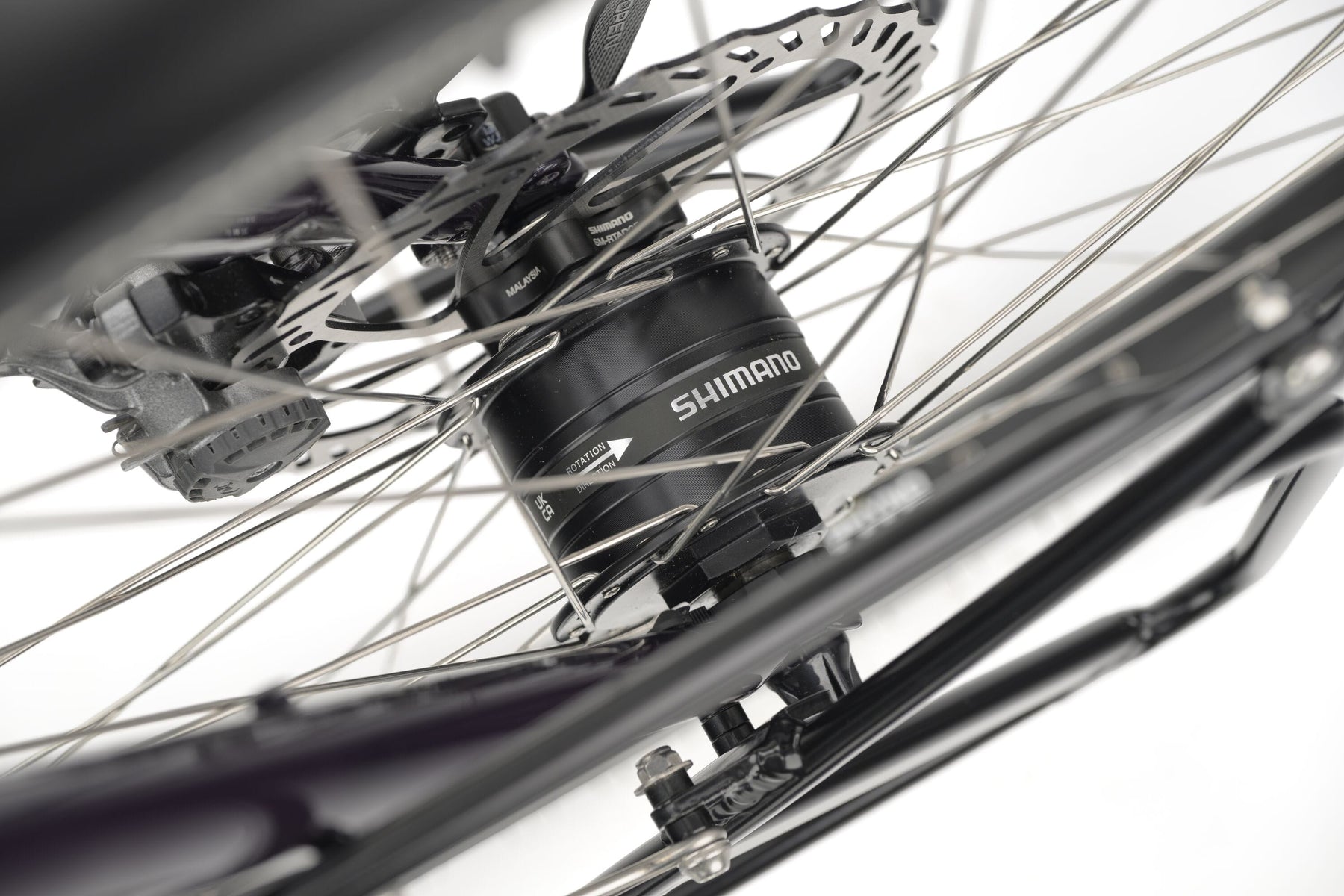

- Shimano Dynamo Front Hub
- QR Rront & Rear
- Vittoria Randonneur Tech 700 x 40mm Tyres
Drivetrain
- Shimano Cues U6000
- 2 x 10 speed
- 46/30T Chainrings
- 11-39T Cassette
Brakes
- Promax DSK-717 Mechanical Disc Brakes
- 180mm Front & 160mm Rear Rotors
Components

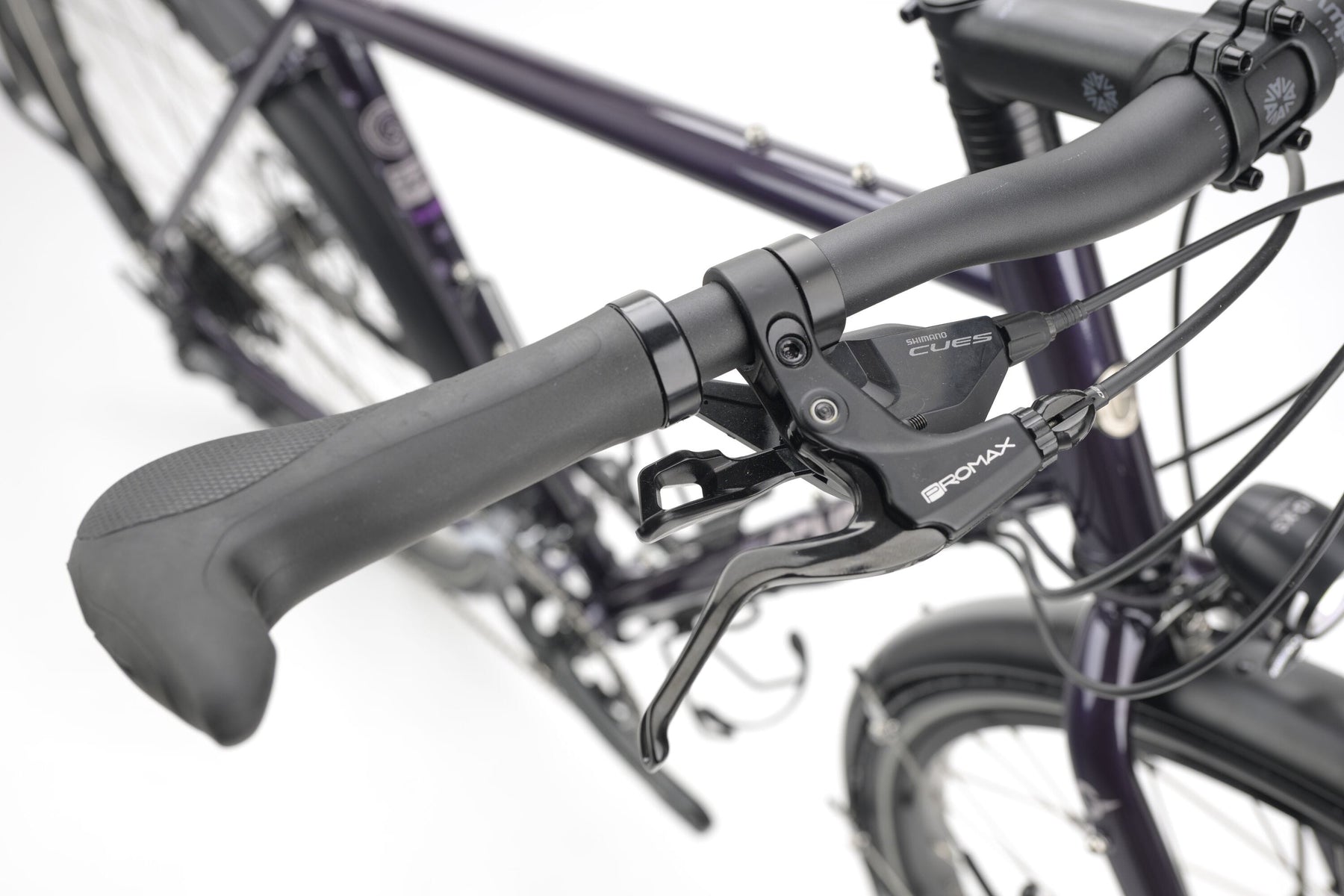

- Amplitude F100 Flat Handlebar
- Amplitude G100 Seatpost & Stem

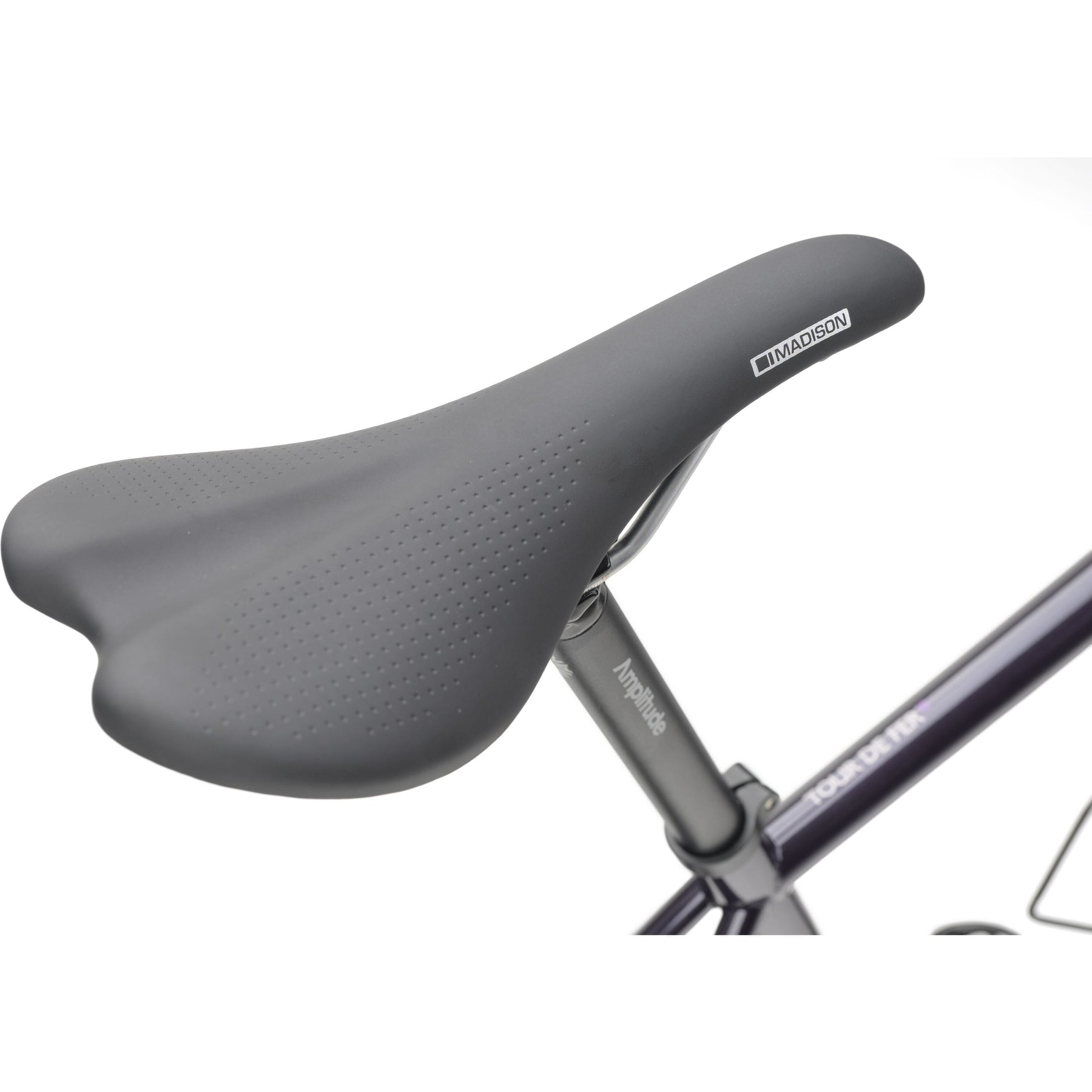

- Madison Flux Switch Saddle
Accessories
- AtranVelo AVS Rear & Lowrider Front Racks
- Busch & Muller Dynamo Light Set
Geometry
XS | S | M | L | XL | |
---|---|---|---|---|---|
Stack | 566 | 580 | 603 | 622 | 641 |
Reach | 380 | 380 | 390 | 400 | 410 |
Headtube Angle | 70.5 | 70.5 | 71.5 | 71.5 | 71.5 |
Headtube Length | 120 | 135 | 155 | 175 | 195 |
Seattube Angle | 74 | 73 | 73.5 | 73.5 | 73.5 |
Toptube (Effective) | 543 | 557 | 569 | 584 | 600 |
Chainstay Length | 465 | 465 | 465 | 465 | 465 |
Wheelbase | 1072 | 1077 | 1085 | 1101 | 1117 |
BB Drop | 73 | 73 | 73 | 73 | 73 |
Standover | 754 | 785 | 811 | 841 | 859 |
Fork Offset | 55 | 55 | 55 | 55 | 55 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
