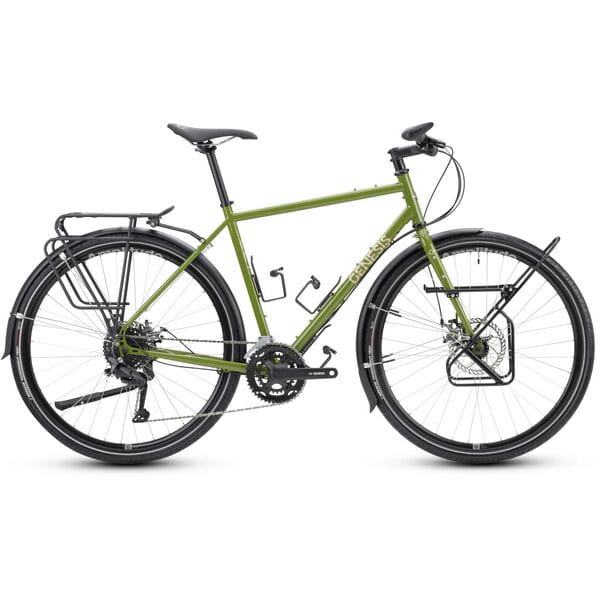

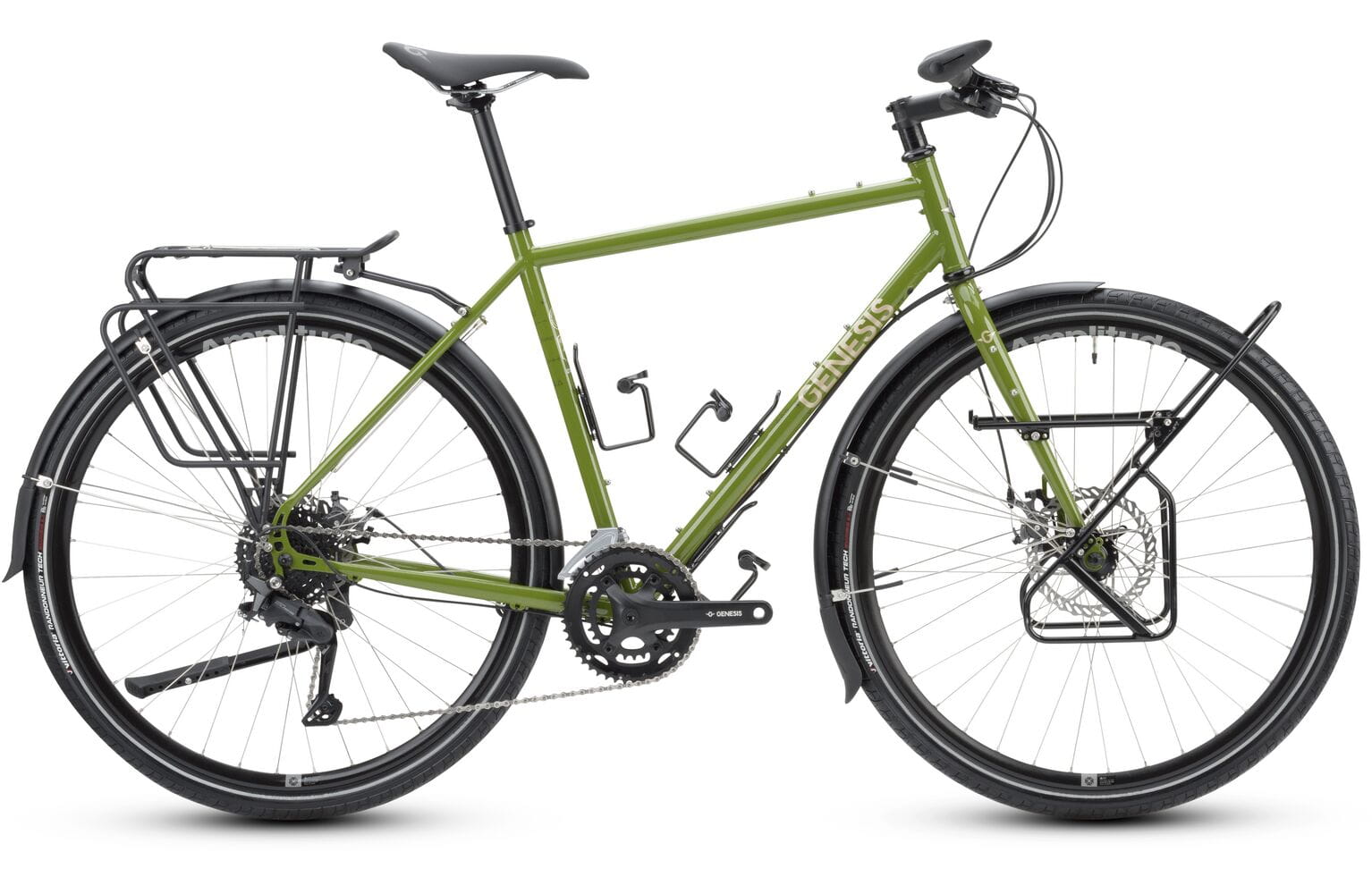

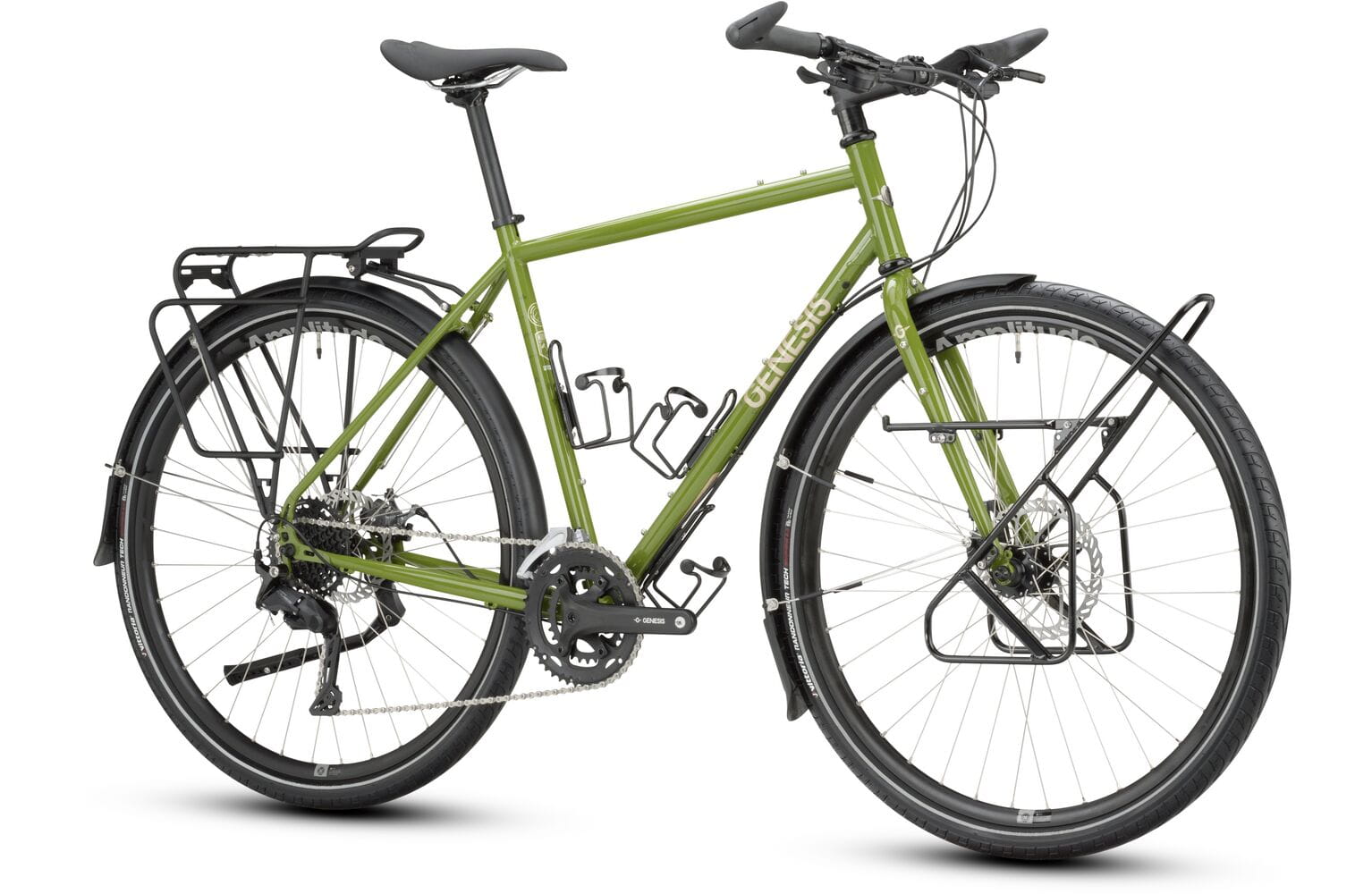

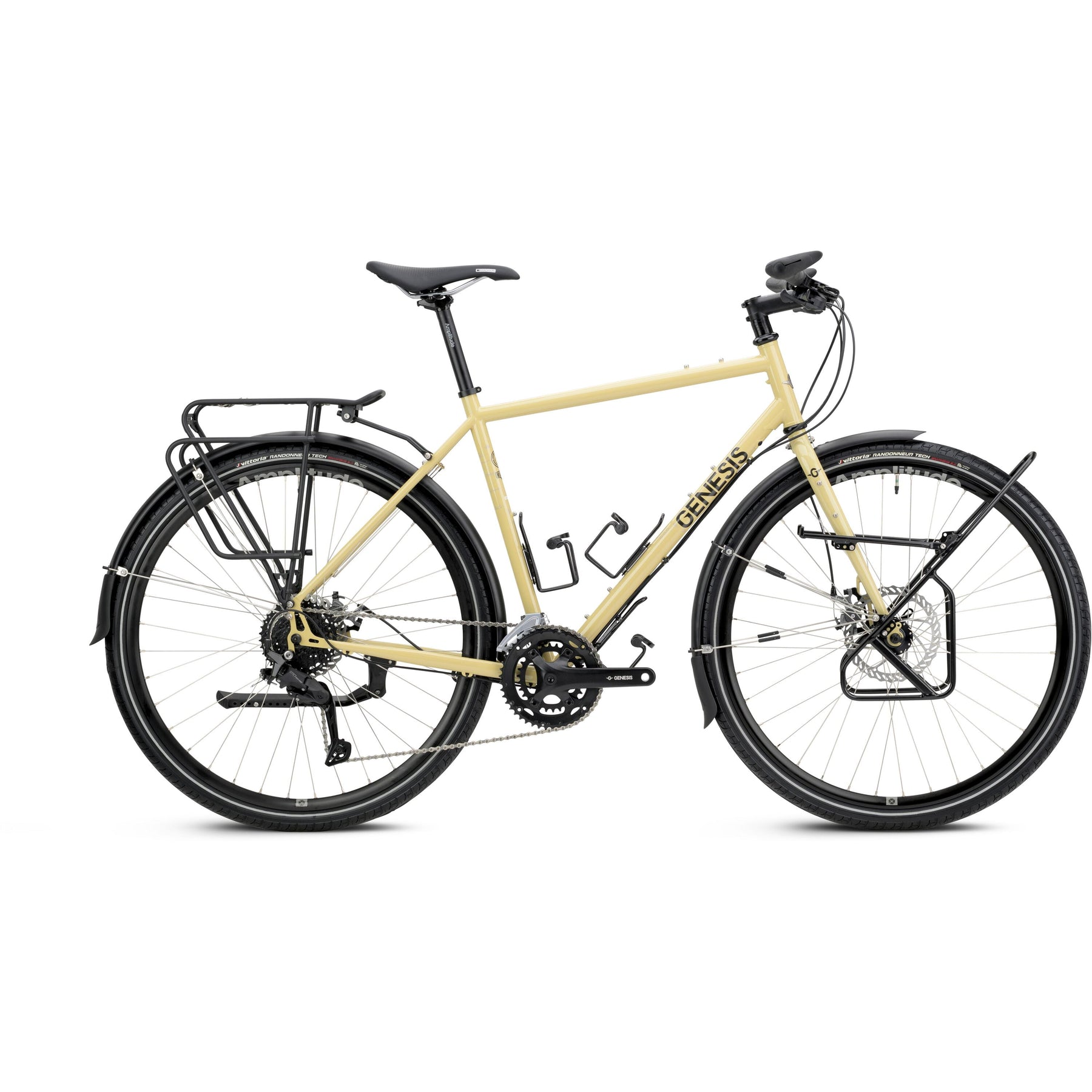

The Tour De Fer 10 is the perfect model for a first foray into touring whilst bursting with everyday friendly features.

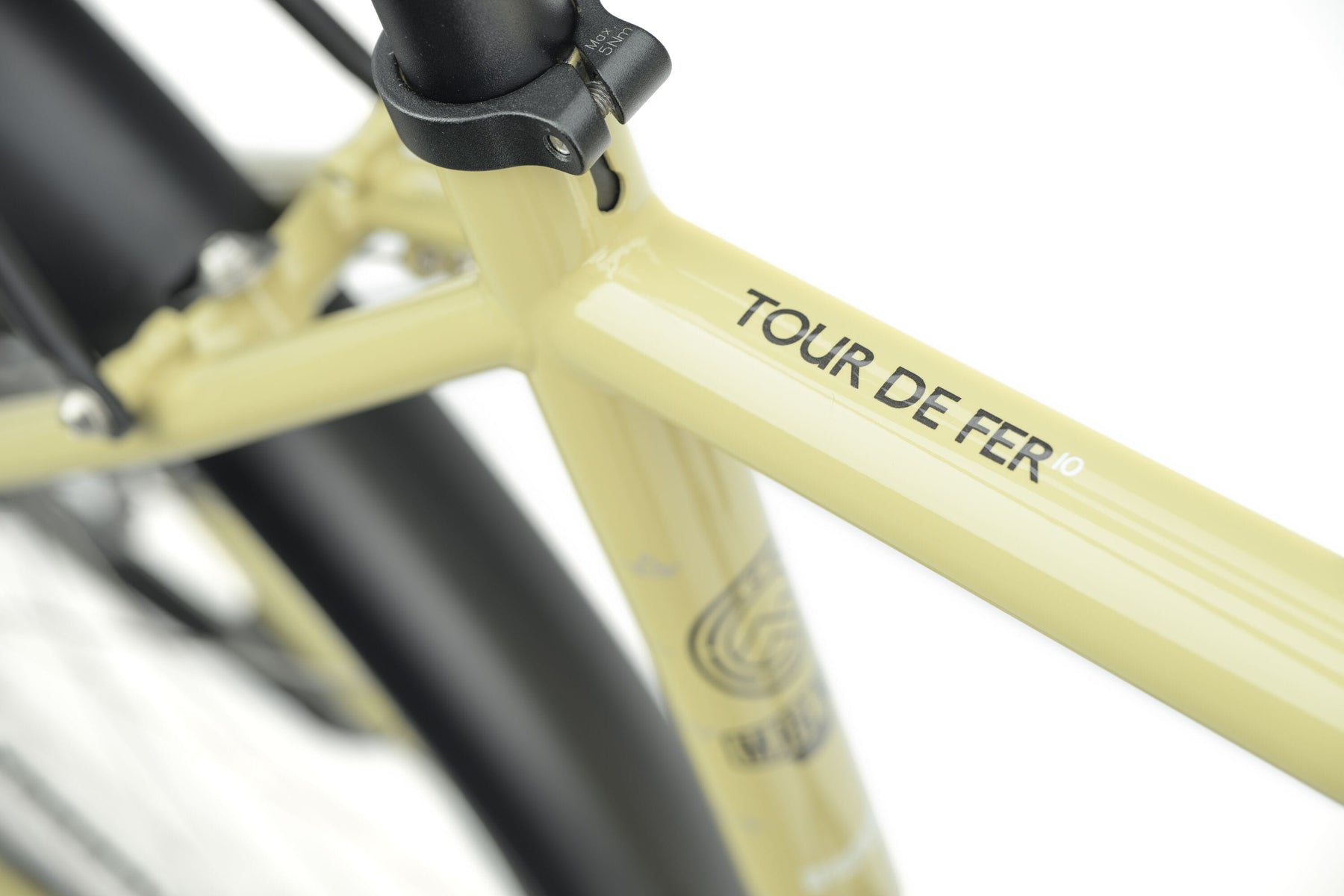

The Mjolnir Chromoly tubeset forms the bedrock of a frame with sublime ride quality and spectacular durability. Modern geometry refinements, updated gearing, fast rolling tyres and an AVS compatible rear rack complete this ready to roll package.
Features:

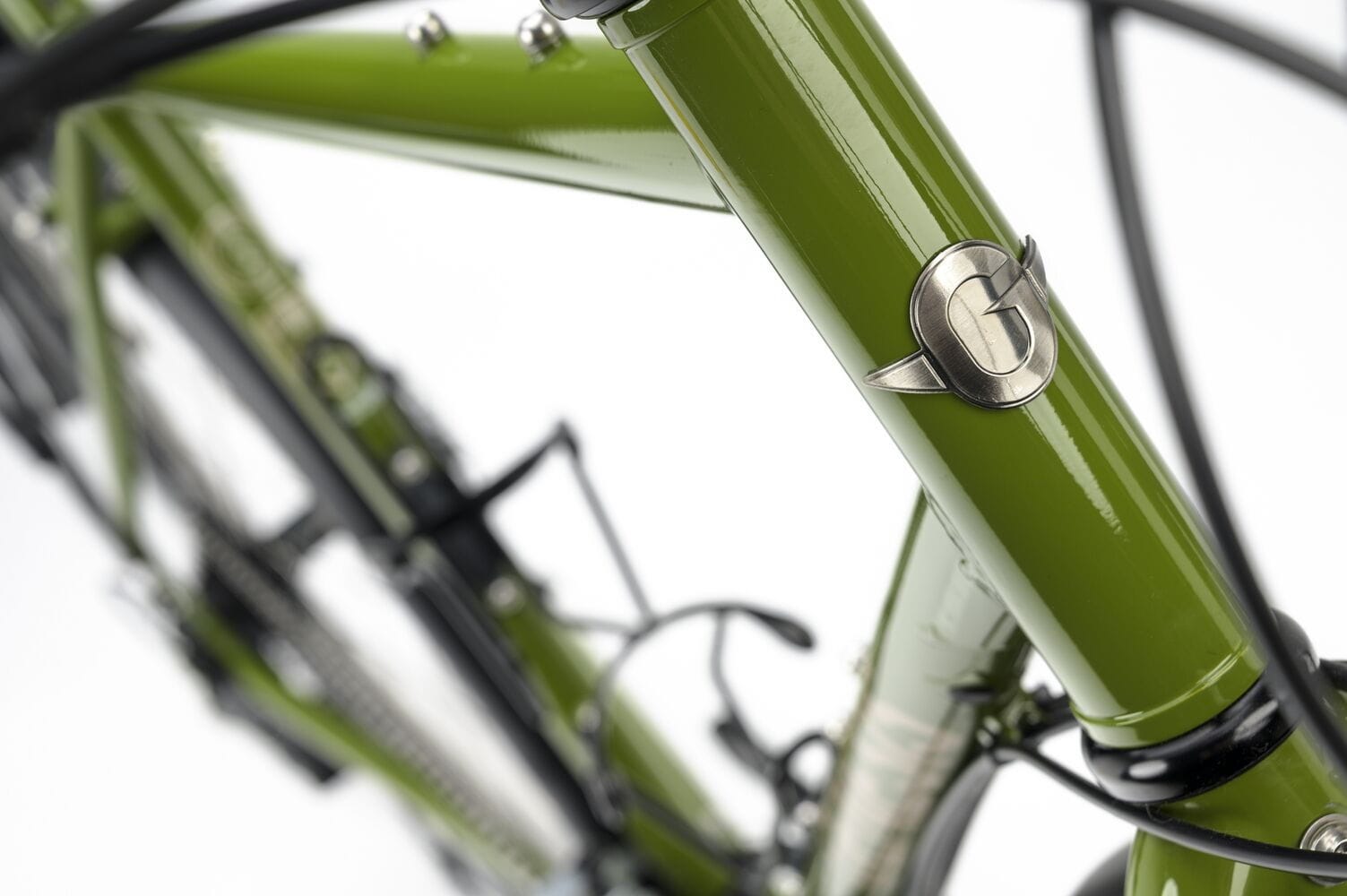

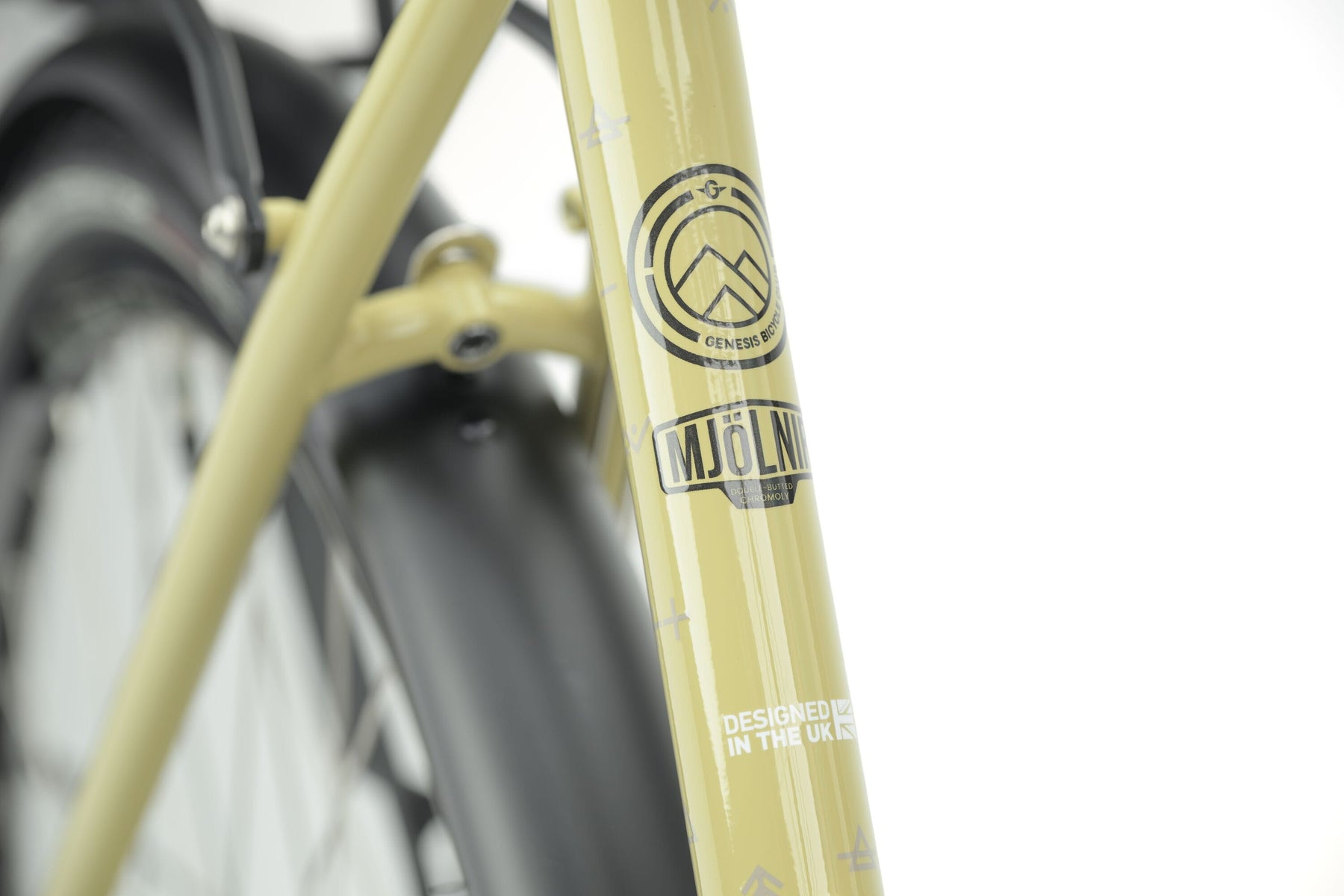

Thor's Hammer - Our Mjolnir Chromoly tubeset is crafted to deliver sublime ride file with excellent comfort whilst also being immensely durable.

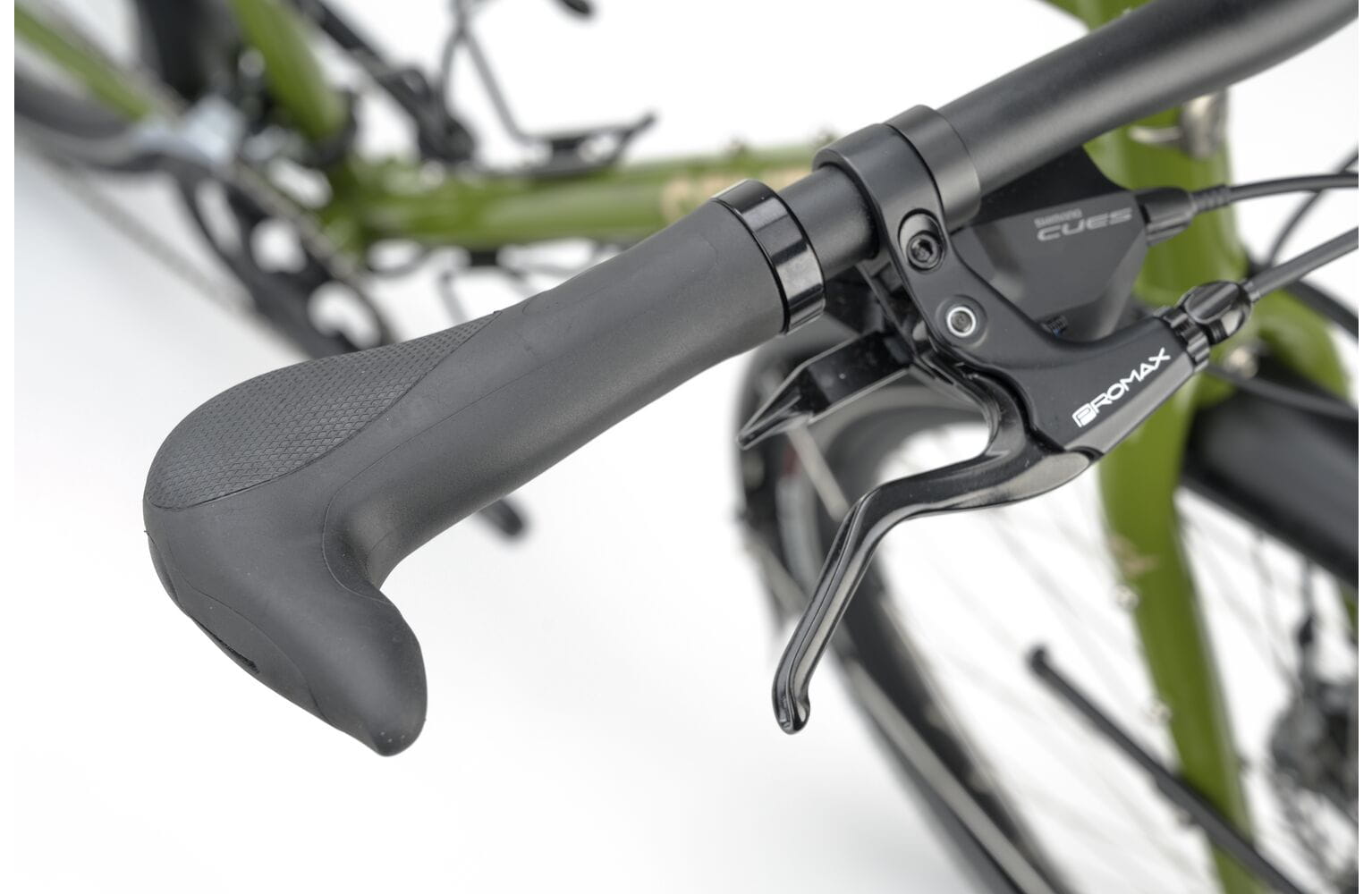

Dependable drivetrain - The Tour De Fer 10 moves to a double chainset and new shimano CUES Linkglide drivetrain giving vastly superior longevity and shifting consistency.
Lowrider - A traditional AtranVelo Explorer Front pannier rack keeps luggage as low as possible to maintain the tour de fer's sublime handling when fully loaded.

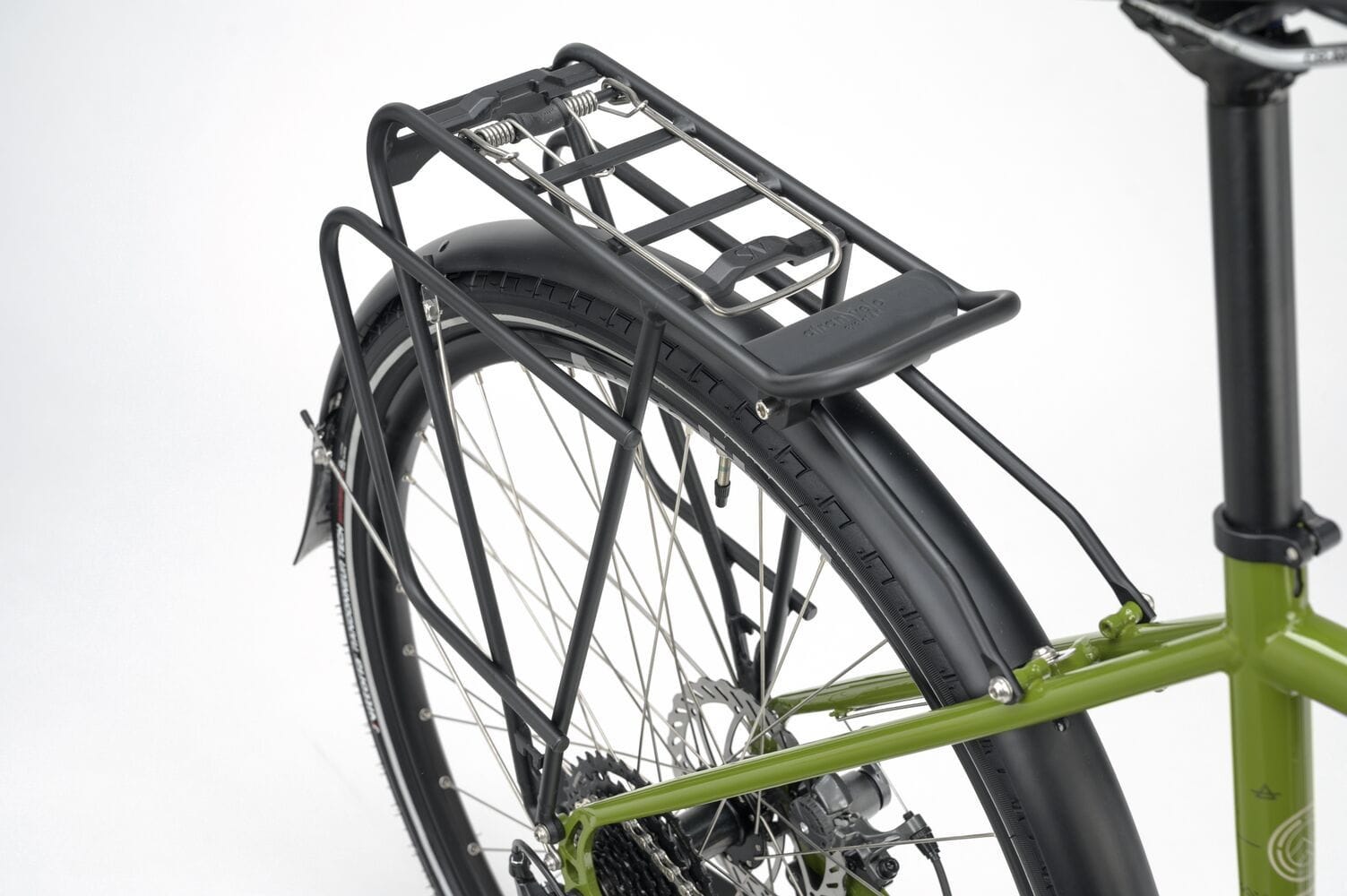

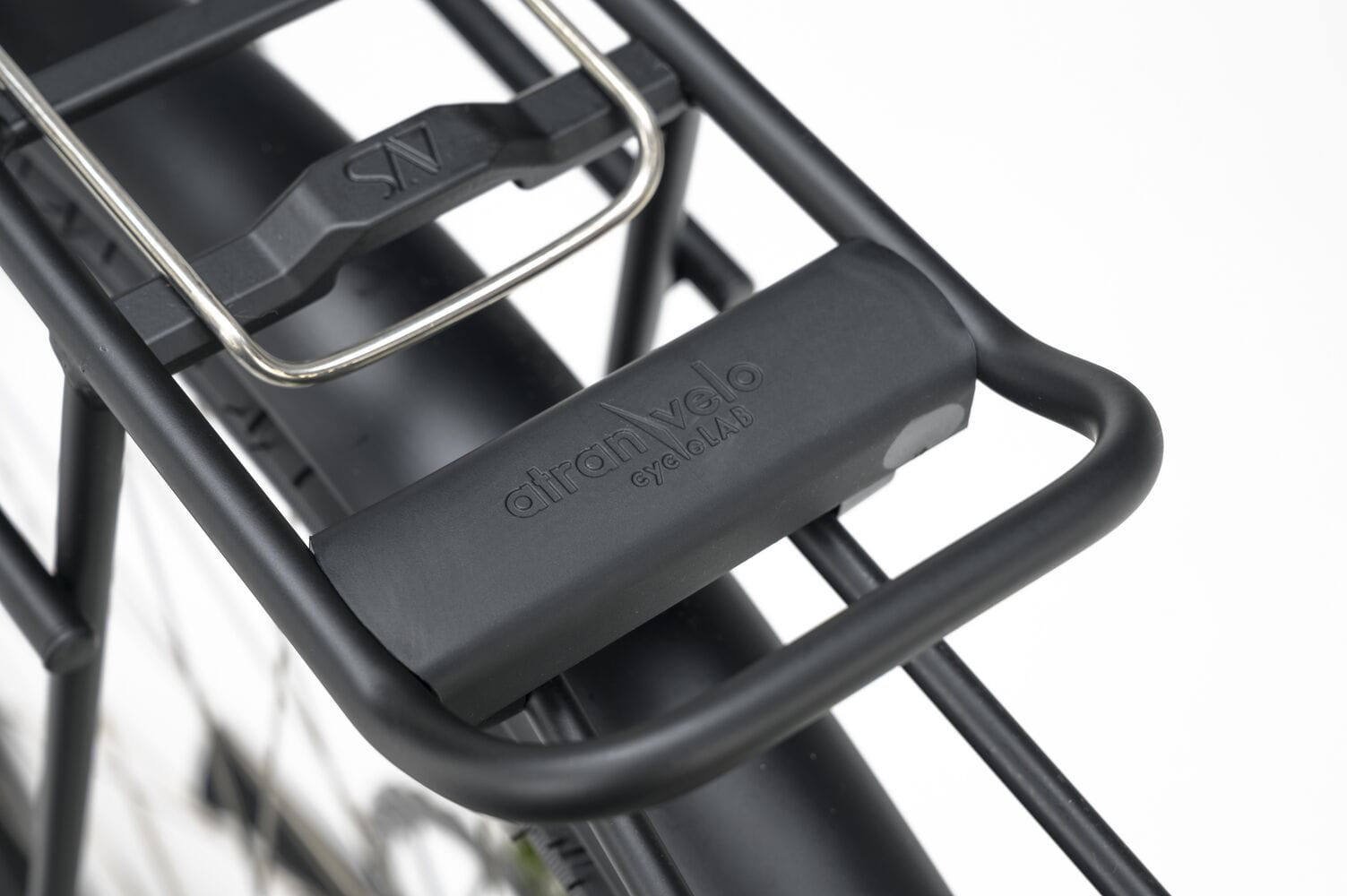

AVS compatible - The AtranVelo Tour Lite rear rack is a sturdy companion with a 27kg load capacity. The AVS interface allows rapid installation and removal of compatible accessories without compromising traditional pannier fittings.
Specifications
Frame & Fork
- Genesis Mjolnir Chromoly Tubing
- Genesis Chromoly Fork
Wheelset
- Amplitude G50
- Six-Bolt Rotor Mounts
- QR Front & Rear
Drivetrain
- Shimano CUES U4000/U3020
- 2 x 9 speed
- 46/30T Chainrings
- 11-36T Cassette
Brakes

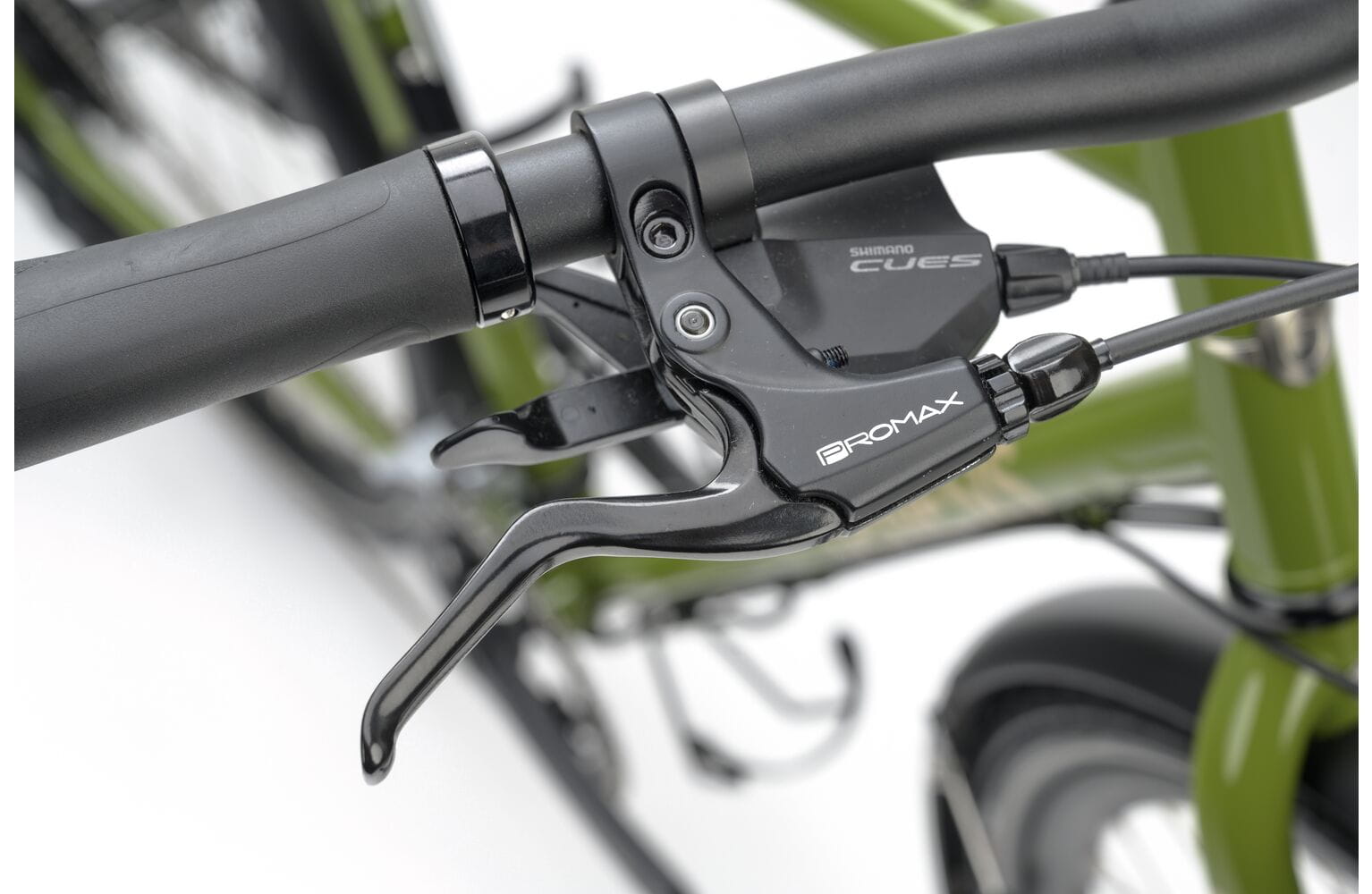

- Promax DSK-717 Mechanical Disc Brakes
- 180mm Front & 160mm Rear Rotors
Finishing Kit
- Amplitude F100 Flat Handlebar
- Amplitude G100 Seatpost and Stem

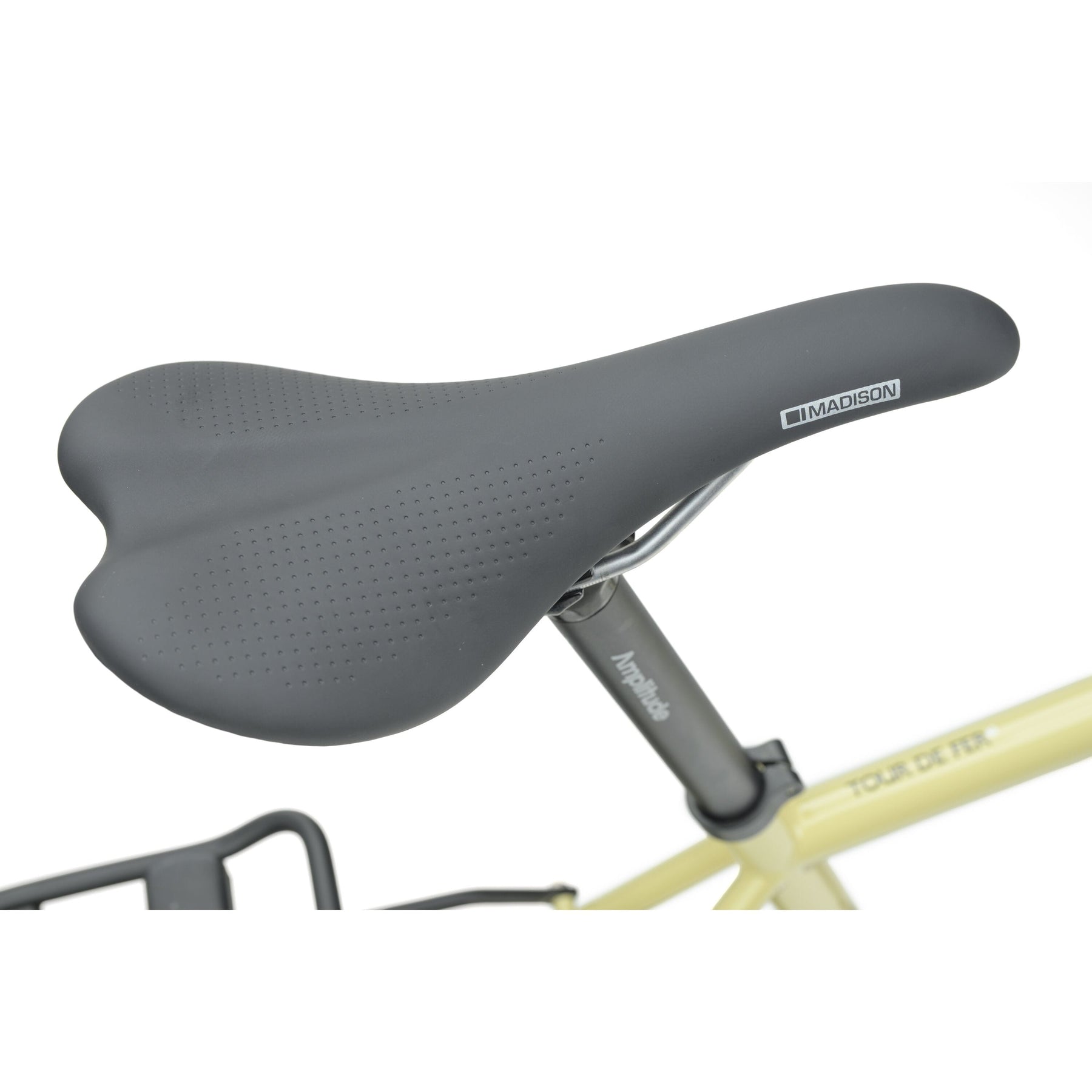

- Madison Flux Switch Saddle
Tyres
- Vittoria Randonneur Tech 700 x 40c
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 566 | 580 | 603 | 622 | 641 |
| Reach | 380 | 380 | 390 | 400 | 410 |
| Headtube Angle | 70.5 | 70.5 | 71.5 | 71.5 | 71.5 |
| Headtube Length | 120 | 135 | 155 | 175 | 195 |
| Seattube Angle | 74 | 73 | 73.5 | 73.5 | 73.5 |
| Toptube (Effective) | 543 | 557 | 569 | 584 | 600 |
| Chainstay Length | 465 | 465 | 465 | 465 | 465 |
| Wheelbase | 1072 | 1077 | 1085 | 1101 | 1117 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 754 | 785 | 811 | 841 | 859 |
| Fork Offset | 55 | 55 | 55 | 55 | 55 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
