Genesis Croix De Fer 40 Gravel Bike
Sterling Gloss / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Grass Is Greener

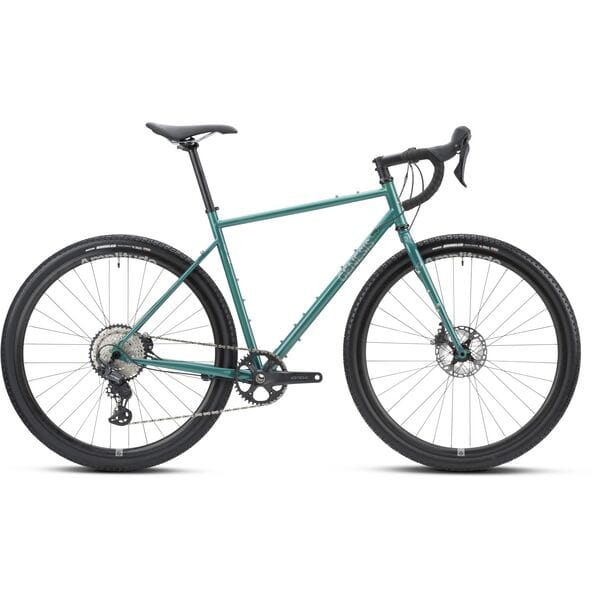

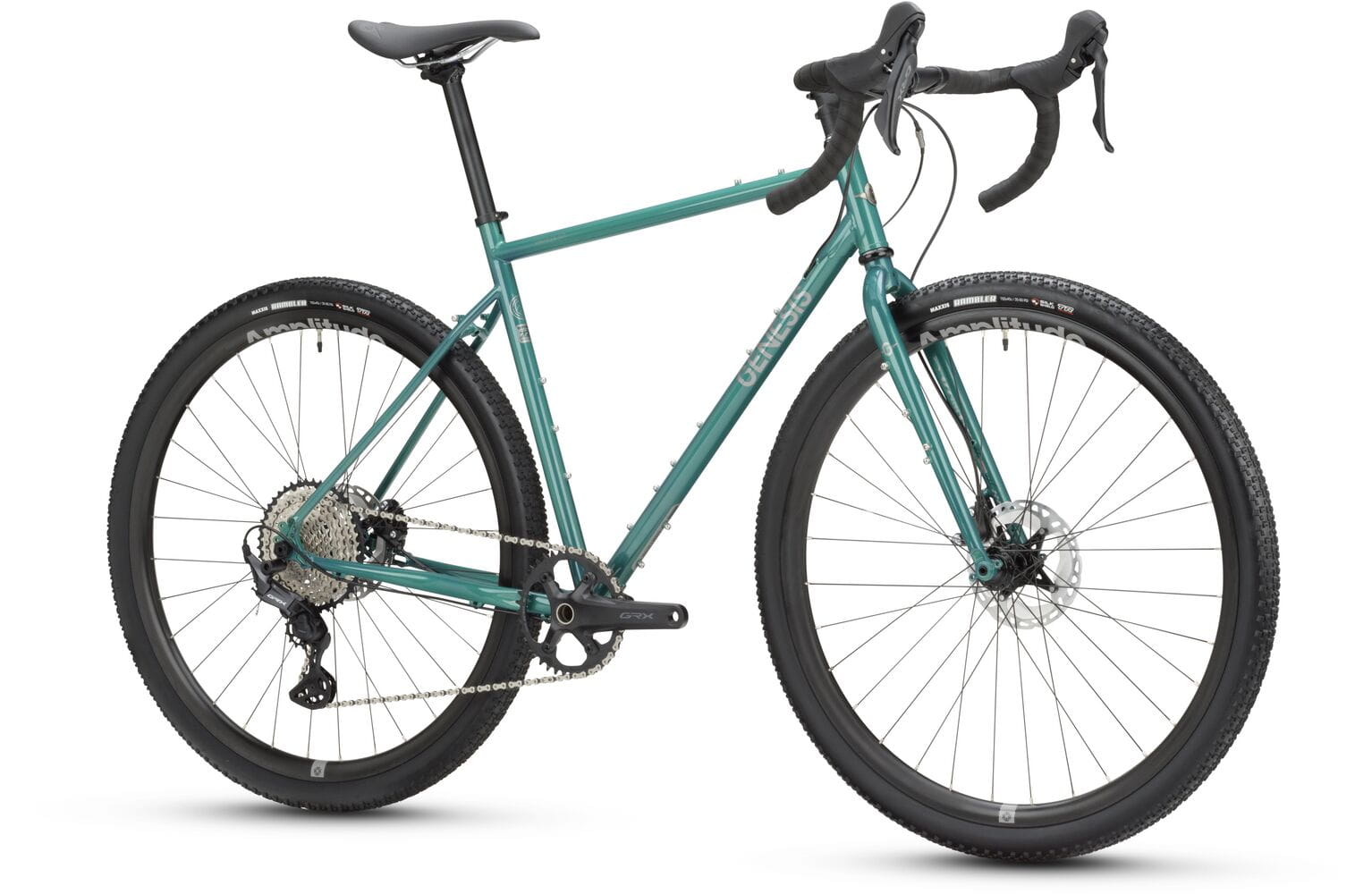

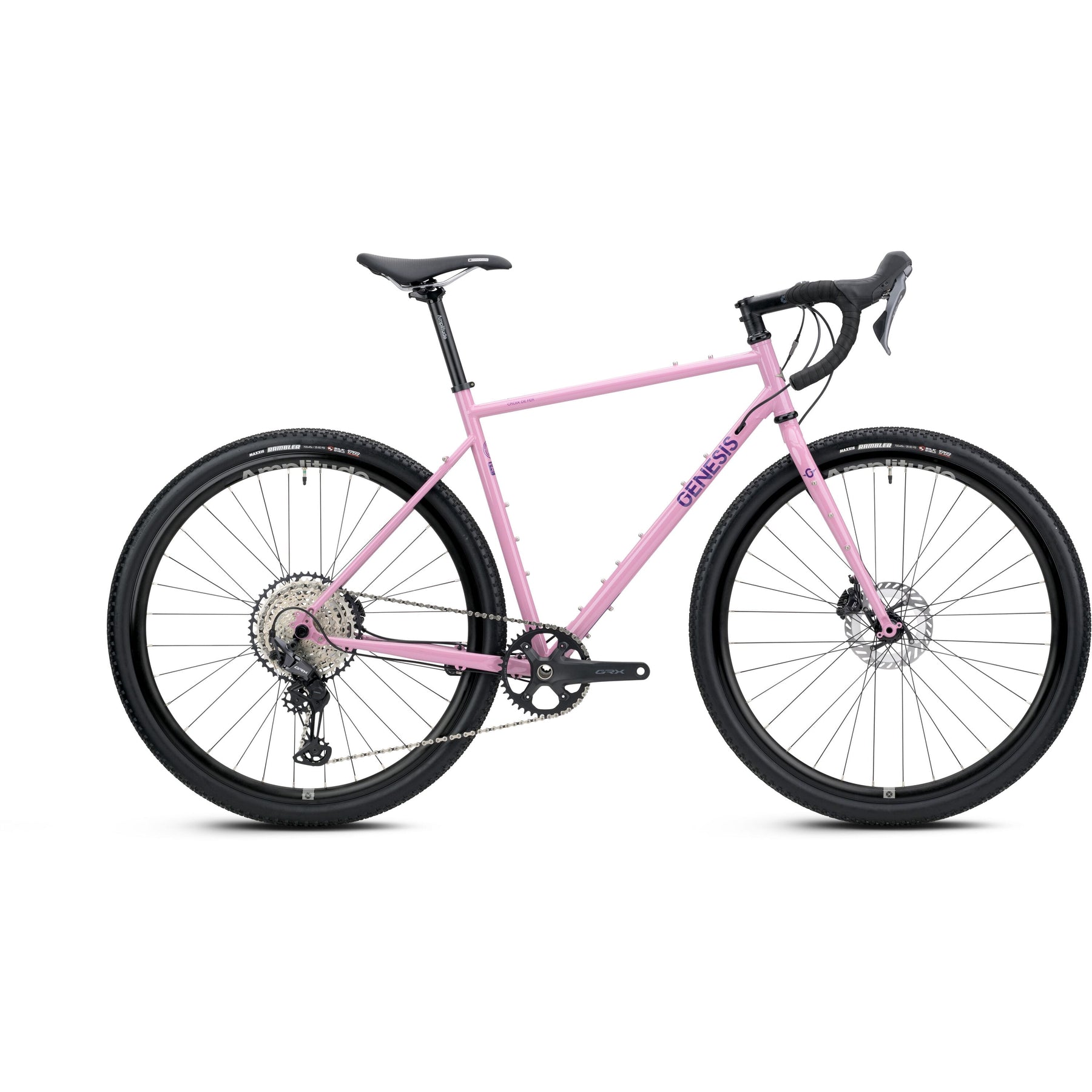

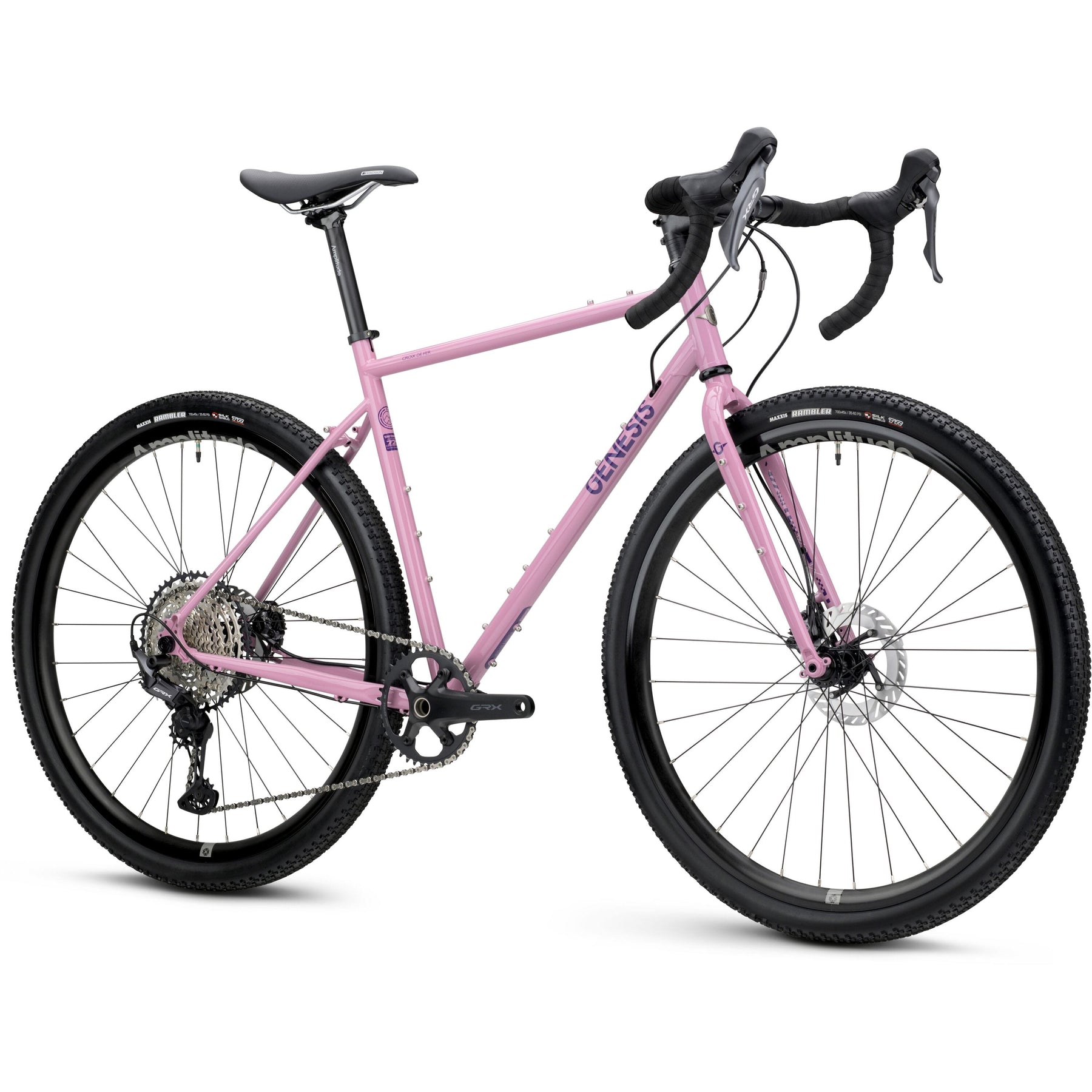

The Croix De Fer 40 is the rugged, dependable yet playful elder brother of the Croix De Fer range. With a Reynolds 725 tubeset, Chromoly thru-axle fork, 1X drivetrain and dependable rubber making it a true adventure machine.
Long 200km+ days, quick technical loops, on-road-offroad commutes or an evening blast, the Croix De Fer 40 is geared for anything.
Features

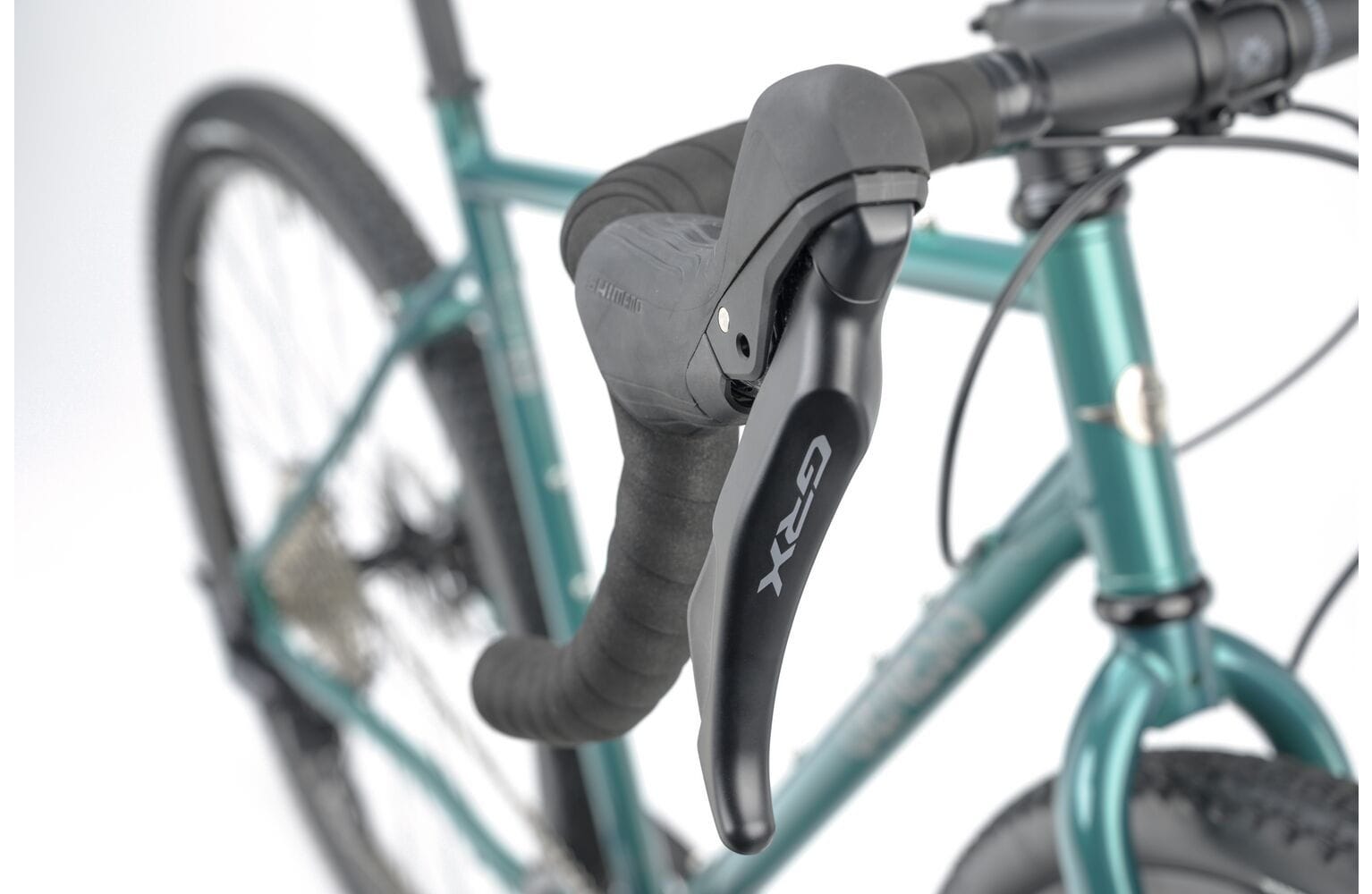

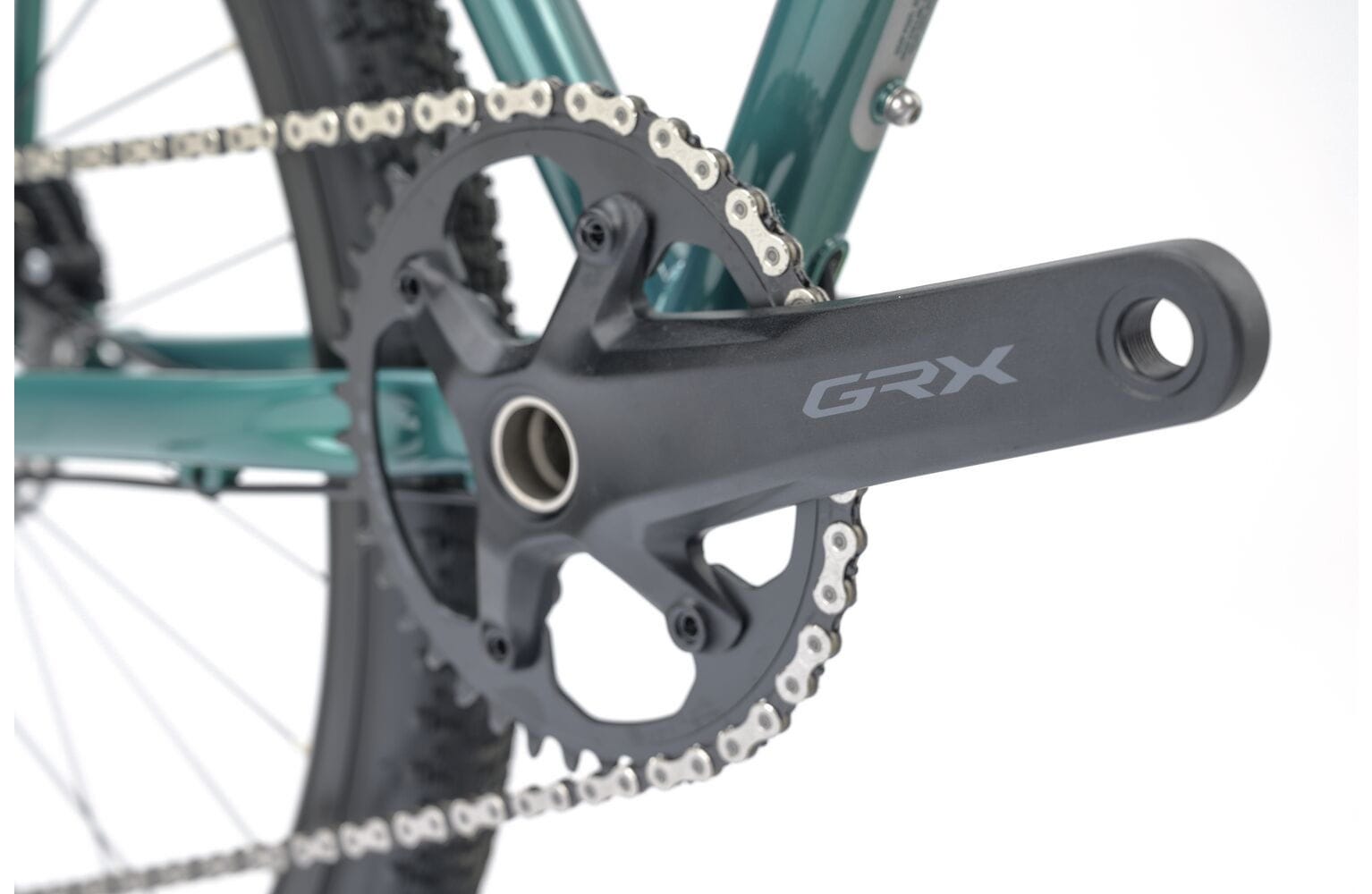

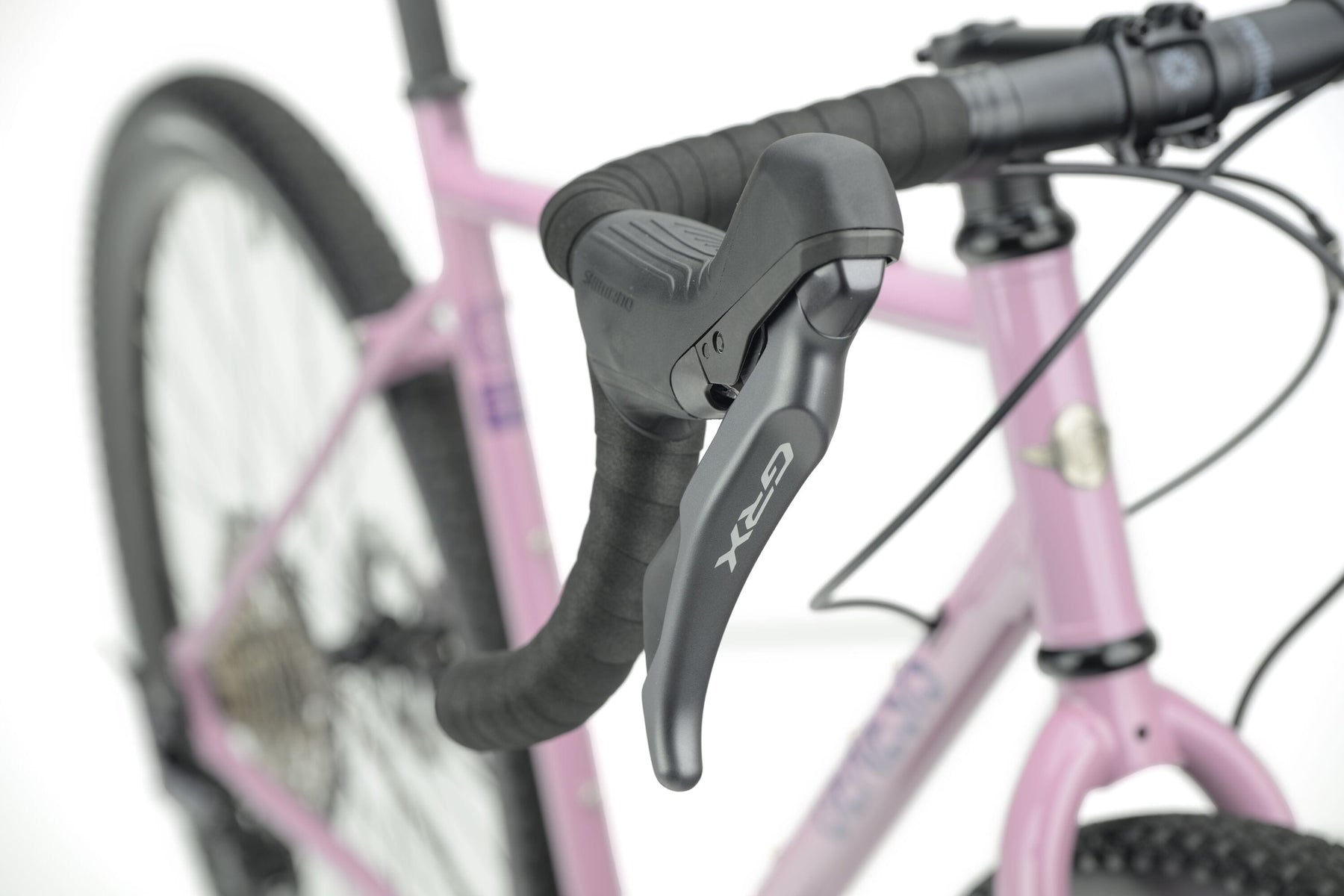

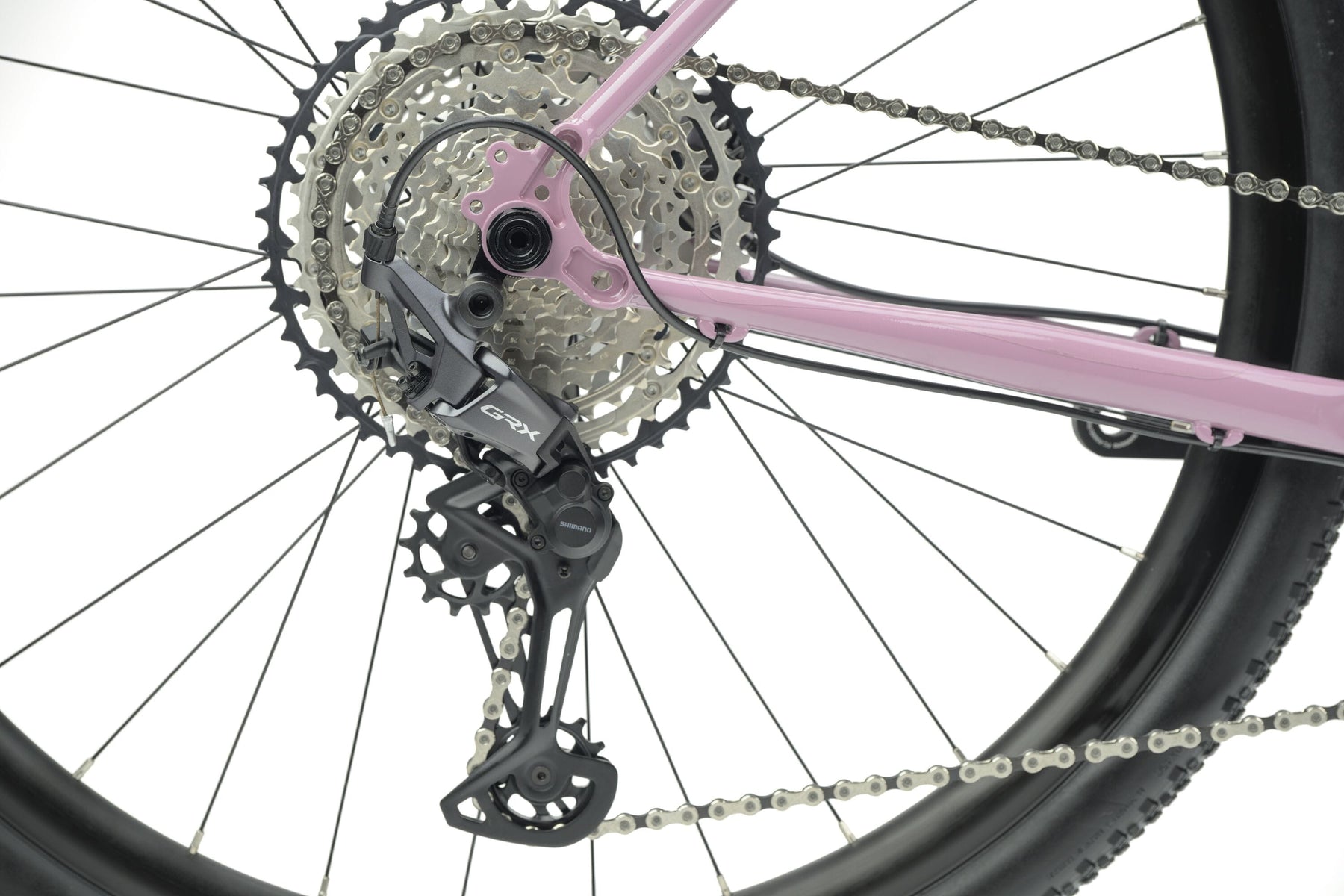

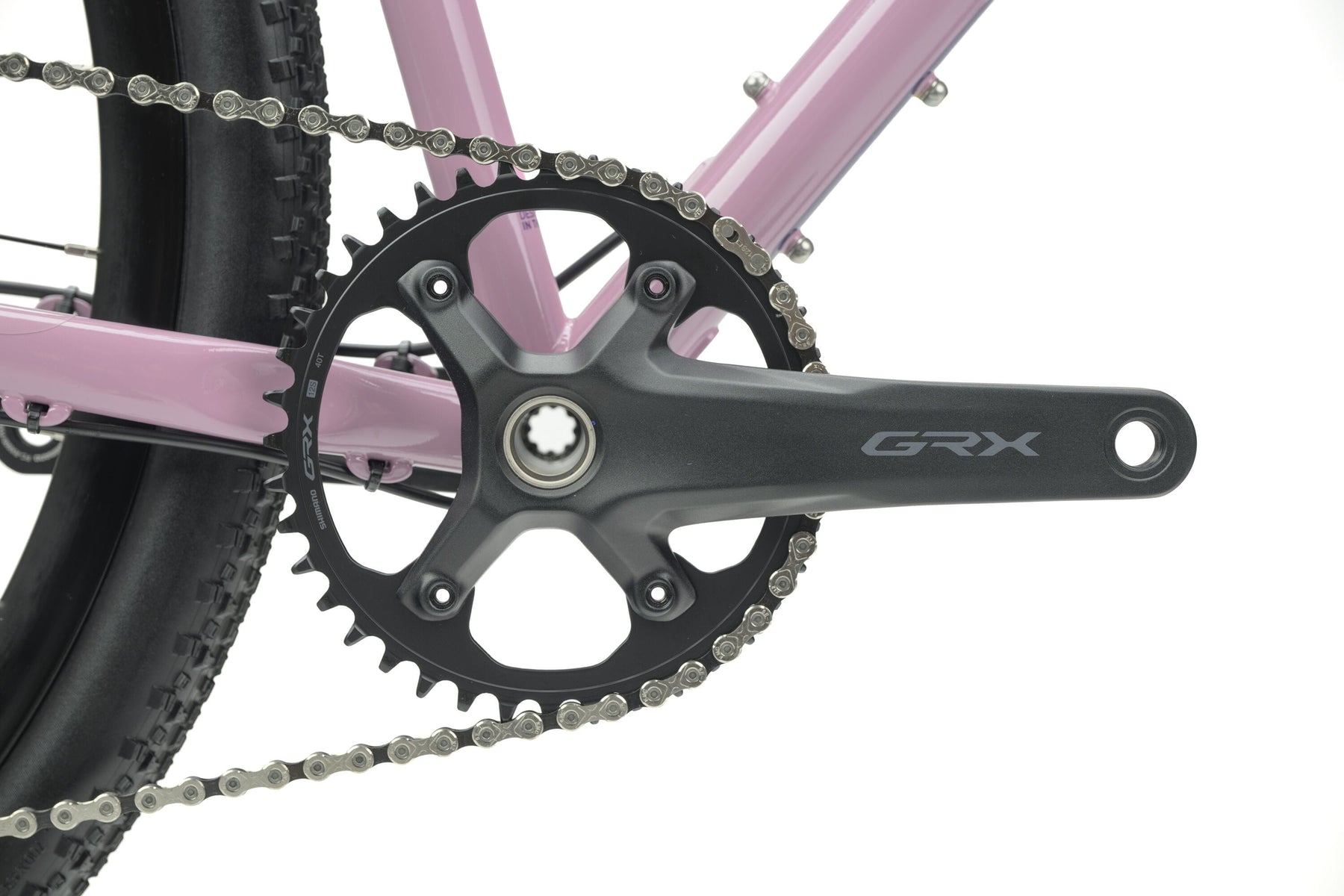

- Shimano GRX - The Croix de Fer 40 now boasts a 1x12 speed Shimano GRX drivetrain. The simplicity of a single chainring improves mud clearance and chain retention for when trails get techy.

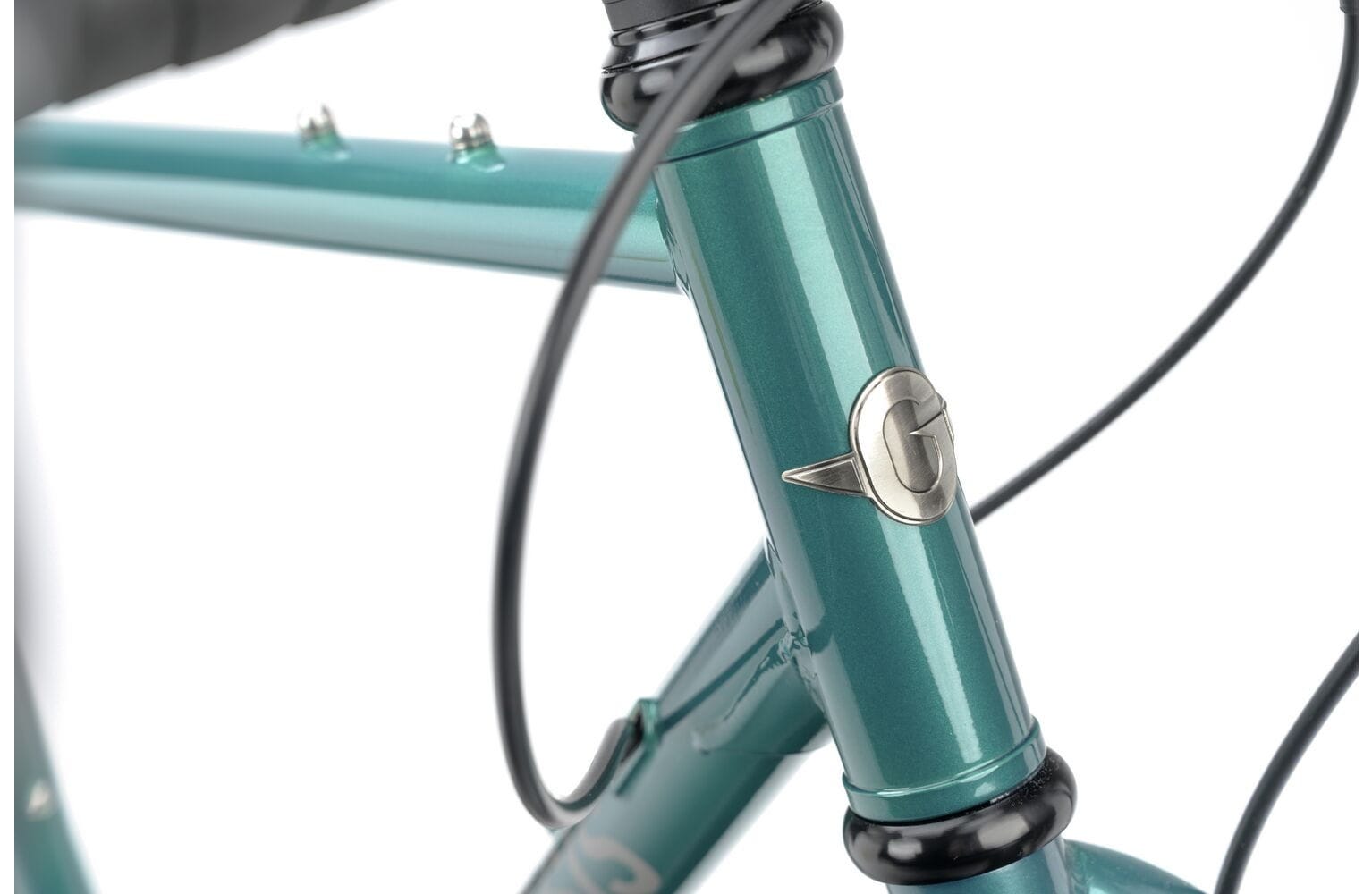

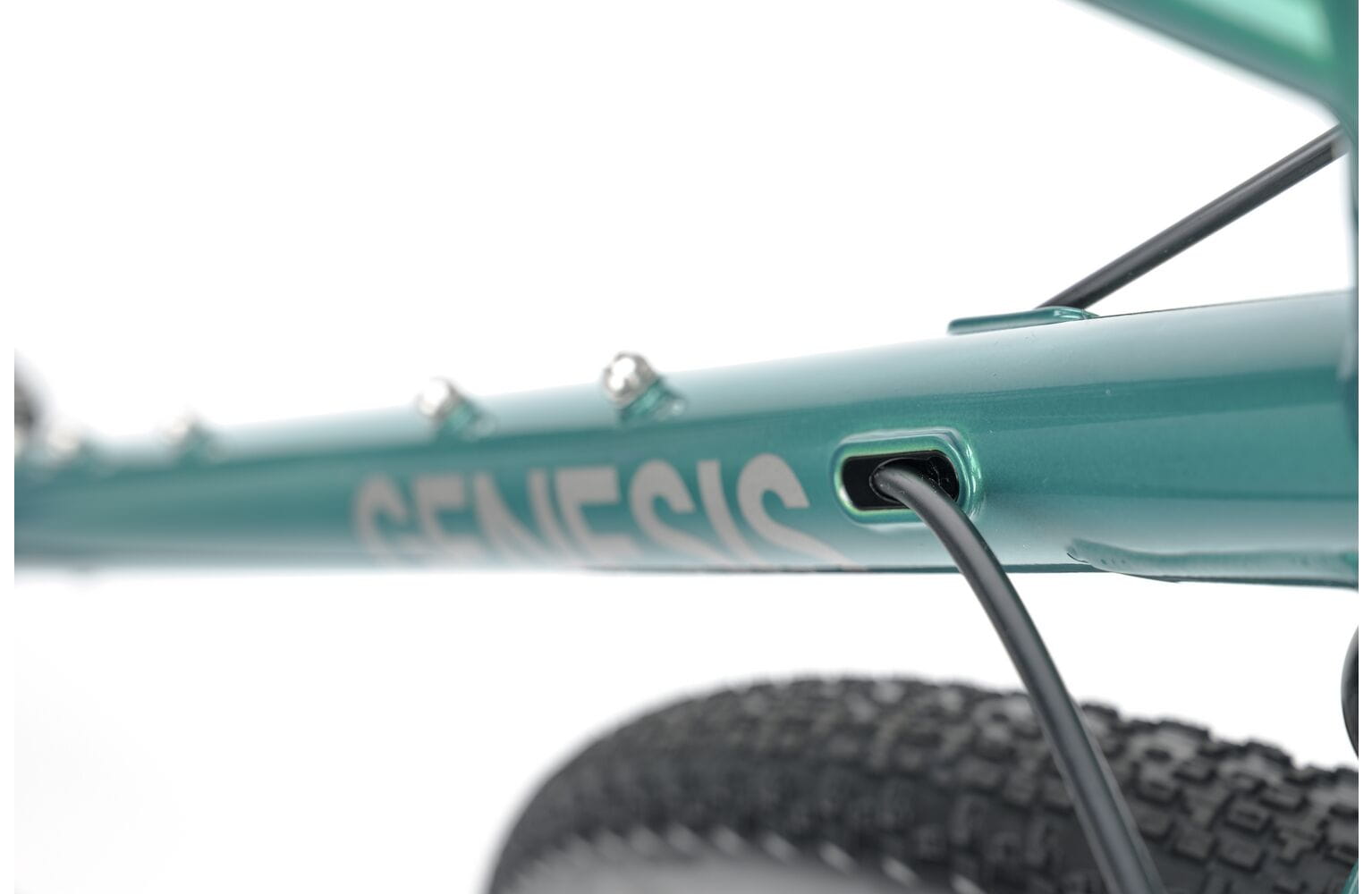

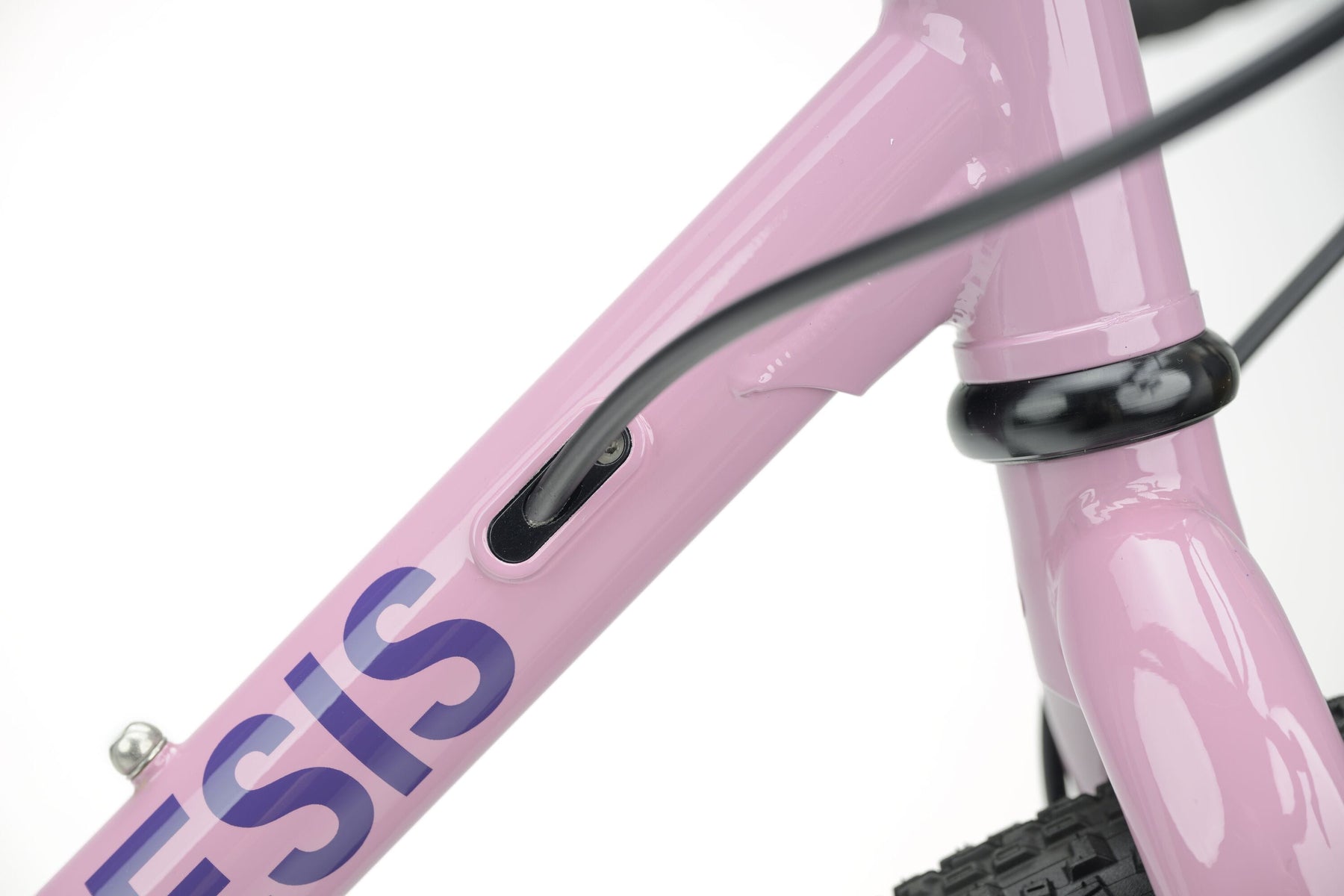

- Beautiful on the inside - Customisable internal cable ports keep cables neatly hidden away whilst allowing easy addition of dynamo cables resulting in a consistently clean aesthetic no matter what drivetrain you're running.

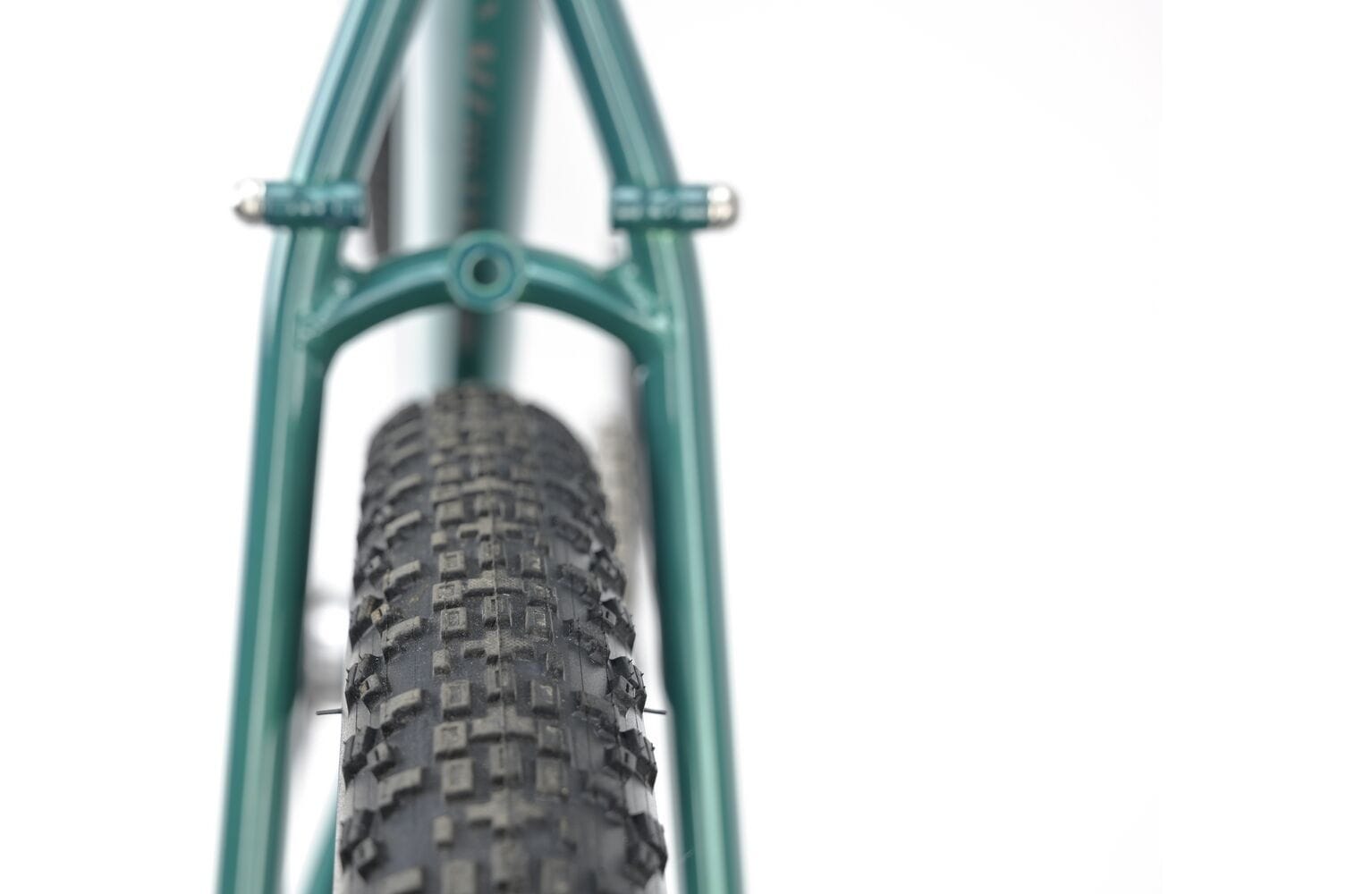

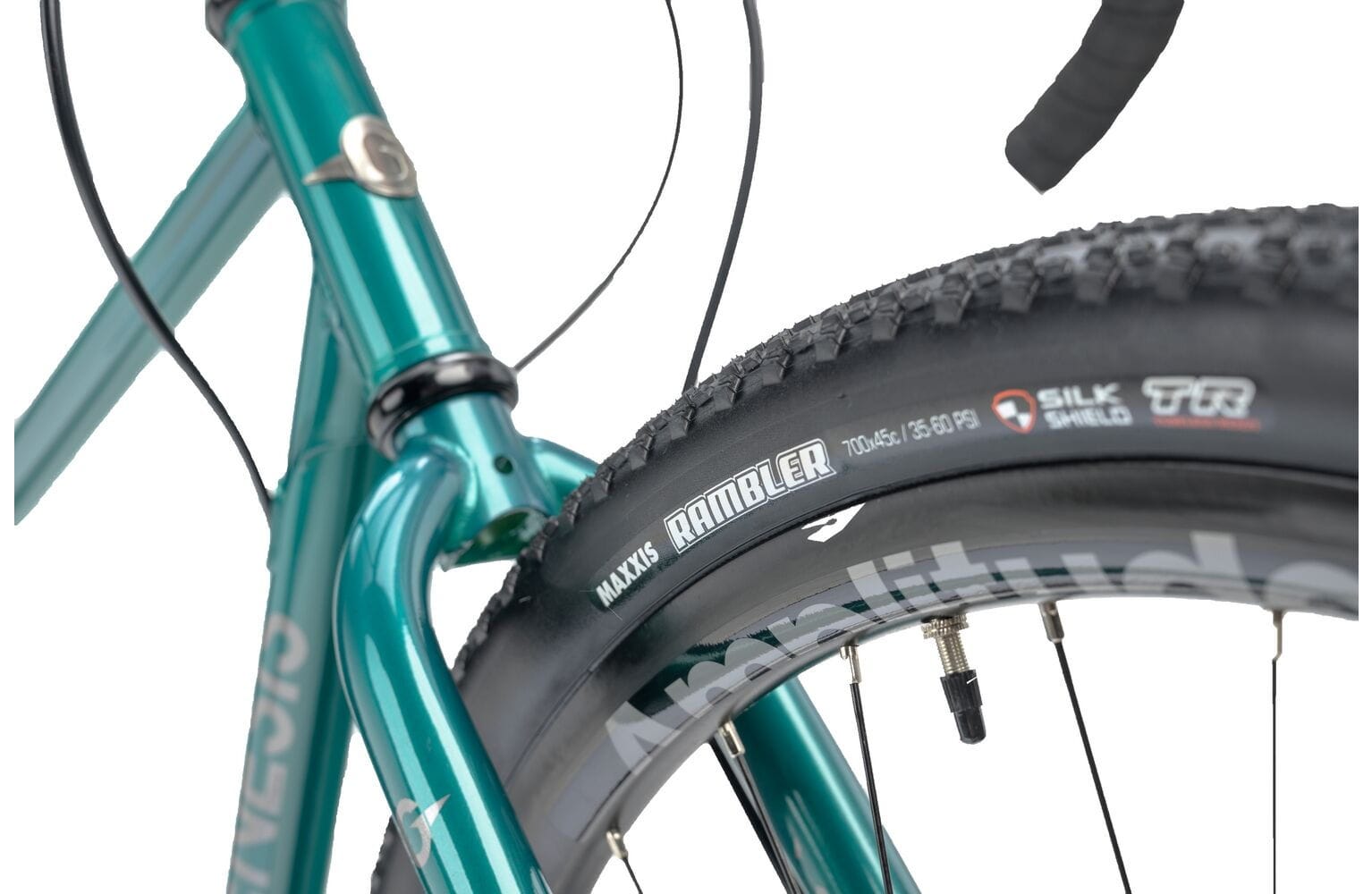

- When I say Tube, You Say Less - Maxxis Rambler tubeless ready 45mm tyres paired with the 26mm internal rim width of the Amplitude G100 wheelset provide a fast and comfortable ride in all conditions.

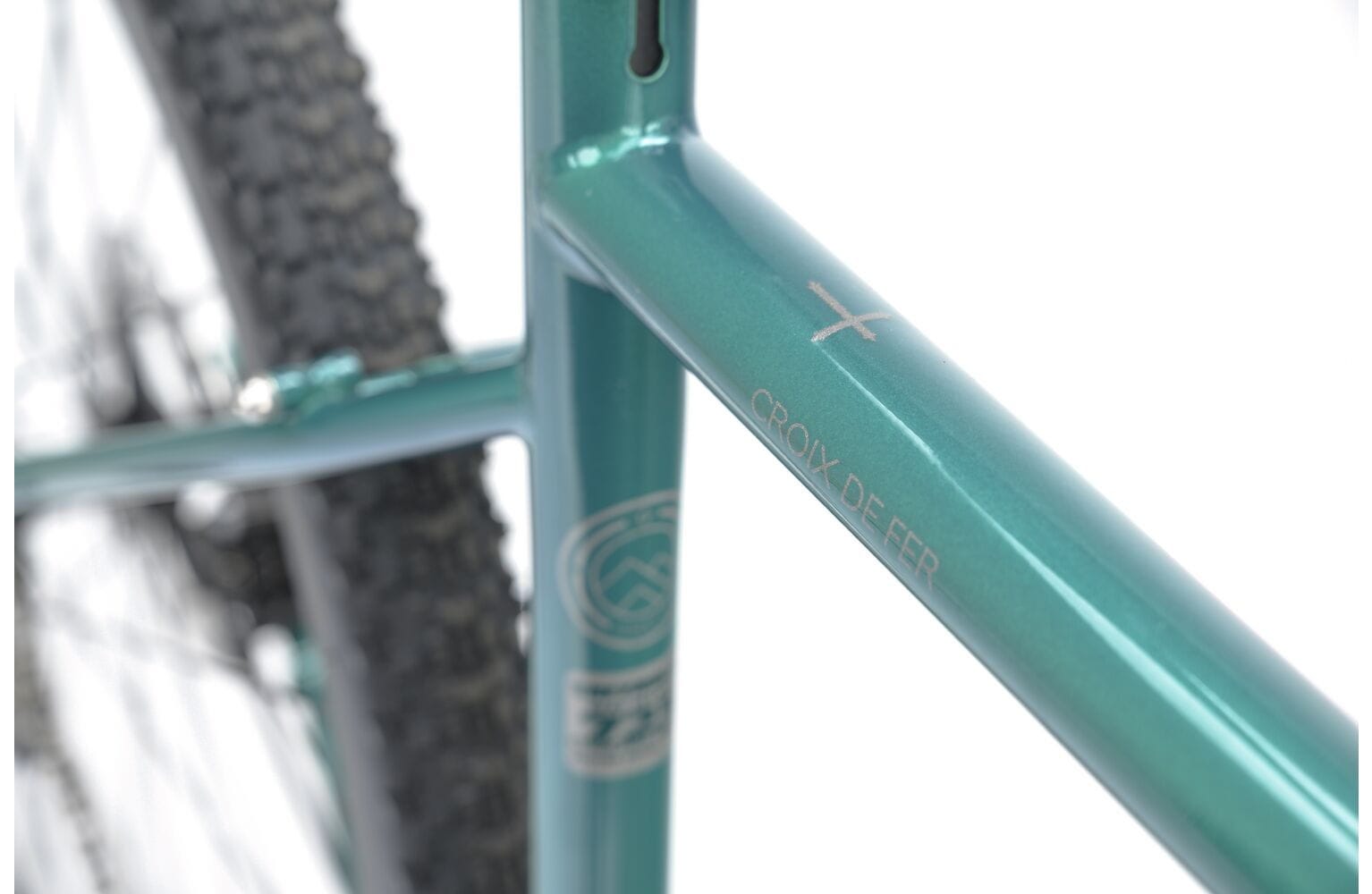

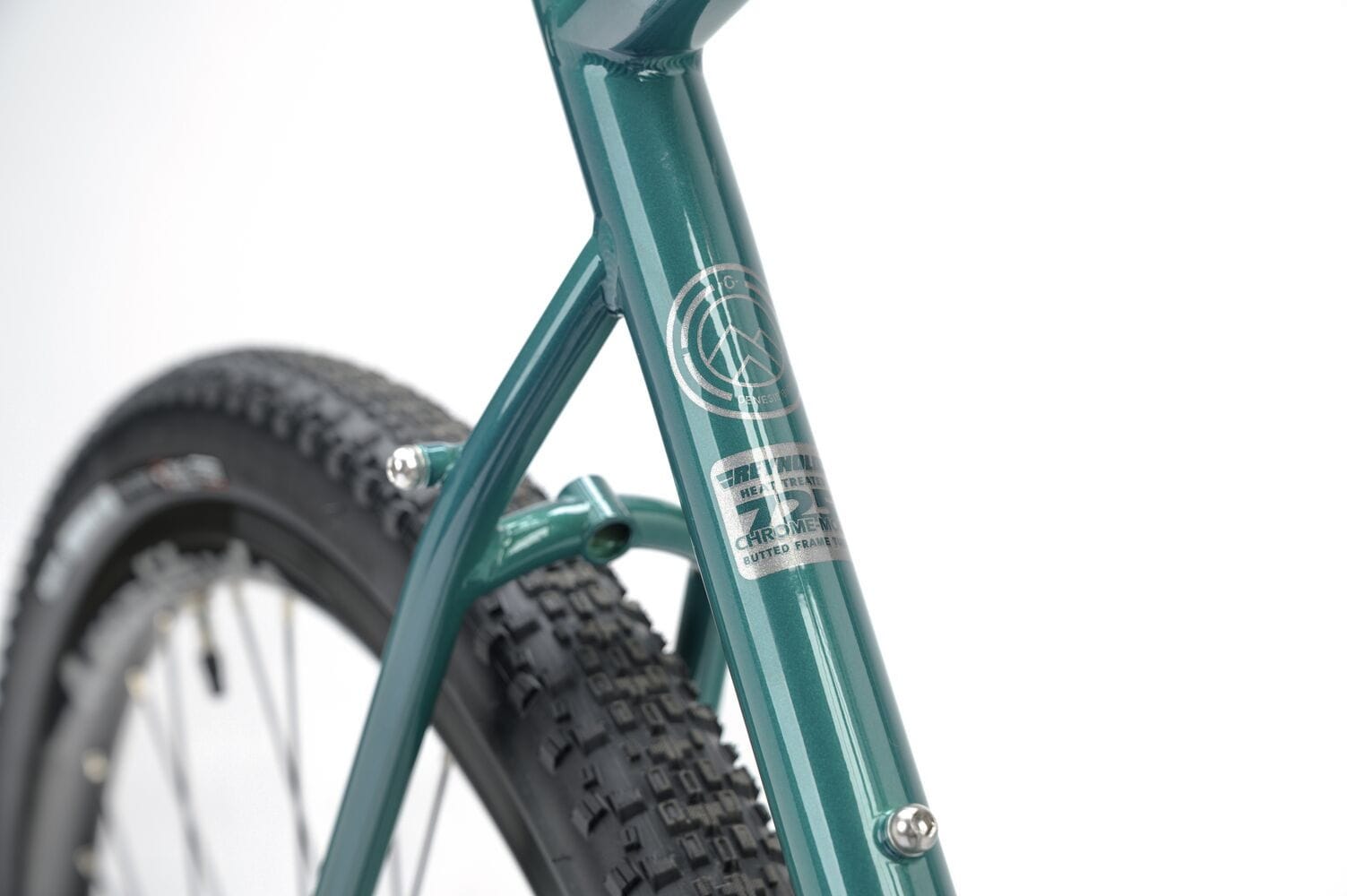

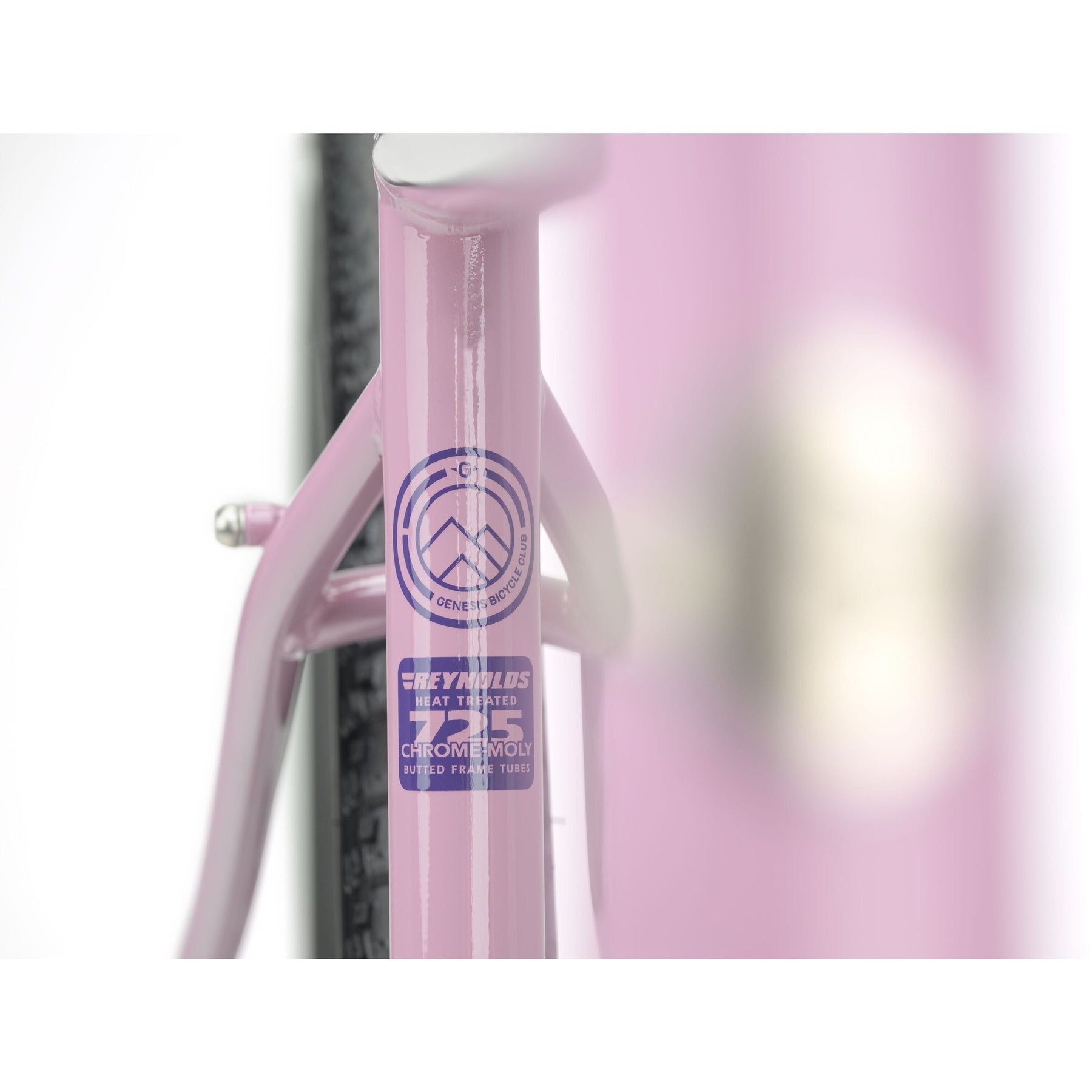

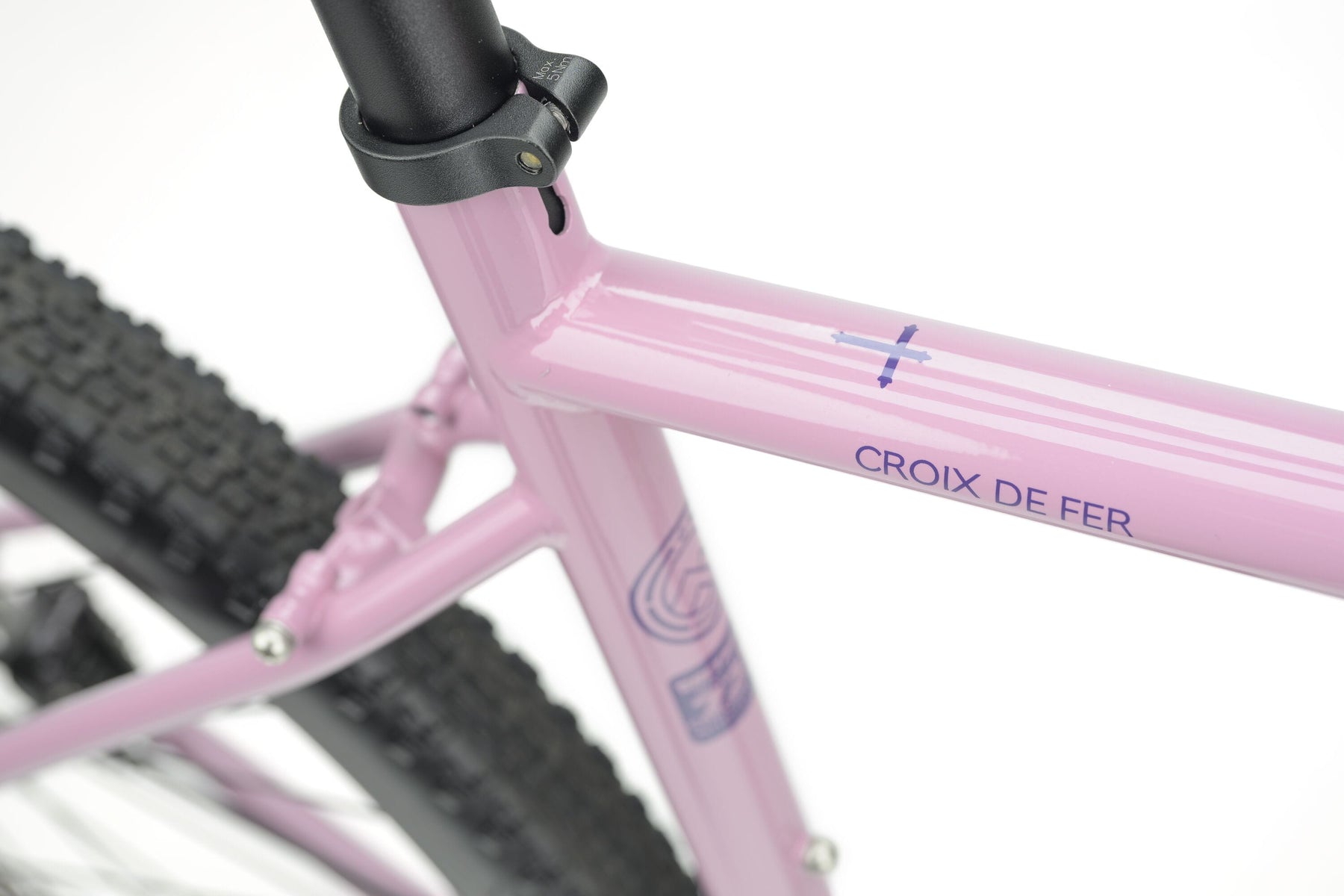

- Reyt Good Steel - The Reynolds 725 Chromoly tubeset allow us to use thinner tubes whilst maintaining strength for a lighter frame and livelier ride feel.

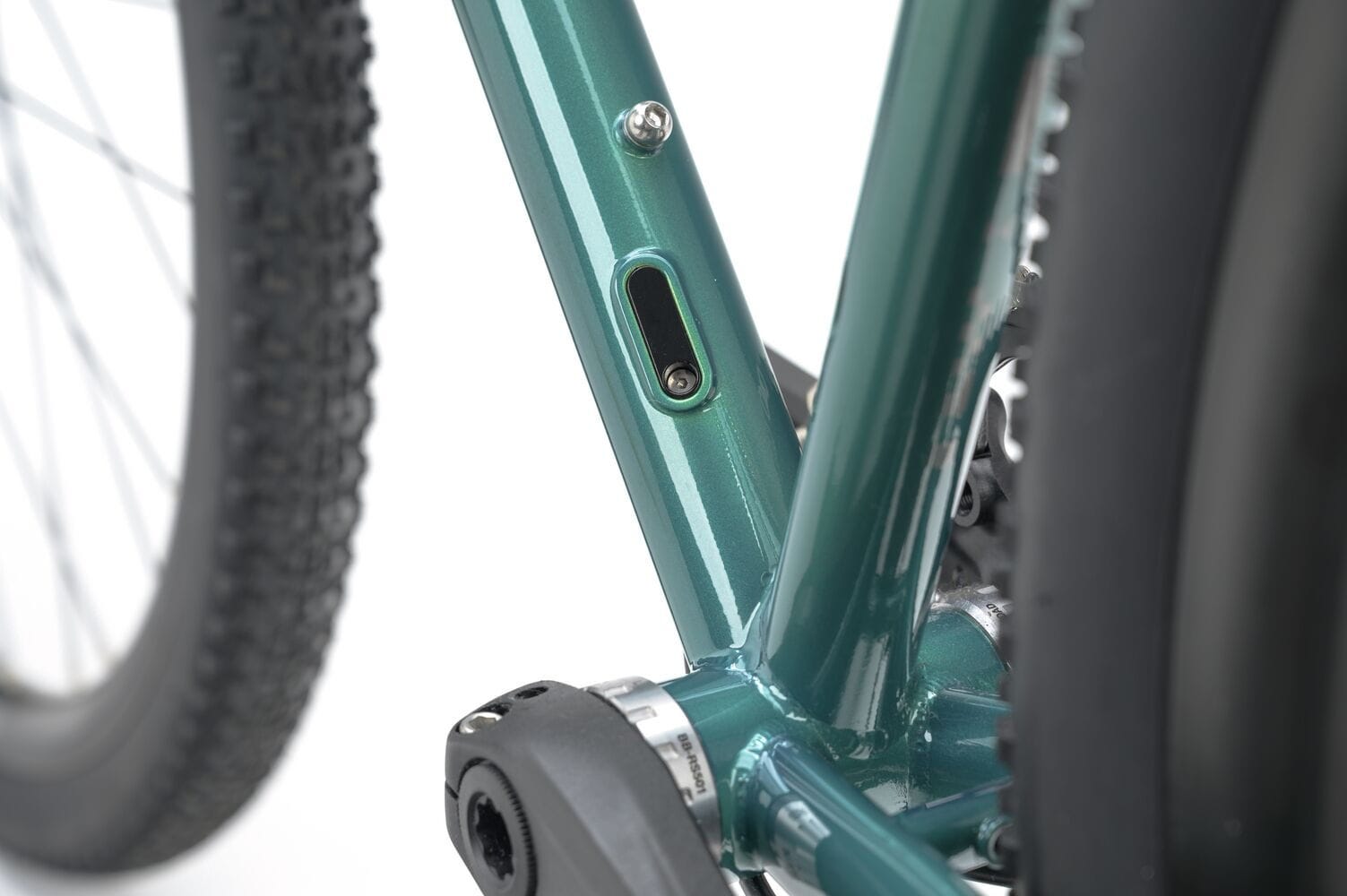

- Drop it like it's hot - The internal cable ports also allow easy installation or removal of a dropper seatpost without troublesome bottom bracket routing. Add a dropper for a technical excursion or remove it for longer days.
Specifications
Frame & Fork
- Reynolds 725 Steel Tubing
- Amplitude G100 Chromoly Fork
Drivetrain
- Shimano GRX RX822/RX610
- 1 x 12-speed
- 40T Chainring
- 10-45T Cassette
Components
- Amplitude G100 Finishing Kit
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Centre-Lock Rotor Mounts
- 100 x 12mm Front
- 142 x 12mm Rear
Brakes

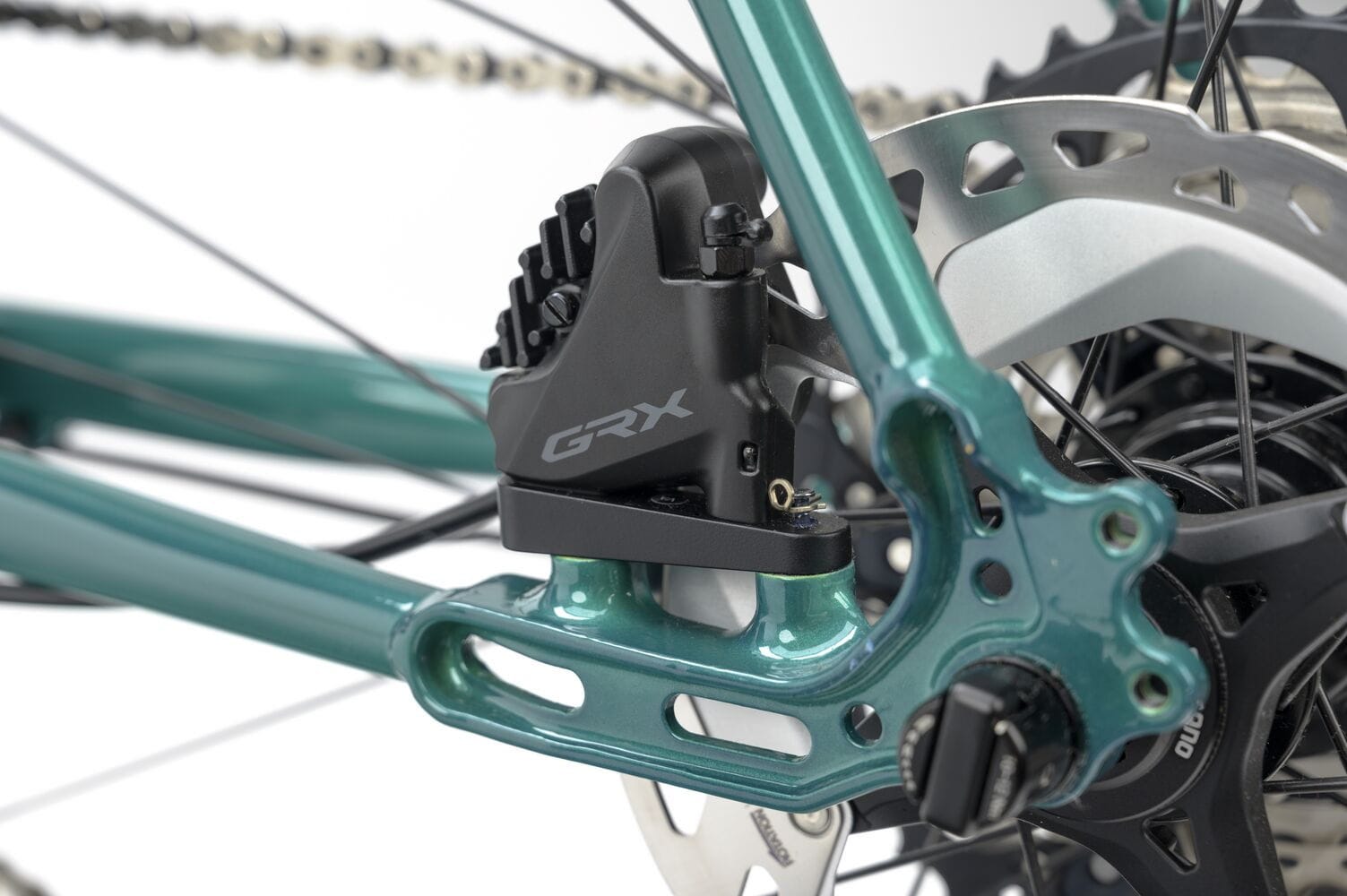

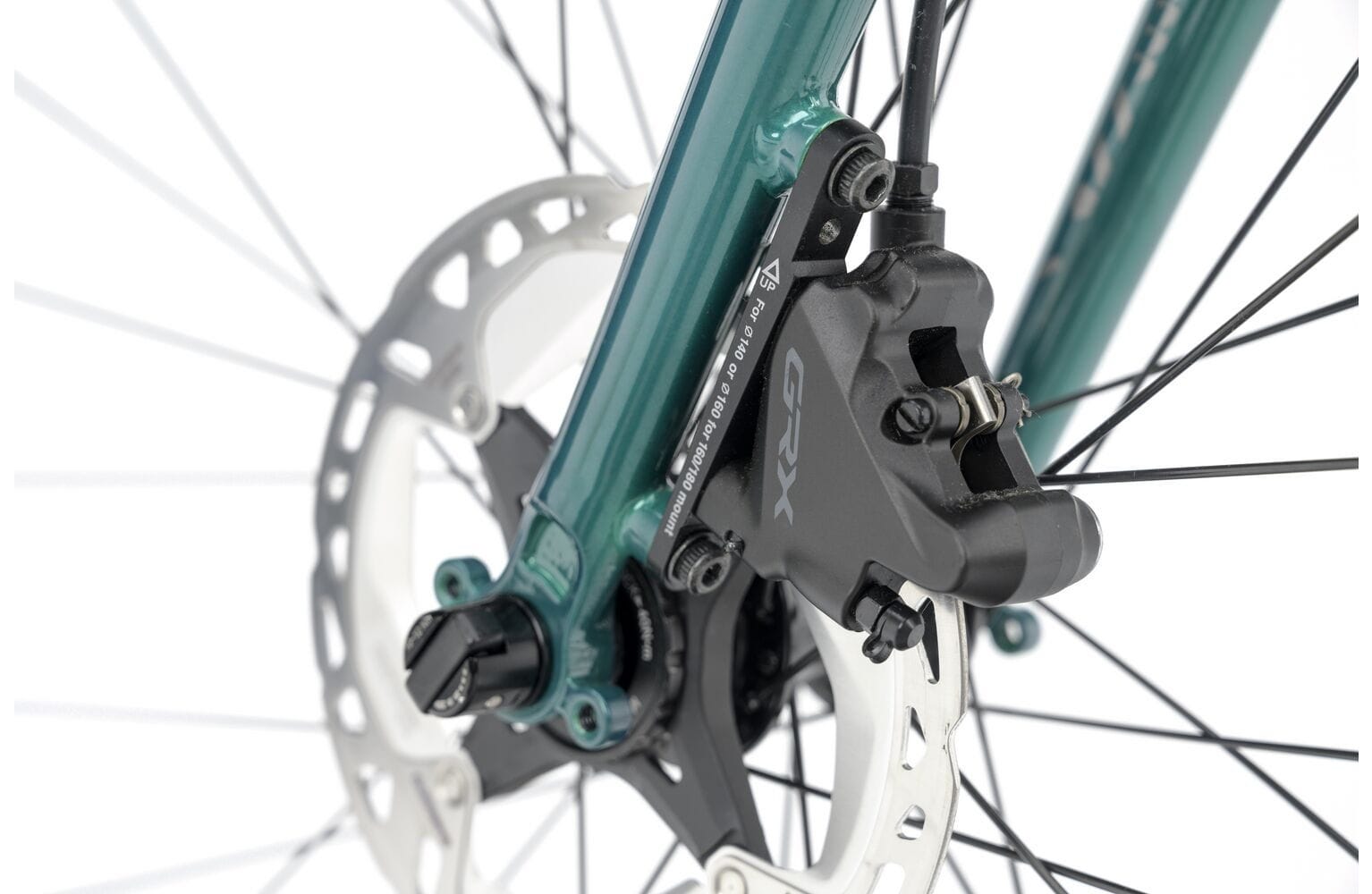

- Shimano GRX RX610 Hydraulic Discs
- 160mm Rotors Front & Rear
Tyres
- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 552 | 566 | 585 | 604 | 623 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Headtube Angle | 71 | 71 | 71 | 71 | 71 |
| Headtube Length | 100 | 115 | 135 | 155 | 175 |
| Seattube Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Seattube Length | |||||
| Toptube (Effective) | 553 | 557 | 558 | 574 | 589 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1042 | 1046 | 1043 | 1059 | 1076 |
| BB Height | |||||
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 734 | 752 | 778 | 802 | 826 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
