Genesis Croix De Fer 30 Gravel Bike 2026
Mortal Kumquat / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+353284060930 is the new 40

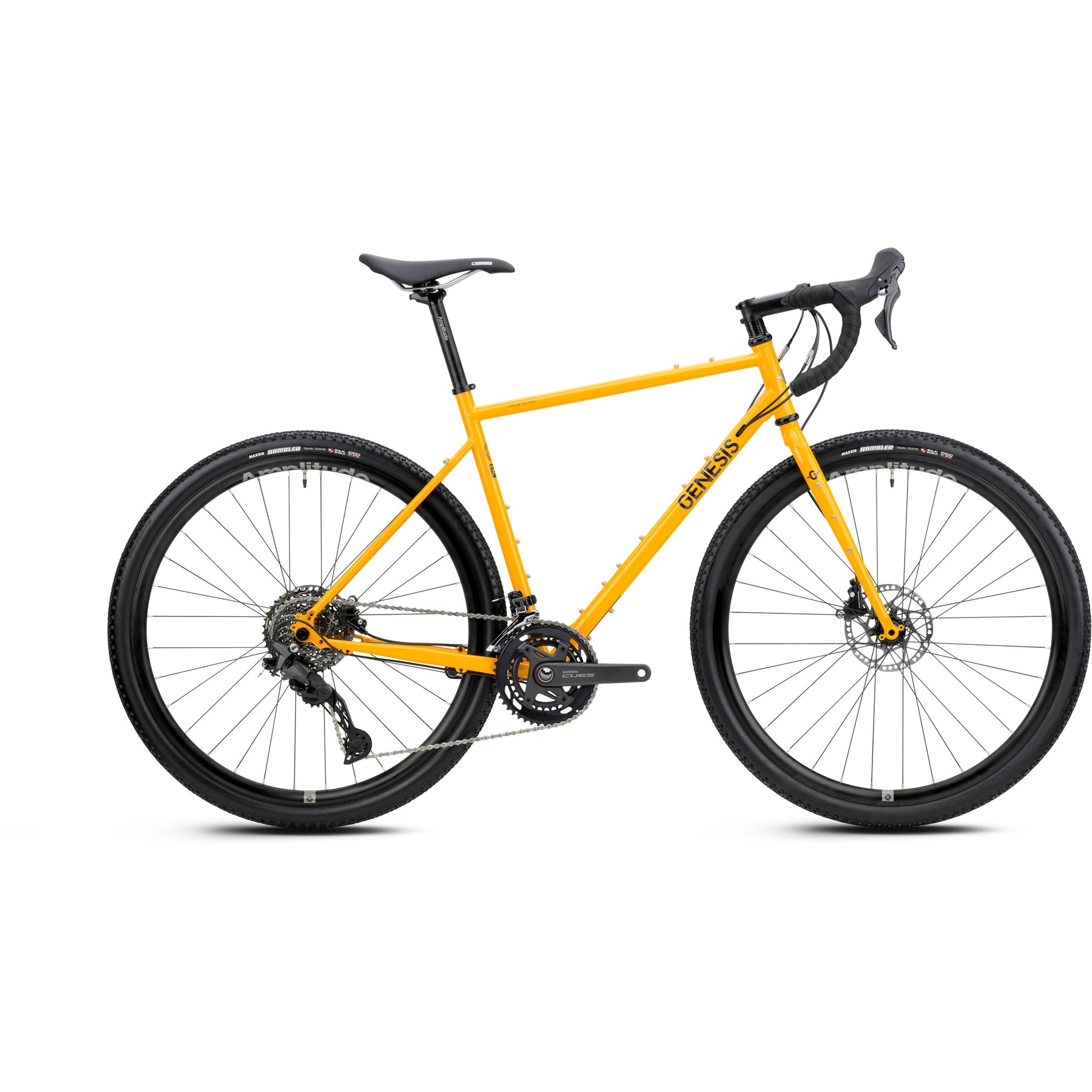

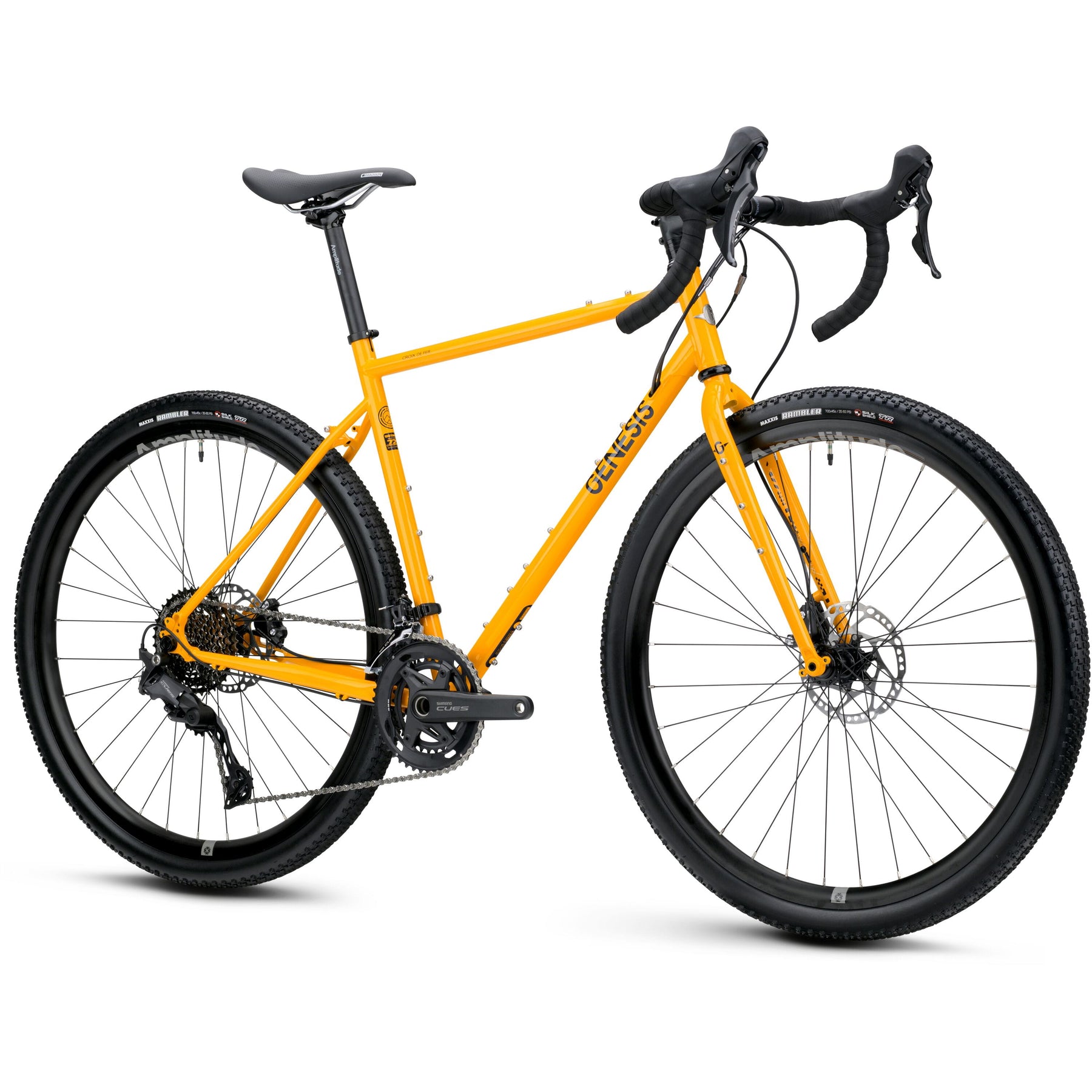

The chosen one, the go-to, the quintessential Croix de Fer.
The 30 takes all of the Croix de Fer DNA, mixes it with contemporary design evolution and pairs it with exemplary specification choices to create an exceptional adventure bicycle. A true do-it-all machine.
Features:
Reyt Good Steel

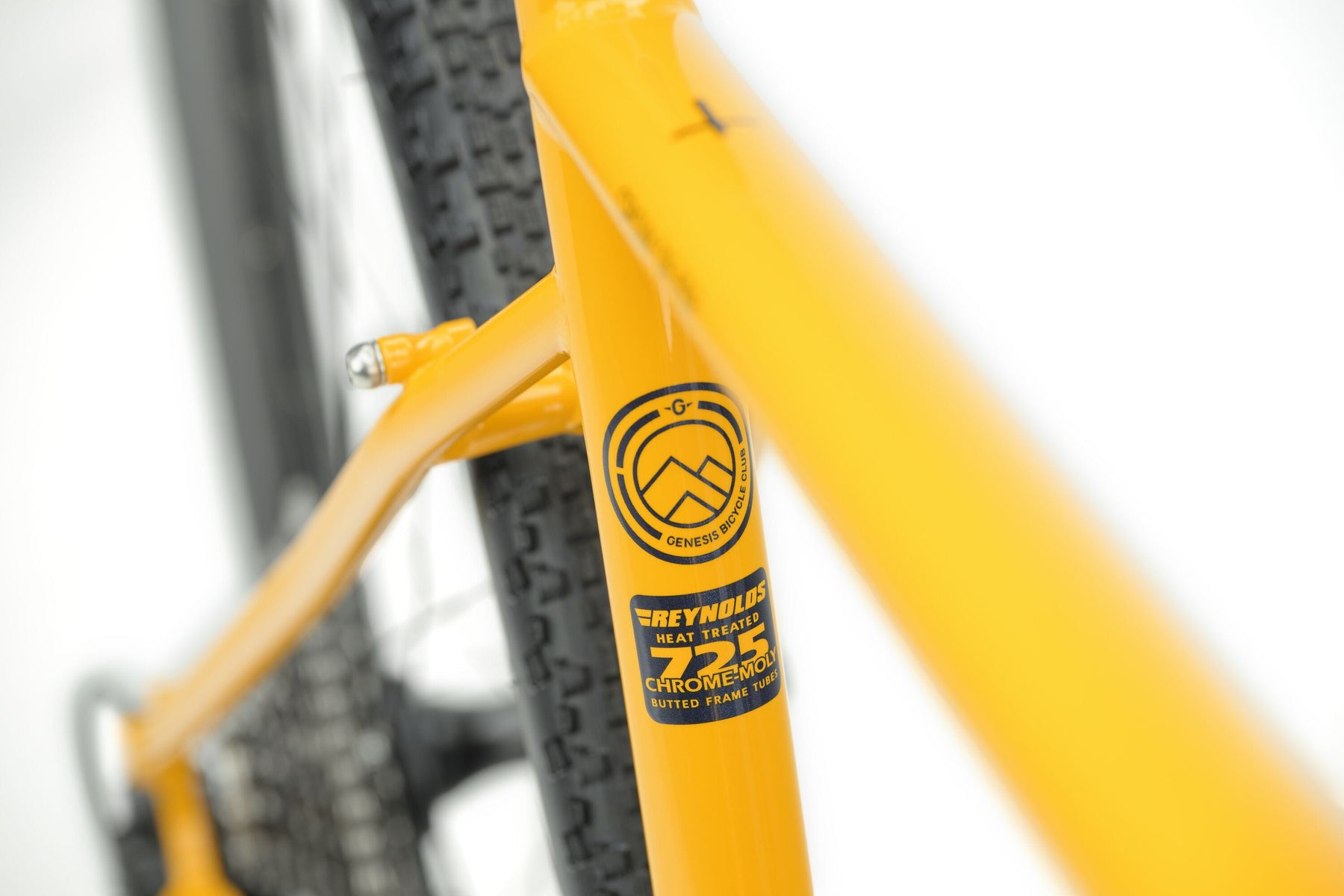

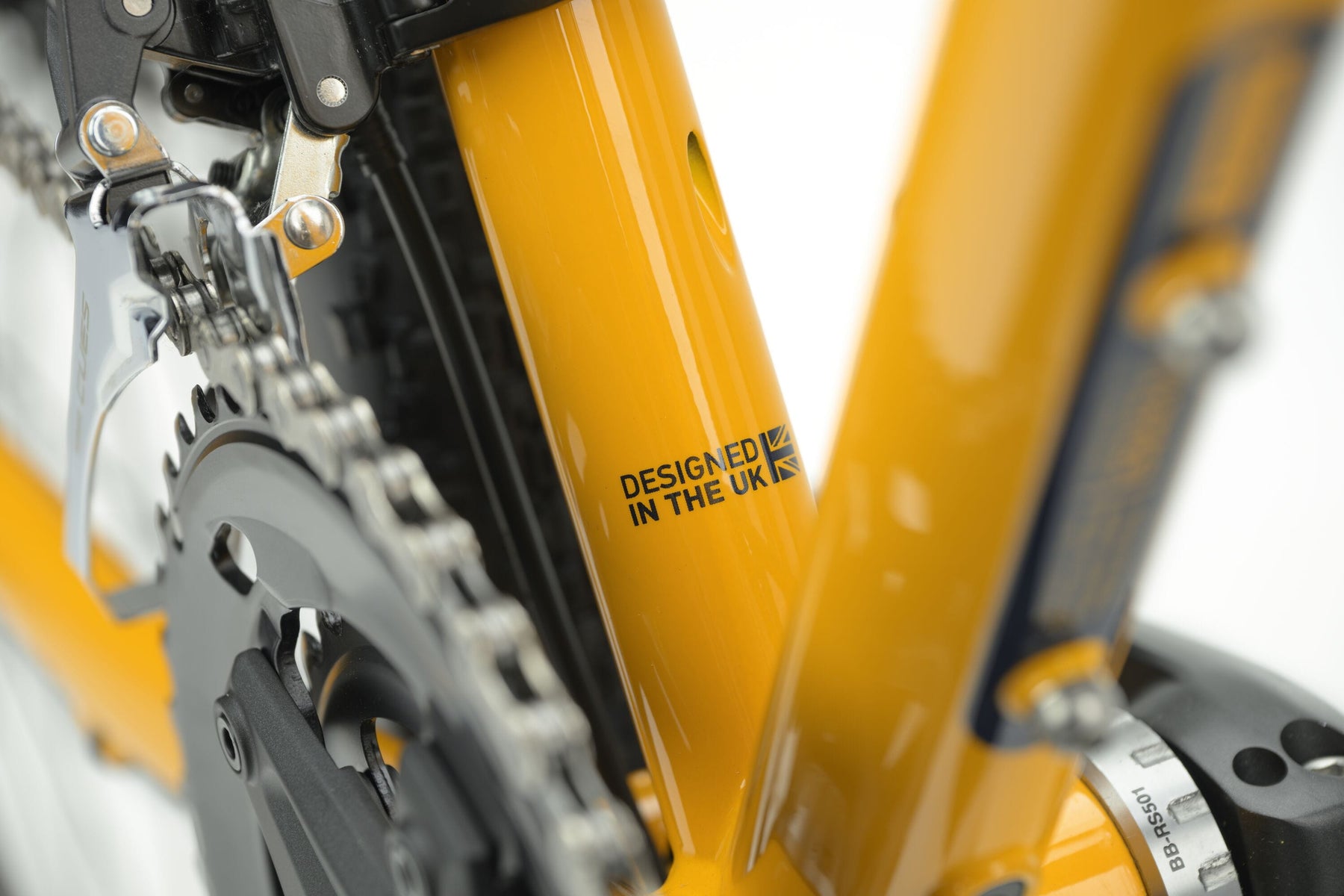

The Reynolds 725 chromoly tubeset allows use of thinner tubes whilst maintaining strength for a lighter frame and livelier ride feel.
High-End Rubber

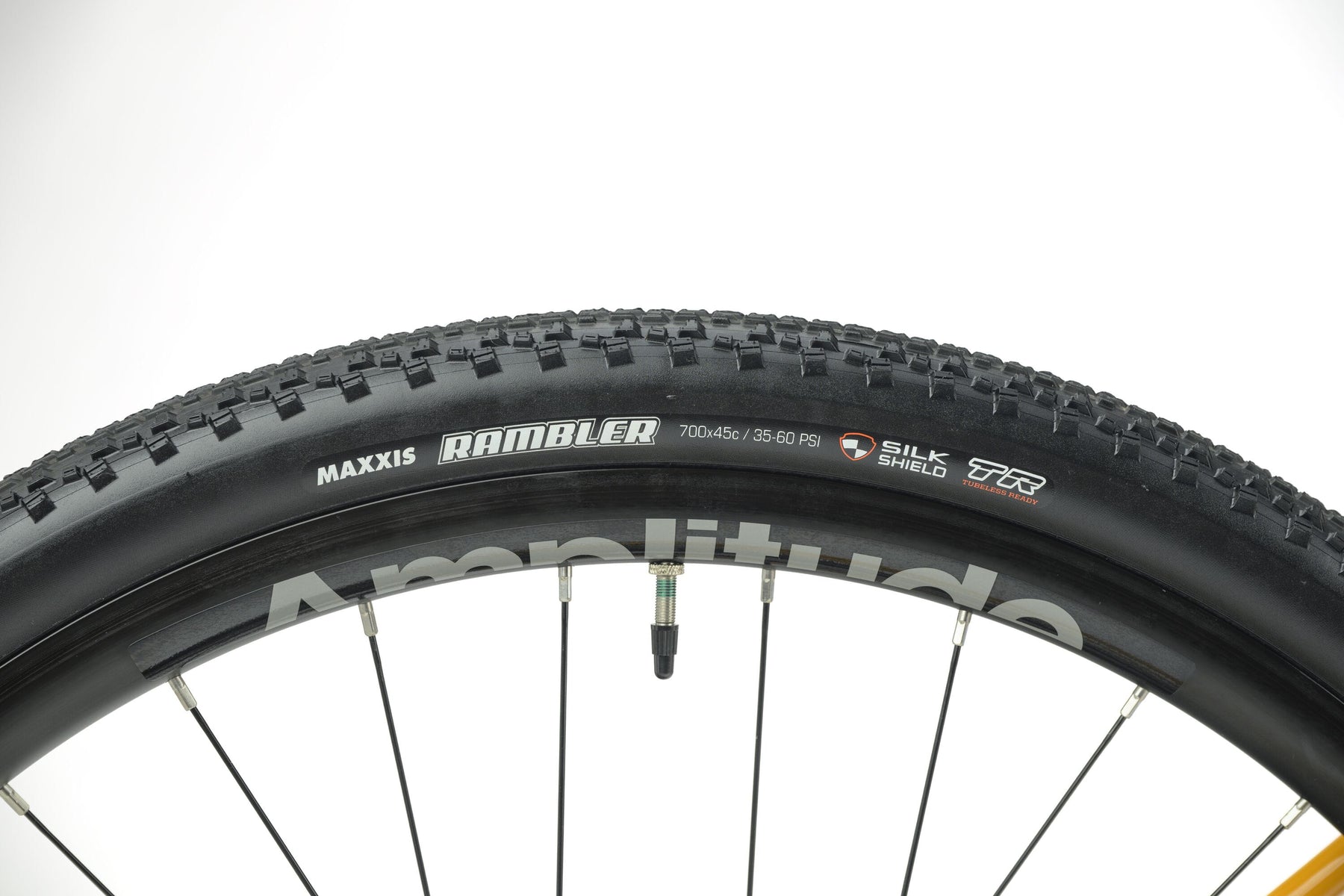

Maxxis Rambler 45mm tubeless ready tyres paired with 26mm internal rim width Amplitude G100 wheelset provide a fast and comfortable ride in all-conditions.
CDF 30 now with Hydraulic Brakes
The Croix De Fer 30 now comes fitted with shimano Cues hydraulic disc brakes paired with 160mm rotors front and rear. Ultimate stopping power for maximum braking confidence.
Adventure-Ready Drivetrain

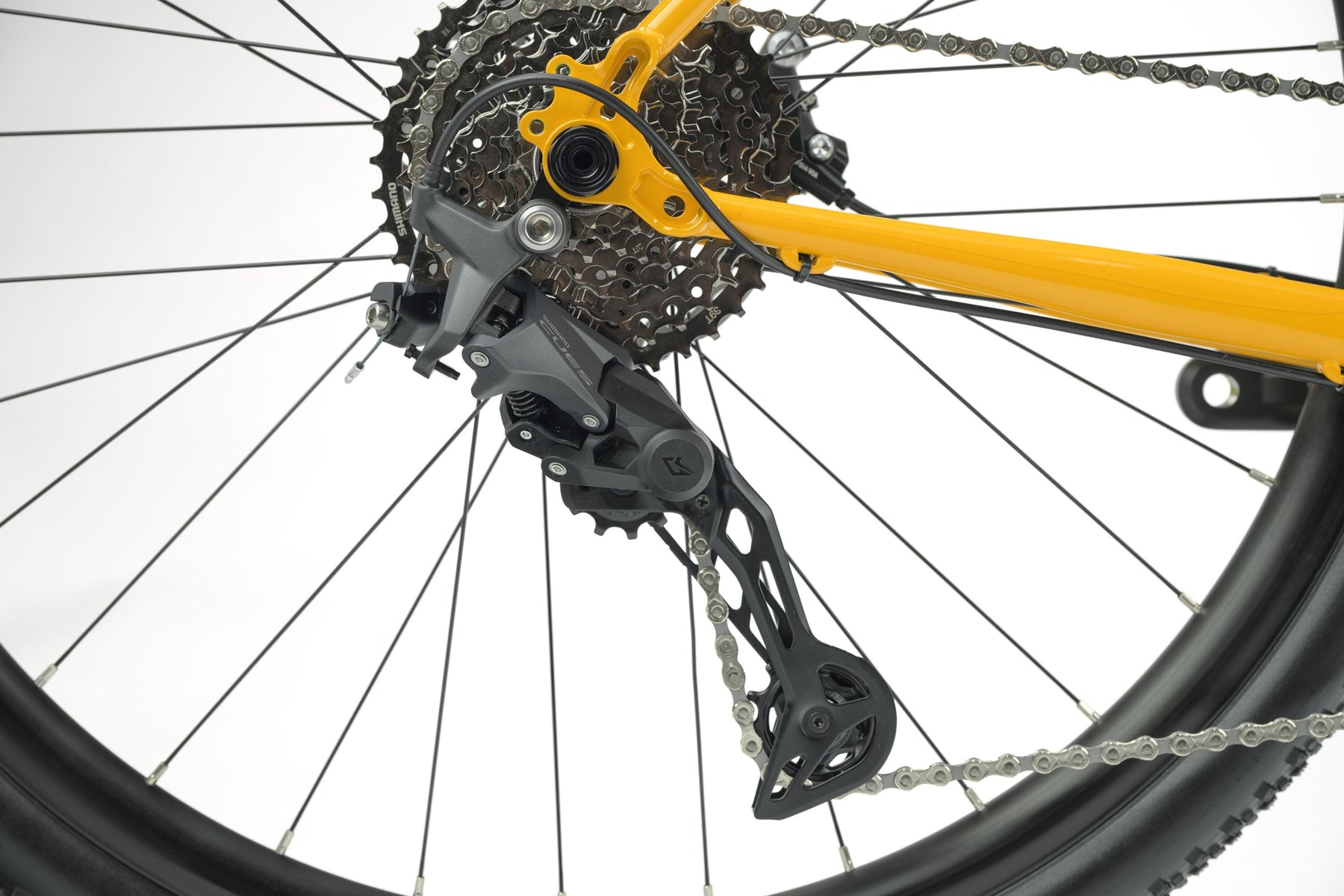

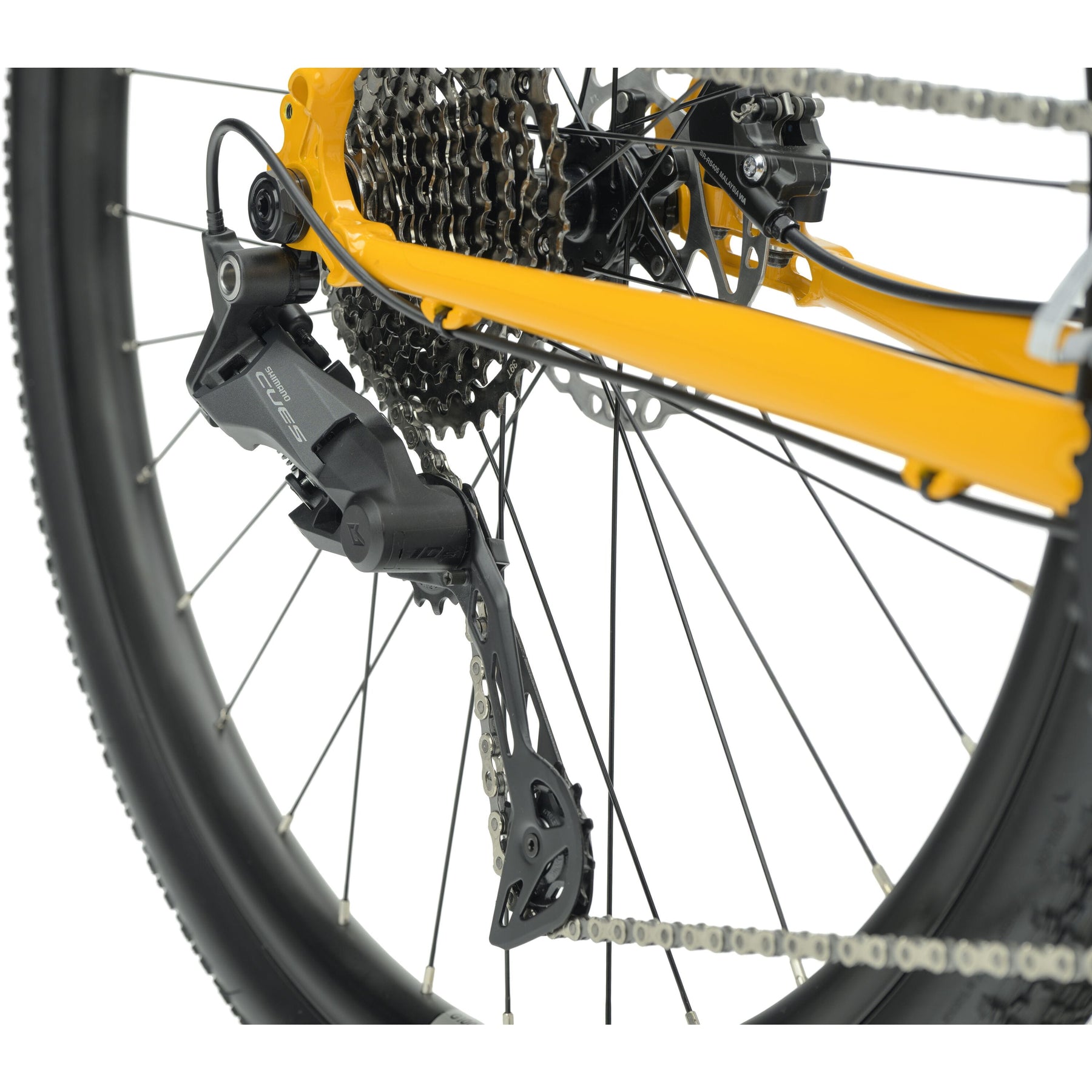

A complete shimano CUES 2x10 speed drivetrain provides a large range of gearing making the Croix De Fer 30 as versatile as possible. No matter the surface, gradient or conditions, the gear ratio won't be the problem...
Specifications:
Frame & Fork
- Reynolds 725 Chromoly Tubing
- Amplitude G100 Chromoly Fork
Drivetrain
- Shimano CUES U6000
- 2 x 10-speed

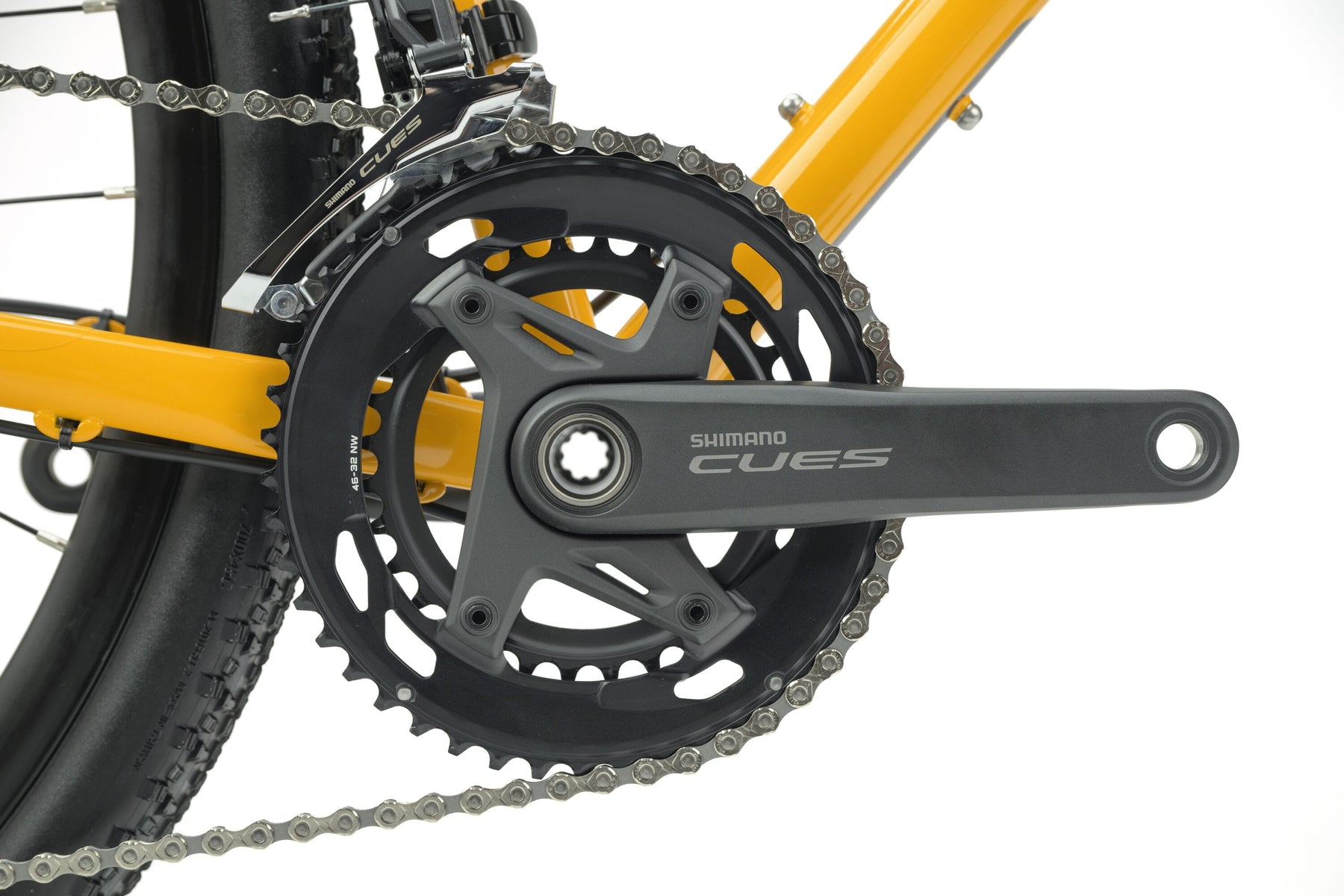

- 46/32T Chainrings
- 11-39T Cassette
Components
- Amplitude G100 Finishing Kit
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Centre-Lock Rotor Mounts
- 100 x 12mm Front
- 142 x 12mm Rear
Brakes
- Shimano CUES Hydraulic Discs
- 160mm Rotors Front & Rear
Tyres
- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 552 | 566 | 585 | 604 | 623 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Headtube Angle | 71 | 71 | 71 | 71 | 71 |
| Headtube Length | 100 | 115 | 135 | 155 | 175 |
| Seattube Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Seattube Length | |||||
| Toptube (Effective) | 553 | 557 | 558 | 574 | 589 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1042 | 1046 | 1043 | 1059 | 1076 |
| BB Height | |||||
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 734 | 752 | 778 | 802 | 826 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
