Genesis Croix De Fer 30 Gravel Bike
Color
Size
Click & Collect

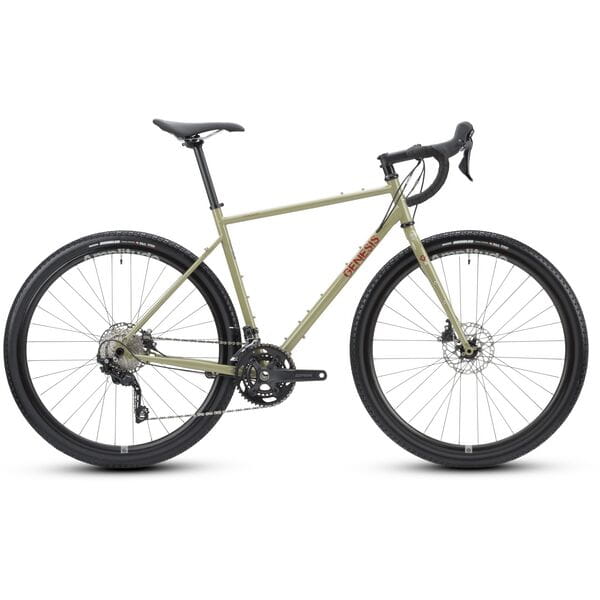

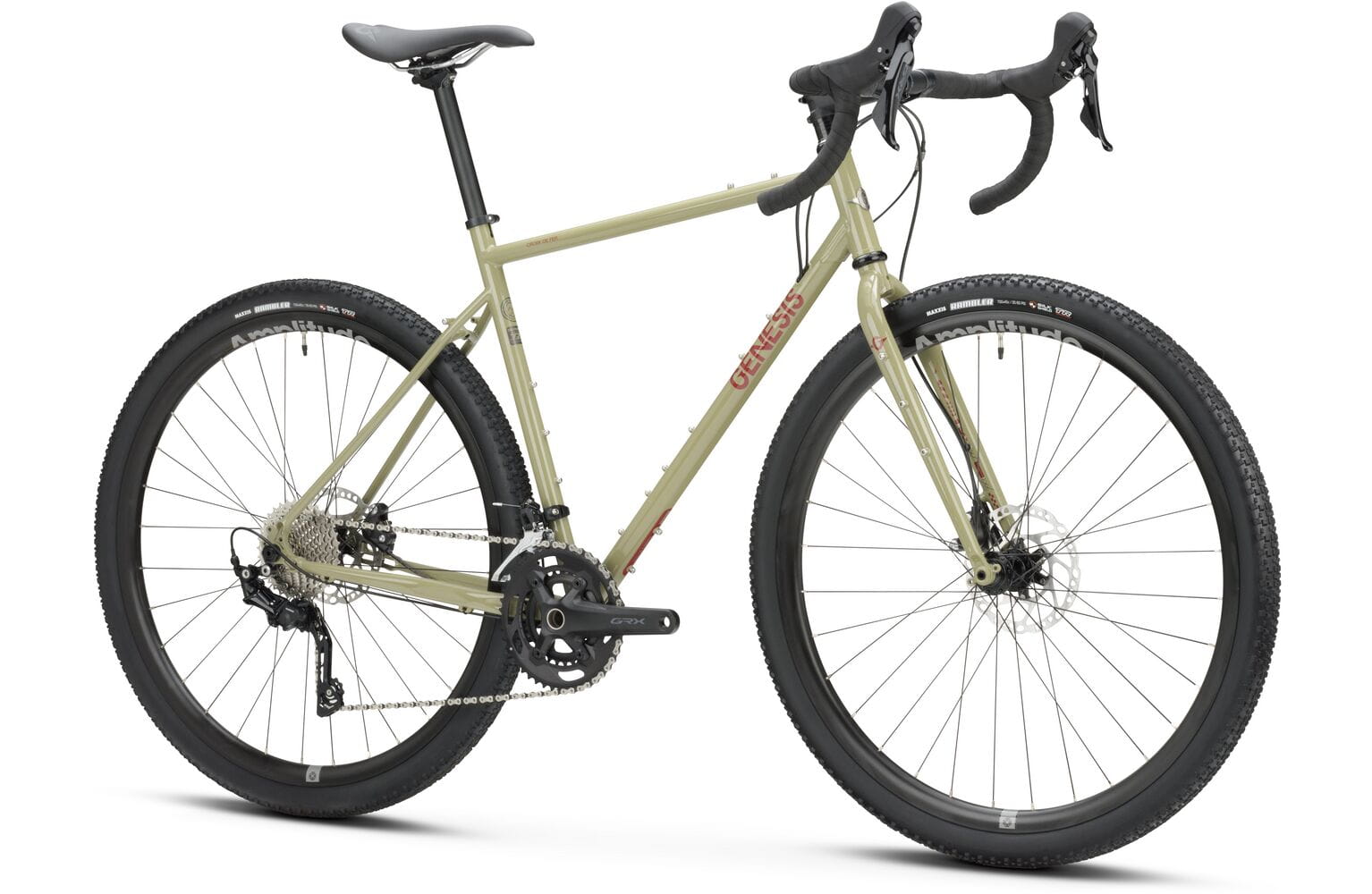

Genesis Croix De Fer 30 Gravel Bike
Pavement / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+353284060930 is the new 40
The chosen one, the go-to, the quintessential Croix De Fer.
The 30 takes all of the Croix De Fer DNA, mixes it with contemporary design evolution and pairs it with exemplary specification choices to create an exceptional adventure bicycle. A true do-it-all machine.

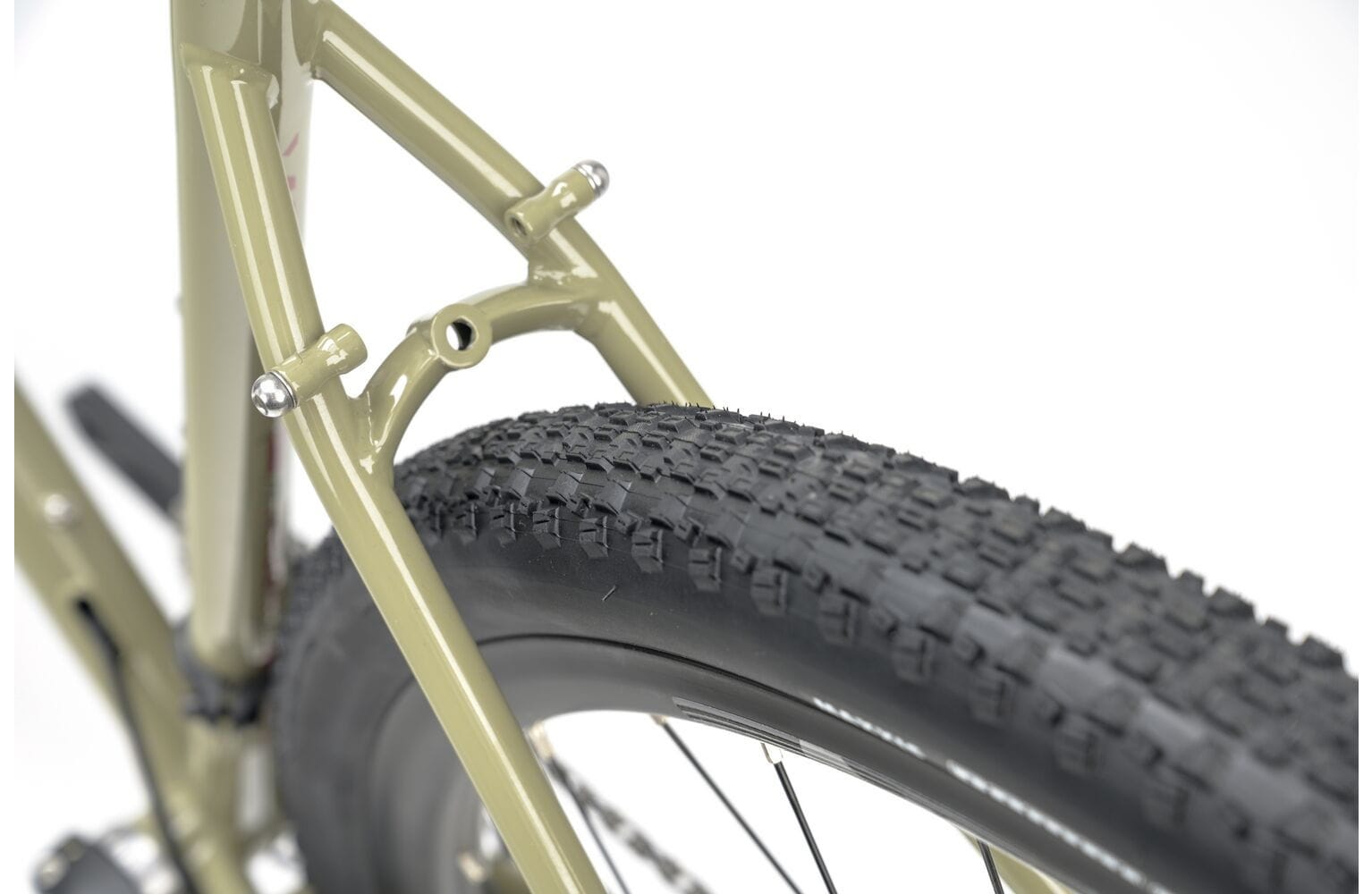

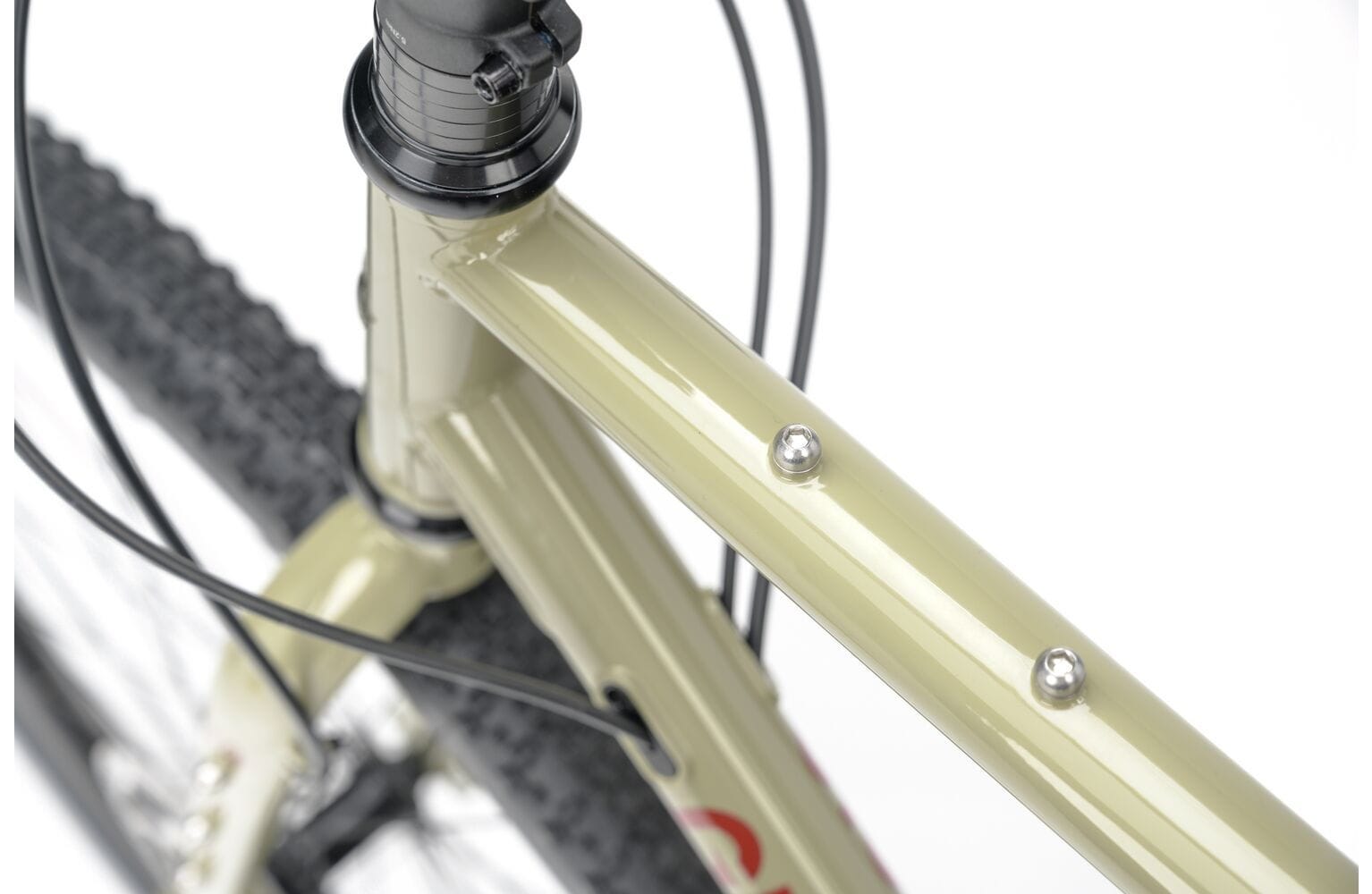

Mudguard & rack mounts, generous tyre clearance, dynamo cable routing and cage options galore. This super versatile machine is as adept at the morning rush as it is a week long quest.
Features

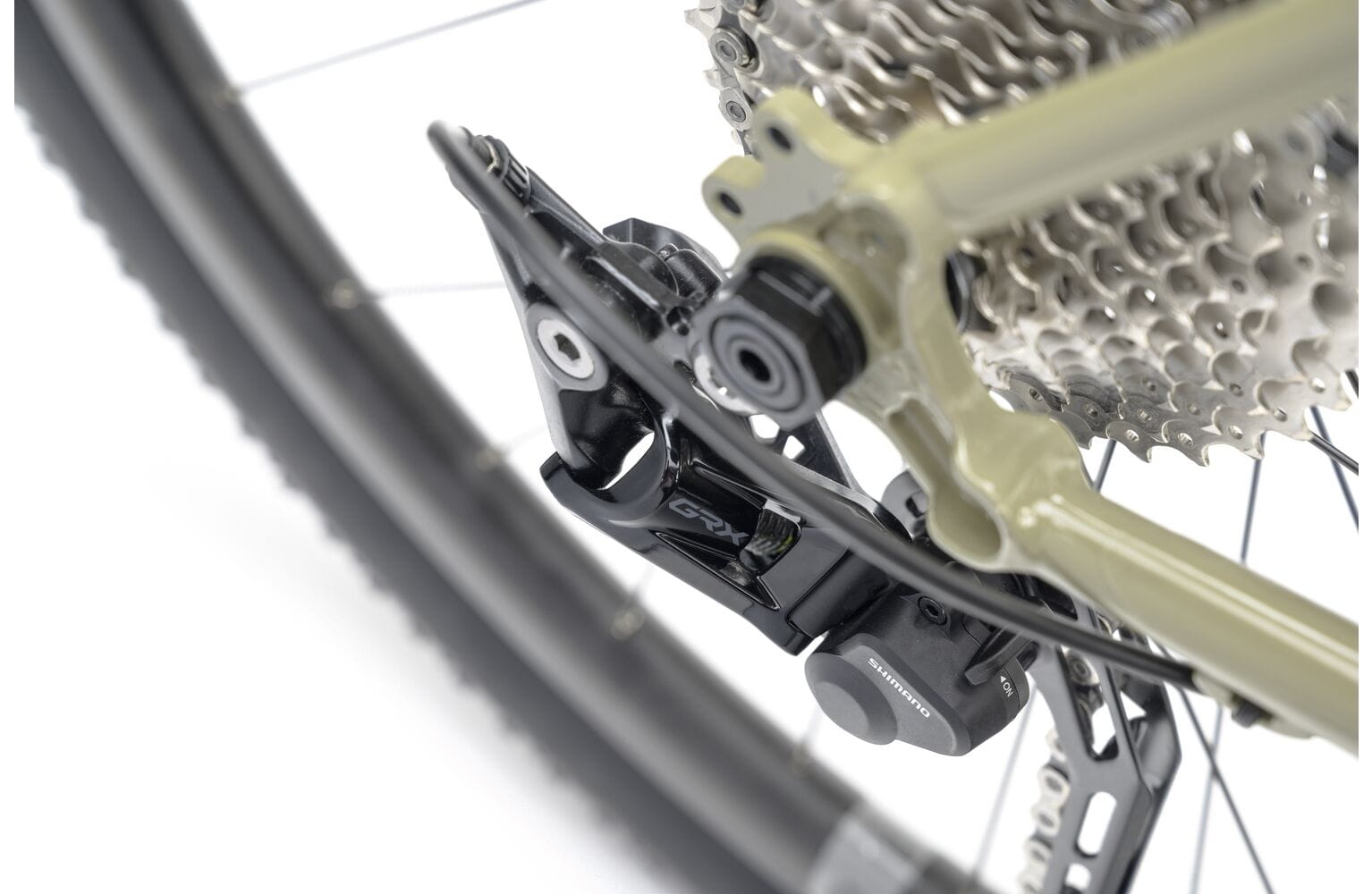

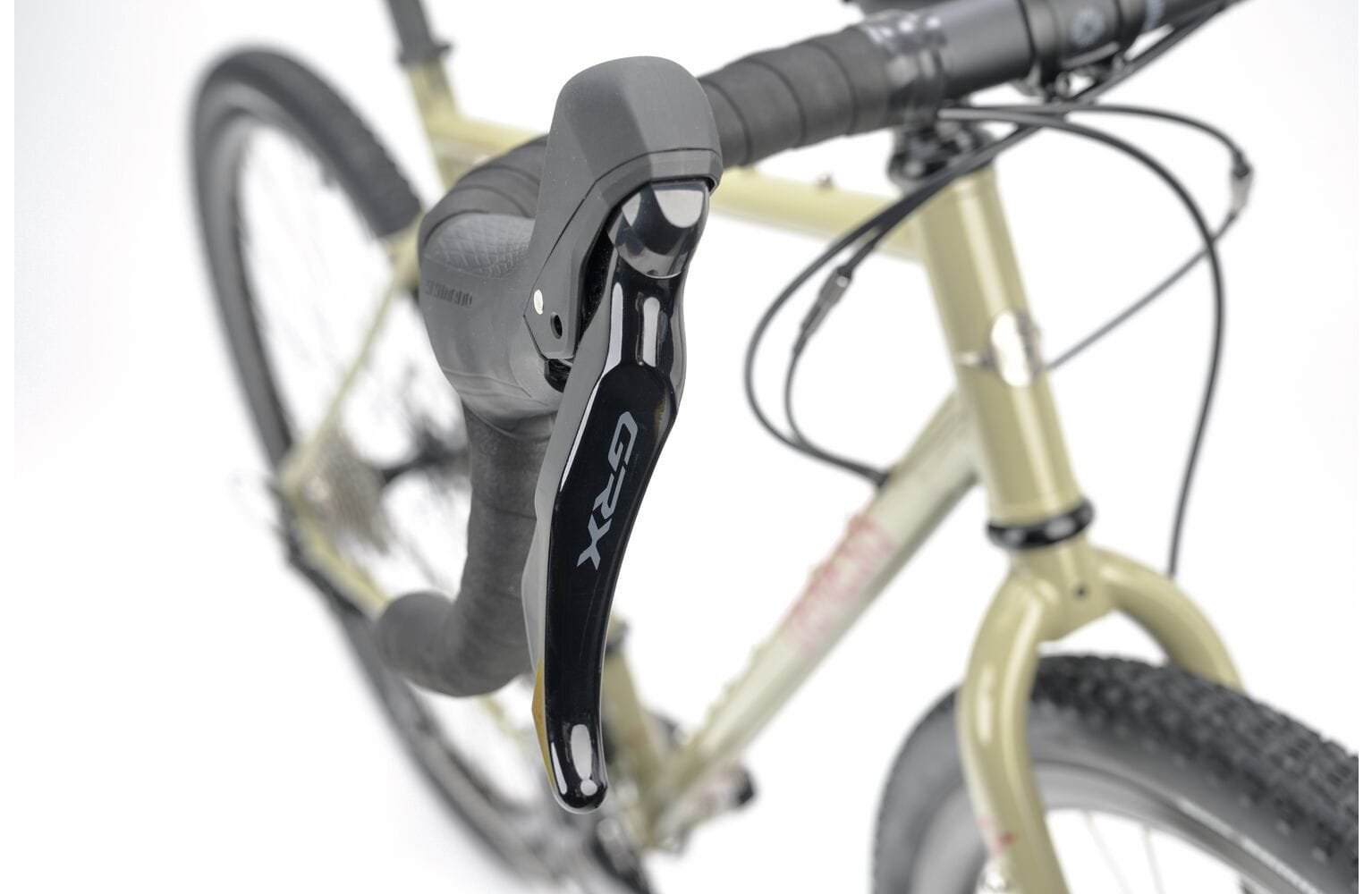

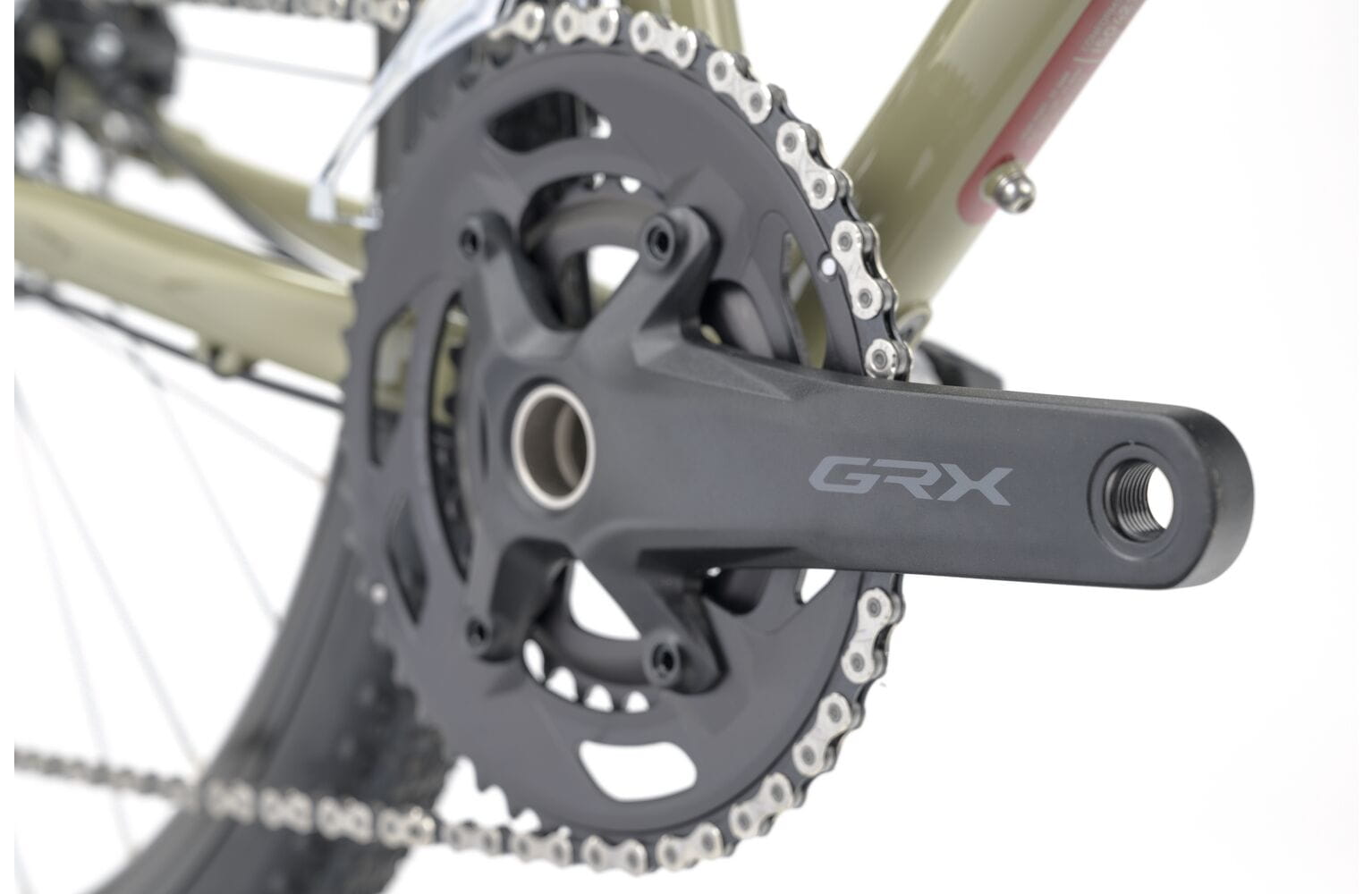

- Shimano GRX - A Shimano GRX 2 x 10 speed drivetrain provides a large range of gearing making the Croix De Fer 30 as versatile as possible. No matter the surface, gradient or conditions, the gear ratio won't be the problem...
- Renowned Brakes - The Croix de Fer 30 comes fitted with Shimano GRX hydraulic disc brakes paired with 160mm rotors front and rear. Ultimate stopping power for maximum confidence.

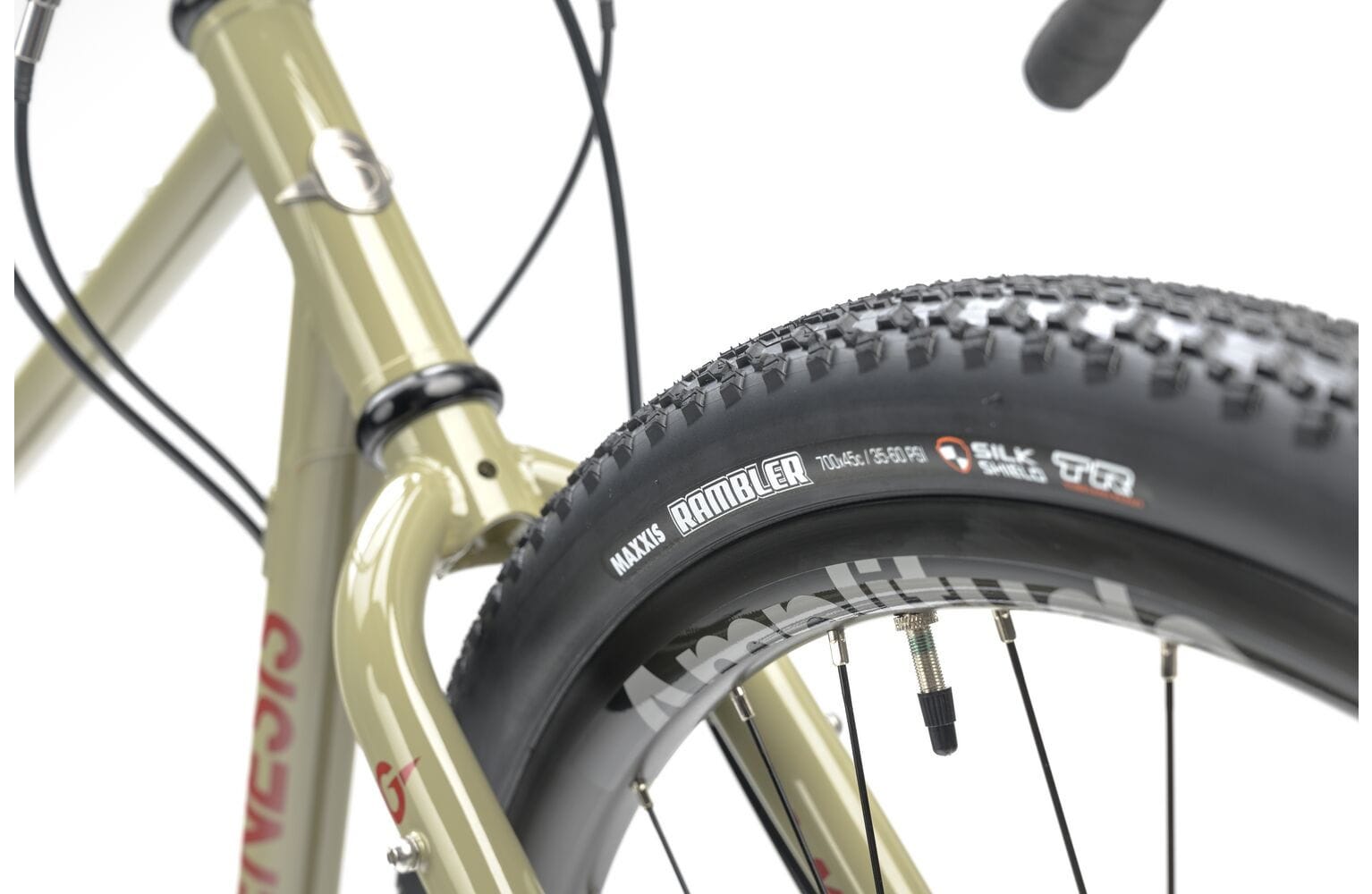

- When I say Tube, You Say Less - Maxxis Rambler tubeless ready 45mm tyres paired with the 26mm internal rim width of the Amplitude G100 wheelset provide a fast and comfortable ride in all conditions.

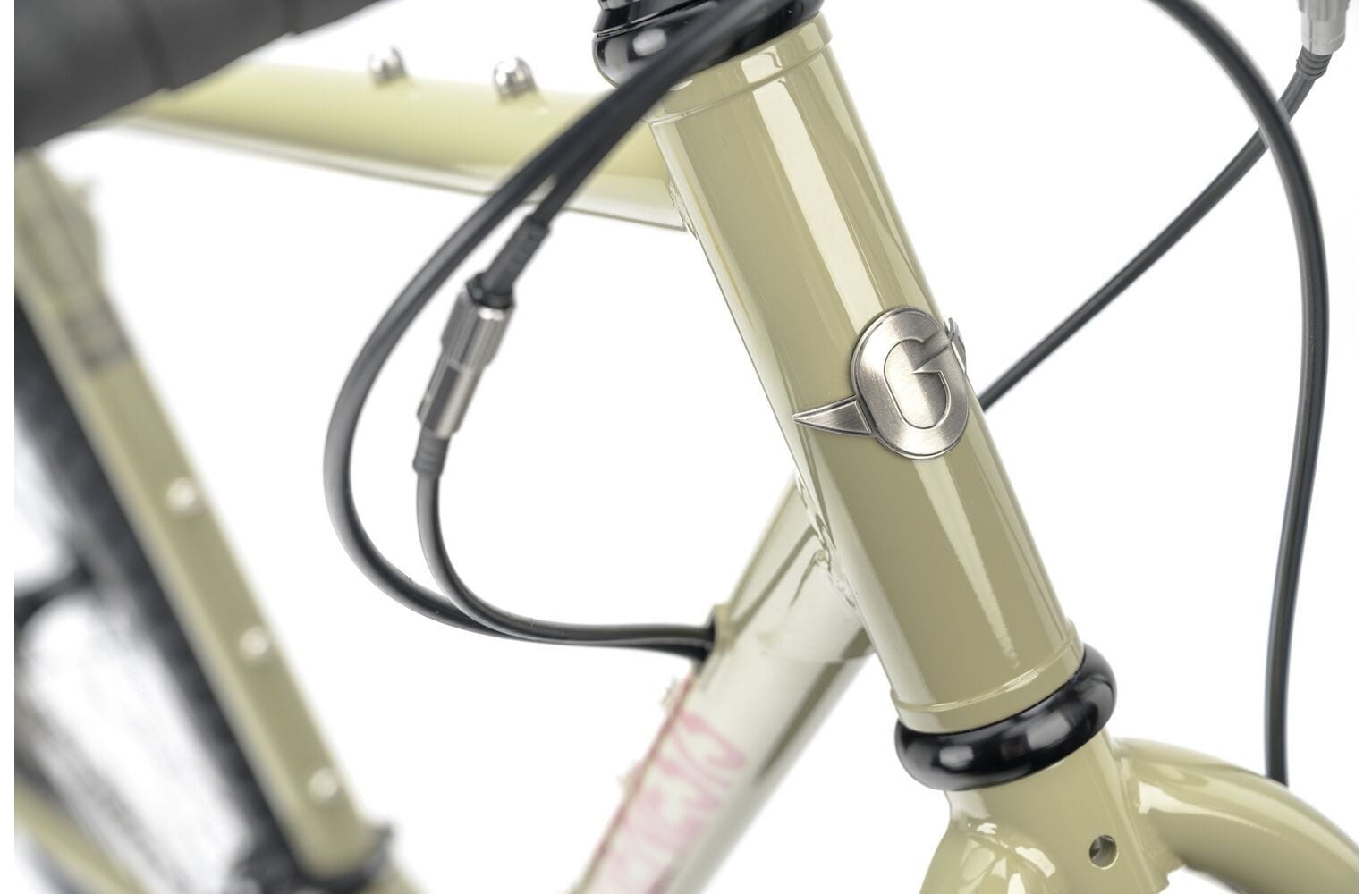

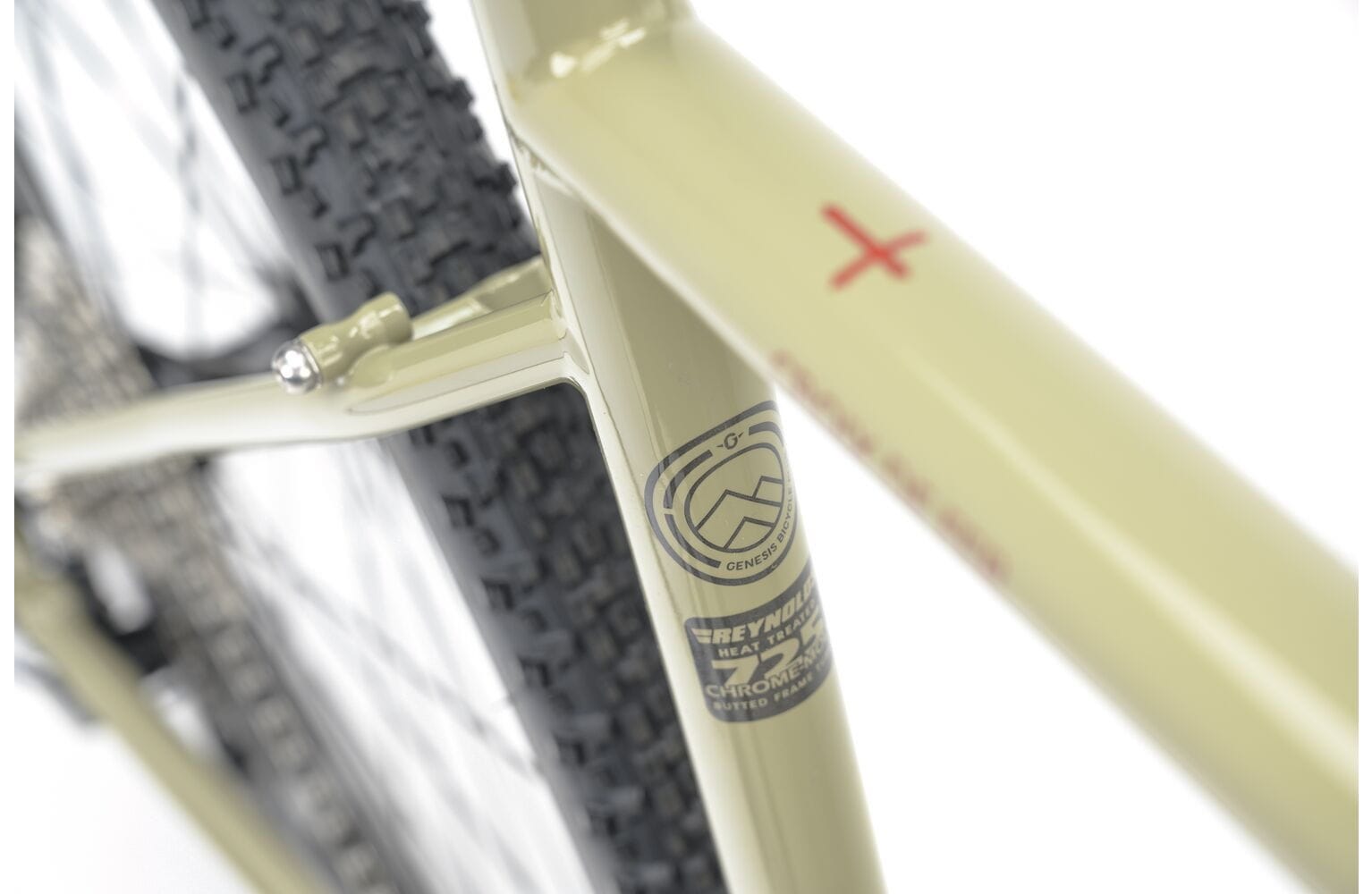

- Reyt Good Steel - The Reynolds 725 Chromoly tubeset allow us to use thinner tubes whilst maintaining strength for a lighter frame and livelier ride feel.
Specifications
Frame & Fork
- Reynolds 725 Steel Tubing
- Amplitude G100 Chromoly Fork
Drivetrain
- Shimano GRX RX600/RX400
- 2 x 10-speed
- 46/30T Chainrings
- 11-34T Cassette
Components
- Amplitude G100 Finishing Kit
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Centre-Lock Rotor Mounts
- 100 x 12mm Front
- 142 x 12mm Rear
Brakes
- Shimano GRX RX400 Hydraulic Discs
- 160mm Rotors Front & Rear
Tyres
- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 552 | 566 | 585 | 604 | 623 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Headtube Angle | 71 | 71 | 71 | 71 | 71 |
| Headtube Length | 100 | 115 | 135 | 155 | 175 |
| Seattube Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Seattube Length | |||||
| Toptube (Effective) | 553 | 557 | 558 | 574 | 589 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1042 | 1046 | 1043 | 1059 | 1076 |
| BB Height | |||||
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 734 | 752 | 778 | 802 | 826 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
