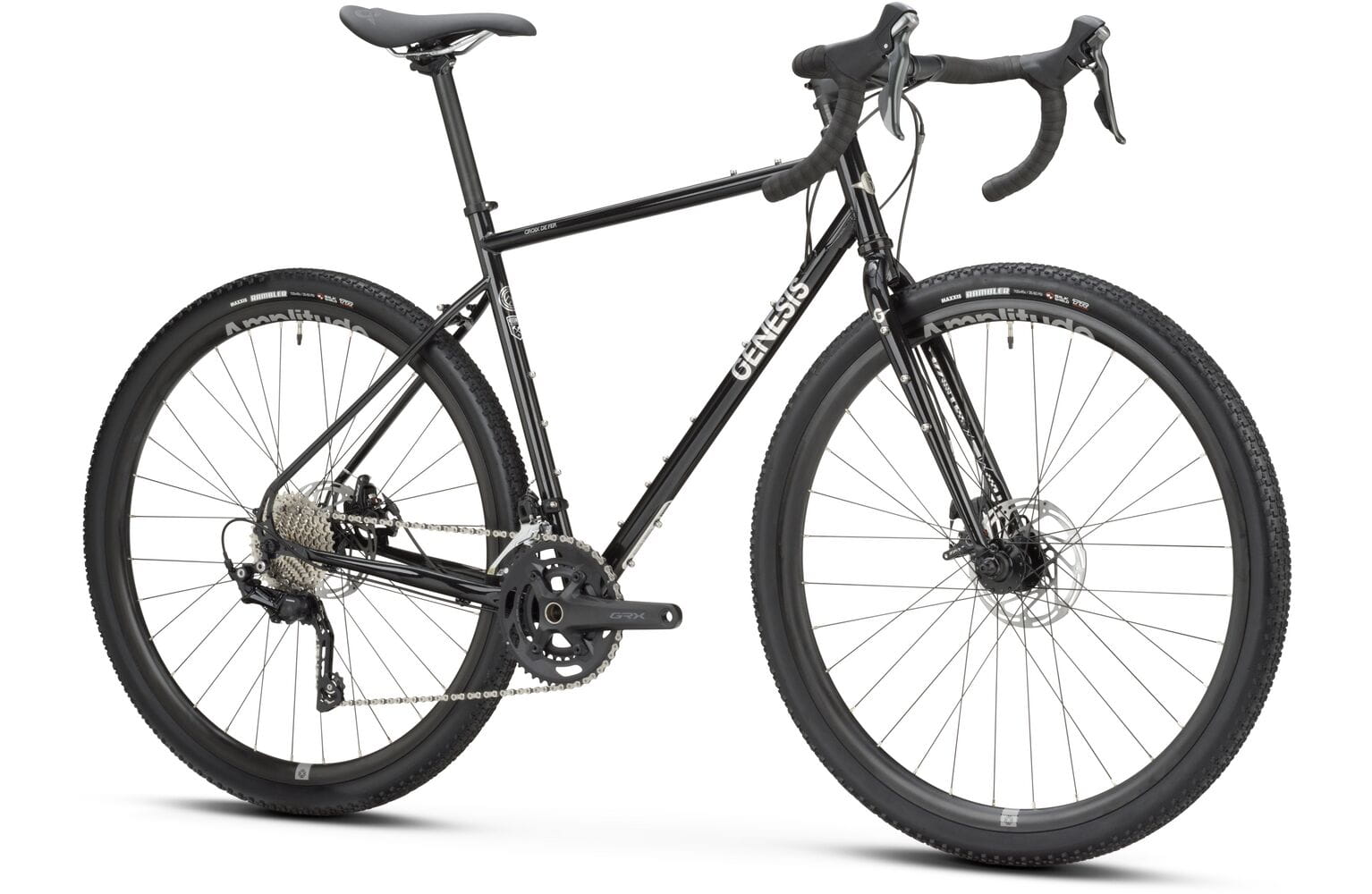

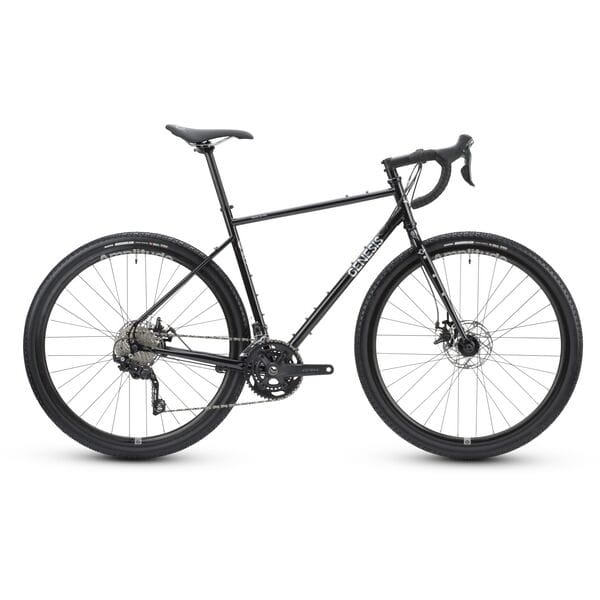

Our most popular model within the Croix De Fer range, the 20 is a fantastically adaptable all-rounder.

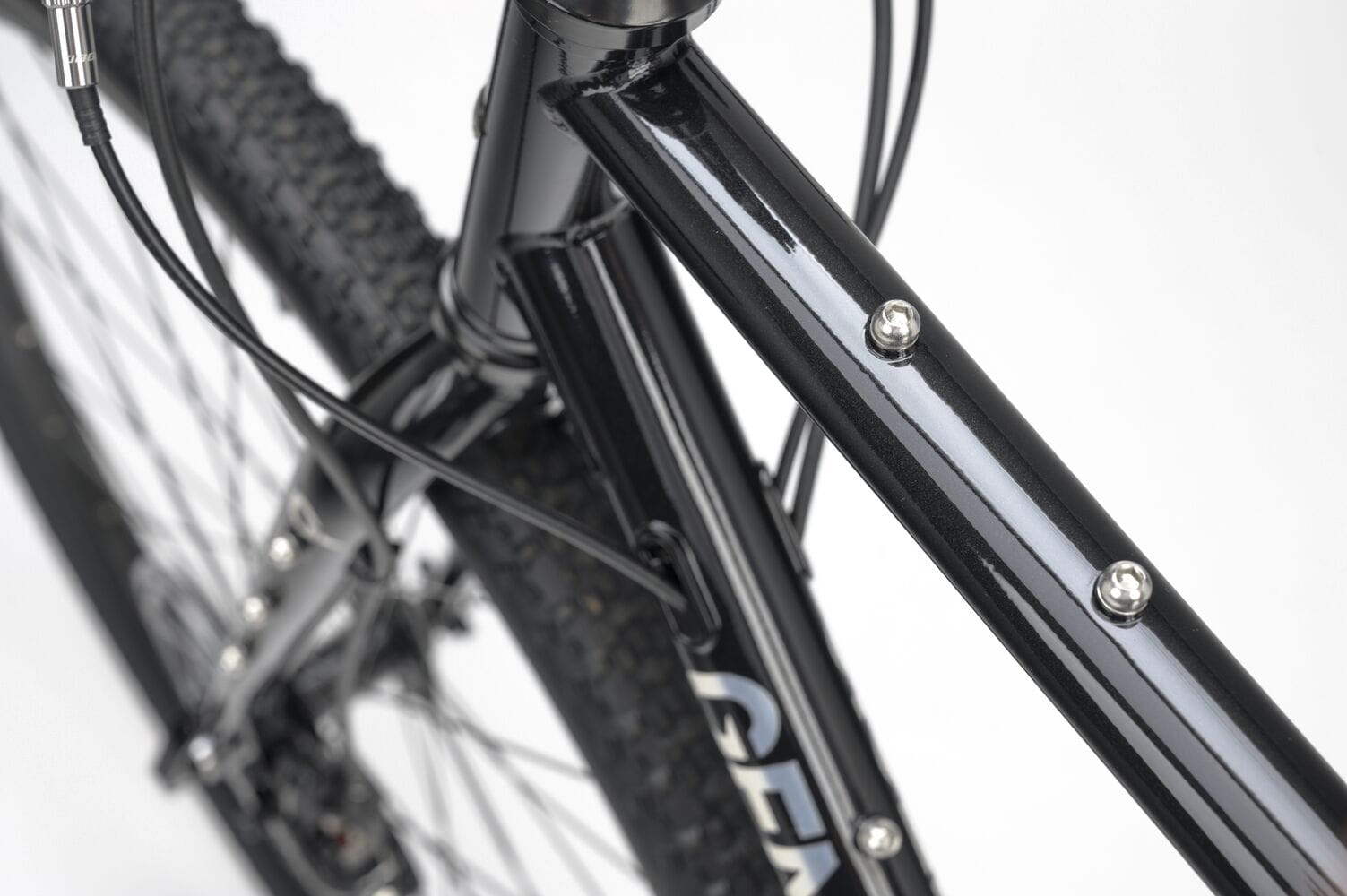

Mudguard & rack mounts, generous tyre clearance, dynamo cable routing and cage options galore. This super versatile machine is as adept at the morning rush as it is a week long quest.
Features

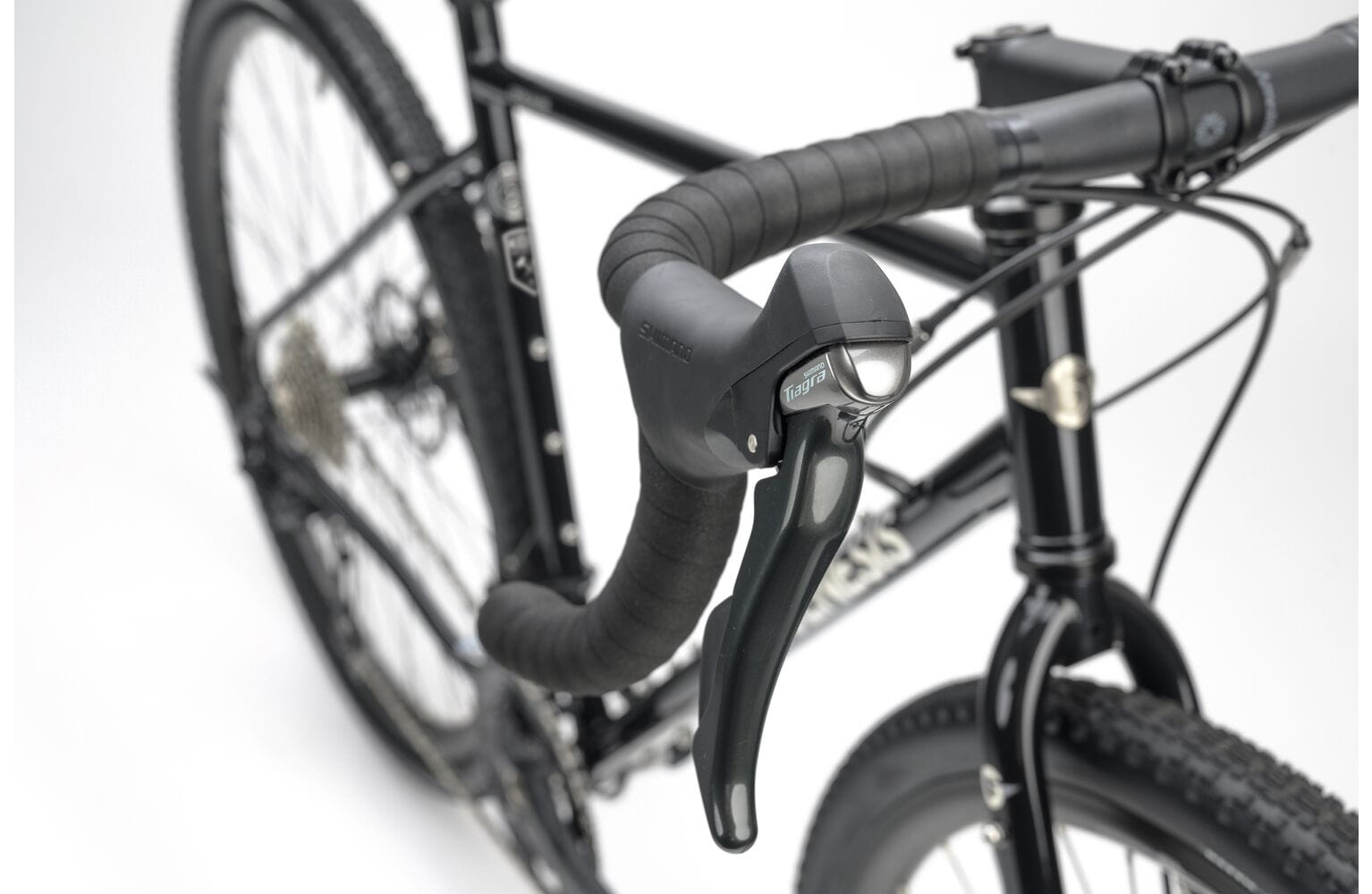

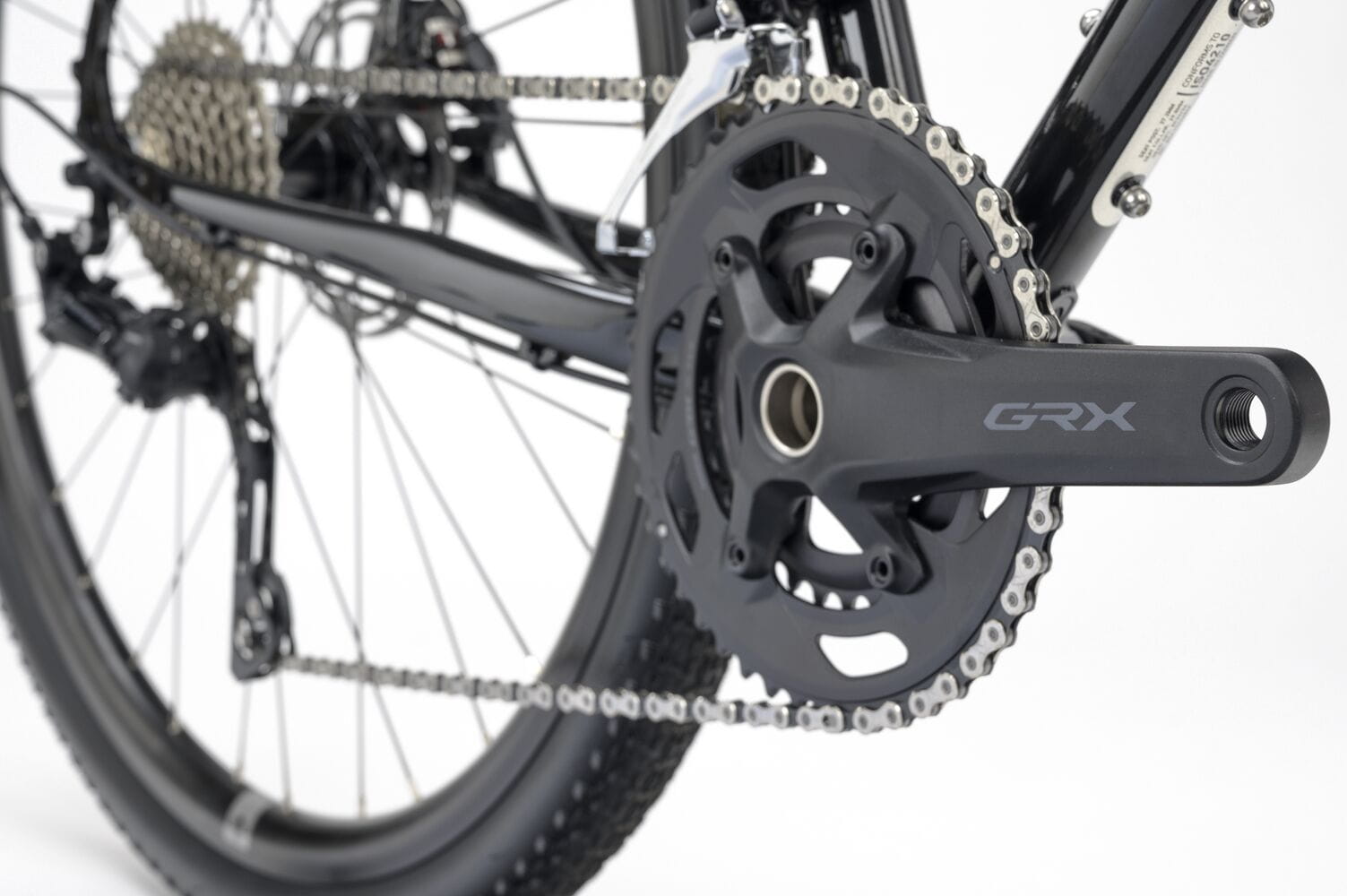

- Shimano GRX - A Shimano GRX 2 x 10 speed drivetrain combined with tiagra levers delivers great ratios for gravel riding, lionger adventures and urban riding.

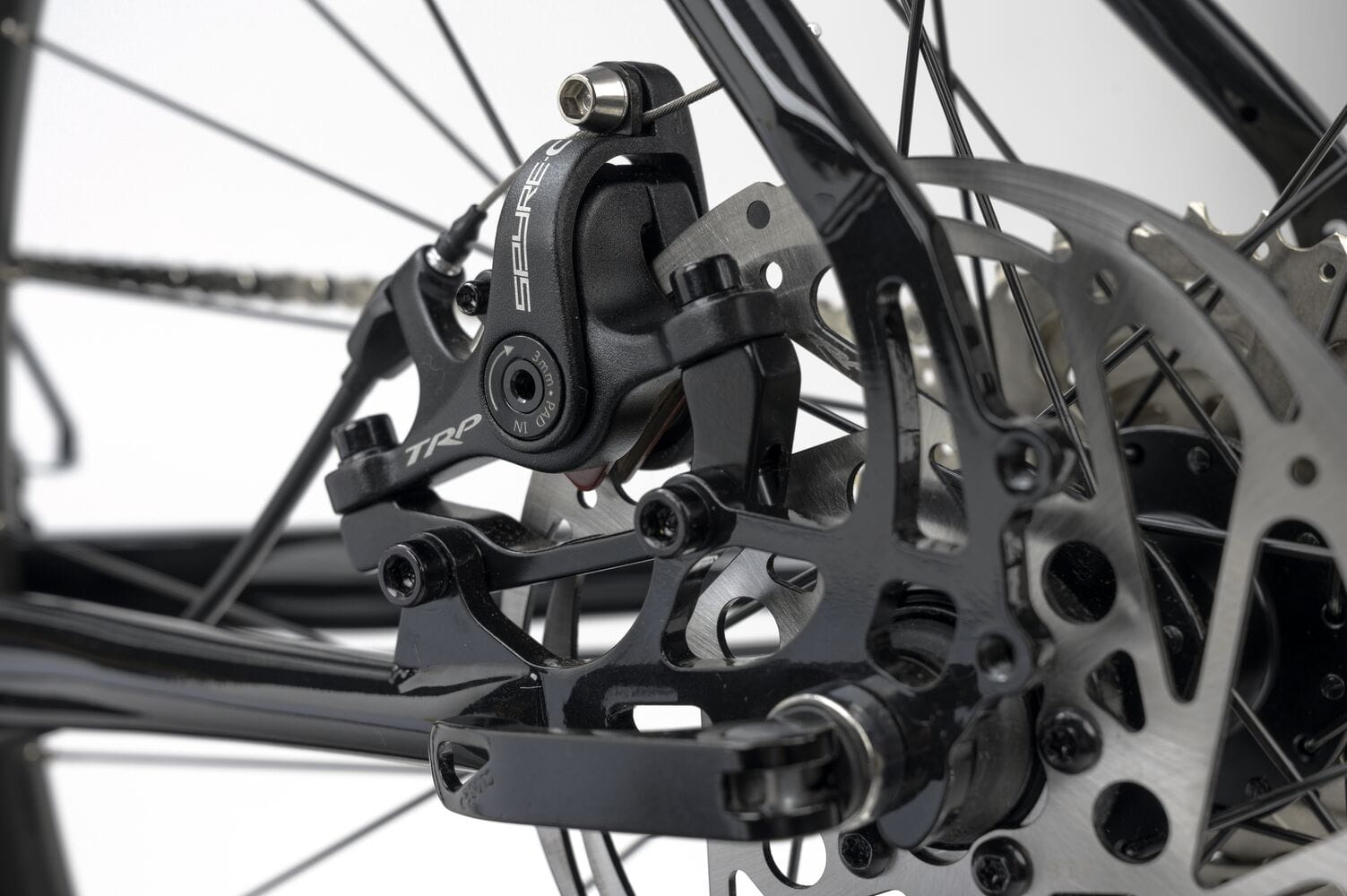

- Renowned Brakes - The TRP Spyre's dual piston actuated design combines the easy maintenance of a mechanical brake with the improved lever feel and stopping power from a hydraulic system.

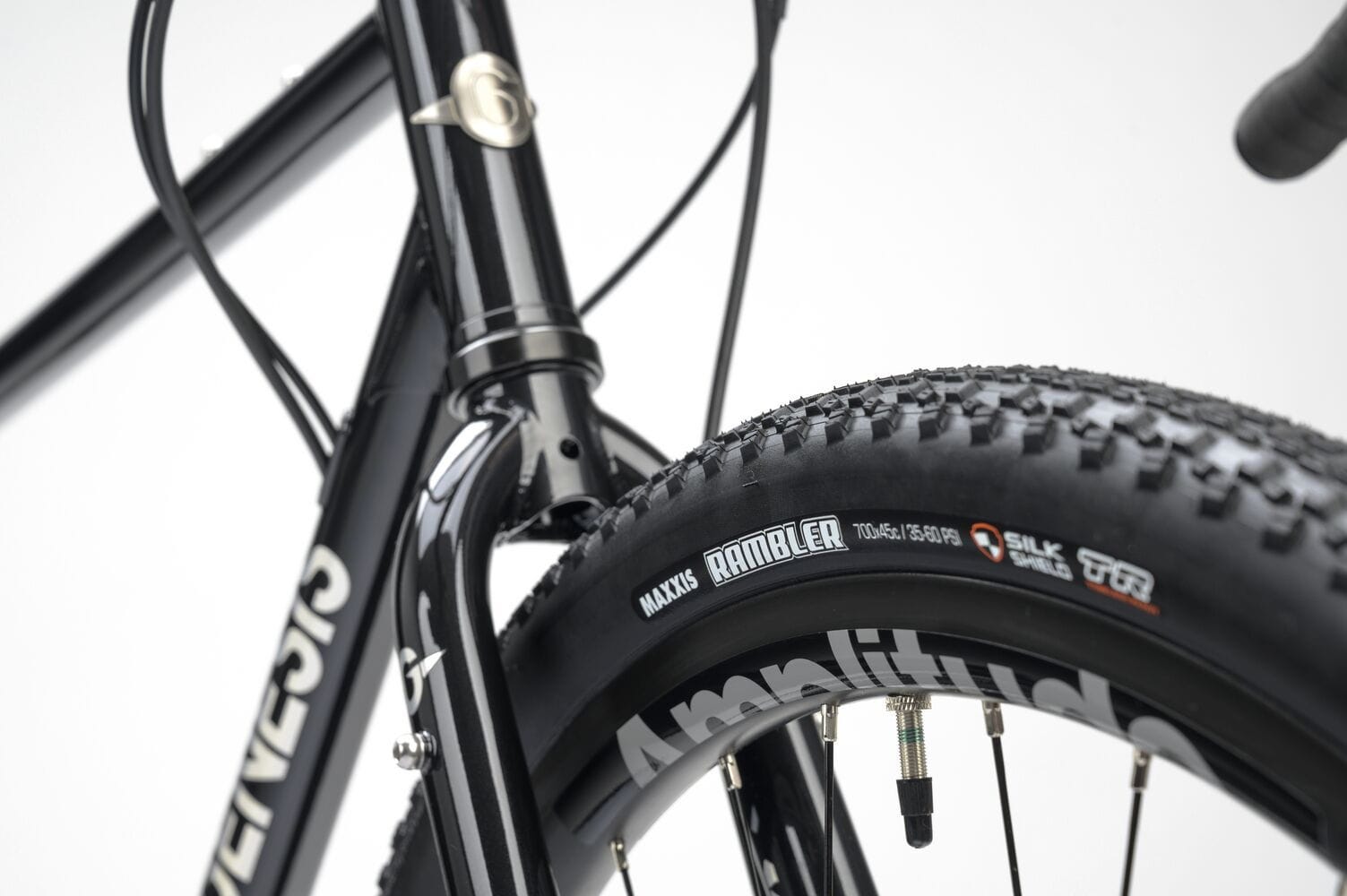

- Chunky Tyres - Taking advantage of 26mm Amplitude G100 wheelsets, the Croix de Fer 20 comes equipped with Maxxis Rambler 45mm tubeless ready tyres. A true year round, go anywhere tread pattern that isn't limiting on smoother road either.

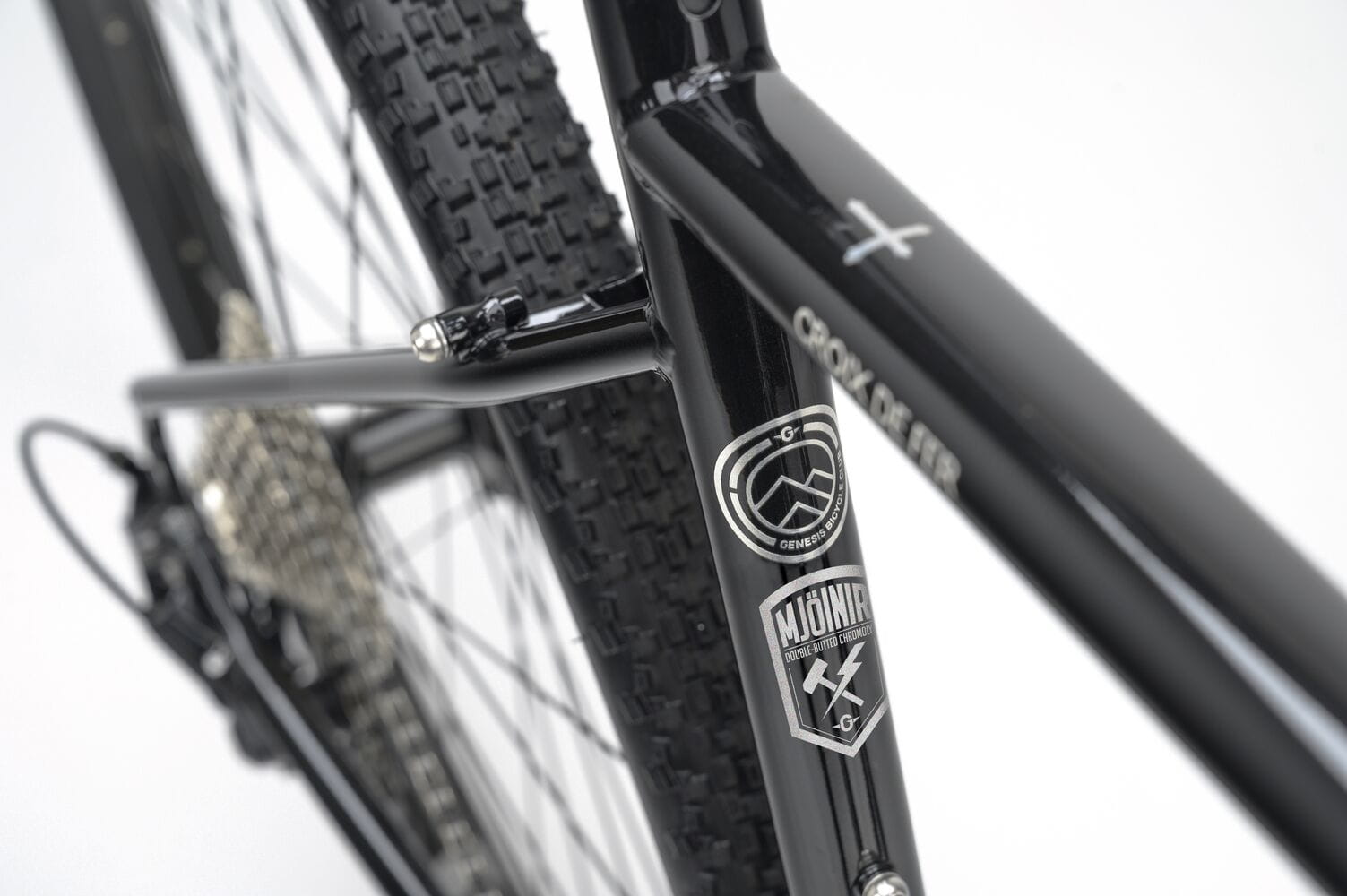

- Thor's Favourite - Our Mjolnir Chromoly tubeset is crafted to deliver a sublime ride feel with excellent comfort whilst also being immensely durable.
Specifications
Frame & Fork
- Genesis Mjolnir Chromoly Tubing

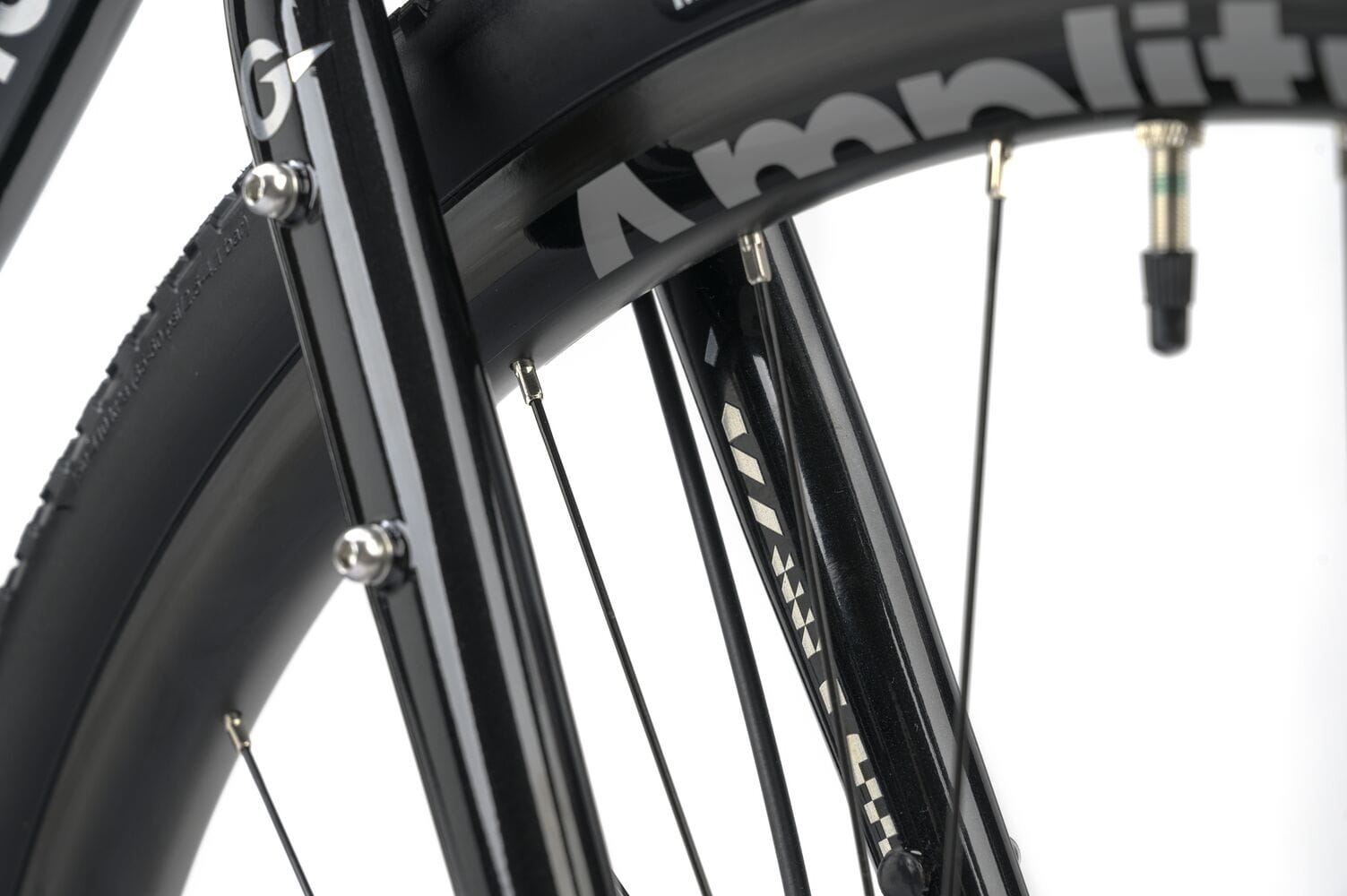

- Amplitude G100 Chromoly Fork
Drivetrain

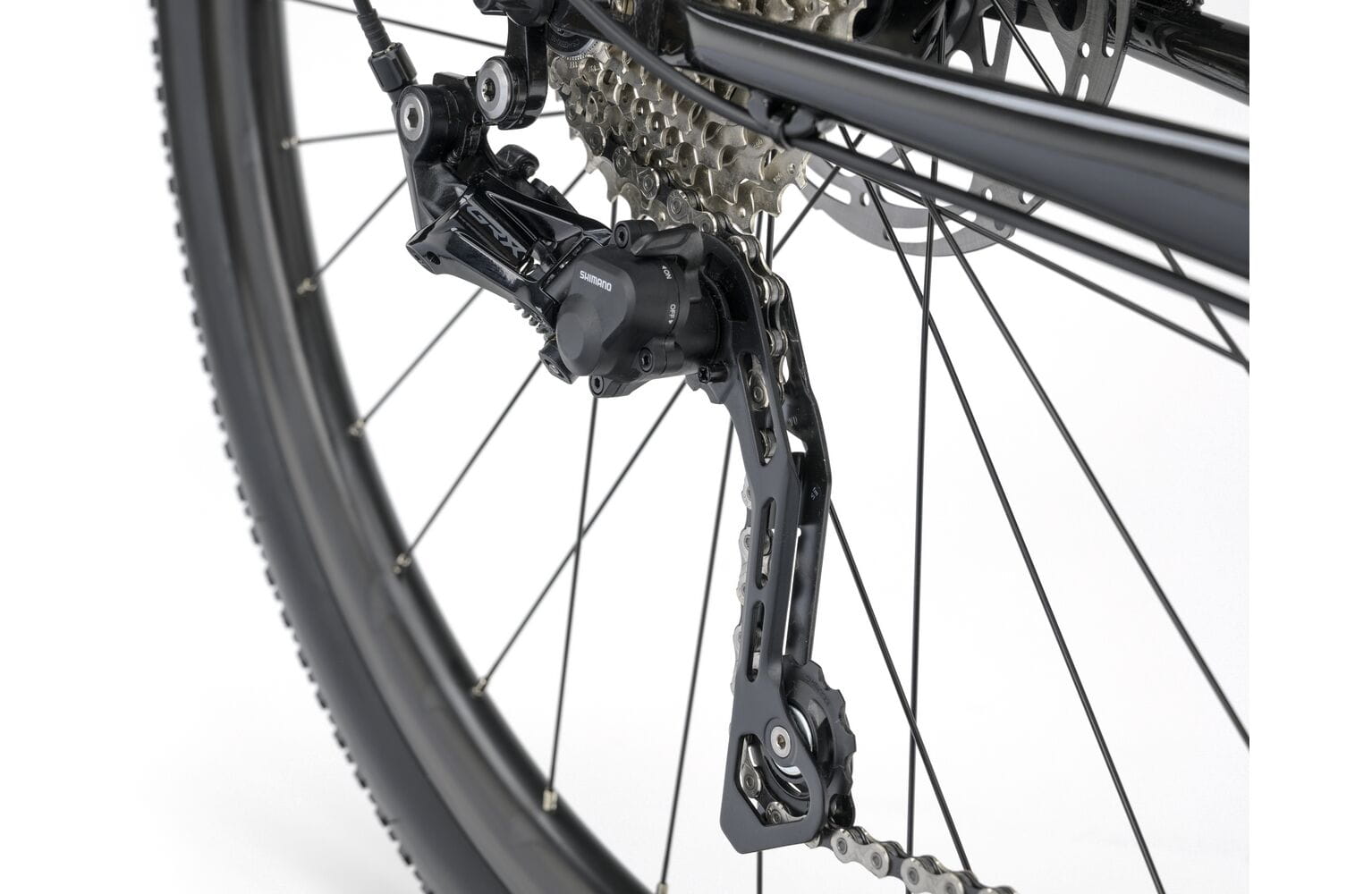

- Shimano GRX RX600/RX400 & Tiagra 4700
- 2 x 10-speed
- 46/30T Chainrings
- 11-34T Cassette
Components
- Amplitude G100 Finishing Kit
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Six-Bolt Rotor Mounts
- QR Front & Rear
Brakes
- TRP Spyre Mechanical Discs
- 160mm Rotors Front & Rear
Tyres
- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 552 | 566 | 585 | 604 | 623 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Headtube Angle | 71 | 71 | 71 | 71 | 71 |
| Headtube Length | 100 | 115 | 135 | 155 | 175 |
| Seattube Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Seattube Length | |||||
| Toptube (Effective) | 553 | 557 | 558 | 574 | 589 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1042 | 1046 | 1043 | 1059 | 1076 |
| BB Height | |||||
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 734 | 752 | 778 | 802 | 826 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
