Genesis Croix De Fer 20 Flat Bar Gravel Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

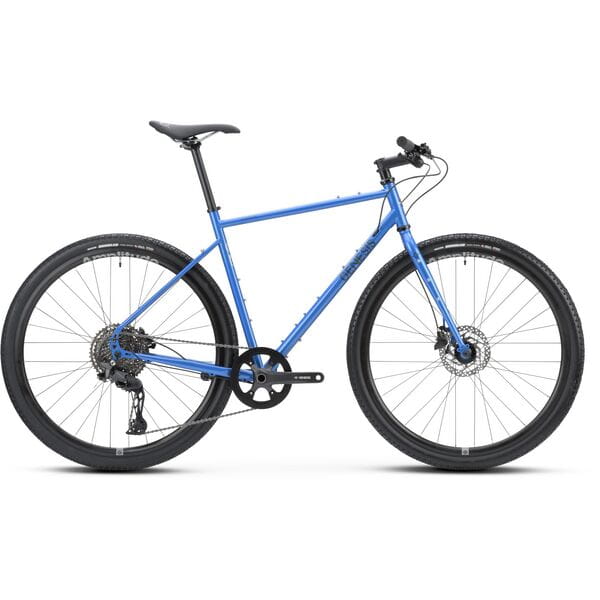

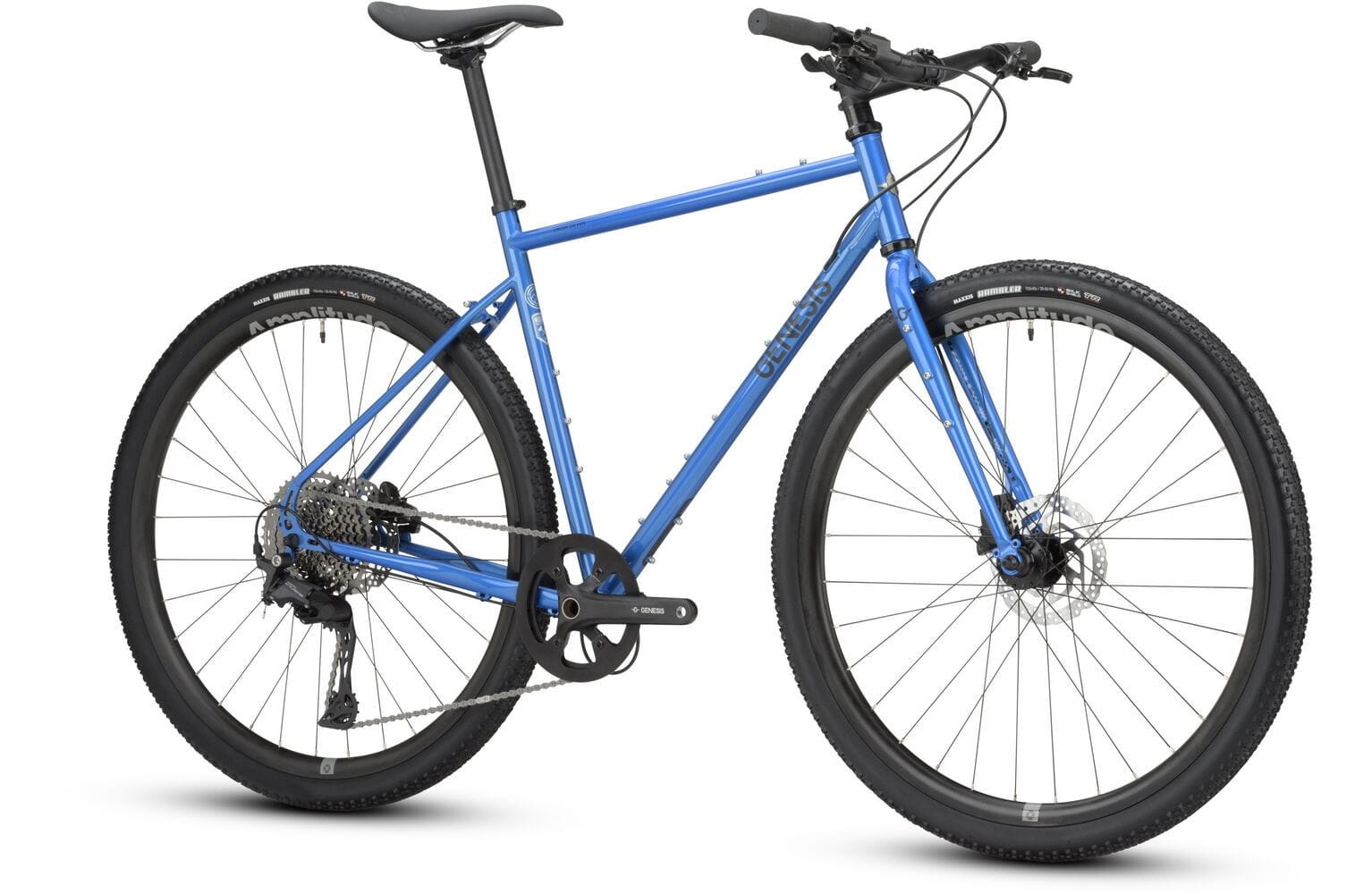

Genesis Croix De Fer 20 Flat Bar Gravel Bike
Blue Fighters / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Flat Out
Like a regular Croix De Fer, but flatter!
Not everyone wants a drop handlebar. If you prefer the additional comfort and control of a flat handlebar on your gravel bike or spend more time ripping around town than you do ticking off epic gravel routes, the Croix De Fer 20 Flat Bar is well equipped to tackle any surface.
Features
- Anti-Service - The Shimano CUES 1 x 11spd Linkglide drivetrain delivers exceptional service life and superb consistency.

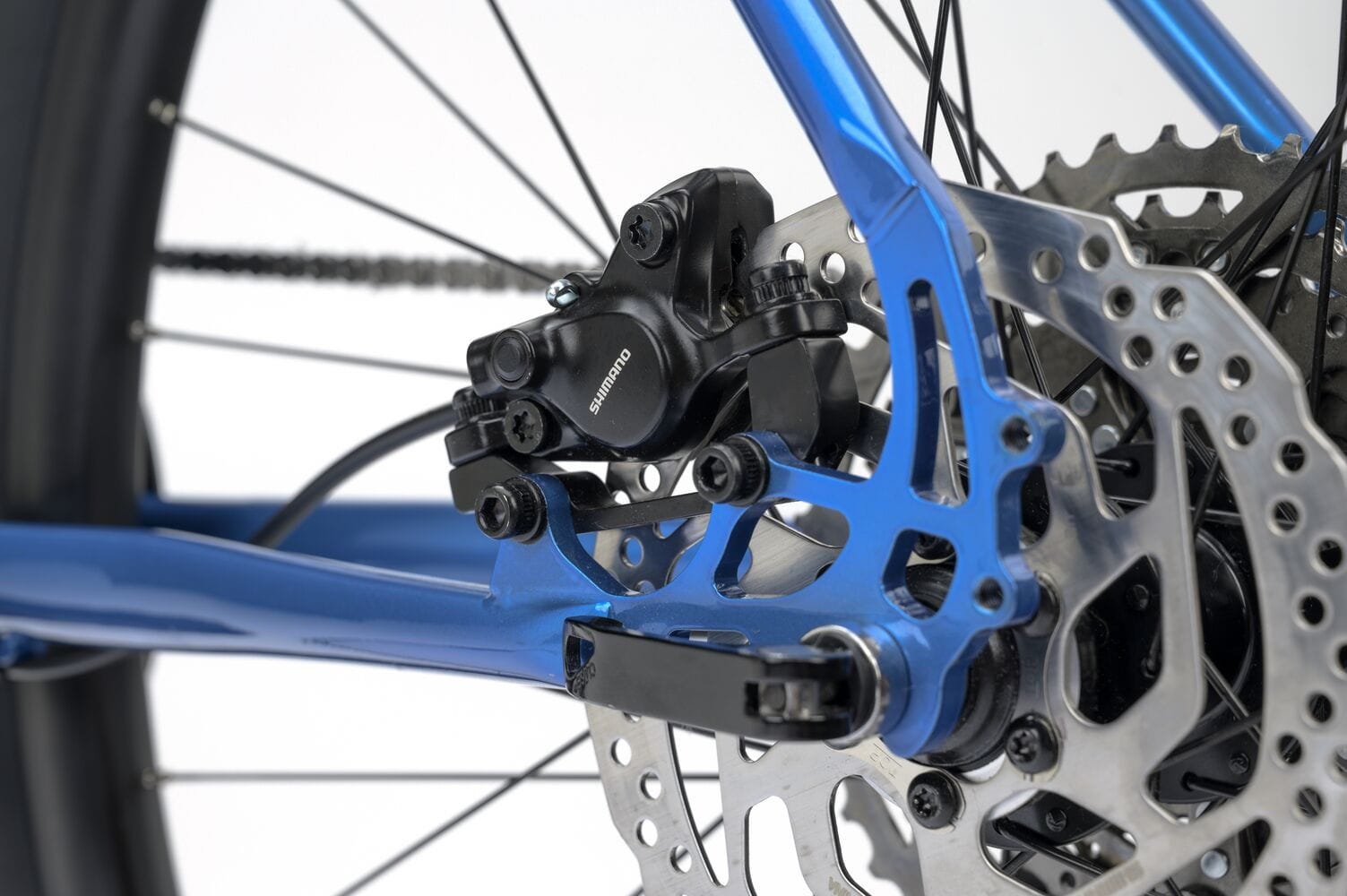

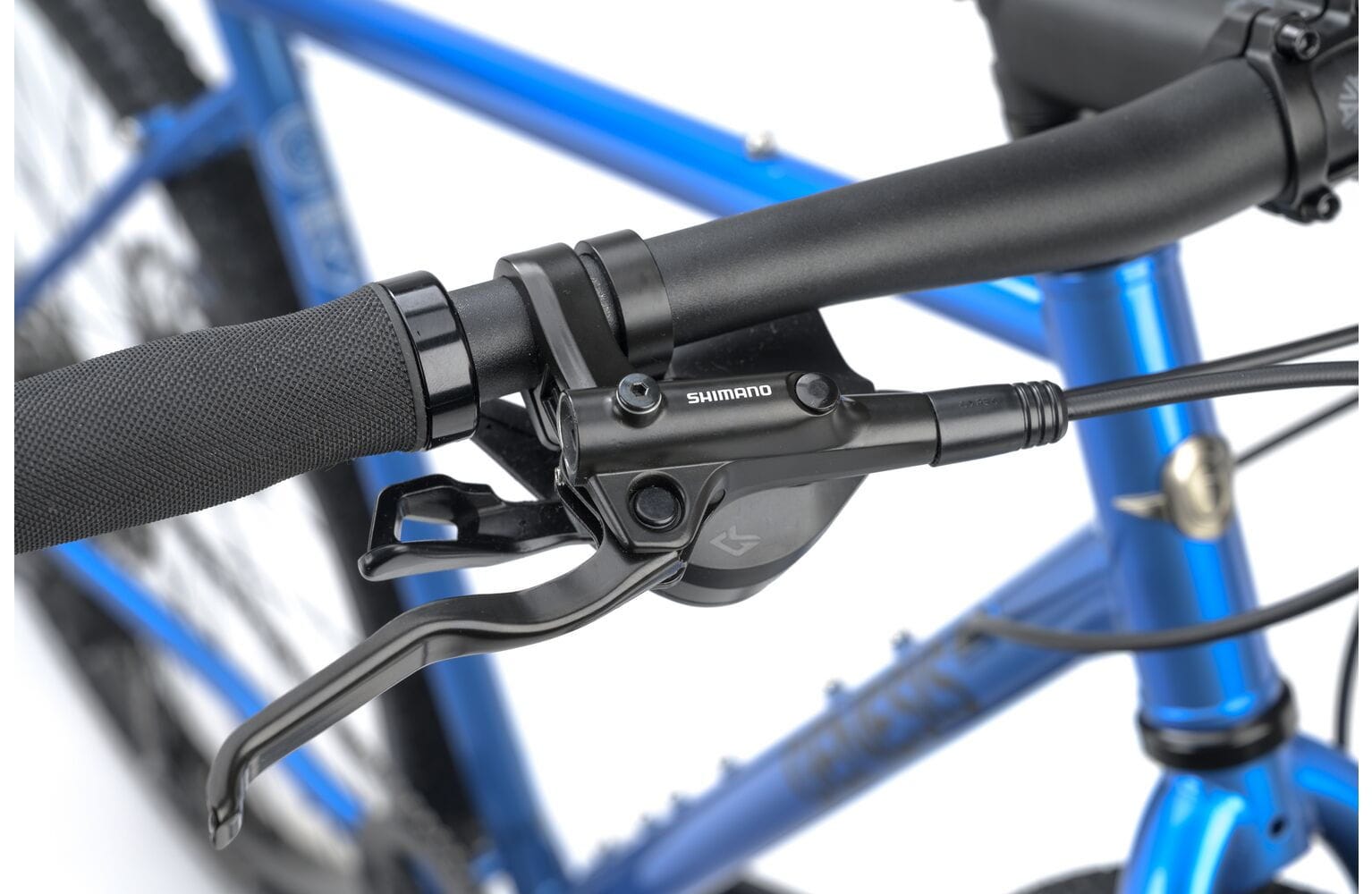

- Stop! Anytime - Shimano MT200 hydraulic disc brakes paired with 160mm rotors front and rear provide dependable stopping power in all conditions

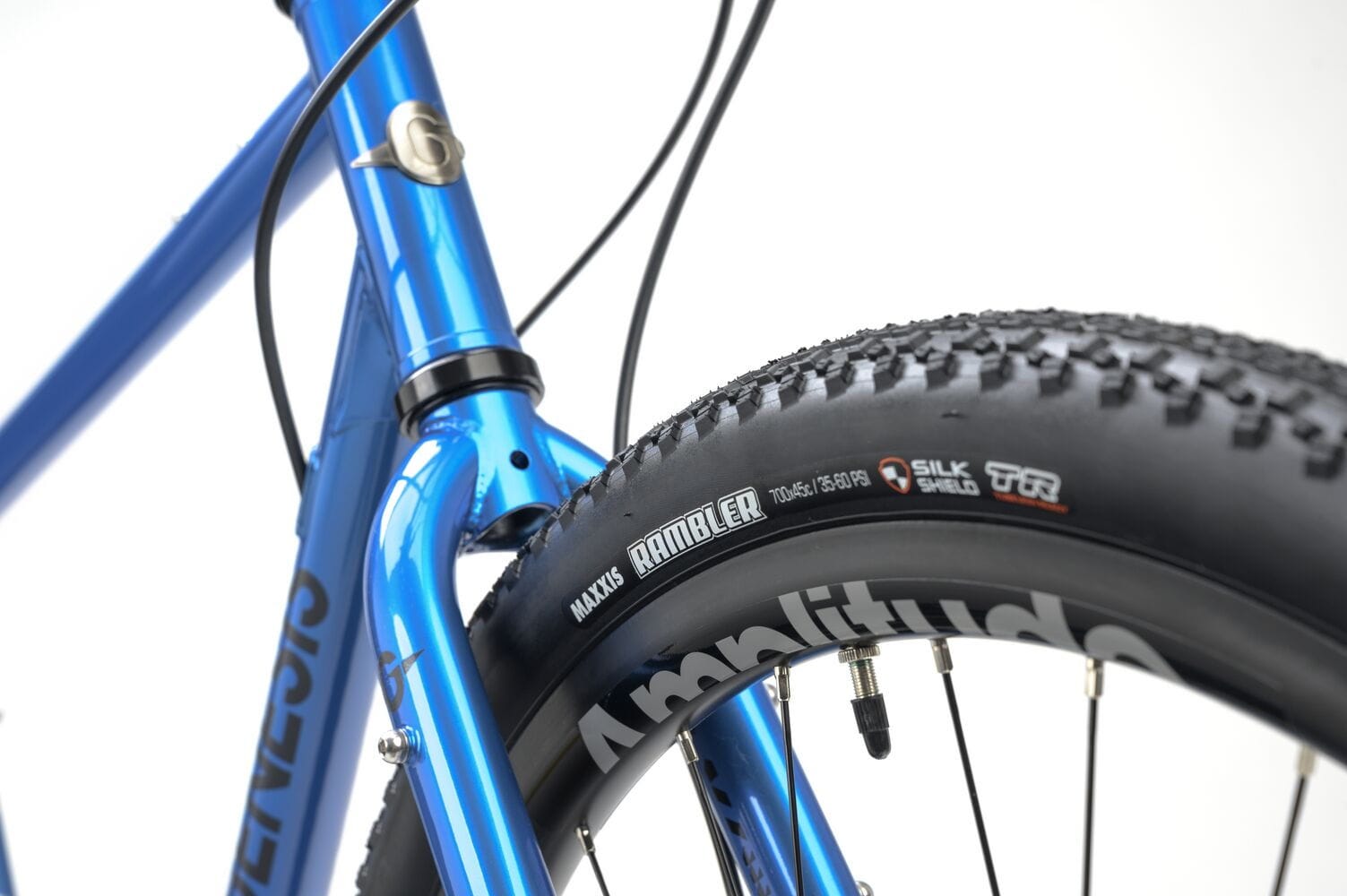

- Tubeless Treads - Like all Croix De Fers, the Croix De Fer 20 Flat Bar gets tubeless ready 45mm Maxxis Rambler tyres mounted to pre-taped tubeless ready amplitude G100 wheels.

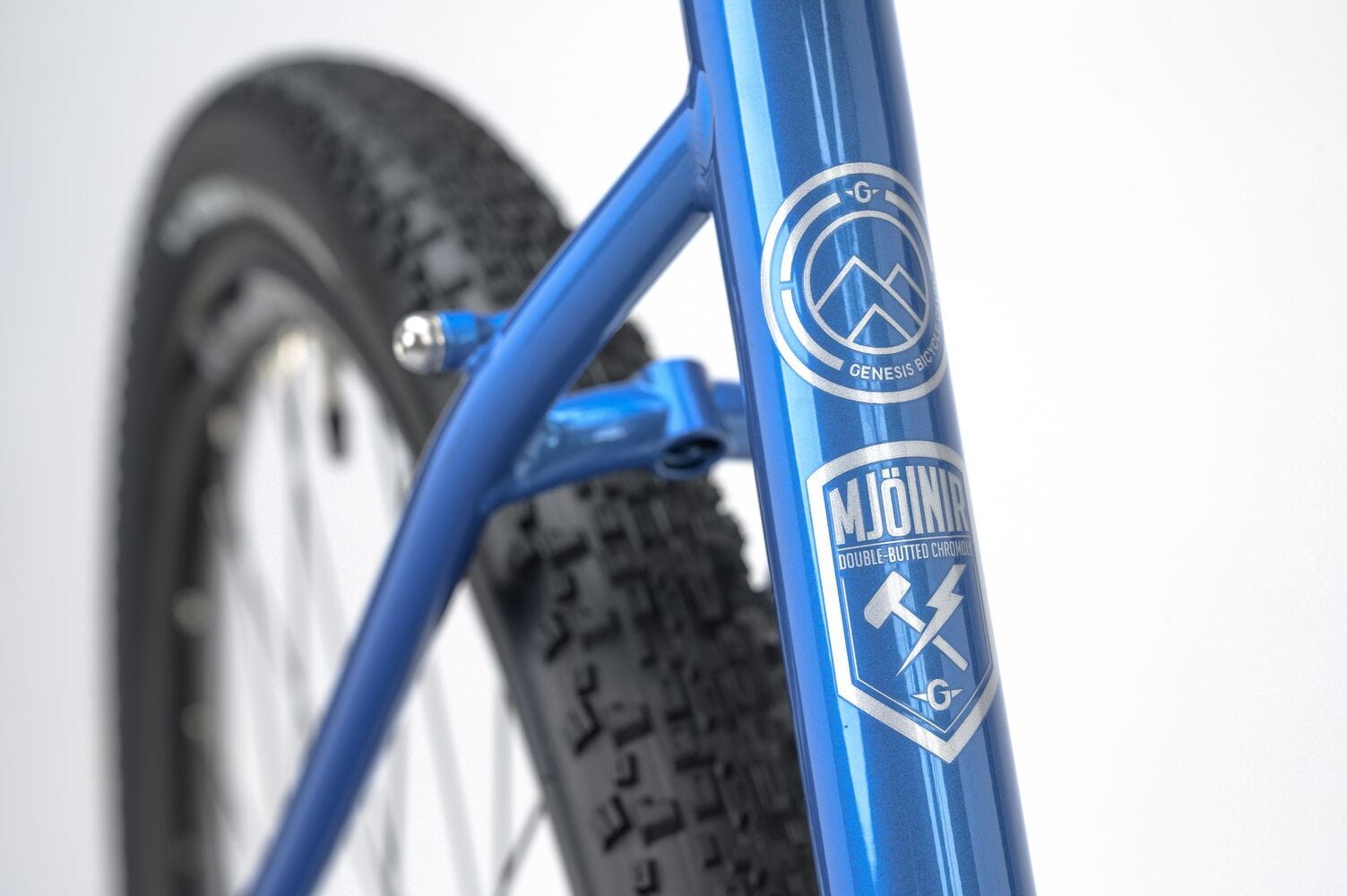

- Thor's Favourite - Our Mjolnir Chromoly tubeset is crafted to deliver a sublime ride feel with excellent comfort whilst also being immensely durable.
Specifications
Frame & Fork
- Genesis Mjolnir Chromoly Tubing

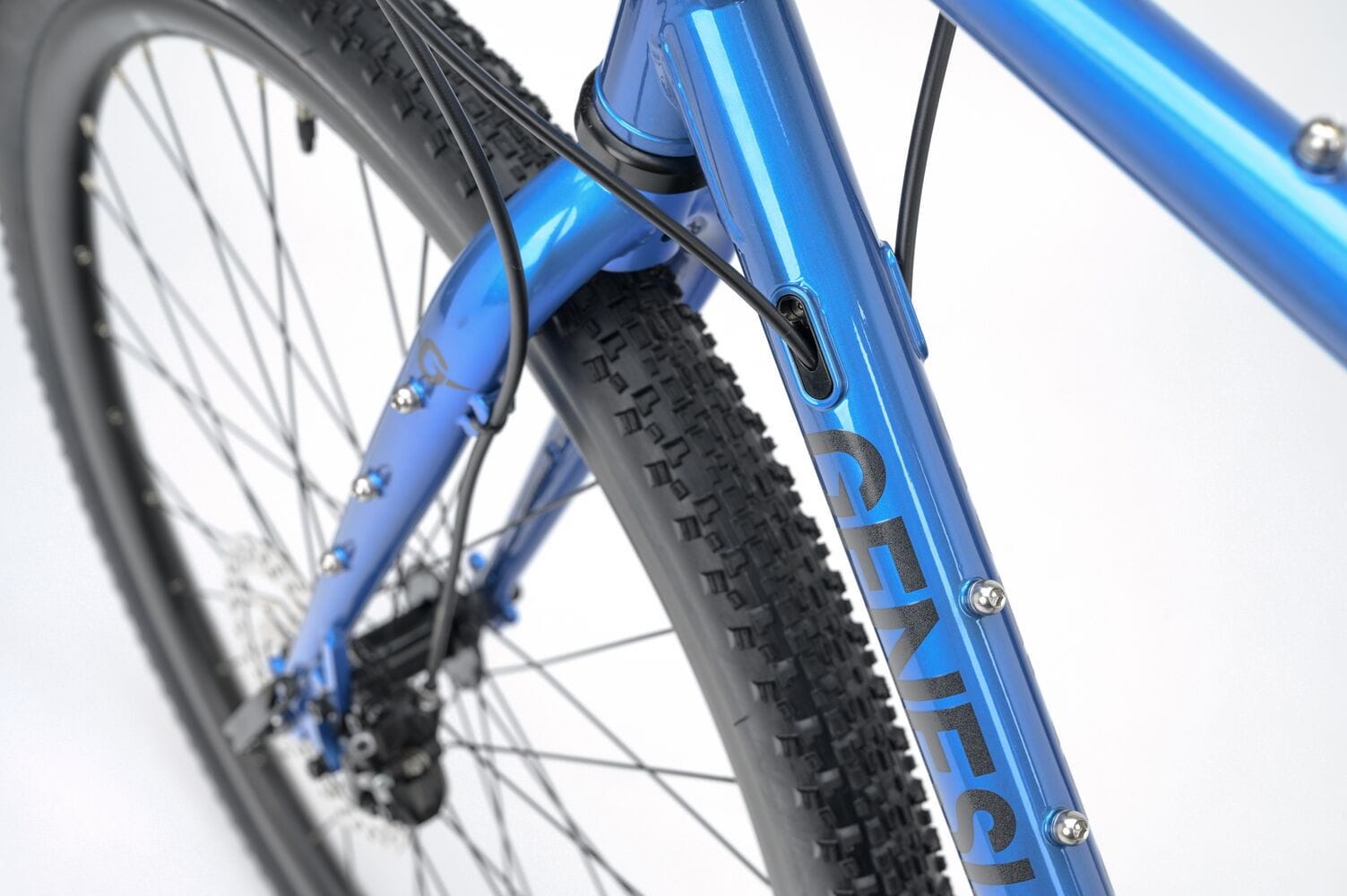

- Amplitude G100 Chromoly Fork
Drivetrain
- Shimano CUES U6000
- 1 x 11-speed
- 42T Chainring
- 11-45T Cassette
Components
- Amplitude F100 Flat Handlebar
- Amplitude G100 Stem & Seatpost
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Six-Bolt Rotor Mounts
- QR Front & Rear
Brakes
- TRP Spyre Mechanical Discs
- 160mm Rotors Front & Rear
Tyres
- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 552 | 566 | 585 | 604 | 623 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Headtube Angle | 71 | 71 | 71 | 71 | 71 |
| Headtube Length | 100 | 115 | 135 | 155 | 175 |
| Seattube Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Seattube Length | |||||
| Toptube (Effective) | 553 | 557 | 558 | 574 | 589 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1042 | 1046 | 1043 | 1059 | 1076 |
| BB Height | |||||
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 734 | 752 | 778 | 802 | 826 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
