+3532840609Not So Entry Level

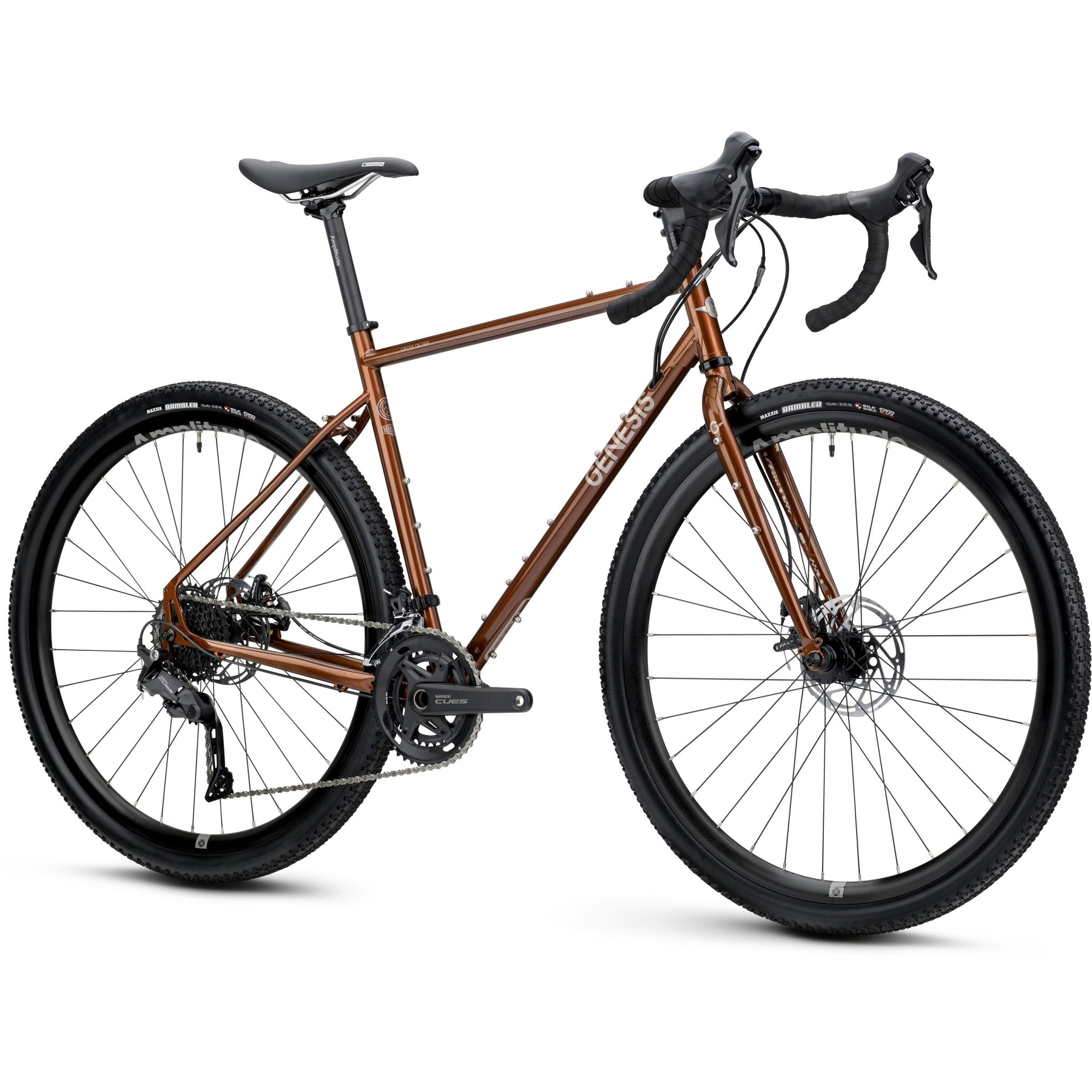

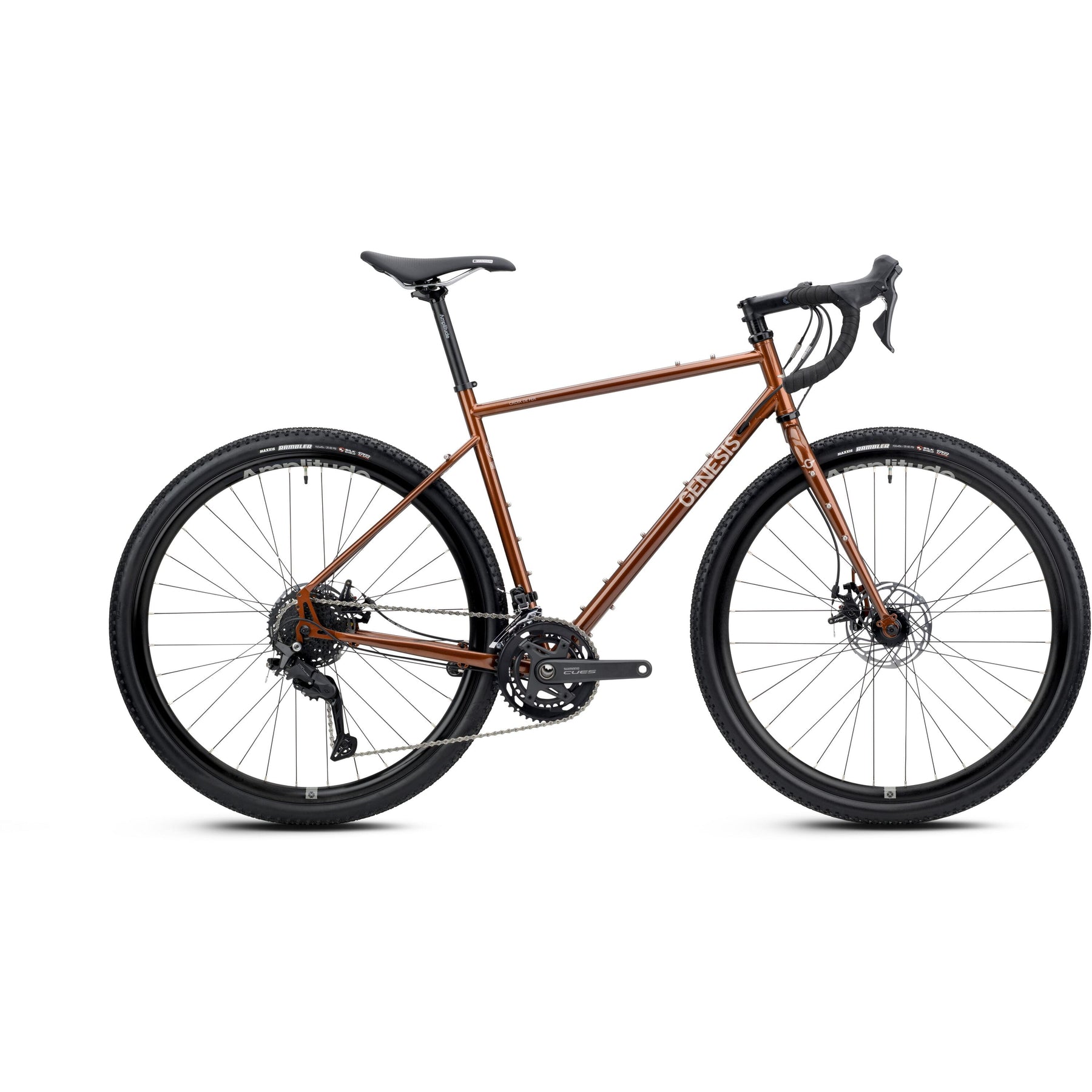

The baby brother of the Croix de Fer range, the 10 carries all of the same qualities and features that are core to the Croix de Fer DNA and combines them with a great value specification.

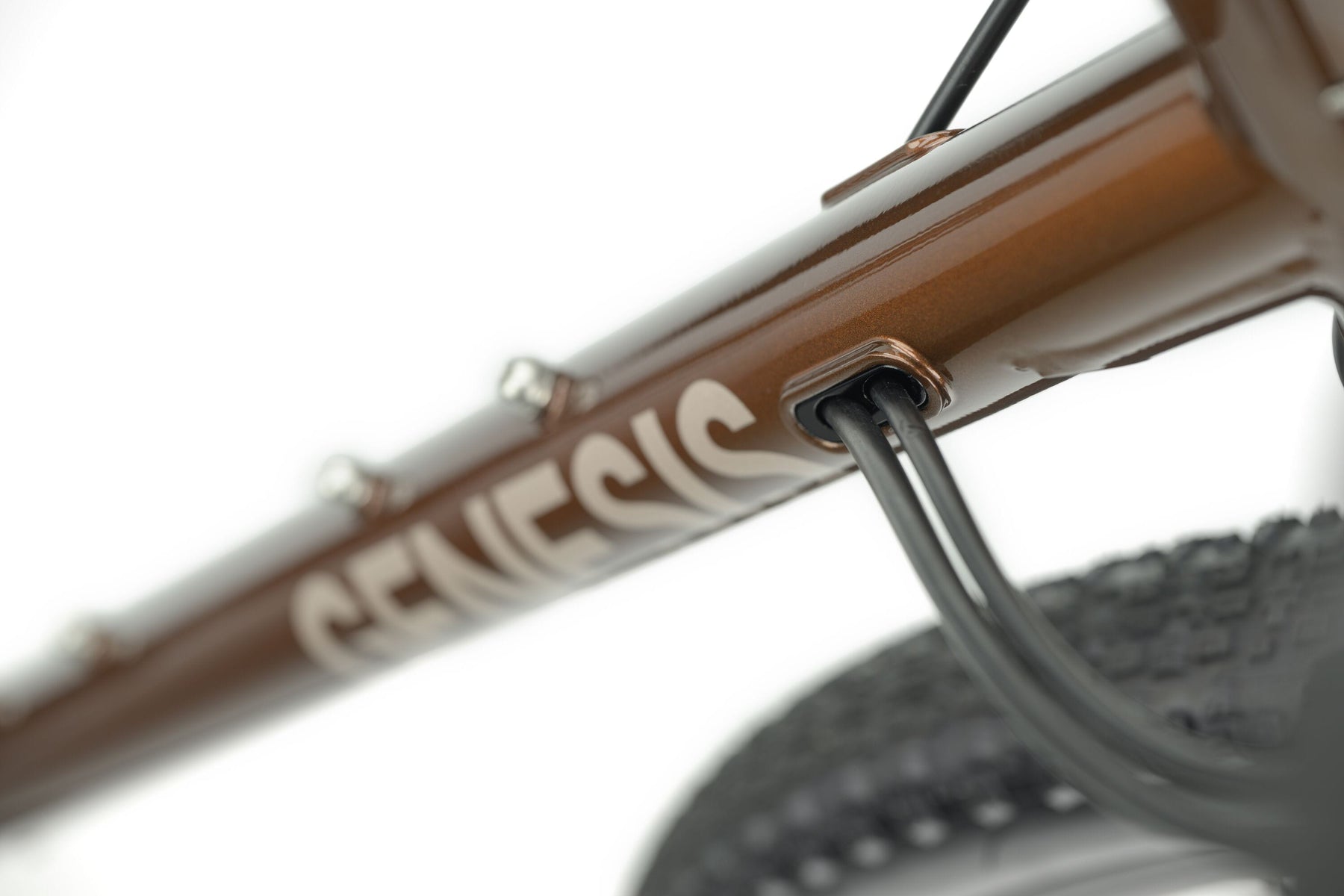

Internal cable routing, dropper post compatibility, tubeless ready wheels and tyres. The Croix de Fer 10 is stacked full of features capable of any journey.
Features:

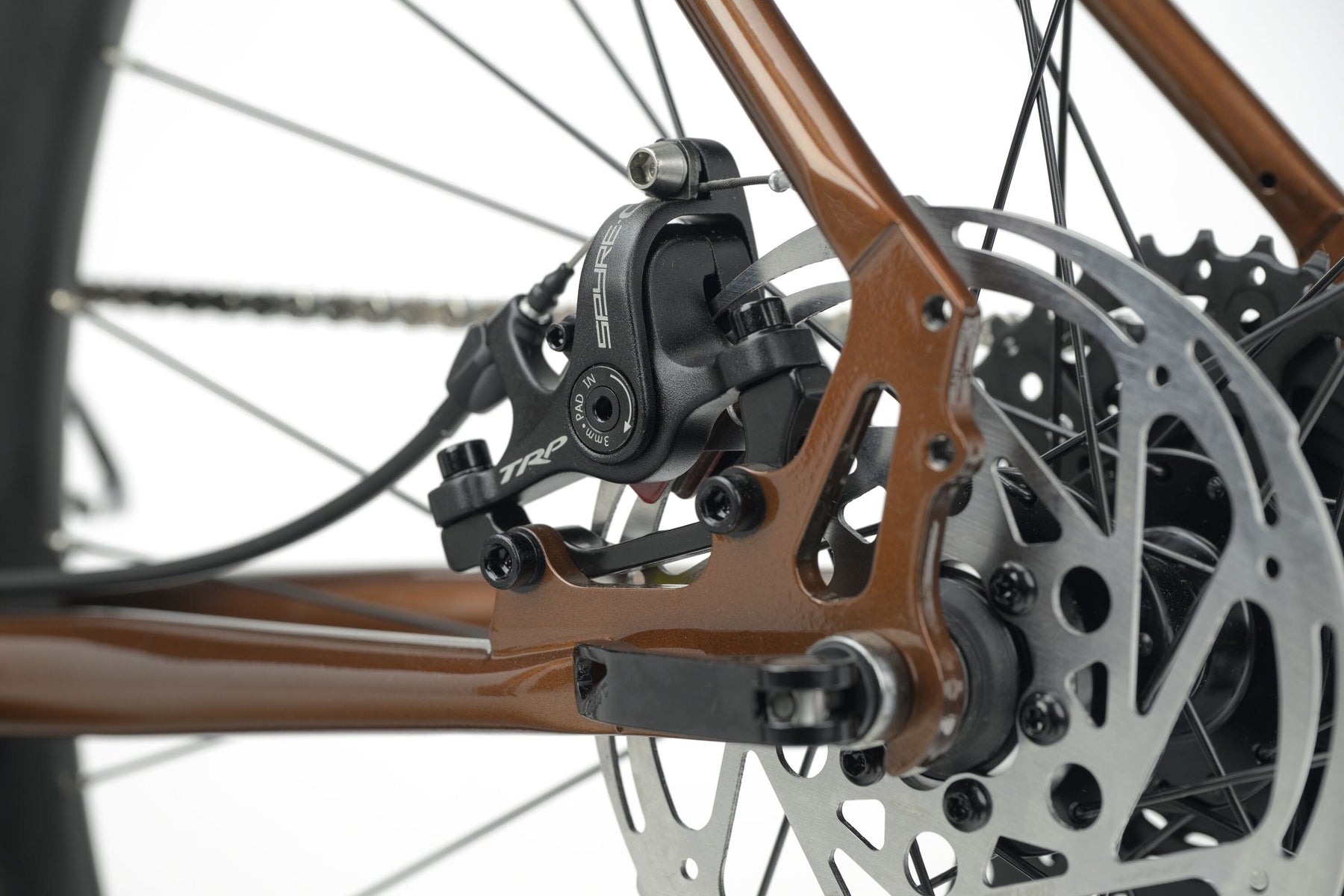

Best-In-Class Brakes:
TRP spyre mechanical disc brakes offer dual piston braking on a mechanical brake which combines the easy maintenance of a cable-actuated brake with the improved lever feel and stopping power of a hydraulic brake.

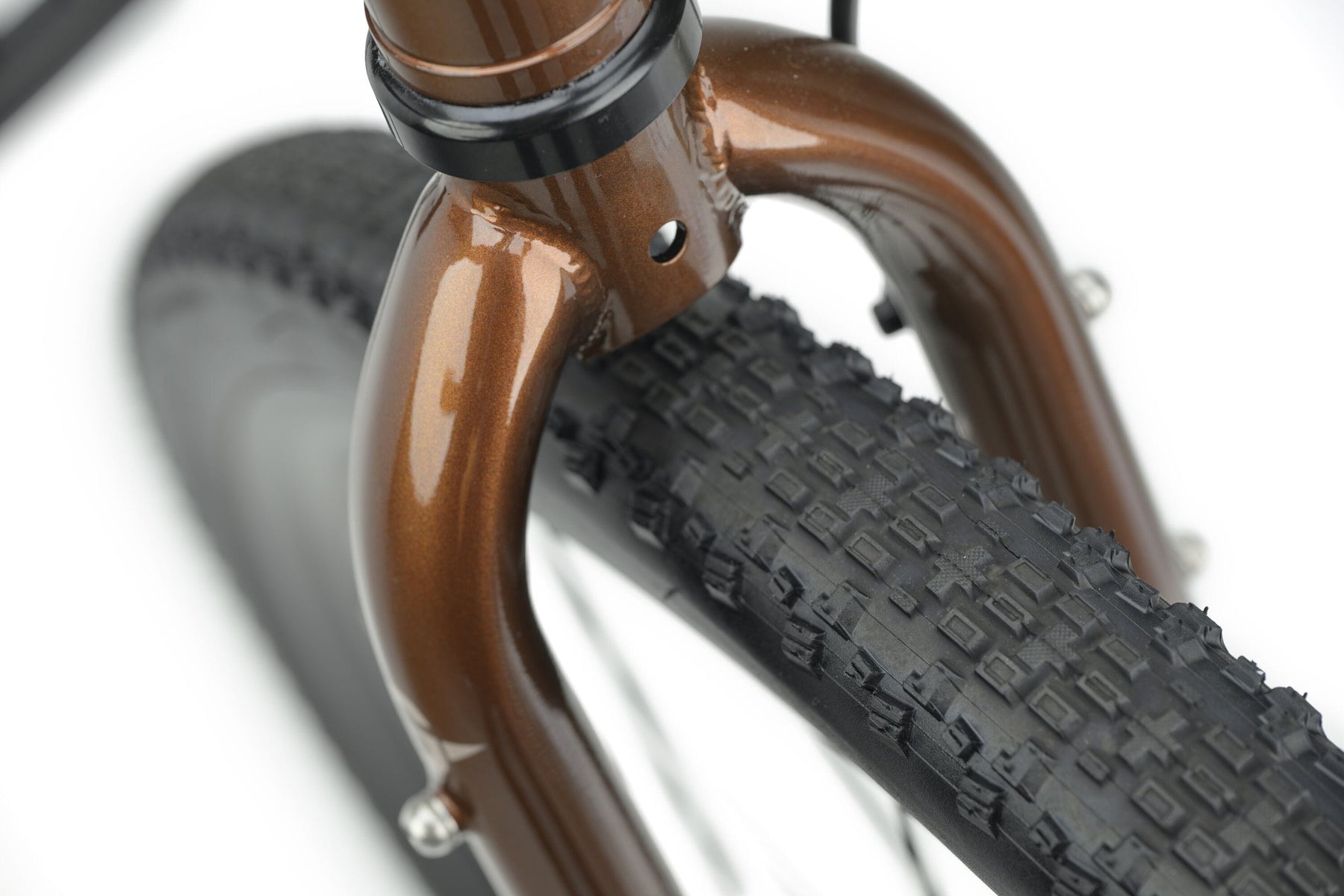

Premium Rubber:

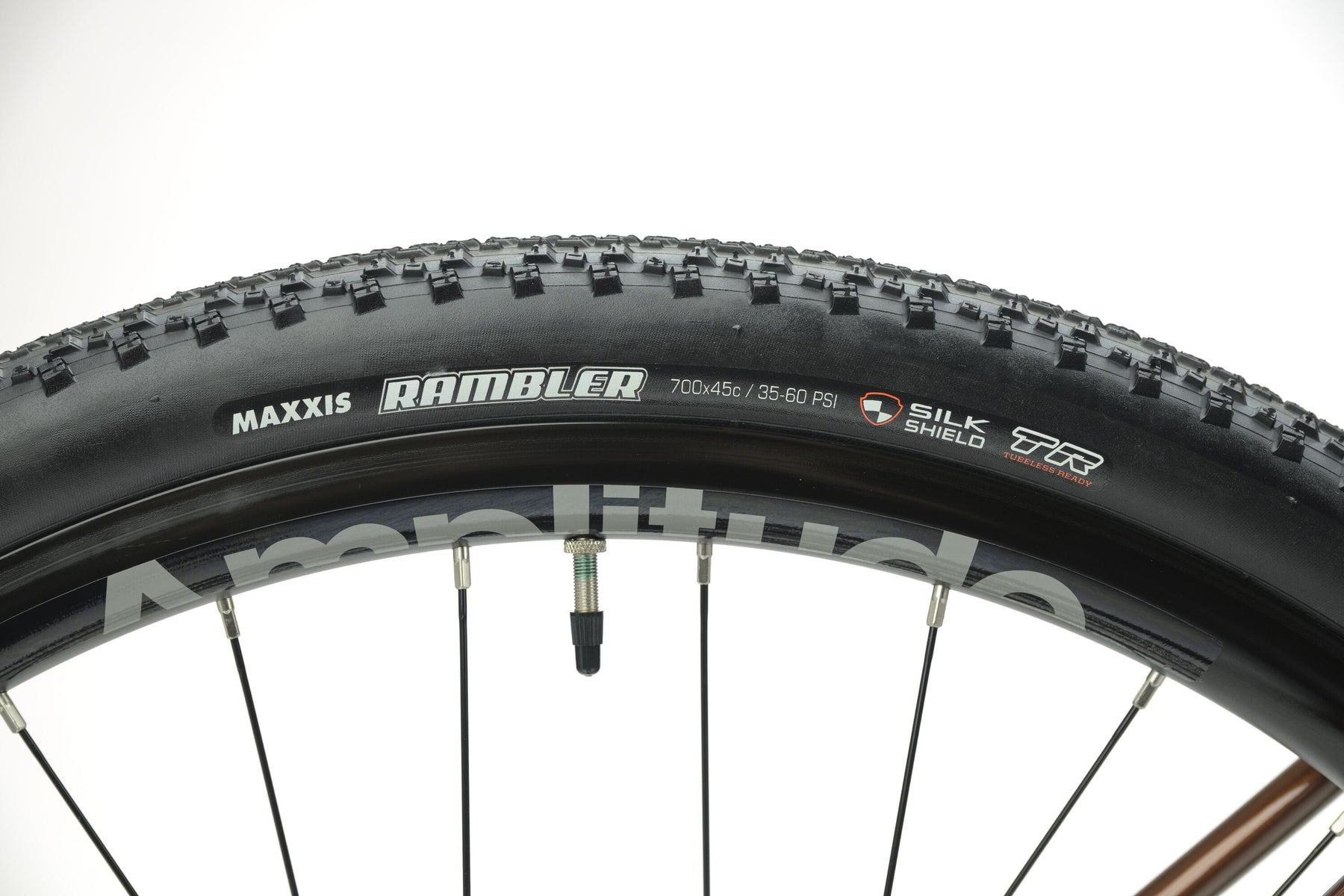

The Croix def fer 10 gets the same Maxxis Rambler tubeless ready 45mm tyres and amplitude G100 wheelset found on the rest of the croix de fer range.

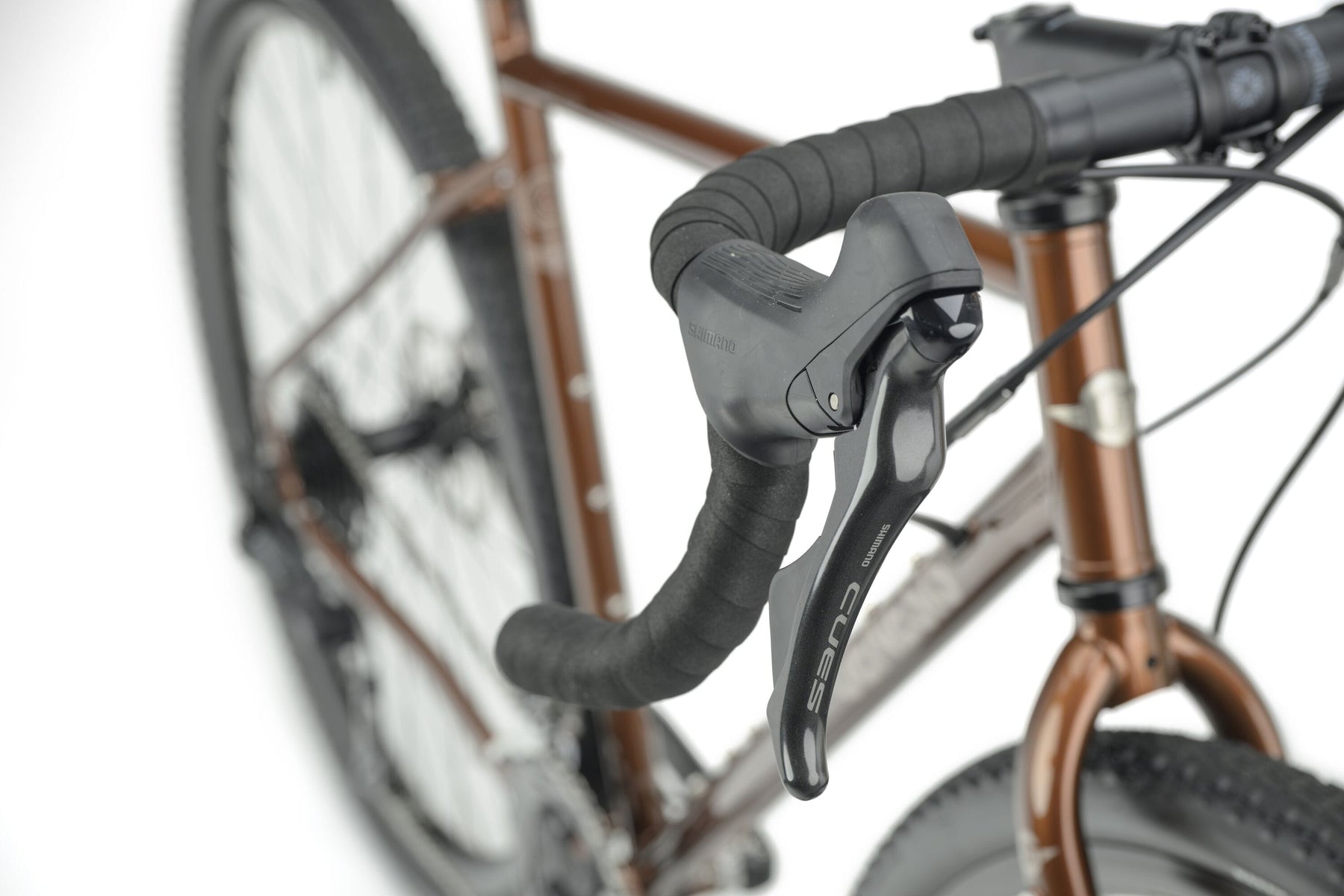

Adventure-Ready Drivetrain:

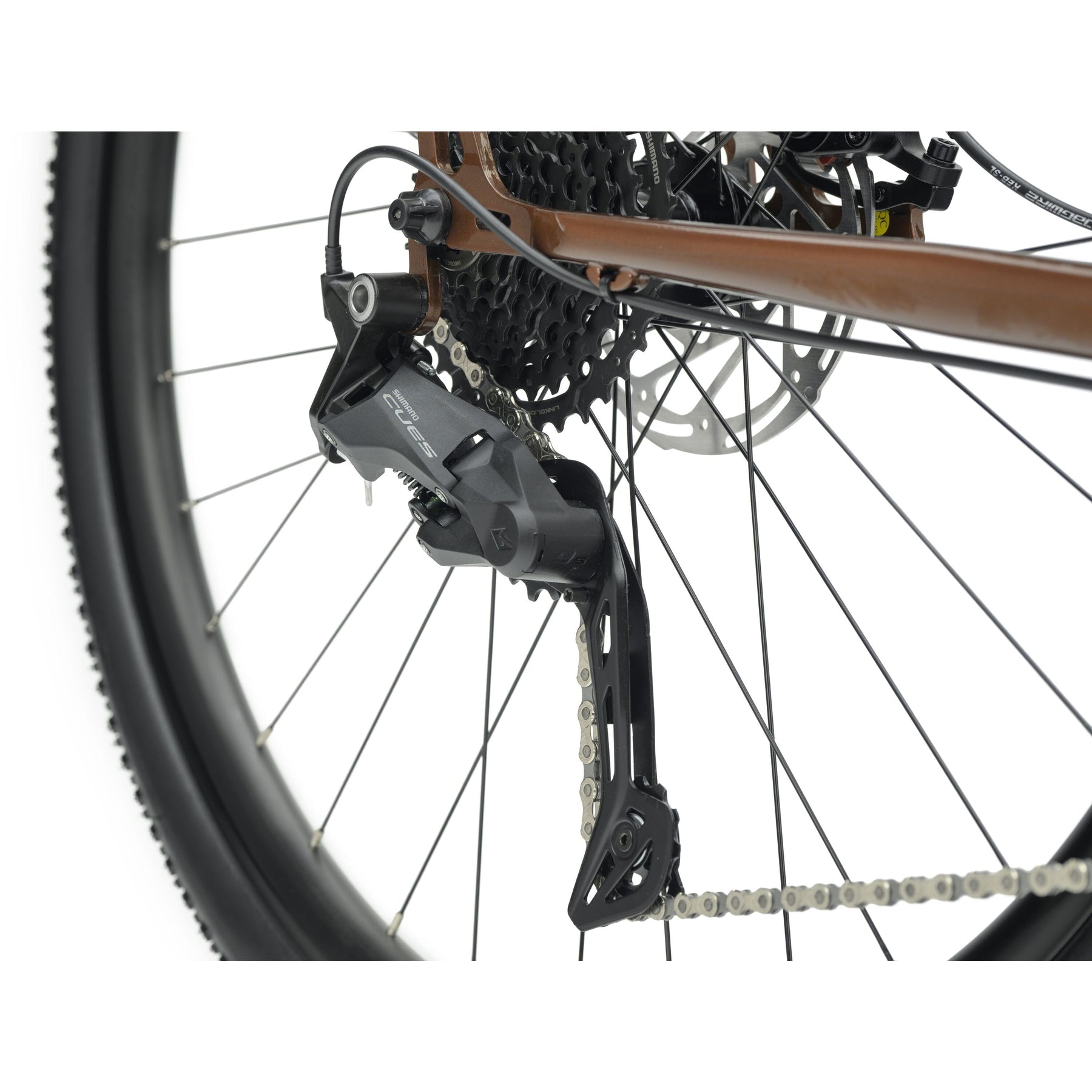

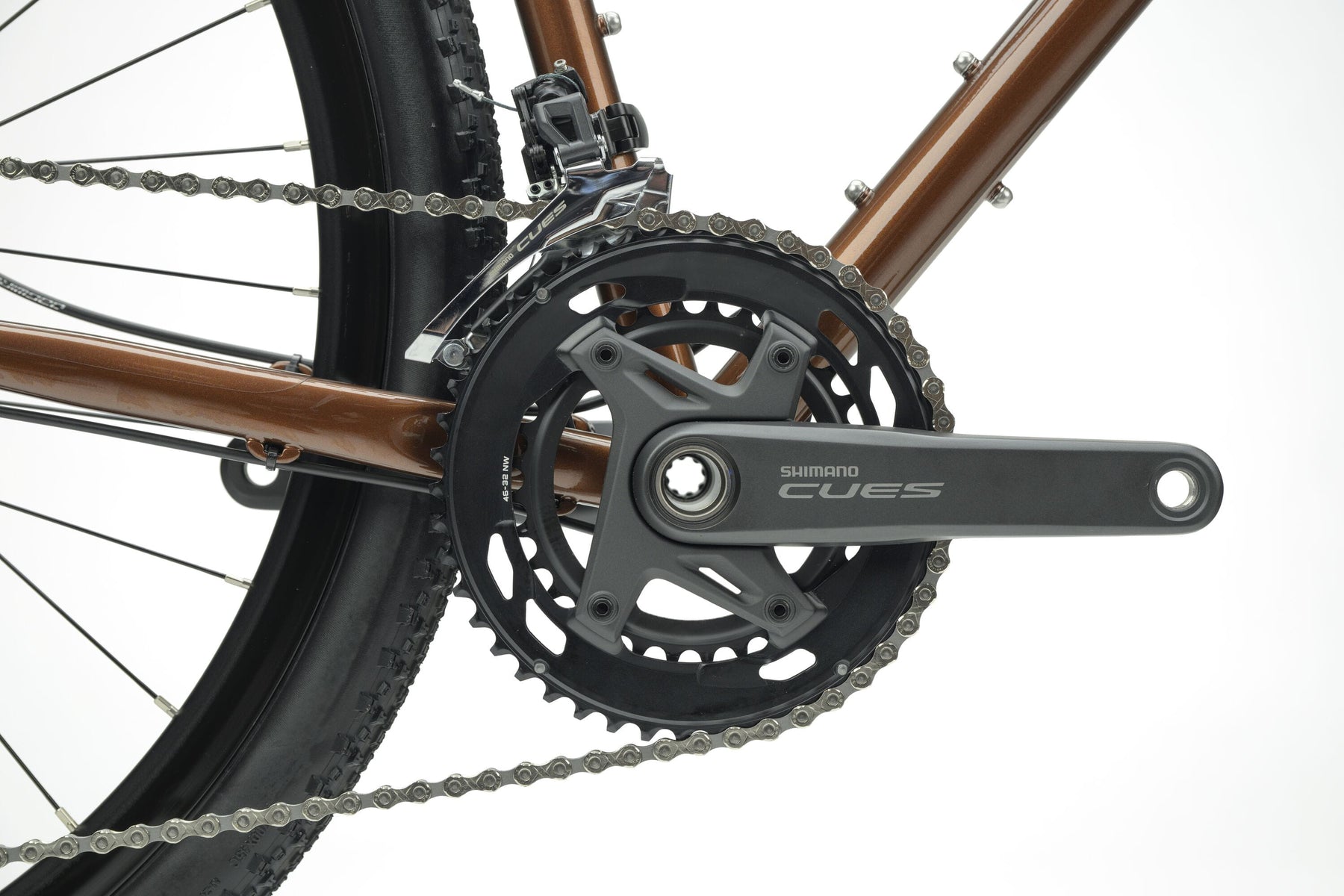

A Shimano cues 2x9 speed drivetrain combined with a 46/32T chainset paired with an 11-36T cassette offers up dependable gearing that's suitable for across-country epic or blast to the office alike.

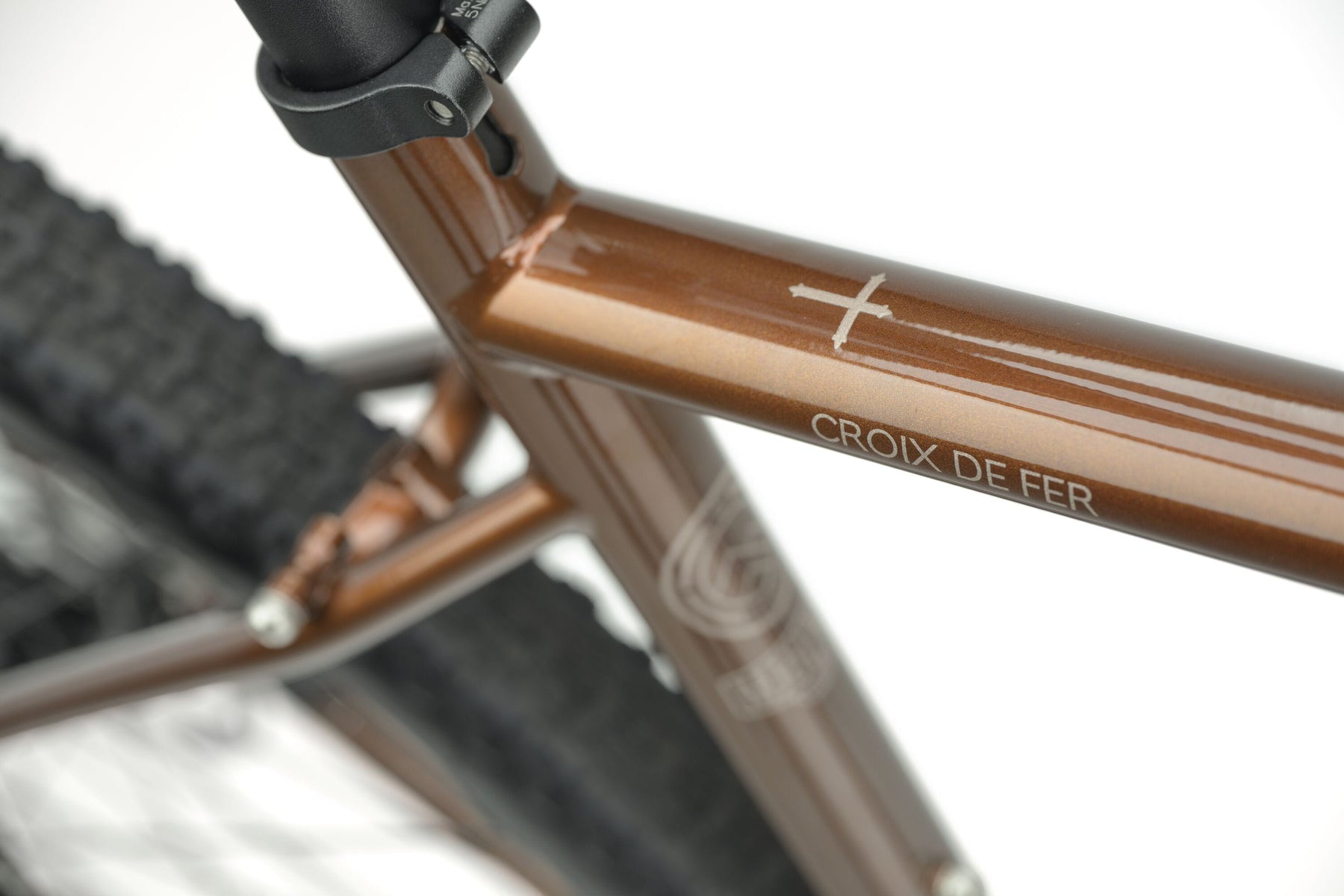

Thor's Favourite Steel:

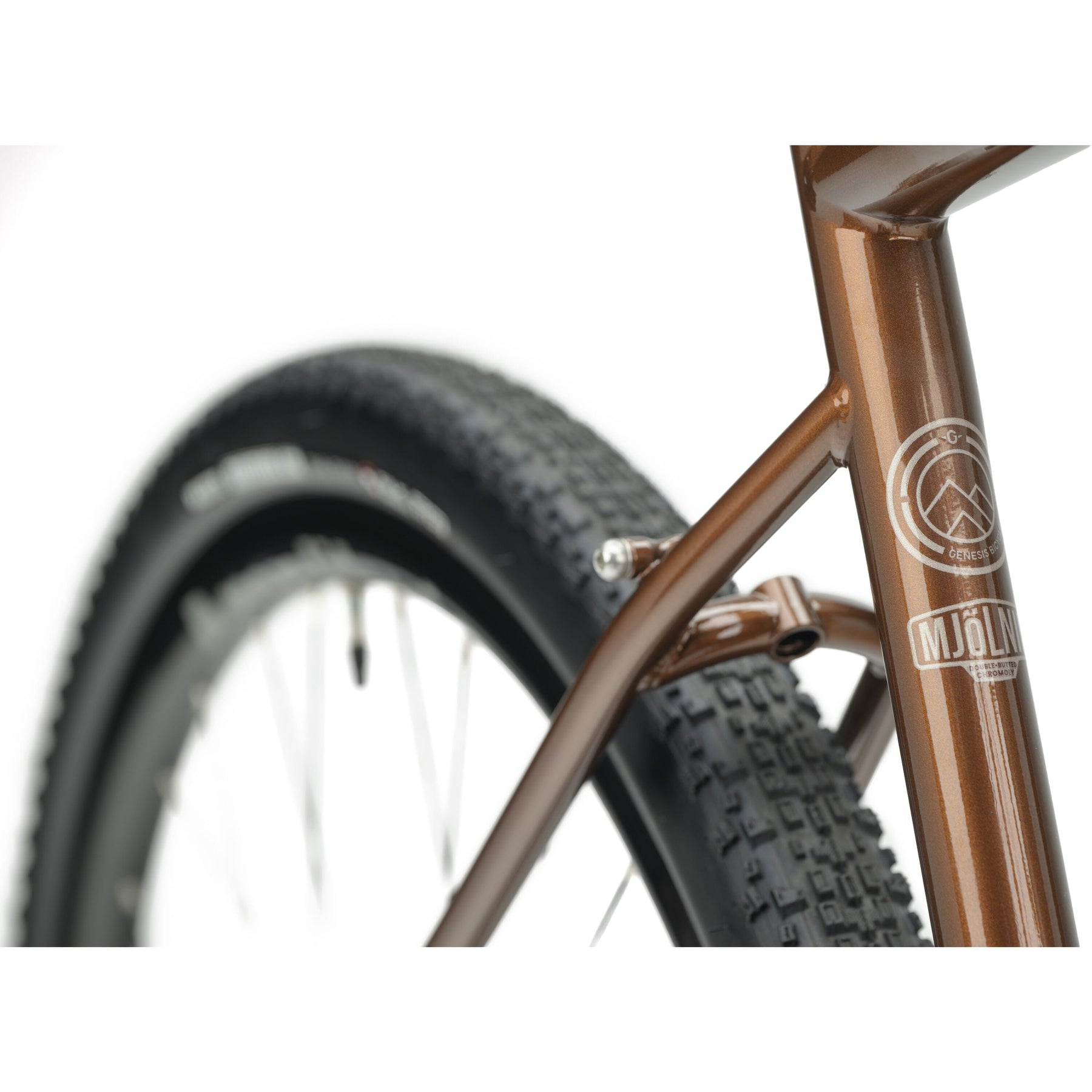

The Mjolnir Chromoly tubeset is crafted to deliver sublime ride feel with excellent comfort whilst also being immensely durable.
Specifications
Frame & Fork
- Genesis Mjolnir Chromoly Tubing
- Amplitude G100 Chromoly Fork
Drivetrain
- Shimano CUES U3000/U6000
- 2 x 9-speed
- 46/32T Chainrings
- 11-36T Cassette
Components
- Amplitude G100 Finishing Kit
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Six-Bolt Rotor Mounts
- QR Front & Rear
Brakes
- TRP Spyre Mechanical Discs
- 160mm Rotors Front & Rear
Tyres
- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 552 | 566 | 585 | 604 | 623 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Headtube Angle | 71 | 71 | 71 | 71 | 71 |
| Headtube Length | 100 | 115 | 135 | 155 | 175 |
| Seattube Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Seattube Length | |||||
| Toptube (Effective) | 553 | 557 | 558 | 574 | 589 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1042 | 1046 | 1043 | 1059 | 1076 |
| BB Height | |||||
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 734 | 752 | 778 | 802 | 826 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
