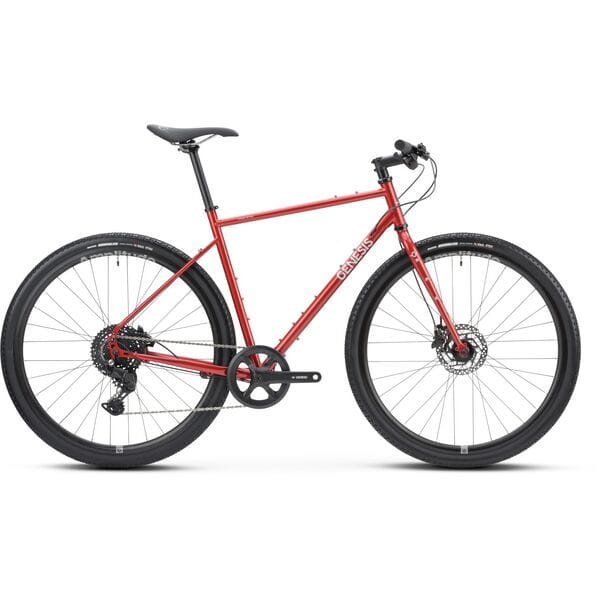

Genesis Croix De Fer 10 Flat Bar Gravel Bike
Candy Warhols / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Roses Are Red, Flat Handlebars For You
Drop bars aren't for everyone. The Croix De Fer 10 Flat Bar utilises the same frame platform as our iconic gravel bike combining it with a straightforward specification package for those looking for added confidence off-road or for those prioritising comfort over efficiency.
Tubeless ready wheels & tyres and a Shimano CUES drivetrain round out a dependable package.
Features

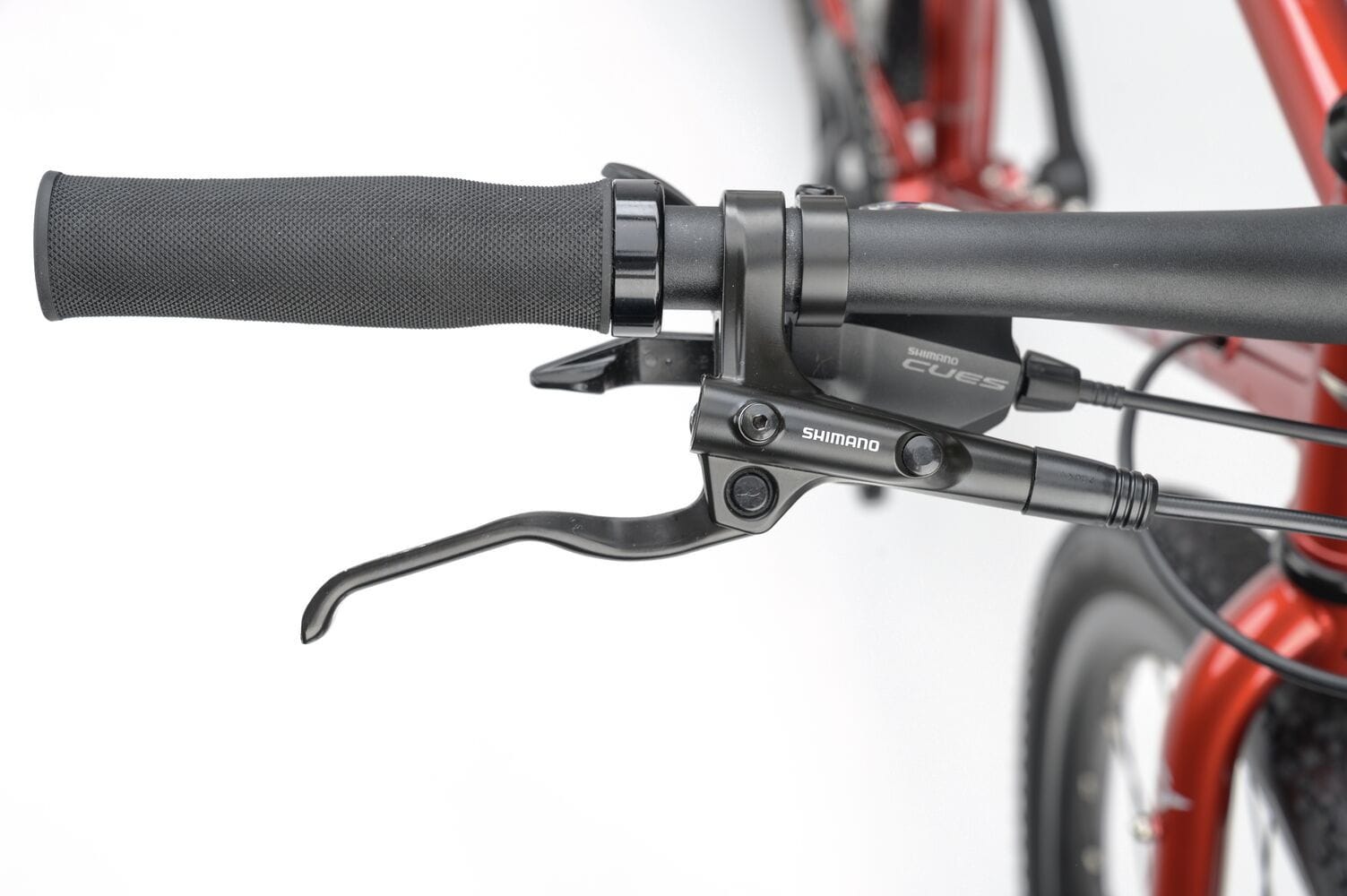

- 1X simplicity - A straightforward shimano CUES 1 x 9spd Linkglide drivetrain ensures reliability and easy maintenance

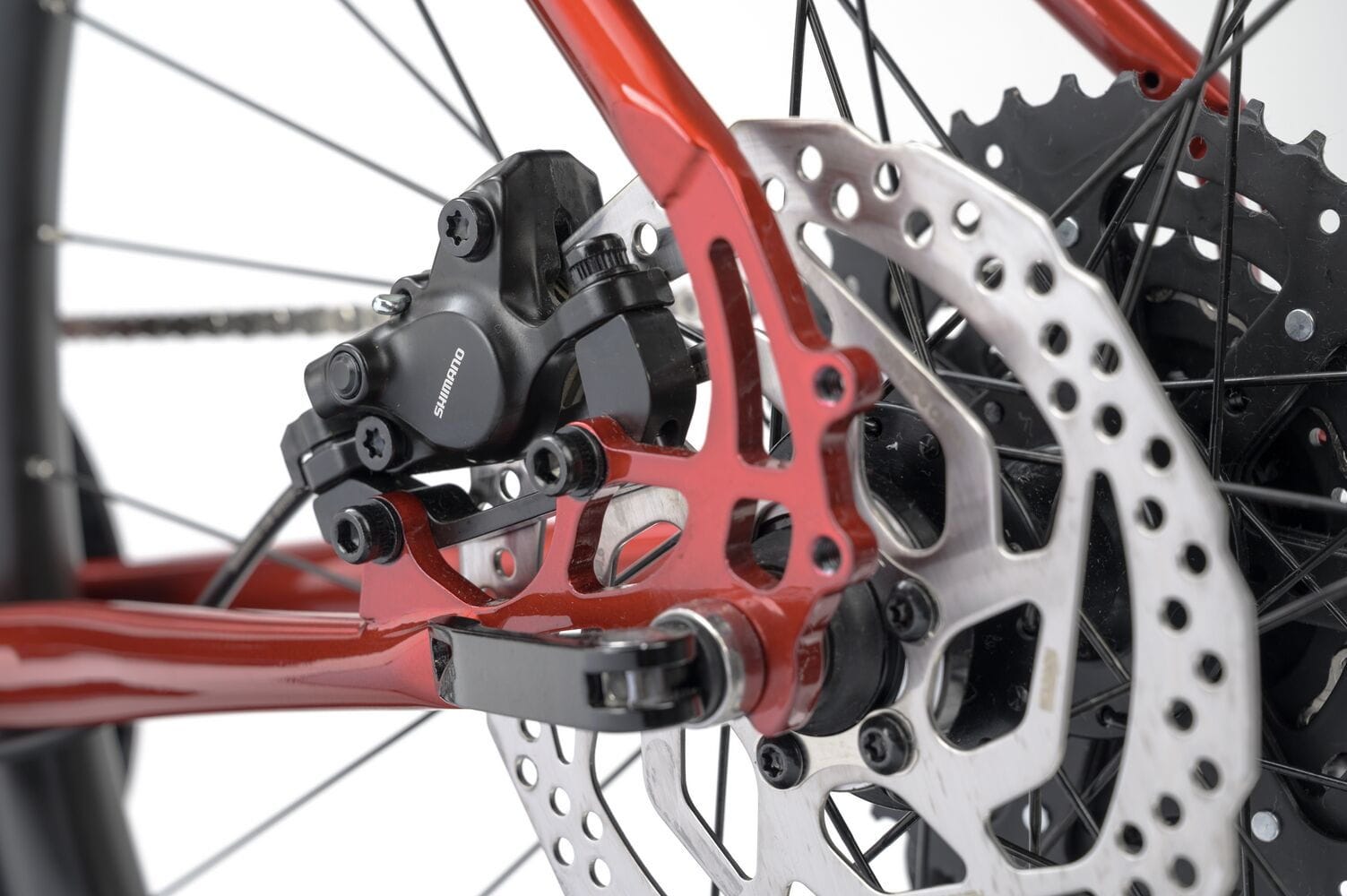

- Great stop! - Shimano MT200 hydraulic disc brakes paired with 160mm rotors front and rear provide dependable stopping power in all conditions

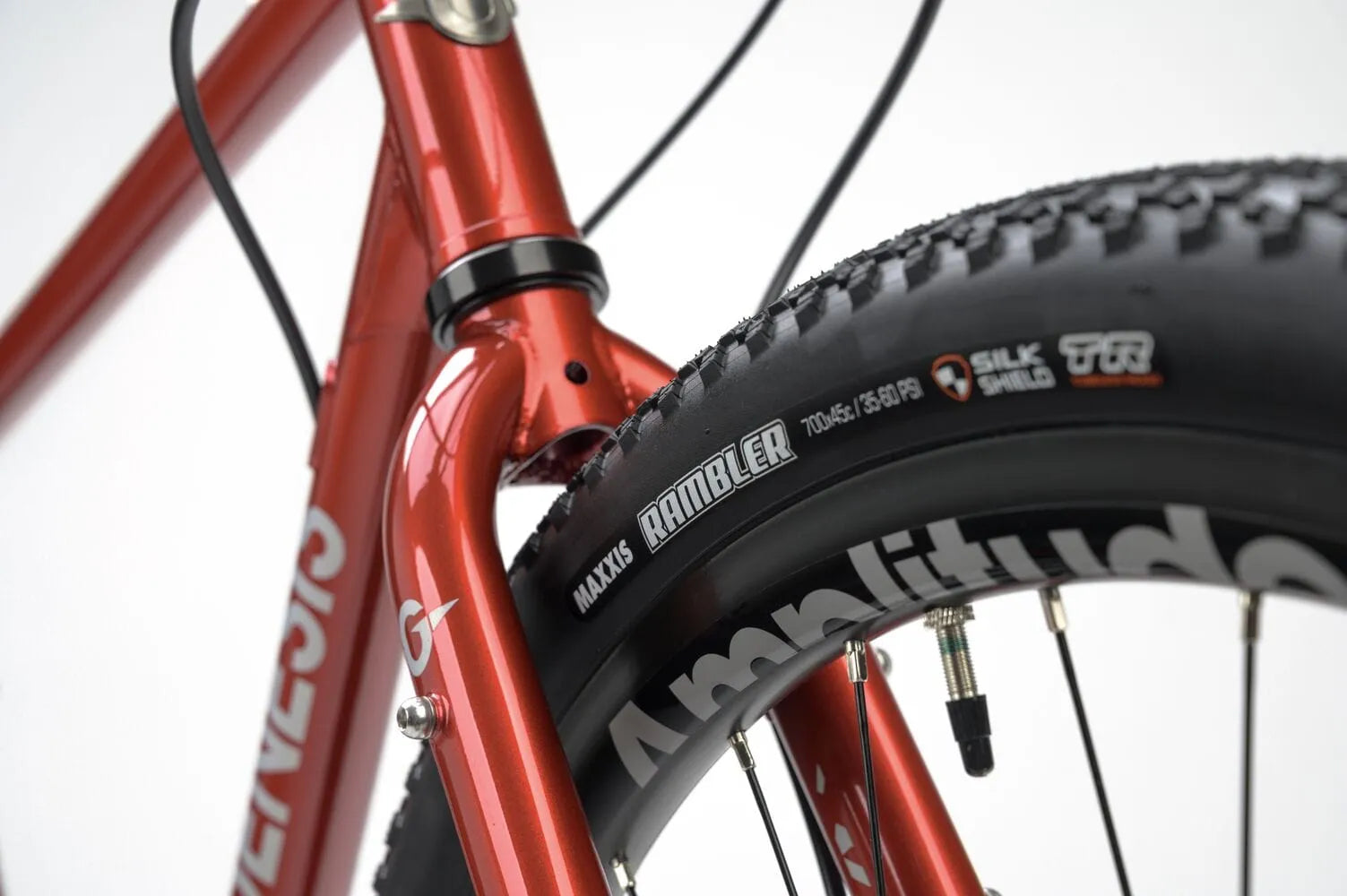

- Tread for days - Like it's more premium bretherine, the Croix De Fer 10 Flat Bar gets tubeless ready 45mm Maxxis Rambler tyres mounted to pre-taped tubeless ready amplitude G100 wheels.
- Thor's Favourite - Our Mjolnir Chromoly tubeset is crafted to deliver a sublime ride feel with excellent comfort whilst also being immensely durable.
Specifications
Frame & Fork
- Genesis Mjolnir Chromoly Tubing
- Amplitude G100 Chromoly Fork
Drivetrain
- Shimano CUES U4000
- 1 x 9-speed

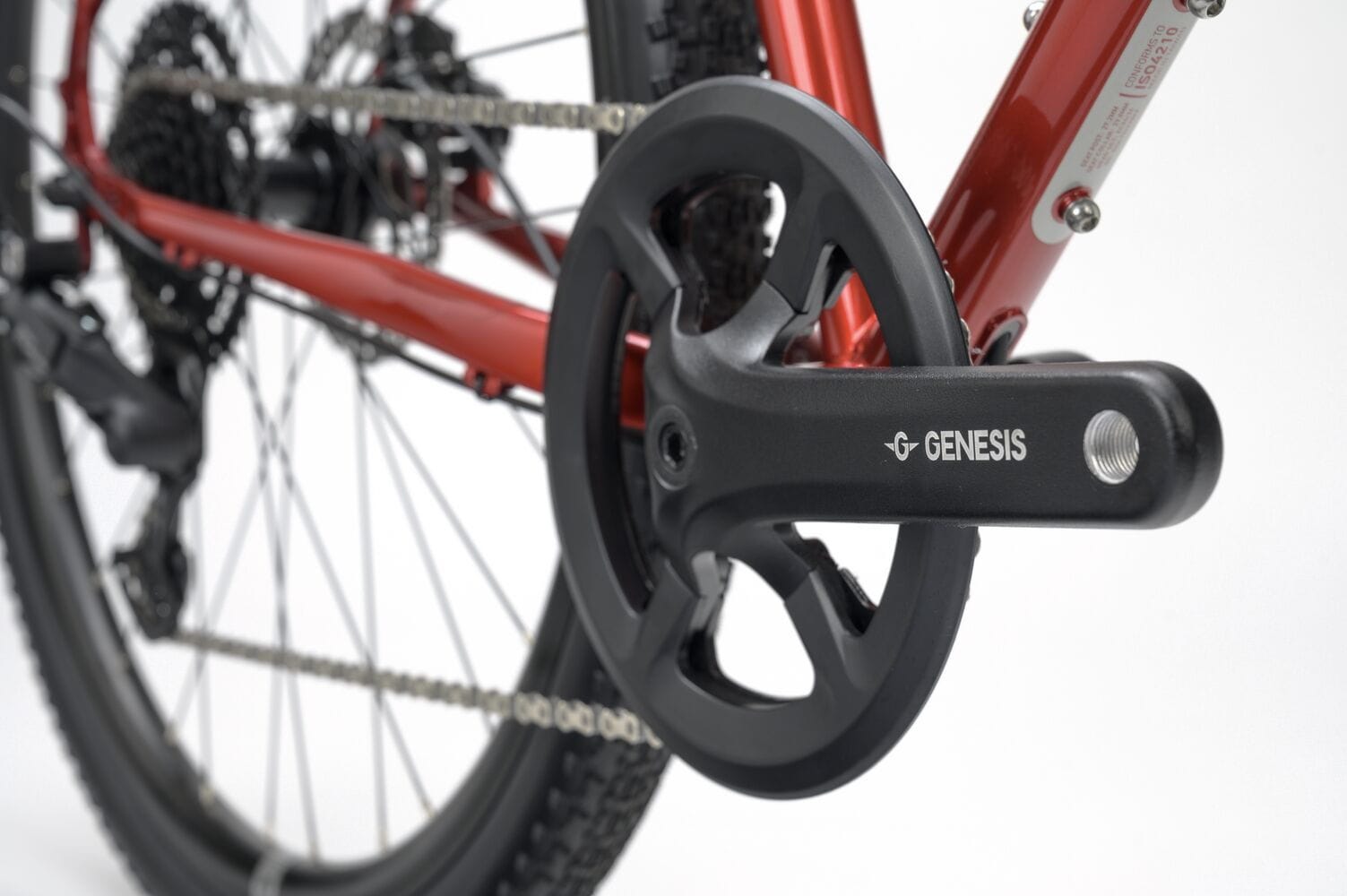

- 42T Chainring
- 11-41T Cassette
Components
- Amplitude F100 Flat Handlebar
- Amplitude G100 Stem & Seatpost
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Six-Bolt Rotor Mounts
- QR Front & Rear
Brakes
- Shimano MT-200 Hydraulic Disc
- 160mm Rotors Front & Rear
Tyres
- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 552 | 566 | 585 | 604 | 623 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Headtube Angle | 71 | 71 | 71 | 71 | 71 |
| Headtube Length | 100 | 115 | 135 | 155 | 175 |
| Seattube Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Seattube Length | |||||
| Toptube (Effective) | 553 | 557 | 558 | 574 | 589 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1042 | 1046 | 1043 | 1059 | 1076 |
| BB Height | |||||
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Standover | 734 | 752 | 778 | 802 | 826 |
Sizing
XS: 156 - 164cm
S: 164 - 172cm
M: 172 - 180cm
L: 178 - 186cm
XL: 186 - 194cm
