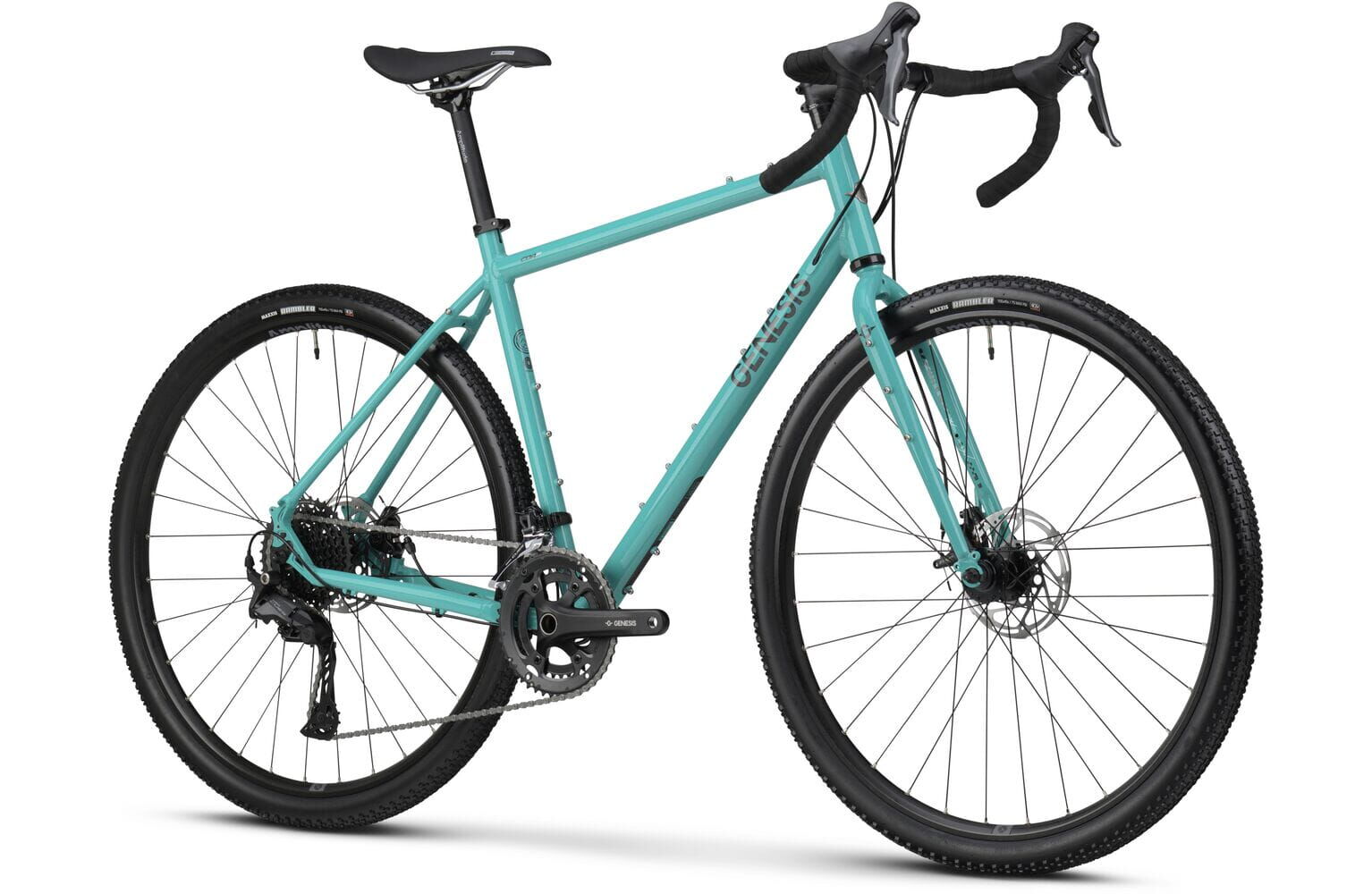

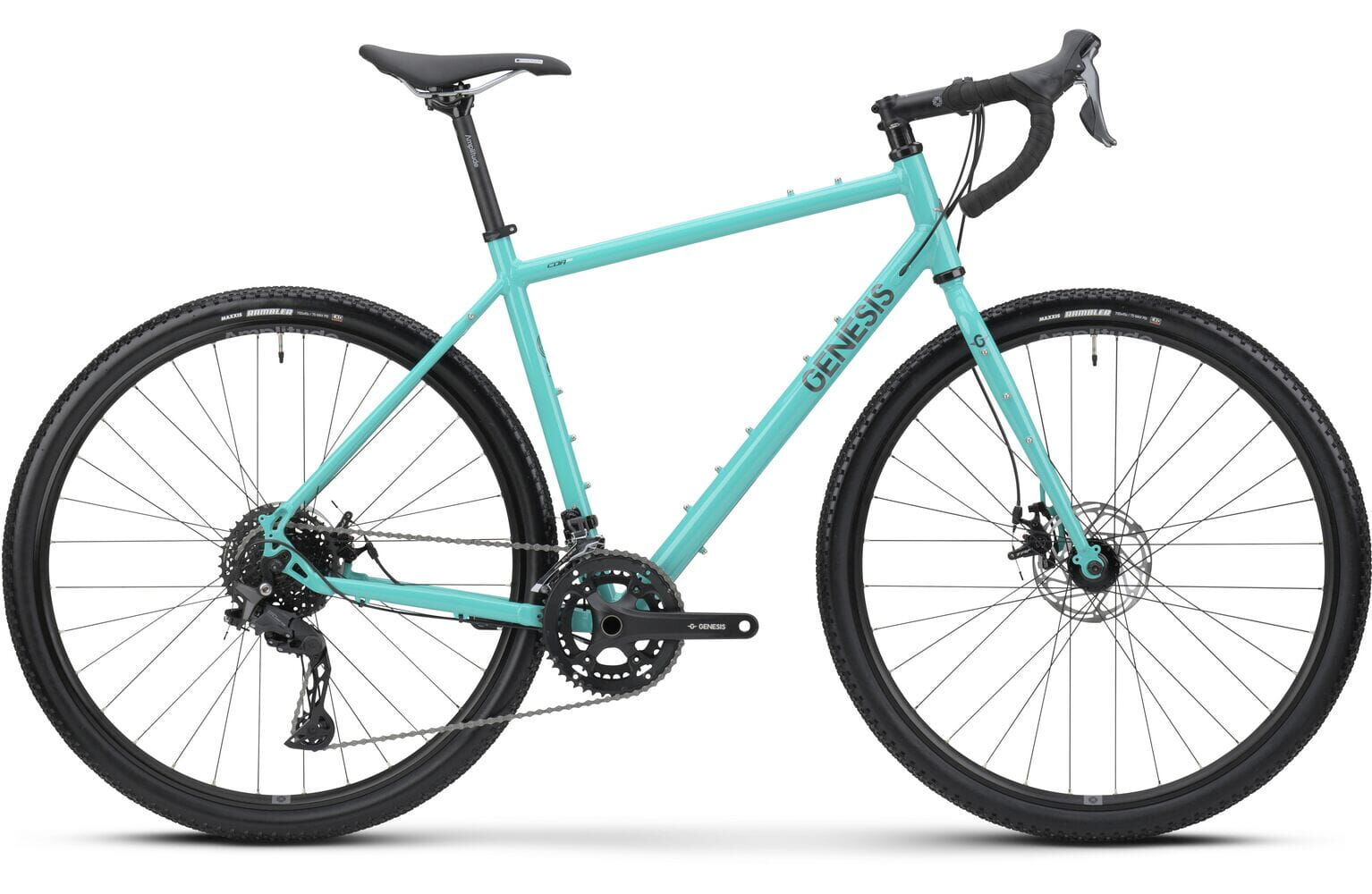

The Genesis CDA blends rugged gravel pedigree with urban practicality. Designed as our entry-level drop-bar bike, it is built to handle everything from mixed-surface trails to early morning commutes — lightweight, comfortable, and dependable.

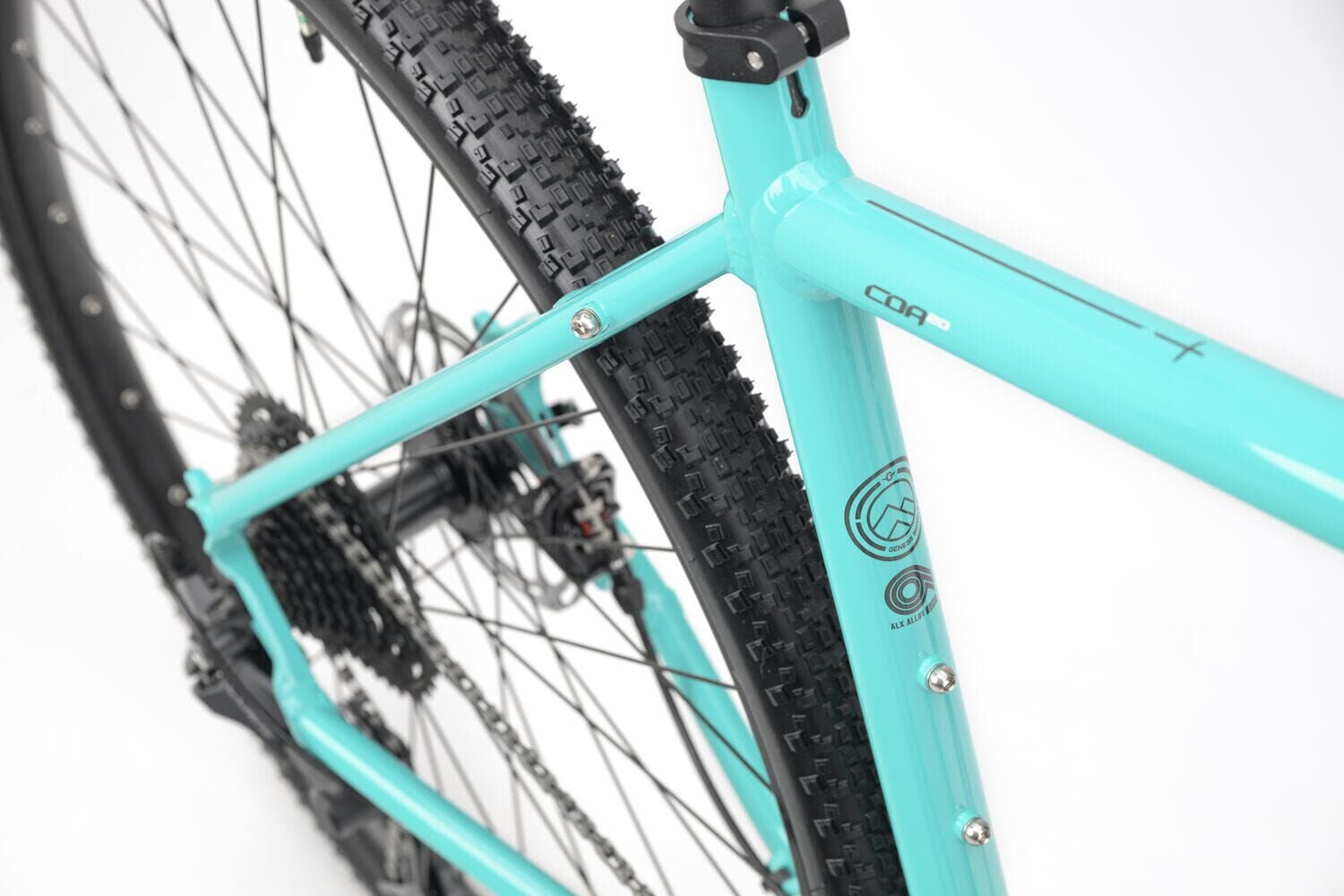

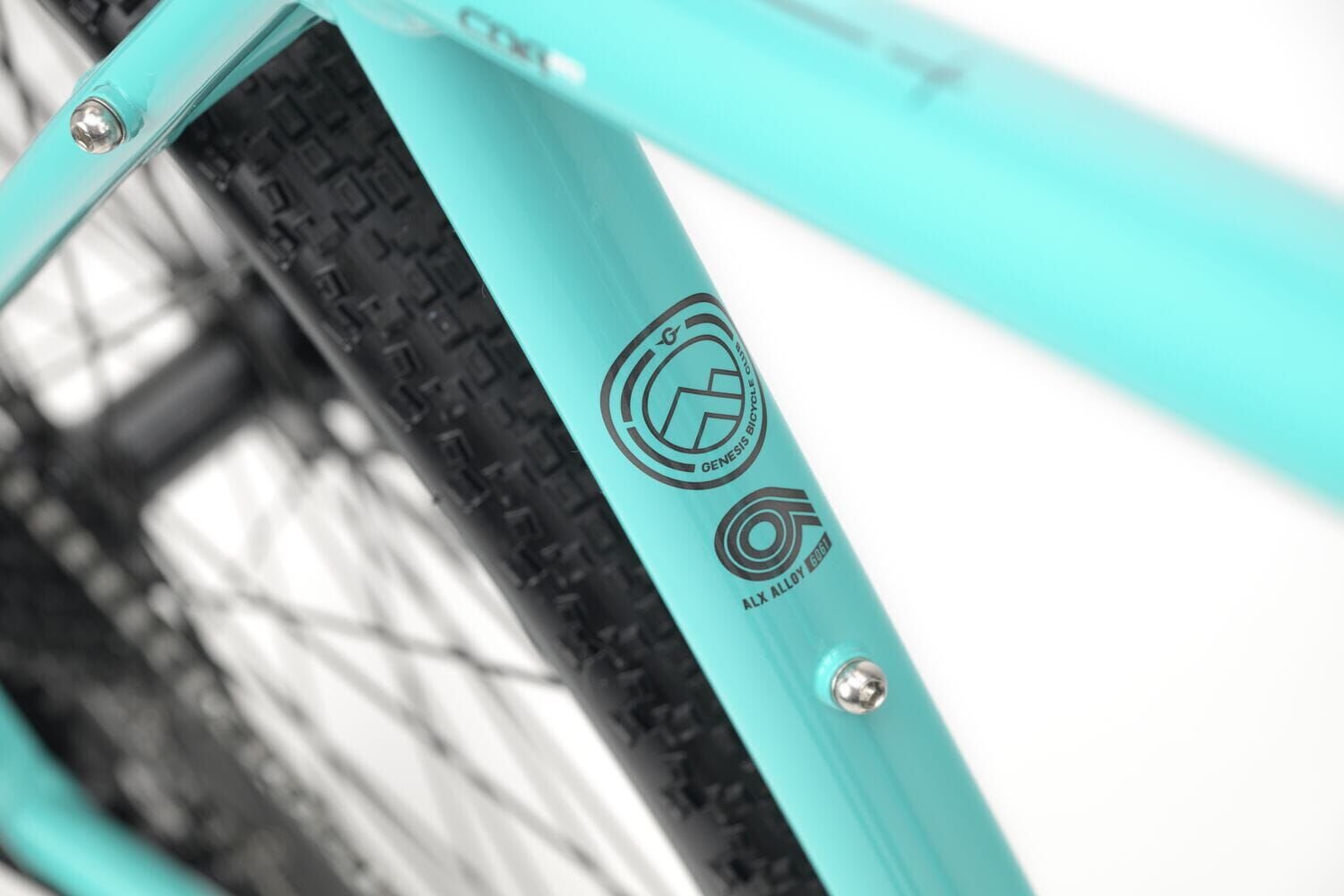

6061 Alloy Frameset

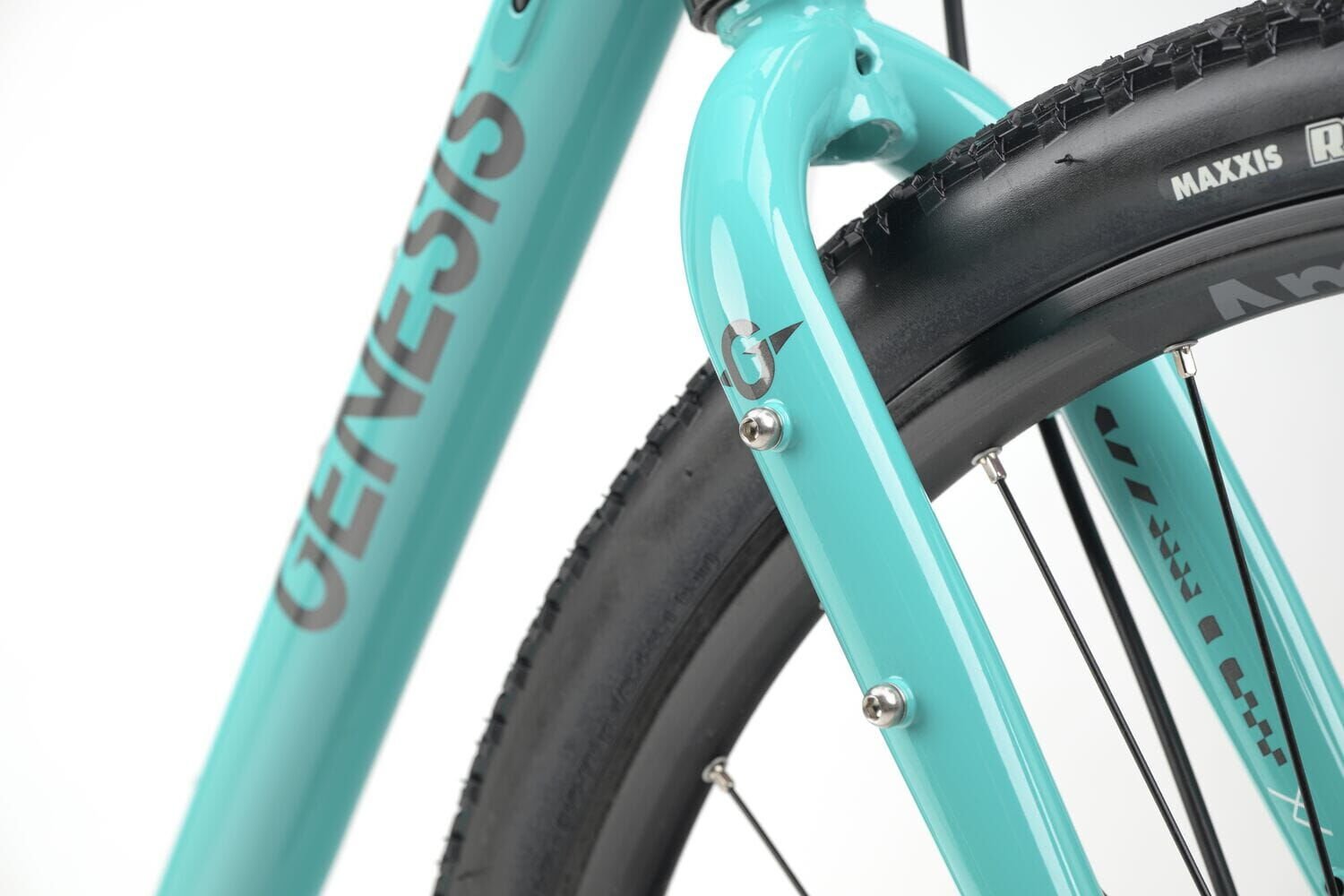

The ALX8 6061 aluminium tubeset makes the CDA a lightweight, dependable allrounder. Combined with a chromoly fork and increased tyre clearance, the ride is sublime.

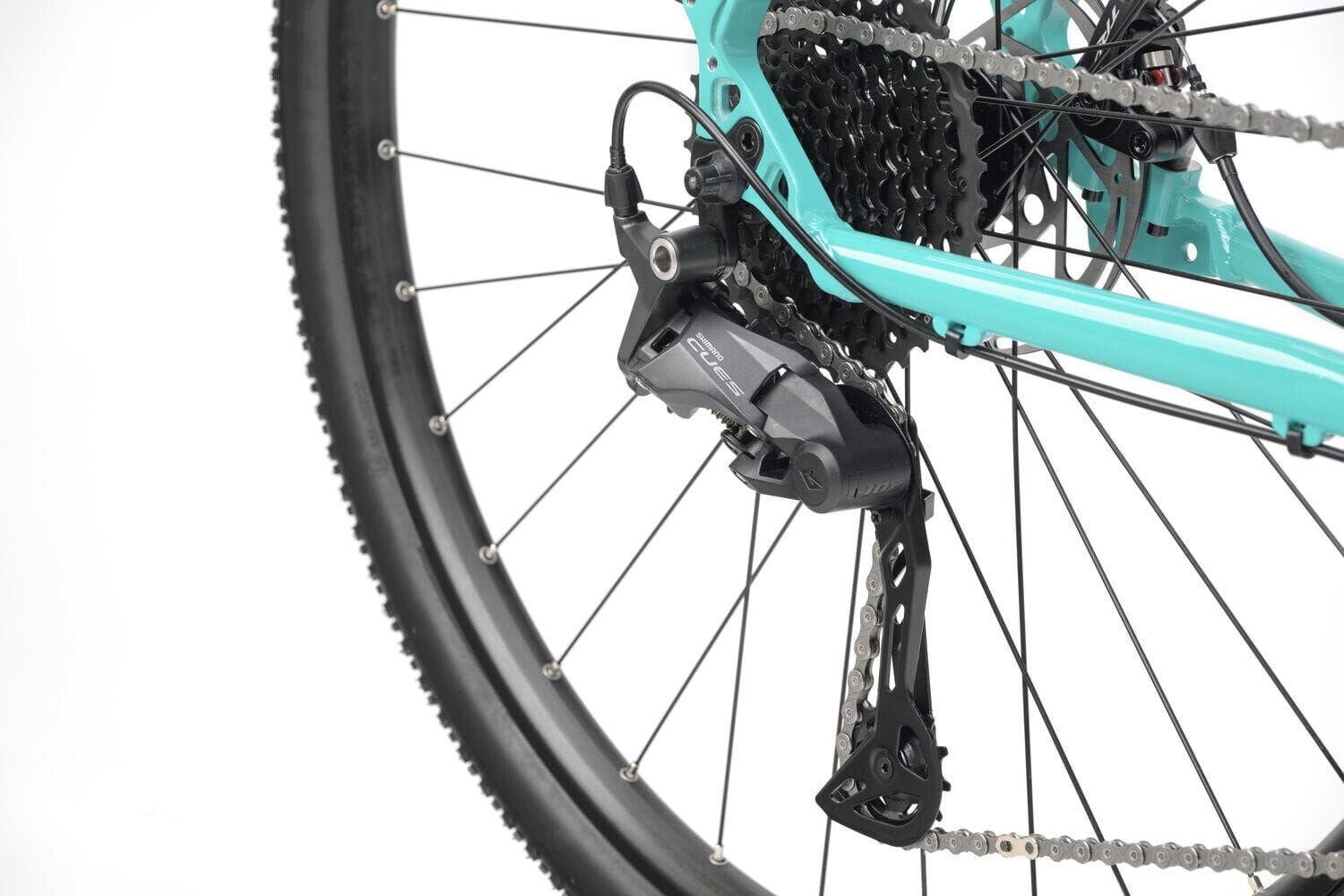

Shimano Cues

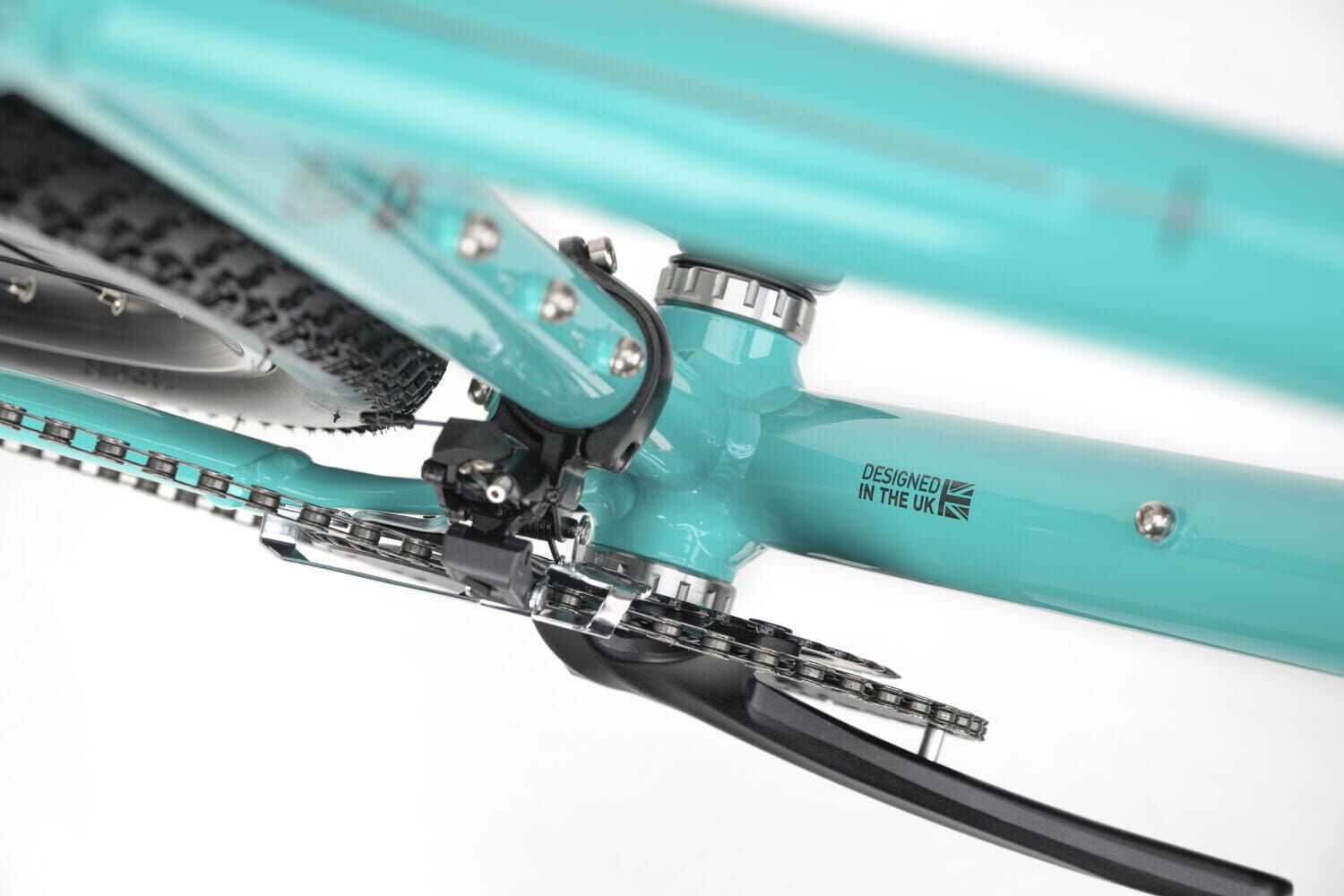

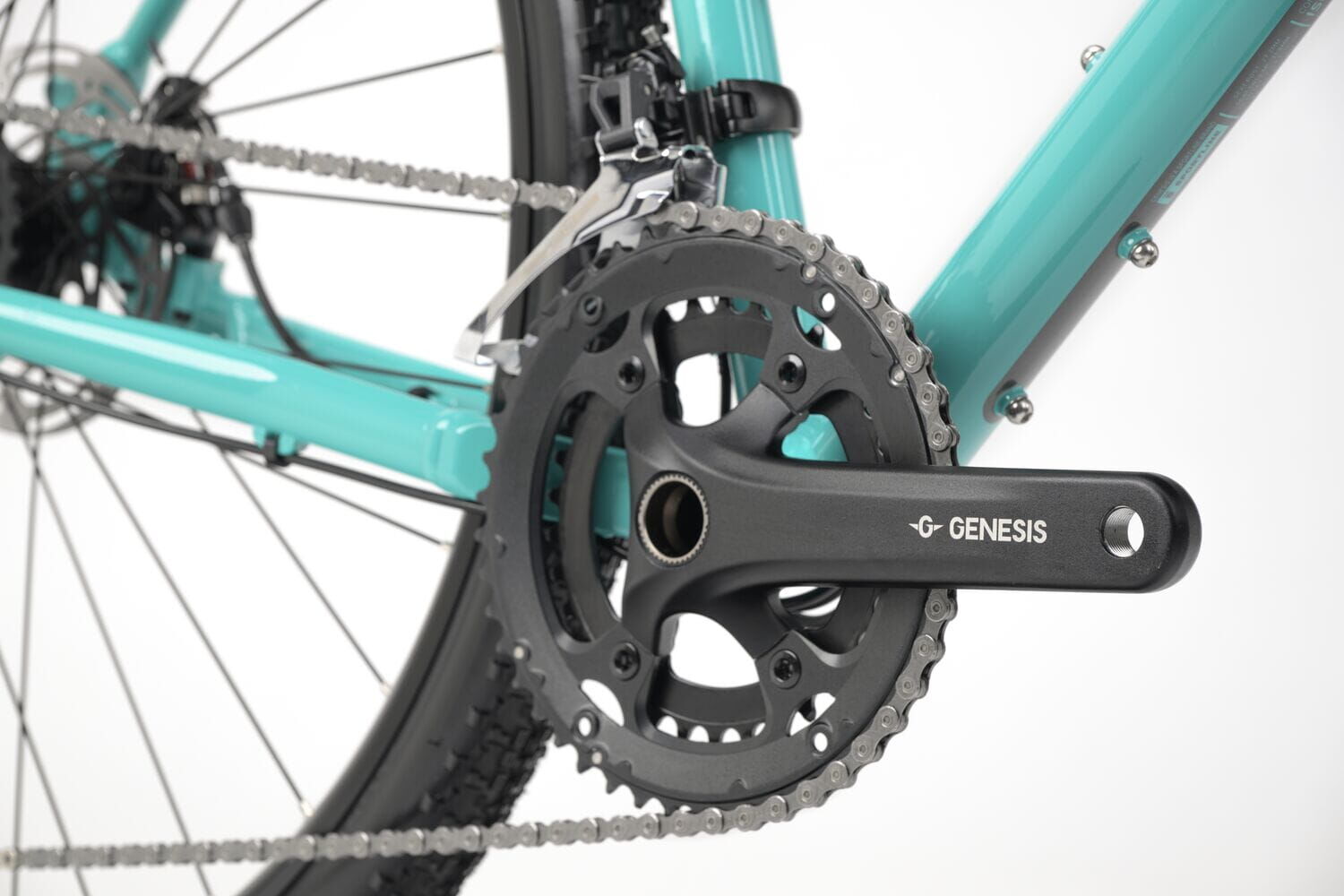

A Shimano cues 2 x 10 speed drivetrain combined with our own 46/30T chainset gives confidence inspiring shifting and reliability on any terrain.

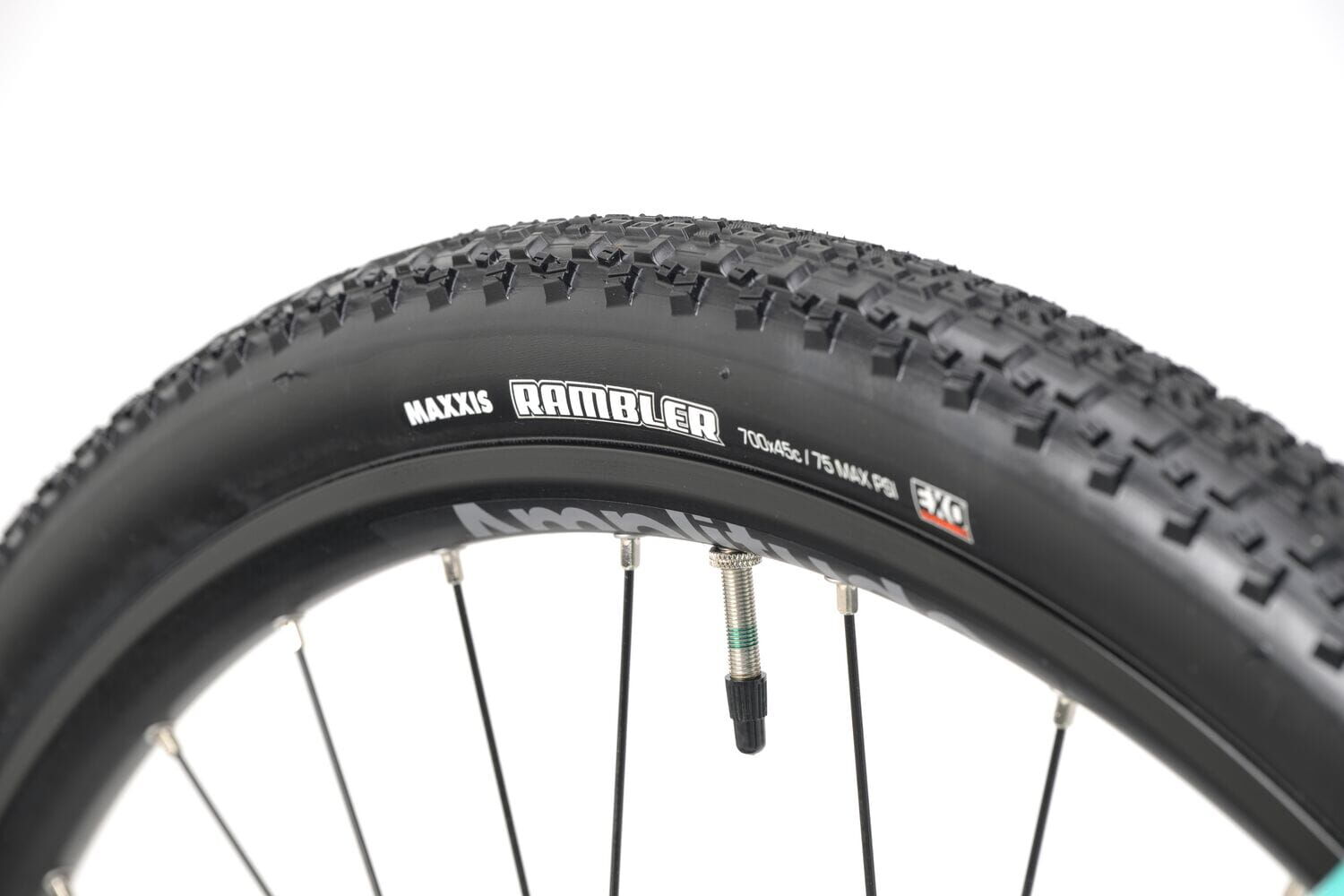

Big Tyres
The CDA now features volumous 45mm maxxis rambler tyres for added comfort on all surfaces and increased confidence offroad.

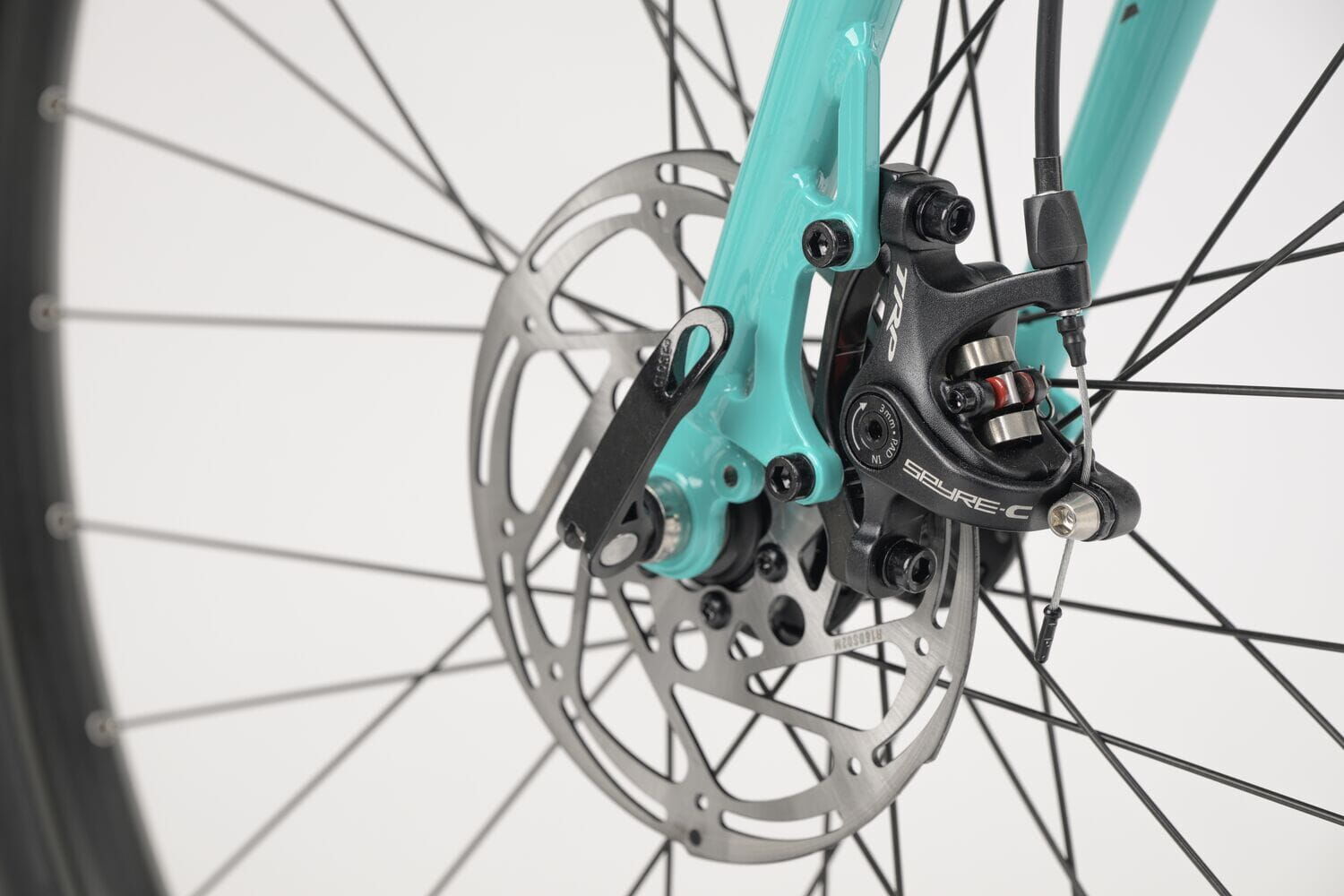

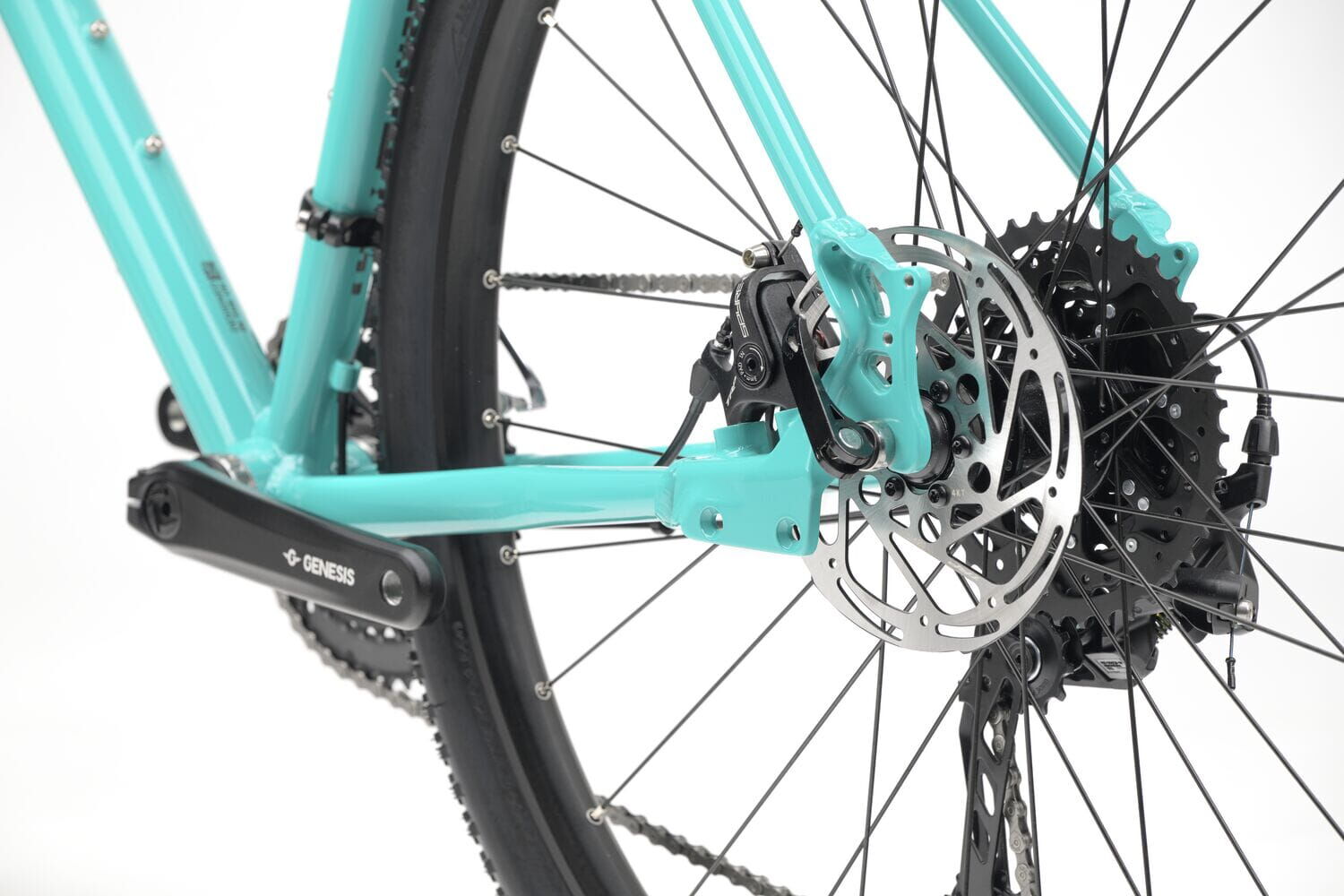

Powerful Brakes
TRP's dual piston actuated design combines the ease of maintence of a mechanical brake with the improved lever feel and stopping power from a hydraulic system.
Finish

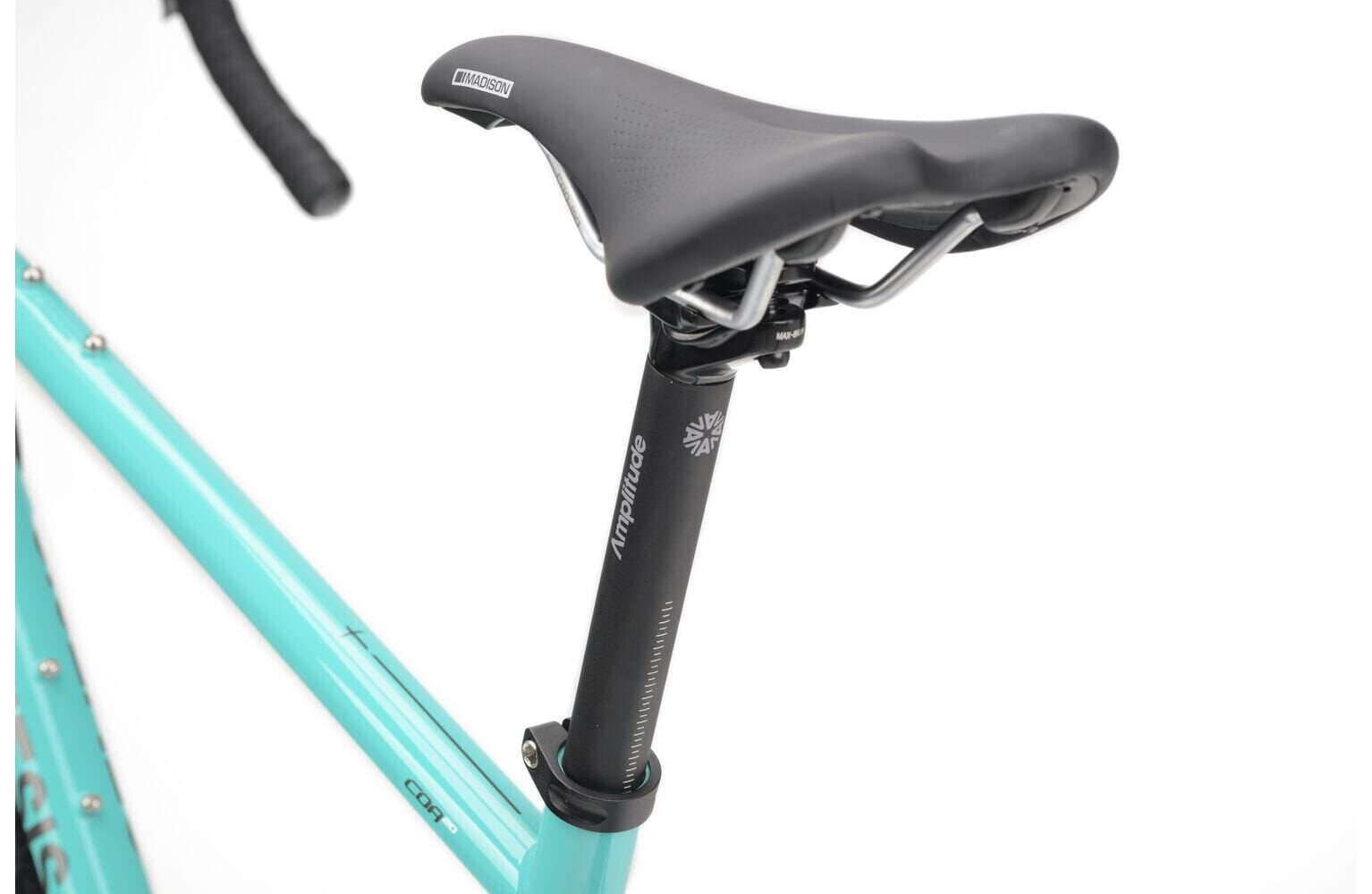

High quality amplitude components and a proven madison flux saddle round out the CDA 20
Specifications
| Frame | Genesis ALX8 6061 Aluminium Tubing |
|---|---|
| Fork | Amplitude G100 Chromoly |

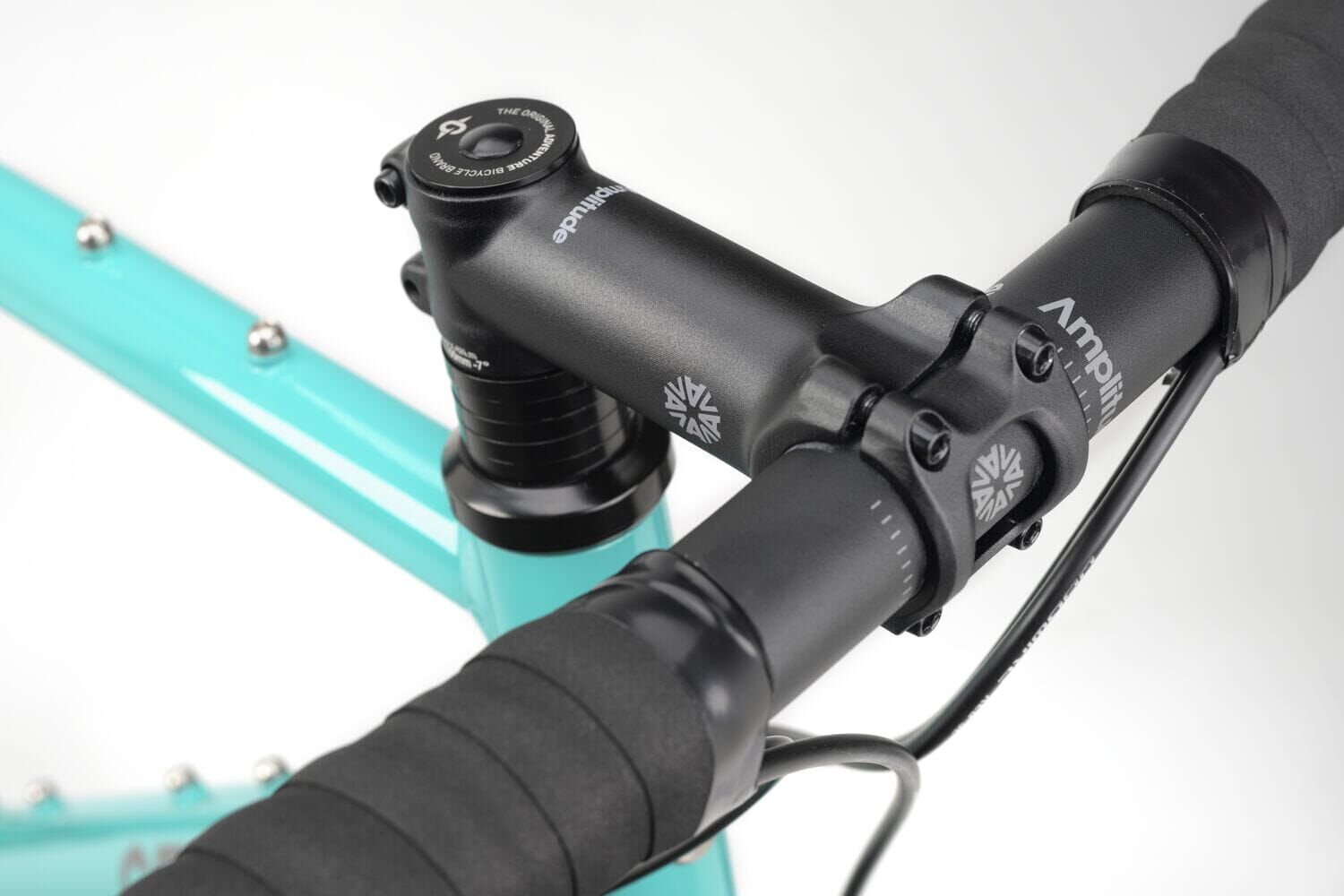

| Stem | Amplitude G50 |
| Handlebars | Amplitude G50 |

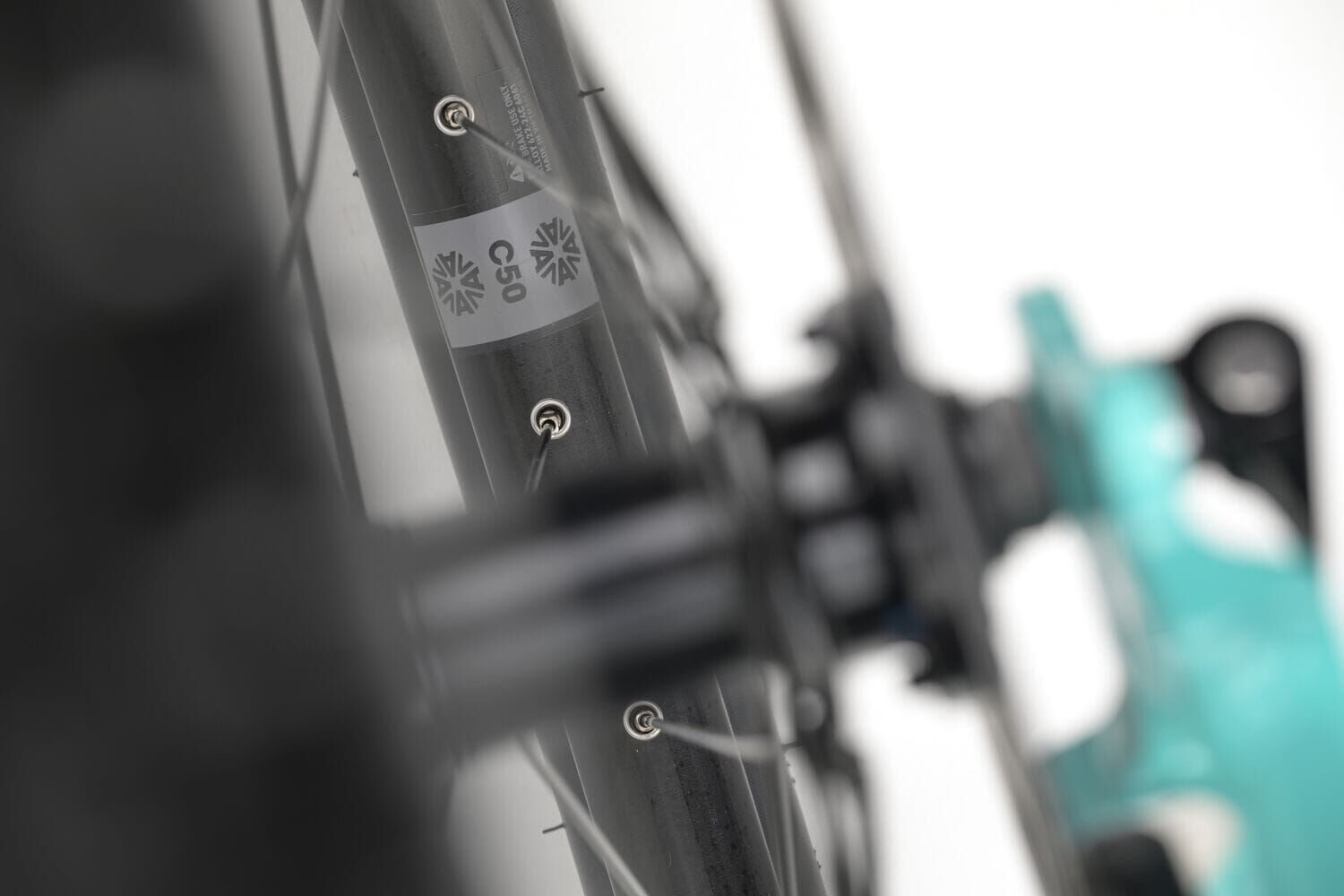

| Wheels | Amplitude G50 6-Bolt, QR Front & Rear |
| Tyres | Maxxis Rambler 700 x 45c |
| Shifter | Shimano Cues U6000 2 x 10 Speed |
| Crankset | Genesis 46/30T |
| Cassette | Shimano Cues 11-39T |
| Brakes | TRP SPyre Mechanical Disc |
| Rotors | 160mm |
| Saddle | Madison Flux Switch |
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 561 | 584 | 603 | 624 | 645 |
| Reach | 375 | 375 | 385 | 395 | 405 |
| Headtube Angle | 70 | 71 | 71 | 71.5 | 72 |
| Headtube Length | 115 | 135 | 155 | 175 | 195 |
| Seattube Angle | 74 | 73.5 | 73.5 | 73 | 72.5 |
| Seattube Length | 470 | 500 | 530 | 550 | 580 |
| Toptube (Effective) | 536 | 547 | 564 | 586 | 608 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1035 | 1033 | 1049 | 1061 | 1072 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Stem Length | 100 | 100 | 100 | 100 | 100 |
| Handlebar Width | 420 | 440 | 440 | 460 | 460 |
| Effective Reach | 475 | 475 | 485 | 495 | 505 |
