Genesis
Genesis CDA 10 Gravel Bike 2026
Color
Size
Availability
Click & Collect
Genesis CDA 10 Gravel Bike 2026
Bluey Armstrong / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609One Bike Many Hats
The Genesis CDA blends rugged gravel pedigree with urban practicality. Designed as our entry-level drop-bar bike, it is built to handle everything from mixed-surface trails to early morning commutes — lightweight, comfortable, and dependable.

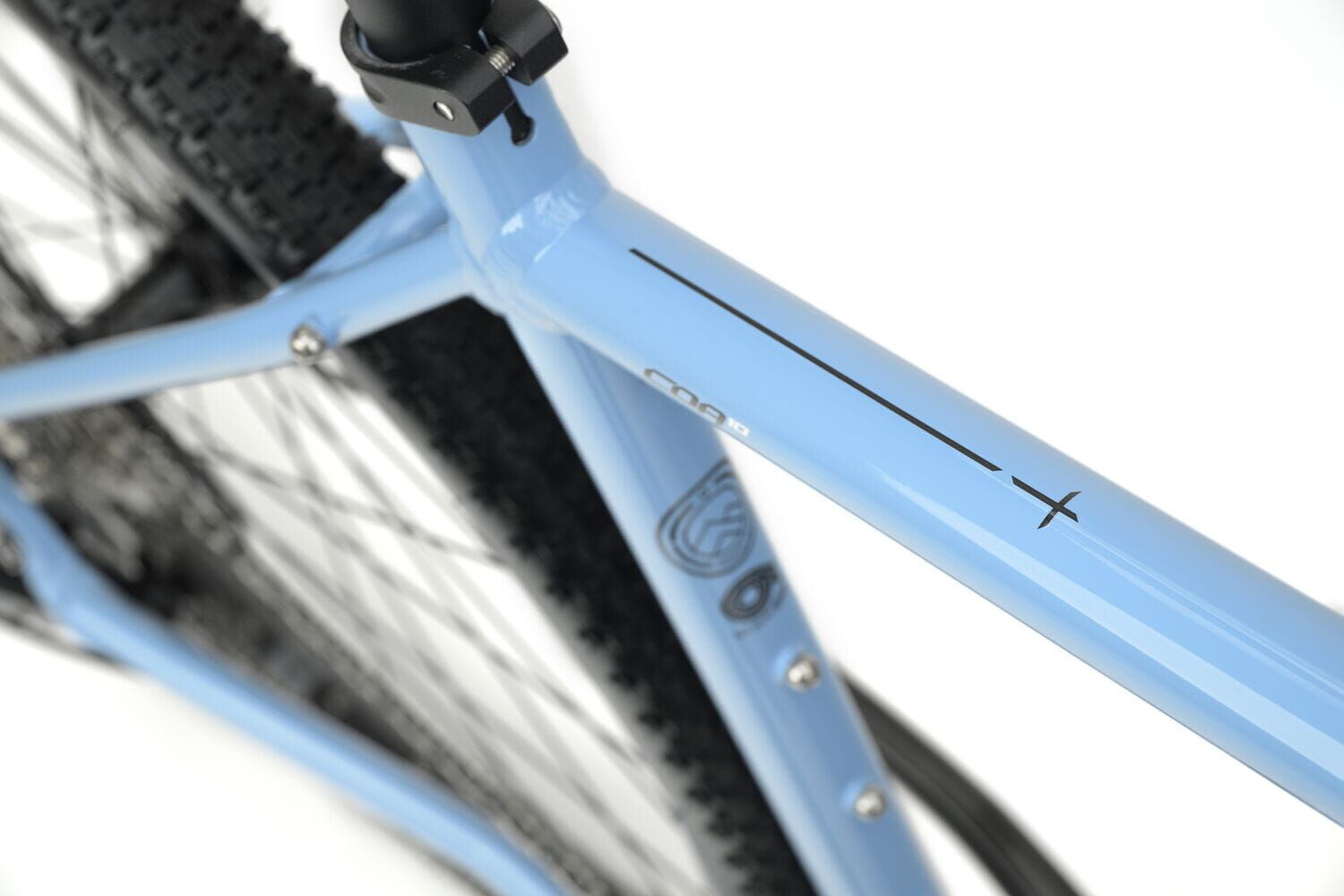

6061 Alloy Frameset
The ALX8 6061 aluminium tubeset makes the CDA a lightweight, dependable allrounder. Combined with a chromoly fork and increased tyre clearance, the ride is sublime.

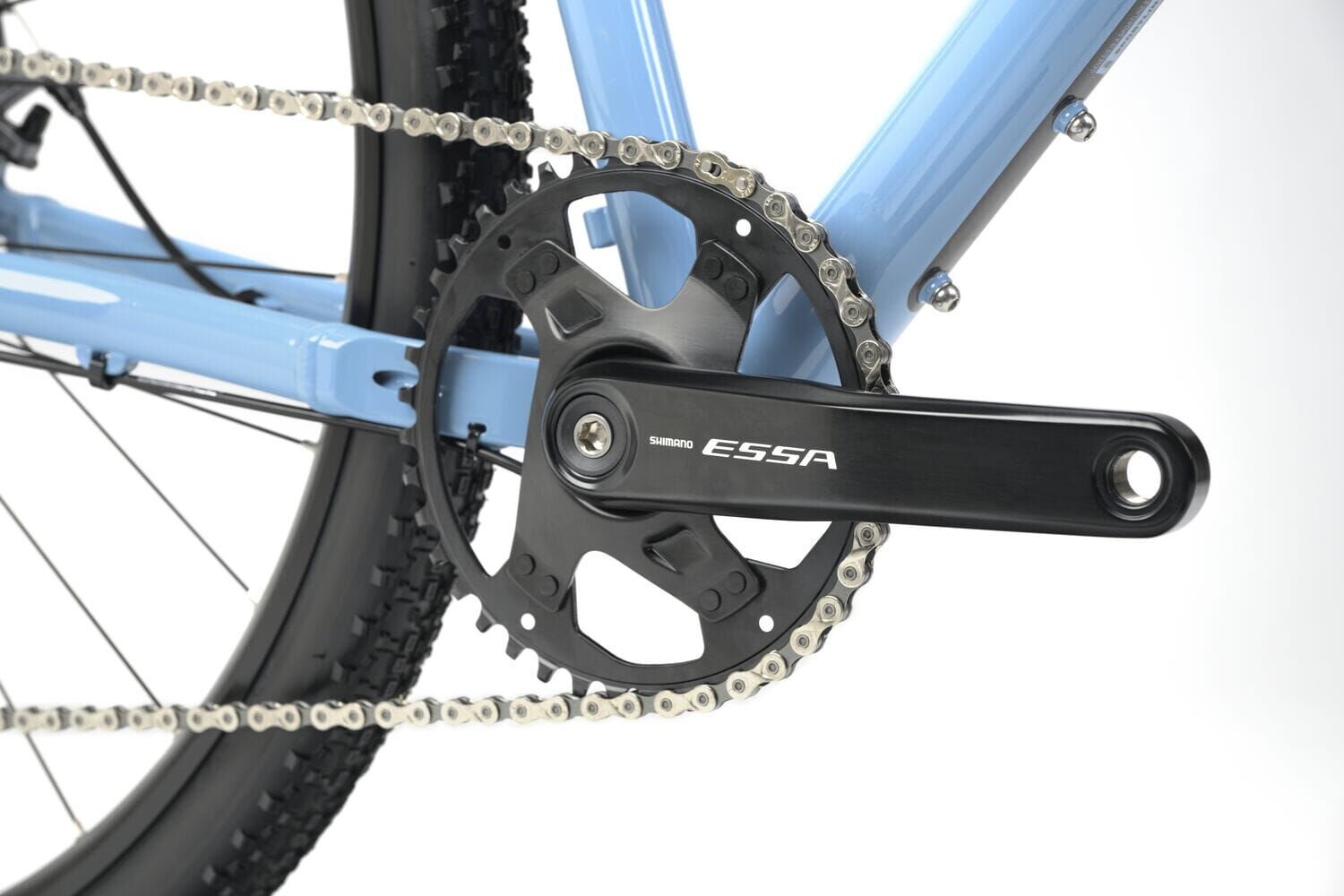

1X Drivetrain
The CDA 10 uses the latest Shimano ESSA drivetrain with a single front chainring and a wide range 8speed cassette in the back. This adds further durability and serviceability to an already dependable drivetrain.

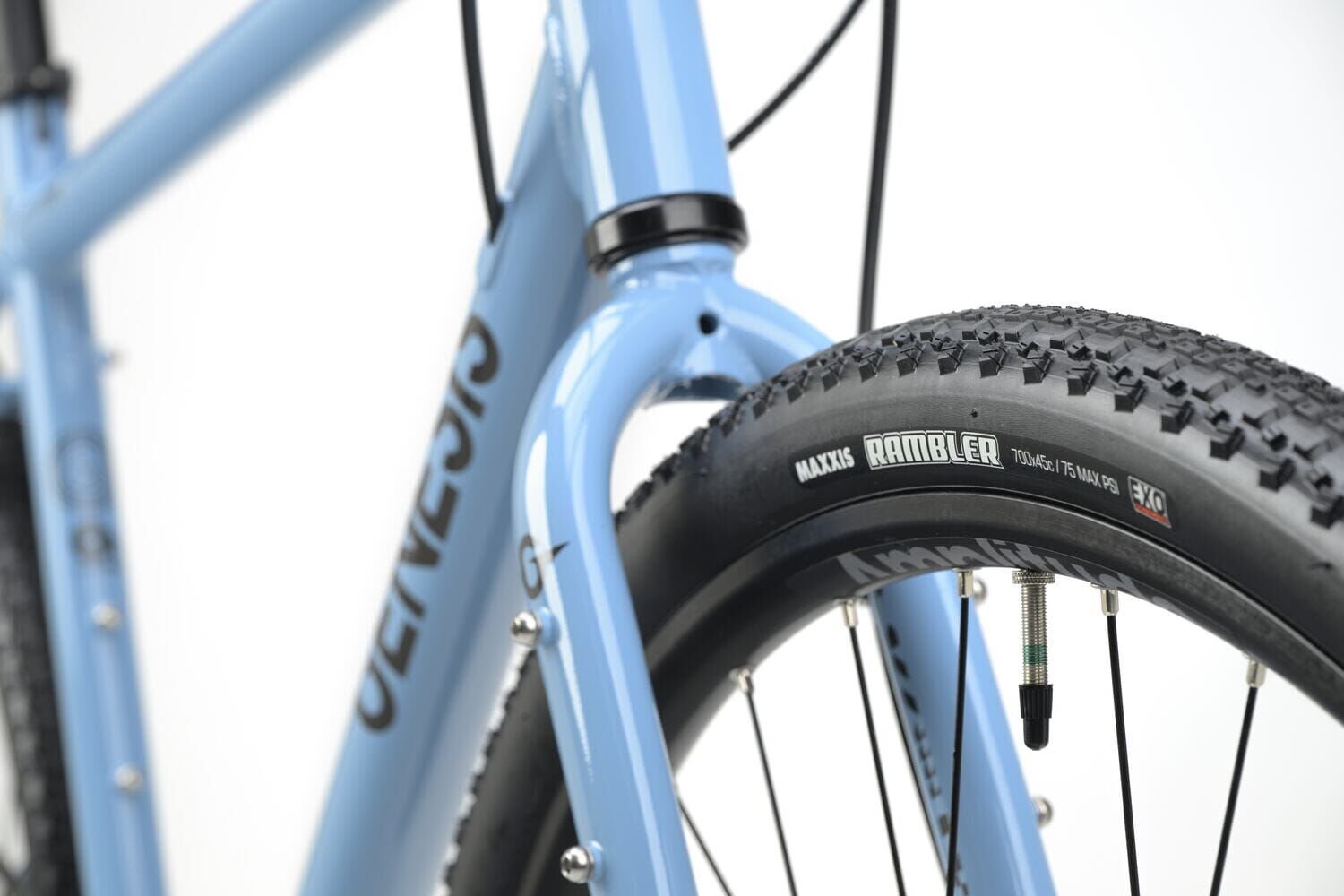

Big Tyres
The CDA now features volumous 45mm maxxis rambler tyres for added comfort on all surfaces and increased confidence offroad.
Specifications
Frame | Genesis ALX8 6061 Aluminium Tubing |
---|---|
Fork | Amplitude G100 Chromoly |
Stem | Amplitude G50 |
Handlebars | Amplitude G50 |
Wheels | Amplitude G50 6-Bolt, QR Front & Rear |
Tyres | Maxxis Rambler 700 x 45c |
Shifter | Shimano Essa U2000 8 Speed |
Crankset | Shimano Essa U2000 40T |

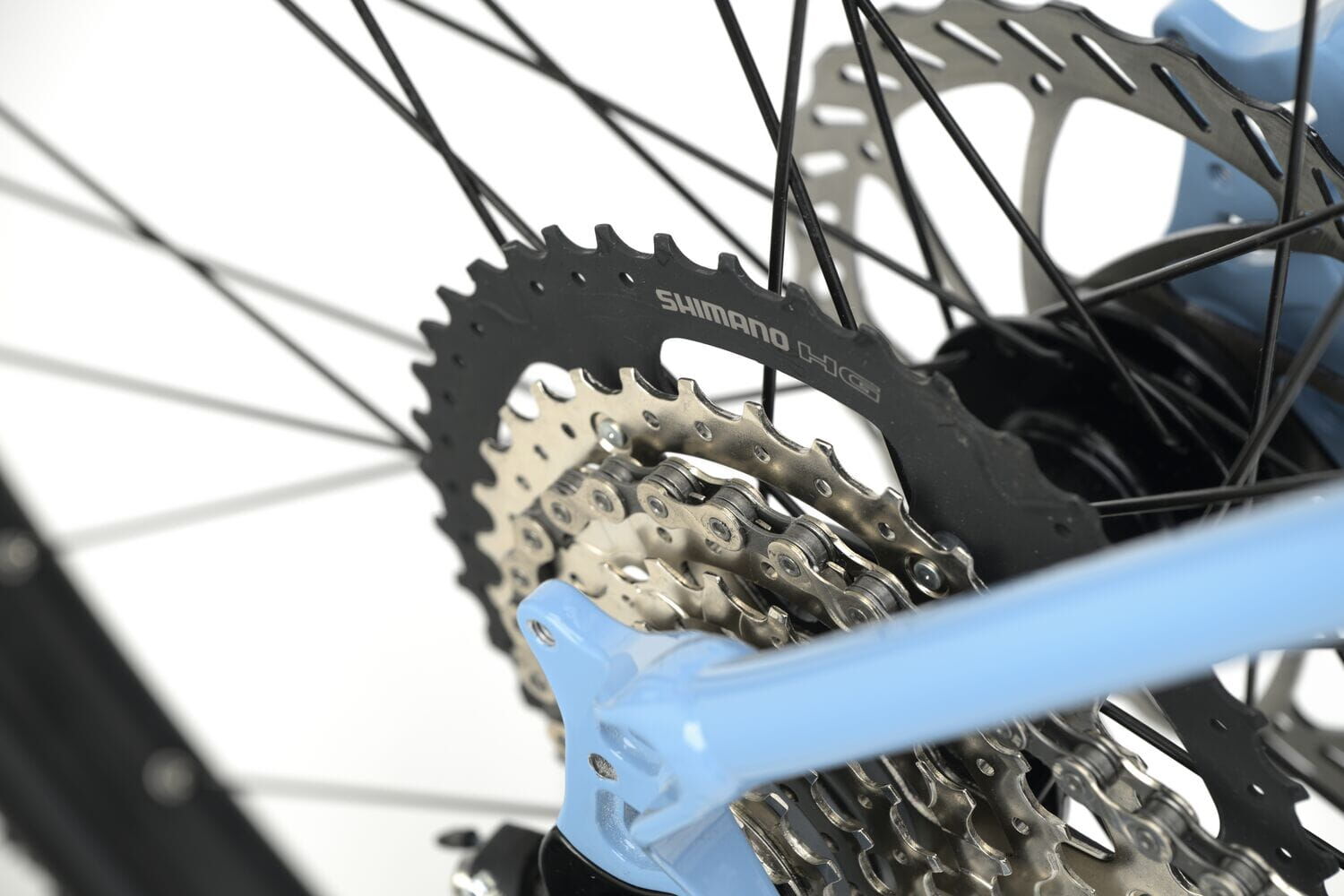

Cassette | Shimano Essa U2000 11-45T |
Brakes | Promax DSK-300 Mechanical Disc |
Rotors | 160mm |

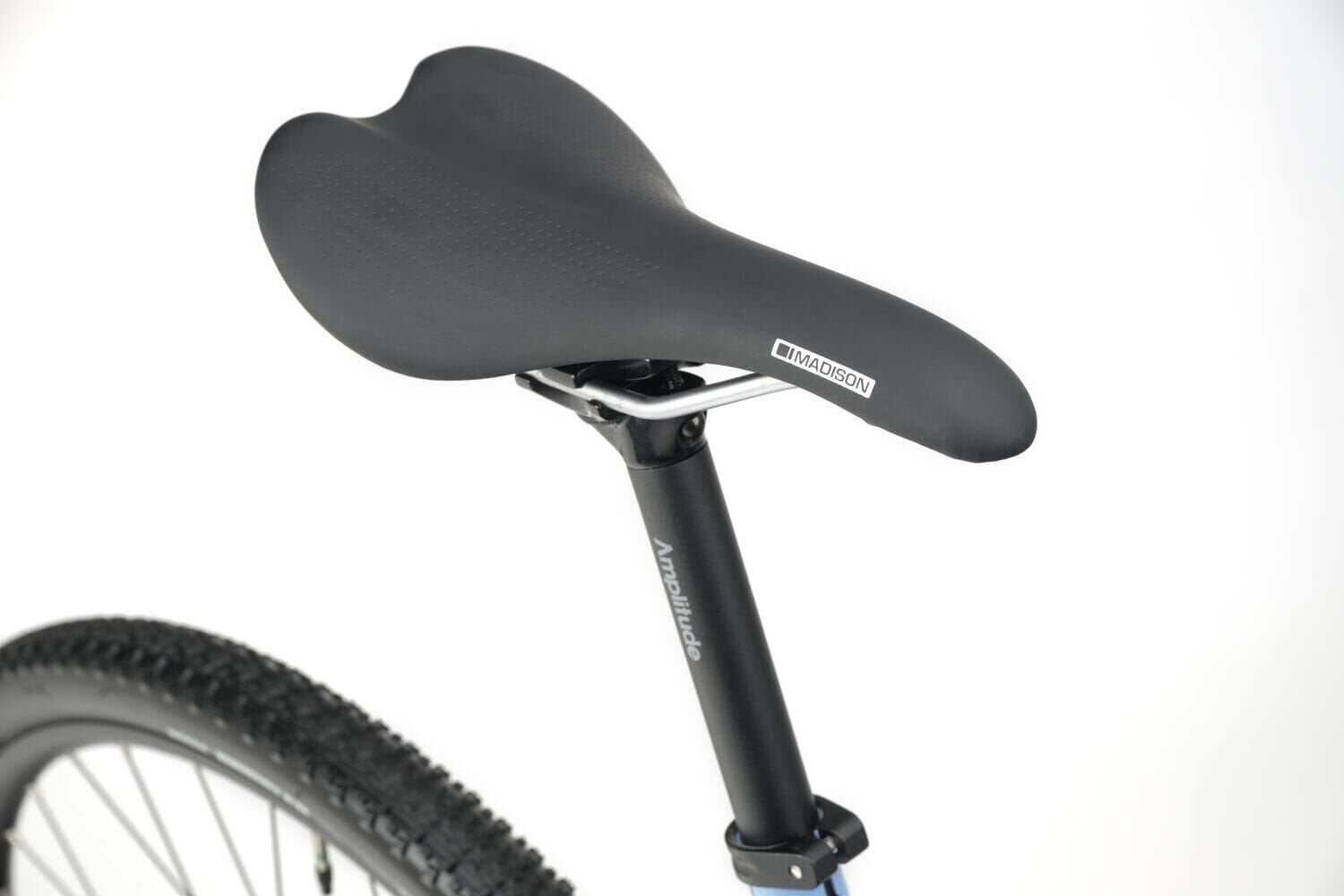

Saddle | Madison Flux Switch |
Geometry
XS | S | M | L | XL | |
---|---|---|---|---|---|
Stack | 561 | 584 | 603 | 624 | 645 |
Reach | 375 | 375 | 385 | 395 | 405 |
Headtube Angle | 70 | 71 | 71 | 71.5 | 72 |
Headtube Length | 115 | 135 | 155 | 175 | 195 |
Seattube Angle | 74 | 73.5 | 73.5 | 73 | 72.5 |
Seattube Length | 470 | 500 | 530 | 550 | 580 |
Toptube (Effective) | 536 | 547 | 564 | 586 | 608 |
Chainstay Length | 435 | 435 | 435 | 435 | 435 |
Wheelbase | 1035 | 1033 | 1049 | 1061 | 1072 |
BB Drop | 73 | 73 | 73 | 73 | 73 |
Fork Offset | 50 | 50 | 50 | 50 | 50 |
Stem Length | 100 | 100 | 100 | 100 | 100 |
Handlebar Width | 420 | 440 | 440 | 460 | 460 |
Effective Reach | 475 | 475 | 485 | 495 | 505 |
