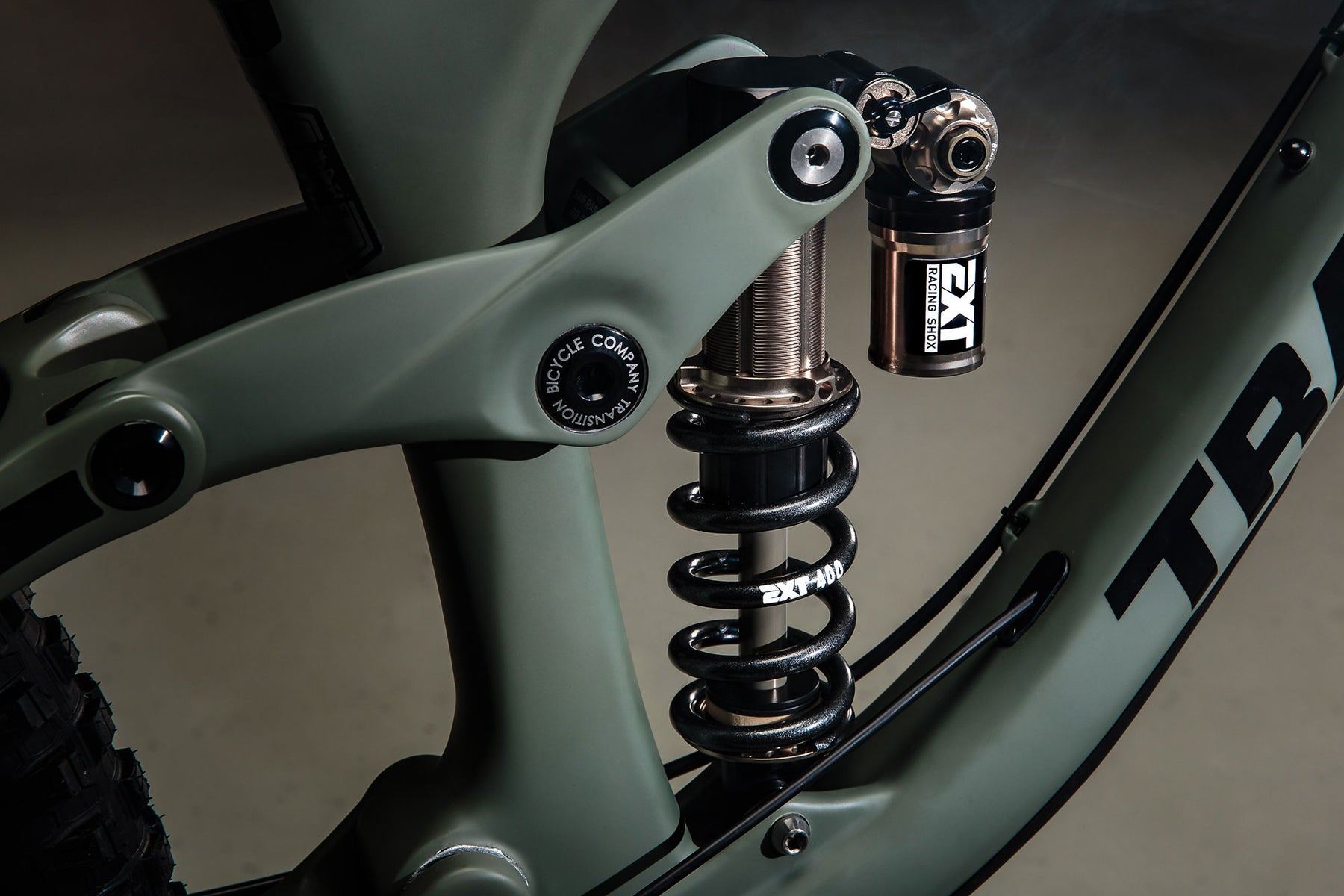

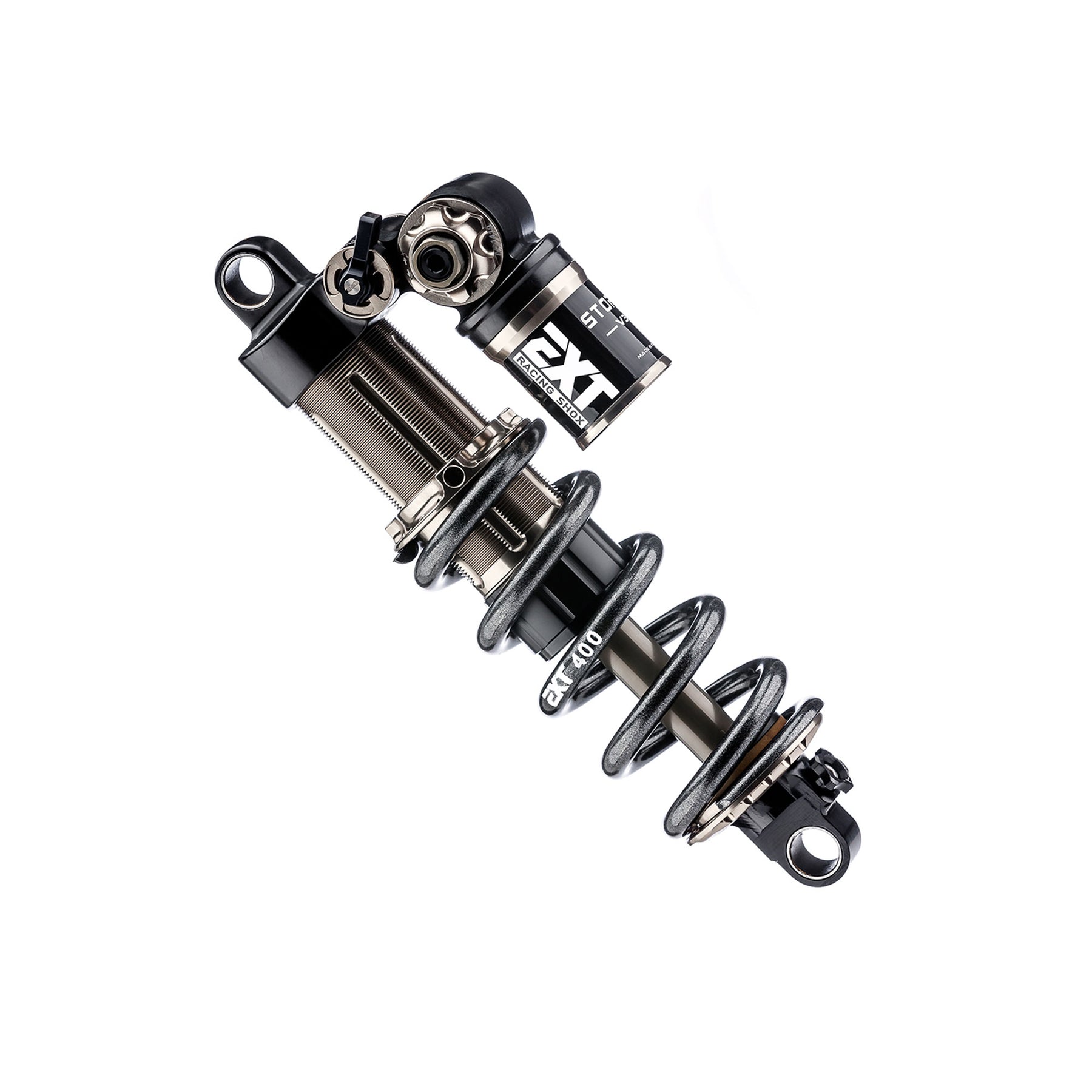

+3532840609The EXT STORIA was the first coil mountain bike shock with a 2 way lock-out system. The best performances and comfort in uphill or transfer without any bobbing. Our LOK system is completely customizable and has a special blow-off valve if you forget to open the switch before the downhill.

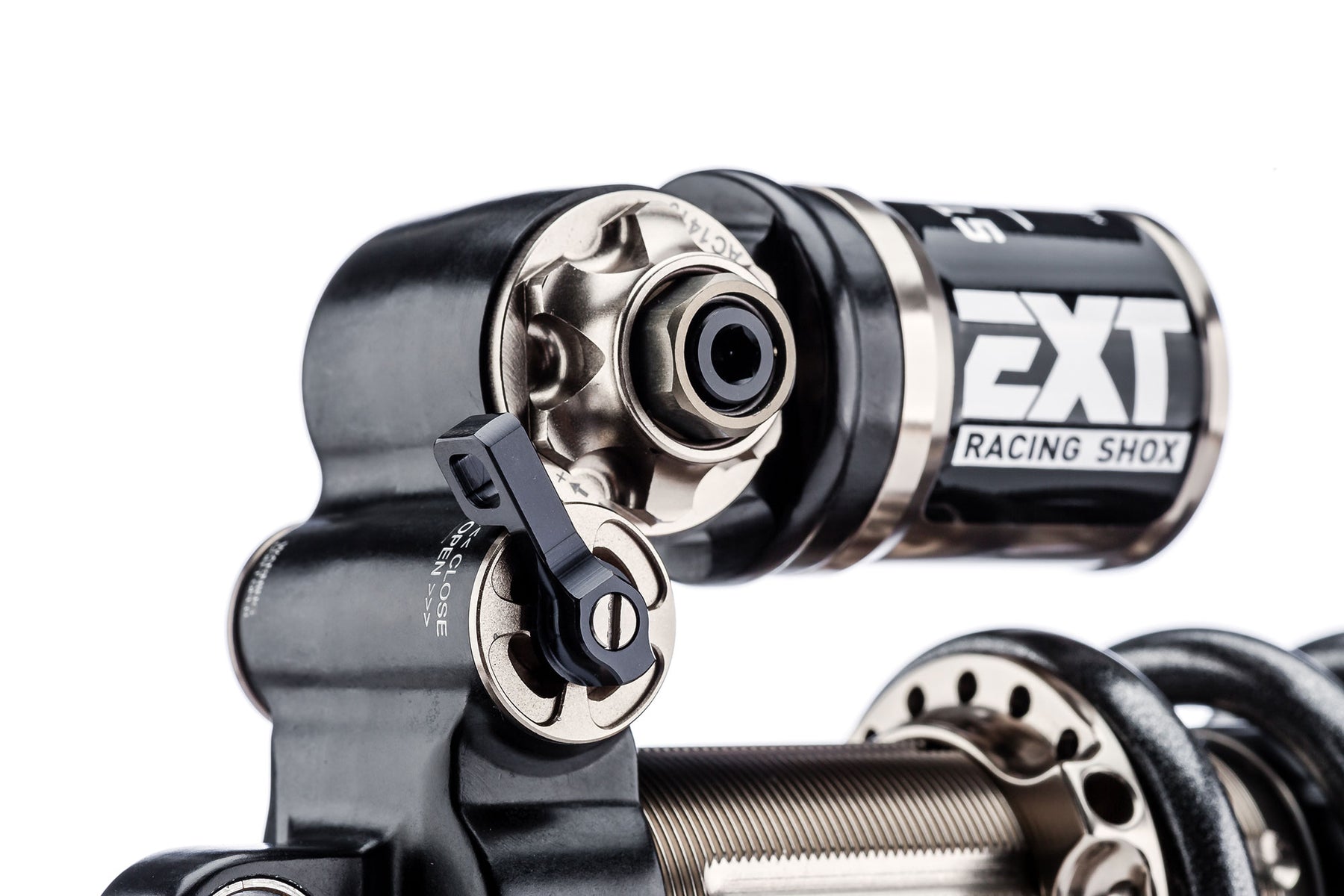

Our LOK technology is different than the other lock-out systems. A completely independent valve to control the oil flow. In this way is possible to have a firm lock-out but the max grip that you can need on rocky uphills trails. Full tyres grip but also a smoother and comfortable shock when you want to grab the hardest mountains. The most efficient lock-out to transfer all your strength to your bike.
The lightest enduro mountain bike coil shock. Only 635gr including spring (200×57 version with a 325 lbs spring).
As the previous STORIA model, V3 offers the revolutionary LOK Technology that allows a complete compression separate lock-out system, now totally renewed with a new design, a more progressive opening, and a totally silent working.
In order to allow every rider to use a softer spring rate and increase bike traction and handling, EXT engineers have imported from ARMA the hydralic bottom out system named HBC (Hydraulic Bottom-out Control), capable to develop more than 50% of hydraulic force only on the last part of the stroke, allowing riders to avoid any kind of bottom-out issues.
This technology allows the use of thinner bottom-out bumpers, increasing the amount of useful travel.
STORIA V3 is designed to serve those customers who want maximum performance of a pedal-platform equipped shock, with a great support on the last millimeters of bike rear travel, with the great performance of a coilover shock.
- Metric and Imperial sizing – Standard or Trunnion mount
- 4 way adjustable (LSC-HSC-LSR-Lok proprietary system)
- High flow Ø29 mm main piston
- Ø24 mm valve piston
- Ø14 mm shaft
- New Lok Technology – Progressive opening – Silent working
- Engineered rebound circuit to separate bump and rebound oil flow
- Ultra low-friction coating
- Factory tuned HBC technology
- Very low reservoir pressure for maximum sensitivity (55 PSI)
- Full custom hydraulic setup available
- No cavitation
- Very low hysteresis for high dynamic response
- High turbulent flow for very low temperature depending
- Low friction Energize seal
- Thinner bottom-out bumper

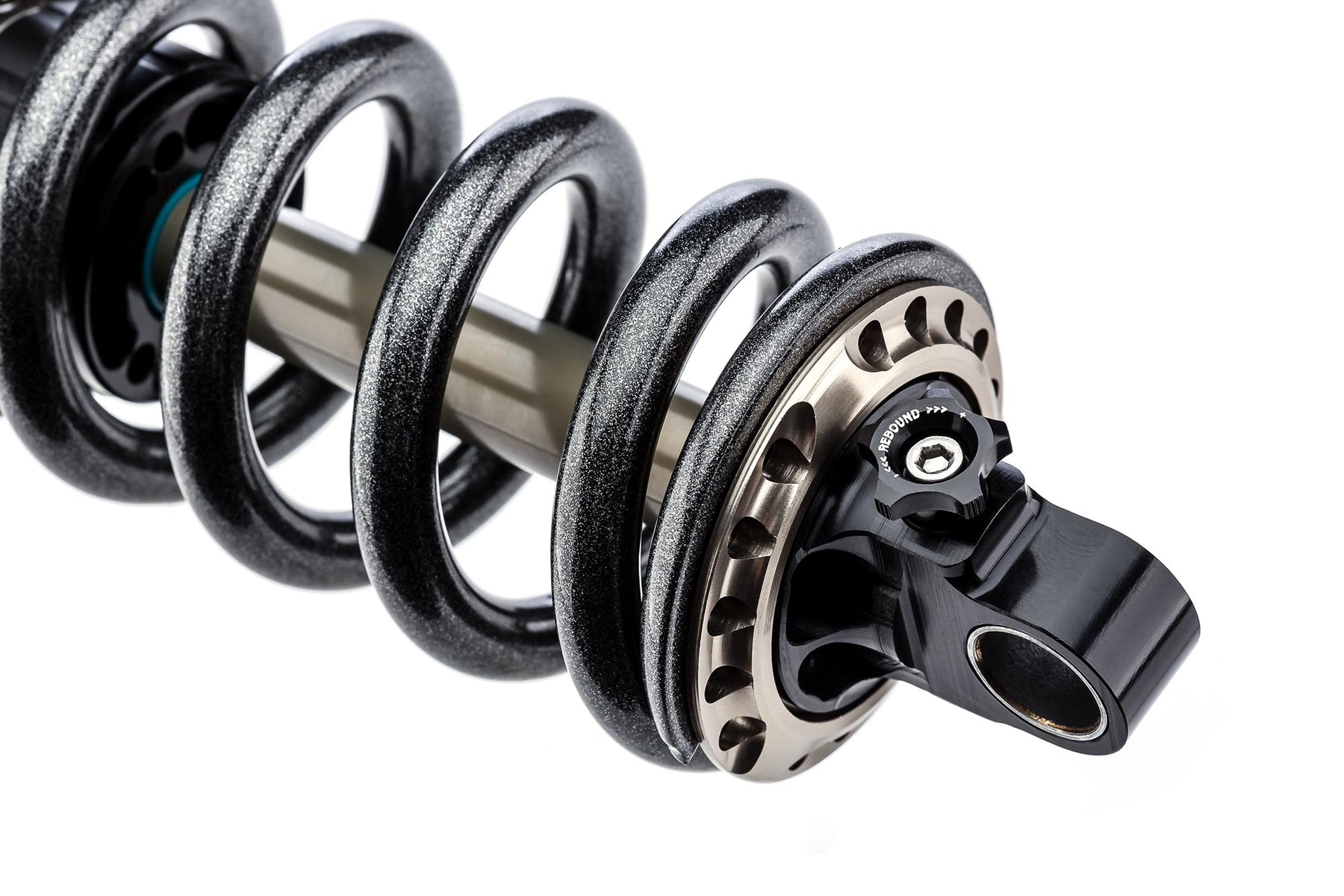

- New rebound knob for easy spring swap
Weight: 636 gr.
(200×57 mm. Standard mount – 375 lbs. spring)
AVAILABLE LENGTHS / STROKE
IMPERIAL
190 / 51 mm
200 / 57 mm
216 / 63.5 mm
222 / 67 mm
METRIC STANDARD
210 / 50 mm
210 / 52.5 mm
210 / 55 mm
230 / 57.5mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm
250 / 67.5 mm
250 / 70 mm
250 / 72.5 mm
250 / 75 mm
METRIC TRUNNION
165 / 45 mm
185 / 50 mm
185 / 52.5 mm
185 / 55 mm
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
225 / 67.5 mm
225 / 70 mm
225 / 72.5 mm
225 / 75 mm
