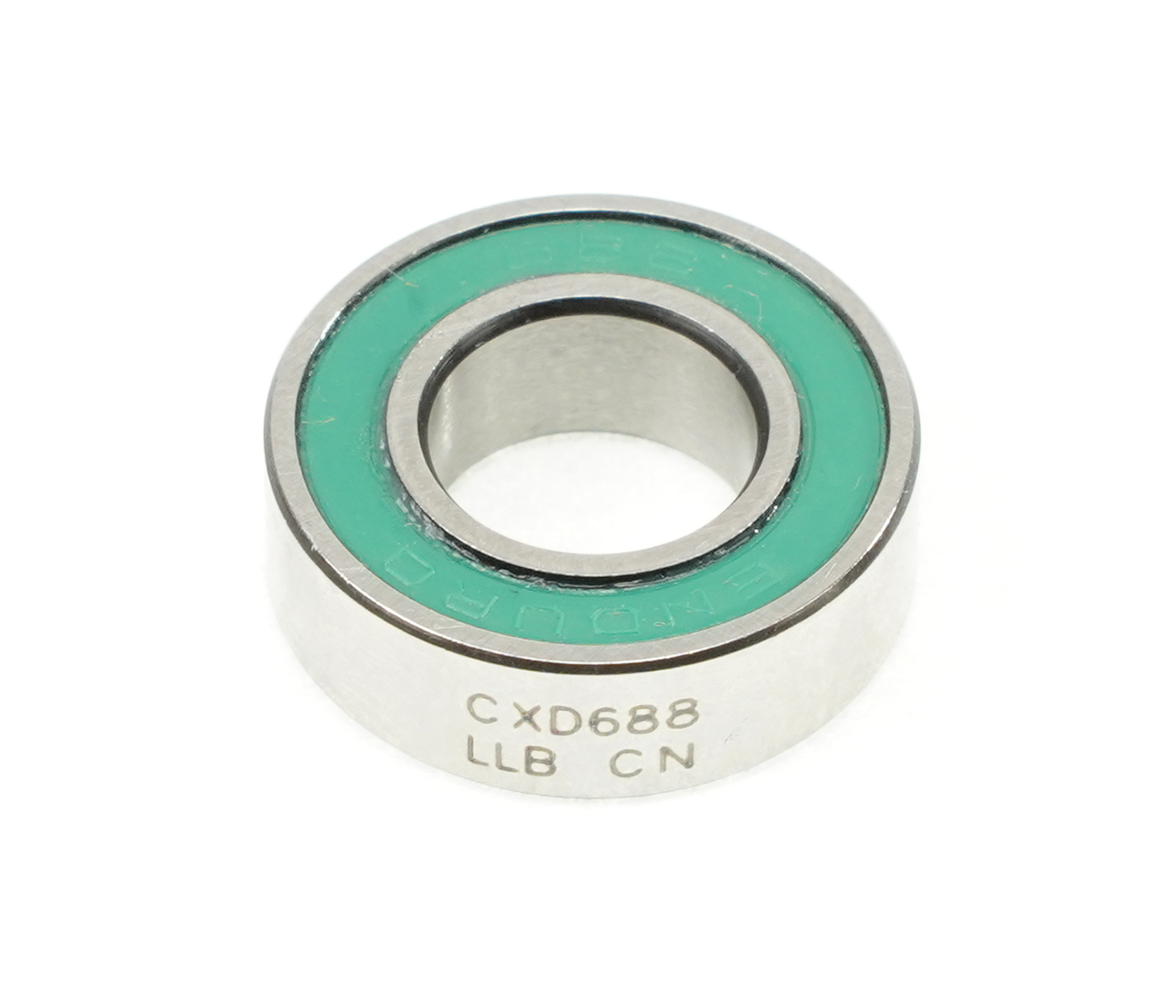

Enduro Bearings 688 LLB - CXD-15 Ceramic Hybrid Bearing

CXD 688 LLB - XD-15 Ceramic-Hybrid, ABEC-5, radial bearing (C3 clearance) - 8mm x 16mm x 5mm -

The ultimate upgrade
An Enduro Bearings exclusive, our XD-15 Ceramic-Hybrid bearings combine corrosion-proof, cryogenically treated nitrogen steel races with Silicon Nitride Grade 3 ceramic balls in a proprietary process that results in the ultimate high performance bearing setup. The deep-groove design raceways allow for maximum sized Grade 3 Silicon Nitride ceramic balls for for increased contact area and improved performance and longevity. 90% fill Kluber NBU52 grease only runs better and smoother with time and is highly resistant to being washed out. Its engineered to stick to the balls and continually be pulled back into the ball path where it is needed.

The most impressive feature of XD-15 ceramic-hybrid bearings is, unlike other bearings, they only get better with time and use. As the bearings wear-in, the super-hard ceramic balls actually make the XD-15 races even smoother. So, when compared to other ceramic-hybrid bearings on the market that claim speed and power advantages on day one, Enduro XD-15 bearings not only provide the same initial advantages on day one, but will become faster and smoother with time and use, while the other ceramic-hybrid options will only get slower. We are so confident in the performance of XD-15 Ceramic-Hybrid bearings that they carry an unlimited lifetime warranty against wear and corrosion.

This bearing is used primarily in lightweight hubs, pedals, derailleur pulleys and in some full suspension designs though the MAX-type version of this bearing is better suited for pivot applications.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
