Amflow TL Carbon E-SUV Bike

Name: Amflow TL Carbon E-SUV Bike
Brand: Amflow
SKU: 210000176567
Price: 3699.0 EUR
Availability: OutOfStock

€3,699.00

Sold out

Color:

Size:

Variant

Availability

In Store: Out of stock

Warehouse: Out of stock

Click & Collect

Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

012840609

Warehouse

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

+3532840609

Please note the Amflow Tl model is still in launch phase. We are now taking pre-orders for bikes arriving Novemeber 2026. Contact us to place on order or for more details

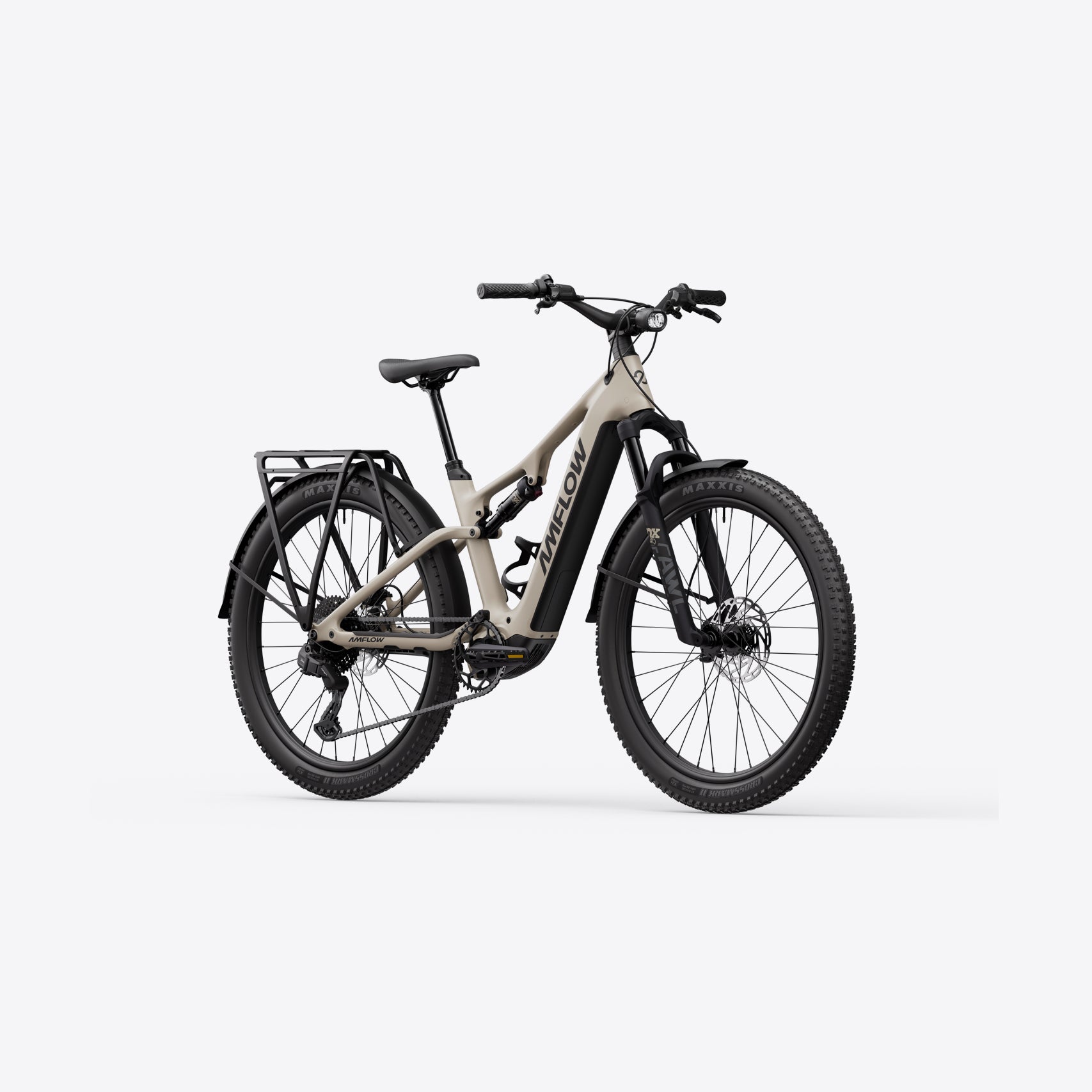

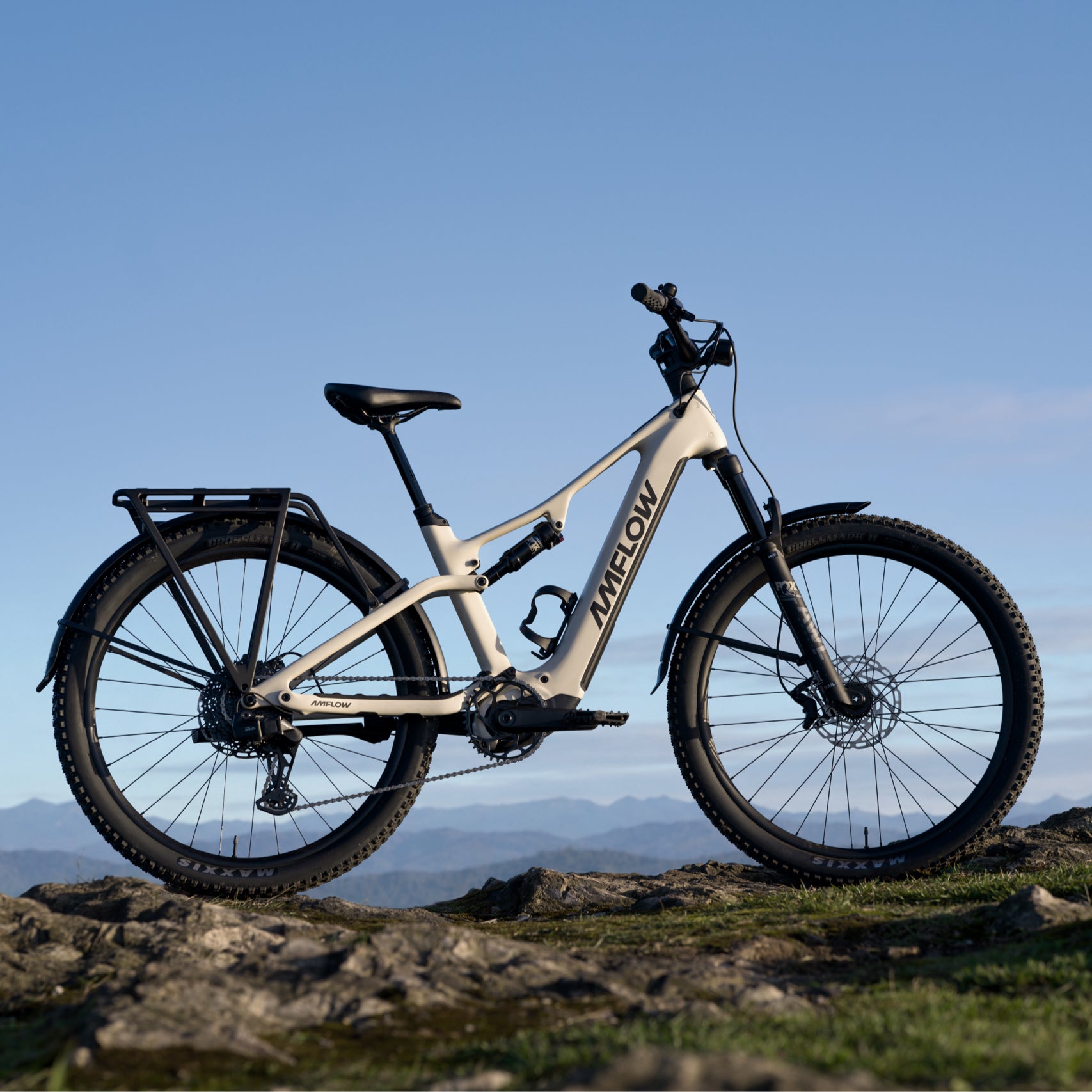

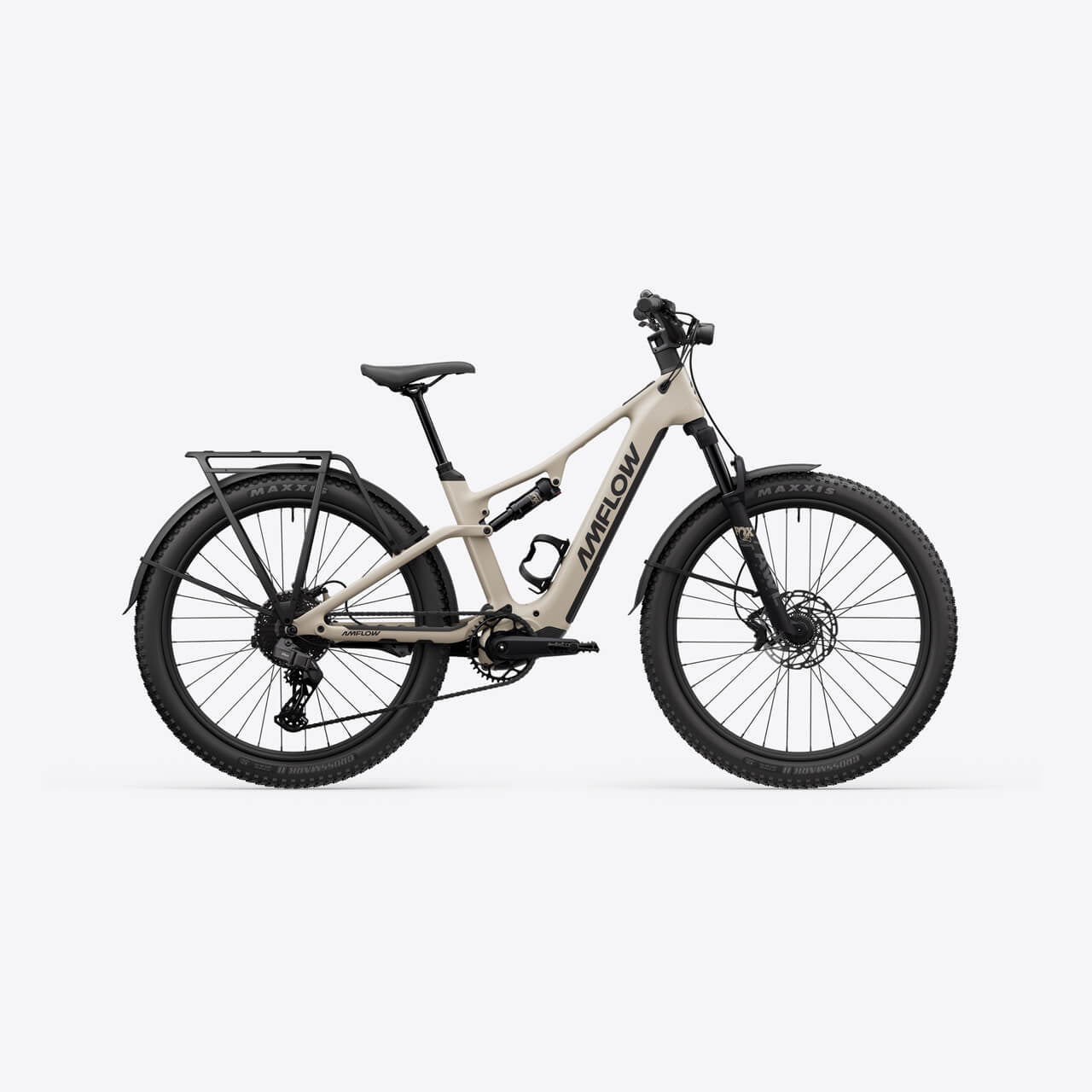

Amflow TL Carbon

An SUV e-bike built for multiple scenarios ^[1], Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.

Full Suspension ^[1] for All-Terrain Riding

A 2.9kg full-carbon frame keeps the bike exceptionally agile and durable, bringing the complete bike weight down to just 22.6kg ^[2].

Full Suspension Co-Developed With FOX ^[6]

With 120mm of front travel and 105mm of rear travel, the full suspension system absorbs bumps in the city, stabilizes cargo on loaded rides, and stays supple over roots and rocks while holding strong on bigger hits.

Both front and rear wheels can be switched from 27.5-inch to 29-inch ^[7] to match different terrain needs.

Supports a 200kg Total Weight ^[5] for Loaded Touring

The total weight includes the bike, front and rear rack loads (max 20kg front, 27kg rear), and a rider weight of up to 125kg. With its modular mounting design and MIK HD-compatible rear rack, the bike supports panniers ^[8], a bike trailer ^[8], and other accessories.

Drive Unit

125N·m & 1100W Powerful Output [3]

Frame

Amflow TL Carbon Frame

Silica Beige

Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels

Compatible With Front and Rear Mudguards

Compatible With Rear Rack and Front Rack

Compatible With Bike Trailers (Requires Trailer Thru-Axle)

Drive System

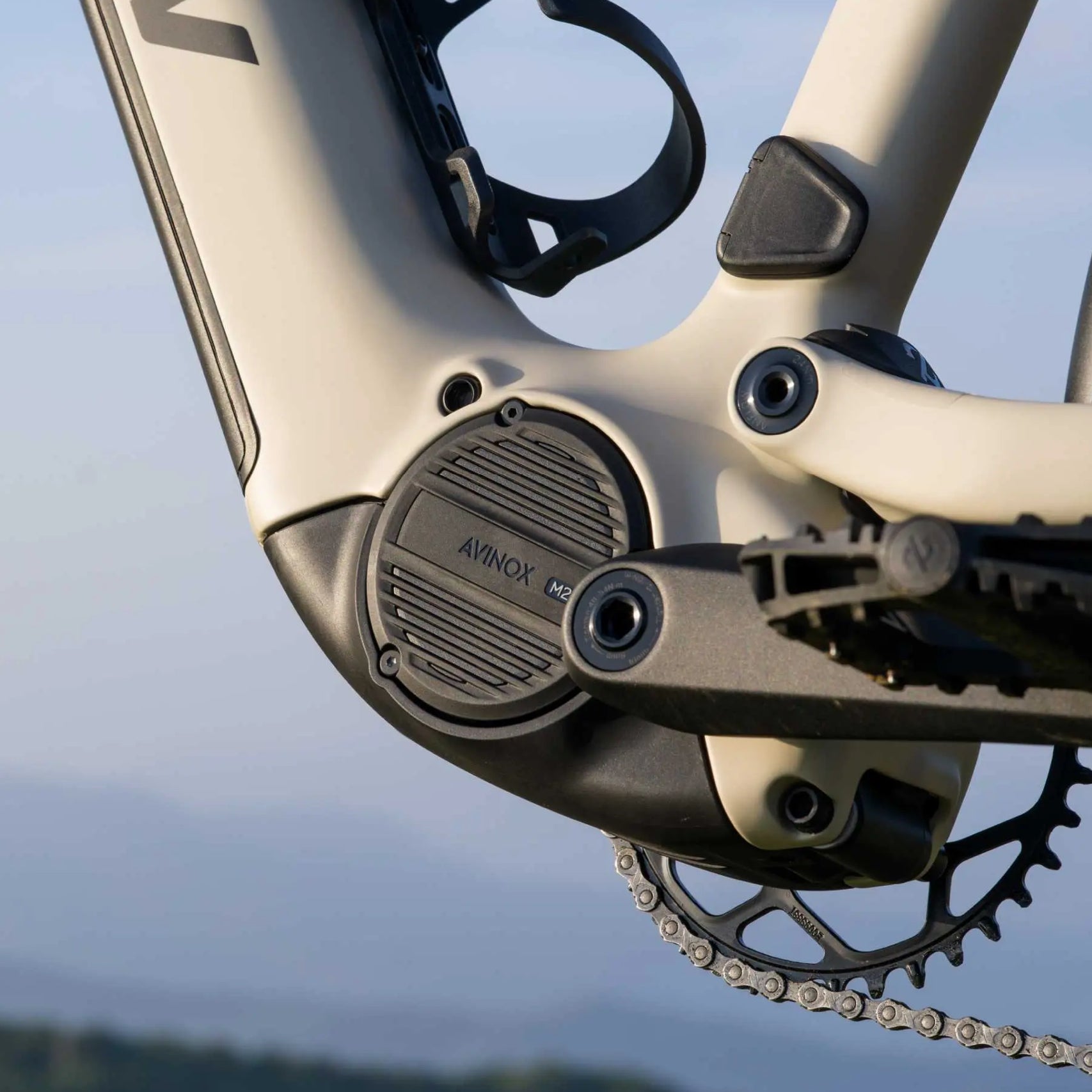

Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m

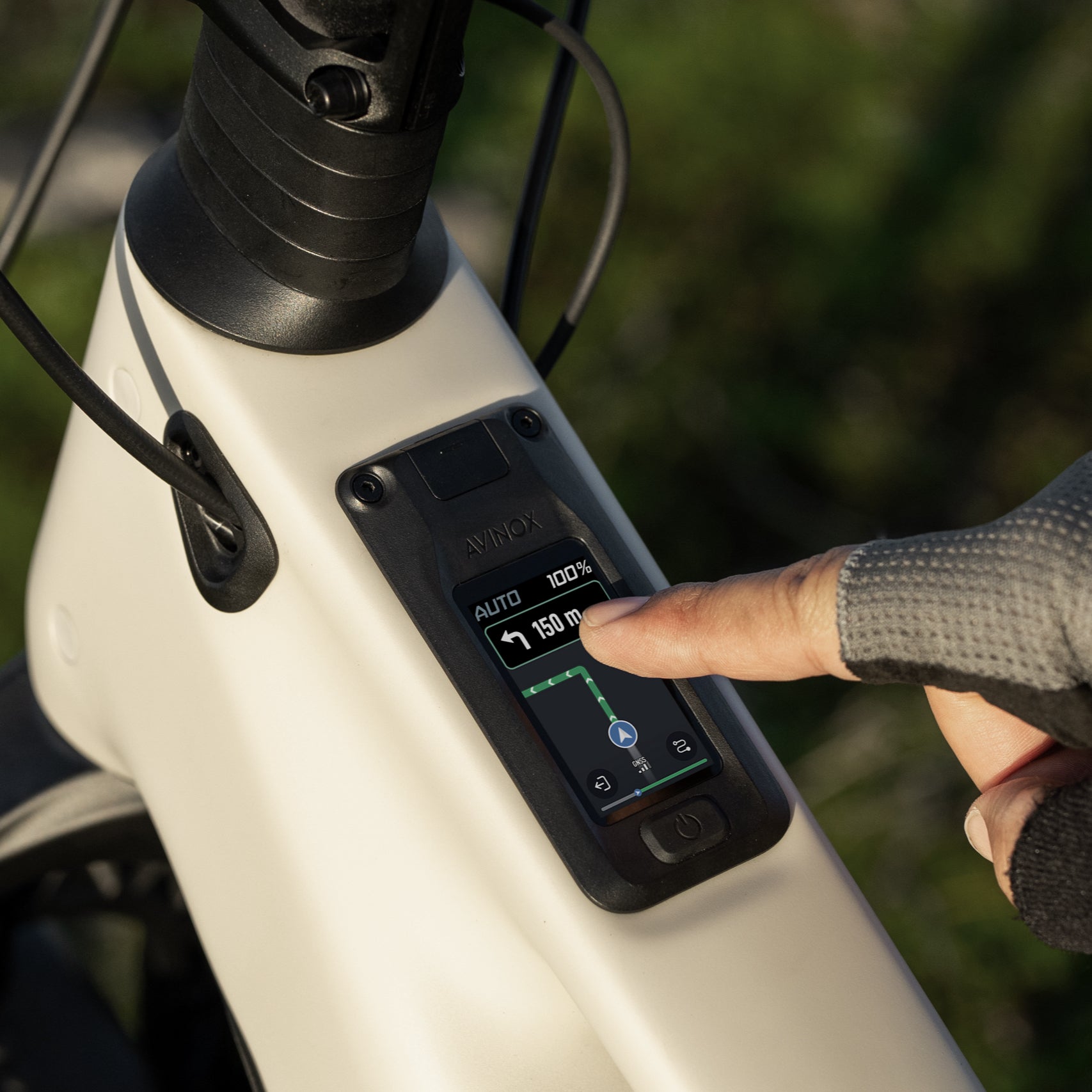

Screen: Avinox DPC100, 2-inch OLED Control Display

Battery: Avinox RS800 Battery (Removable)

Wireless Controllers: Avinox Wireless Controller × 2 (One on each side of the handlebar)

Charger: Avinox 4A Charger, 168W Output

Rear Shock

FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm

Fork

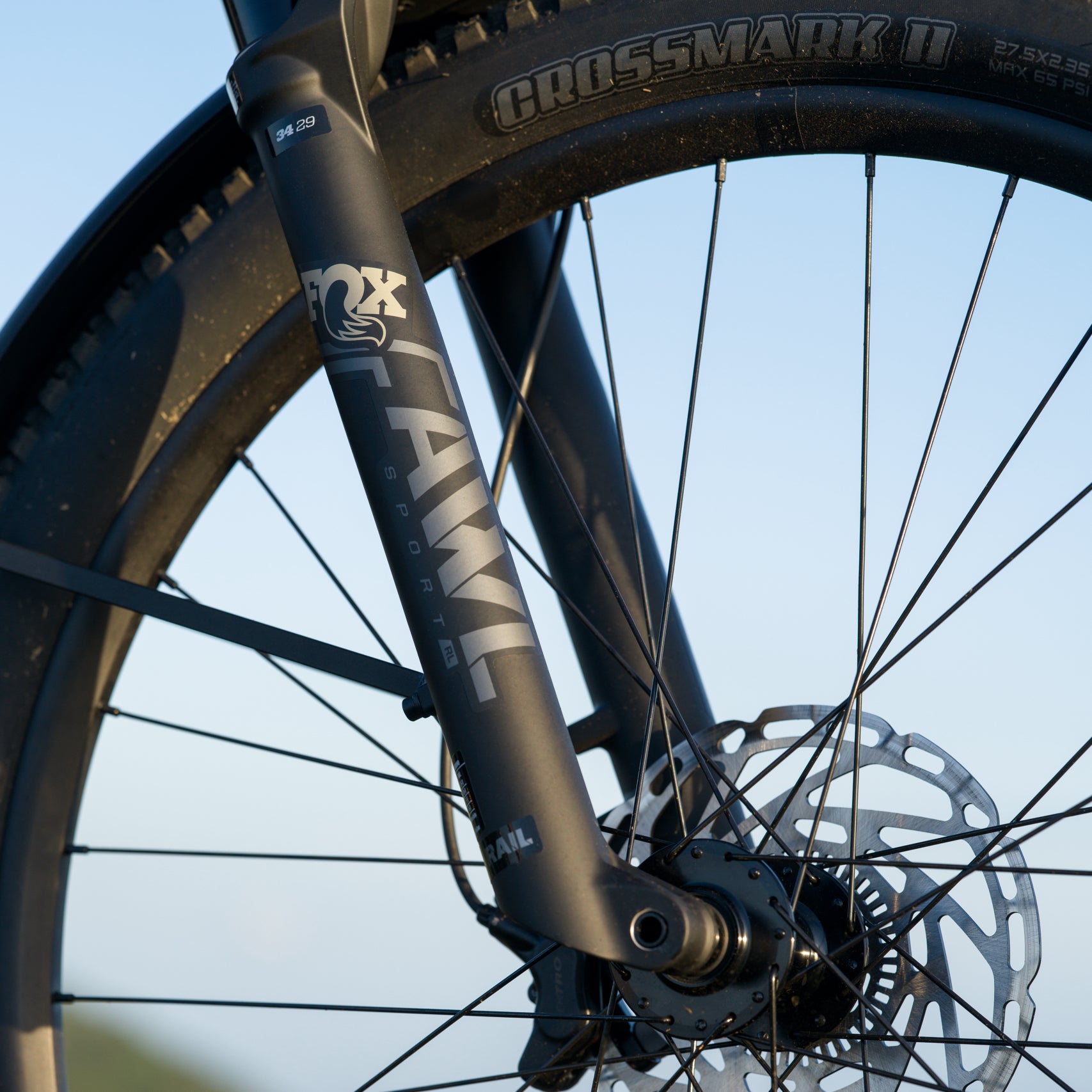

FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset

Drivetrain

Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur

Cassette: CS-M5243, 10-Speed, 11-43T

Chainring: Avinox Direct Mount Chainring (38T)

Chain: Avinox eGlide T Chain (10S/11S, 118 Links)

Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)

Brakes

Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow

Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox

Wheels

Front Wheel:

Amflow HTA-25 Front Wheel (27.5″)

Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Rim: Alloy, 27.5″, 25mm Inner Width, 32H

Hub: Alloy, 15×110mm Thru-Axle, 32H, 6-bolt

Rear Wheel:

Amflow HTA-25 Rear Wheel (27.5″)

Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Rim: Alloy, 27.5″, 25mm Inner Width, 32H

Hub: Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub

Tires

Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Handlebar

Amflow Touring Handlebar

S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise

L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise

Grips

Amflow Enduro Grip 2

Stem

Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)

Saddle

Amflow Touring Saddle

Dropper Post

Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm)

S/M Size Frame: 150mm

L/XL Size Frame: 170mm

Accessories

Avinox Front Light

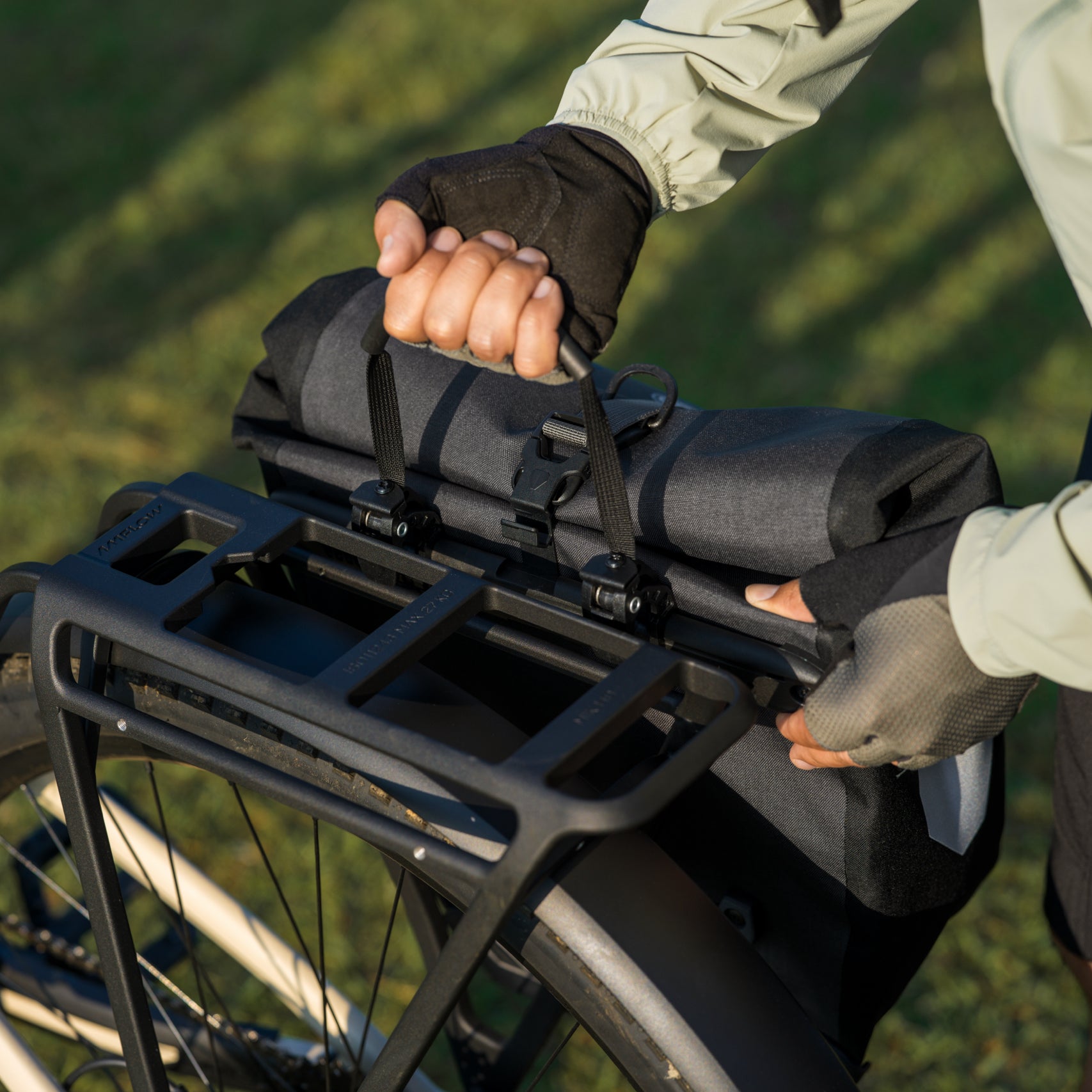

Amflow Touring Rear Rack, Compatible With MIK HD Standard

Amflow Elite MTB Pedals

Amflow Bottle Cage

Front Mudguard, Rear Mudguard

Amflow Touring Kickstand (348mm)
