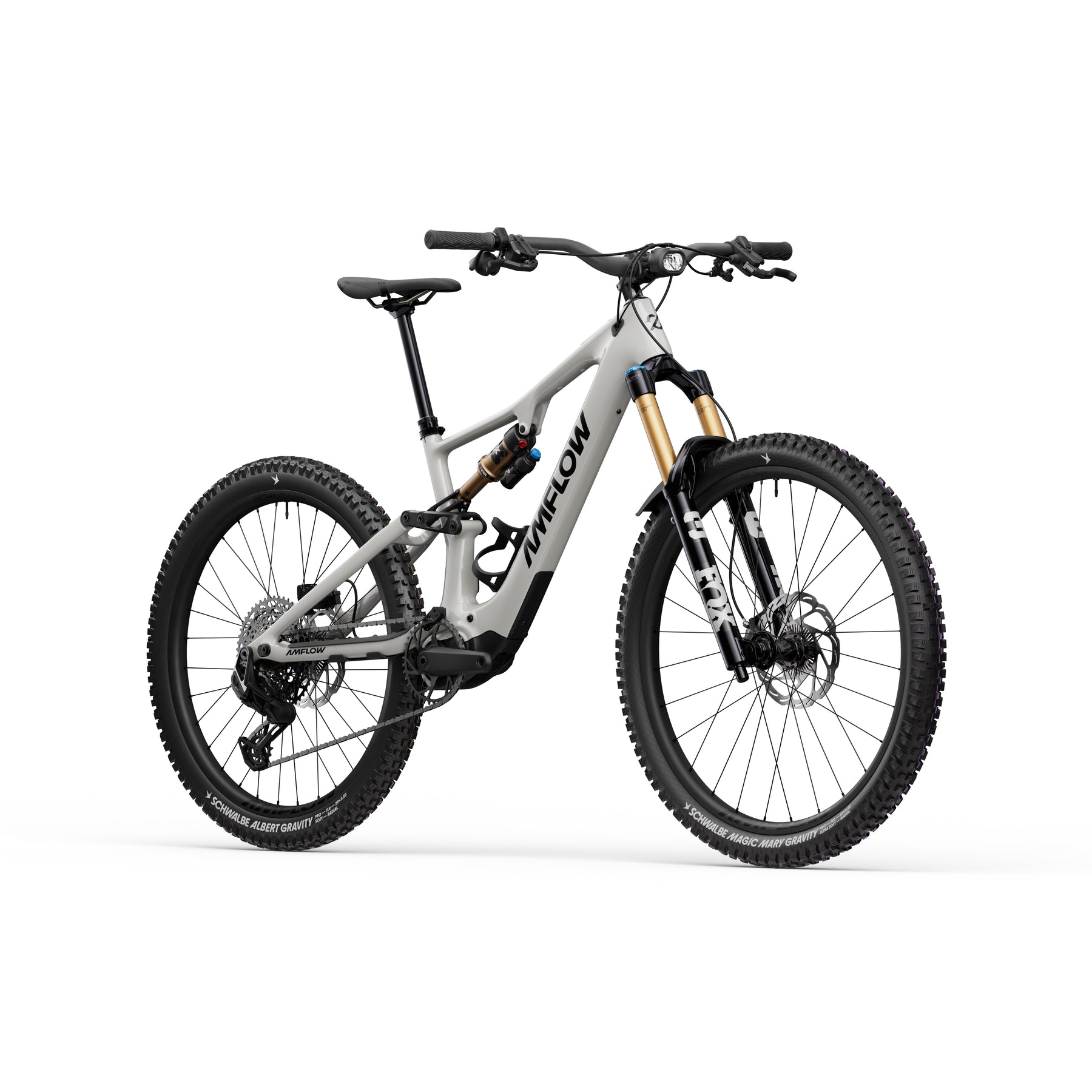

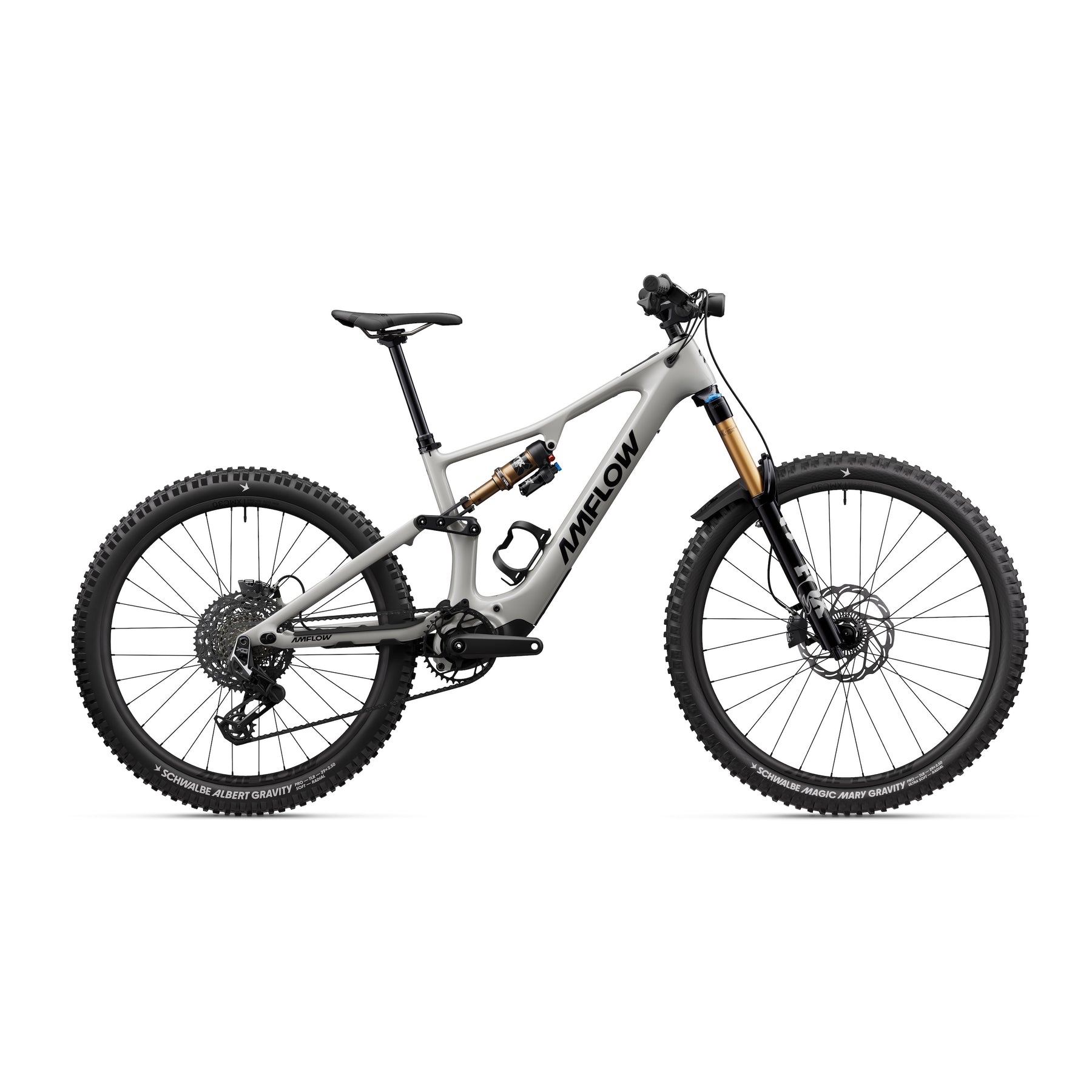

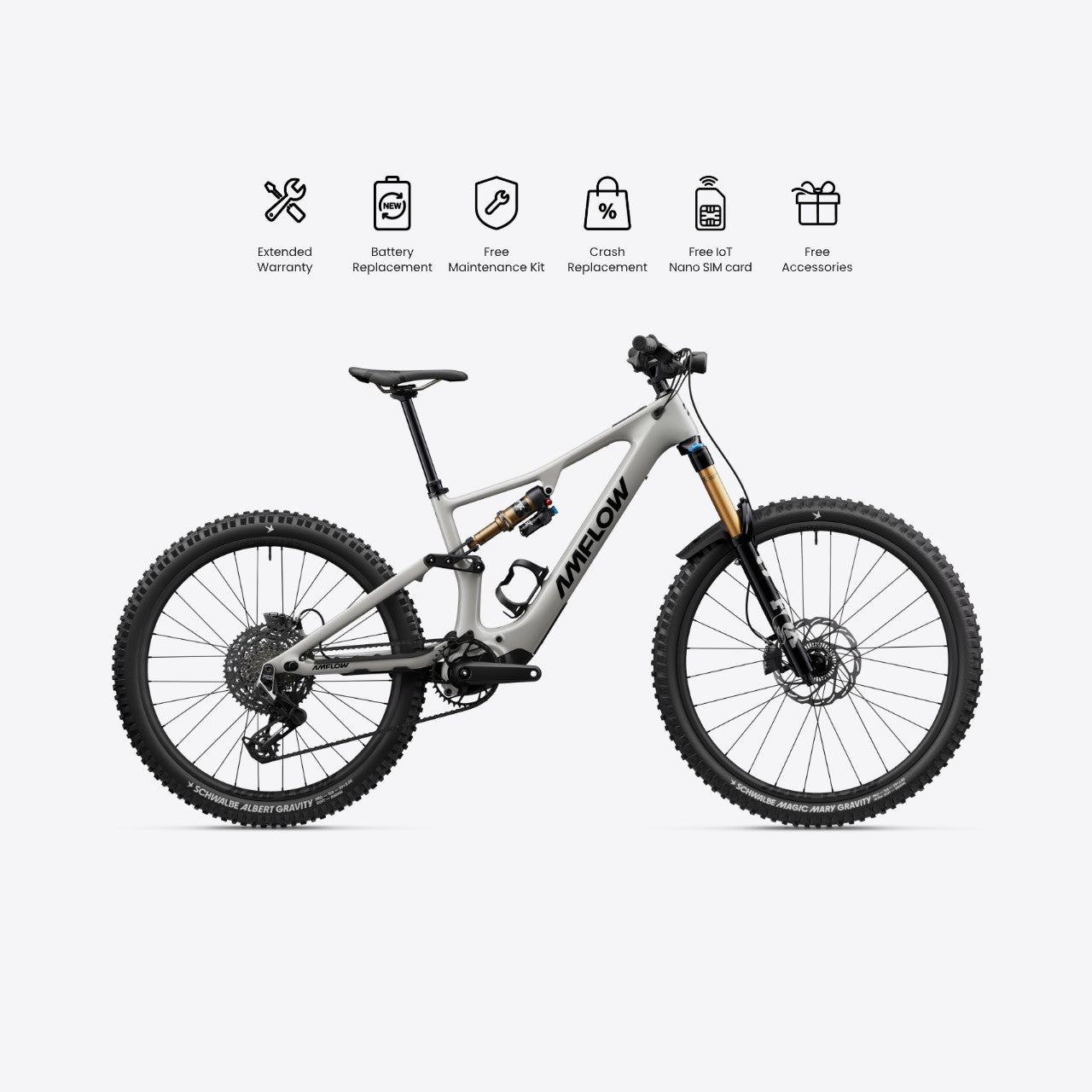

Amflow PX Carbon Pro
Light yet limitless
Slim and light, yet remarkably powerful. An ultra-light carbon fiber frame brings the bike down to 20.6kg [5] for confident, effortless control.
The Amflow PX Carbon range are Amflows most-performance focussed full power e-mountain bike. The Bike is available in two build specs PX Carbon and PX Carbon Pro. Both bikes utilise Avinox M2S motors with 150nm max torque and up to 1500 peak power. The PX utilises a high energy density 700wh non-removable battery that is designed to achieve the maximum range and performance while staying within 20kg weight category.
The bike has 160mm travel up front and a 150mm travel in the rear and comes configured with a 29" front wheel and 27.5" rear wheel mullet setup as standard. However the PX carbon range offer huge adjustability with the headtube angle, bottom bracket and head angle all having adjustable settings.
The PX Carbon Pro is Amflow's highest spec bike, coming equipped with fox factory suspension, A Sram X0 Transmission groupset, Magura Gustav Pro Brakes and Amflow carbon wheels and Handlebar.
- Surging Power, Naturally Refined
- The Avinox M2S Drive Unit uses sensors and smart algorithms for linear pedaling feel, with up to 150N·m [1] max. torque and 1500W [1] peak power.
-
Whisper-Quiet, Immersive Riding
Innovative compound planetary gears and a helical gear design reduce operating noise to as low as 45dBA [2] for a quieter, more immersive ride.
-
Charge Fast, Ride Free
A 700Wh high-capacity battery paired with 3x super-fast charging [3] supports all-day epic rides and helps eliminates range anxiety.
Versatile Geometry To Conquer Any Terrain
With up to 40 geometry combinations [4], it fine-tunes head tube angle, bottom bracket height, and chainstay length to suit different trails and riding styles.
-
Compact, More Capable

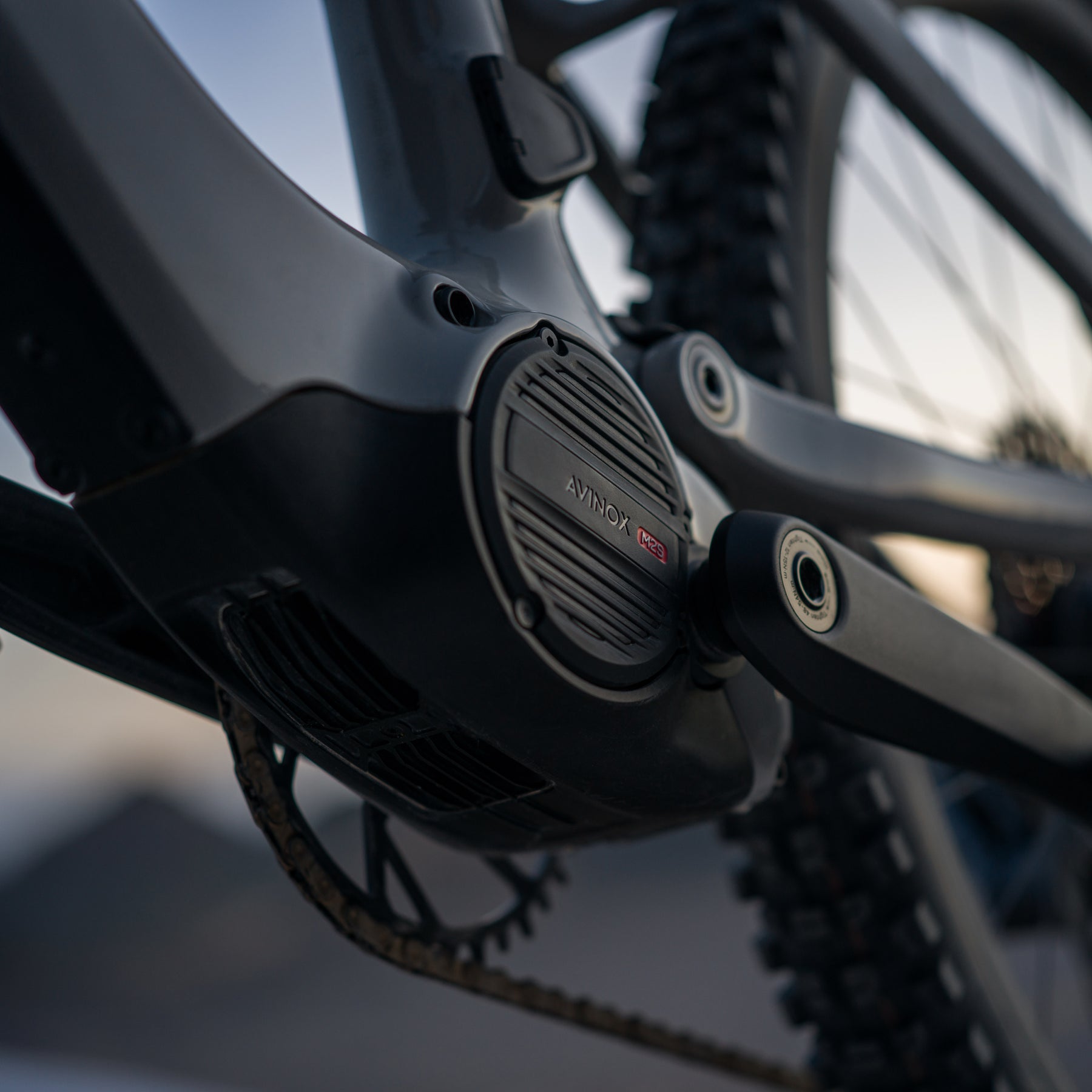

At 2.59kg [5], the Avinox M2S Drive Unit boosts power density by 45% [6] and torque density by 21.6% [6] compared to the previous generation.

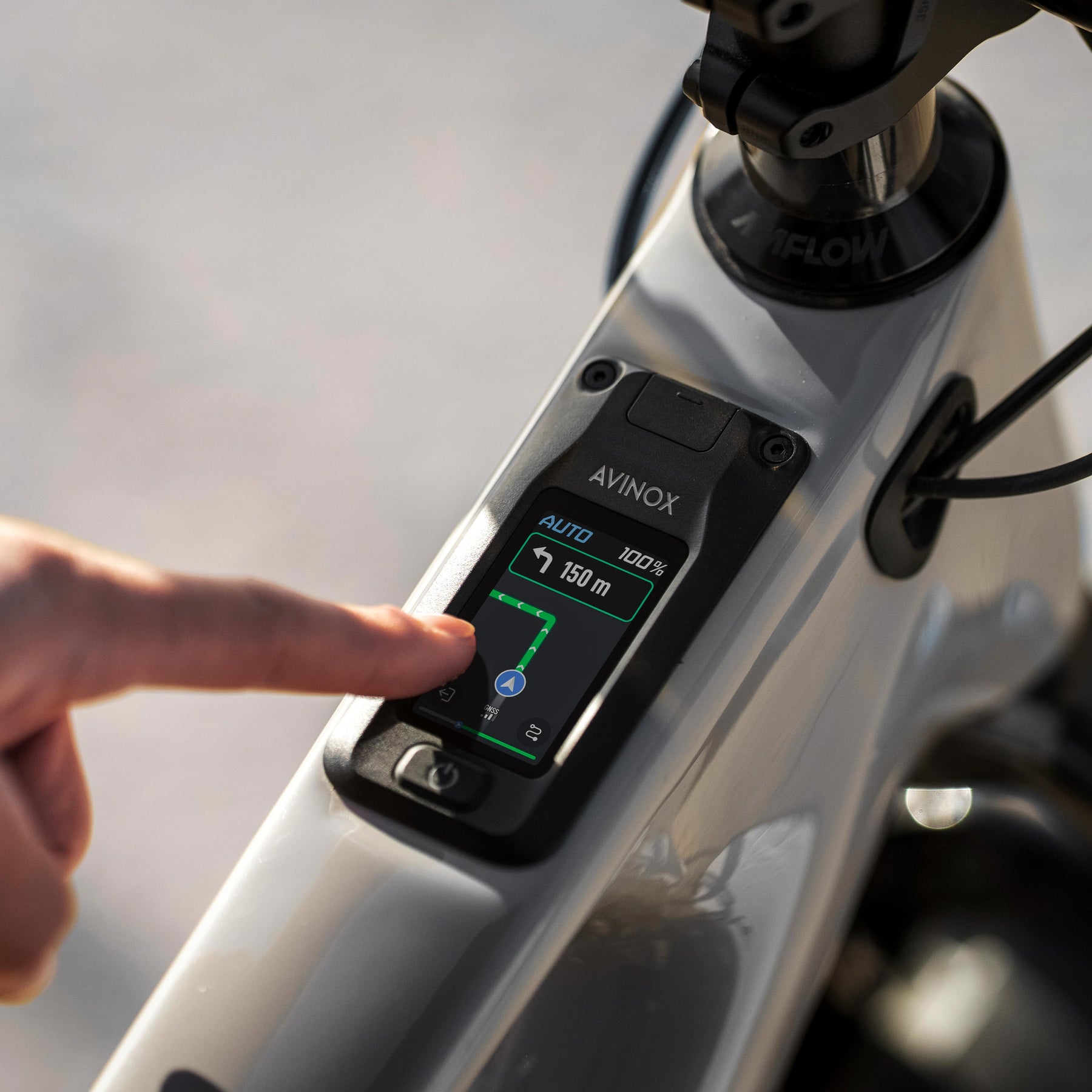

Smart Offline Navigation [7]
The Avinox Ride app imports third-party routes and turns ride history into route files for one-click ride data synchronization.
Frame
Amflow PX Carbon Pro Frame

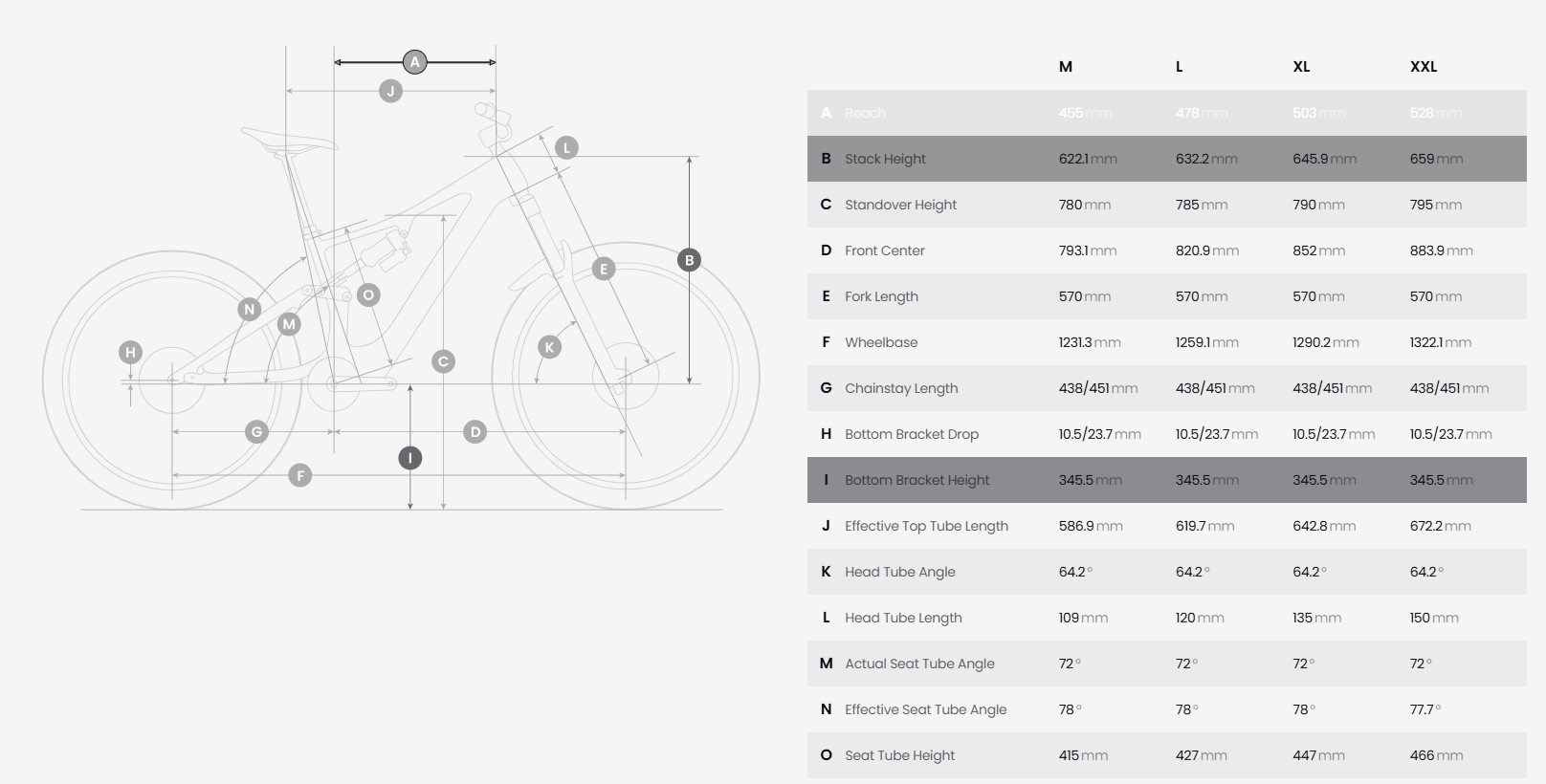

40 adjustable geometry configurations *
Compatible with 27.5″ and 29″ rear wheels
*The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
E-Bike System
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 700Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W

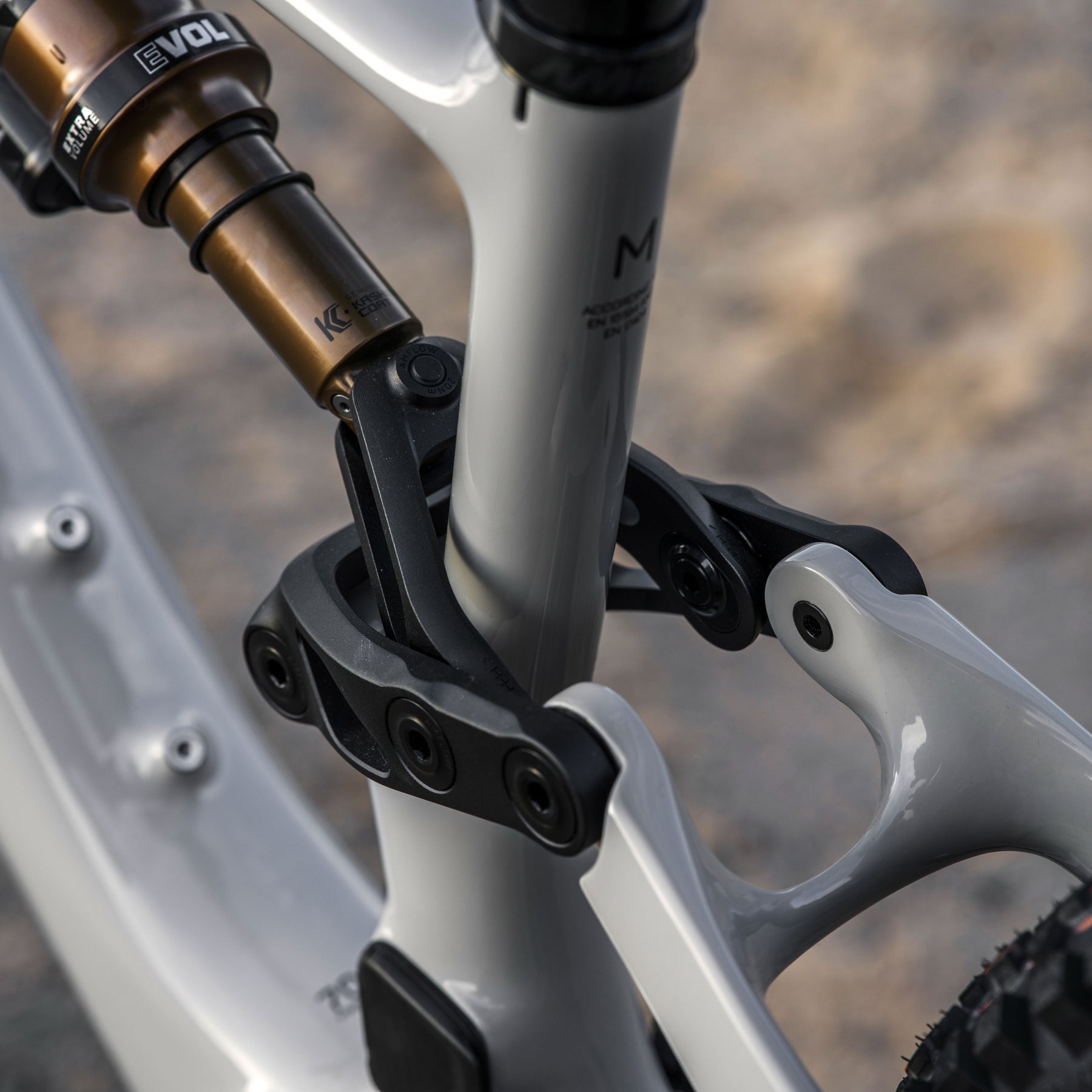

Rear shock
2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock
Fork

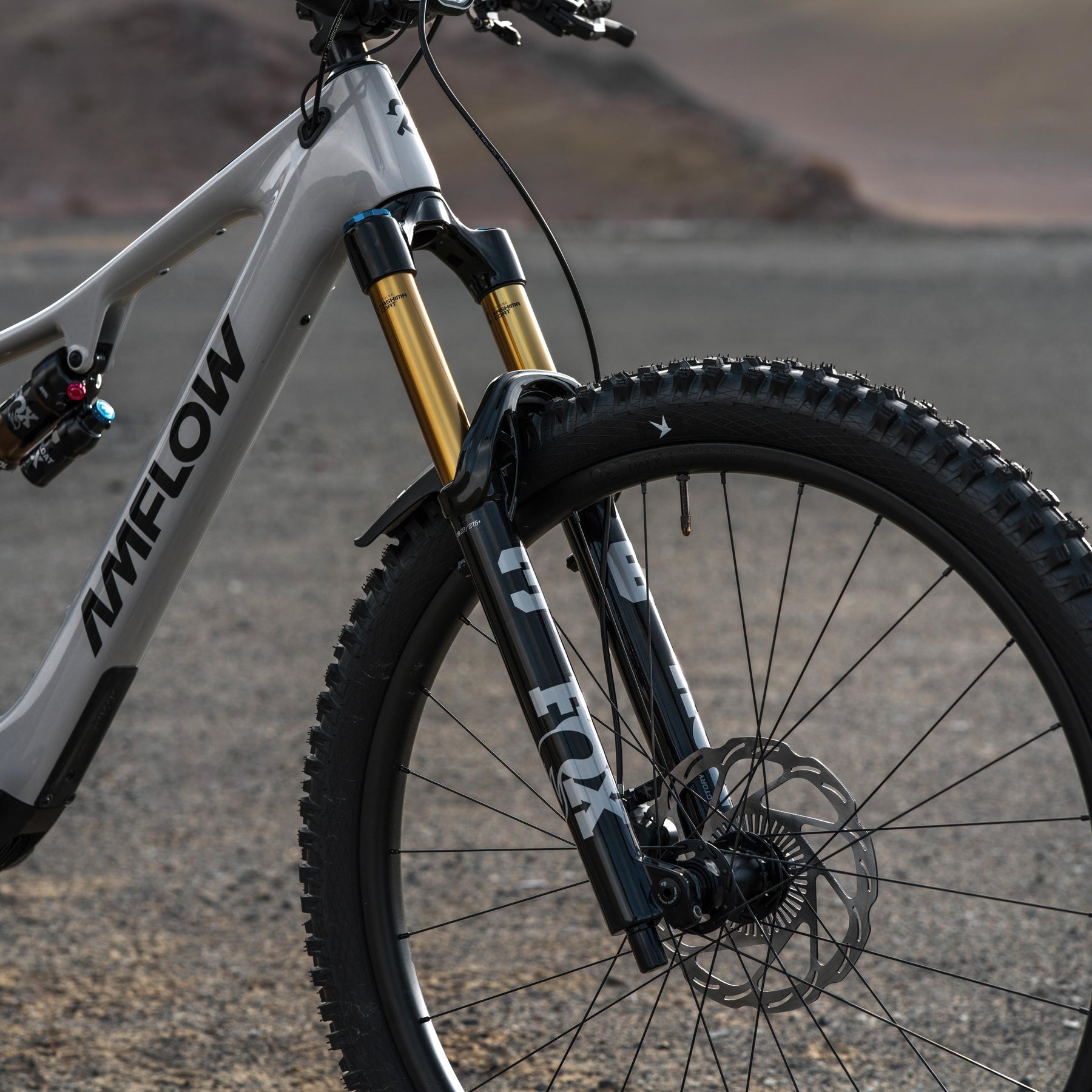

160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
Drivetrain
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Rocker Controller
Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T
Chain: SRAM X0 Eagle Transmission Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Wheels
Amflow XMC-30 Mullet Version
Front Rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready
Rear Rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
Tires
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar
Amflow Enduro Carbon Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem
Saddle
Amflow Mountain Saddle Titanium
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
Accessories
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
IoT Nano SIM Card
5/10mm Dropper Post Travel Reducing Spacer
Rear Light
Schwalbe Clik Valve Conversion Set
Torque Wrench
FOX 36 Mud Guard (Short)
Clear Frame Protection Film
