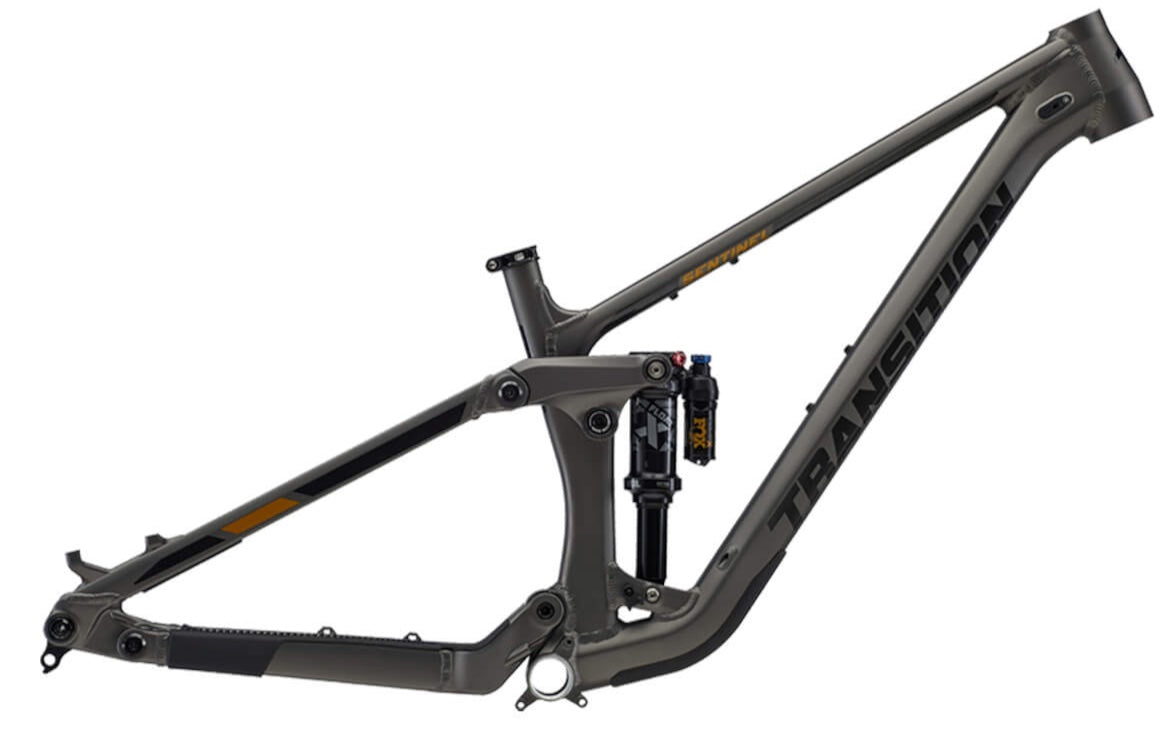

Transition Sentinel Alloy Frameset
Black Powder / L
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Hard Charging All-Rounder - The Transition Sentinel inspires confidence like you're wearing full body armour.
It's forgiving do-it-all attitude truly blurs the lines between planted bottomless sender and playful poppy trail pony. Whether you're chasing EWS dreams or just a weekend afternoon escape, it will bring out the best in you. So easy to get acquainted with you'll find yourself sending lines, jumps and manoeuvres you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost.
Specifications
| Alloy NX | Alloy GX | Alloy Frameset | Carbon XT | Carbon GX | Carbon Frameset | |
|---|---|---|---|---|---|---|
| Frame | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Alloy 150mm |
| Fork |
Fox Float 36 Rhythm 160mm Travel/44mm Offset |
Fox Float 36 Grip 2 Performance Elite 160mm Travel/44mm Offset |
Fox Float 36 Grip Performance 160mm Travel/44mm Offset |
Fox Float 36 Grip 2 Performance Elite 160mm Travel/44mm Offset | ||
| Rear Shock | Fox Float X Performance 2 Position | Fox Float X Performance Elite 2 Position |
Fox Float X Performance Elite (205x62.5mm) |
Fox Float X2 Performance 2 Position | Fox Float X Performance Elite 2 Position |
Fox Float X2 Factory (205x62.5mm) |
| Headset | FSA No.57E | FSA No.57E | FSA No.57E | FSA No.57E | ||
| Stem | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ||
| Handlebars |
RaceFace Chester 35 SM/MD (780x20) LG/XL/XXL (780x35) |
ANVL Mandrel Alloy 35 SM/MD (800x20) LG/XL (800x30) XXL (800x 40) |
ANVL Mandrel Alloy 35 SM/MD (800x20) LG/XL (800x30) XXL (800x 40) |
ANVL Mandrel Alloy 35 SM/MD (800x20) LG/XL (800x30) XXL (800x 40) | ||
| Grips | Sensus Lite | Sensus Lite | Sensus Lite | ODI Elite Flow | ||
| Rims | Stans Flow D | DT Swiss M 1900 Spline 30 | Stans Flow S1 | RaceFace Aeffect R | ||
| Spokes | Pillar Double Butted | DT Swiss Champion | Sapim Race Double Butted | RaceFace 2.0/1.7/2.0 | ||
| Hubs | Novatech D791SB/D902SB | DT Swiss 370 Ratchet LN | Stans Neo Durasync | RaceFace Trace 28H | ||
| Front Tyre | Maxxis Assegai 3C EXO+ (29x2.5) | Maxxis Assegai 3C EXO+ (29x2.5) | Maxxis Assegai 3C EXO+ (29x2.5) | Maxxis Assegai 3C EXO+ (29x2.5) | ||
| Rear Tyre | Maxxis Minion DHRII 3C EXO+ (29x2.4) | Maxxis Minion DHRII 3C EXO+ (29x2.4) | Maxxis Minion DHRII 3C EXO+ (29x2.4) | Maxxis Minion DHRII 3C EXO+ (29x2.4) | ||
| Shifter | SRAM NX Eagle MMX | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | ||
| Rear Derailleur | SRAM NX Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | ||
| Crankset | SRAM Descendent 6k DUB (30t/170mm | SRAM GX Eagle DUB (30t/170mm) | Shimano XT M8100 (30t/170mm) | SRAM GX Eagle DUB (30T/170mm) | ||
| Cassette | SRAM PG 1230 (11-50t) | SRAM XG 1275 (10-52t) | Shimano SLX M7100 (10-51t) | SRAM XG 1275 (10-52T) | ||
| Chain | SRAM NX Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | ||
| Brakes | SRAM Code R | SRAM Code RSC | Shimano XT M8120 | TRP DH-R-Evo | ||
| Rotors | SRAM Centerline (200mm) | SRAM Centerline (200mm) | Shimano RT86 (203mm) | TRP R1 2.3 (203mm) | ||
| Seatpost |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) | ||
| Saddle | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo or SDG Bel Air 3 | ||
| Extras | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Sealant | ||
| weight | 35.8 lbs / 16.23kg (Size MD) | TBD (Size MD) | 31.3 lbs / 14.21kg (Size MD) | 31.7 lbs/14.38 kg (Size MD) |
Frame Specifications
| REAR TRAVEL: | 150mm (Compatible with 140mm) |
| FRONT TRAVEL: | 160mm |
| WHEEL SIZE: | 29" |
| SIZES: | SM, MD, LG, XL, XXL |
| COLORS: | Carbon: Loam Gold, Ti Grey Alloy: Cascade Blue, Platinum Silve |
| FRAME BEARINGS: | 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 |
| FORK AXLE TO CROWN: | 574mm (Includes headset) |
| FORK OFFSET: | 42-44mm |
| REAR SHOCK SIZE: | 205mm x 62.5mm (Compatible with 205mm x 57.5mm) |
| SHOCK HARDWARE: | Trunnion Mount Top / 25mm x 8mm Bottom |
| HEADSET (TOP): | 44mm Zero Stack |
| HEADSET (BOTTOM): | 56mm Zero Stack |
| BB SHELL: | 73mm BSA Threaded |
| CHAINLINE: | 52mm |
| REAR BRAKE MOUNT: | 180mm Post Mount, Max Rotor Size 203mm |
| DERAILLEUR HANGER: | SRAM UDH |
| REAR AXLE: | Carbon: Syntace X12 148, 1.0mm Thread Pitch Alloy: Transition Axle For UDH, 12mm x 148mm Spacing |
| ISCG TABS: | ISCG05 |
| SEATPOST DIAMETER: | 31.6mm |
| SEAT CLAMP: | Carbon: 37.0mm Alloy: 34.9mm |
| MAX SEATPOST | Carbon: Small 220mm | Medium 250mm | Large 290mm | XL 320mm | XXL 350mm Alloy: Small 240mm | Medium 270mm | Large 310mm | XL 335mm | XXL 360mm |
| MAX CHAINRING SIZE: | 32T Standard Single Ring |
| MAX TIRE SIZE: | 29 x 2.6 |
| REAR SHOCK SAG: | 150mm/62.5mm: 16-20mm (26-32%) 140mm/57.5mm: 15-19mm (26-33% |

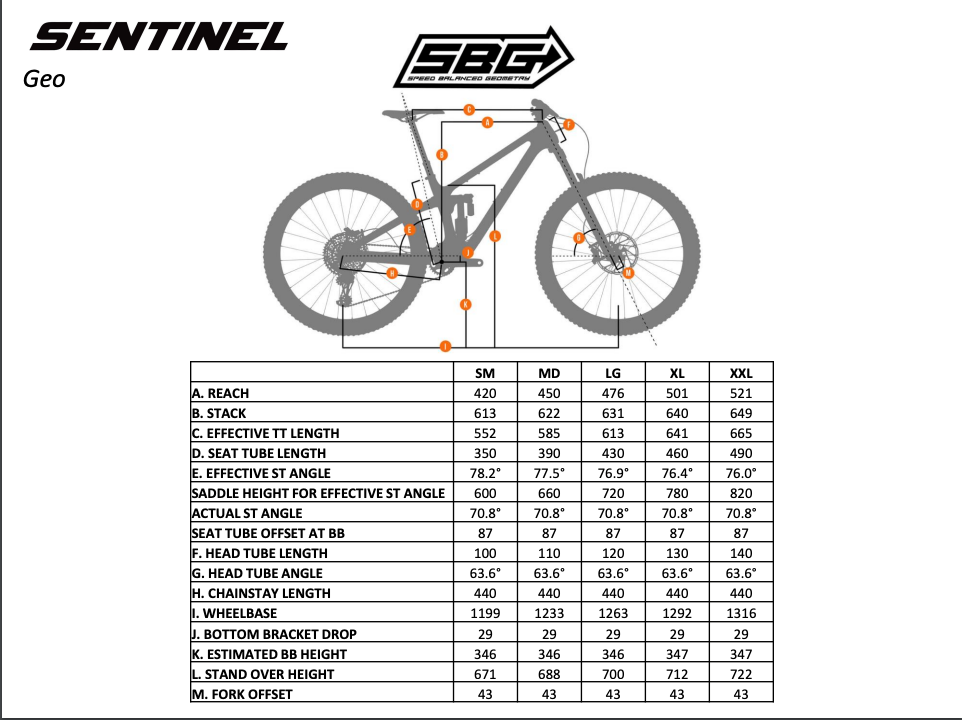

Geometry
| SM | MD | LG | XL | XXL | |
|---|---|---|---|---|---|
| A. Reach | 420 | 450 | 476 | 501 | 521 |
| B. Stack | 613 | 622 | 631 | 640 | 649 |
| C. Effective TT Length | 552 | 585 | 613 | 641 | 665 |
| D. Seat Tube Length | 350 | 390 | 430 | 460 | 490 |
| E. Effective ST Angle | 78.2° | 77.5° | 76.9° | 76.4° | 76.0° |
| Saddle Height For Effective ST Angle | 600 | 660 | 720 | 780 | 820 |
| Actual ST Angle | 70.8° | 70.8° | 70.8° | 70.8° | 70.8° |
| Seat Tube Offset At BB | 87 | 87 | 87 | 87 | 87 |
| F. Headtube Length | 100 | 110 | 120 | 130 | 140 |
| G. Headtube Angle | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| H. Chainstay Length | 440 | 440 | 440 | 440 | 440 |
| I. Wheelbase | 1199 | 1233 | 1263 | 1292 | 1316 |
| J. Bottom Bracket Drop | 29 | 29 | 29 | 29 | 29 |
| K. Estimated BB Drop | 346 | 346 | 346 | 347 | 347 |
