Ridgeback
Ridgeback Voyage Touring Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Ridgeback Voyage Touring Bike
Ruby / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609- With its classic looks and the new Voyage is a timeless all-day tourer.

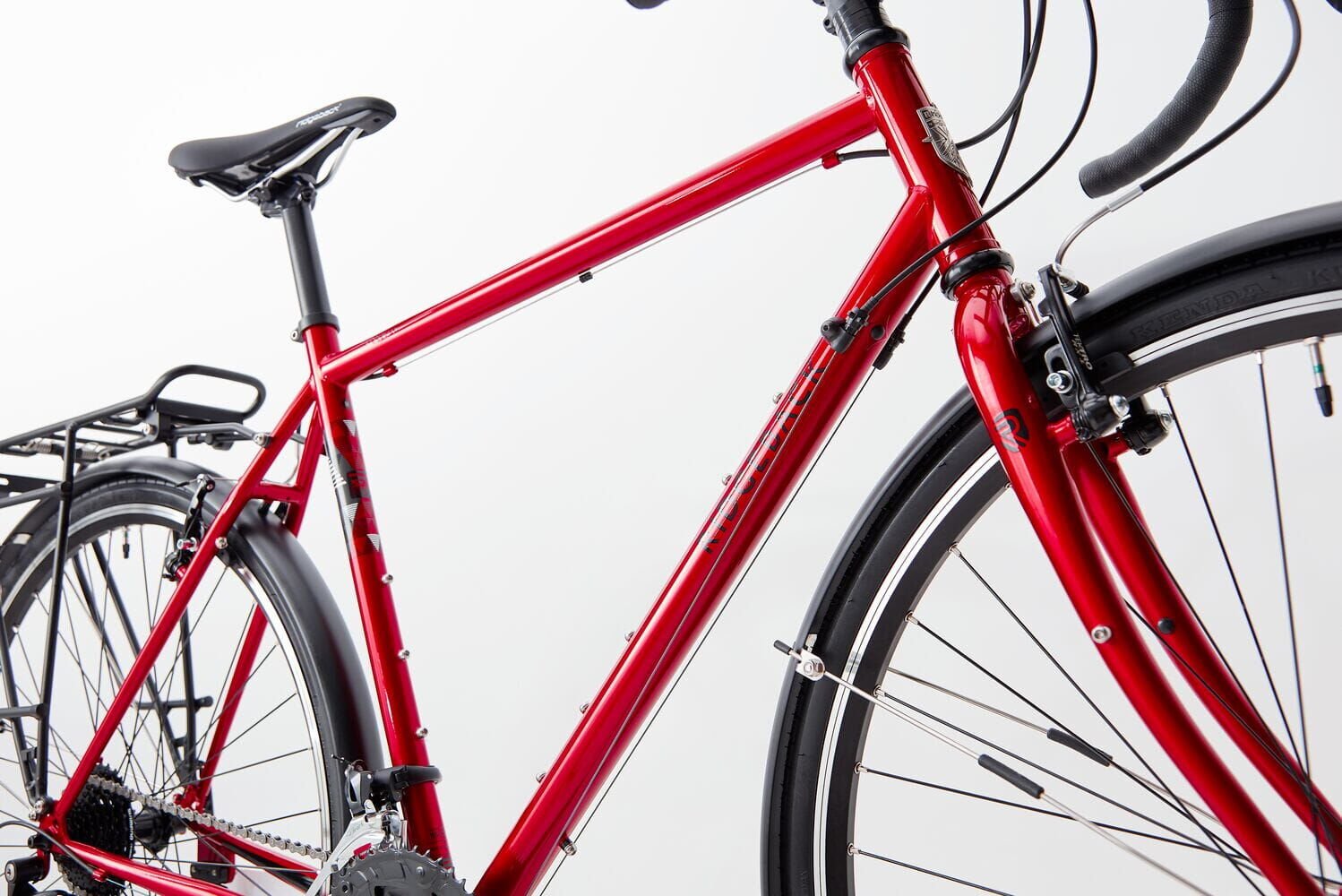

- Using Reynolds 520 chromoly, the frame gives a smooth and comfortable ride especially when combined with Kenda Kwest 32mm tyres and a gently raked chromoly fork.
- A Shimano drivetrain with a triple chainset and 11-34 cassette make carrying luggage up the steepest climbs a breeze and Mini-V brake callipers improve braking performance compared to cantilever designs.
- The Voyage is equipped with full-length mudguards and a rear panier rack.
Specifications
| Frame | Steel |
|---|---|
| Fork | Chromoly Steel |
| Headset | Threadless 1-1/8" - EC34/28.6 | EC34/30 |
| Stem | Ridgeback Alloy XS 90mm / S-M 100mm / L-XL 110mm |
| Handlebars | Ridgeback Alloy XS 400mm / S-M 420mm / L-XL 440mm |
| Rims | Jalco DM23 |
| Spokes | Stainless Steel 14G Brass Nipples |
| Hubs | Front KT-GP5F / Rear KT-AEZR |
| Tyres | Kenda Kwest 700 x 32mm |

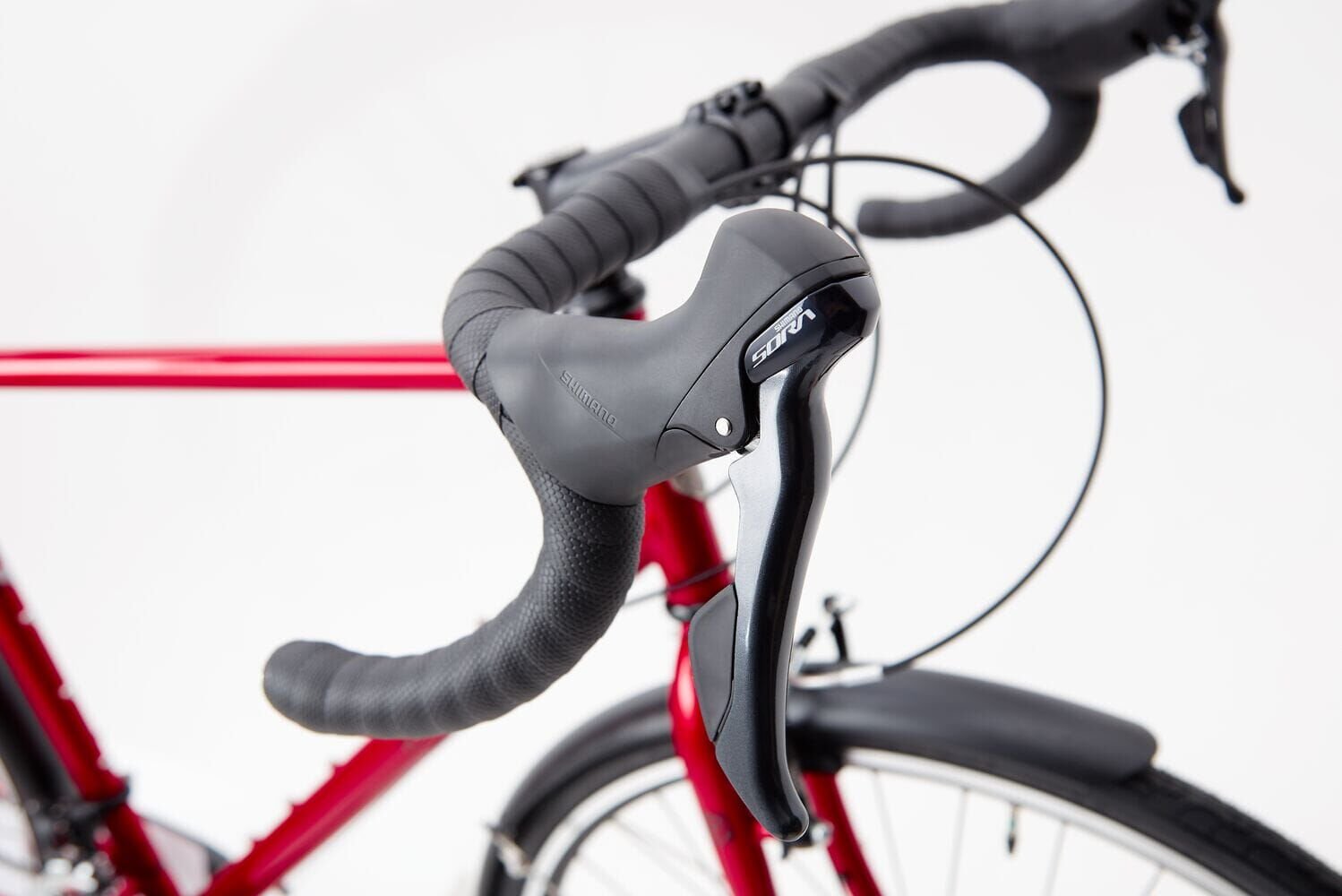

| Shifters | Shimano Sora ST-R3030 |
| Rear Derailleur | Shimano Acera RD-T3000 SGS |
| Front Derailleur | Shimano Sora FD-R3030 |

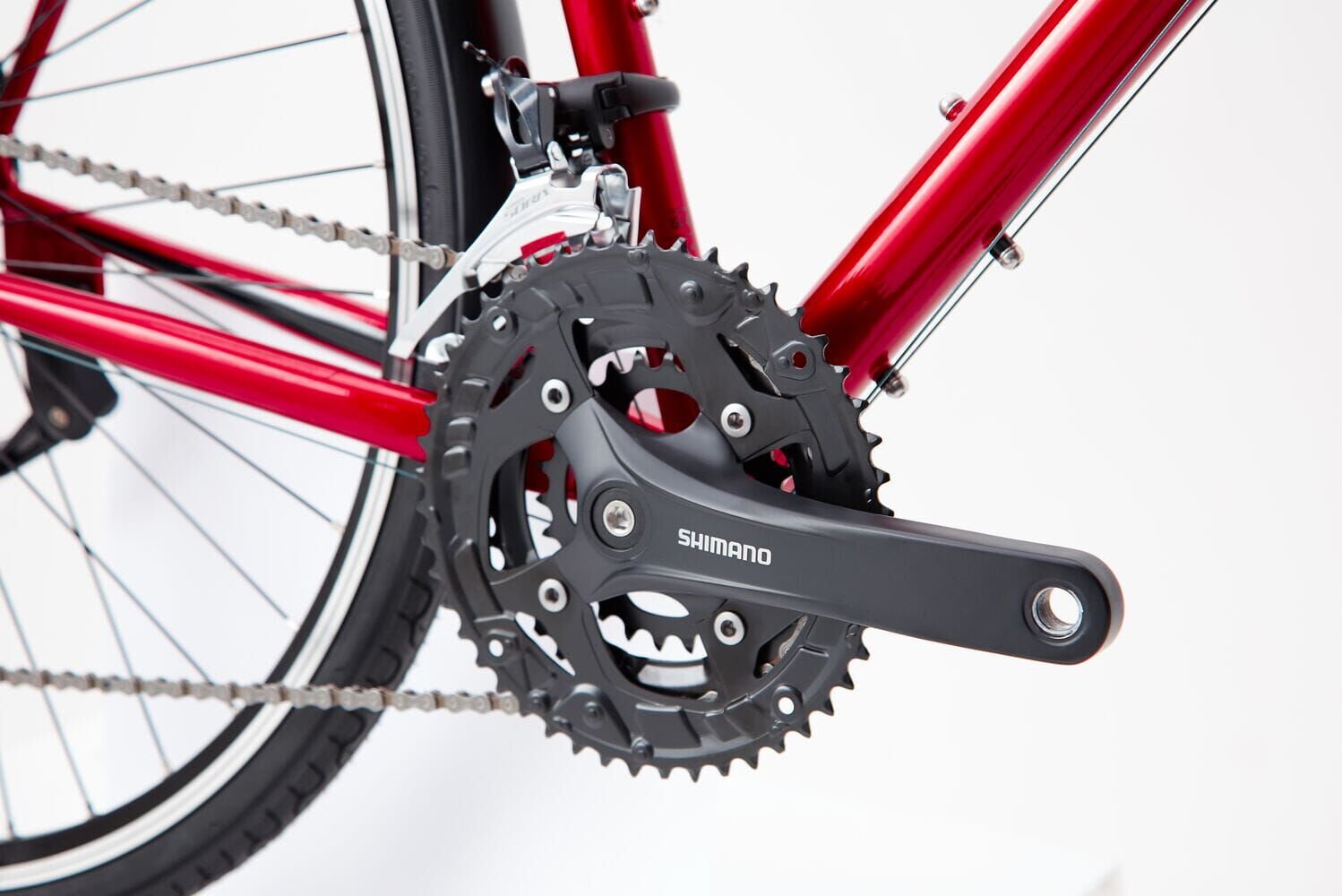

| Crankset | Shimano FC-T3010 48-36-26T |
| Cassette | Shimano HG200 11-34T |
| Chain | KMC CNHG-53 |
| Bottom Bracket | Shimano BB-UN300 |
| Brakes | Tektro RX6 Mini-V |
| Max Tire Size | 700 x 35c |
| Seatpost | Ridgeback Alloy 27.2 x 350mm |
| Saddle | Ridgeback Custom |
| Pedals | FPD Road with Toe Clips |
| Mudguards | Matt Black Fitted |

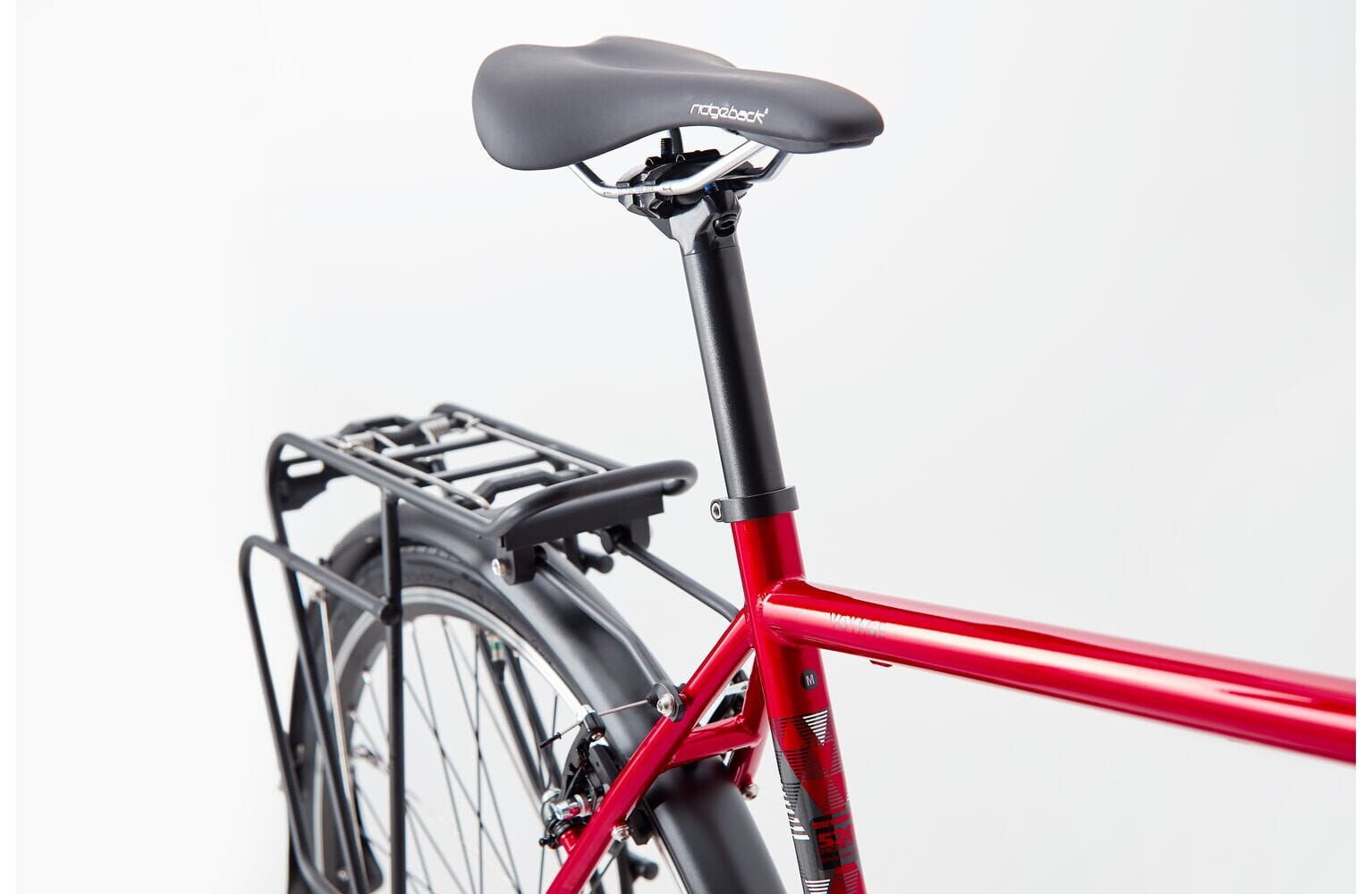

| Rear Rack | Rear Pannier Rack |

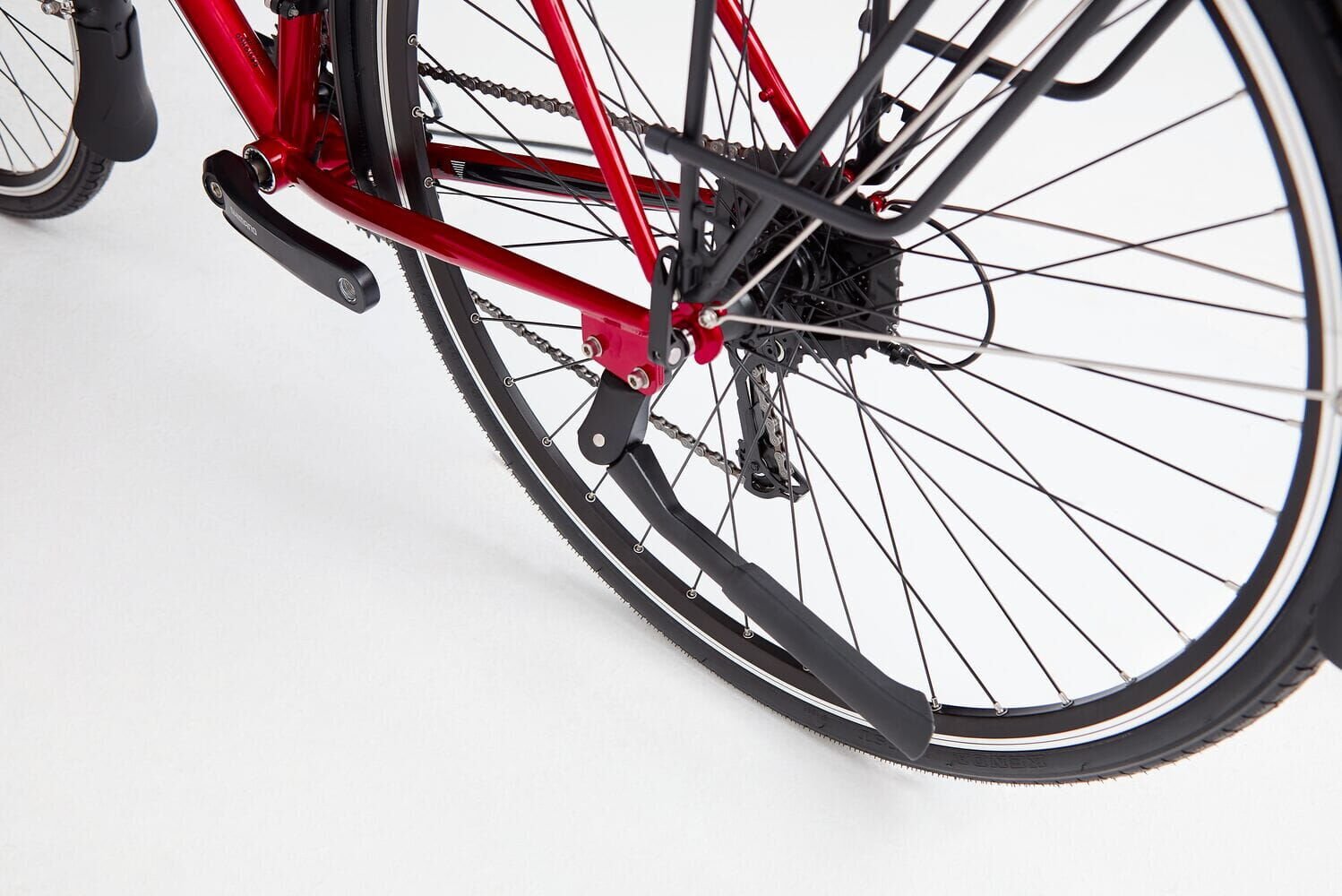

| Kickstand | Included |
| XS | S | M | L | |
|---|---|---|---|---|
| Stack | 552 | 573 | 594 | 613 |
| Reach | 365 | 375 | 385 | 395 |
| Headtube Angle | 70.5 | 71 | 71.5 | 71.5 |
| Headtube Length | 115 | 135 | 155 | 175 |
| Seattube Angle | 74 | 73.5 | 73.5 | 73 |
| Seattube Length | 490 | 520 | 550 | 570 |
| Toptube (Effective) | 523 | 545 | 561 | 582 |
| Chainstay Length | 450 | 450 | 450 | 450 |
| Wheelbase | 1031 | 1043 | 1055 | 1072 |
| BB Drop | 75 | 75 | 75 | 75 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Stem Length | 90 | 100 | 100 | 110 |
| Handlebar Width | 400 | 420 | 420 | 440 |
Sizing
| XS | S | M | L |
|---|---|---|---|
| 156 - 164cm | 164 - 172cm | 171 - 179cm | 178 - 186cm |
