Marin

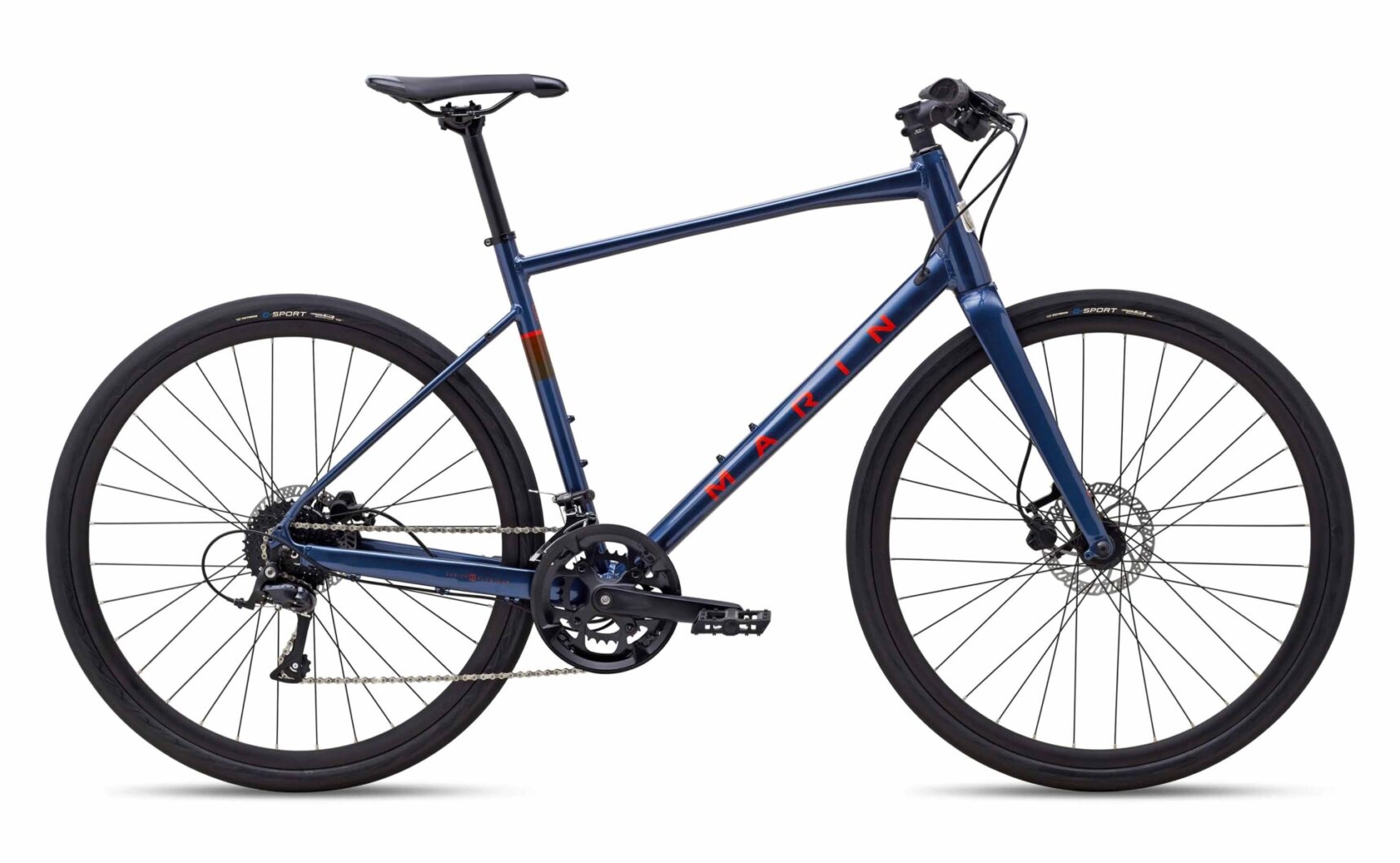

Marin Fairfax 3 Hybrid Bike
Color
Size
Click & Collect
Marin Fairfax 3 Hybrid Bike
Blue/Orange / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609FITNESS ROAD RIDING
COMMUTING
BIKE PATH RIDING
The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory mounts and gear range for future upgrades.
SPECIFICATIONS
-
FRAME
Series 3 Fitness, 6061 Aluminum, 700C Wheels, Relieved Tapered Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts, Fender, Rack, and Kickstand Mounts
-
FORK
Marin Full Carbon w/ Tapered Steerer, Fender Eyelets
-
RIMS
Marin Aluminum Double Wall, 19mm ID, 25mm Tall, Disc Specific
-
HUB, REAR
Forged Aluminum Alloy, Disc, 32H
-
HUB, FRONT
Forged Aluminum Alloy, Disc, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Vee Tire, G-Sport, 700Cx35mm, Puncture Protection, Wire Bead
-
DERAILLEUR, REAR
Shimano Sora
-
DERAILLEUR, FRONT
MicroSHIFT R9
-
SHIFT LEVER
MicroSHIFT R9 2x9 Flat Bar Road Shifters
-
CRANKSET
Forged Alloy, 48/32T Chainrings, Ring Guard
-
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
-
CHAIN
KMC X9
-
CASSETTE
Shimano, 9-Speed, 11-34T
-
BRAKE, FRONT
Tektro HDM275 Hydraulic Disc, 160mm Rotor
-
BRAKE, REAR
Tektro HDM275 Hydraulic Disc, 160mm Rotor
-
BRAKE LEVERS
Tektro Hydraulic
-
HANDLEBAR
Marin Alloy Flat
-
STEM
Marin 3D Forged Alloy
-
GRIPS
Marin Ergonomic Locking
-
HEADSET
FSA, No.42/CB
-
SEATPOST
Marin Alloy, 27.2mm
-
SADDLE
Marin Fitness Plush
-
PEDALS
Commute Platform
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
XS | S | M | L | XL | |
---|---|---|---|---|---|
STACK | 557 | 571.3 | 590 | 609 | 637.3 |
REACH | 385 | 400 | 420 | 440 | 455 |
HEADTUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
HEADTUBE LENGTH | 140 | 155 | 175 | 195 | 225 |
SEATTUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
SEATTUBE LENGTH | 380 | 430 | 480 | 520 | 550 |
TOPTUBE EFFECTIVE | 550 | 569.2 | 594.8 | 620.4 | 643.8 |
BB HEIGHT | 283.5 | 283.5 | 283.5 | 283.5 | 283.5 |
BB DROP | 70 | 70 | 70 | 70 | 70 |
CHAINSTAY | 445 | 445 | 445 | 445 | 445 |
WHEELBASE | 1050.01 | 1070 | 1096.7 | 1123.4 | 1148.4 |
STANDOVER HEIGHT | 660.74 | 705.38 | 745.2 | 780.34 | 809.68 |
FORK OFFSET | 50 | 50 | 50 | 50 | 50 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 640 | 640 | 680 | 680 | 680 |
STEM LENGTH | 70 | 70 | 70 | 70 | 70 |
CRANK LENGTH | 170 | 170 | 175 | 175 | 175 |
All lengths in millimeters
TECHNOLOGY
SERIES 3 FRAME
Series 3 Fitness frames feature butted and formed 6061 aluminum tubes with internal cable routing, flat mount disc brakes, and forged dropouts with rack and fender mounts and an integrated kickstand mount.
SERIES 2 AND SERIES 1 FRAME
Series 2 frames feature a 6061 aluminum frame with disc brake mounts, integrated headsets, internal cable routing, and fender and rack mounts. Series 1 frames also feature 6061 aluminum tubing, disc brake mounts, and fender and rack mounts.
DISC BRAKES
Disc brakes on all Fairfax and Terra Linda models provide smooth, controlled stopping in all conditions with minimal maintenance.
