Marin

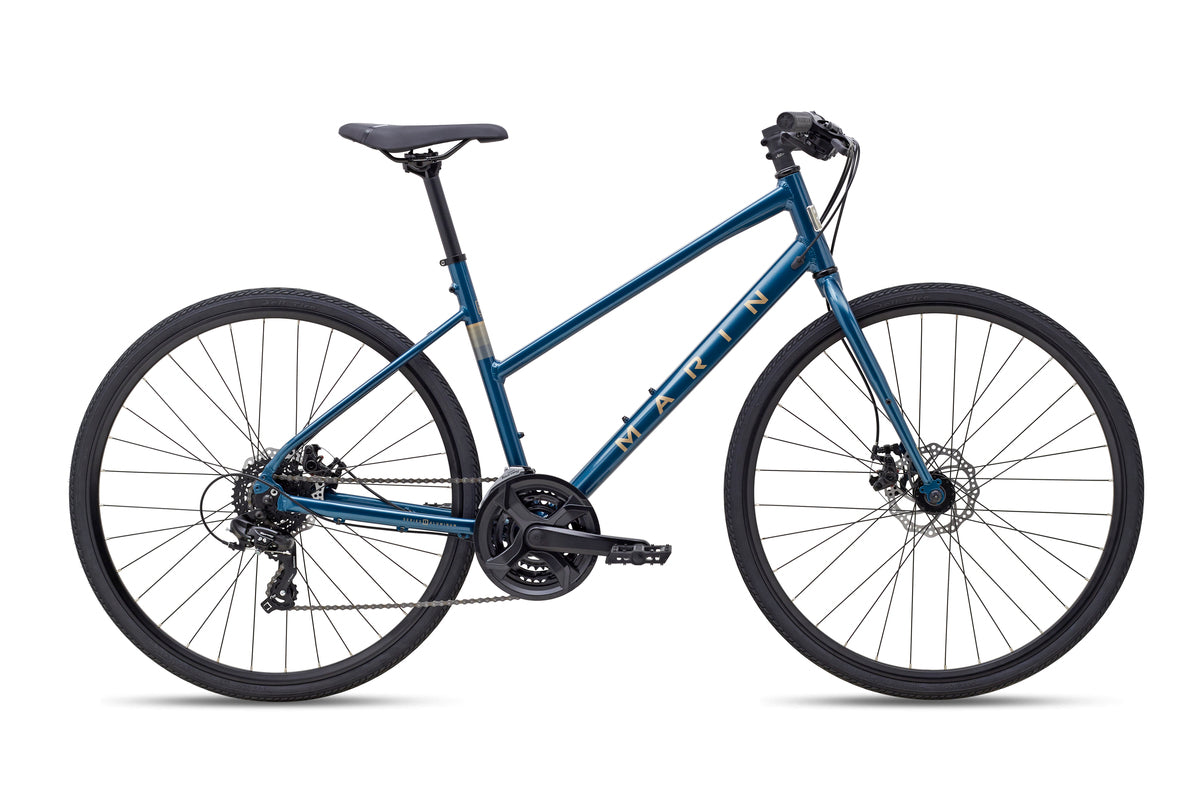

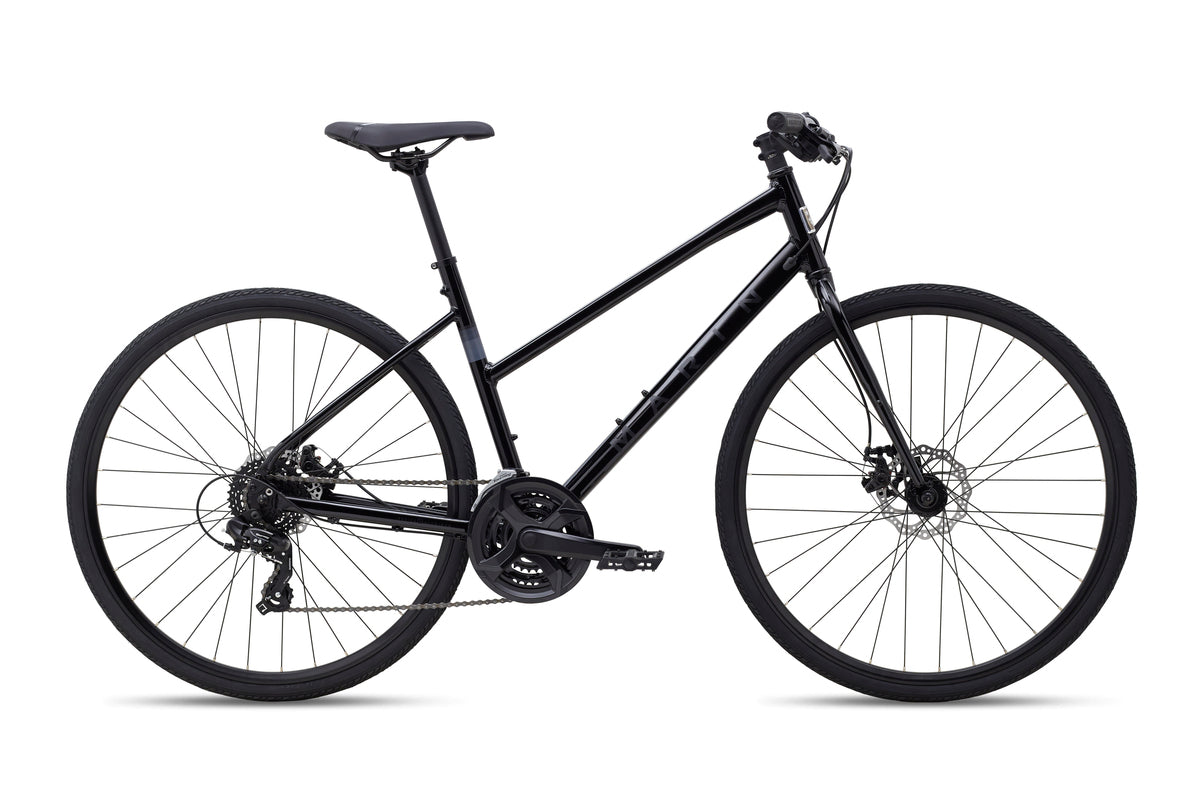

Marin Fairfax 1 ST Hybrid Bike
Color
Size
Availability
Click & Collect
Marin Fairfax 1 ST Hybrid Bike
Blue/Tan / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609FITNESS ROAD RIDING
COMMUTING
BIKE PATH RIDING
Marin Fairfax ST 1, built for the flat-bar road/fitness/hybrid rider. The step-through version fo the bike named "Best Hybrid" by Wirecutter, built around a lightweight Series 1 aluminum step through frame, stout chromoly fork, and a dependable and reliable Shimano drivetrain
SPECIFICATIONS
-
FRAME
Series 1 Fitness, Step-Thru Design, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts
-
FORK
Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
-
RIMS
Marin Aluminum Double Wall, Disc Specific
-
HUB, REAR
Forged Aluminum Alloy, Disc, 32H
-
HUB, FRONT
Forged Aluminum Alloy, Disc, 32H
-
SPOKE, NIPPLES
14g Stainless Steel
-
TIRES
Fitness 700Cx35mm
-
DERAILLEUR, REAR
Shimano Tourney, 7-Speed
-
DERAILLEUR, FRONT
Shimano TY510
-
SHIFT LEVER
Shimano Shifter/Brake Lever Combo, 3x7-Speed
-
CRANKSET
Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard
-
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
-
CHAIN
KMC Z8
-
CASSETTE
SunRace 7-Speed, 11-34T
-
BRAKE, FRONT
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE, REAR
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE LEVERS
Shimano w/ Integrated Shifters
-
HANDLEBAR
Marin Alloy, 30mm Rise
-
STEM
Marin Alloy Threadless
-
GRIPS
Marin Commute
-
HEADSET
FSA, Threadless
-
SEATPOST
Marin Alloy, 27.2mm
-
SADDLE
Marin Fitness Plush
-
PEDALS
Commute Platform
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| XS | S | M | L | |
|---|---|---|---|---|
| STACK | 557 | 571.3 | 590 | 609 |
| REACH | 385 | 400 | 420 | 440 |
| HEADTUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° |
| HEADTUBE LENGTH | 140 | 155 | 175 | 195 |
| SEATTUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| SEATTUBE LENGTH | 380 | 430 | 480 | 520 |
| TOPTUBE EFFECTIVE | 550 | 569.2 | 594.8 | 620.4 |
| BB HEIGHT | 283.5 | 283.5 | 283.5 | 283.5 |
| BB DROP | 70 | 70 | 70 | 70 |
| CHAINSTAY | 445 | 445 | 445 | 445 |
| WHEELBASE | 1050.01 | 1070 | 1096.7 | 1123.4 |
| STANDOVER HEIGHT | 536 | 567.3 | 607.7 | 628 |
| FORK OFFSET | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 640 | 640 | 680 | 680 |
| STEM LENGTH | 70 | 70 | 70 | 70 |
| CRANK LENGTH | 170 | 170 | 175 | 175 |
All lengths in millimeters
TECHNOLOGY
SERIES 3 FRAME
Series 3 Fitness frames feature butted and formed 6061 aluminum tubes with internal cable routing, flat mount disc brakes, and forged dropouts with rack and fender mounts and an integrated kickstand mount.
SERIES 2 AND SERIES 1 FRAME
Series 2 frames feature a 6061 aluminum frame with disc brake mounts, integrated headsets, internal cable routing, and fender and rack mounts. Series 1 frames also feature 6061 aluminum tubing, disc brake mounts, and fender and rack mounts.
DISC BRAKES
Disc brakes on all Fairfax models provide smooth, controlled stopping in all conditions with minimal maintenance.
STEP THROUGH DESIGN
The Fairfax 2 ST and 1 ST feature a step-through frame design with a lowered toptube for easier mounting and dismounting.
REVIEWS
The Marin Fairfax 1 is the best hybrid for most people. It provides a stable, comfortable ride on city streets, yet it’s light and agile—and an excellent value.
