Marin Bayview Trail 24" Kids Bike
Color
Availability
Click & Collect

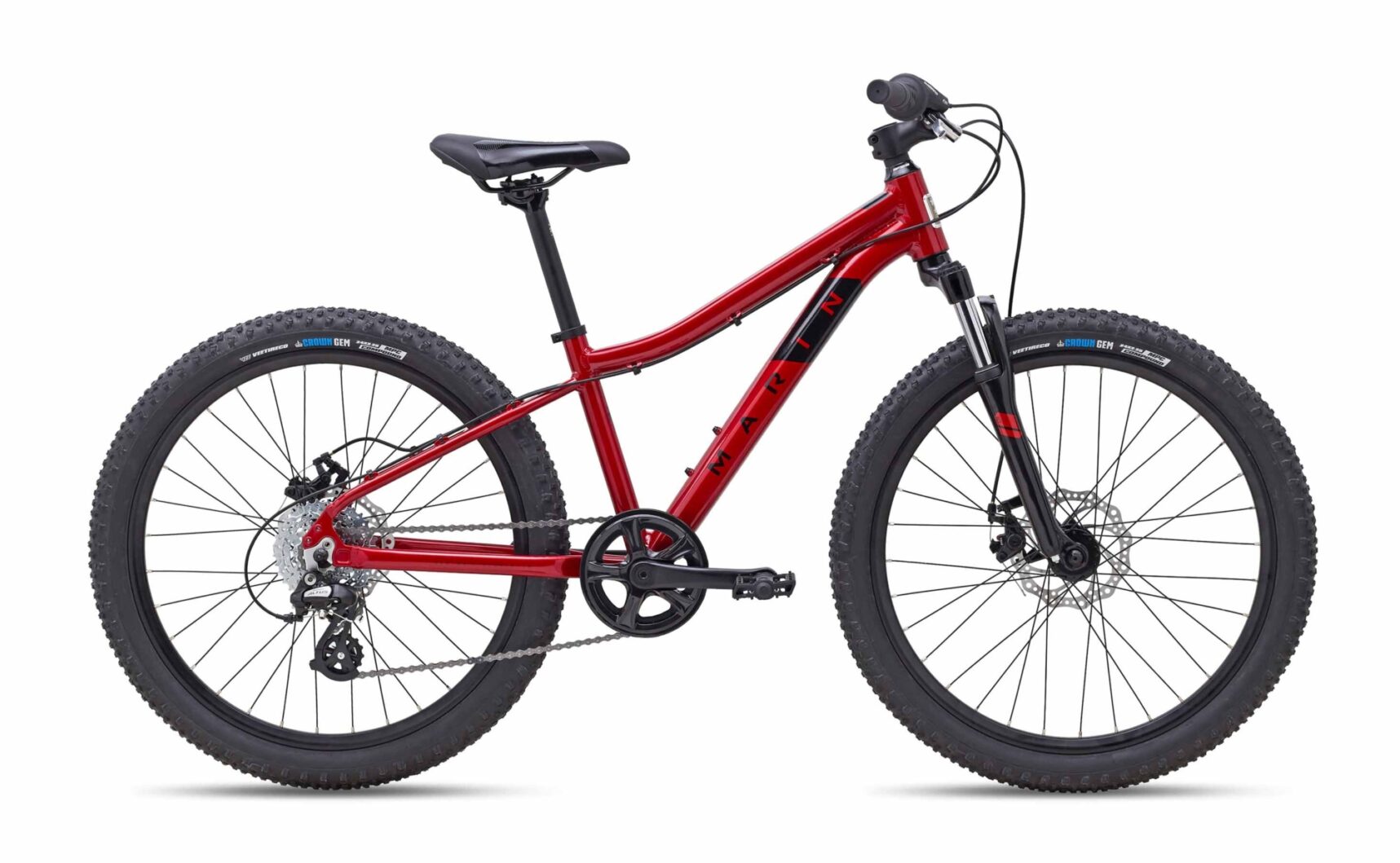

Marin Bayview Trail 24" Kids Bike
Red/Black
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609FUN!
The Bayview Trail 24" is built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.
Specifications
| Frame | Series 1 6061 Aluminium, 24" Wheels, IS Seatstay Disc Mount, 135mm Dropouts |
|---|---|
| Fork |
SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel |
| Rims | Marin, Double Wall Alloy |
| Rear Hub |
Formula, 32H |
| Front Hub | Formula, 32H |
| SpokesS | 14g Stainless Steel |
| Tyres | Vee Tire Crown Gem, 24", Wire Bead |
| Rear Derailleur |
Shimano Altus, 7-Speed |
| Shifter | Shimano Revo Twist 1x7-Speed |
| Crankset | Forged Alloy, 30T, 152mm, Ring Guard |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Chain | KMC Z50 |
| Cassette | Shimano HG-20 7-Speed, 12-32T |
| Front Brake |
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Rear Brake | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Brake Levers | Kids Specific Short Reach Alloy Lever |
| Handlebars | Marin Riser, 30mm Rise, 590mm Width |
| Stem |
Marin Alloy, 60mm |
| Grips | Marin Dual Density |
| Headset | FSA, Threaded |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Kids MTB |
| Pedals | Kids Specific Nylon Pedal |
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| ONE SIZE | |
|---|---|
| STACK | 502.75 |
| REACH | 331.92 |
| HEADTUBE ANGLE | 70° |
| HEADTUBE LENGTH | 105 |
| SEATTUBE ANGLE | 73° |
| SEATTUBE LENGTH | 321 |
| TOPTUBE EFFECTIVE | 485 |
| BB HEIGHT | 283 |
| BB DROP | 25 |
| CHAINSTAY | 400 |
| WHEELBASE | 946.97 |
| STANDOVER HEIGHT | 581.19 |
| FORK OFFSET | 40 |
| SEATPOST DIAMETER | 27.2 |
| HANDLEBAR WIDTH | 590 |
| STEM LENGTH | 70 |
| CRANK LENGTH | 152 |
All lengths in millimeters
TECHNOLOGY
ALUMINUM FRAME AND DISC BRAKES
Lightweight Series 1 6061 aluminum frames with
replaceable derailleur hangers and disc brakes with
size-appropriate brake levers for comfort and control.
SHIMANO DRIVETRAIN
The durable Shimano 7-speed drivetrain has the gear
choices kid need to tackle trails in an easy to master
package with a single front chainring and intuitive twist
shifter.
