Transition
Transition Sentinel Carbon XT Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

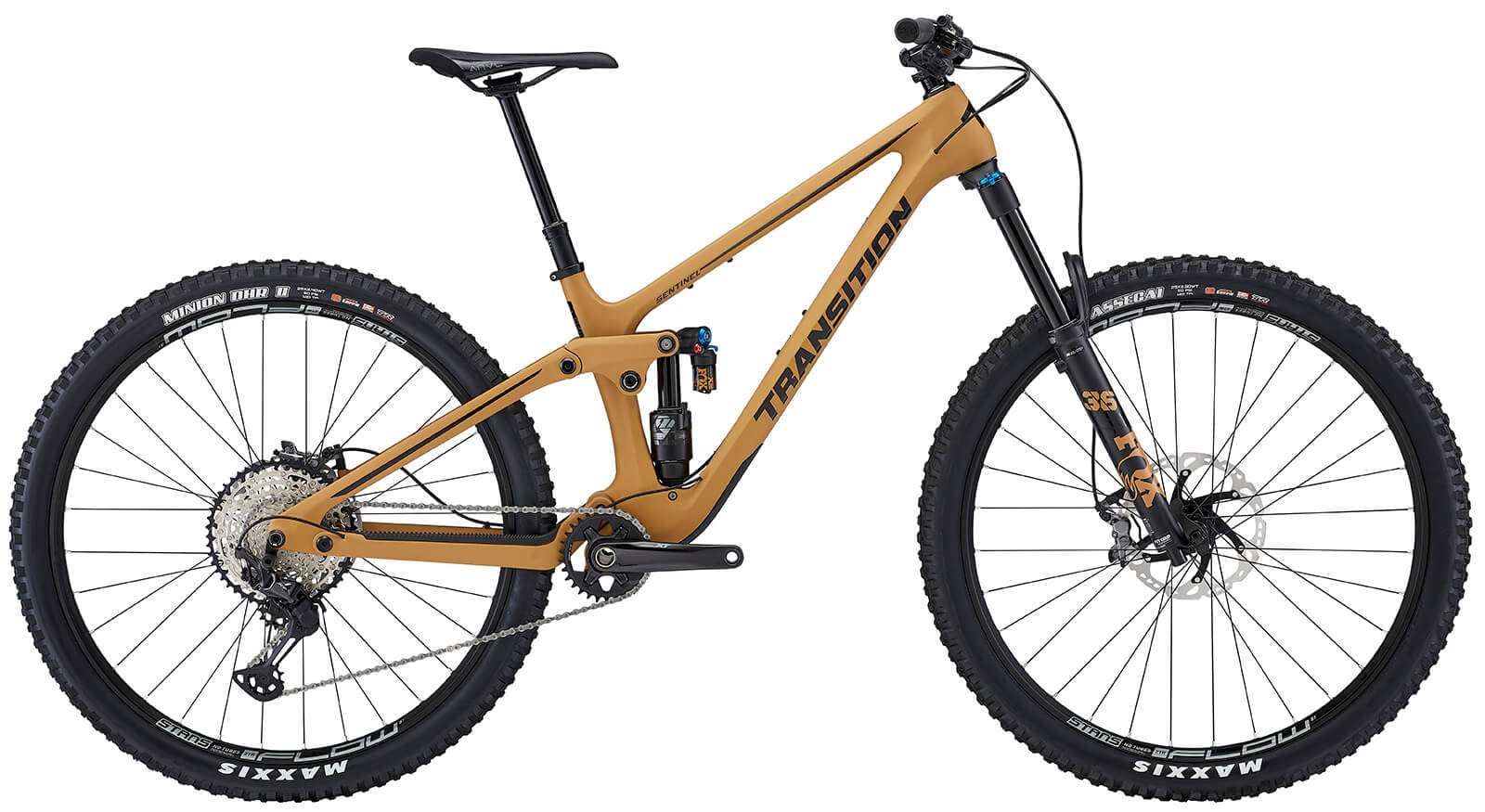

Transition Sentinel Carbon XT Bike
Loam Gold / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Hard Charging All-Rounder - The Transition Sentinel inspires confidence like you're wearing full body armour.
It's forgiving do-it-all attitude truly blurs the lines between planted bottomless sender and playful poppy trail pony. Whether you're chasing EWS dreams or just a weekend afternoon escape, it will bring out the best in you. So easy to get acquainted with you'll find yourself sending lines, jumps and manoeuvres you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost.
Specifications
| Alloy NX | Alloy GX | Alloy Frameset | Carbon XT | Carbon GX | Carbon Frameset | |
|---|---|---|---|---|---|---|
| Frame | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Alloy 150mm |
| Fork |
Fox Float 36 Rhythm 160mm Travel/44mm Offset |
Fox Float 36 Grip 2 Performance Elite 160mm Travel/44mm Offset |
Fox Float 36 Grip Performance 160mm Travel/44mm Offset |
Fox Float 36 Grip 2 Performance Elite 160mm Travel/44mm Offset | ||
| Rear Shock | Fox Float X Performance 2 Position | Fox Float X Performance Elite 2 Position |
Fox Float X Performance Elite (205x62.5mm) |
Fox Float X2 Performance 2 Position | Fox Float X Performance Elite 2 Position |
Fox Float X2 Factory (205x62.5mm) |
| Headset | FSA No.57E | FSA No.57E | FSA No.57E | FSA No.57E | ||
| Stem | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ||
| Handlebars |
RaceFace Chester 35 SM/MD (780x20) LG/XL/XXL (780x35) |
ANVL Mandrel Alloy 35 SM/MD (800x20) LG/XL (800x30) XXL (800x 40) |
ANVL Mandrel Alloy 35 SM/MD (800x20) LG/XL (800x30) XXL (800x 40) |
ANVL Mandrel Alloy 35 SM/MD (800x20) LG/XL (800x30) XXL (800x 40) | ||
| Grips | Sensus Lite | Sensus Lite | Sensus Lite | ODI Elite Flow | ||
| Rims | Stans Flow D | DT Swiss M 1900 Spline 30 | Stans Flow S1 | RaceFace Aeffect R | ||
| Spokes | Pillar Double Butted | DT Swiss Champion | Sapim Race Double Butted | RaceFace 2.0/1.7/2.0 | ||
| Hubs | Novatech D791SB/D902SB | DT Swiss 370 Ratchet LN | Stans Neo Durasync | RaceFace Trace 28H | ||
| Front Tyre | Maxxis Assegai 3C EXO+ (29x2.5) | Maxxis Assegai 3C EXO+ (29x2.5) | Maxxis Assegai 3C EXO+ (29x2.5) | Maxxis Assegai 3C EXO+ (29x2.5) | ||
| Rear Tyre | Maxxis Minion DHRII 3C EXO+ (29x2.4) | Maxxis Minion DHRII 3C EXO+ (29x2.4) | Maxxis Minion DHRII 3C EXO+ (29x2.4) | Maxxis Minion DHRII 3C EXO+ (29x2.4) | ||
| Shifter | SRAM NX Eagle MMX | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | ||
| Rear Derailleur | SRAM NX Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | ||
| Crankset | SRAM Descendent 6k DUB (30t/170mm | SRAM GX Eagle DUB (30t/170mm) | Shimano XT M8100 (30t/170mm) | SRAM GX Eagle DUB (30T/170mm) | ||
| Cassette | SRAM PG 1230 (11-50t) | SRAM XG 1275 (10-52t) | Shimano SLX M7100 (10-51t) | SRAM XG 1275 (10-52T) | ||
| Chain | SRAM NX Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | ||
| Brakes | SRAM Code R | SRAM Code RSC | Shimano XT M8120 | TRP DH-R-Evo | ||
| Rotors | SRAM Centerline (200mm) | SRAM Centerline (200mm) | Shimano RT86 (203mm) | TRP R1 2.3 (203mm) | ||
| Seatpost |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) | ||
| Saddle | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo or SDG Bel Air 3 | ||
| Extras | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Sealant | ||
| weight | 35.8 lbs / 16.23kg (Size MD) | TBD (Size MD) | 31.3 lbs / 14.21kg (Size MD) | 31.7 lbs/14.38 kg (Size MD) |
Geometry
| SM | MD | LG | XL | XXL | |
|---|---|---|---|---|---|
| A. Reach | 420 | 450 | 476 | 501 | 521 |
| B. Stack | 613 | 622 | 631 | 640 | 649 |
| C. Effective TT Length | 552 | 585 | 613 | 641 | 665 |
| D. Seat Tube Length | 350 | 390 | 430 | 460 | 490 |
| E. Effective ST Angle | 78.2° | 77.5° | 76.9° | 76.4° | 76.0° |
| Saddle Height For Effective ST Angle | 600 | 660 | 720 | 780 | 820 |
| Actual ST Angle | 70.8° | 70.8° | 70.8° | 70.8° | 70.8° |
| Seat Tube Offset At BB | 87 | 87 | 87 | 87 | 87 |
| F. Headtube Length | 100 | 110 | 120 | 130 | 140 |
| G. Headtube Angle | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| H. Chainstay Length | 440 | 440 | 440 | 440 | 440 |
| I. Wheelbase | 1199 | 1233 | 1263 | 1292 | 1316 |
| J. Bottom Bracket Drop | 29 | 29 | 29 | 29 | 29 |
| K. Estimated BB Drop | 346 | 346 | 346 | 347 | 347 |
