2021 Marin Nicasio 2

Marin

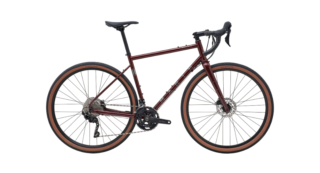

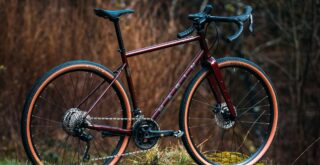

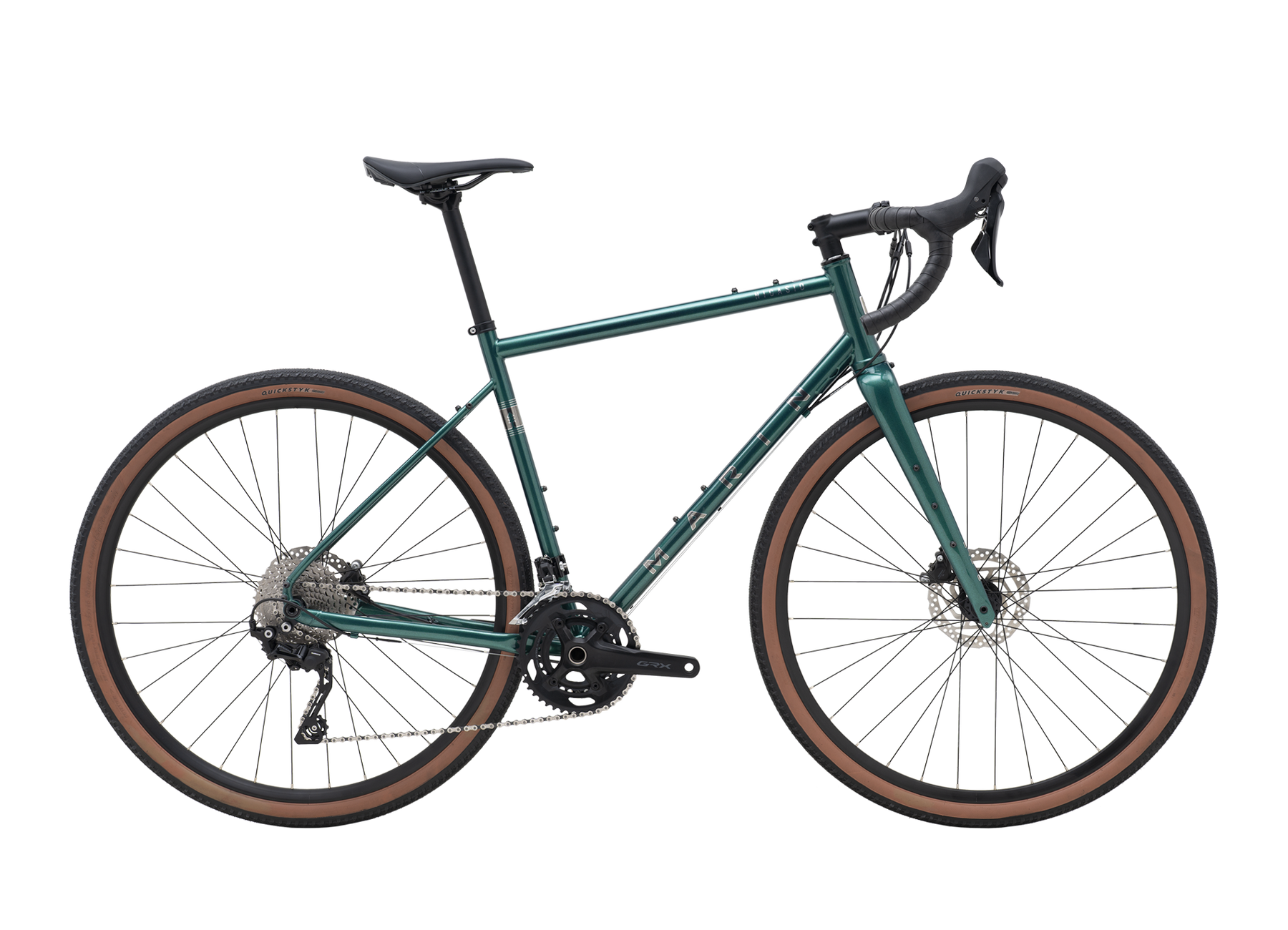

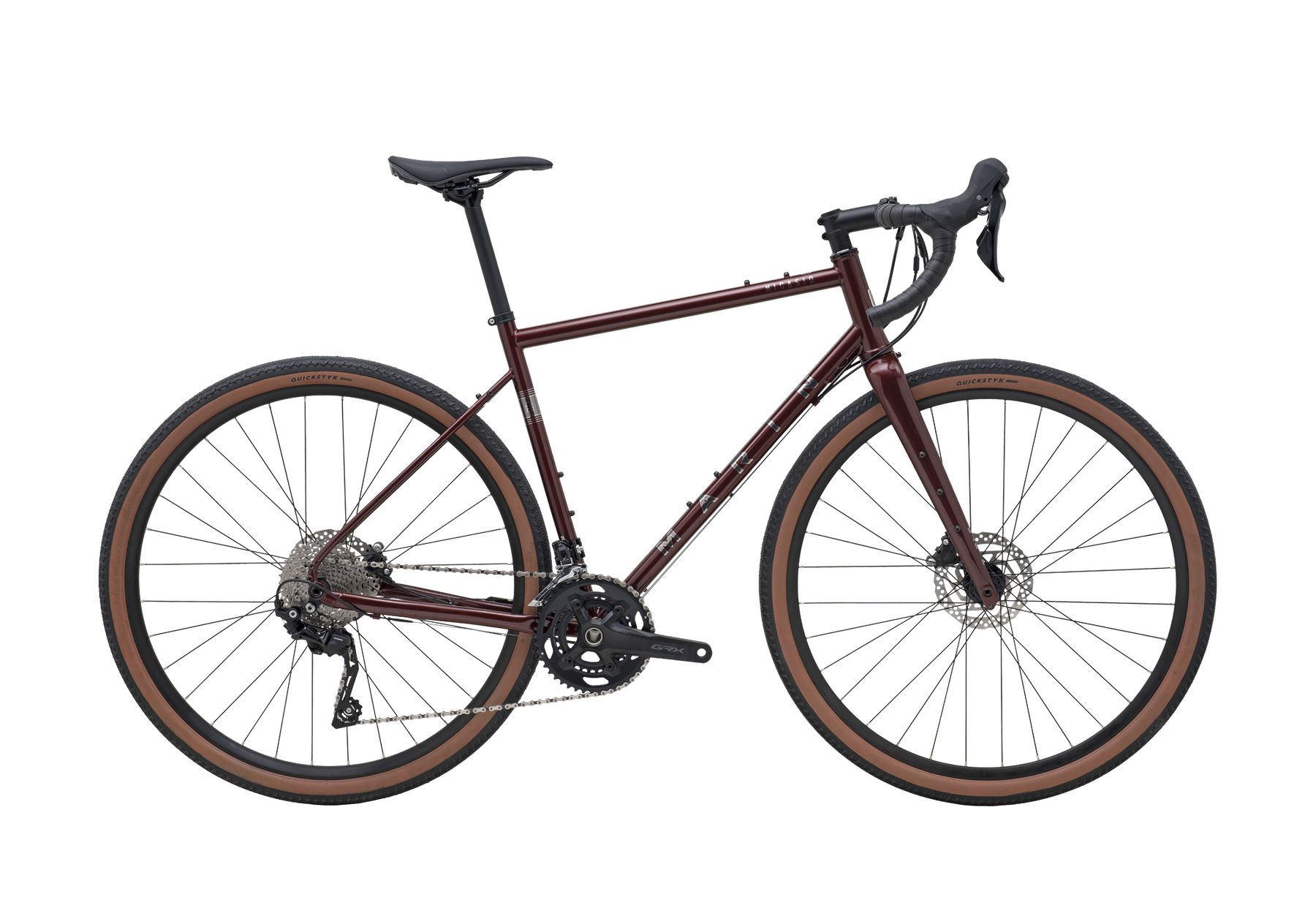

Marin Nicasio 2 Gravel Bike

€1,799.00
Sold out
Color:

Color
Size:

Size

Availability

In Store: Out of stock
Warehouse: Out of stock

Click & Collect

Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Marin Nicasio 2 Gravel Bike

Satin Blue/Green/Orange / 50cm

Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

012840609

Warehouse

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

+3532840609

NICASIO

The Nicaso is for the rider looking for something different and modern, yet with traditional steel construction. Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm-40mm or 650B x 47mm tires to let riders handle any surface.

GRAVEL/BEYOND ROAD

21 Nicasio Family 2

Born from the same ethos as the Gestalt series, the Nicasio is designed to take you Beyond Road. These endurance models let you take any path you’d like, whether it is on the asphalt or to a variety of off-road terrains. Our Series 1 frames give you everything you need to tackle roads, gravel, and trails, and our Series 2 frames up the game with lighter, snappier tubing and premium features like thru-axles, flat mount brakes, and tapered head tubes for our full carbon forks.

  • ADVENTURE ROAD AND OFF-ROAD RIDING
  • LONG DISTANCE COMMUTING
  • ENDURANCE AND ALL-WEATHER PAVEMENT

The Nicasio is for the rider looking for something different and modern, yet with traditional steel construction. Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm-40mm or 650B x 47mm tires to let riders handle any surface.

Key upgrades over Nicasio:

  • Series 2 Beyond Road double butted CrMo frame w/142x12mm thru-axle dropouts
  • Marin full carbon fiber fork
  • Shimano Tiagra 2x10 speed drivetrain
  • Shimano hydraulic disc brakes
  • WTB Riddler Comp 37mm tires

SPECIFICATIONS

  • FRAME

    Series 2 CrMo, Beyond Road Geometry, Thru-Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts

  • FORK

    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

  • RIMS

    Marin Aluminum Double Wall, 19mm Inner, Disc Specific

  • HUB, REAR

    Forged Aluminum Alloy, Disc, 32H

  • HUB, FRONT

    Forged Aluminum Alloy, Disc, 32H

  • SPOKE, NIPPLES

    14g Black Stainless Steel

  • TIRES

    WTB, Riddler Comp, 700Cx37, Folding Bead, Tubeless Ready

  • DERAILLEUR, REAR

    Shimano Tiagra

  • DERAILLEUR, FRONT

    Shimano Tiagra

  • SHIFT LEVER

    Shimano Tiagra

  • CRANKSET

    FSA Omega MegaExo, 50/34T

  • BOTTOM BRACKET

    FSA MegaExo

  • CHAIN

    KMC X10

  • CASSETTE

    Shimano 10-Speed, 11-34T

  • BRAKE, FRONT

    Shimano BR-4770 Hydraulic

  • BRAKE, REAR

    Shimano BR-4770 Hydraulic

  • BRAKE LEVERS

    Shimano Hydraulic w/ Integrated Shifters

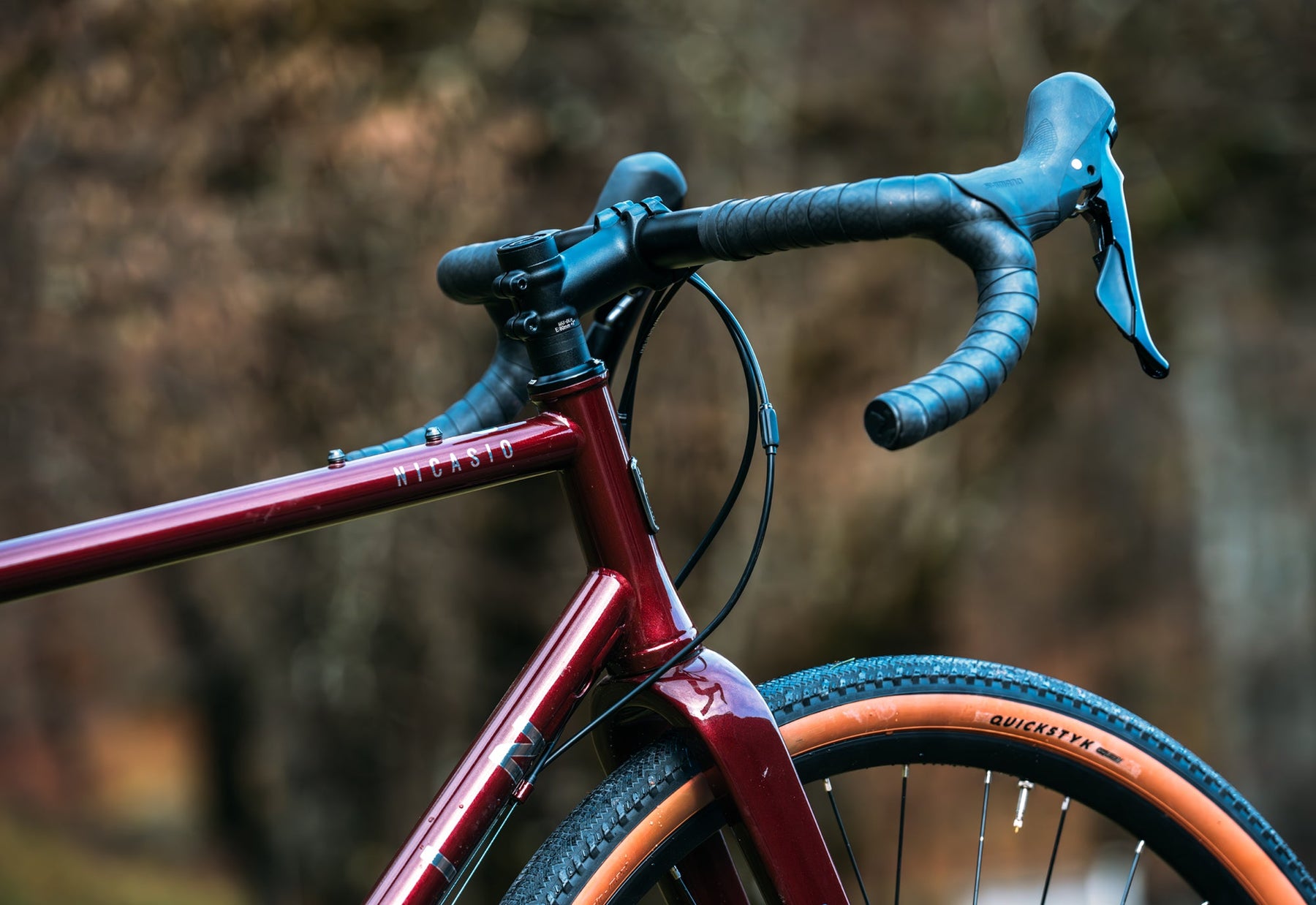

  • HANDLEBAR

    Marin Butted Alloy, Compact 12º Flared Drop

  • STEM

    Marin 3D Forged Alloy

  • GRIPS

    Marin Comfort Tape

  • HEADSET

    FSA Orbit IS, Sealed Cartridge Bearings

  • SEATPOST

    Marin Alloy, 27.2mm

  • SADDLE

    Marin Beyond Road Concept

  • PEDALS

    Commute Platform

  • EXTRAS

    Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.

GEOMETRY

Nicasio 2 geometry diagram
50 52 54 56 58 60
STACK 550 564 575 591.5 610.4 620
REACH 362.5 363 375 384.2 398.4 404.5
HEADTUBE ANGLE 70.5° 70.5° 71° 71.5° 71.5° 71.5°
HEADTUBE LENGTH 130 145 155 170 190 200
SEATTUBE ANGLE 74.5° 74° 74° 74° 74° 74°
SEATTUBE LENGTH 470 490 510 530 550 570
TOPTUBE EFFECTIVE 515 525 545 565 585 600
BB HEIGHT 269 269 269 269 269 269
BB DROP 72 72 72 72 72 72
CHAINSTAY 420 420 420 420 420 420
WHEELBASE 998.5 1004 1014.6 1024.5 1045 1054.4
STANDOVER HEIGHT 721.09 741.53 758.79 777.05 796.2 812.46
FORK OFFSET 50 50 50 50 50 50
SEATPOST DIAMETER 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 400 400 420 440 440 440
STEM LENGTH 70 70 90 90 110 110
CRANK LENGTH 170 170 175 175 175 175

All lengths in millimeters

TECHNOLOGY

Nicasio+, loaded for bikepacking

BEYOND ROAD GEOMETRY

Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.

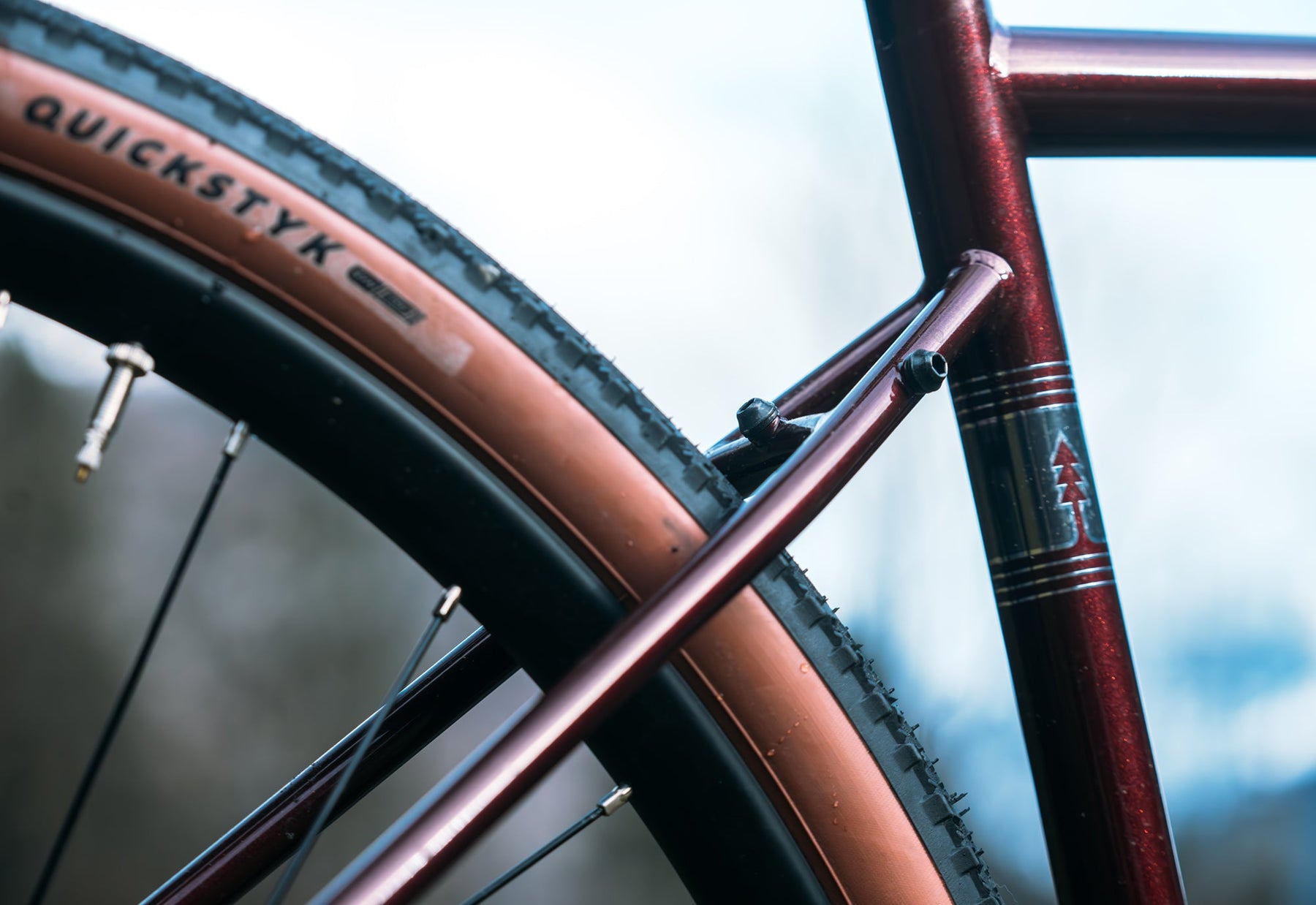

Series 1 CrMo tubing decal

STEEL FRAME CONSTRUCTION

The Nicasio uses a Series 2 or Series 1 butted 4130 CrMo frame with disc brakes, full fender and rack mounts, and two to three bottle bosses.

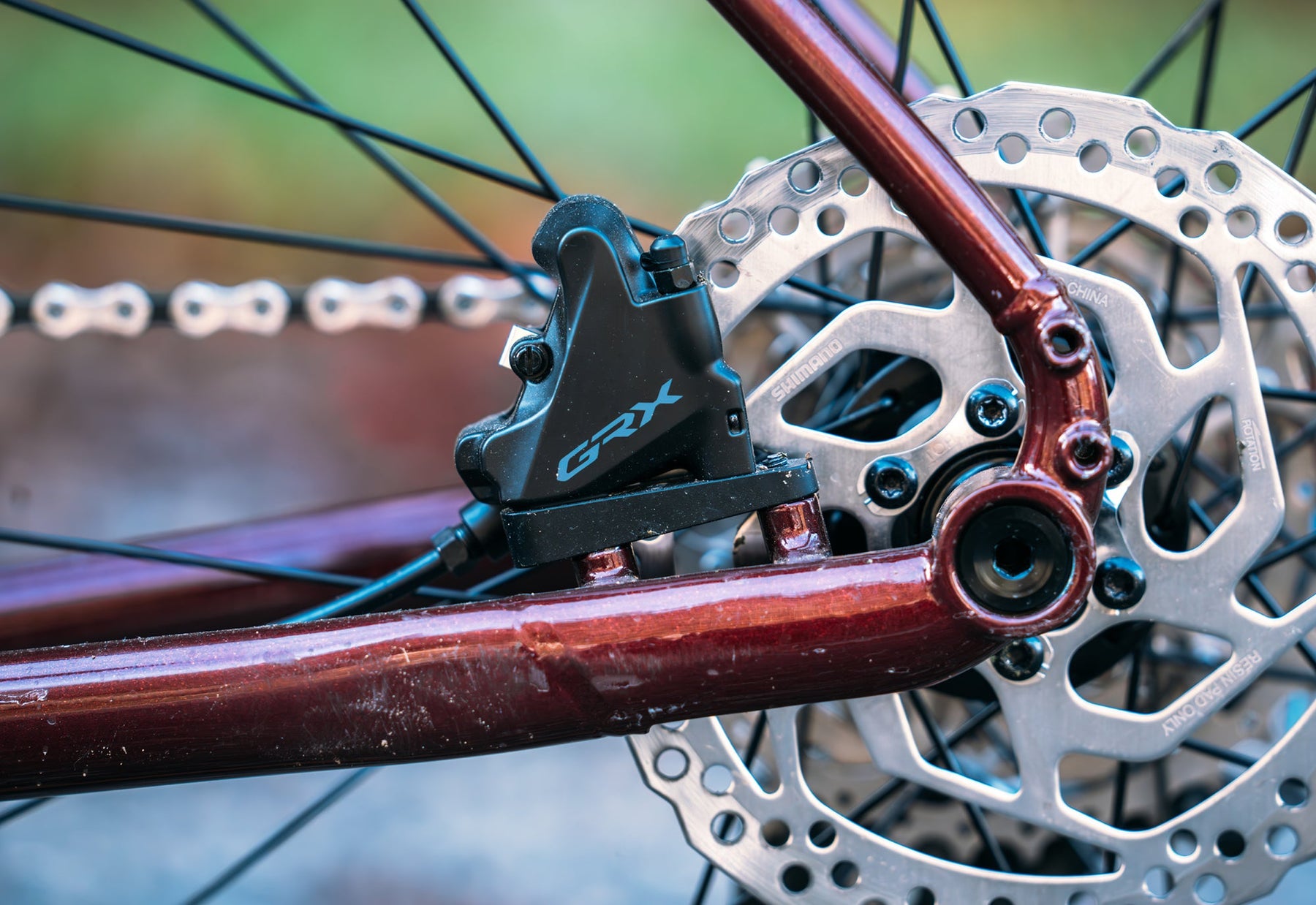

Nicasio 1 dropout and disc brake mount

DISC BRAKES

Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

Rear tire and frame image

TIRE CLEARANCE

The Nicasio frame and fork has clearance for up to 700C x 40mm or 650B x 47mm tires.
