Marin
Marin Kentfield 1 City Bike
color
size
Availability
Click & Collect

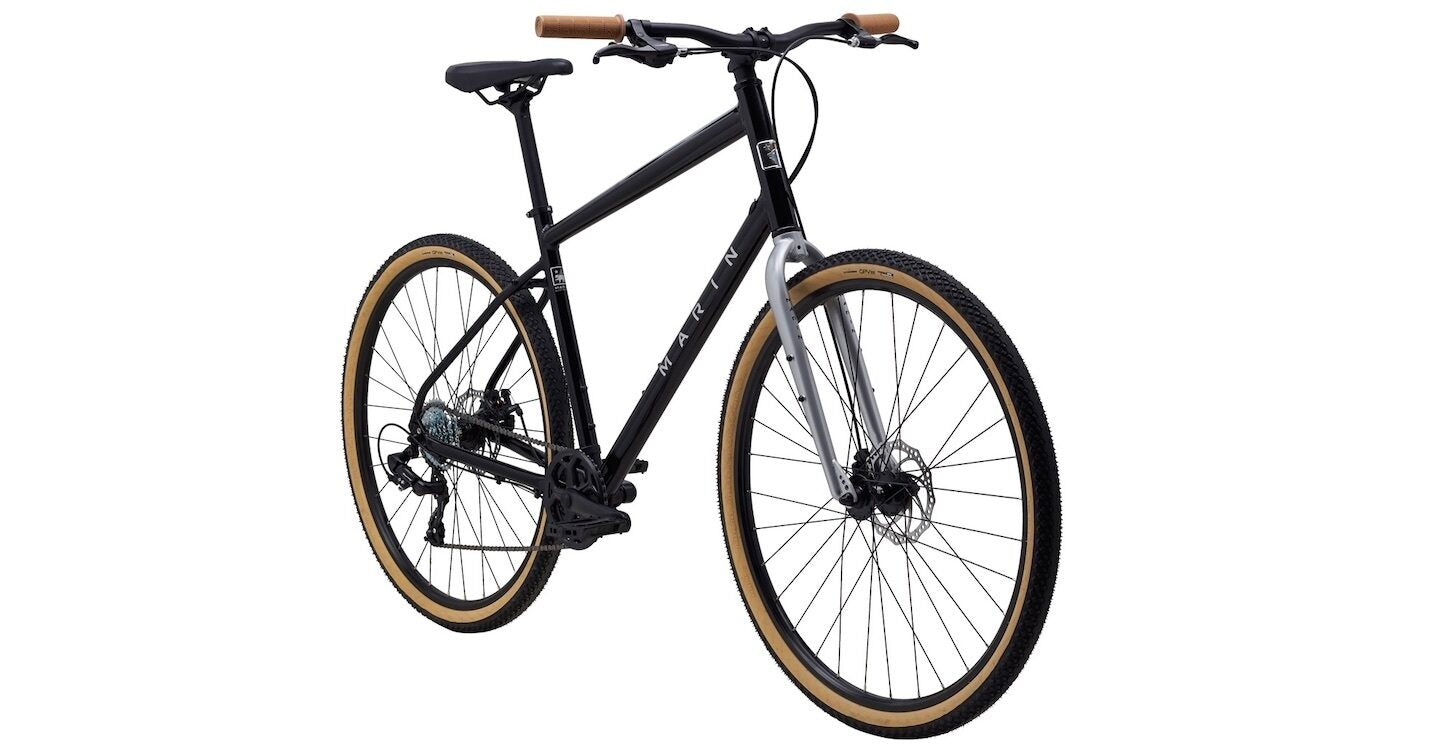

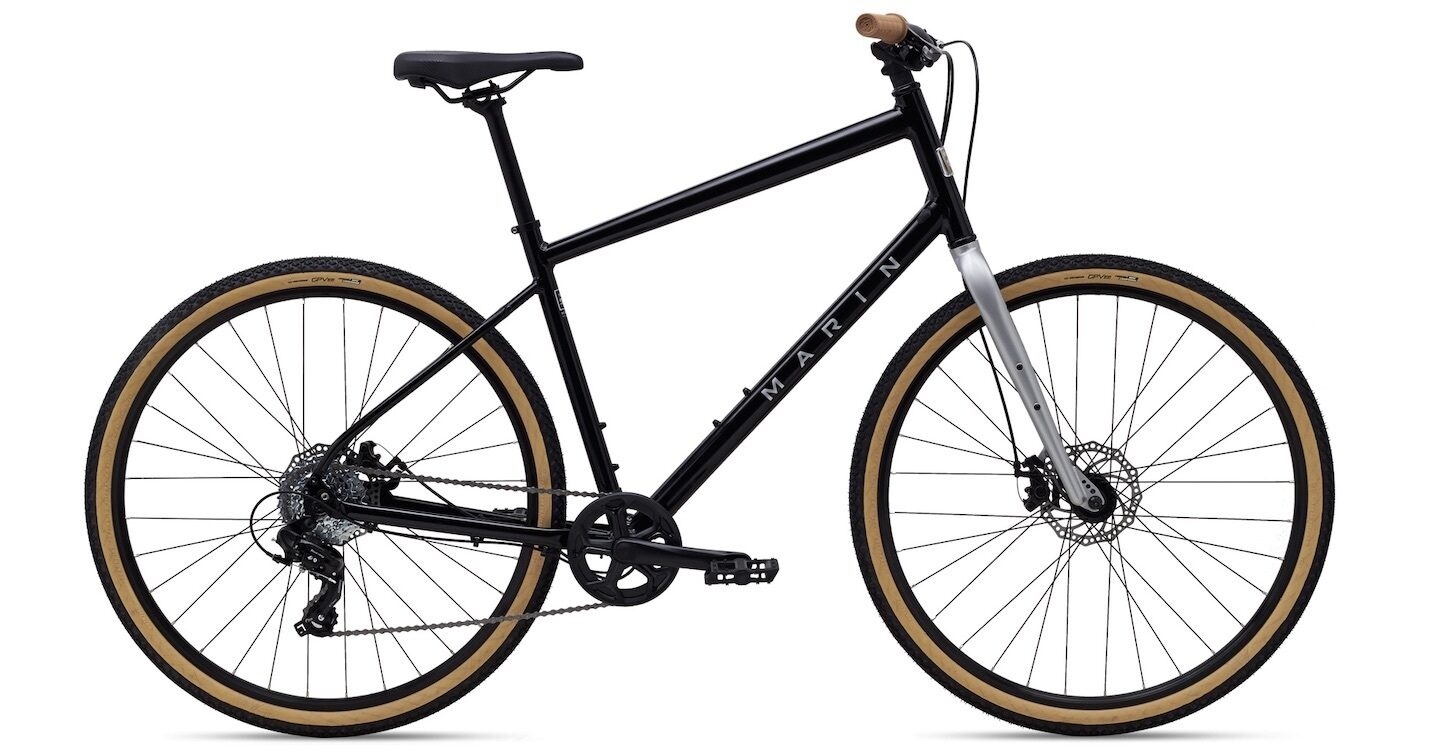

Marin Kentfield 1 City Bike
Gloss Black/Chrome / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Perfect for your daily trips and further-afield exploration on the weekend, it blends the best bits of a hybrid commuter and a go-anywhere MTB with a dash of retro-modern style. The Kentfield has an upright and comfy ride position, multi-surface tires and stacks of rack and fender mounts. Roads, bike paths, back alleys and even a little bit of dirt, the Kentfield gets you where you need to go, day in and day out.
Our Series 1 aluminum frame is lightweight and responsive, and wide-range, 1x gearing is simple to use and efficient up, along and down. The Kentfield is available in standard and step-through styles to help find your perfect daily runaround.
COMFORTABLE TRANSPORT
CASUAL COMMUTER
BIKE PATH SUNDAY DRIVER
The Kentfield 1 is our most-affordable Kentfield. Designed to be affordable, comfortable and reliable it’ll go the distance, every day of the week.
Our Series 1 aluminum frame is lightweight and responsive, and comes decked out with plenty of rack and fender mounts to suit your setup. There’s a Shimano 7-speed drivetrain, Vee Tire tires, Clark’s mechanical disc brakes and plenty of reliable Marin components.
The Kentfield 1 is also available in a step-through version.
SPECIFICATIONS
-
FRAME
Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts
-
FORK
CrMo Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
-
RIMS
Marin Aluminum Double Wall, Disc Specific
-
HUB, REAR
Forged Aluminum Alloy, 32H
-
HUB, FRONT
Forged Aluminum Alloy, 32H
-
SPOKE, NIPPLES
14g Stainless Steel
-
TIRES
Vee Tire Co., GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready
-
DERAILLEUR, REAR
Shimano Tourney 7-Speed
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano Altus 7-Speed RapidFire
-
CRANKSET
Forged Alloy Crank, Steel 38T Chainring, Ring Guard
-
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
-
CHAIN
KMC Z8
-
CASSETTE
SunRace 7-Speed, 11-34T
-
BRAKE, FRONT
Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE, REAR
Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE LEVERS
Aluminum Lever
-
HANDLEBAR
Marin Alloy, 30mm Rise, 12˚ Backsweep
-
STEM
Marin Aluminum, 31.8mm Clamp
-
GRIPS
Marin County
-
HEADSET
FSA 888 Threadless
-
SEATPOST
Marin Alloy, 27.2mm
-
SADDLE
Marin Adventure Plush
-
PEDALS
Marin Oso OEM Nylon Platform
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| S | M | L | XL | |
|---|---|---|---|---|
| STACK | 633.6 | 648.4 | 666.5 | 685.3 |
| REACH | 380 | 400 | 415 | 430 |
| HEADTUBE ANGLE | 70° | 70° | 70° | 70° |
| HEADTUBE LENGTH | 190 | 205 | 225 | 245 |
| SEATTUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| SEATTUBE LENGTH | 422 | 462 | 495 | 528 |
| TOPTUBE EFFECTIVE | 567.7 | 591.9 | 612.4 | 633 |
| BB HEIGHT | 294.5 | 294.5 | 294.5 | 294.5 |
| BB DROP | 70 | 70 | 70 | 70 |
| CHAINSTAY | 450 | 450 | 450 | 450 |
| WHEELBASE | 1082.9 | 1108 | 1130 | 1151.7 |
| STANDOVER HEIGHT | 718.86 | 754.41 | 784.94 | 815.14 |
| FORK OFFSET | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 680 | 740 | 740 | 740 |
| STEM LENGTH | 45 | 45 | 45 | 45 |
| CRANK LENGTH | 170 | 170 | 175 | 175 |
All lengths in millimeters
