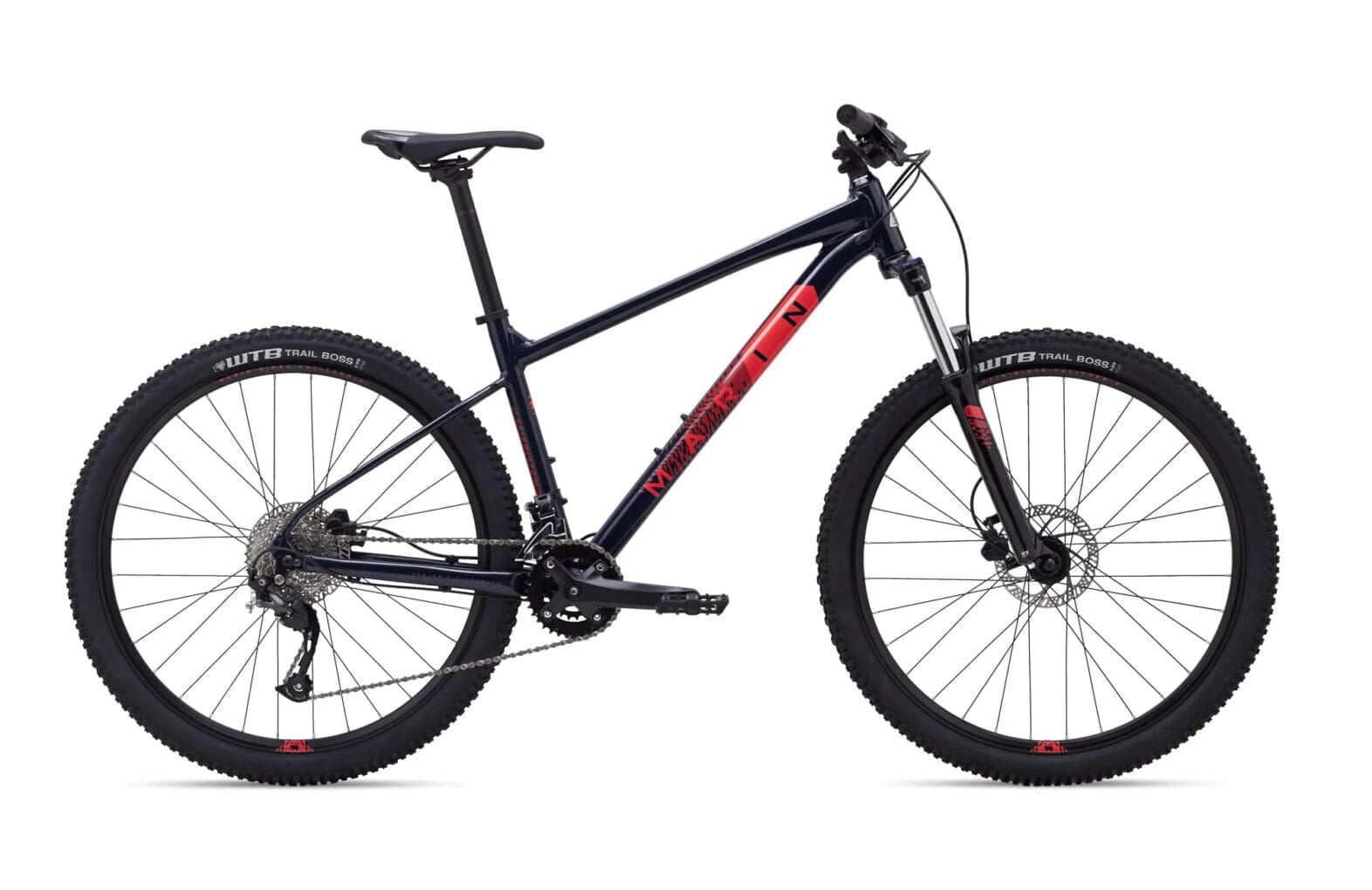

Marin Bobcat Trail 4 29 Hardtail Mountain Bike
Color
Size
Click & Collect
Marin Bobcat Trail 4 29 Hardtail Mountain Bike
Gloss Blue/Red/Dark Red / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn't break the bank.
Technologies
SERIES 2 ALUMINUM FRAME
The Bobcat Trail has a Series 2 6061 butted and hydroformed aluminum frame with a 120mm travel suspension fork and 27.5" or 29" wheels depending on size and preference.
29" OR 27.5" WHEELS
The Bobcat Trail has a growing wheel size strategy for the best fit and performance with the choice of 27.5" or 29" platforms on the size M, 27.5" wheels on sizes XS and S, and 29" wheels on sizes L, XL, and XXL.
TRAIL GEOMETRY
All Bobcat Trail models feature Marin Trail geometry, featuring a long-ish reach, low standover, slack head tube, and steep seat tube angles, giving riders confidence and predictable handling to have a blast on the trail.
FASTBACK SEATSTAY DESIGN
Fastback seatstays add vertical compliance without sacrificing power transfer, and feature rack mounts for extended trail adventures.
Specifications
- Frame: Series 2 6061 Aluminum, 27.5" or 29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
- Front Suspension: SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
- Rim: Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
- Hub Rear: Forged Alloy, 6-Bolt Disc, 32H
- Hub Front: Forged Alloy, 6-Bolt Disc, 32H
- Spokes: 14g Black Stainless Steel
- Tires: WTB Trailboss Comp, 27.5/29x2.25, Wire Bead
- Derailleur Rear: Shimano Altus, 9-Speed, Shadow Design
- Derailleur Front: Shimano Altus Double
- Shift Lever: Shimano Altus 2x9
- Crankset: Shimano FC-MT101-2, 36/22T
- Bottom Bracket: Sealed Cartridge Bearings, Square Taper
- Chain: KMC X9
- Cassette: SunRace 9-Speed, 11-36T
- Brakes Front: Tektro M275 Hydraulic Disc, 160mm Rotor
- Brakes Rear: Tektro M275 Hydraulic Disc, 160mm Rotor
- Brake Levers: Tektro M275 Hydraulic Disc
- Handlebar: Marin 31.8 Riser, 12mm Rise, 780mm Width
- Stem: Marin Alloy, 31.8 Bar Bore, 45mm
- Grips: Marin MTB, Closed End
- Headset: FSA No.10-P
- Seatpost: Marin Alloy, 30.9
- Saddle: Marin MTB
- Pedals: Nylon Platform
