Genesis Croix De Fer Ti Gravel Bike 2024
Color
Size
Click & Collect

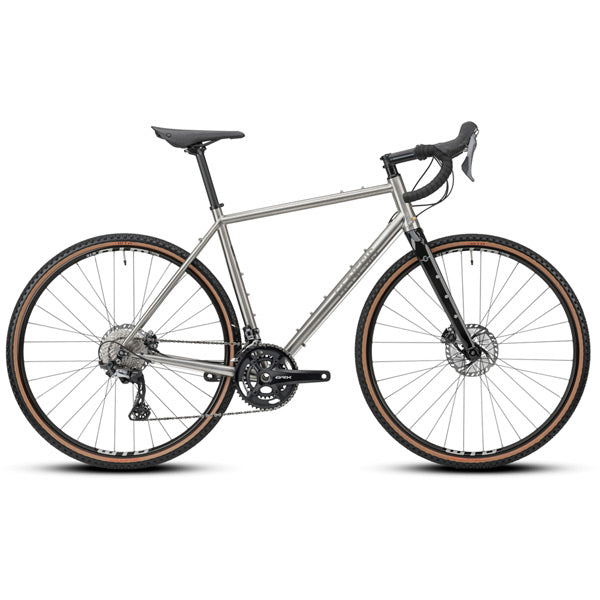

Genesis Croix De Fer Ti Gravel Bike 2024
Titanium / XL
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Croix de Fer - now more capable and adaptable than ever before!
Our 3AL-2.5v double-butted titanium frame and full carbon fork create a faster, lighter CdF that retains the cross-terrain capacity for which the legend is famous.
Paired with our full carbon fork, the titanium variant slices over a kilogram compared to our steel models.
Tube profiles are carefully selected and designed to give the new double-butted titanium platform a stiff and efficient pedalling platform, retaining the same connected feel and 'in-saddle' comfort for which the steel Croix de Fer is famed.
The fully oval 28.6/35mm toptube and cleverly swaged seat tube are all engineered to deliver high levels of comfort.
The large diameter 44mm oval-rounded trapezoid downtube, beefy S-Bend mountain bike-derived chainstays, tapered 56-46mm headtube and 34.9mm lower seat tube OD help ensure direct and efficient power transfer and pinpoint sharp handling.
The ability to run up to a 45mm rear tyre and a 50mm front tyre on the provided 700c rims increase the all-terrain ability of the Ti Croix - and it doesn't end there. If you want to experiment with 650B wheels, you could run up to a 45mm rear tyre and a 54mm front tyre.
We've spared no expense with a complete Shimano GRX 810 groupset giving you more gearing and terrain options to go further, faster than ever before.
Thru-axles front and rear, tubeless ready rims and tyres, flat mount disc brakes, a third bottle mount, rack and guard mounts and fixings for Anything Cages on the forks complete the package.
Specifications
Croix De Fer Ti | |
---|---|
Frame | 3AL-2.5V Butted Titainium |
Fork | Genesis Carbon CX |
Headset | PT-1860BC IS42 Upper / IS52 Lower |
Stem | Genesis Alloy, 31.8mm, -6 deg, 100mm |
Handlebars | Genesis Alloy, 16 deg flare, XS = 400MM, SM/MED = 420MM, L-XL = 440MM |
Rims | WTB ST Light i23 TCS 2.0 |
Spokes | Steel 14g |
Hubs | Formula Front - CL-712 / Rear - RXC-142S |
Shifter | Shimano GRX ST-R810 11spd |
Rear Derailleur | Shimano GRX RD-RX810 Medium cage |
Front Derailleur | Shimano GRX FD-RX810 |
Crankset | Shimano GRX FC-RX810-2 46/30T XS/S = 170MM, M/L= 172.5mm, XL= 175mm |
Cassette | Shimano CS-HG800-11 11/34T 11spd |
Chain | KMX X11 |
Bottom Bracket | |
Brakes | Shimano GRX BR-RX810 |
Brake Levers | Shimano GRX ST-R810 11spd |
Seatpost | Genesis Alloy 27.2 x 350mm |
Saddle | Genesis |
Pedals | NW-91K with cage |
Geometry
XS |
S |
M |
L |
XL |
|
---|---|---|---|---|---|
Reach | 365 | 375 | 385 | 395 | 405 |
Stack | 553 | 572 | 593 | 612 | 633 |
Effective TT Length | 524 | 544 | 561 | 582 | 605 |
Seat Tube Length | 470 | 500 | 530 | 550 | 580 |
Effective St Angle | 74 | 73.5 | 73.5 | 73 | 72.5 |
Head Tube Length | 115 | 135 | 155 | 175 | 195 |
Head Tube Angle | 71 | 71 | 71.5 | 71.5 | 72 |
Wheelbase | 1007 | 1023 | 1035 | 1052 | 1063 |
BB Drop | 73 | 73 | 73 | 73 | 73 |
Stand Over Height | 761 | 784 | 808 | 826 | 850 |
Fork Offset | 50 | 50 | 50 | 50 |
50 |
