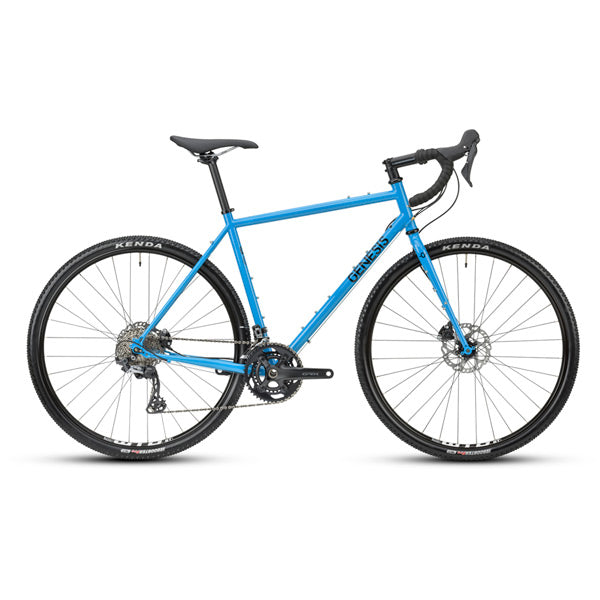

Genesis Croix De Fer 40 Gravel Bike 2024

€2,899.00
Color:

Color
Size:

Size
Quantity:

Availability

In Store: Out of stock
Warehouse: In stock (Usually dispatched within 5-7 days)

Click & Collect

Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Genesis Croix De Fer 40 Gravel Bike 2024

Blue / S

Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

012840609

Warehouse

Pickup available, usually ready in 5+ days

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

+3532840609

The Croix de Fer - now more capable and adaptable than ever before!

Built to go the distance.

A modern classic, the Croix de Fer keeps on turning and this interpretation is our most rounded model yet.

At its heart is the ever faithful Reynolds 725 tubing. Featured throughout, this is thin in comparison to regular chromoly, saving a little weight and enhancing the ride quality. Matched to our steel fork, this is a bike which gives a reassuring ride, even when loaded.

That theme continues with Shimano's GRX groupset providing a reliable shifting on and off road. We've gone for an RX-600 chainset featuring 46/30T chainrings, with shifters and hydraulic brake callipers to match.

The ability to run up to a 45mm rear tyre and a 50mm front tyre on the provided 700c rims increase the all-terrain ability of the Croix - and it doesn't end there. If you want to experiment with 650B wheels, you could run up to a 44mm rear tyre and a 50mm front tyre.

Thru-axles front and rear, tubeless ready rims and tyres, flat mount disc brakes, a third bottle mount, rack and guard mounts and fixings for Anything Cages on the forks complete the package

Specifications:

10 20 30 40 50
Frame Genesis Mjolnir seamless double-butted chromoly Reynolds 725 Heat-Treated chromoly Reynolds 725 Heat-Treated chromoly Reynolds 725 Heat-Treated chromoly Reynolds 853 Seamless Air-Hardened Heat Treated steel
Fork Chromoly disc fork with anything cage mounts Chromoly disc fork with anything cage mounts Chromoly disc fork with anything cage mounts Chromoly disc fork with anything cage mounts Genesis CGR1 carbon fork
Headset PT-1606 EC34 Upper/EC34 Lower PT-1770 EC34 Upper/ EC34 Lower PT-1770 EC34 Upper/ EC34 Lower PT-1770 EC34 Upper/ EC34 Lower PT-1770 EC34 Upper/ EC34 Lower
Stem Genesis Alloy, 31.8mm, -6 deg, 100mm Genesis Alloy, 31.8mm, -6 deg, 100mm Genesis Alloy, 31.8mm, -6 deg, 100mm Genesis Alloy, 31.8mm, -6 deg, 100mm Genesis Alloy, 31.8mm, -6 deg, 100mm
Handlebars Genesis Alloy, 16 deg flare, XS = 400MM, SM/MED = 420MM, L-XL = 440MM Genesis Alloy, 16 deg flare, XS = 400MM, SM/MED = 420MM, L-XL = 440MM Genesis Alloy, 16 deg flare, XS = 400MM, SM/MED = 420MM, L-XL = 440MM Genesis Alloy, 16 deg flare, XS = 400MM, SM/MED = 420MM, L-XL = 440MM Genesis Alloy, 16 deg flare, XS = 400MM, SM/MED = 420MM, L-XL = 440MM
Rims Jalco XCD21 Jalco XCD21 Jalco XCD21, 32H WTB ST i23 TCS 2.0, 32H WTB ST Light i23 TCS 2.0
Spokes Steel 14g steel 14g Steel 14g Steel 14g Steel 14g
Hubs KT-K68, 6 Bolt, 32h KT-K08, 6 bolt, 32h Formula F - RX-812, R - RX-300 Formula Front - CL-712 / Rear - RXC-142S Formula Front - CL-712 / Rear - RXC-142S
Tyres
Shifter Shimano Sora ST-R3000 9spd Shimano Tiagra ST-4700 10spd Shimano 105 ST-R7000 11spd Shimano GRX ST-RX600 11spd Shimano GRX ST-R810 11spd
Rear Derailleur Shimano Sora R3000 9spd GS cage Shimano GRX RD-RX400 10spd Shimano GRX RD-RX810 Medium cage Shimano GRX RD-RX810 Medium cage Shimano GRX RD-RX810 Medium cage
Front Derailleur Shimano Sora R3000 band on Shimano GRX FD-RX400 Shimano GRX FD-RX810 Shimano GRX FD-RX810 Shimano GRX FD-RX810
Crankset Genesis TAF37 46/30T, XS = 165mm, S/M = 170mm, L/XL = 175mm Shimano GRX FC-RX600 46/30T XS = 165mm, S/M = 170mm, L/XL = 175mm Shimano GRX FC-RX600 46/30T XS/S = 170MM, M/L= 172.5mm, XL= 175mm Shimano GRX FC-RX600 46/30T XS/S = 170MM, M/L= 172.5mm, XL= 175mm Shimano GRX FC-RX600 46/30T XS/S = 170MM, M/L= 172.5mm, XL= 175mm
Cassette Shimano CS-HG400-9 11/34T 9spd Shimano CS-HG500-10 11/34T 10spd Shimano CS-HG70011 11/34T 11spd Shimano CS-HG70011 11/34T 11spd Shimano CS-HG800-11 11/34T 11spd
Chain KMC X9 KMC X10 KMX X11 KMX X11 KMX X11
Bottom Bracket Shimano BB-RS500
Brakes TRP SPYRE-C mechanical disc TRP SPYRE-C mechanical disc TRP SPYRE-C mechanical disc Shimano GRX BR-RX400 Shimano GRX BR-RX810
Brake Levers Shimano Sora ST-R3000 9spd Shimano Tiagra ST-4700 10spd Shimano 105 ST-R7000 11spd Shimano GRX ST-RX600 11spd Shimano GRX ST-R810 11spd
Seatpost Genesis Alloy 27.2 x 350mm Genesis Alloy 27.2 x 350mm Genesis Alloy 27.2 x 350mm Genesis Alloy 27.2 x 350mm Genesis Alloy 27.2 x 350mm
Saddle Genesis Genesis Genesis Genesis Genesis
Pedals NW-91K with cage NW-91K with cage NW-91K with cage NW-91K with cage NW-91K with cage

Geometry

XS
 S
 M
 L
 XL
Reach 365 375 385 395 405
Stack 553 572 593 612 633
Effective TT Length 524 544 561 582 605
Seat Tube Length 470 500 530 550 580
Effective St Angle 74 73.5 73.5 73 72.5
Head Tube Length 115 135 155 175 195
Head Tube Angle 71 71 71.5 71.5 72
Wheelbase 1007 1023 1035 1052 1063
BB Drop 73 73 73 73 73
Stand Over Height 761 784 808 826 850
Fork Offset 50 50 50 50
 50
