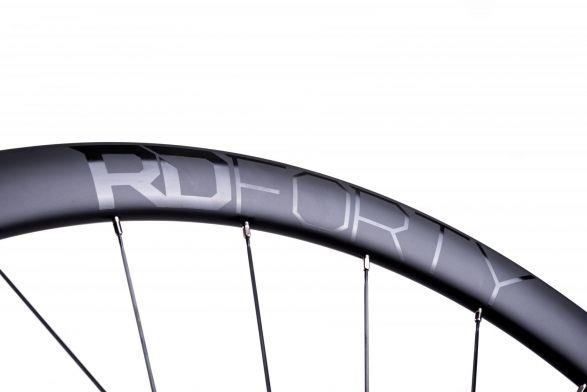

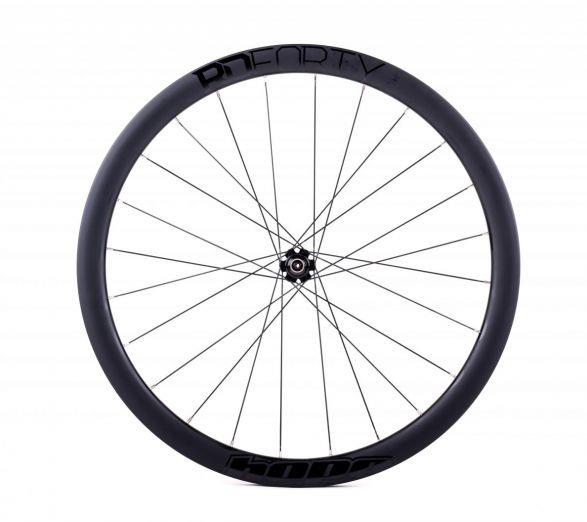

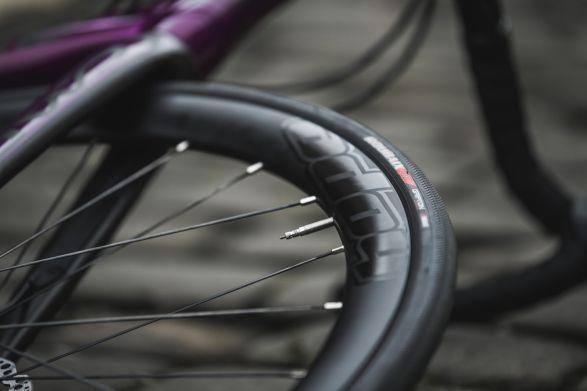

RD40 Carbon Rims

The RD40 wheelset is our game changing carbon road/gravel wheelset.
Combining the latest in carbon technology with our versatile and enduring RS4 Disc straight pull hubs these wheels were designed for uncompromised performance for a wide range of disciplines.

Key Features

• Built with RS4 straight pull Centre Lock 24 hole hubs using Sapim CX-Ray black straight pull spokes
• Wheels are built from start to finish by hand in Barnoldswick
• 700c wheel size
• Carbon Clincher rim, tubeless compatible¬†(Valve and Tape supplied)
• Available with either a Shimano or Campag freehub body
• Designed to suit disc brake sets using centre lock rotors
• The RS4 rear hubs feature the reduced drag ratchet mechanism
• Complete wheel Weights: 1495g pair

Hope RD40 Carbon - RS4 S-Pull Centre Lock Tech Specs >

• 24mm Tape, Valve and wipe included for Tubeless setup
• Rim dimensions: 40mm deep, 26.5mm external width and 19mm internal width.
• Rim¬†ERD is 563mm
• ETRTO 622x19.
• Rim width is ideal to suit larger volume road/cross tyres.
• Strong monocoque, undirectional carbon fibre construction rim.
• Weight for rim only.
• 24 hole straight pull complete wheels.
• Wheels are built using high quality Sapim CX-Ray black straight pull spokes and brass nipples.
• Wheels come supplied with QR and 12mm end caps for front wheel and rear wheel comes with QR and 142x12 end caps as standard.
• Choose from our 6 different hub colour options.
• Wheels can be adapted quickly and easily to suit different ¬†frame and fork fitting using our conversion kits available separately.
