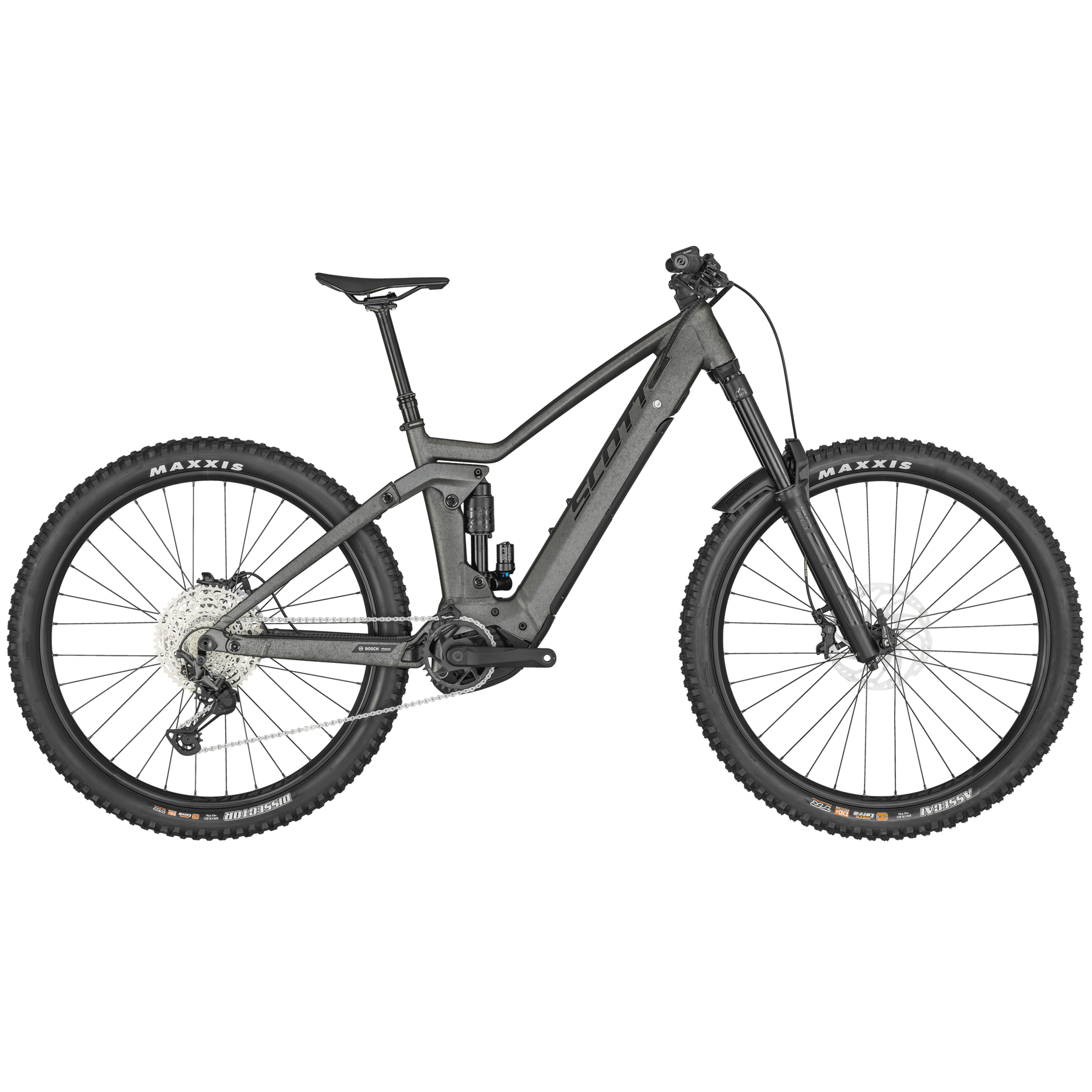

Scott Ransom eRIDE 920 Electric Mountain Bike
Crackle Grey / S / NL
Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Having won nearly every test in which it was featured, there was only one thing we could do to make the Ransom more fun and versatile: make an E-Bike version. Ransom eRIDE - more ups, more down, more hoots, more hollers, more Ransom.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Alloy Frame / Virtual 4 link kinematic VLK, 27.5" and 29" compatible / geo adj. / Boost 148x12mm, 180mm travel / Bosch Gen4 / Integr. removable Battery, Tapered Headtube E2, Central Kickstand Mount |
|---|---|
| fork | RockShox ZEB / Air, 15x110mm QR axle, tapered steerer / Reb. Adj. / 180mm travel |
| rear-shock | FOX Float X2 Performance / Air, LSC, LSR w/2-Pos. lever |
| derailleur | Shimano XT / 12 Speed |
| shift-levers | Shimano SL-M6100 |
| front-derailleur | |
| brake-front | Shimano BR-M7120 4 Piston |
| brake-rear | Shimano BR-M7120 4 Piston |
| brake-disc-front | SM-RT70 CL 203mm |
| brake-disc-rear | SM-RT70 CL 203mm |
| wheelset | |
| rims | Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready |
| tire-front | Maxxis Assegai 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| tire-rear | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| hub-front | Shimano HB-MT410-B CL / 15x110mm |
| hub-rear | Shimano FH-MT410-B CL / Boost 12x148mm |
| spokes | Stainless Black |
| handlebar | Syncros Hixon 2.0 Rise / Alloy 6061D.B., 20mm rise / 8° / 800mm |
| stem | Syncros XM1.5 / Alloy 6061, integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" |
| headset | Acros Blocklock / Tapered 1.5"-1 1/8", OD 52/62mm / ID 44/56mm |
| grips | Syncros Pro lock-on grips |
| saddle | Syncros Tofino 2.0 Regular, CRMO rails |
| seat-post | Syncros Duncan Dropper Post 2.5, 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm |
| crankset | FSA CK-745 165mm / 34T |
| bottom-bracket | |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano CS-M6100 / 10-51 T |
| Pedals | |
| motor | Bosch Performance CX, EU: 25kmh / INT: 20mph |
| battery | PowerTube 625Wh |
| display | Bosch Purion |
| charger | 4A Charger |
Specifications
| stack | 640 |
|---|---|
| reach | 422 |
| seat-tube-length | 420 |
| seat-tube-angle | 77,2 |
| top-tube-length | 570 |
| head-tube-length | 120 |
| head-tube-angle | 64 |
| stem-length | 50 |
| handlebar-width | 800 |
| wheelbase | 1228 |
| standover | 753 |
| chainstay-length | 463 |
| fork-rake | 42 |
| bottom-bracket-height | 349 |
| bottom-bracket-drop | 13 |
