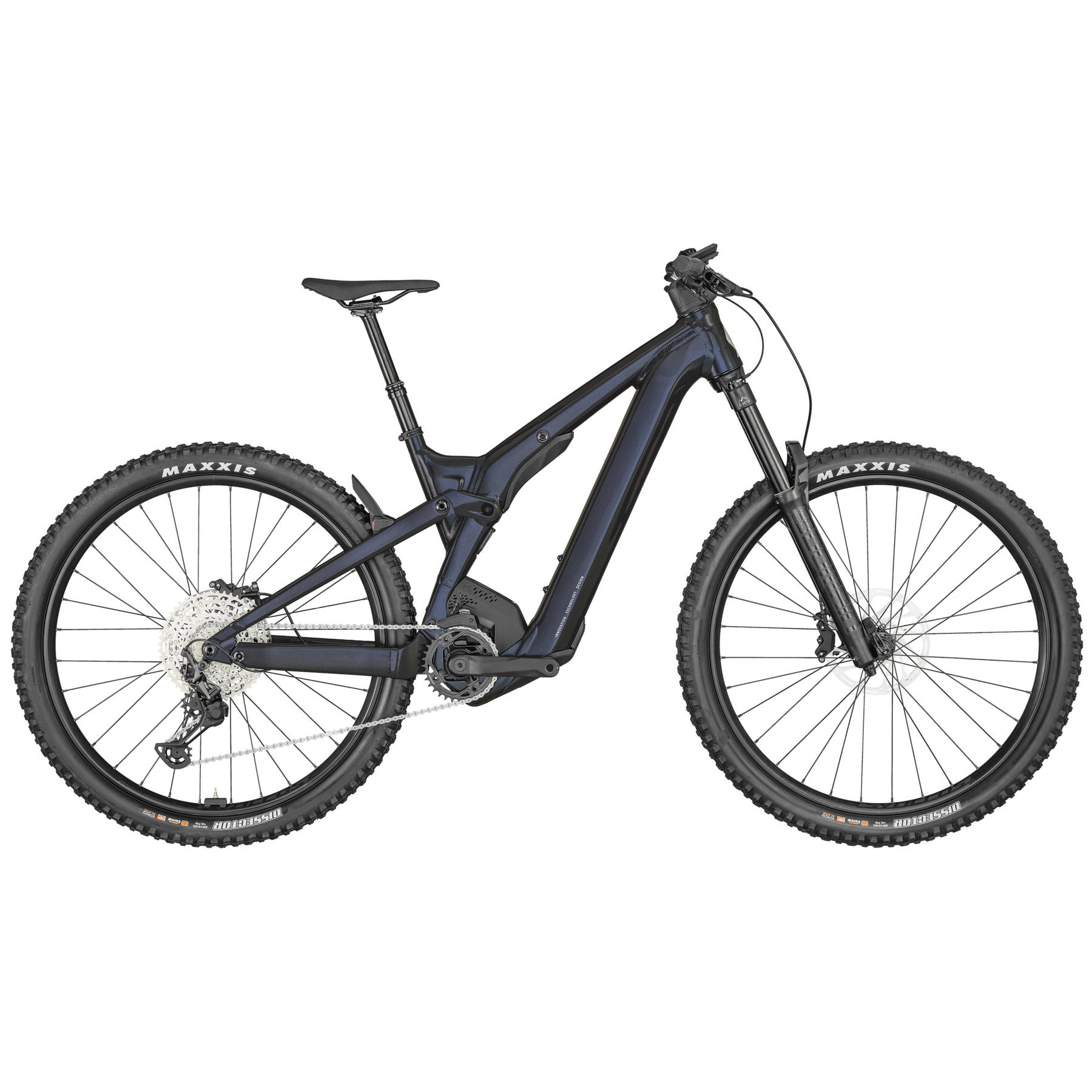

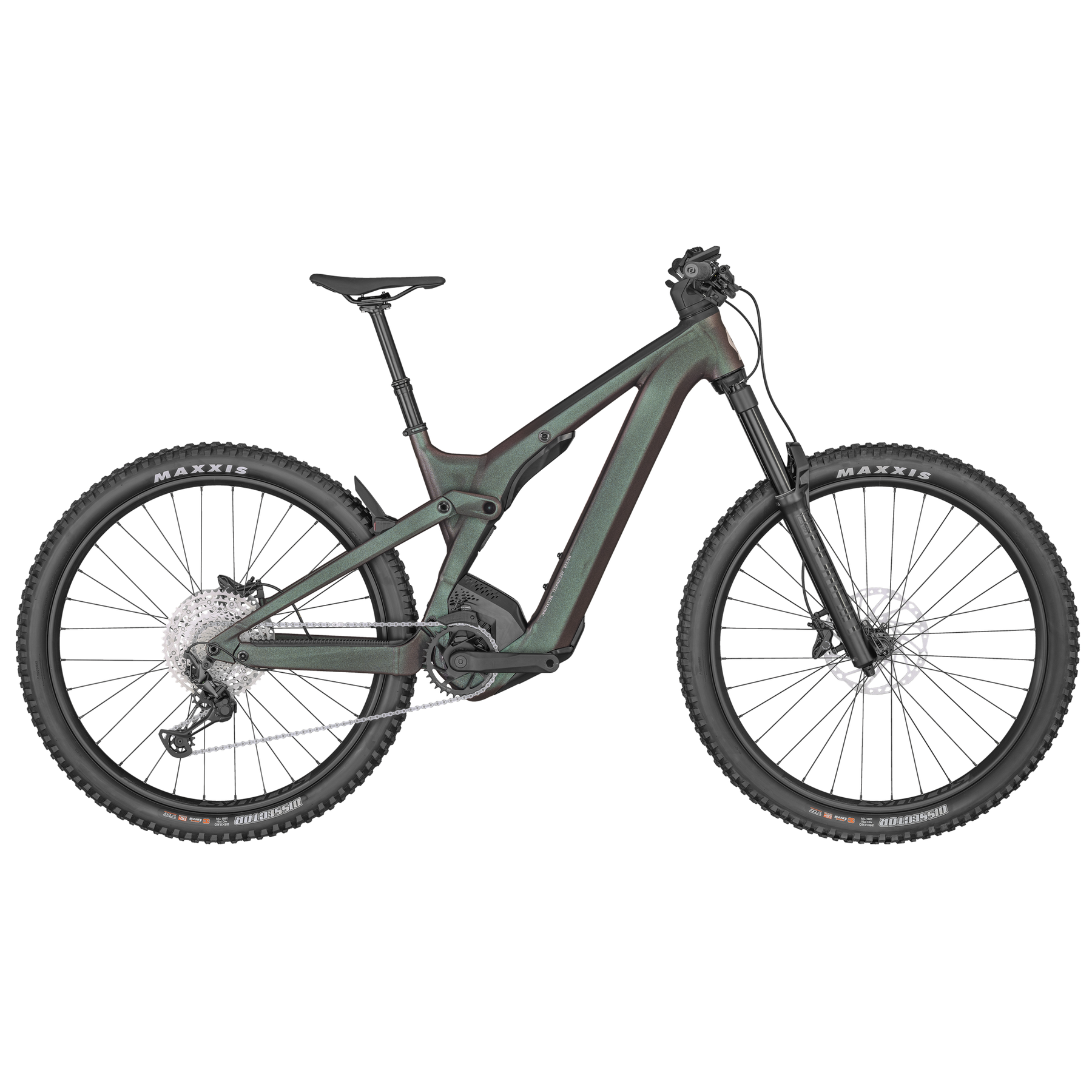

Scott Patron eRIDE 920 Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
The Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Alloy Frame & Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch SmartSystem / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable |
|---|---|
| fork | RockShox Domain Air, 15x110mm QR axle / 1.8" Tapered Steerer, Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike |
| rear-shock | FOX Float EVOL eRIDE Trunnion, 3 modes / Lockout-Trail-Descend, DPS / Reb. Adj., Travel 160mm / 205x60mm |
| derailleur | Shimano XT / 12 Speed |
| shift-levers | Shimano SL-M6100 |
| front-derailleur | |
| brake-front | SRAM DB8 4 Piston Disc |
| brake-rear | SRAM DB8 4 Piston Disc |
| brake-disc-front | SRAM Centerline CL rotor 200mm |
| brake-disc-rear | SRAM Centerline CL rotor 200mm |
| wheelset | |
| rims | Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready |
| tire-front | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| tire-rear | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| hub-front | Shimano HB-MT410-B CL / 15x110mm |
| hub-rear | Shimano FH-MT410-B CL / Boost 12x148mm |
| spokes | Stainless Black |
| handlebar | Syncros Hixon 2.0 / Alloy 6061D.B., 12mm rise / 9° / 780mm |
| stem | Syncros AM2.0 / 6061 Alloy, 31.8mm / 4° / 1 1/8" |
| headset | Acros / 1.8", ZS66 OD74 / integr. Cable |
| grips | Syncros Endurance lock-on grips |
| saddle | Syncros Tofino 2.5 Regular |
| seat-post | Syncros Duncan Dropper Post 2.5, Size S 125mm / Size M 150mm / Size L 170mm Size XL 200mm |
| crankset | FSA CK-745 165mm / 34T |
| bottom-bracket | |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano CS-M6100 / 10-51T |
| Pedals | |
| motor | Bosch Performance CX, EU: 25kmh / INT: 20mph |
| battery | PowerTube 750Wh |
| display | Bosch LED Remote & Kiox 300 |
| charger | 4A Charger |
Specifications
| stack | 635 |
|---|---|
| reach | 433 |
| seat-tube-length | 411 |
| seat-tube-angle | 77 |
| top-tube-length | 579 |
| head-tube-length | 120 |
| head-tube-angle | 64,5 |
| stem-length | 40 |
| handlebar-width | 780 |
| wheelbase | 1222 |
| standover | 766 |
| chainstay-length | 454 |
| fork-rake | 42 |
| bottom-bracket-height | 347 |
| bottom-bracket-drop | 30 |
